Product: 3diode & 5diode , 5050 Ip65 Signage Module
These module are use mostly on replacement , as they are consider the ancestor of signage module so some project if need to get replacement can looks at these module for option
Bright, durable and easy to install — these compact LED modules are built for signage, channel letters, lightboxes and general backlighting where even, high‑efficiency illumination and weather resistance are required.
Key benefits
- Crisp, uniform light: 3 x 5050 SMD diodes with a wide-angle lens deliver even light distribution and reduced hot spots.
- Weatherproof reliability: IP65 resin‑sealed modules withstand rain, dust and outdoor conditions.
- Quick installation: pre-applied 3M double-sided tape plus simple wire connections make mounting fast and secure.
- Long life & stable color: up to 50,000 hours lifespan with good monochromatic stability and vivid color rendering (CRI ~70).
- Flexible configurations: available for 12V and 24V systems; modules can be linked for runs of any length.
Typical applications
- Illuminated channel letters and signs
- Lightboxes and advertising displays
- Cabinet and shelf lighting
- Architectural and accent lighting
- Retail displays and point-of-sale lighting
Technical highlights (select model data)
- Model QC‑MC02
- Power: 0.72 W per module
- Input: 12 V DC
- Luminous flux: 70 lm
- Color temperature: 6500 K
- Beam angle: 120°
- Size: 68 × 19 × 5.8 mm
- IP grade: IP65
- Lifespan: 50,000 hours
- Certifications: CE, RoHS, UL

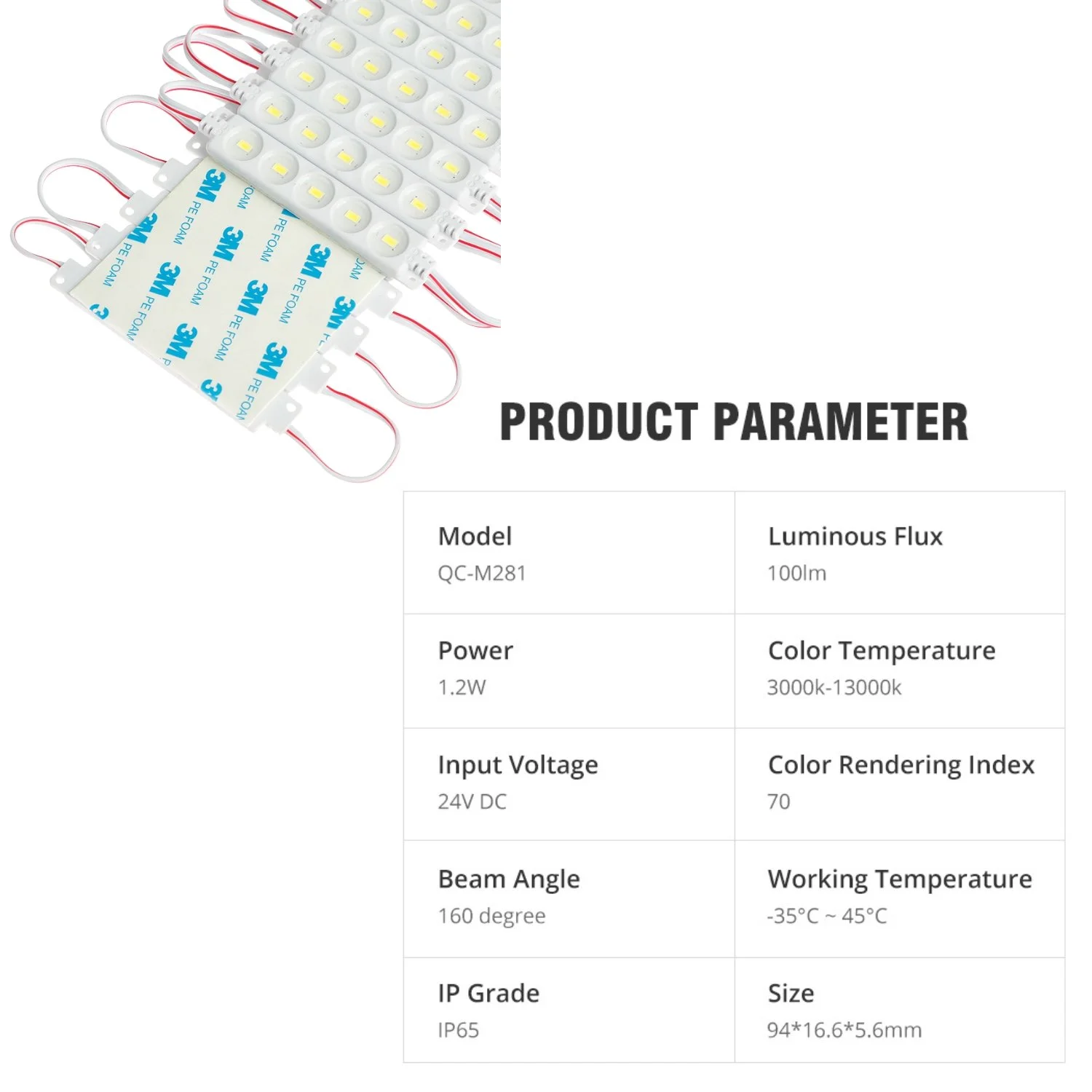

- Model QC‑M281
- Power: 1.2 W per module
- Input: 24 V DC
- Luminous flux: 100 lm
- Color temperature: 3000 K – 13000 K (options)
- Beam angle: 160°
- Size: 94 × 16.6 × 5.6 mm
- IP grade: IP65
- Working temp: -35°C to 45°C
Installation tips
- Clean and dry mounting surface for best adhesion.
- Observe polarity when wiring; use an appropriate regulated 12V/24V DC power supply sized to total wattage + 20% safety margin.
- Space modules evenly for uniform illumination; test the layout before final adhesion.
- Use IP‑rated connectors and seal terminations for outdoor applications to preserve IP65 protection.
Why choose these modules
They combine compact form, flexible voltage options and durable IP65 protection with high luminous efficiency — ideal when you need professional, long‑lasting backlighting with fast, low‑cost installation.
