ENDIzLED-86 Multi‑Colour LED Module
A compact, high-performance 70 x 70 mm multi‑colour LED module engineered for even backlighting and signage illumination. Featuring a wide beam, high color-rendering accuracy (CRI 95) and Bluetooth app control, the ENDizLED-86 delivers flexible, professional-grade lighting with reliable 36‑month warranty.
Key features:
- Compact 70 x 70 mm module — ideal for light boxes, signage, ceiling panels and soft-film backlighting.
- 6 W multi‑colour output with high CRI (95) for accurate, vibrant color reproduction.
- Wide beam angle (≈172°–175°) with PMMA lens for smooth, even light distribution and minimal hotspots.
- App, remote and controller compatibility — supports dimming and full color adjustment via the “Easy Control Whole House” app and Bluetooth configuration.
- Robust design with high-quality OSRAM light source (as shown in product materials).
- Long warranty: 36 months.

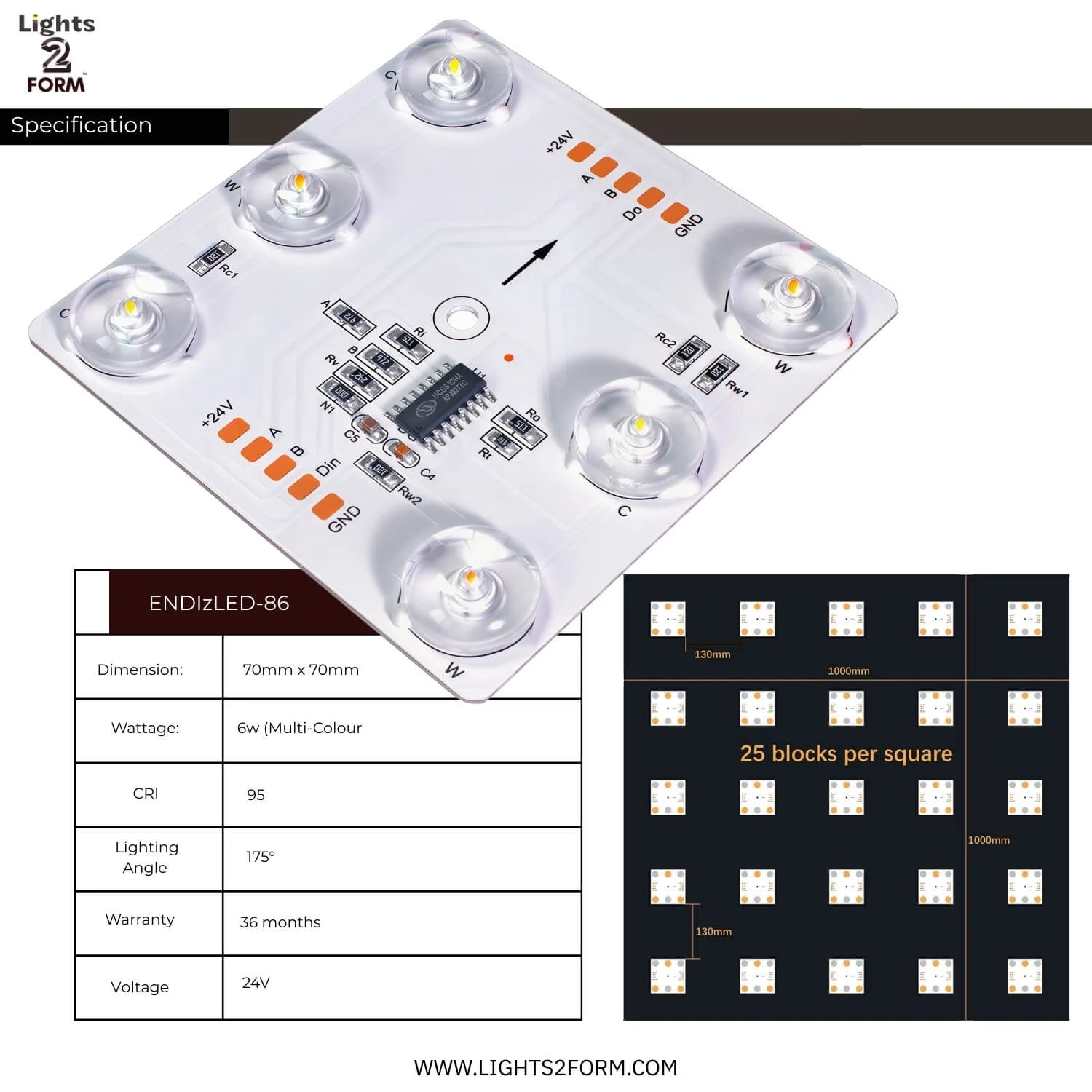

Technical specifications:
- Model: ENDizLED-86
- Dimension: 70 mm × 70 mm
- Wattage: 6 W (Multi‑Colour)
- CRI: 95
- Beam / Lighting angle: ~175°
- Voltage: 24 V DC
- Warranty: 36 months
Installation & electrical notes:
- Requires a 24 V constant-voltage LED driver. The driver connects to AC (e.g., 220 V) and feeds the 24 V chain.
- Driver capacity guidance: one driver can power up to 16 modules (maximum) and a minimum of 12 modules per driver for correct operation — follow driver manufacturer guidance and your layout.
- For best soft-film/backlit results, maintain at least 120 mm between the light sheet and the soft film.
- If cutting or reconfiguring runs, ensure wiring is correctly short-circuited as specified in the installation diagram so modules perform properly.
Control & setup:
- Download the “Easy Control Whole House” app, use “Add Device” and follow the Bluetooth pairing/configuration steps.
- After power cycling, the module’s driving power will enter configuration mode for Bluetooth discovery and app setup.
- Supports dimming, color selection and scene control via app, compatible controllers, or remote.
Safety & handling:
- Always switch off mains power before installation.
- Do not touch live conductive parts.
- Install according to local electrical codes and, if unsure, consult a qualified electrician.
Recommended applications:
- Retail and advertising light boxes
- Architectural and display backlighting
- Ceiling or panel indirect lighting
- Signage and channel letters
