ENDIzLED-230 — Closet PIR Sensor for LED Strip

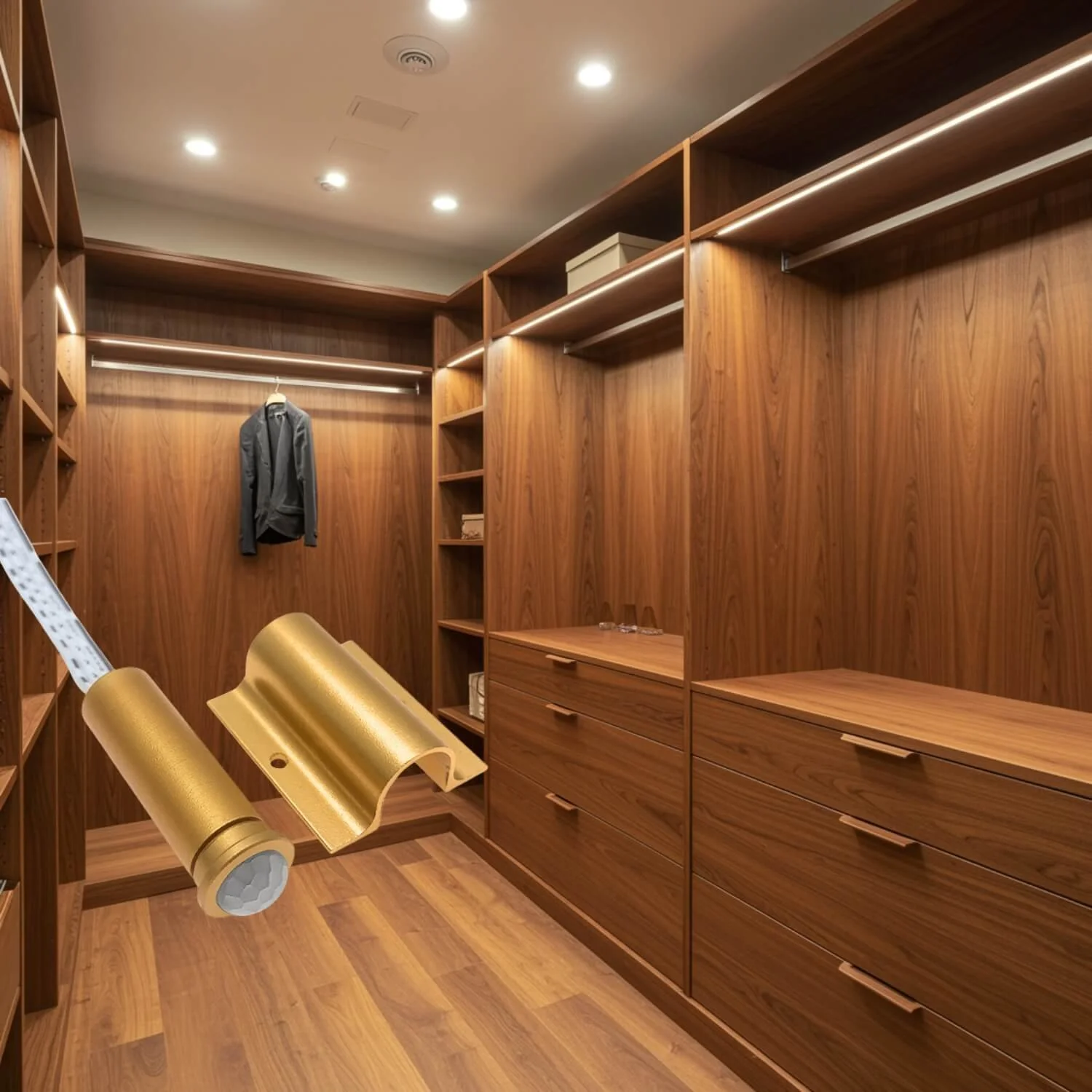

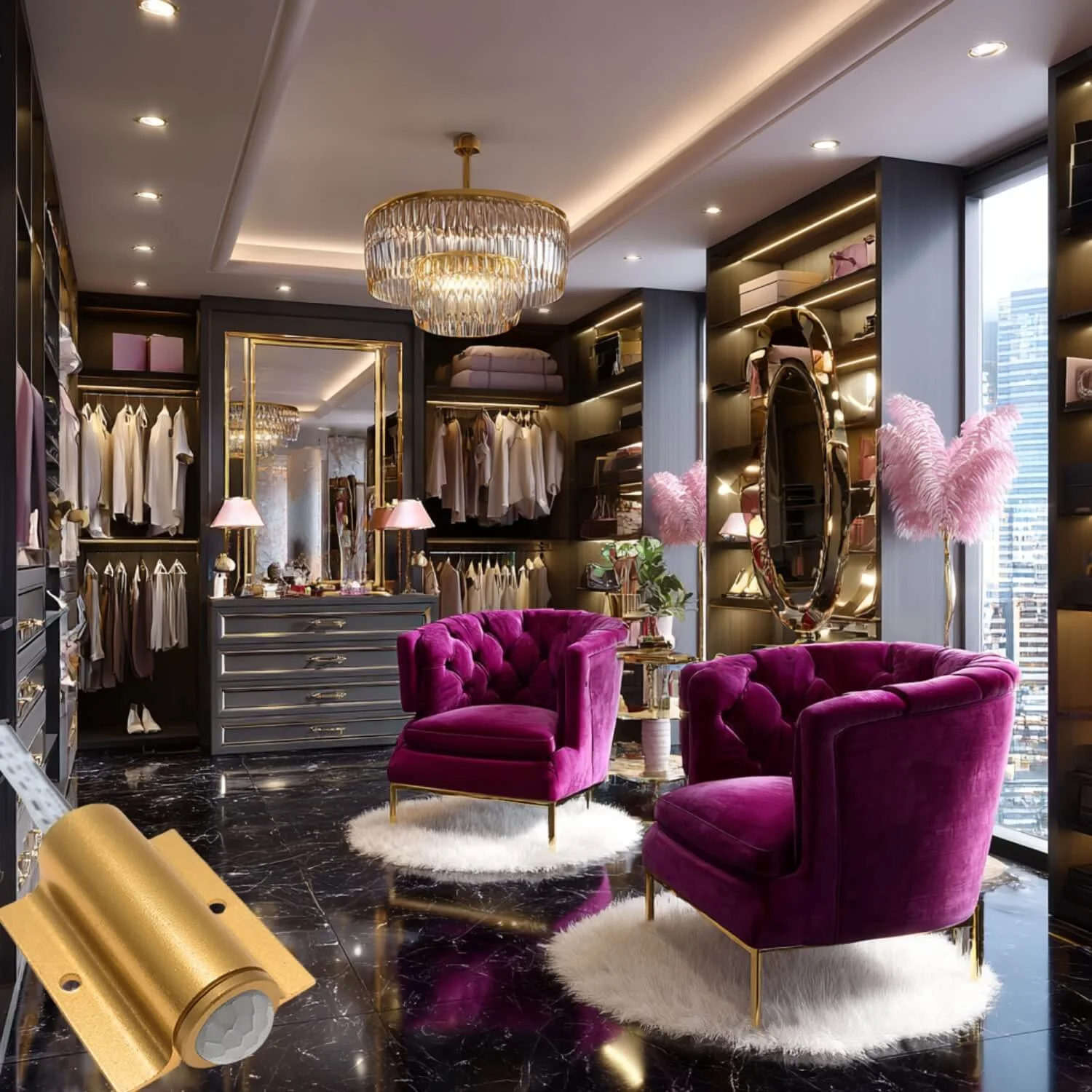

- The ENDIzLED-230 is a compact PIR motion sensor designed for under-cabinet and closet LED strip applications. It automatically turns LED lighting on when motion is detected and off after you leave — perfect for kitchen cabinets, wardrobes, wine cabinets, display cases and other confined spaces.
Key benefits
- Hands-free convenience: automatic on/off with motion — no switches to fumble with.
- Energy saving: only powers LED strips when needed, helping extend strip life and reduce power use.
- Compact, neat installation: low-profile sensor and mounting bracket fit inside cabinets and small spaces.
- Clean finish options: available in black, silver and gold finishes to match fixtures.
Features
- Detection: Passive Infrared (PIR) motion sensor

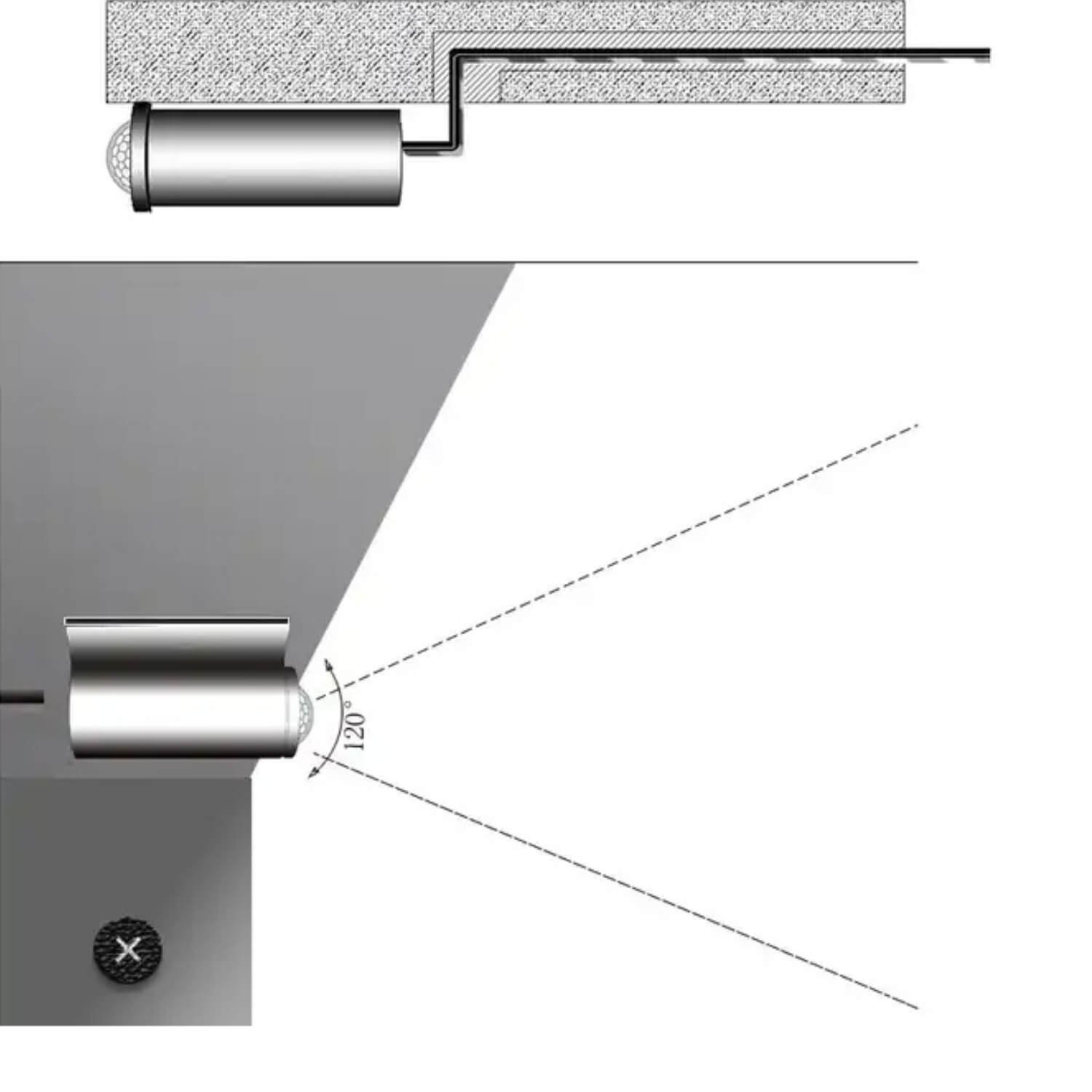

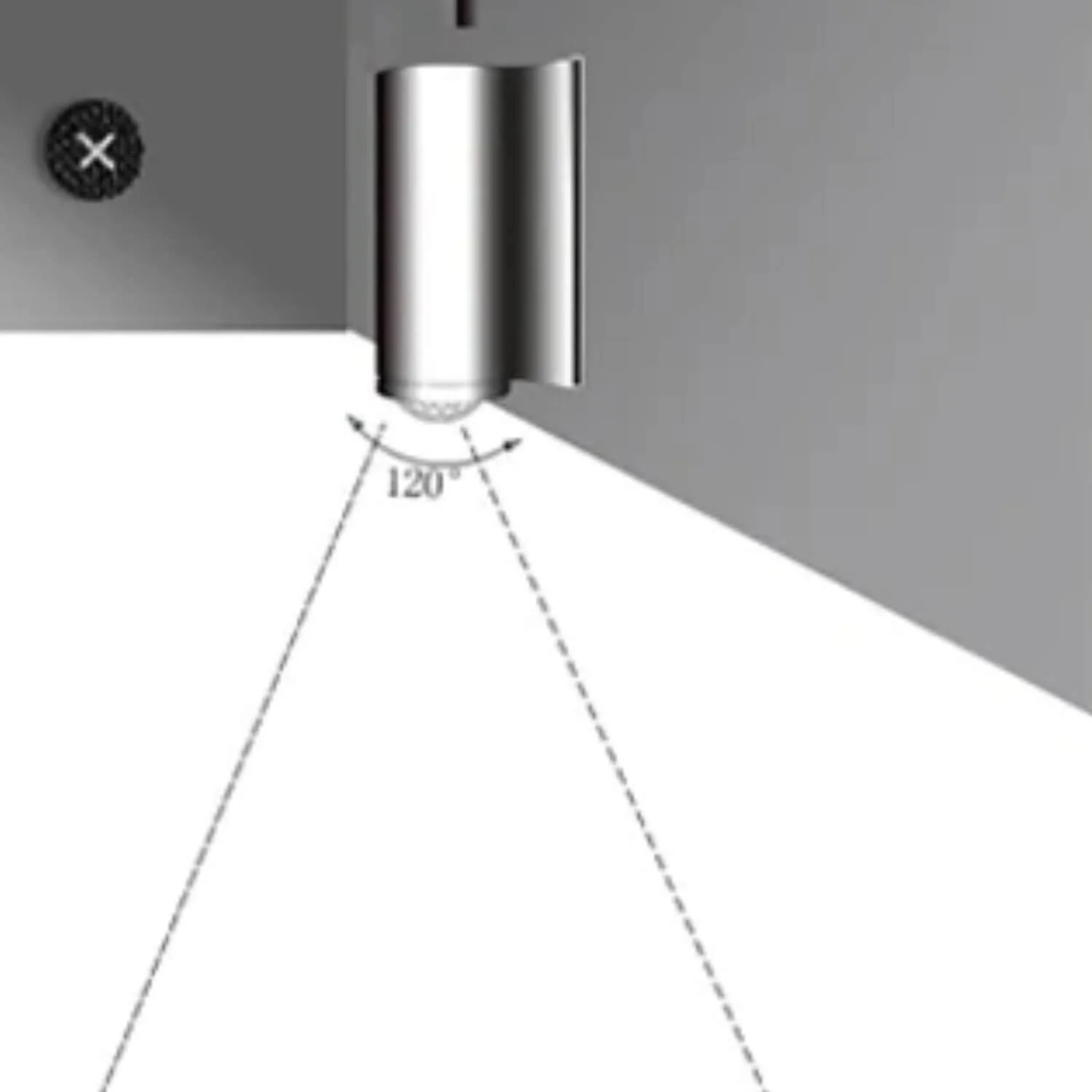

- Detection angle: ~120° (wide enough for cabinet/closet openings)
- Detection distance: 1–3 meters (adjust placement for best coverage)
- Operation: Turns lights on when presence detected; turns off after person leaves

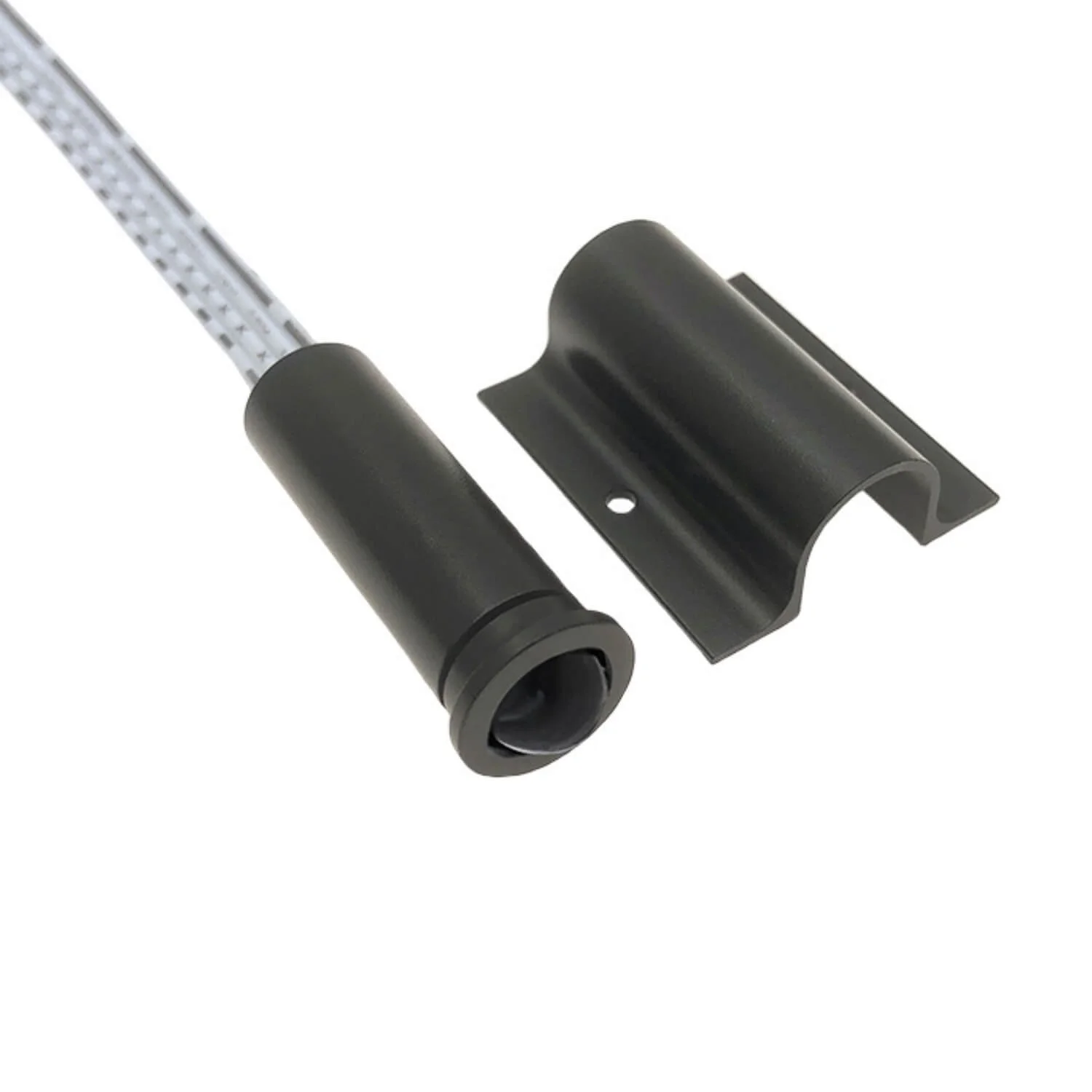

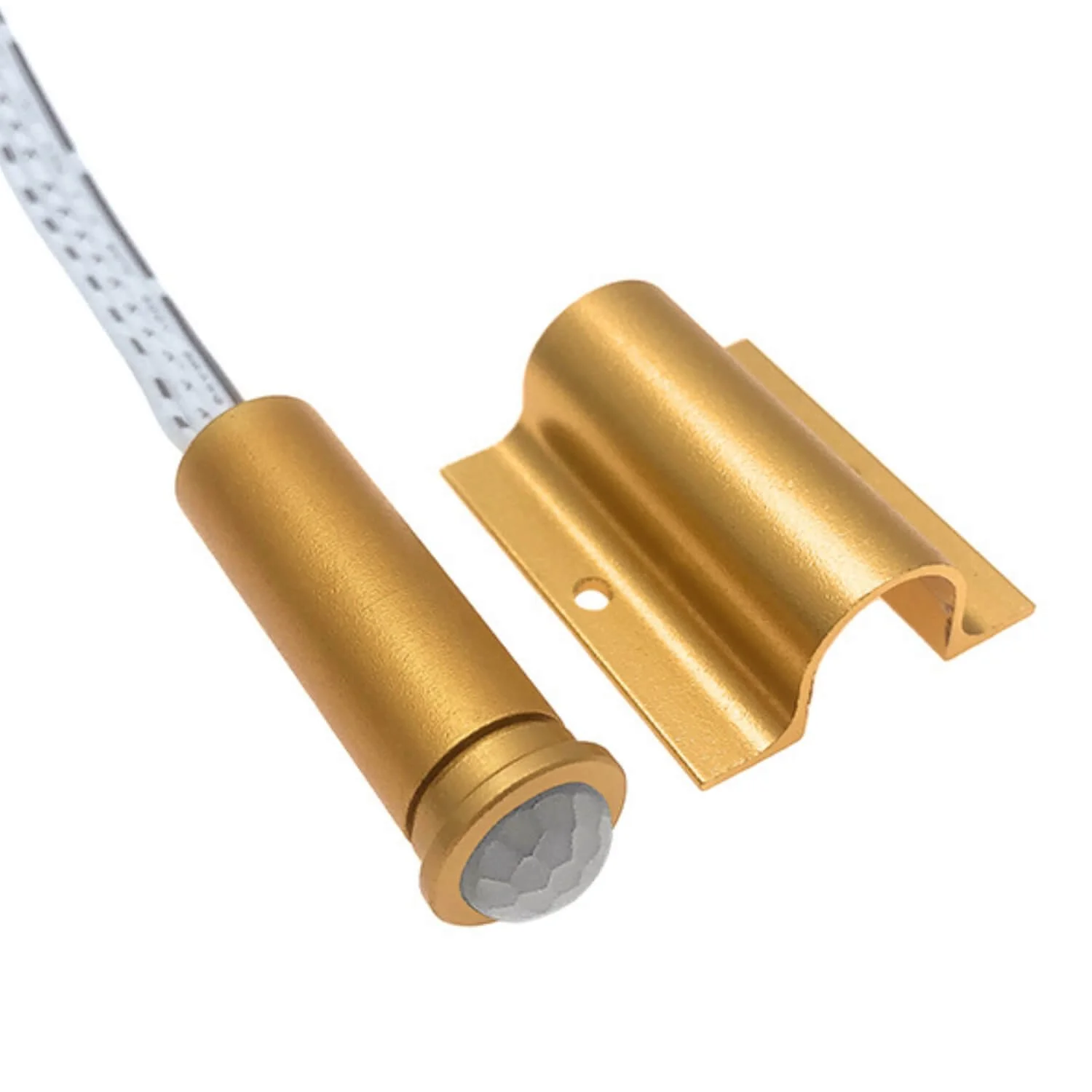

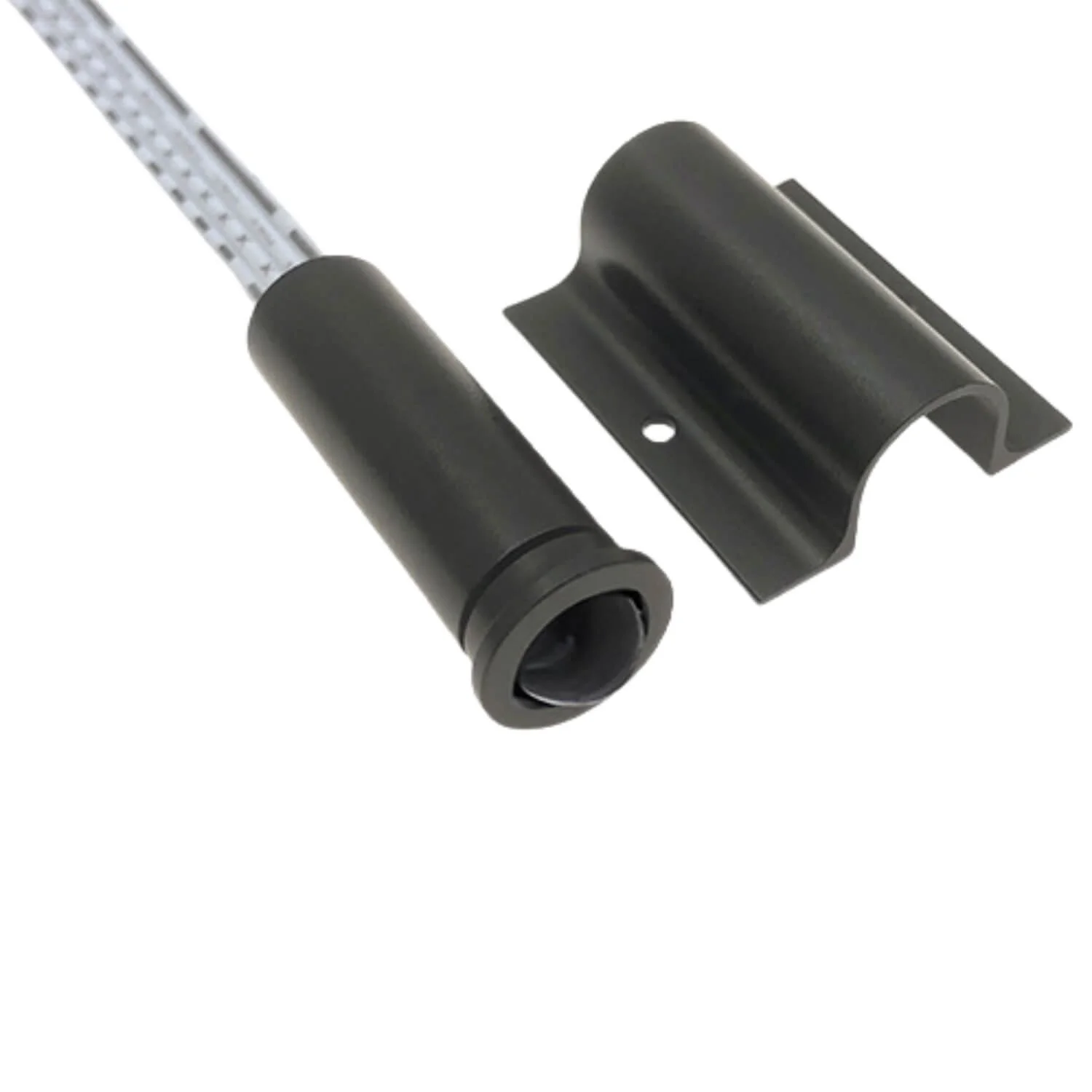

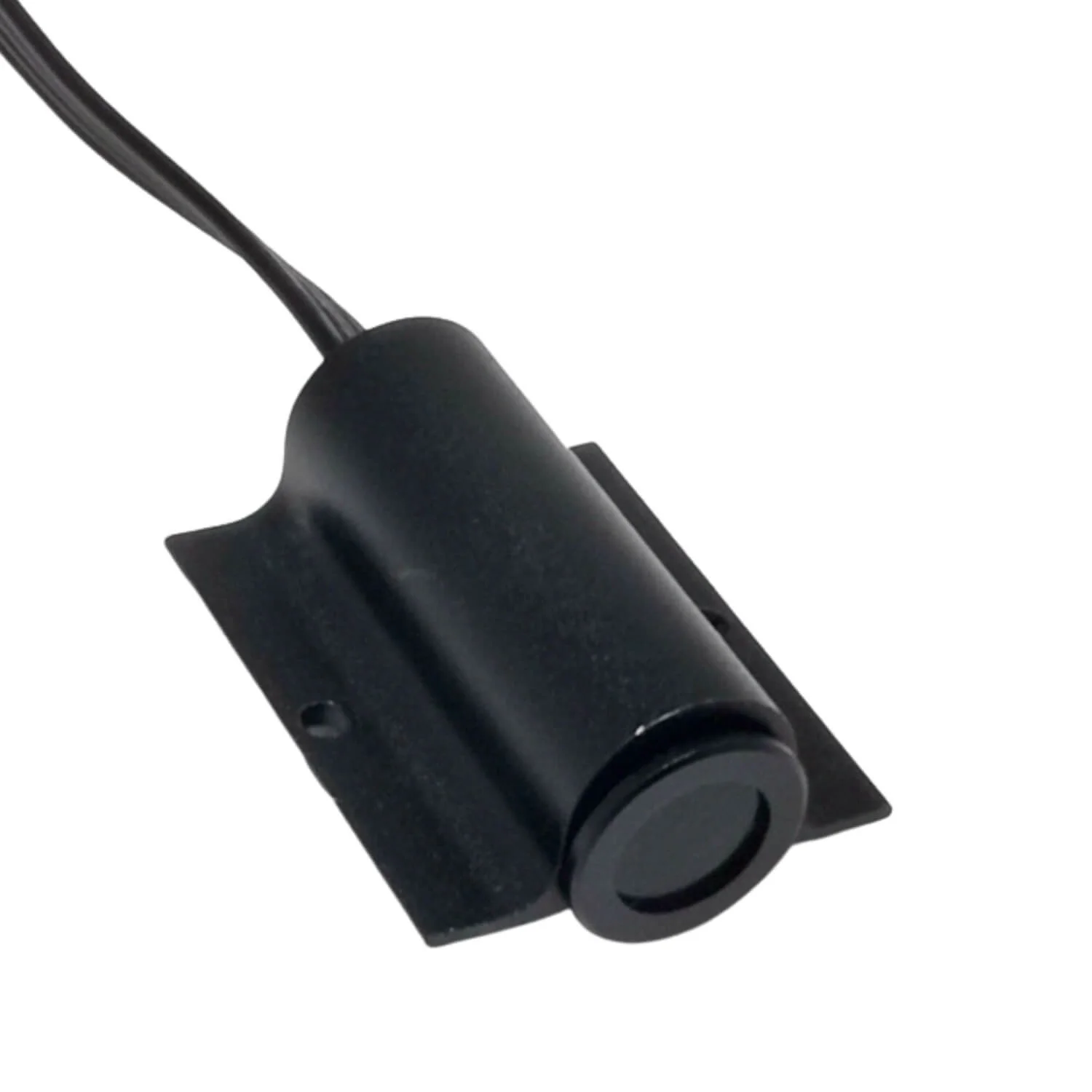

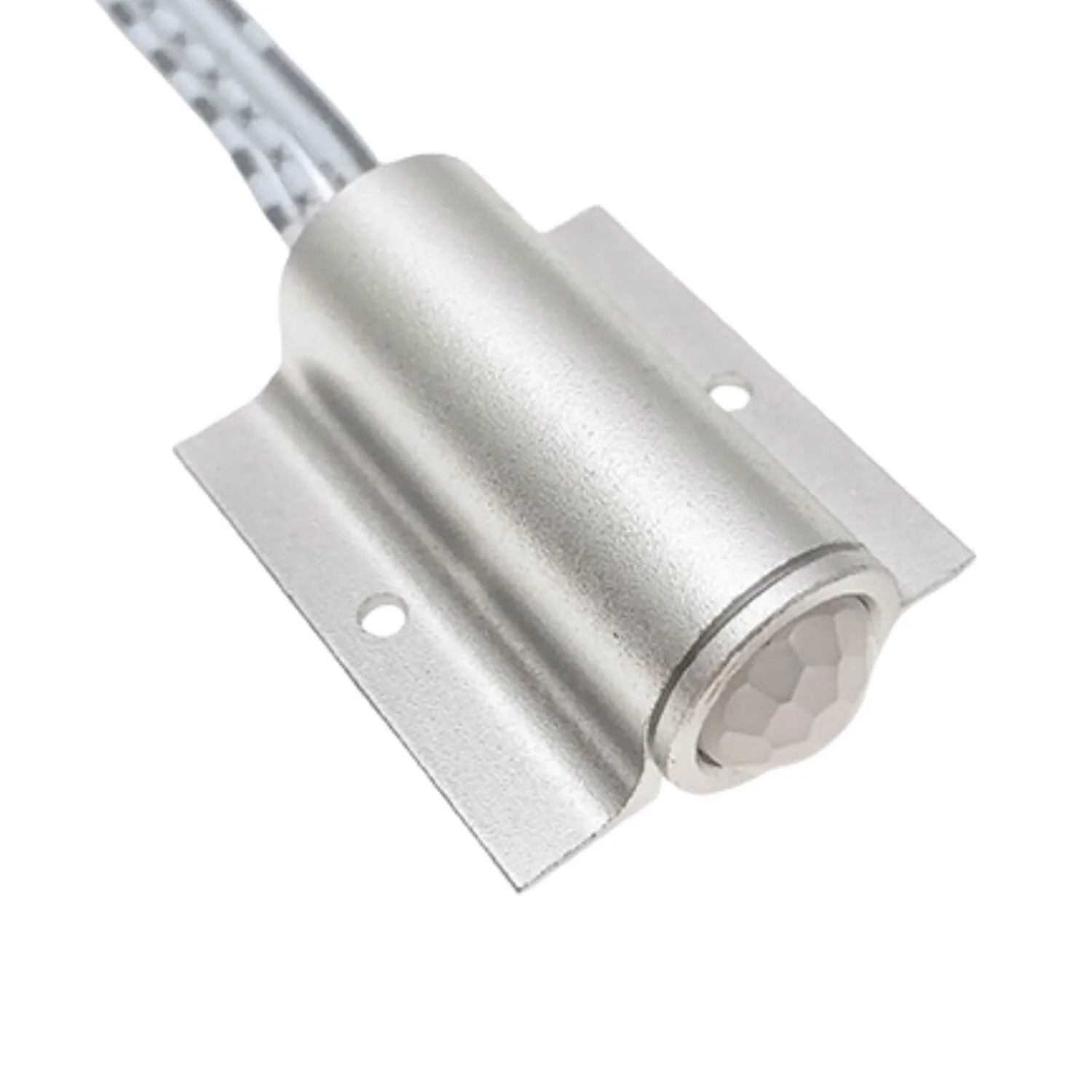

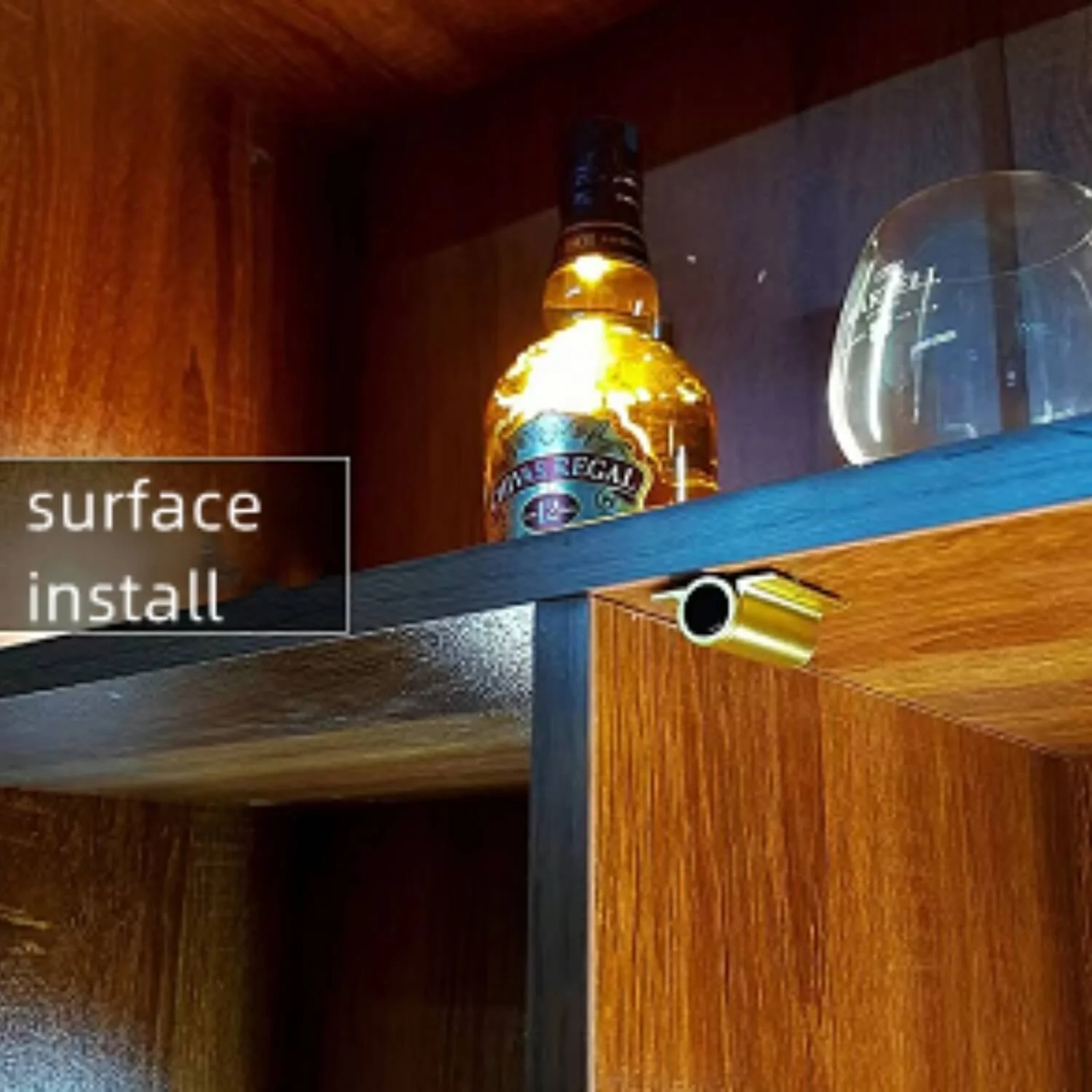

- Mounting: small screw-mount bracket included; discreet surface or edge placement
- Cable length: approx. 100 cm for flexible positioning

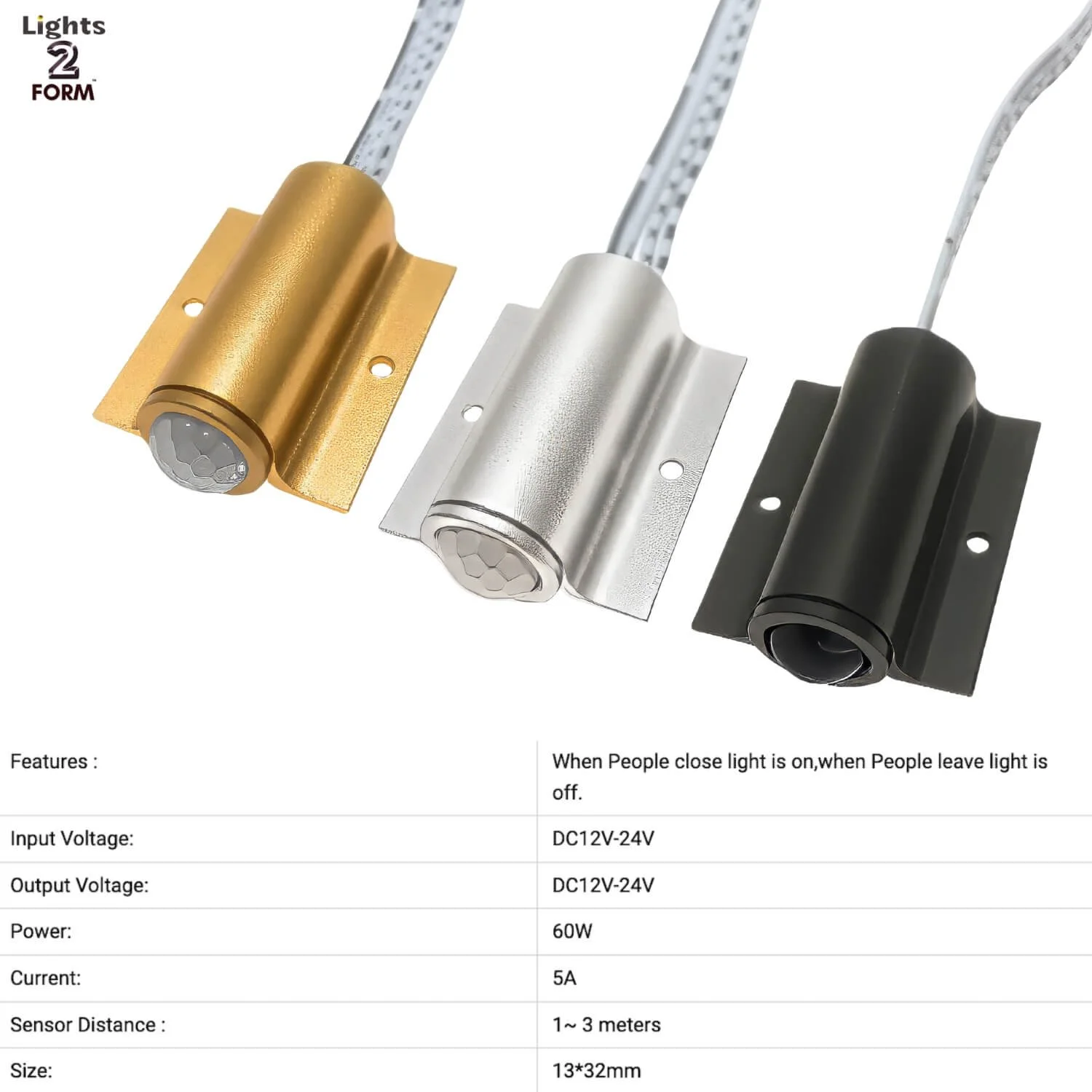

Technical specifications
- Model: ENDIzLED-230 (YD-PIR-D01)
- Input voltage: DC 12V–24V
- Output voltage: DC 12V–24V
- Max load: 60 W (max current 5 A)

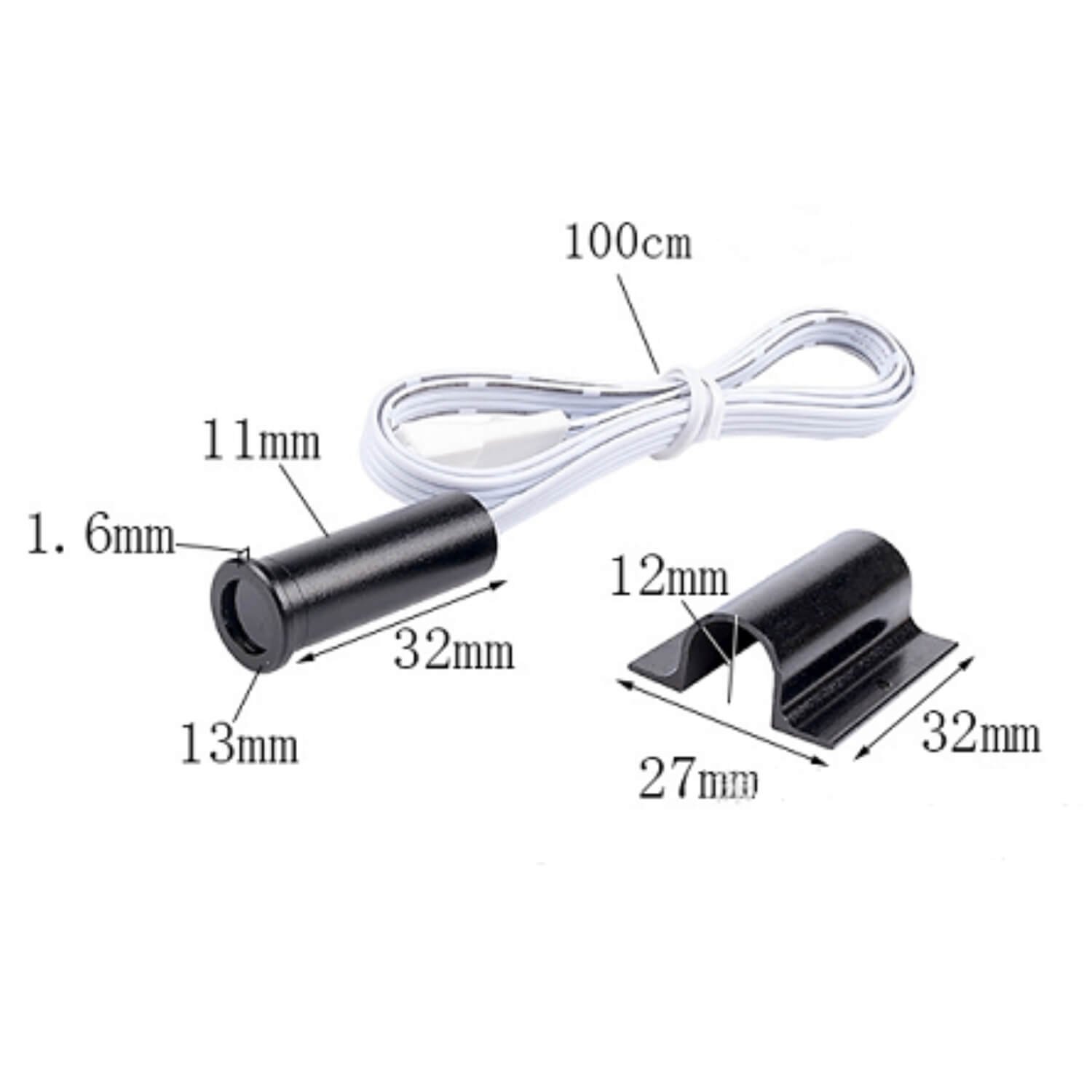

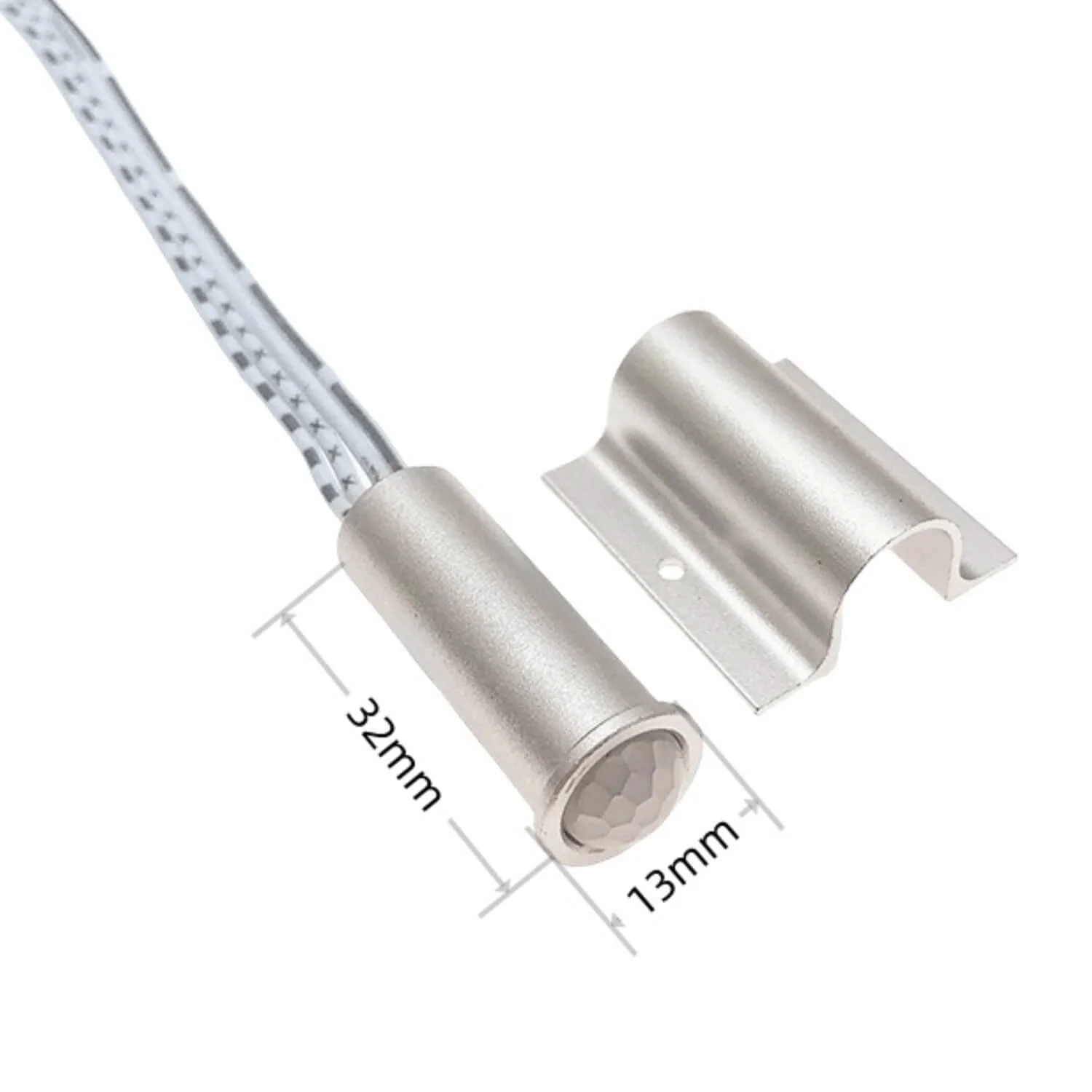

- Sensor size (body): approx. 13 × 32 mm
- Bracket size: approx. 32 × 27 mm (arch clearance ~12 mm)

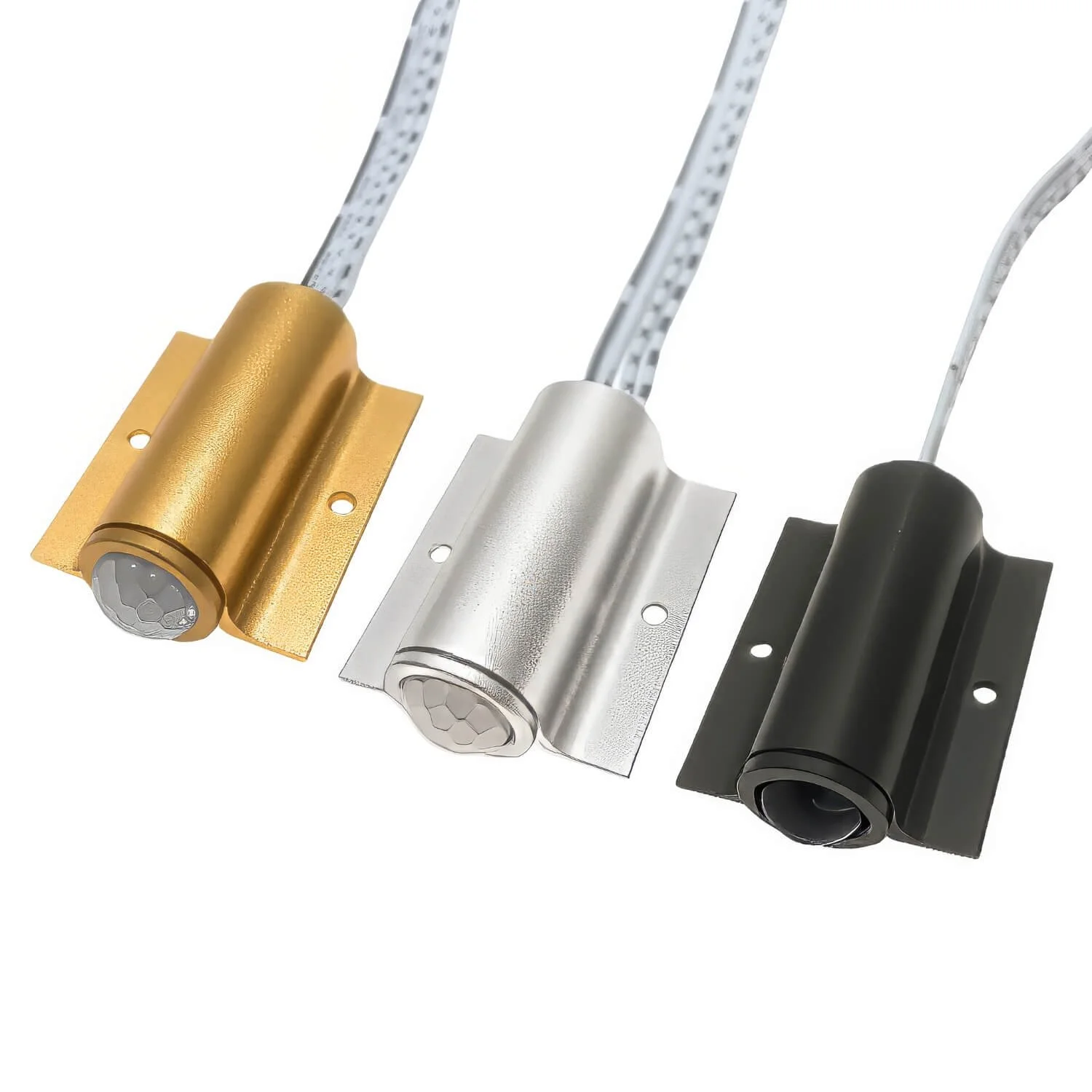

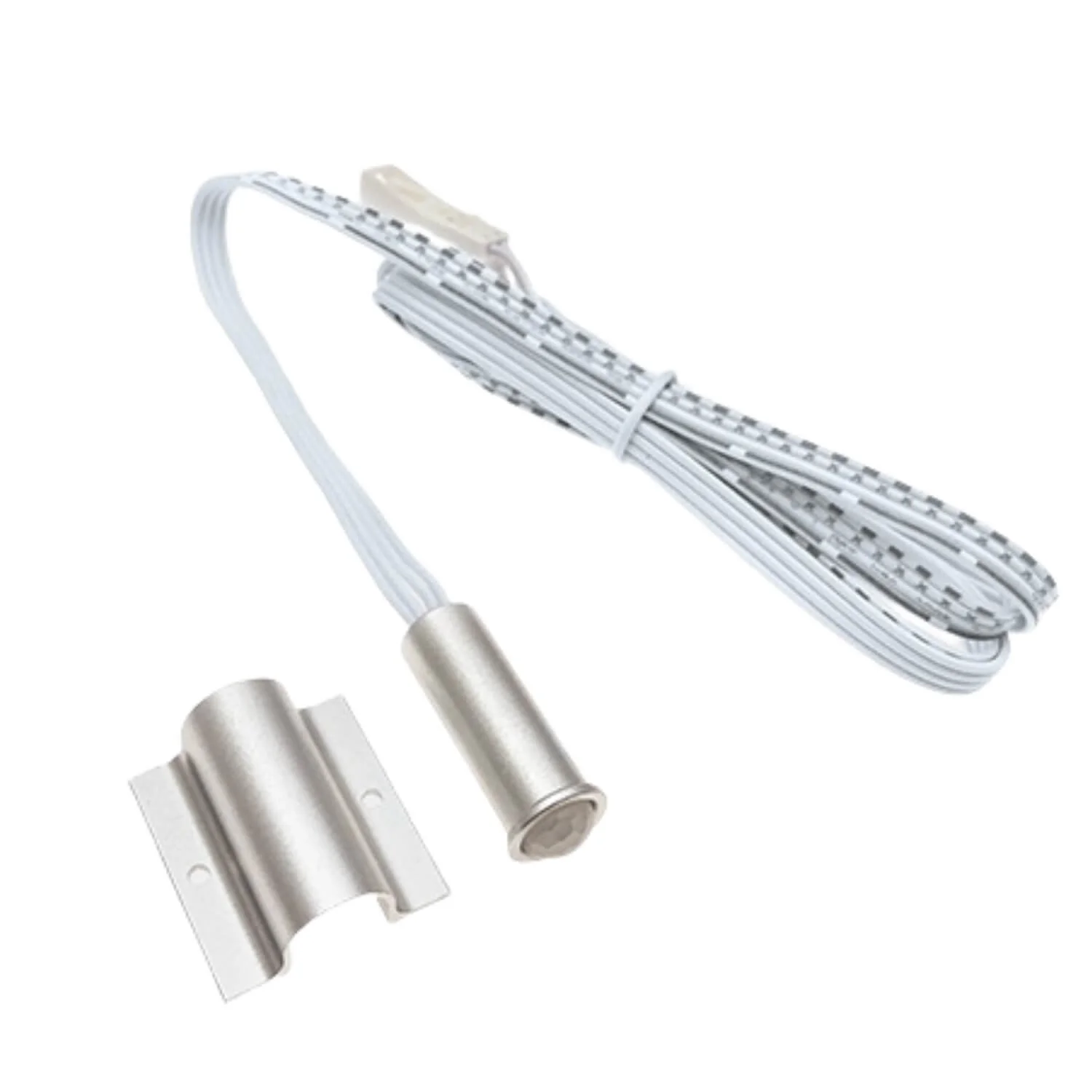

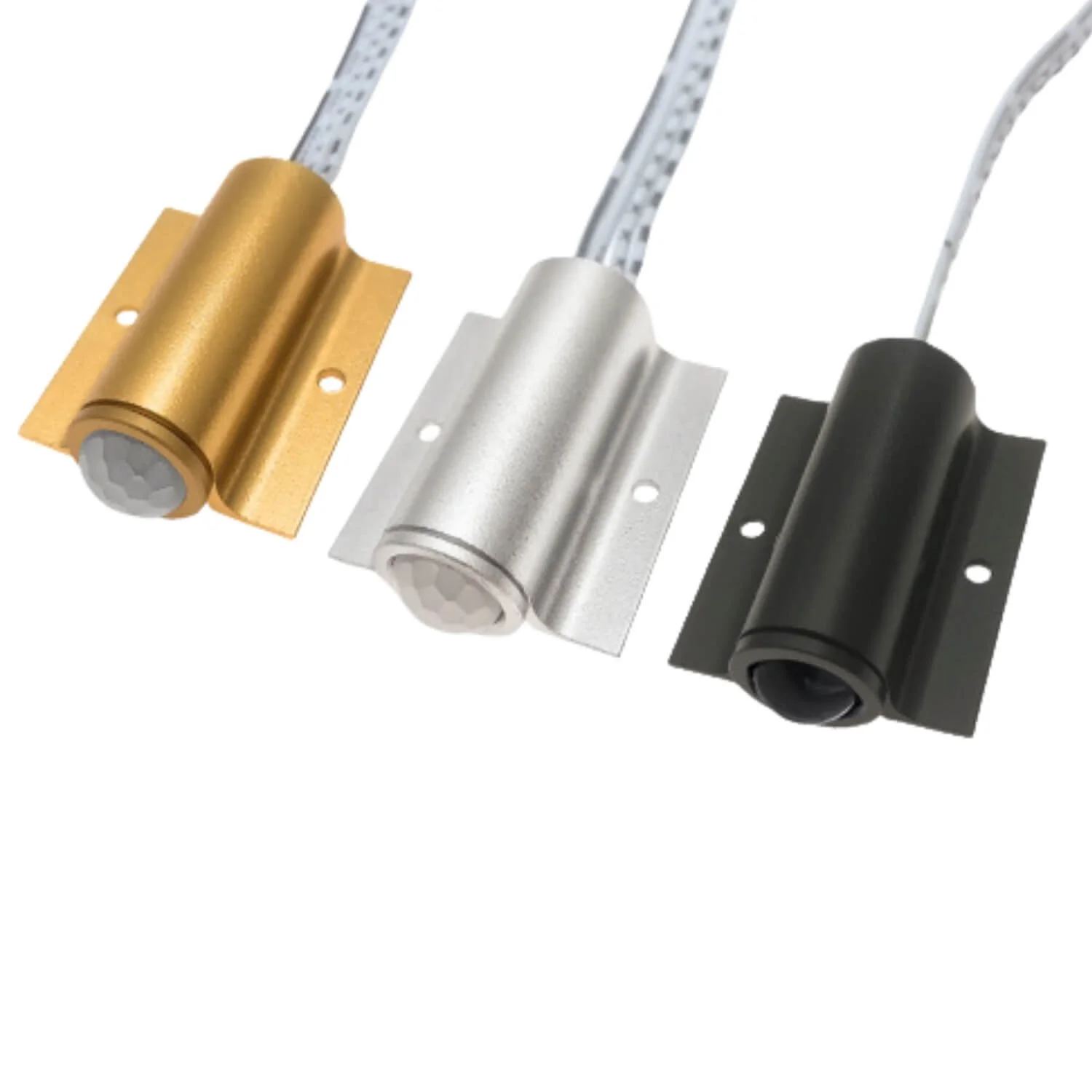

- Colors: Gold, Silver, Black
Compatibility & usage tips
- Compatible with most 12V and 24V LED strip installations — ensure the total strip wattage does not exceed 60 W (or 5 A).
- Connect the sensor in-line with the LED strip power feed between the power supply and the LEDs.

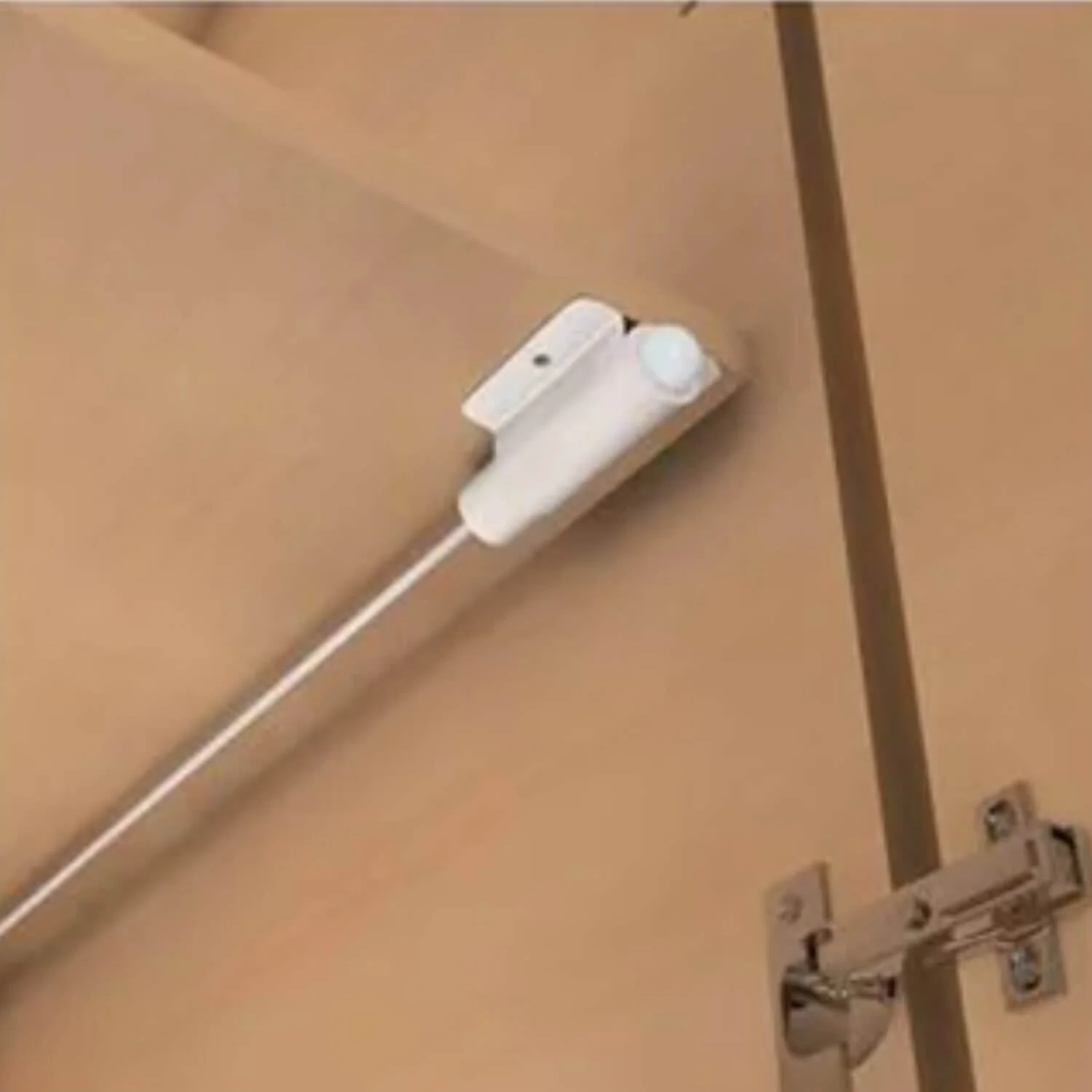

- Position the sensor at the cabinet opening or hinge area with line-of-sight to the space you want monitored for best performance.
- Avoid direct exposure to strong drafts, heating vents, or objects that could trigger false detections.

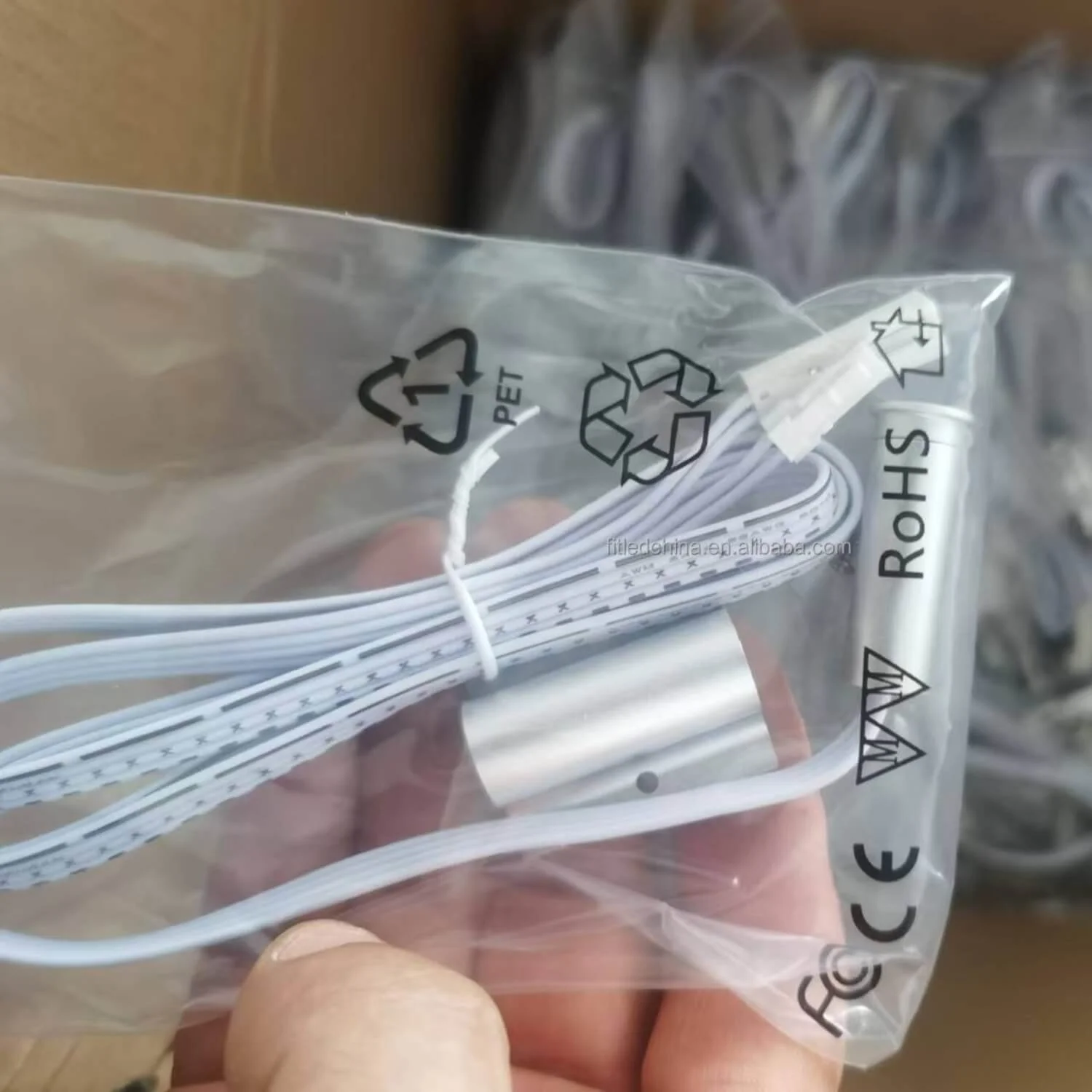

What’s in the box

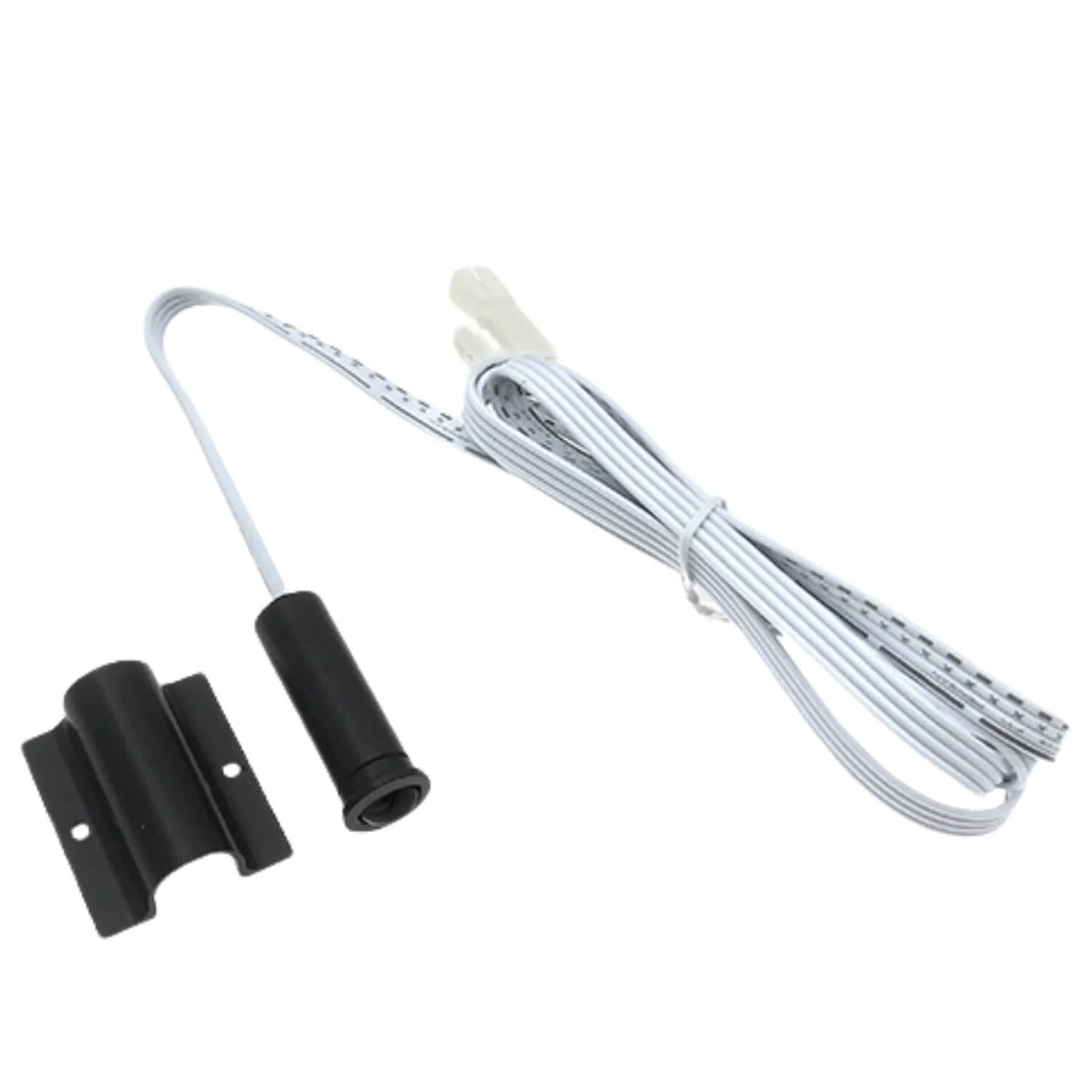

- ENDIzLED-230 PIR sensor (with 100 cm cable)
- Mounting bracket (screws not always included — check listing)
- Quick install guide
