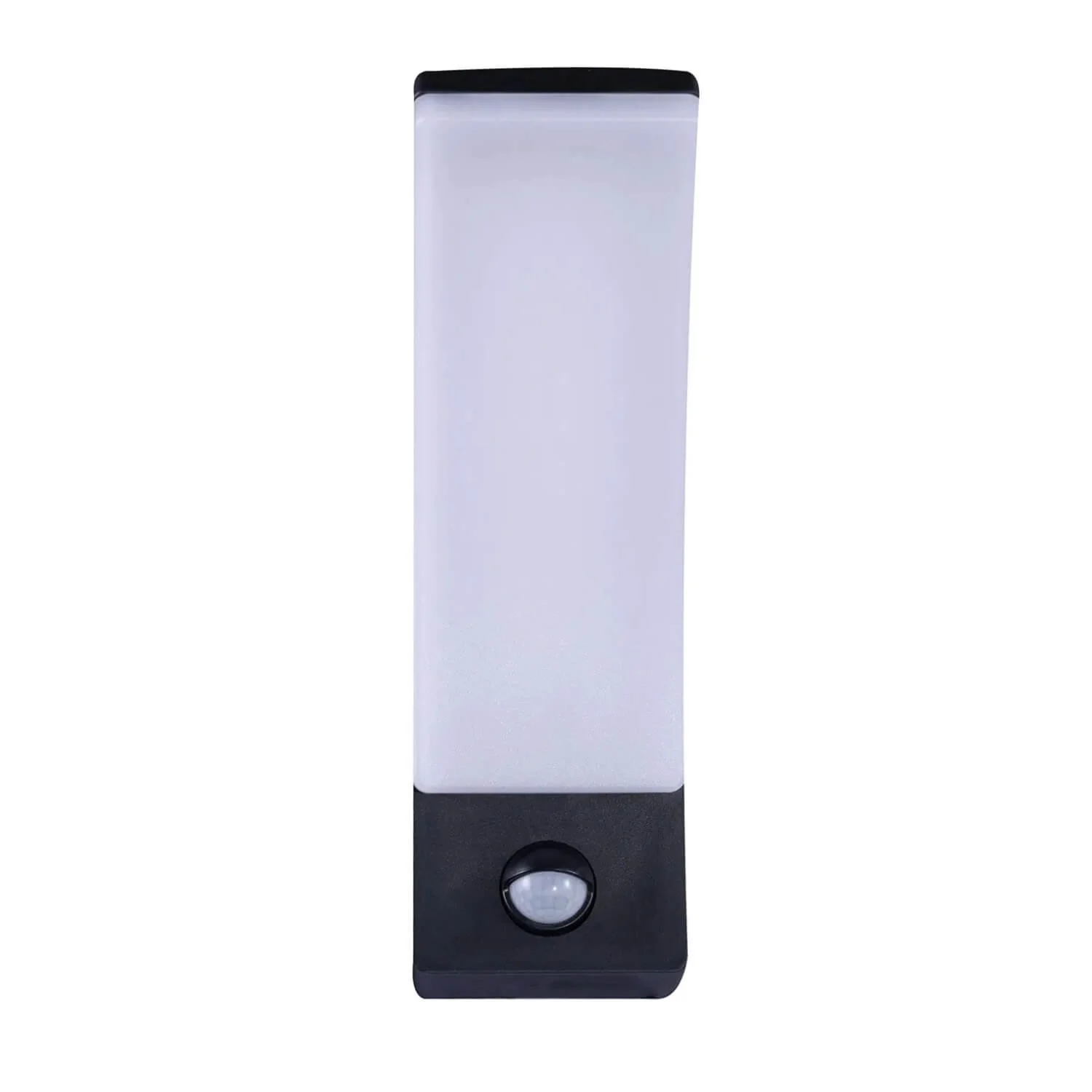

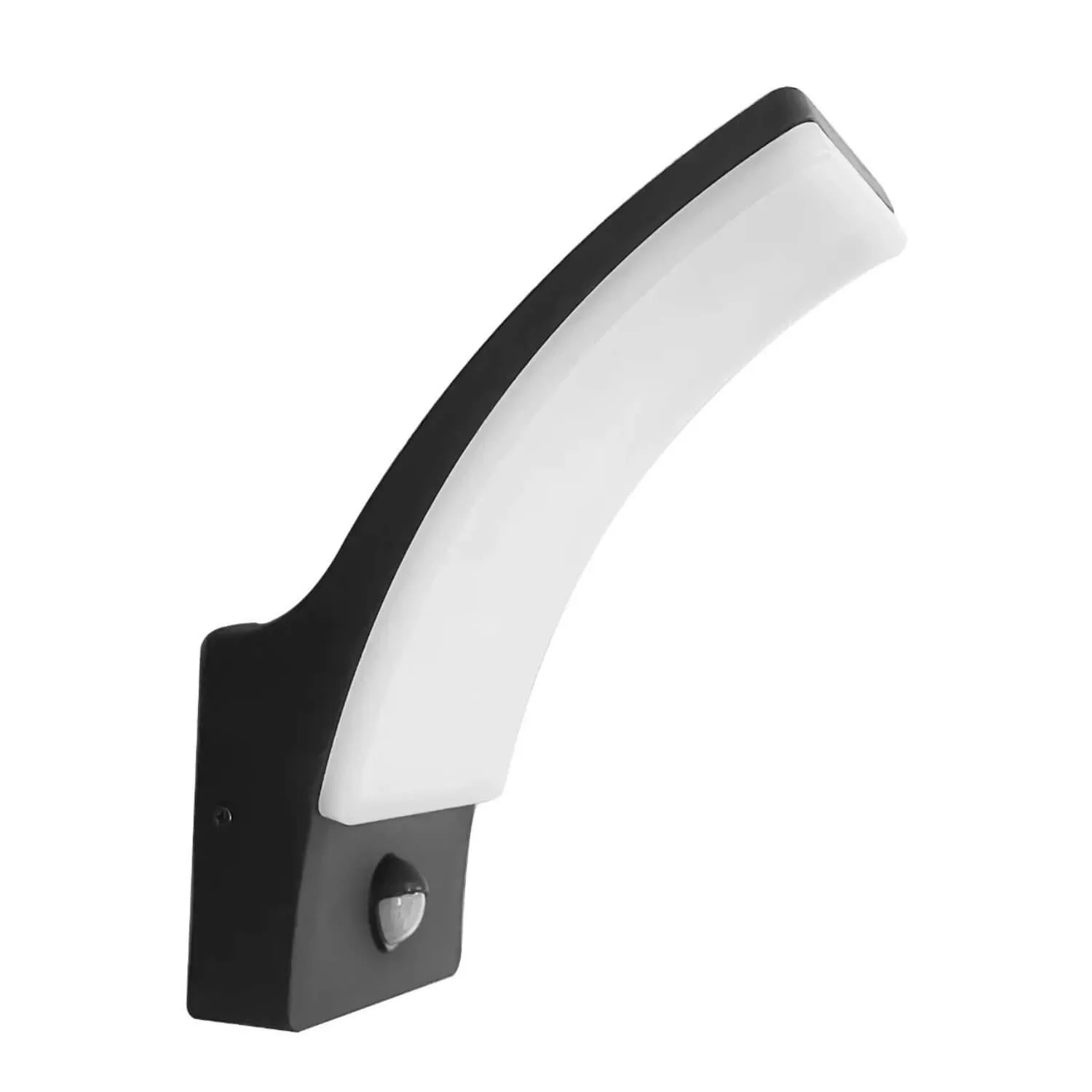

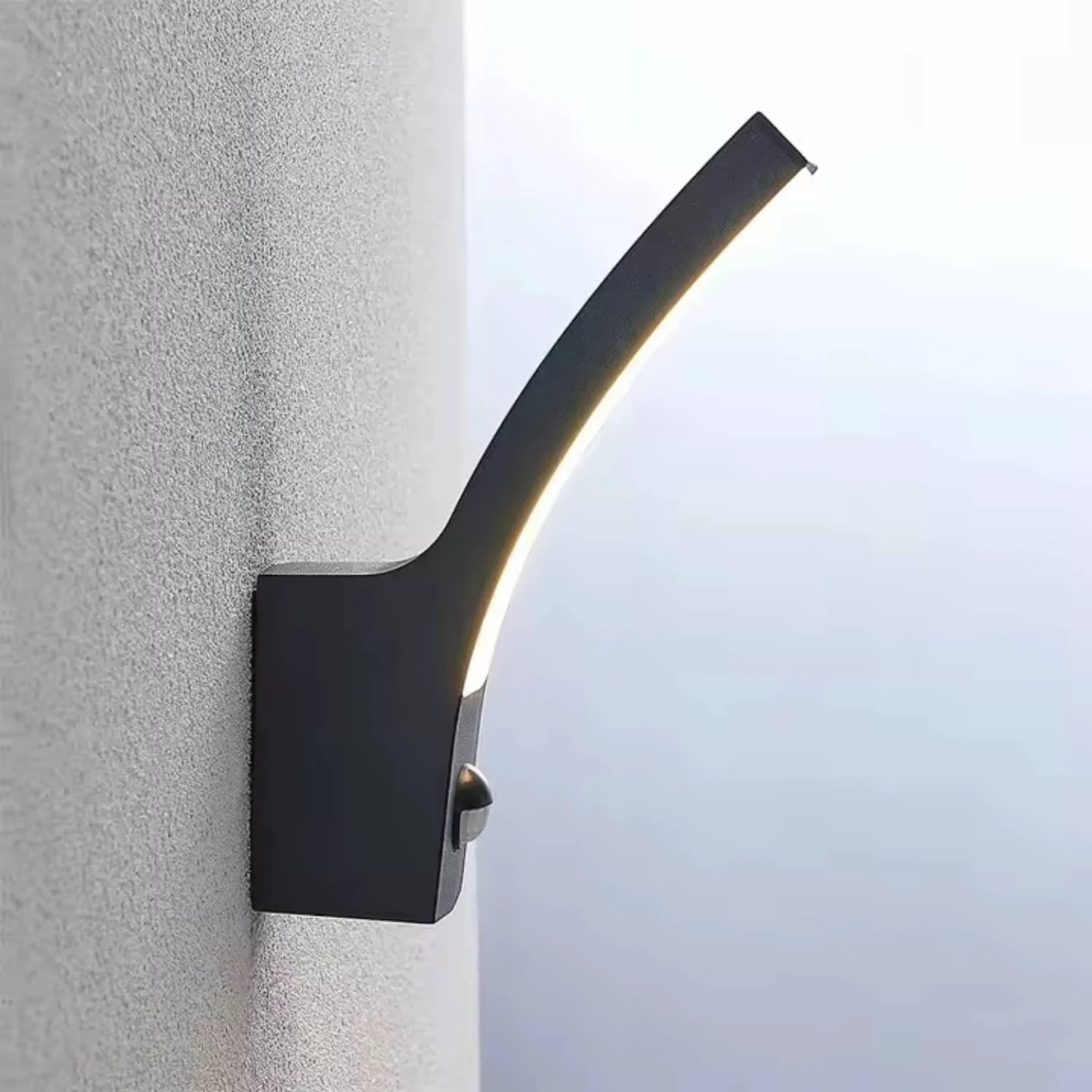

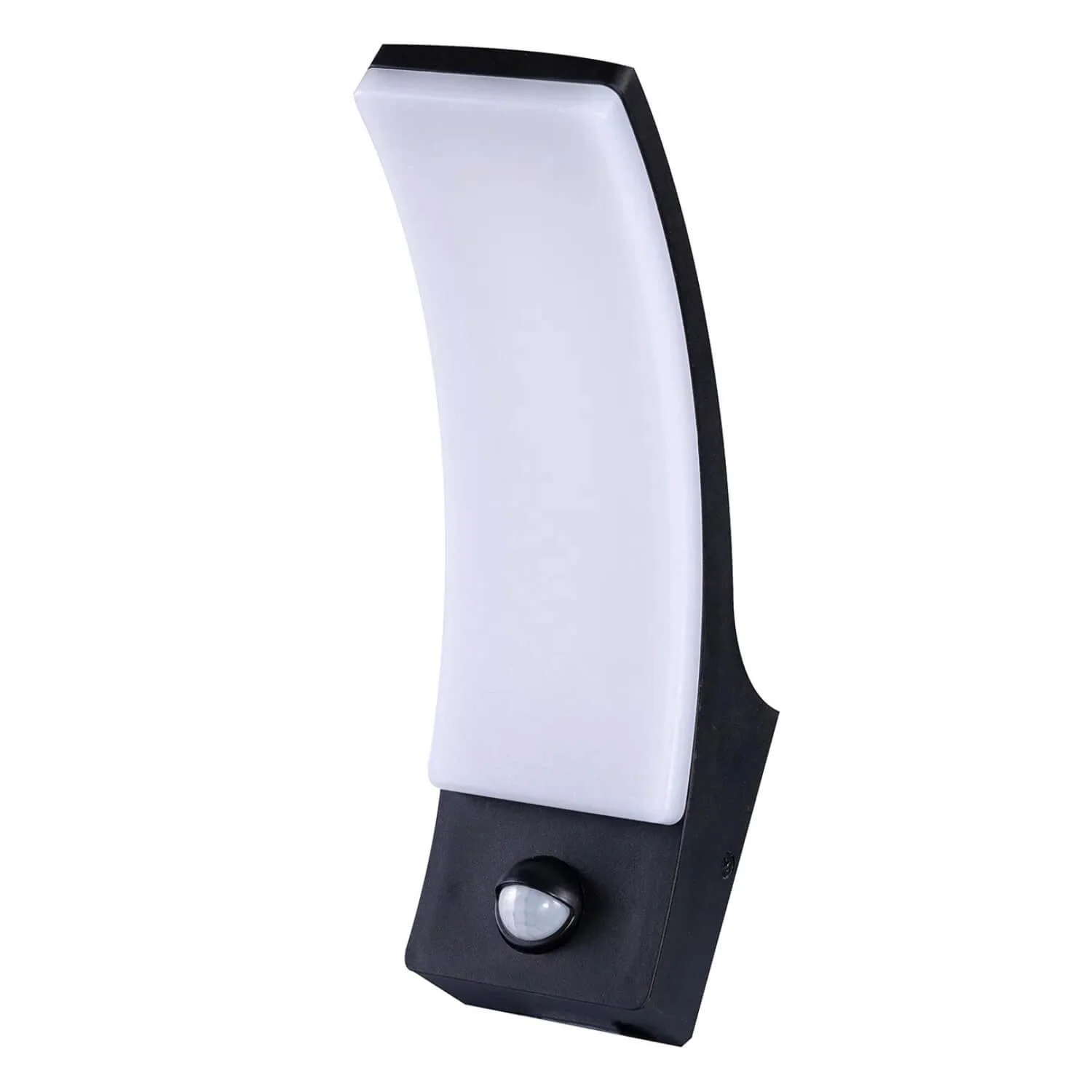

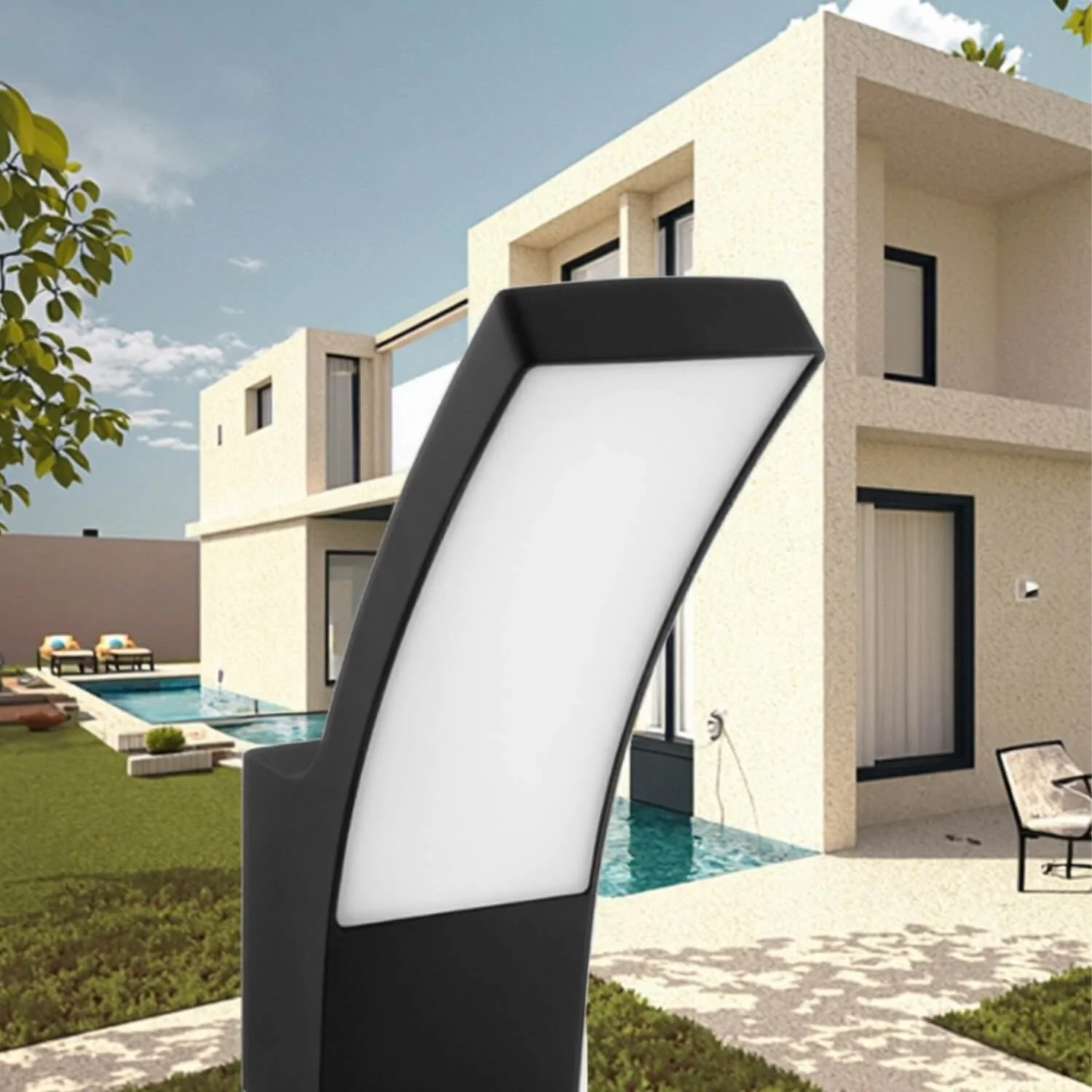

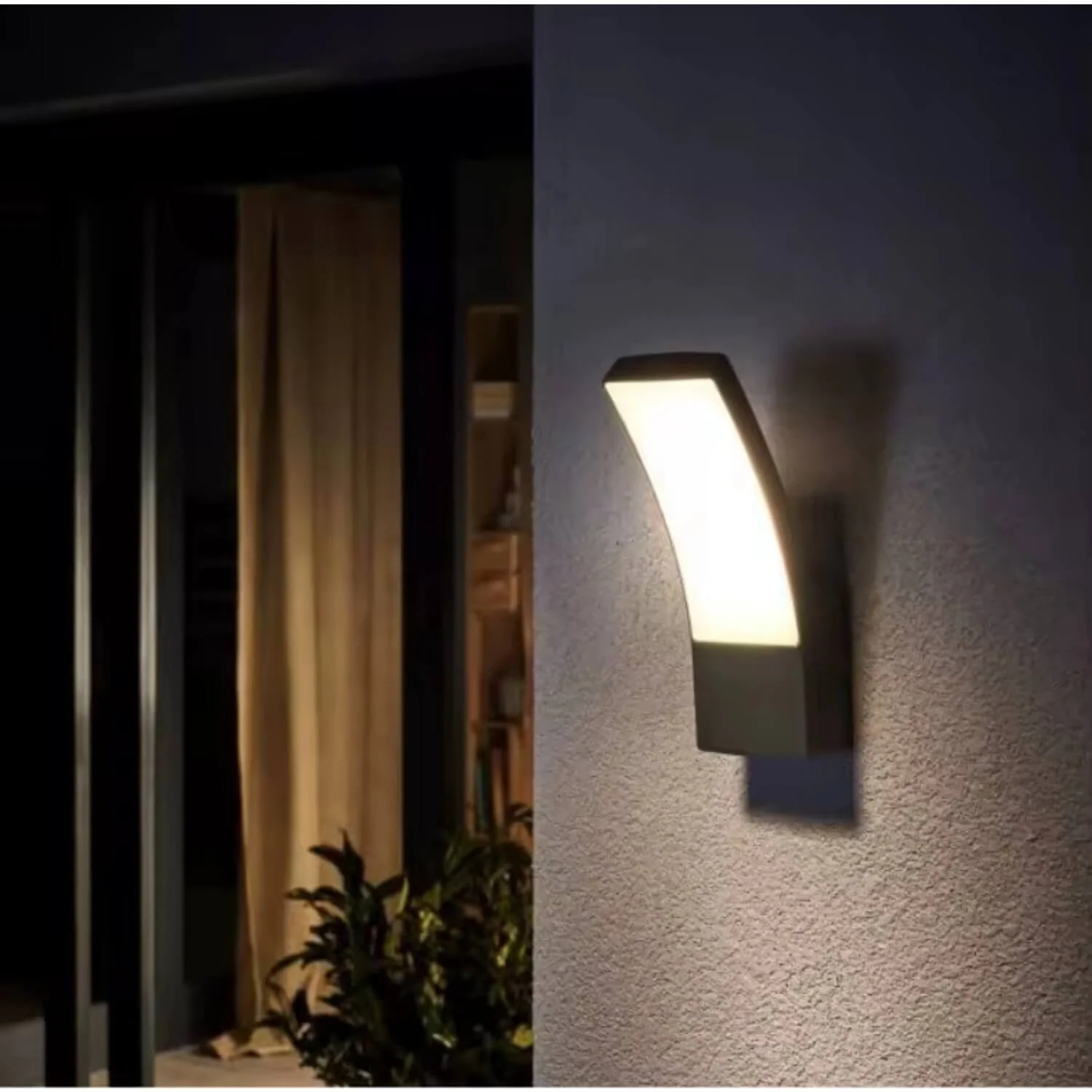

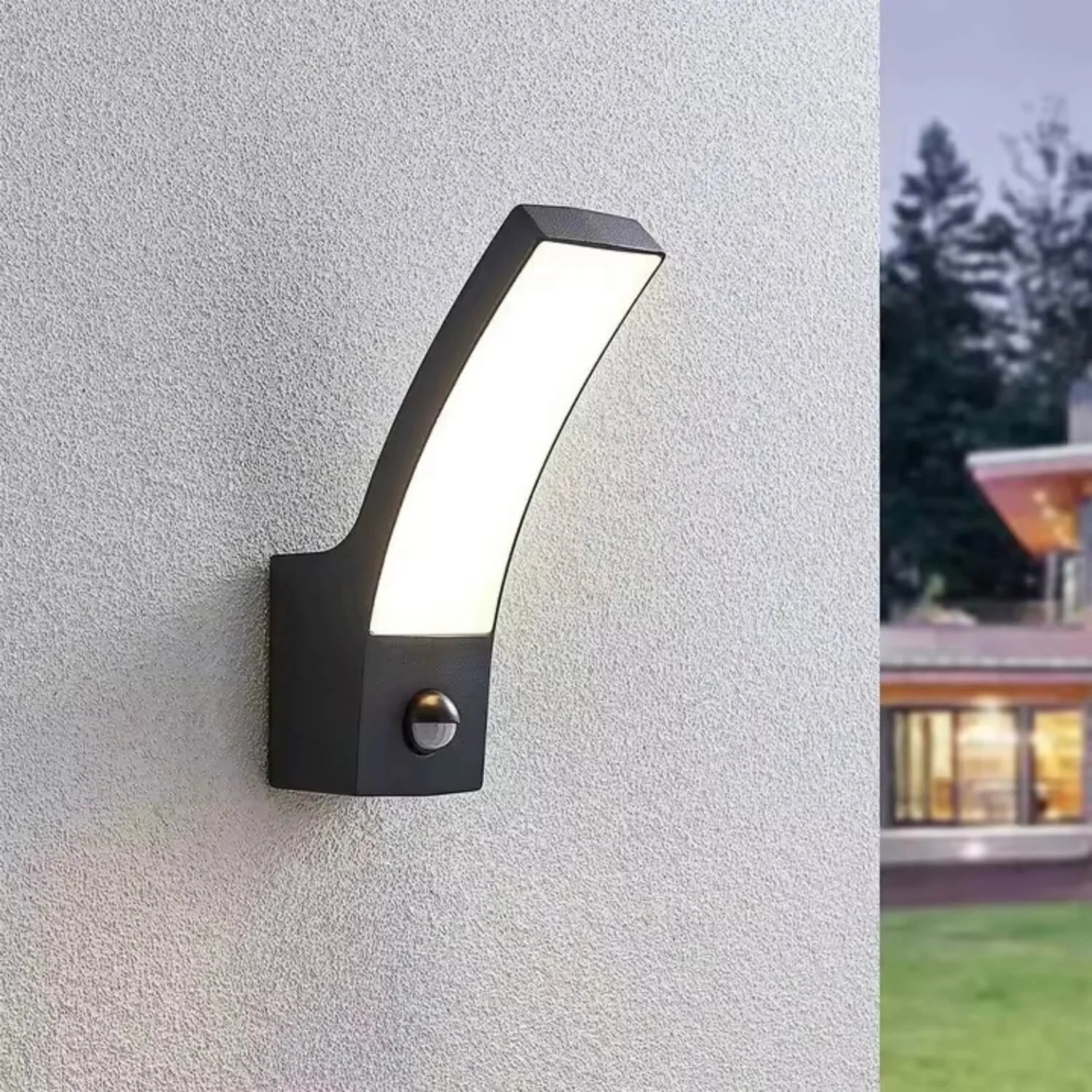

ENDIzLED-228 — Curved PIR LED Wall Light
- The ENDIzLED-228 is a modern, curved wall-mounted LED light with an integrated PIR sensor — designed to deliver efficient, comfortable illumination for porches, pathways, patios and indoor accent lighting. Its slim arched profile and weatherproof construction blend contemporary style with practical motion-activated performance.
Key features
- Elegant curved design in black or white to complement modern exteriors and interiors
- Built-in PIR motion sensor with adjustable sensitivity, lux threshold and time delay
- Energy-efficient 12 W LED array (60 LEDs) for bright, low-power lighting
- Weatherproof IP54 rating for reliable outdoor use
- Durable materials: aluminum body with PC + PA6 diffuser/base
- Wide beam angle (approx. 120°) and broad detection coverage (≈140°)

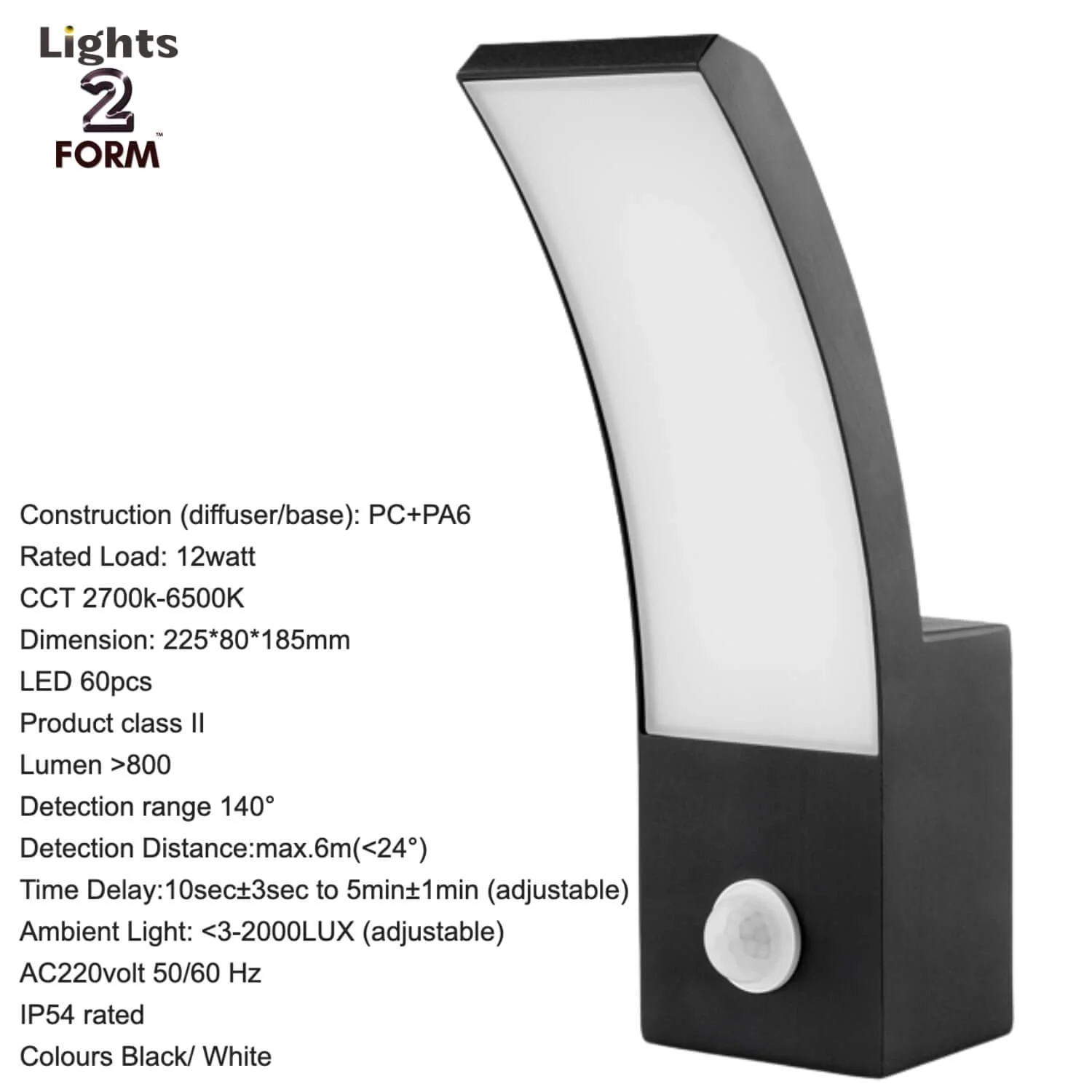

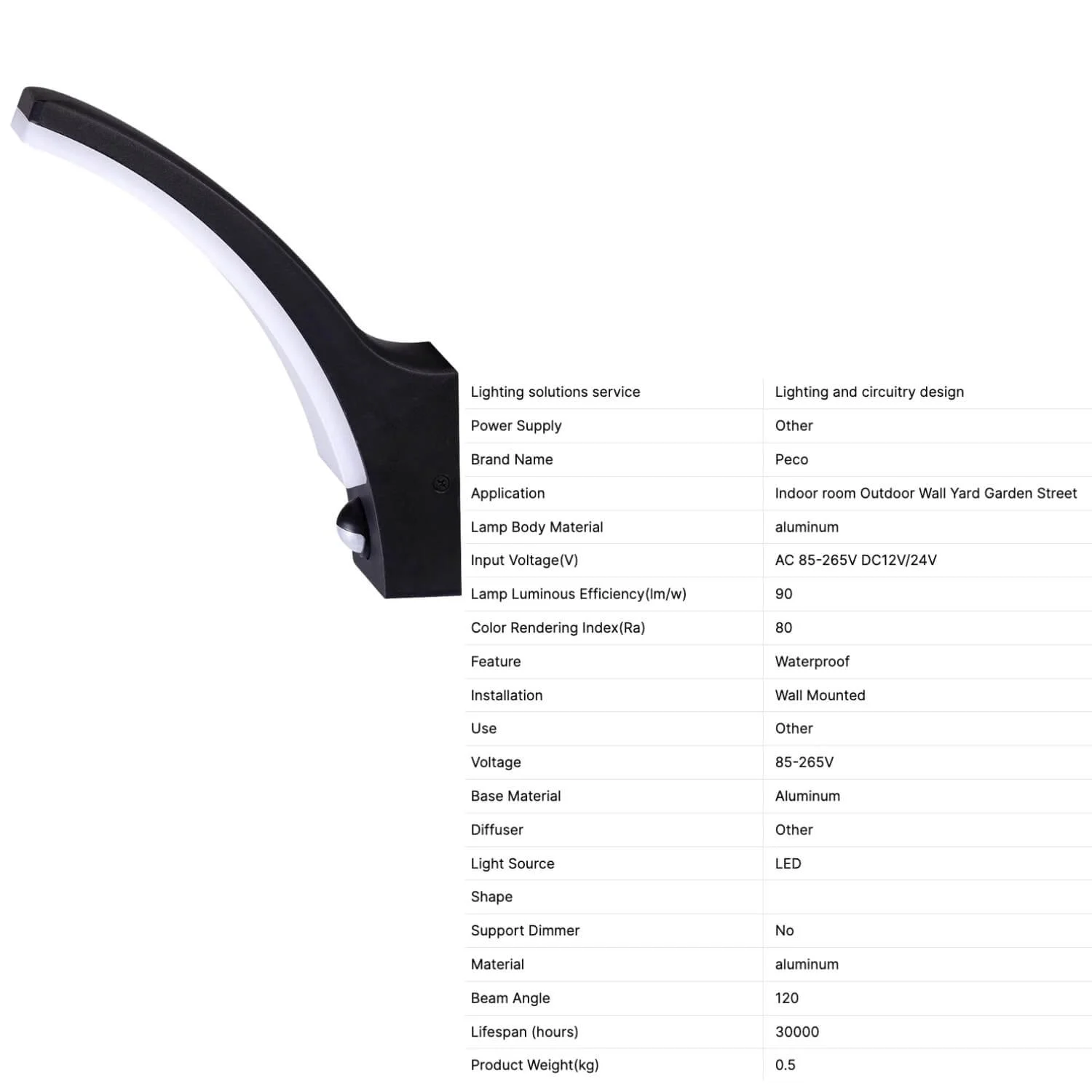

Technical specifications
- Power: 12 W
- Light source: 60 LEDs
- Typical lumen output: >800 lm (lamp efficacy up to 90 lm/W)
- Color temperature (CCT): 2700 K – 6500 K (tunable / selectable)
- Color rendering index (Ra): ~80
- Input voltage: AC 85–265 V (AC 220 V 50/60 Hz compatible)
- Lifespan: ~30,000 hours
- Protection: IP54
- Product class: II

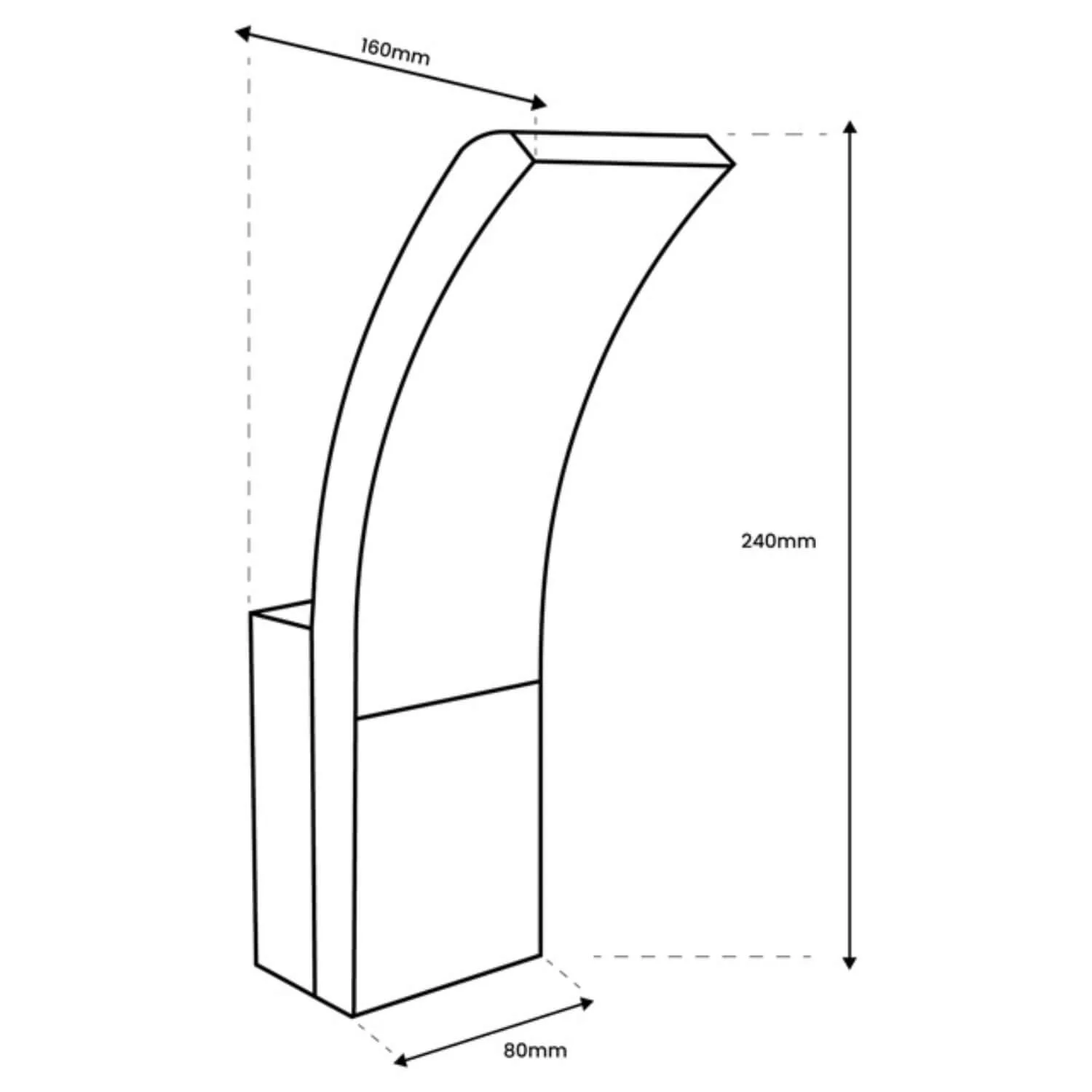

- Dimensions (approx.): 240 mm (H) x 160 mm (depth) x 80 mm (W)
- Weight: ~0.5 kg
- Detection angle: 140°
- Detection distance: up to 6 m (<24°)
- Time delay: adjustable from ~10 s ±3 s to 5 min ±1 min
- Ambient light sensor: adjustable, <3–2000 LUX
- Finish options: Black, White

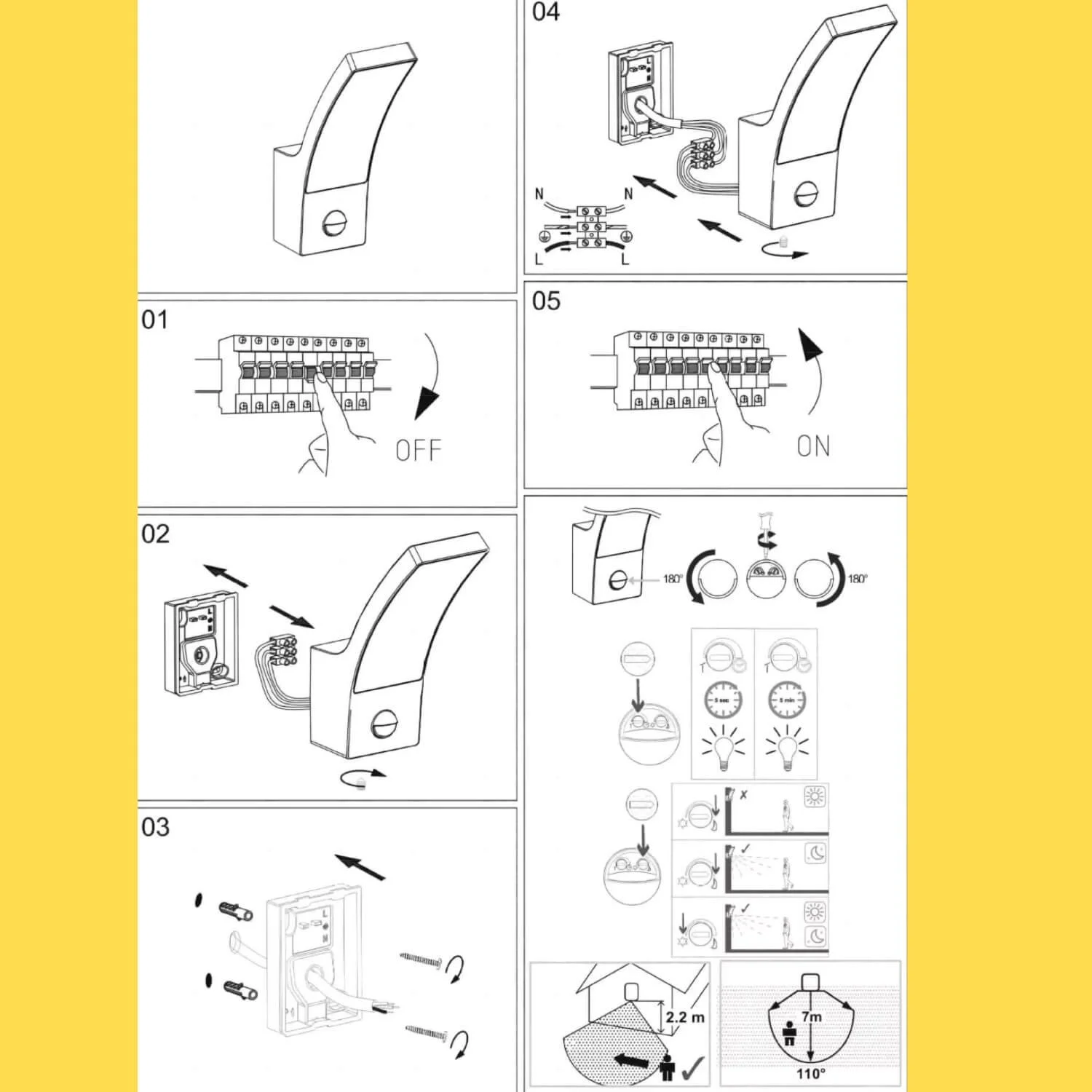

Sensor & installation notes
- The integrated PIR sensor allows the lamp to remain off during daylight (adjustable lux threshold) and switch on only when motion is detected — ideal for security lighting and energy savings.
- Adjust the time delay, sensitivity and ambient light threshold to suit mounting height and traffic patterns. Recommended mounting height ~2.0–2.4 m for optimal coverage.
- Wall-mounted installation; ensure power is isolated before wiring. Suitable for outdoor locations protected from heavy direct water exposure (IP54).

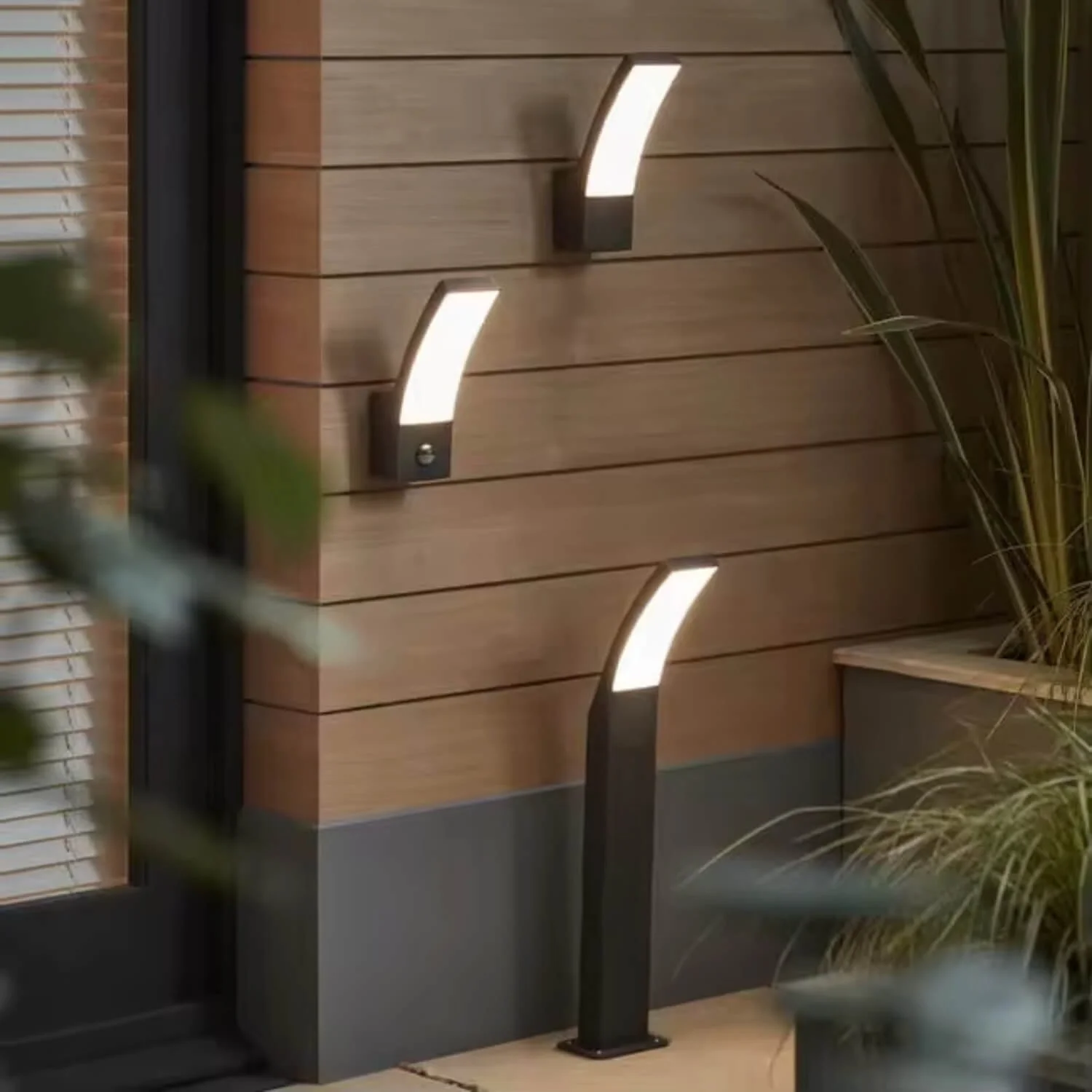

Ideal applications
- Porch and entryway lighting
- Garden paths and side passages
- Balcony and patio accent lighting
- Indoor corridors and utility areas requiring motion-activated illumination
Why choose ENDIzLED-228
- Combines contemporary form with practical PIR automation for hands-free, energy-efficient lighting. Robust and weather-resistant, it’s a versatile option for both residential and light-commercial outdoor needs.
