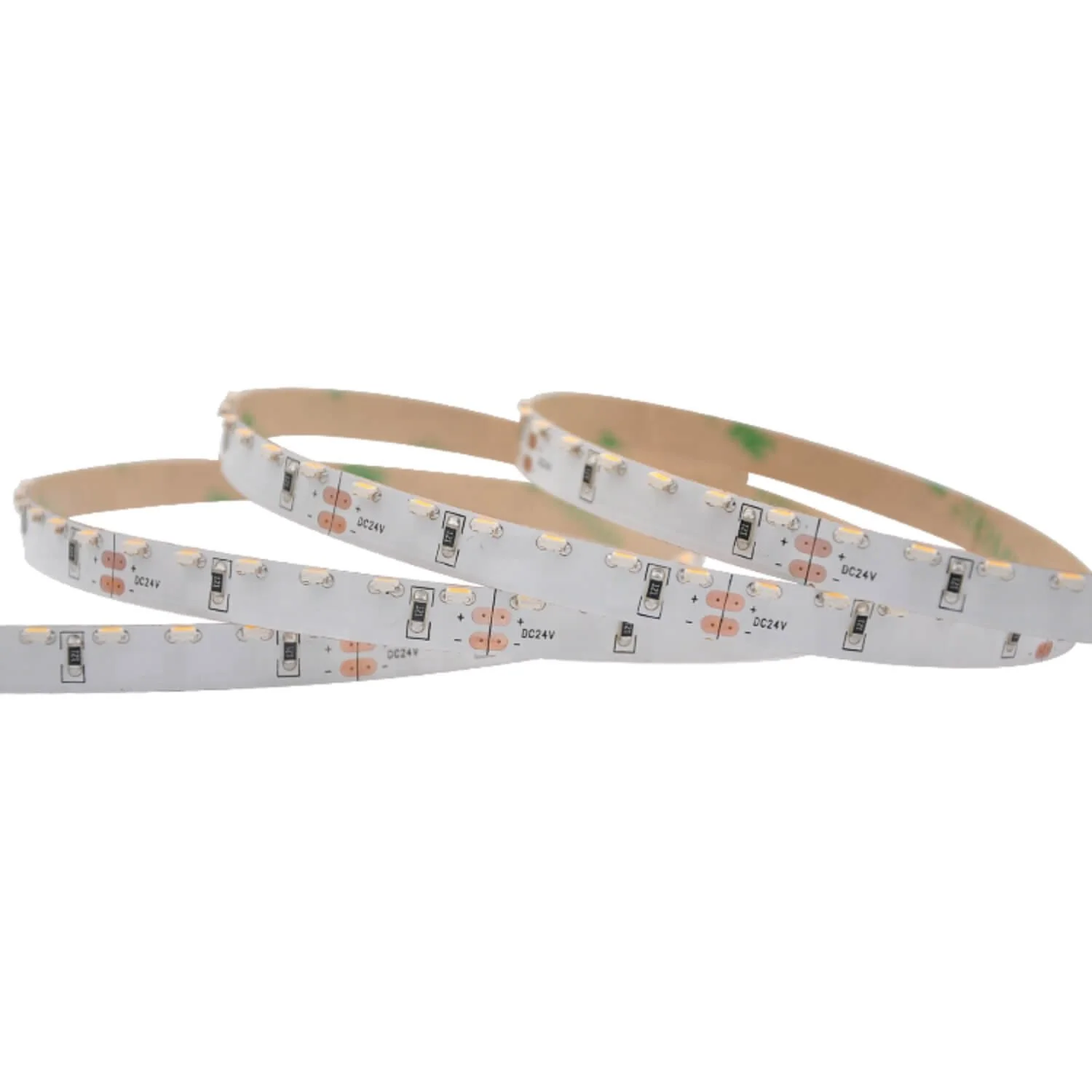

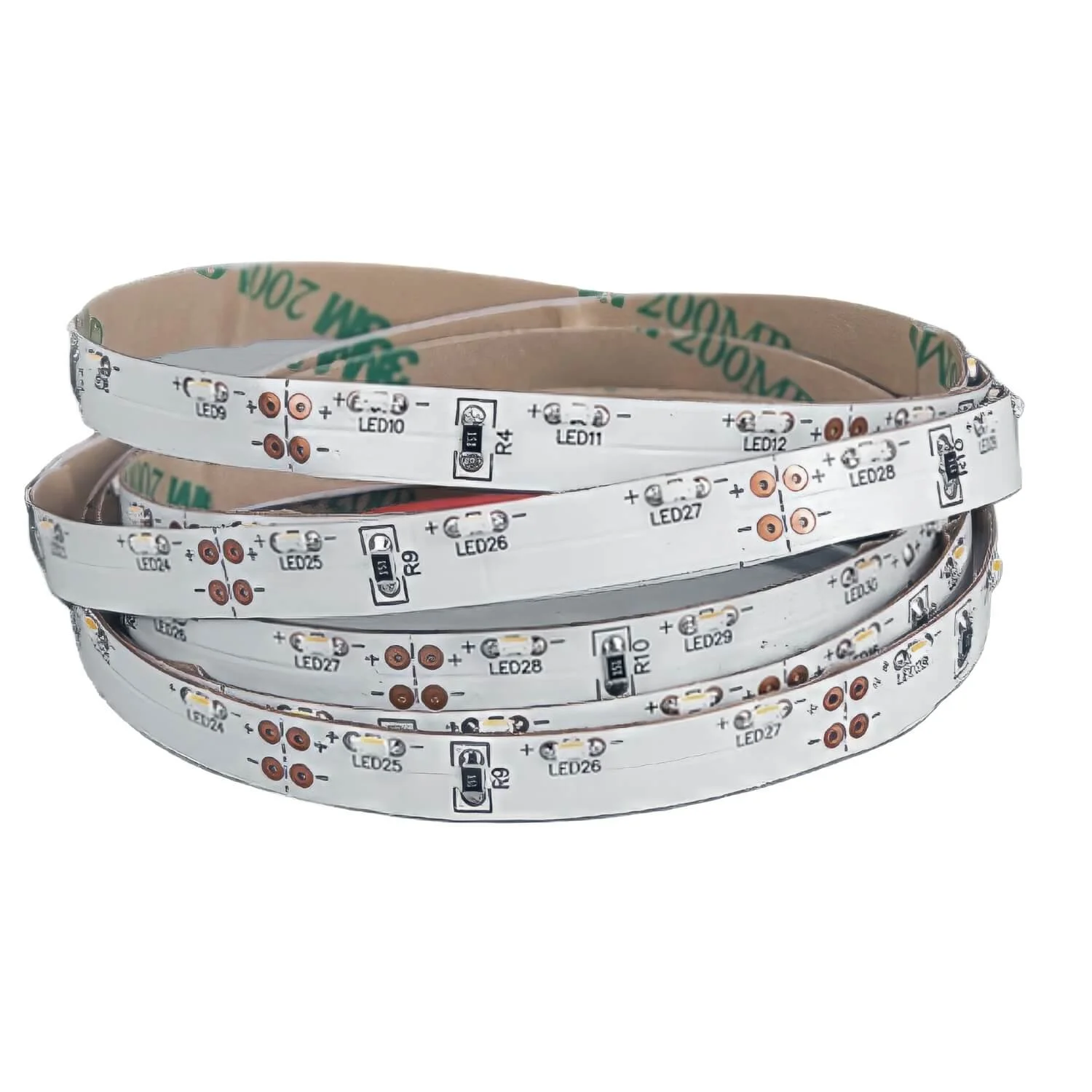

ENDIzLED-222 — Edge-Lit LED Strip
Product description

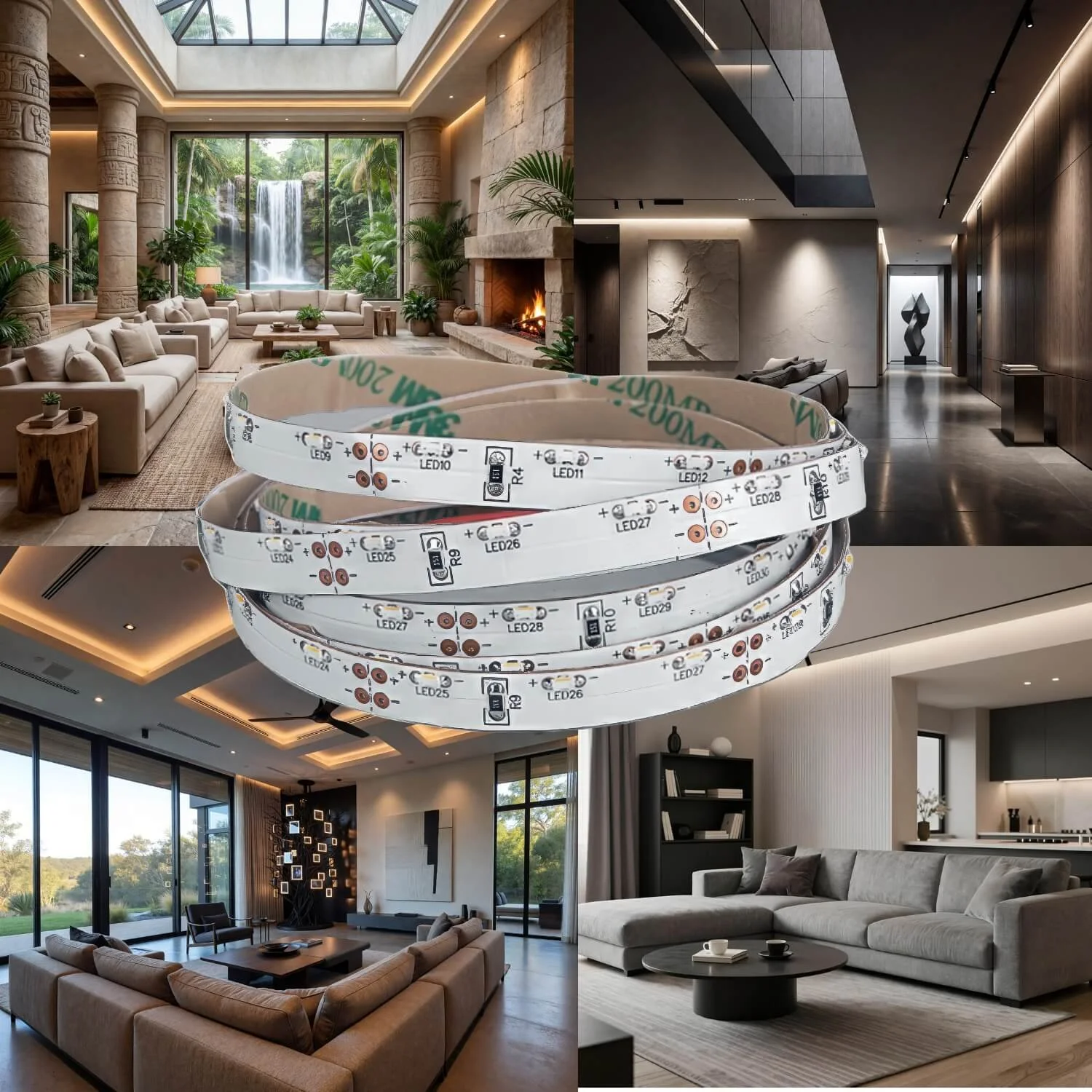

The ENDIzLED-222 is a slim, edge-lit LED strip designed for clean, uniform illumination in architectural and display applications. Engineered for consistent light distribution and flexible installation, this strip delivers high lumen output with low-profile aesthetics — ideal for coves, accent lines, backlighting panels, signage, retail displays and hospitality environments.
Key features

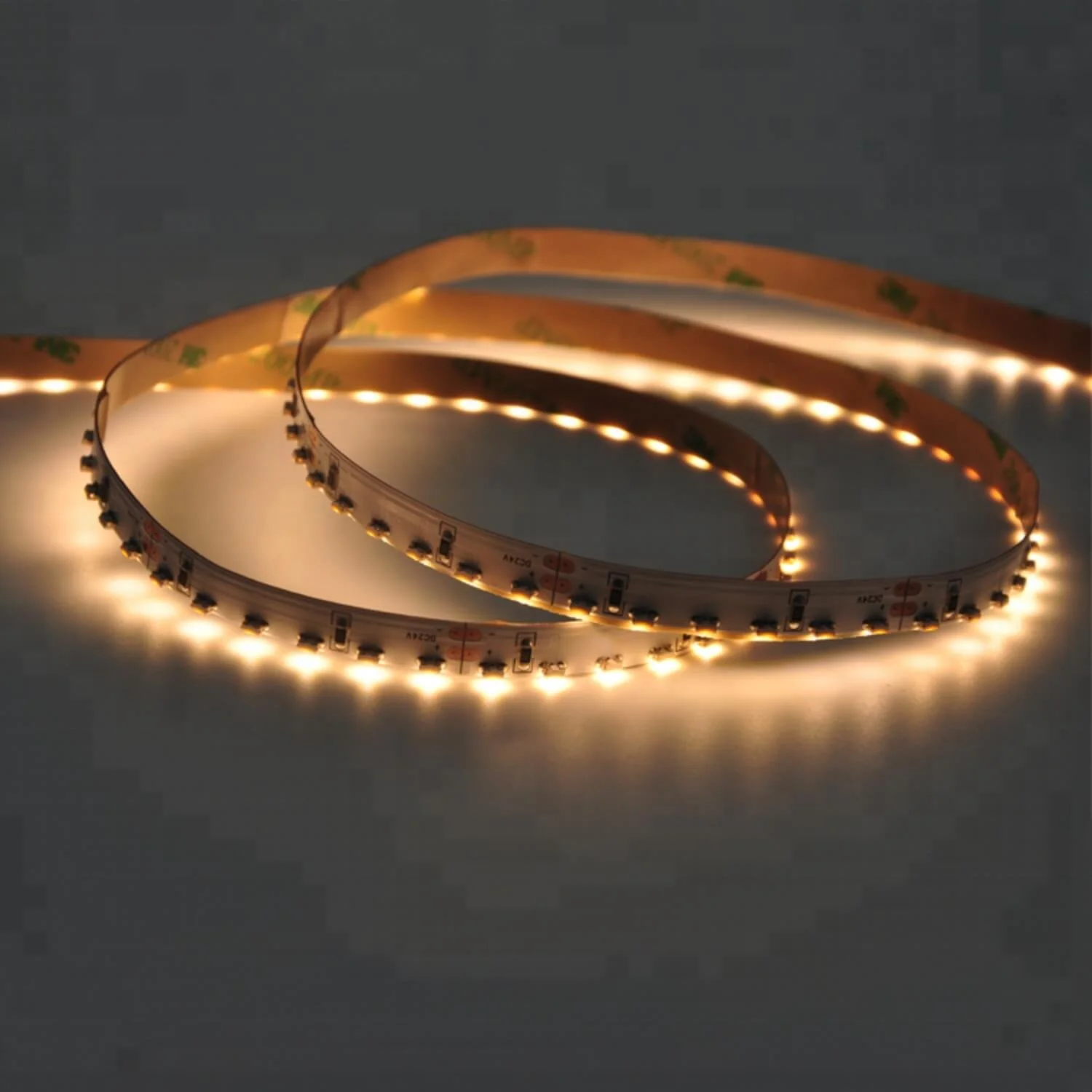

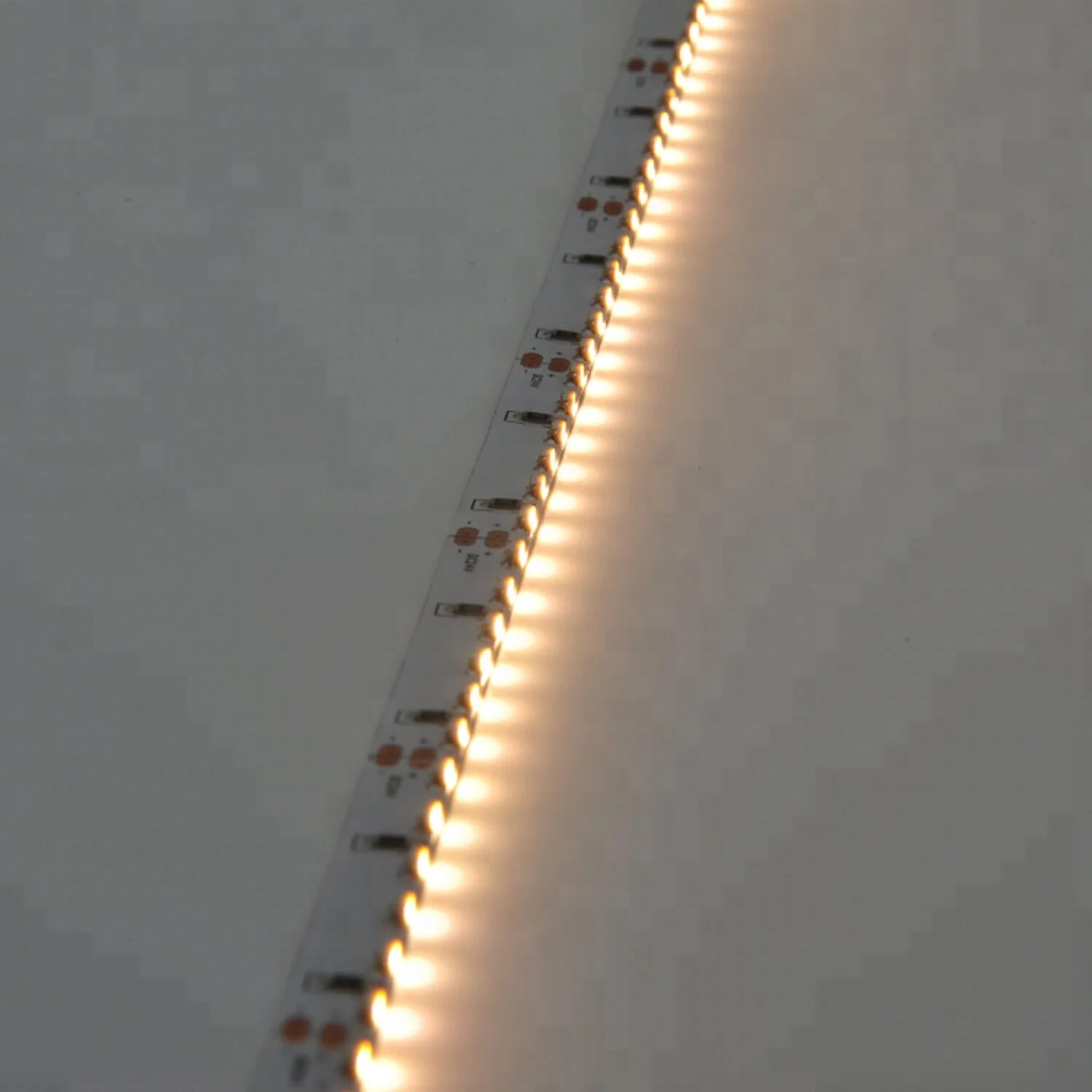

- Edge-lit design for soft, even light with minimal hotspots.
- Bright and efficient: typical power 12 W/m with high luminous output (approx. 1000–1150 lm/m depending on model).
- Multiple density options: common configurations include 60–120 LEDs per meter (selectable per order).
- Versatile color choices: single colors (red, yellow, blue, green) and whites (warm white to cool white, 2300–6500 K). Tunable options available on request.

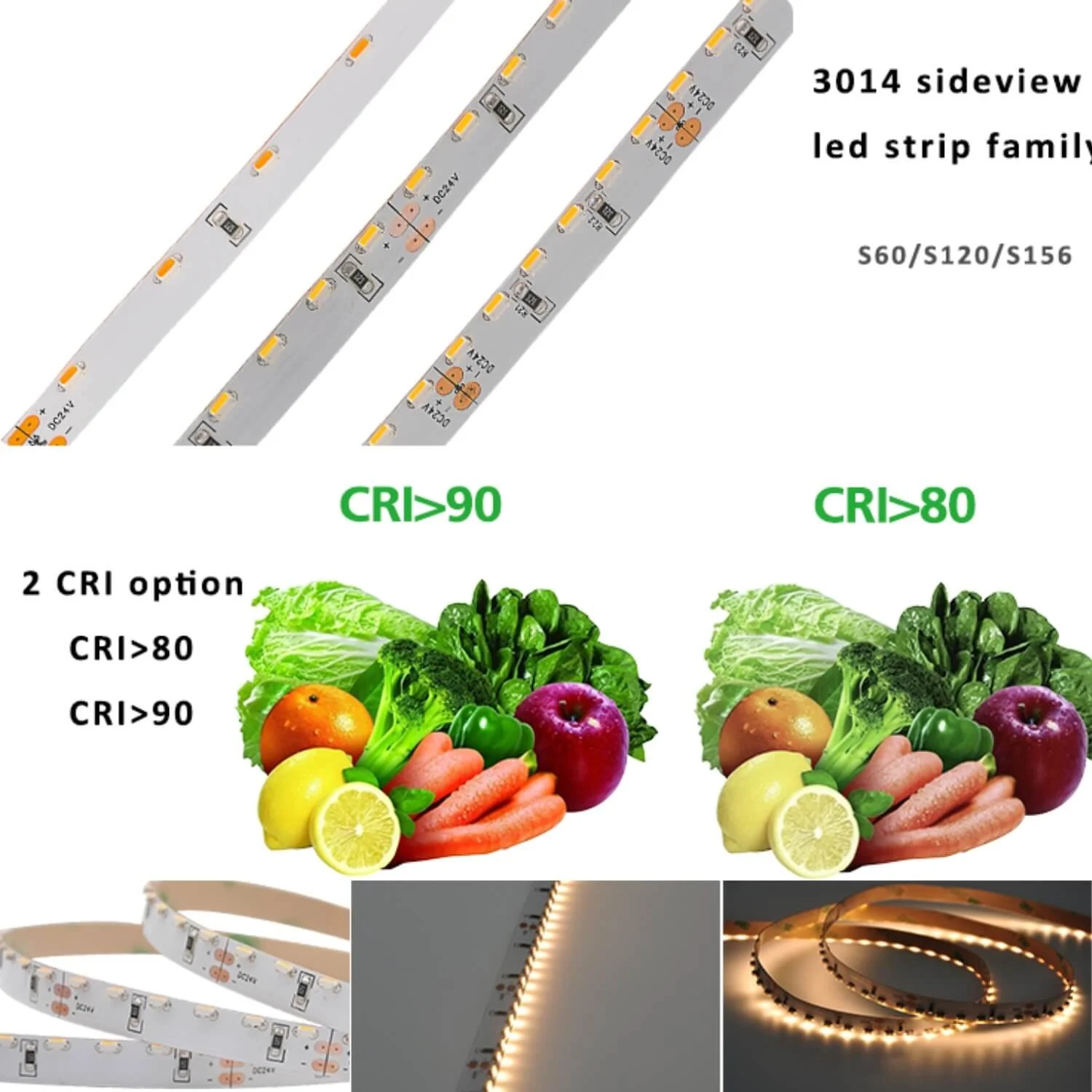

- High color quality: CRI commonly >80 (higher CRI options available).
- Flexible mounting: 5 m reels, cuttable at regular sections (12 V and 24 V cut lengths available).
- Durable options: standard IP20; waterproof and encapsulated versions (IP65/IP67/IP68) available for wet or outdoor use.
- Long life: rated around 50,000 hours under recommended operating conditions.

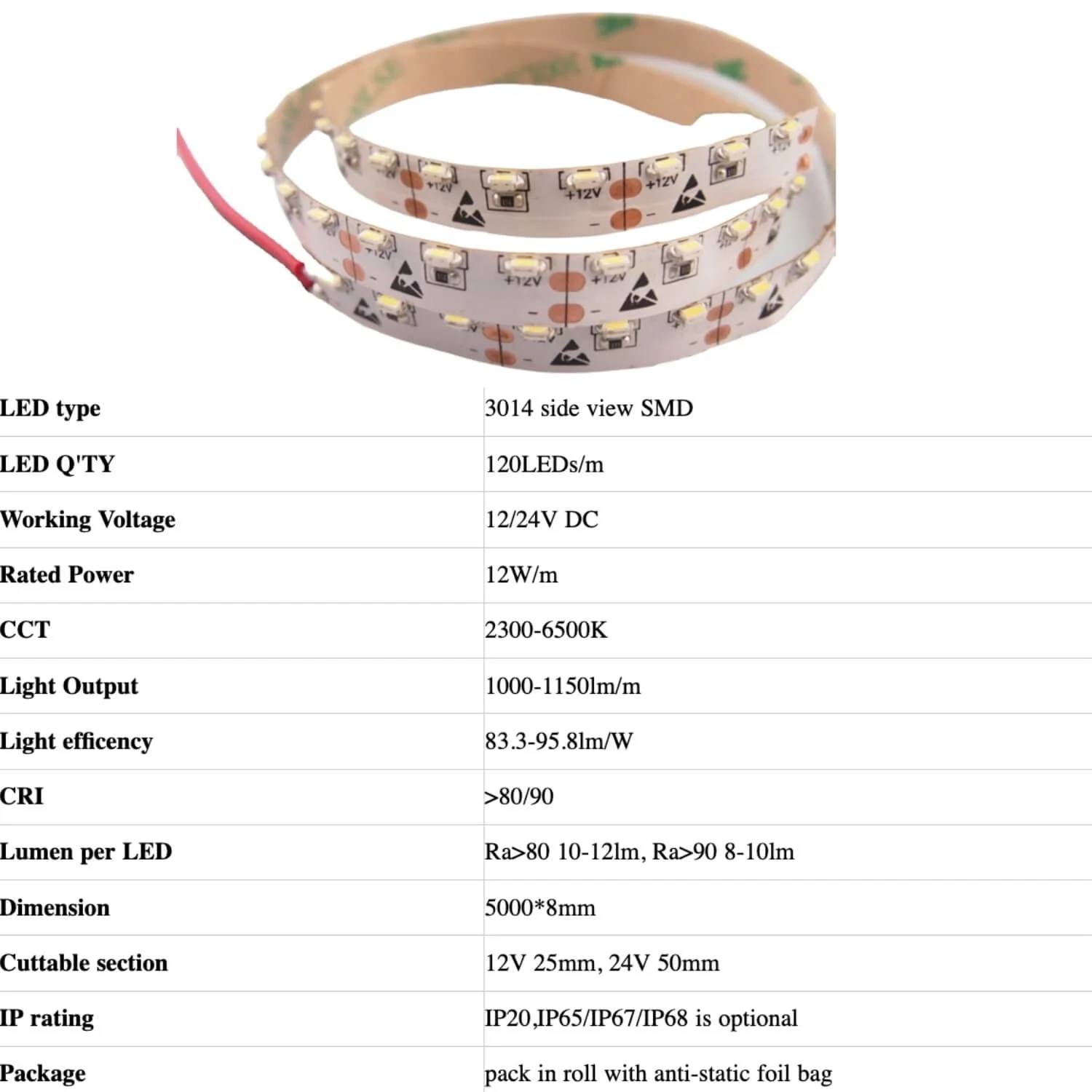

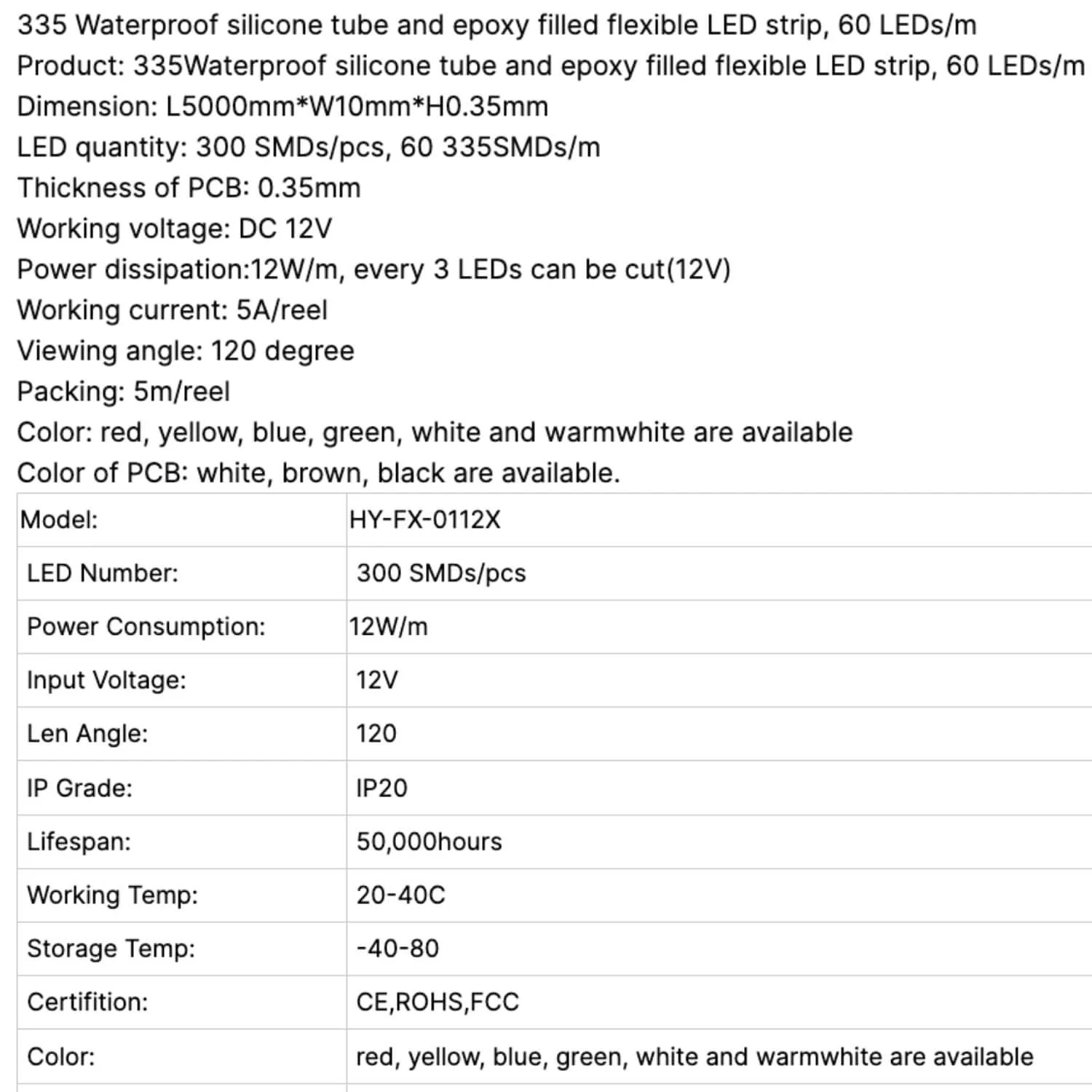

Technical highlights (typical)
- Input voltage: 12 V DC (24 V options for specific configurations)
- Power consumption: 12 W/m
- LED types: common SMD formats (3014 / 335 types depending on model)
- Beam angle: ~120°
- Lumen efficacy: ~83–96 lm/W (model-dependent)

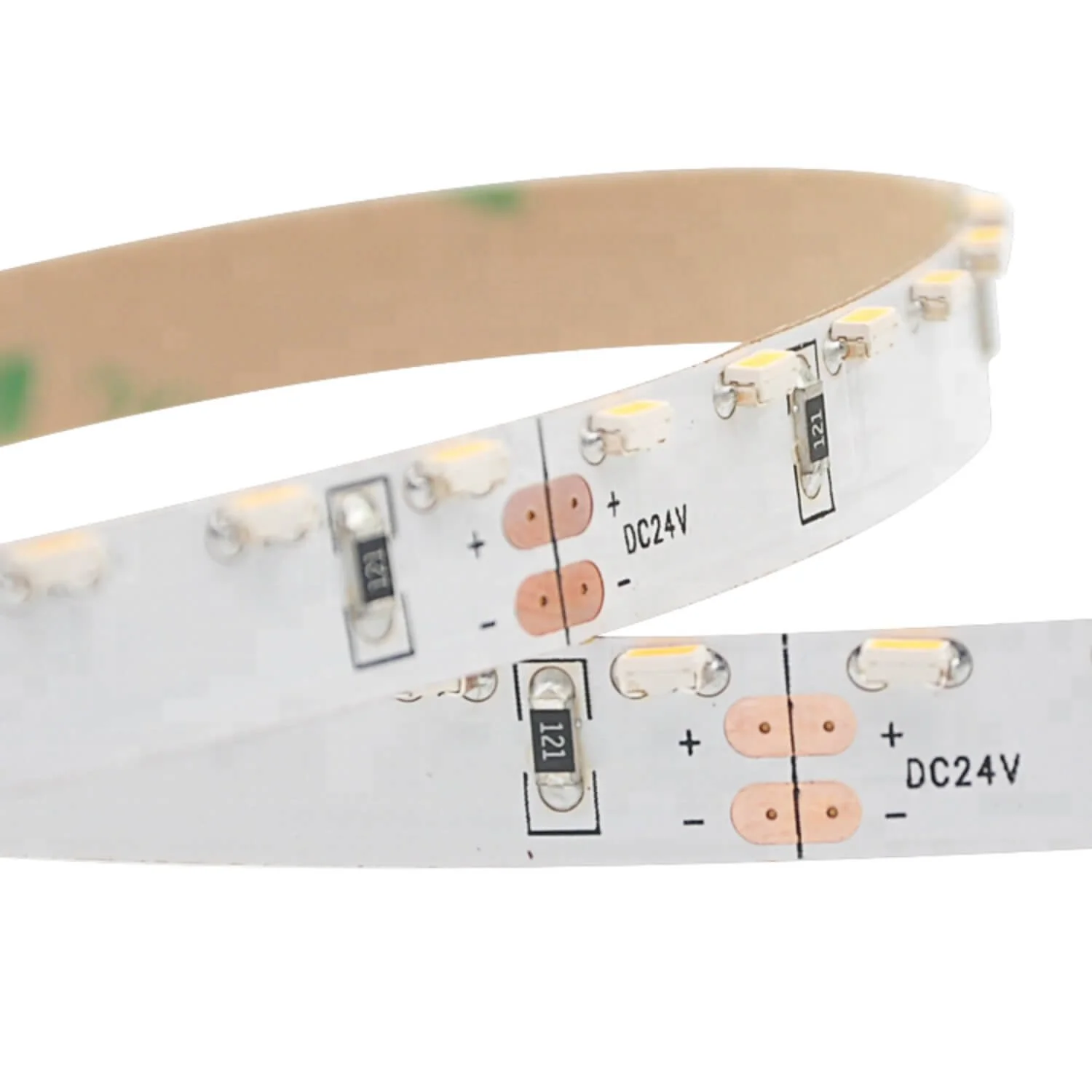

- Cuttable section: typical 12 V = 25 mm; 24 V = 50 mm
- Reel length: 5 m
- Operating temp: suitable for typical indoor environments (spec ranges vary by variant)
- Certifications: CE, RoHS, FCC (dependent on model)
Why choose ENDIzLED-222
ENDIzLED-222 combines even, glare-free lighting with flexible installation options and strong lumen performance — perfect when you need a seamless light line that complements high-end interiors or retail displays. With selectable densities, IP protection choices, and color temperature options, it’s easy to match the strip to your project’s visual and environmental requirements.
Installation notes
- Use a compatible constant-voltage 12 V (or 24 V) LED driver sized to the total run.
- Observe cut points; do not cut outside marked sections.
- For long runs, plan power injection points to avoid voltage drop.
- Choose waterproof or encapsulated variants when installing in damp or outdoor locations.
