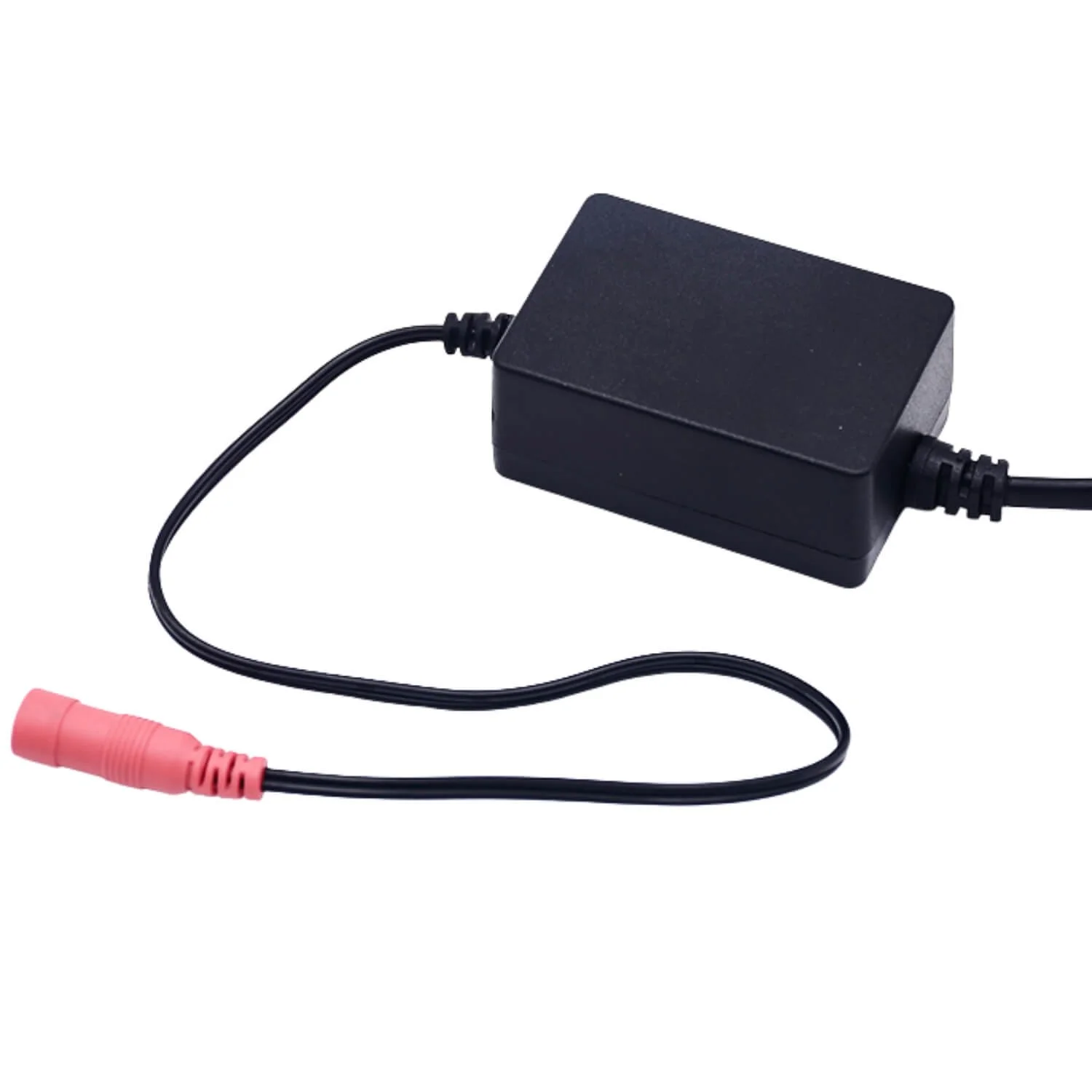

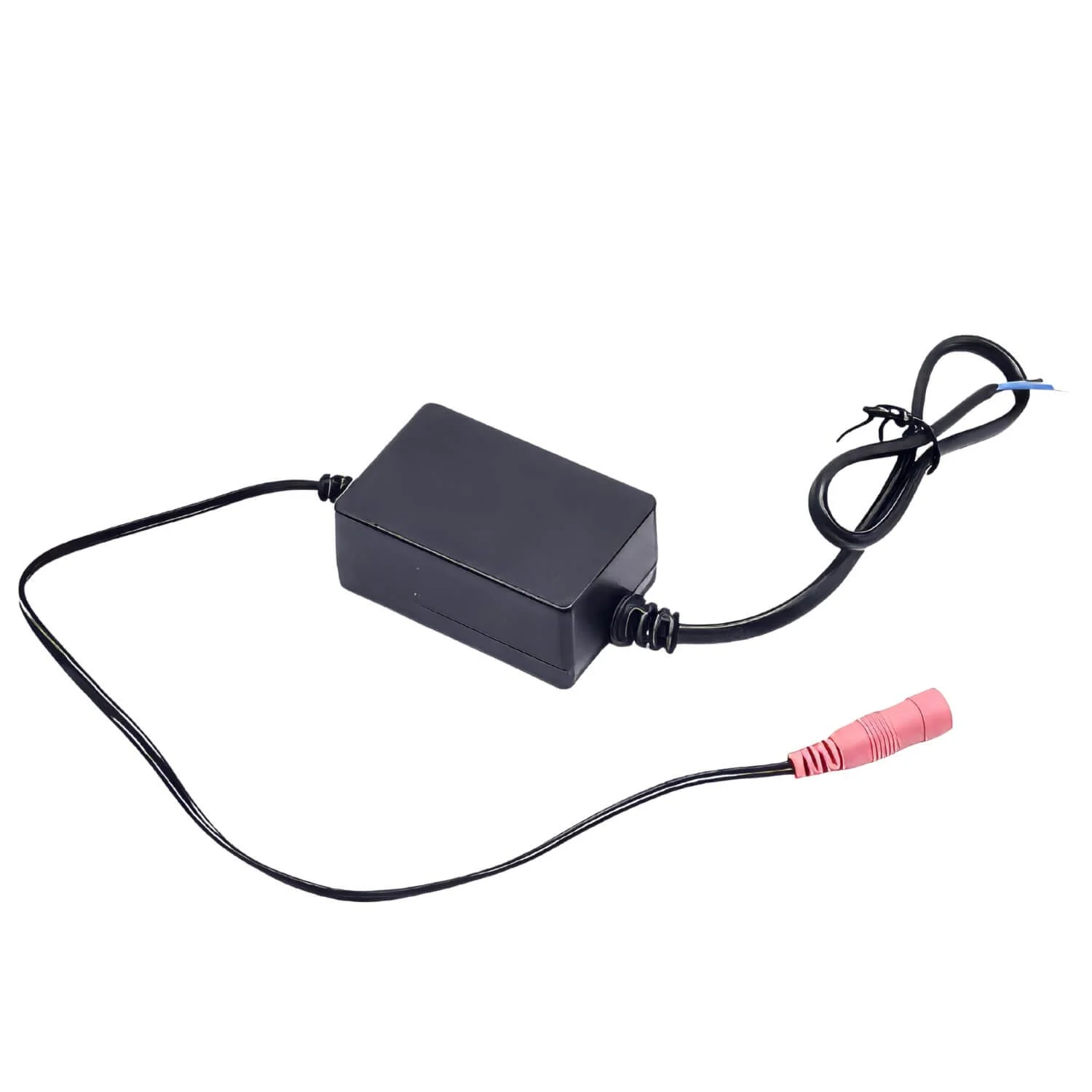

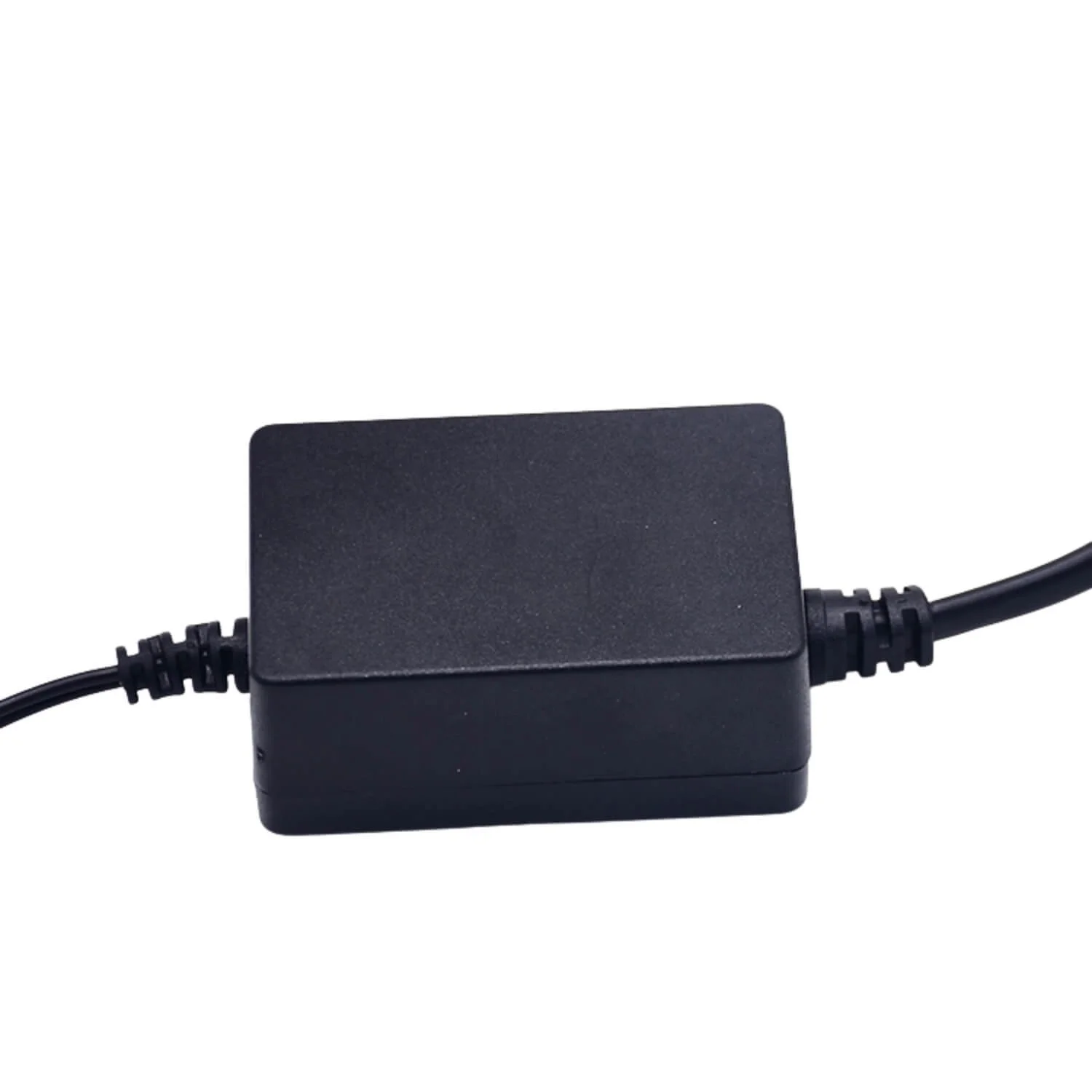

ENDIzLED-220 LED Driver — 1A Compact Driver
Friendly, robust and engineered for real-world installations — the ENDIzLED-220 is a compact LED driver that delivers stable, efficient power for a wide range of LED applications.
Key features
- Universal AC input: 90–264 Vac (normal rated 100–240 Vac), 47/63 Hz — suitable for global use
- Constant current and constant voltage operation for flexible compatibility
- Output range: 5–24 V DC, 0.5–3 A (up to 18 W max)
- High efficiency (≥85%) to reduce energy waste and heat
- Built-in protections: short-circuit and overload protection, soft-start to reduce inrush current
- EMI filter for clean output and minimum ripple
- LED status indicator: red while charging/powering, green when charged/ready
- 100% full-load burn-in test and lead-free construction

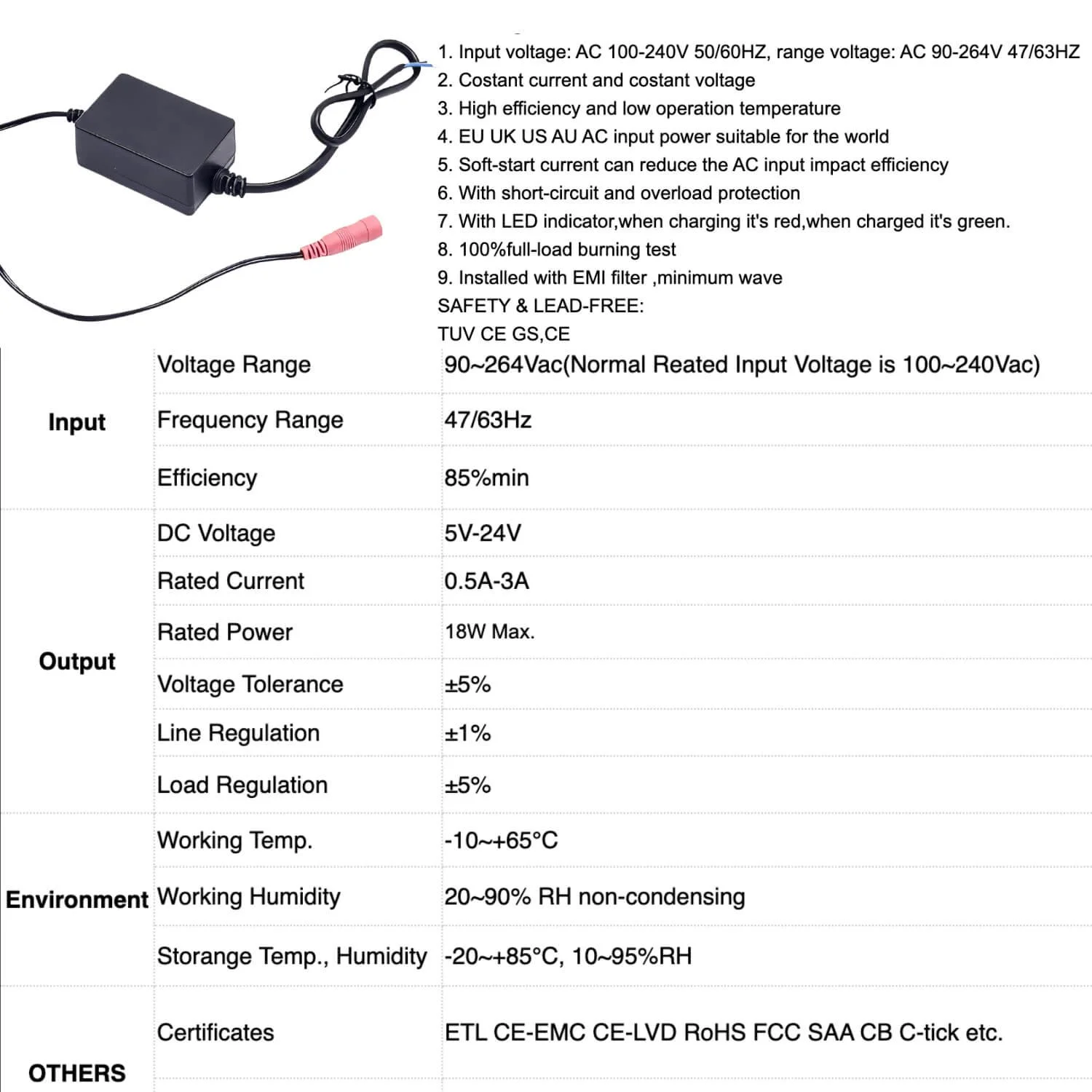

Electrical & performance highlights
- Voltage tolerance: ±5% | Line regulation: ±1% | Load regulation: ±5%
- Operating temperature: -10°C to +65°C
- Storage: -20°C to +85°C; humidity: 10–95% RH (storage), 20–90% RH (operating, non‑condensing)
- Certifications: ETL, CE (EMC & LVD), RoHS, FCC, SAA, CB, C-Tick, TUV and others — built to meet international safety standards
Ideal applications
- LED strip lighting and accent lighting
- Small LED fixtures and downlights
- Signage and display illumination
- CCTV/low-voltage accessory power
- Any application requiring a compact, efficient 5–24V DC LED driver up to 18W
Why choose ENDIzLED-220?
It combines flexible output options, strong protection features and international input compatibility in a small package — making it a dependable choice for installers and OEMs who need an efficient, field-ready LED driver.
