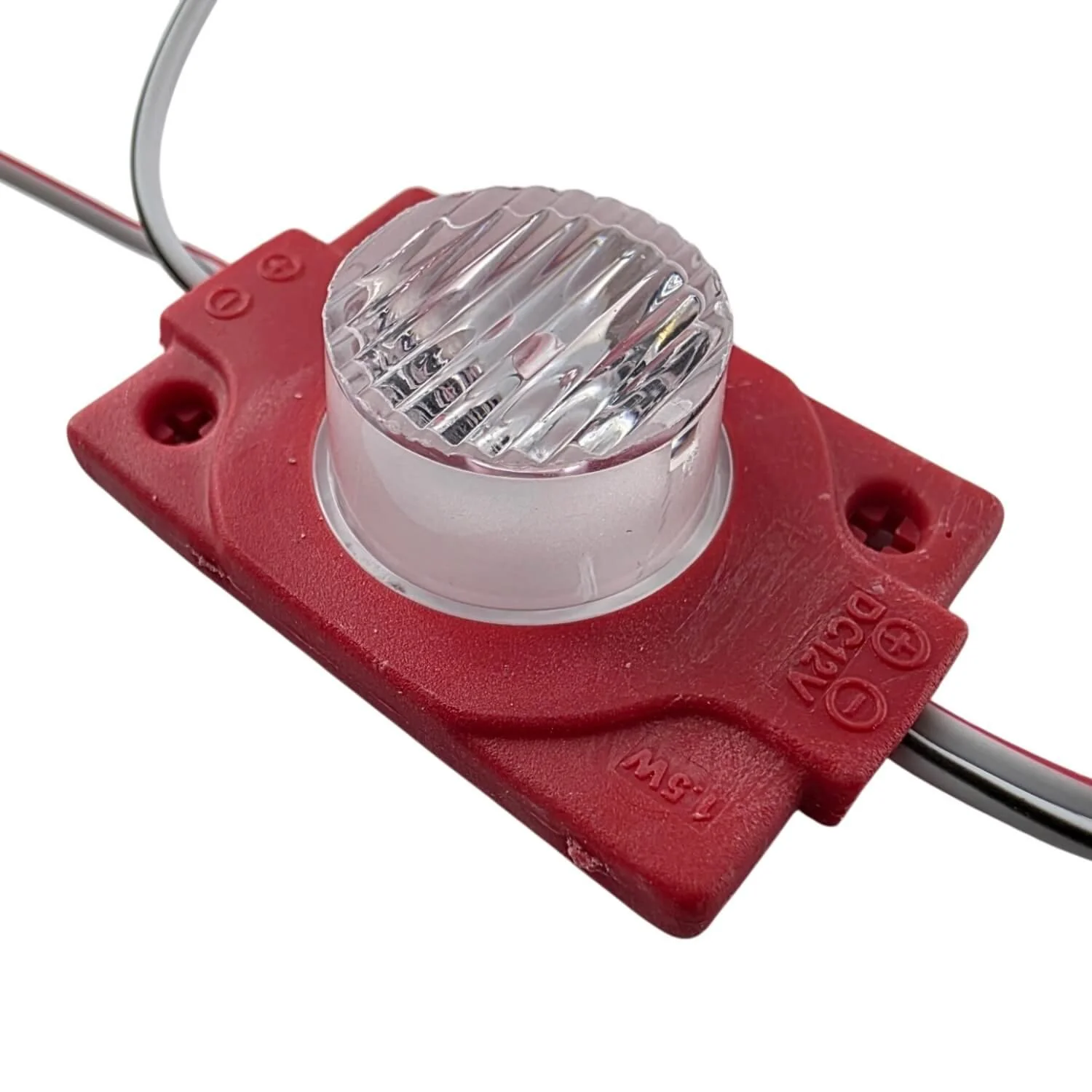

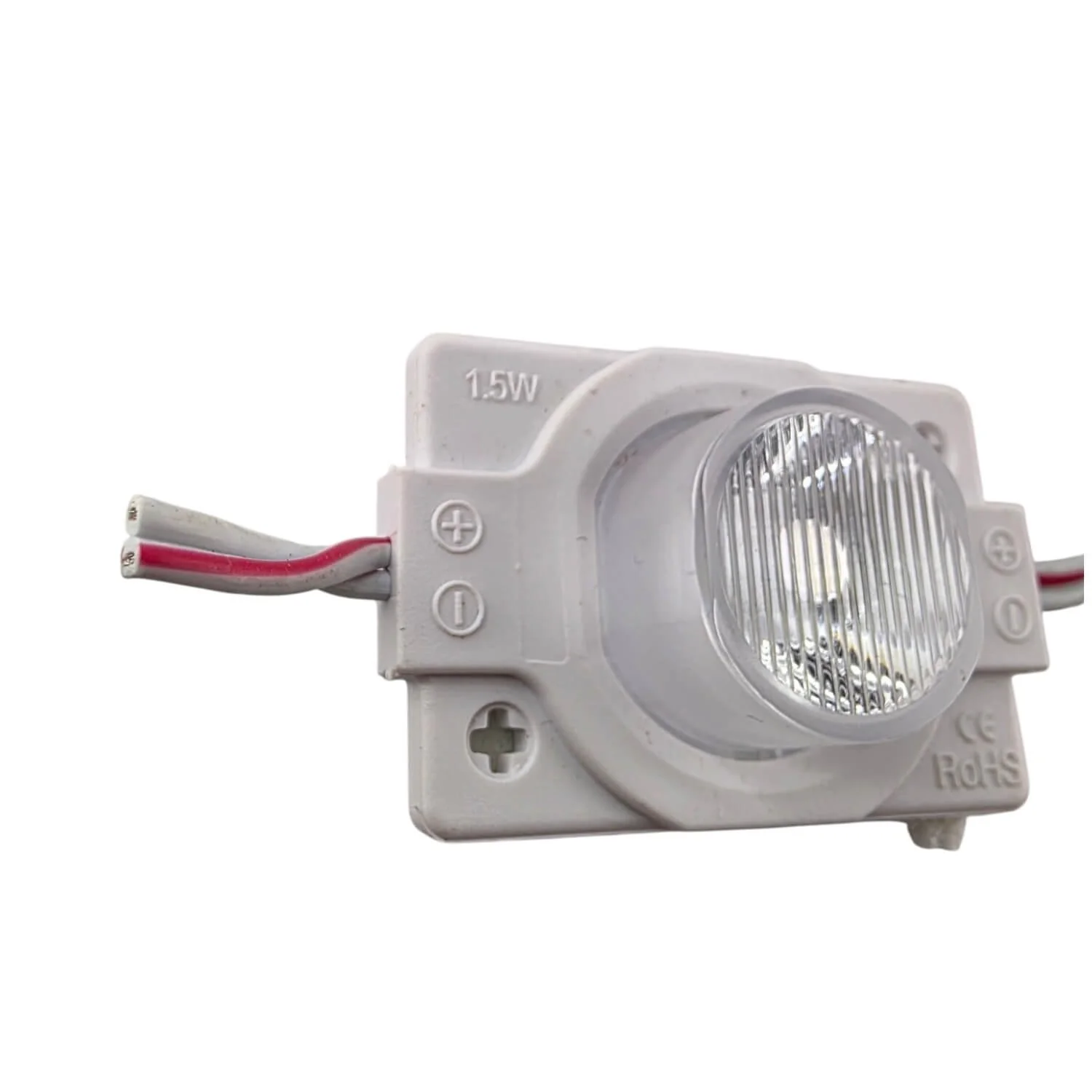

ENDIzLED-215 — Compact 1.5W LED Module for Channel Letters & Signage
Small, bright and built for signage — the ENDIzLED-215 is a compact 1.5W LED module designed to deliver focused, consistent illumination for channel letters, light boxes and decorative signage. Its low-profile design and clear lens provide a clean, even beam while multiple color and temperature options give you flexibility for any design.
Key features
- Compact footprint: 45 mm x 30 mm — fits tight letter interiors and small sign cavities.
- Low power: 1.5 W per module for energy-efficient lighting.
- Precise beam: 30° lighting angle for concentrated illumination and minimal light bleed.

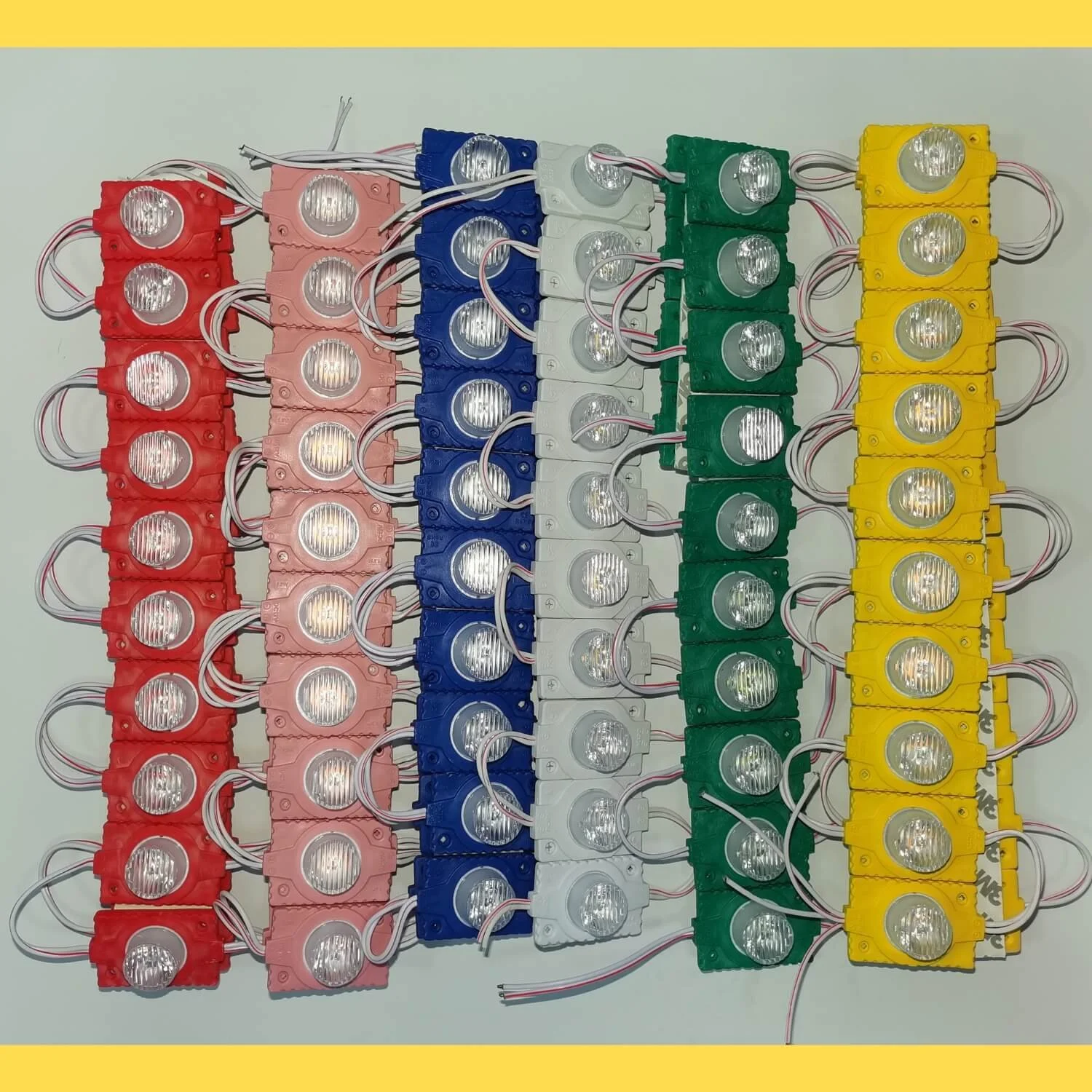

- Color options: 3000K, 4000K, 6500K (white) plus Pink, Cyan, Amber, Red, Green, Blue.
- 12 V DC operation — standard for signage installations.

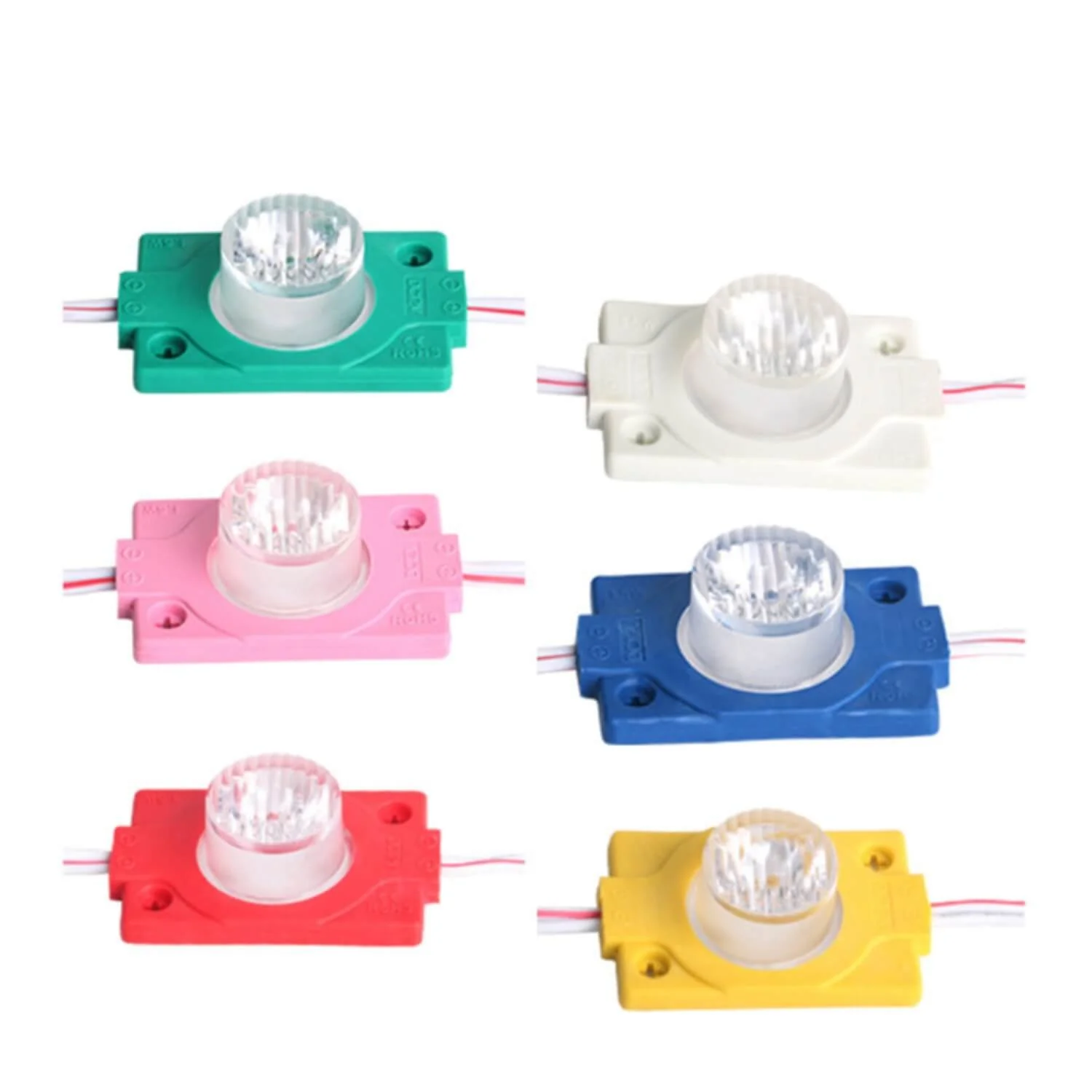

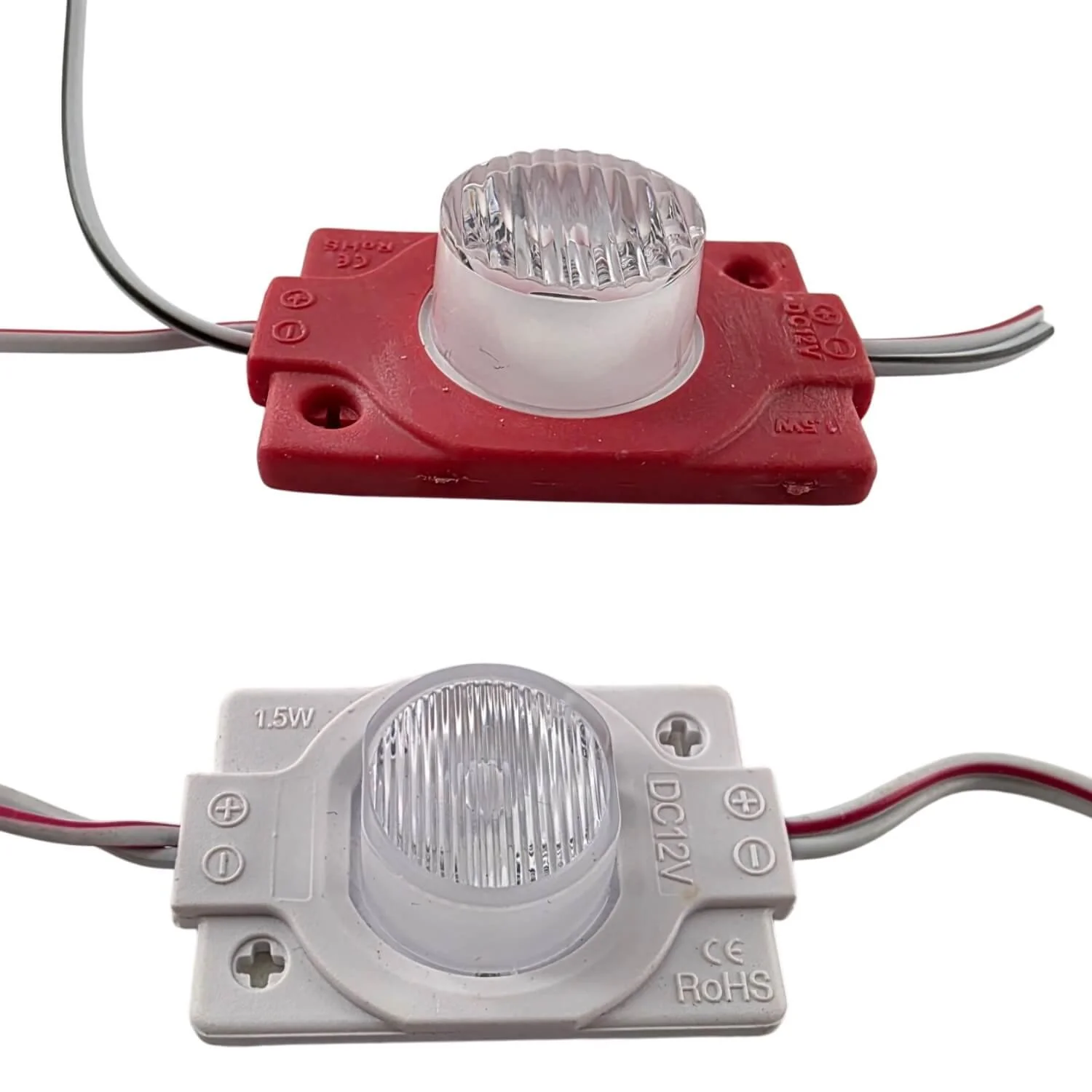

- Available in multiple housing colors to match installation needs.
- 24-month warranty.

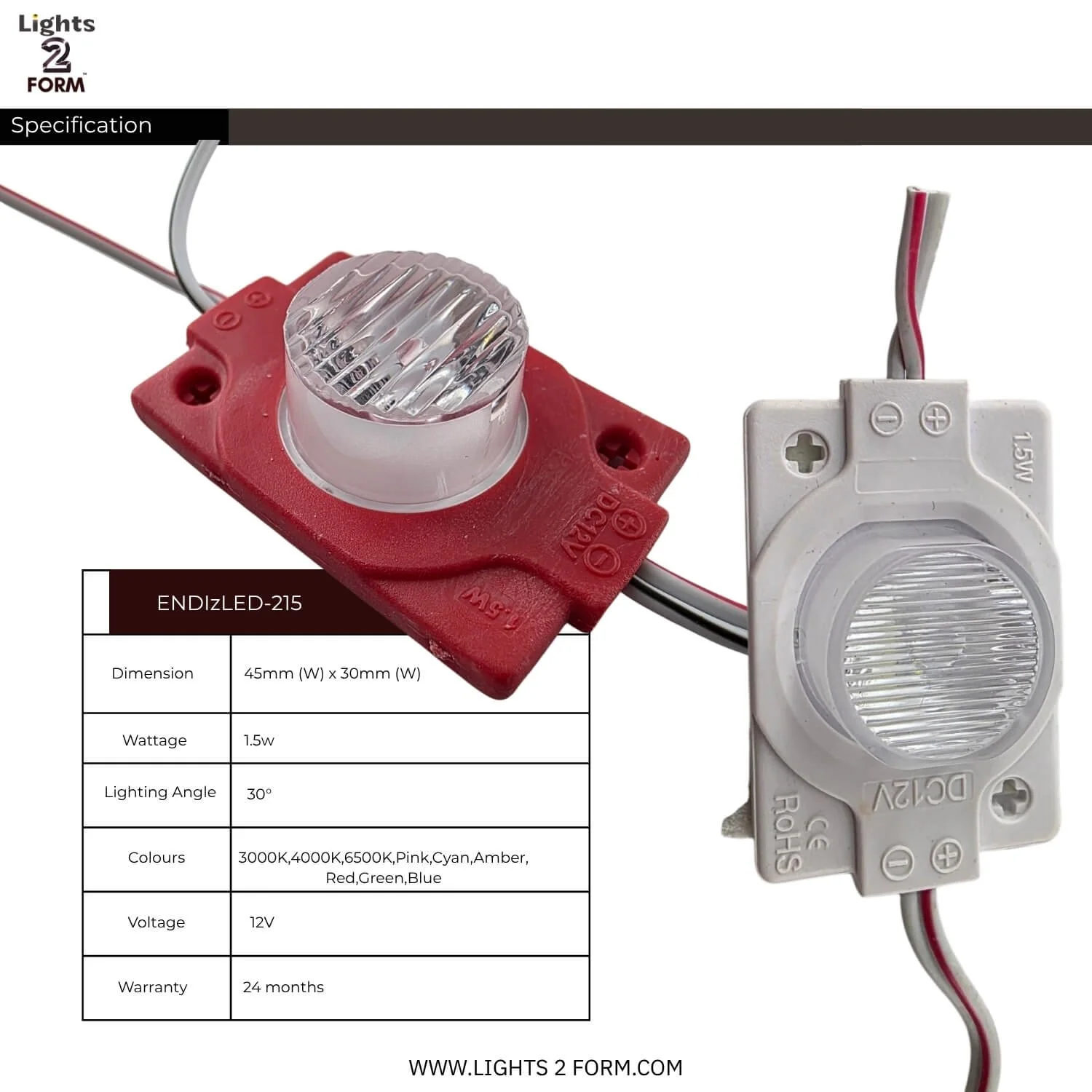

Technical specifications

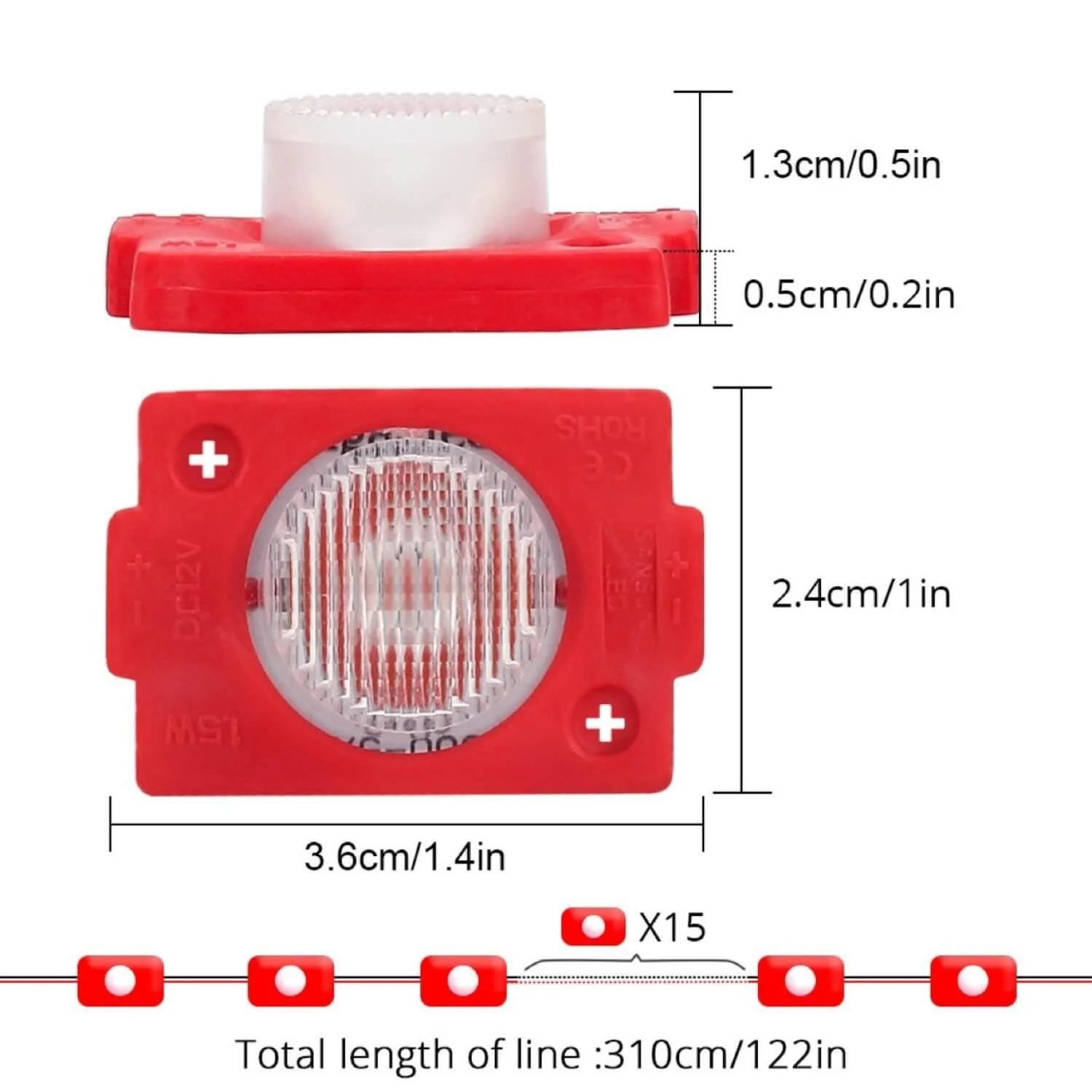

- Dimension: 45 mm x 30 mm (module)

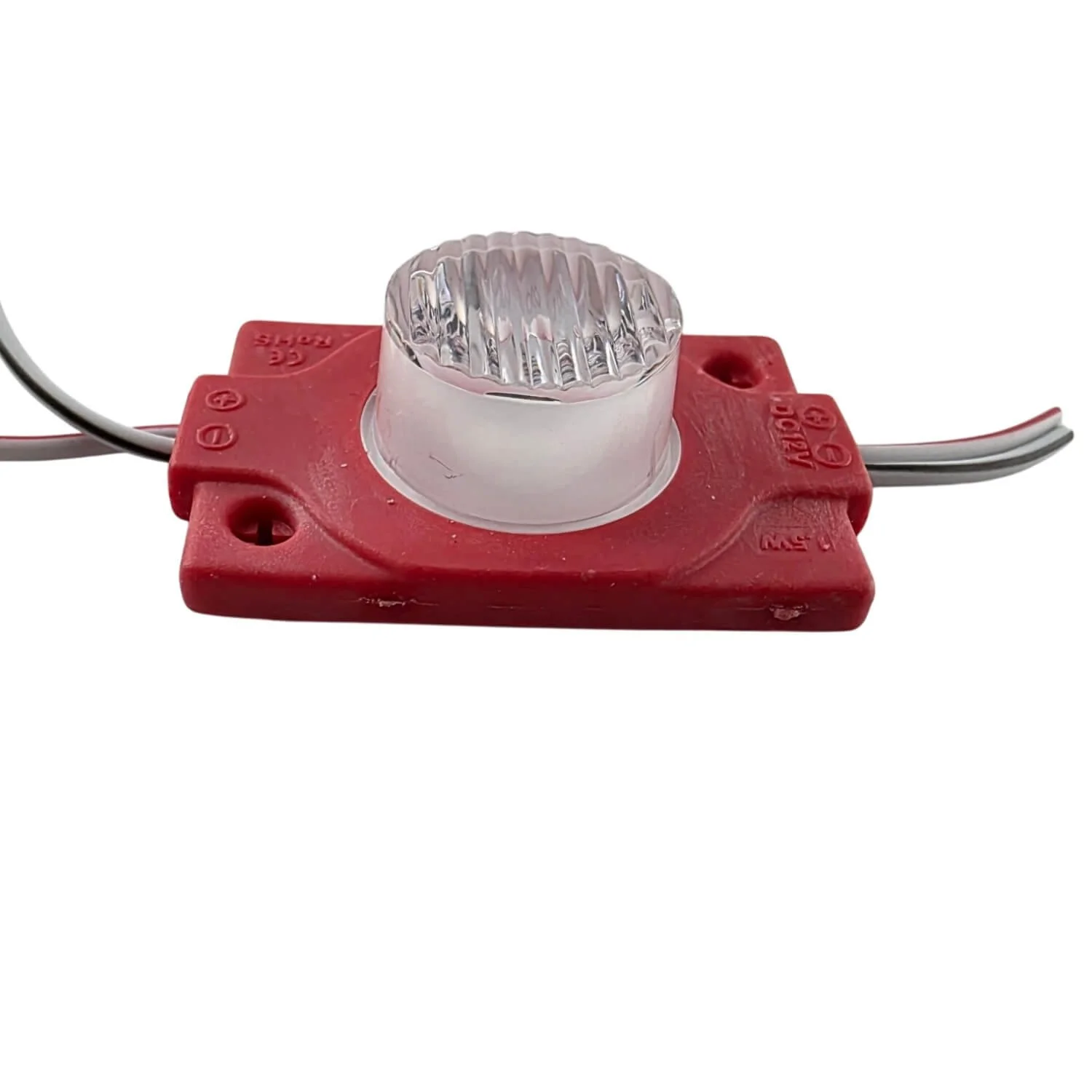

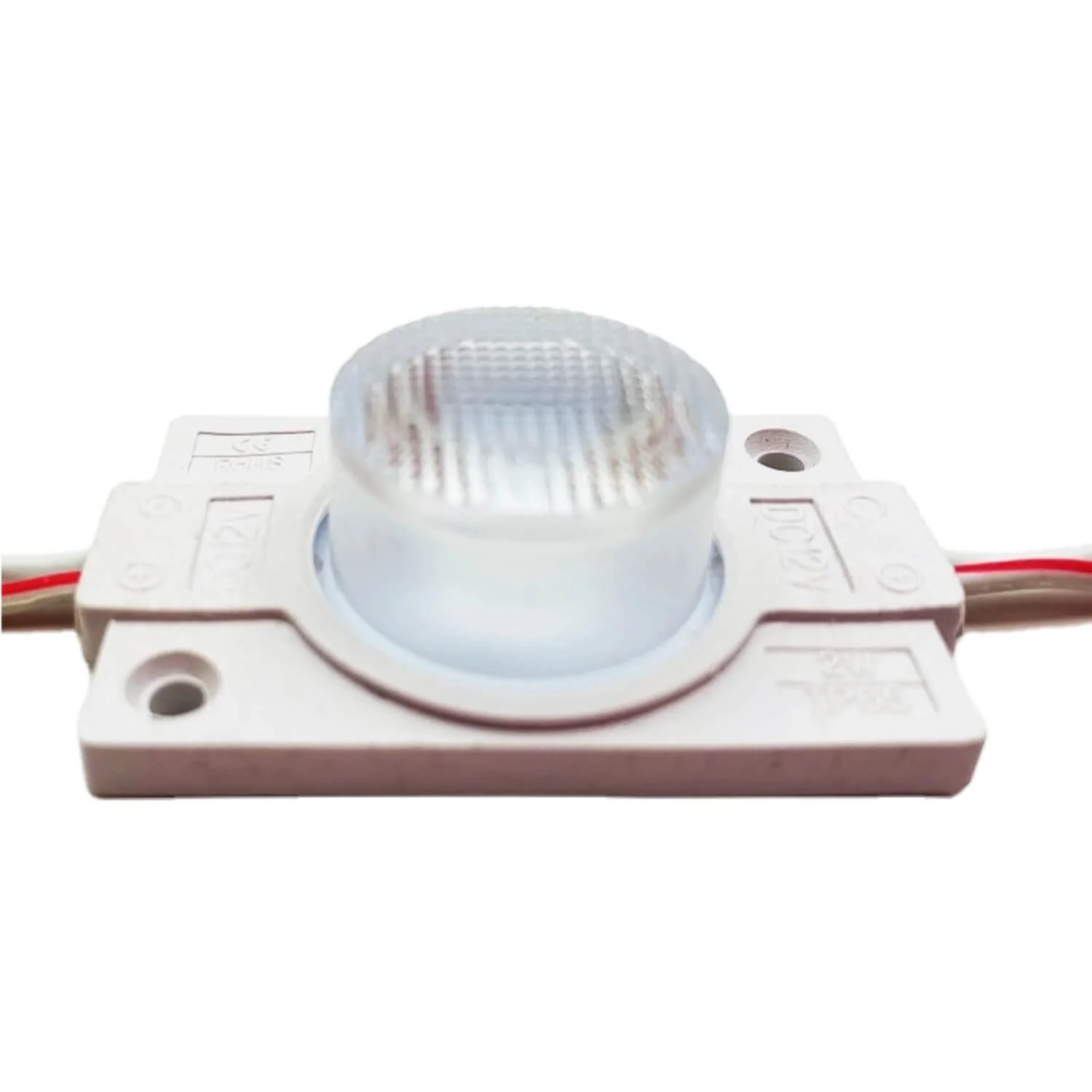

- Lens height: approx. 13 mm (total lens protrusion shown in images)
- Wattage: 1.5 W per module
- Voltage: 12 V DC
- Beam angle: 30°

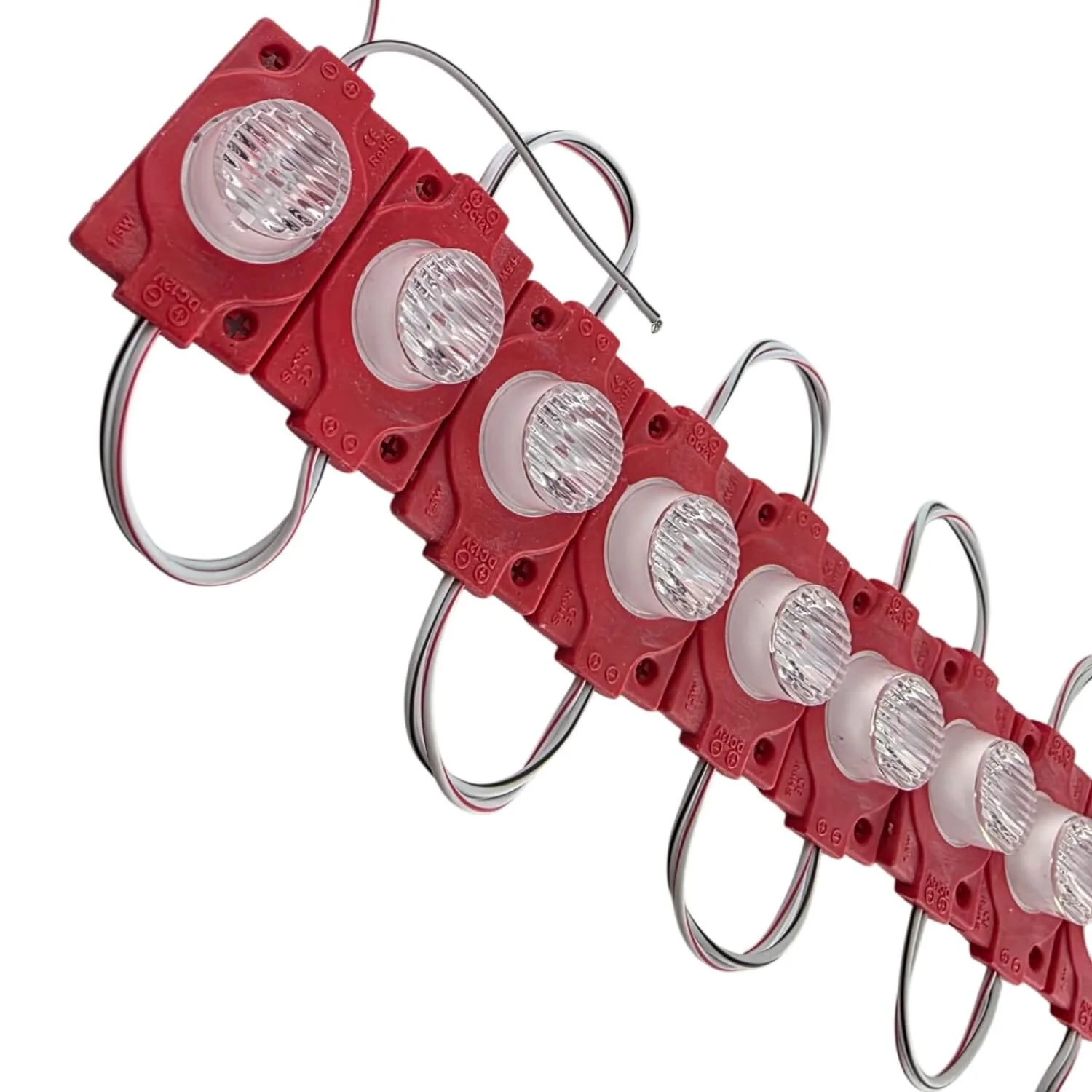

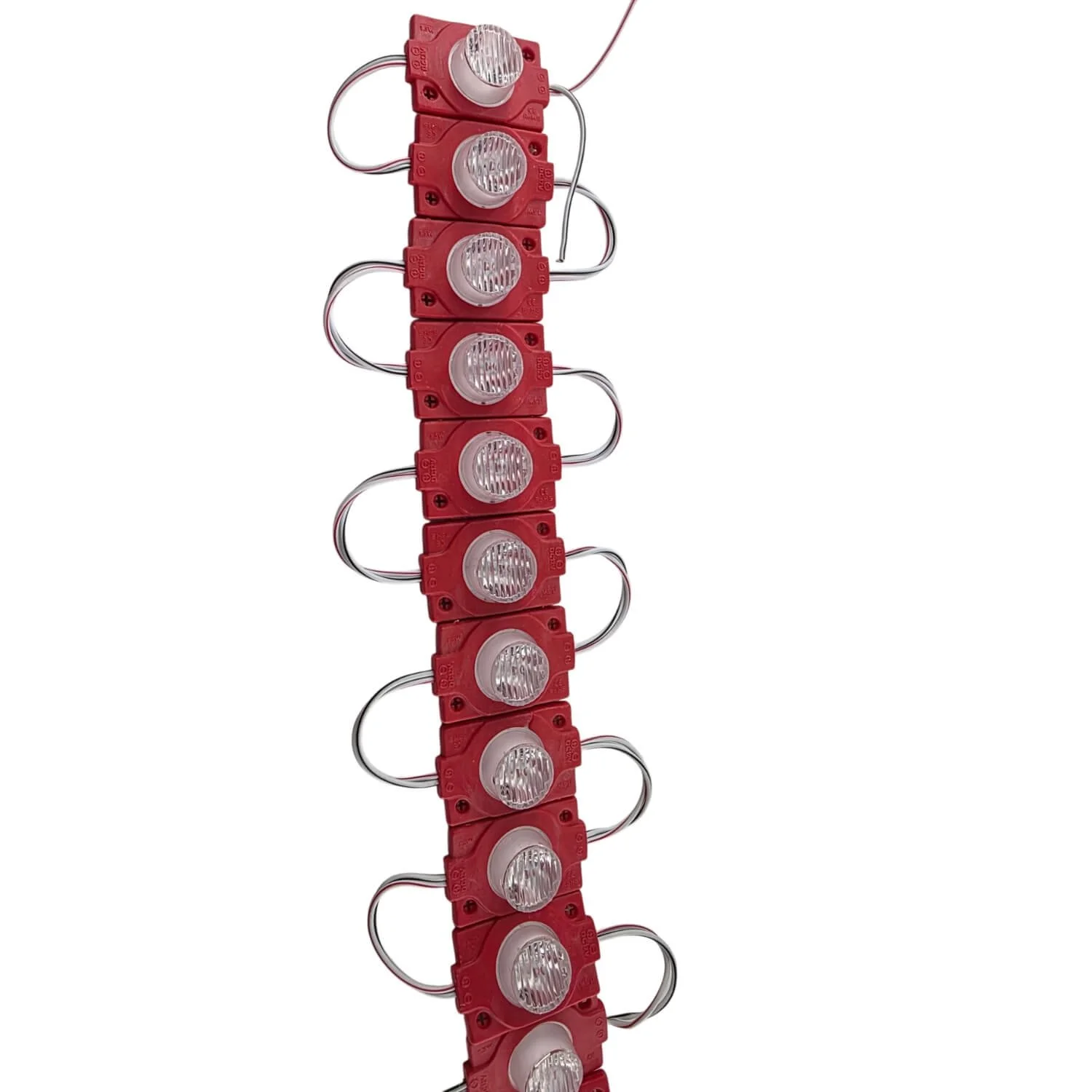

- Typical run: pictured layout shows 15 modules spanning ~310 cm (122 in)
- Warranty: 24 months

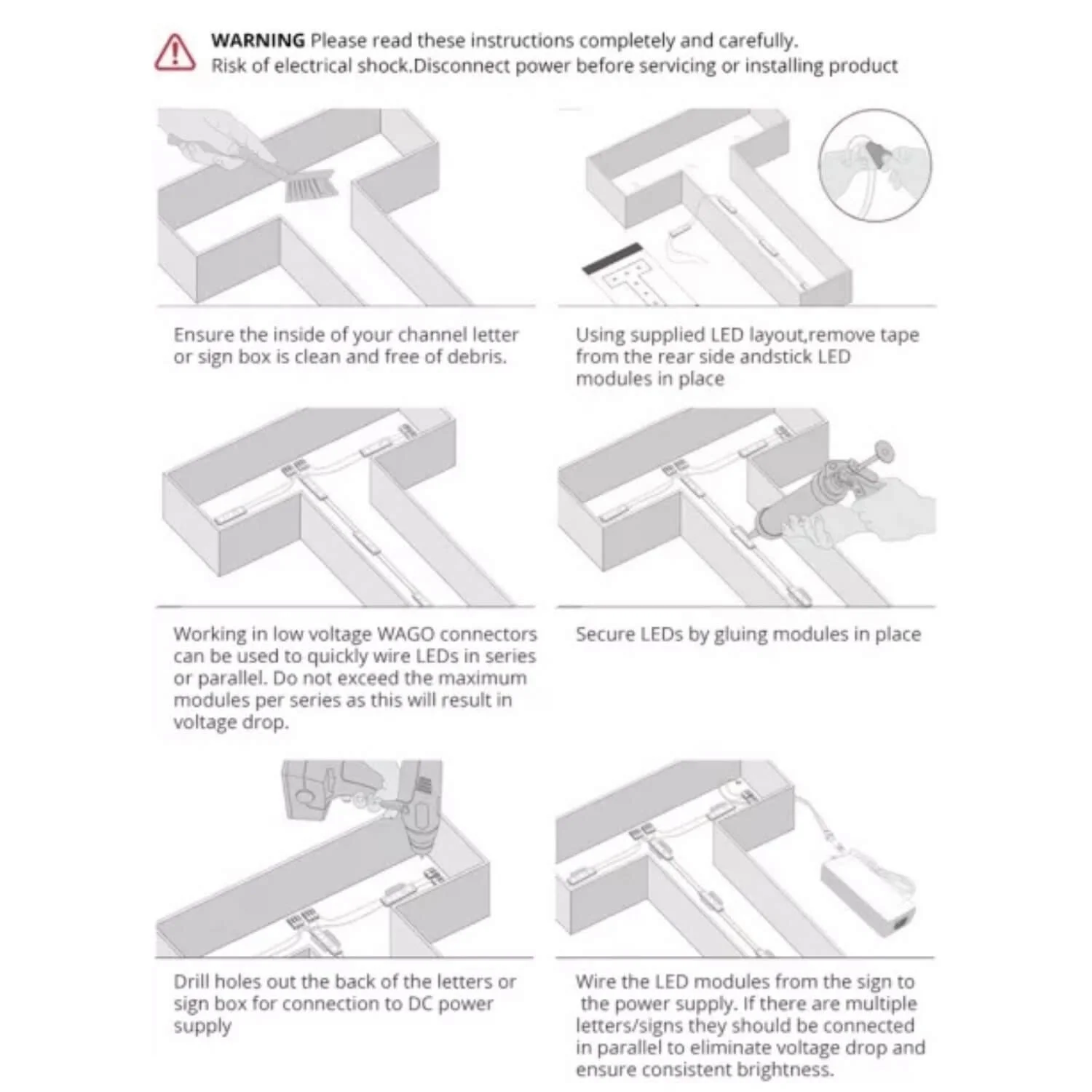

Installation & wiring tips
- Clean and dry the inside of the letter or sign box before mounting.

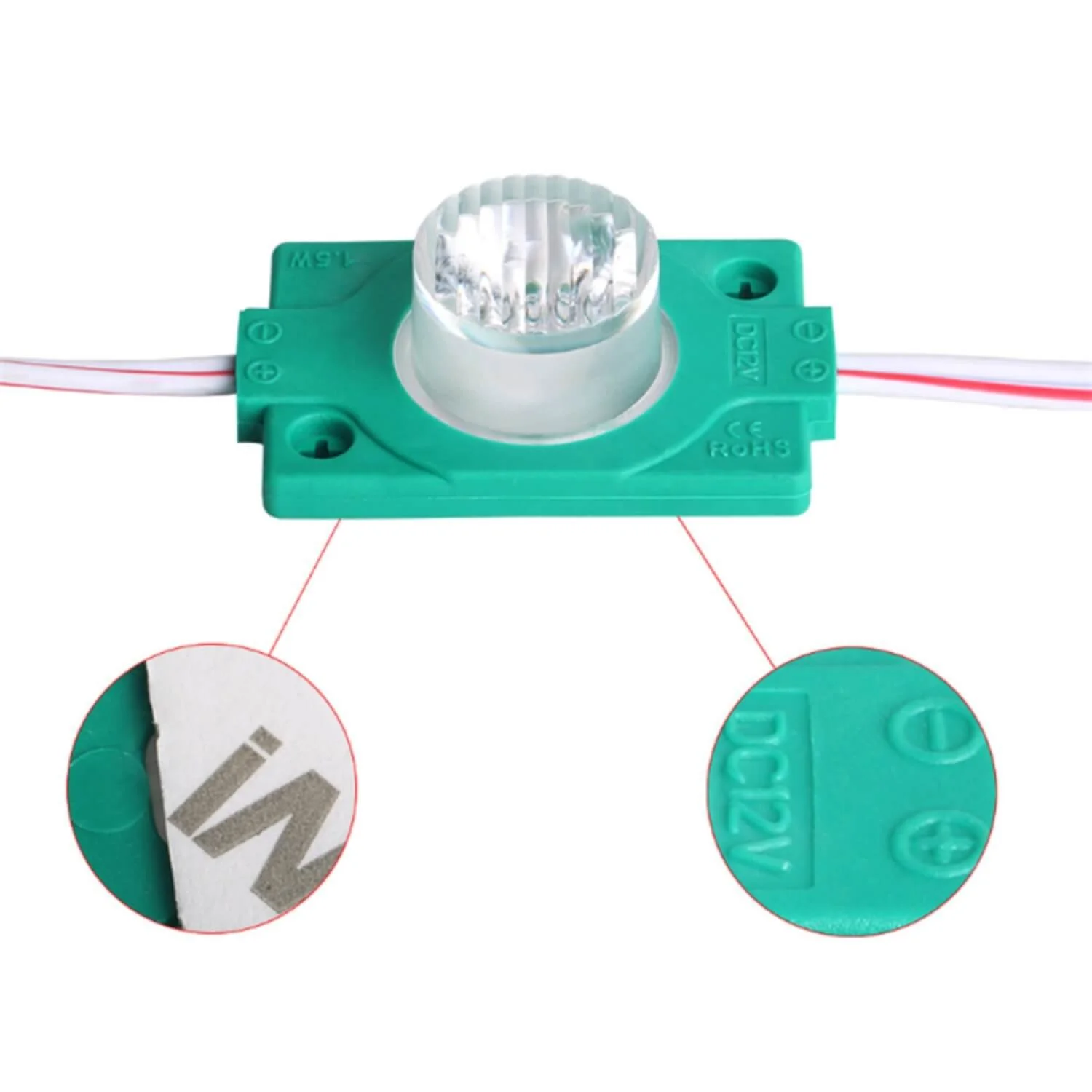

- Remove the protective tape and stick or glue modules in place; use appropriate adhesive for your substrate.
- Secure wiring through drilled access holes where needed and route neatly to the 12 V power supply.
- For longer signage runs, wire modules in parallel to reduce voltage drop and maintain uniform brightness.
- Power calculation example: 15 modules × 1.5 W = 22.5 W. Choose a 12 V DC power supply with at least 25–30% headroom (e.g., 30 W) for reliable operation.
Ideal applications

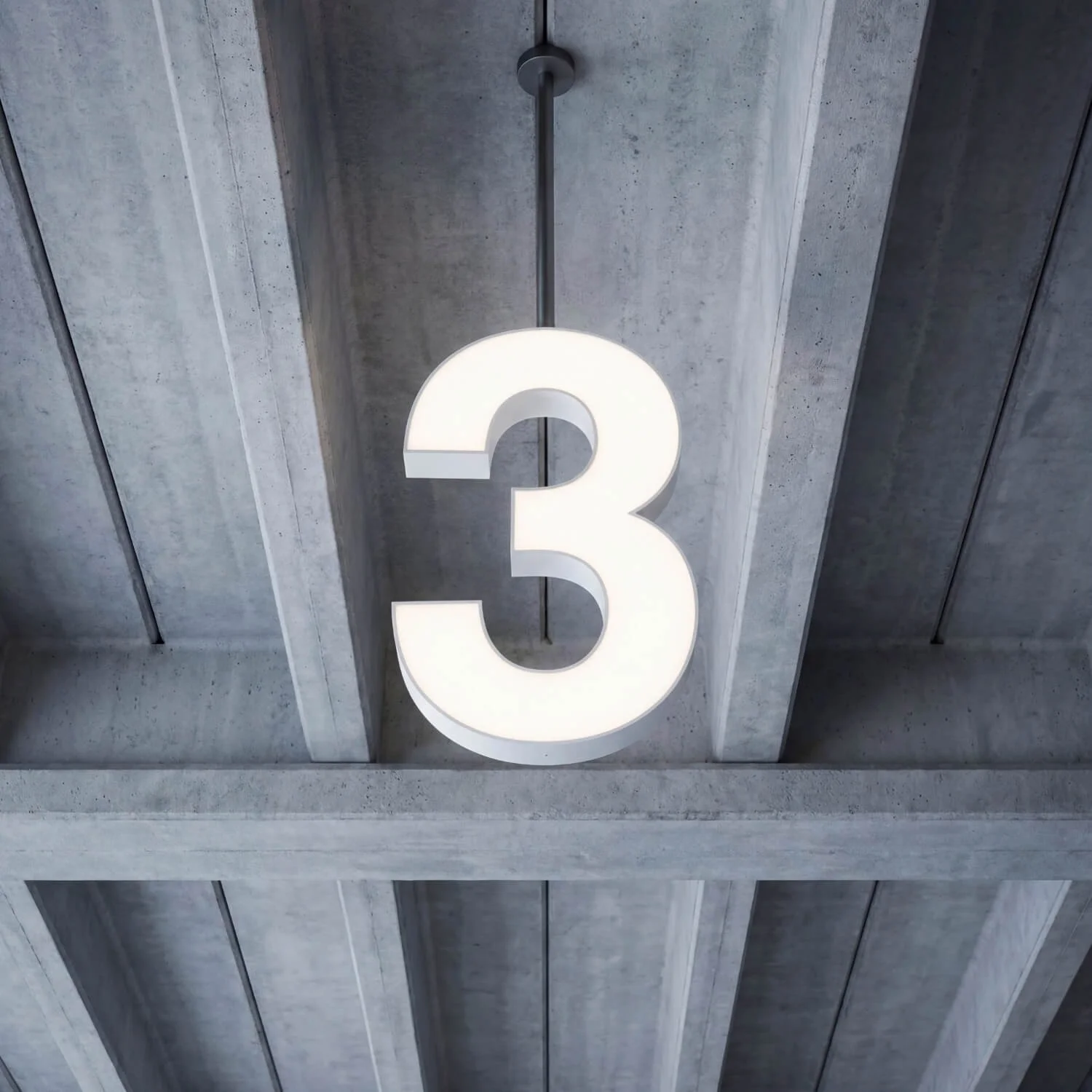

- Routed or fabricated channel letters
- Front-lit light boxes and sign trays
- Point-source accent lighting in displays
- Retail signage and architectural signage details
Why choose ENDIzLED-215
- Compact size and a focused 30° beam make it ideal for crisp, even letter illumination.
- Multiple color and white temperature options let you match brand colors or achieve warm/cool tones.
