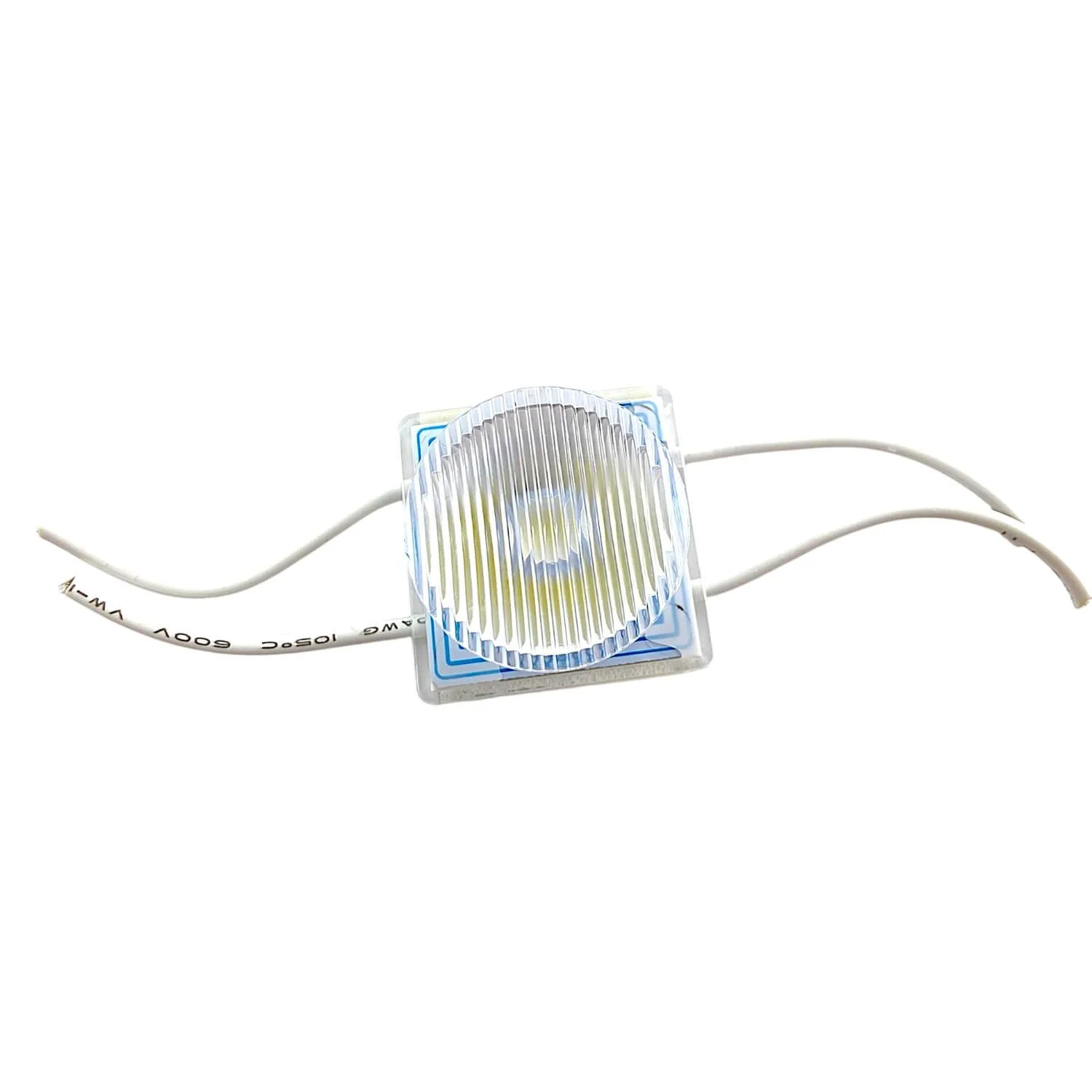

ENDIzLED-214 — Direct-Voltage Edge-Lit Signage Module
- A compact, high-CRI LED module engineered for crisp, even illumination of edge‑lit and channel signage. The ENDIzLED-214 delivers efficient light output in a low-profile form factor, making it ideal for precision illumination in letters, lightboxes, and decorative trim.

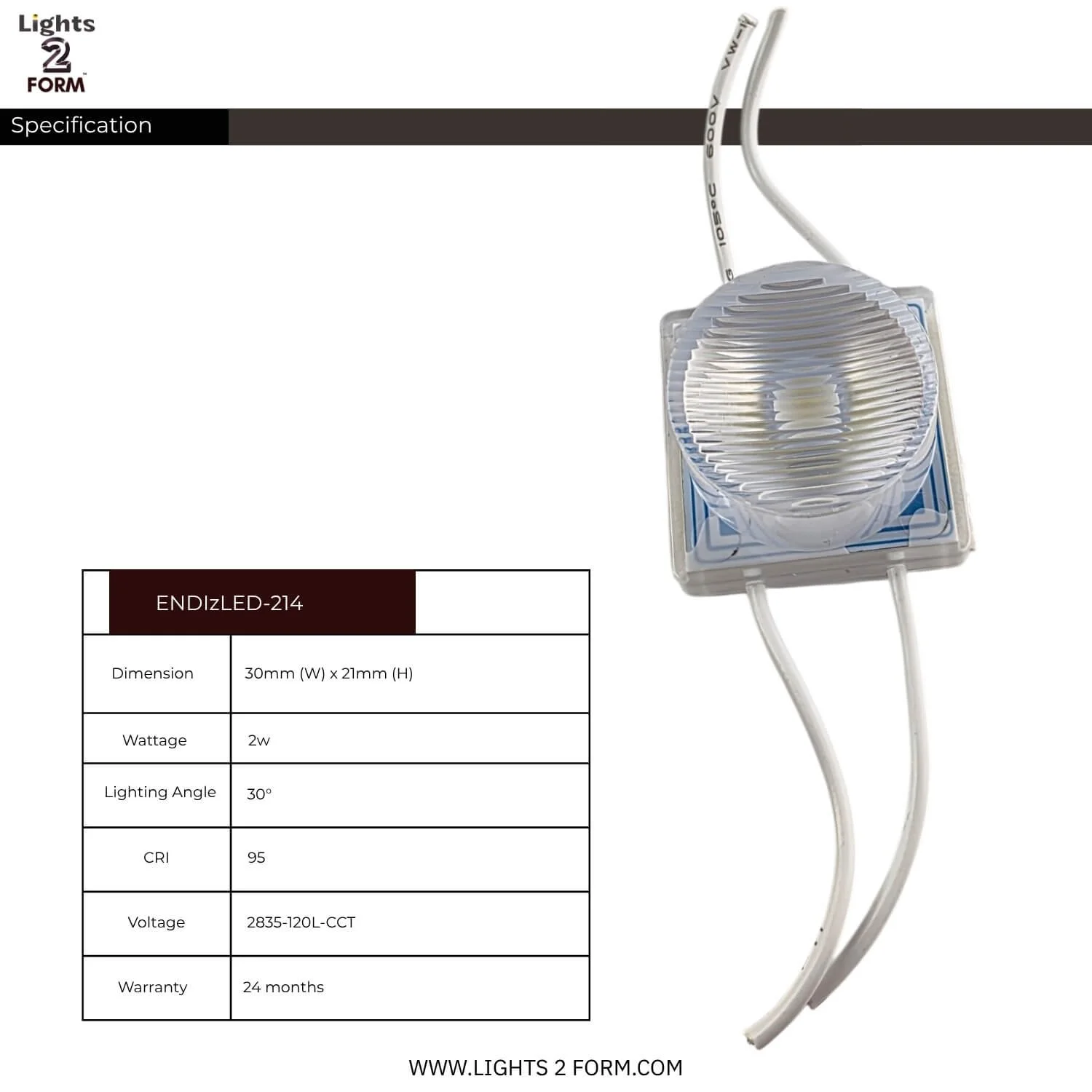

Key features

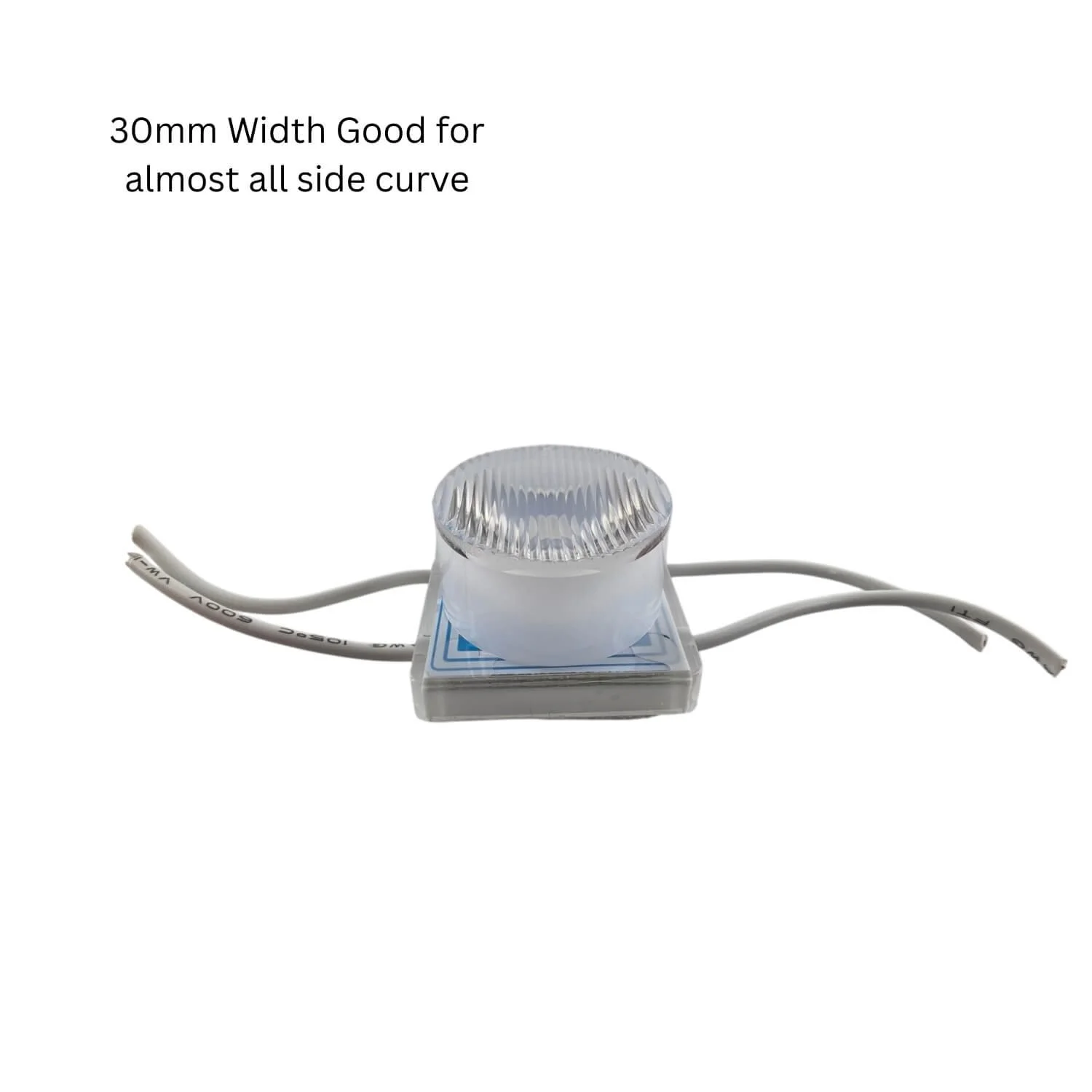

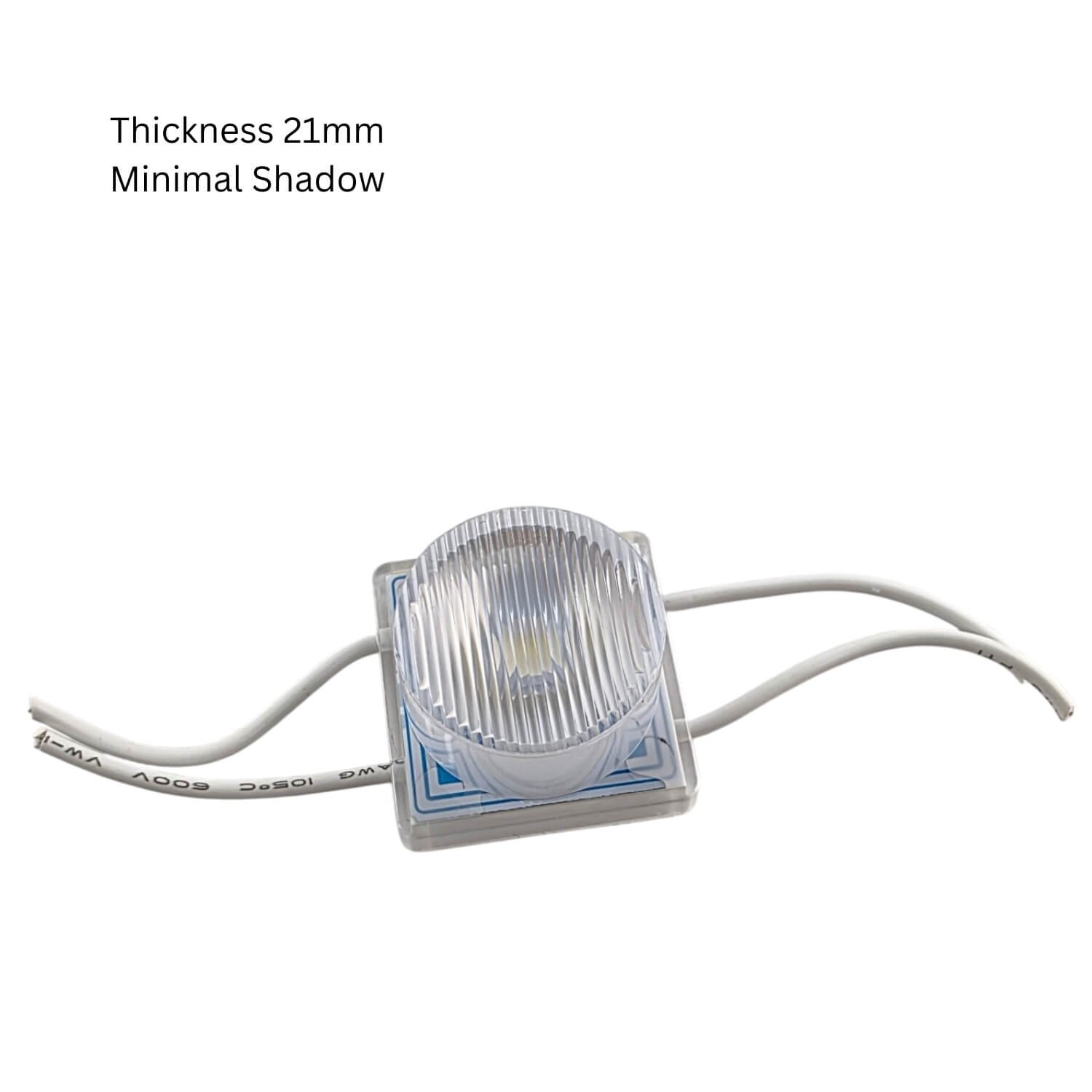

- Compact size: 30 mm (W) x 21 mm (H) — fits narrow cavities and slim profiles
- Power: 2 W per module — energy efficient for continuous signage use

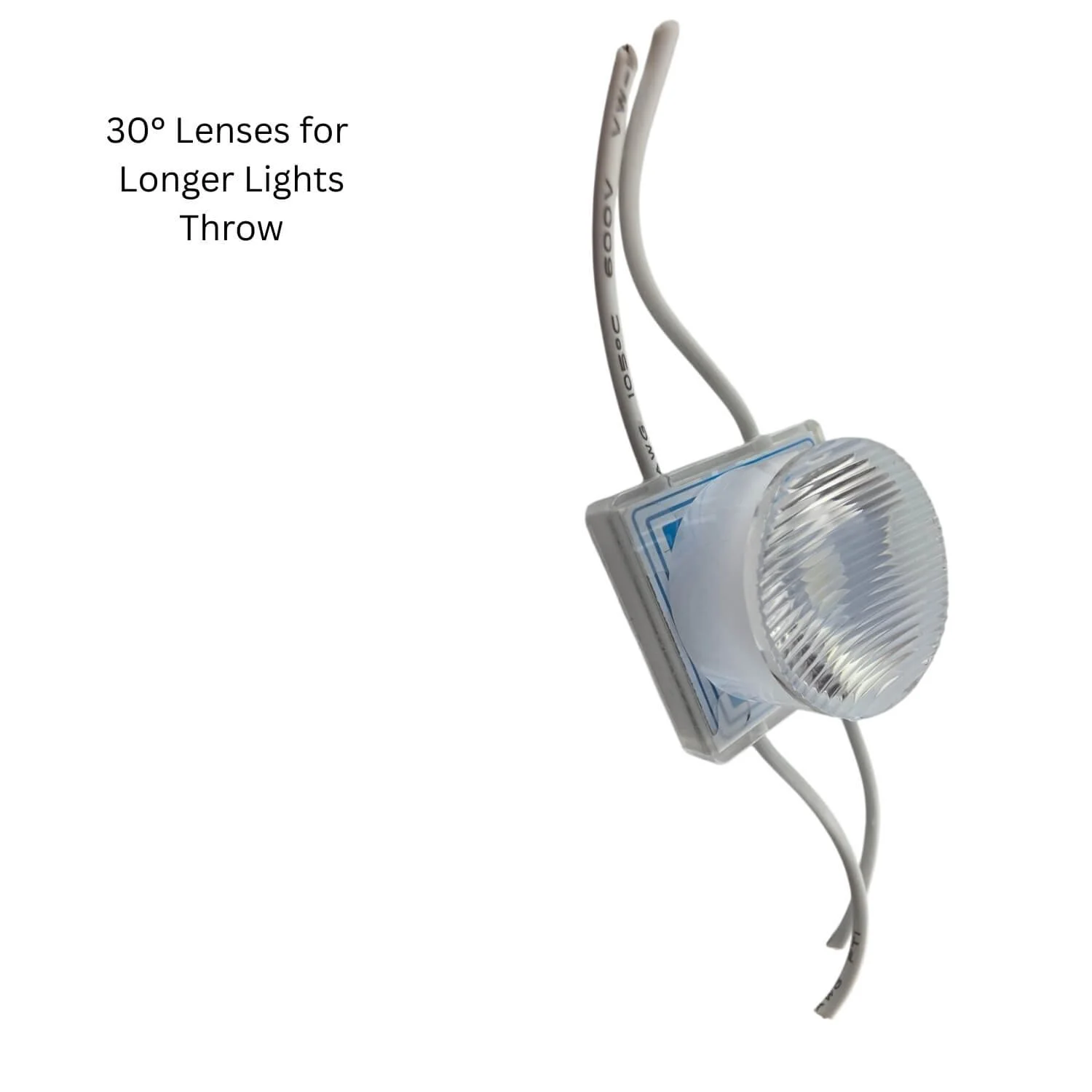

- Beam angle: 30° — focused output for controlled edge lighting and minimal light bleed
- Color quality: CRI 95 — excellent color rendering for accurate reproduction of face graphics and vinyl
- LED/Configuration reference: 2835-120L-CCT (as supplied)
- Warranty: 24 months
Benefits
- Clean, even edge illumination with a tight beam to highlight letter edges and acrylic panels.
- High color fidelity (CRI 95) keeps sign faces and colors looking true and vibrant.
- Small footprint and low profile make installation simpler in shallow channels and trim.
- Low power consumption reduces operating cost for large installations.
Recommended applications
- Edge-lit acrylic letters and logos
- Channel letter backlighting where controlled beam is required
- Slim lightboxes and tray signage
- Retail displays and point-of-sale illumination
Installation notes (brief)

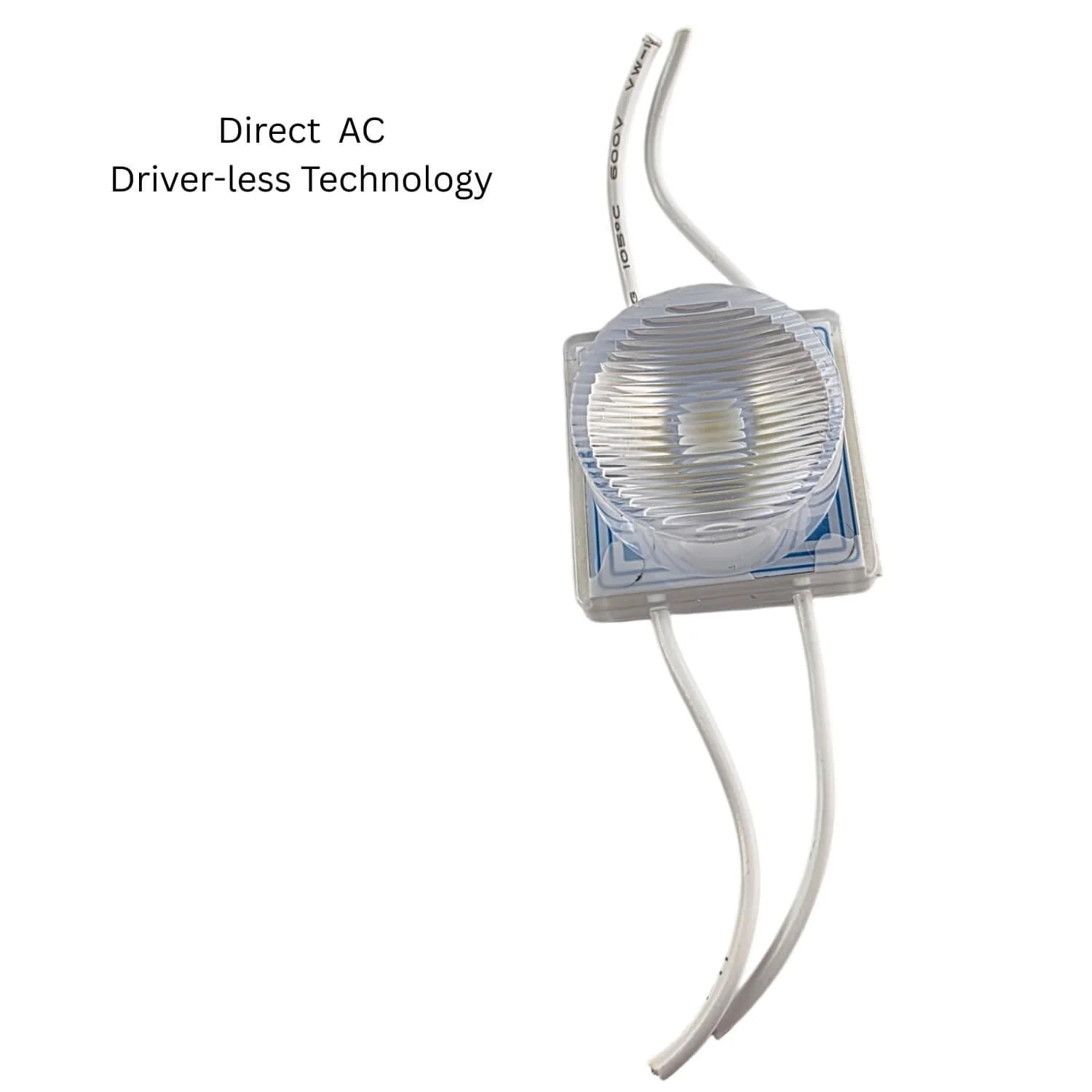

- Designed for direct-voltage signage systems — verify compatibility with your supply voltage and wiring scheme before installation.

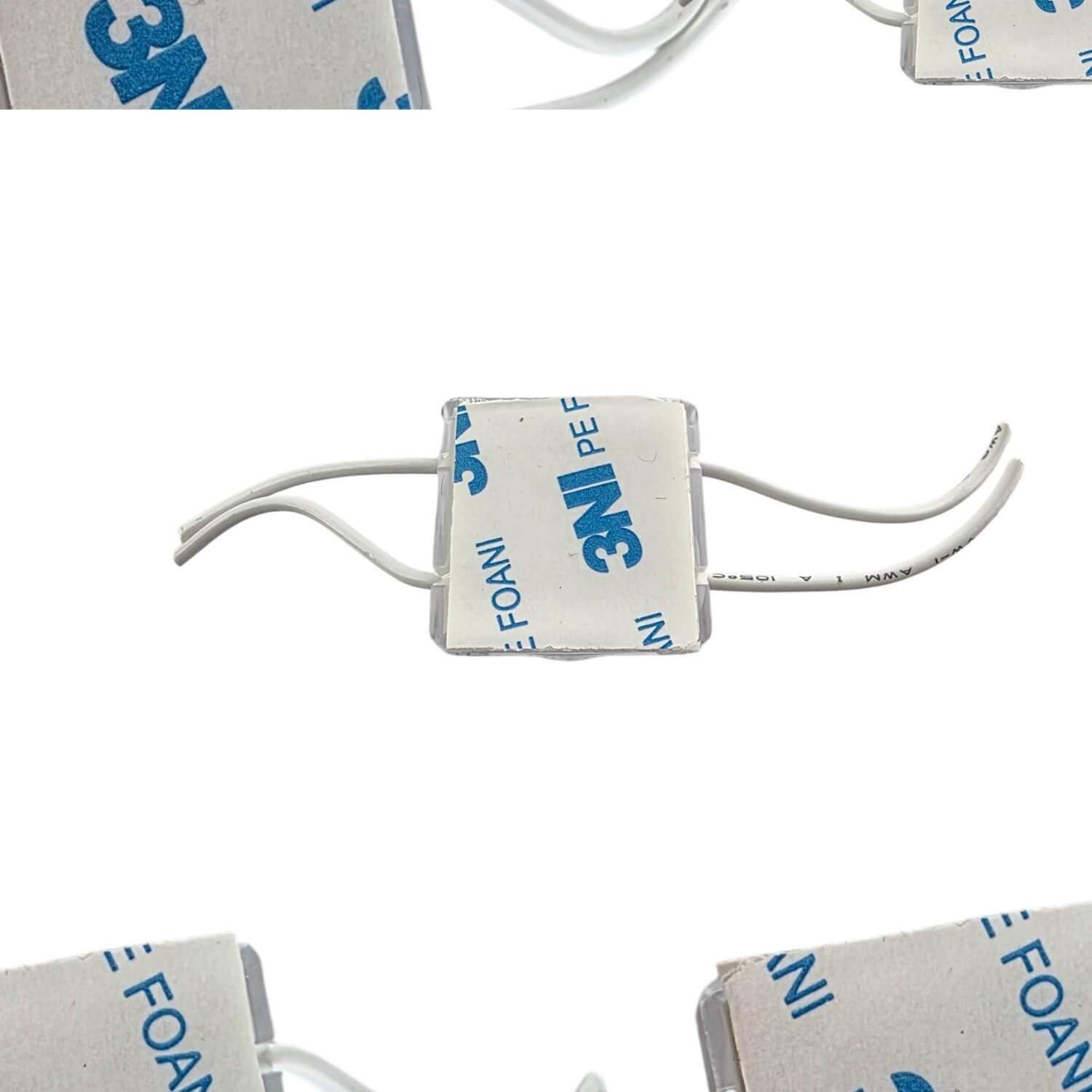

- Mount on a clean, dry surface using recommended adhesive or mechanical clips; avoid shading the lens for best light distribution.
- Connect modules in parallel where required and observe polarity markings on the leads.
- For consistent appearance, space modules according to panel thickness and desired uniformity — contact us for recommended spacing guidelines for your specific application.
