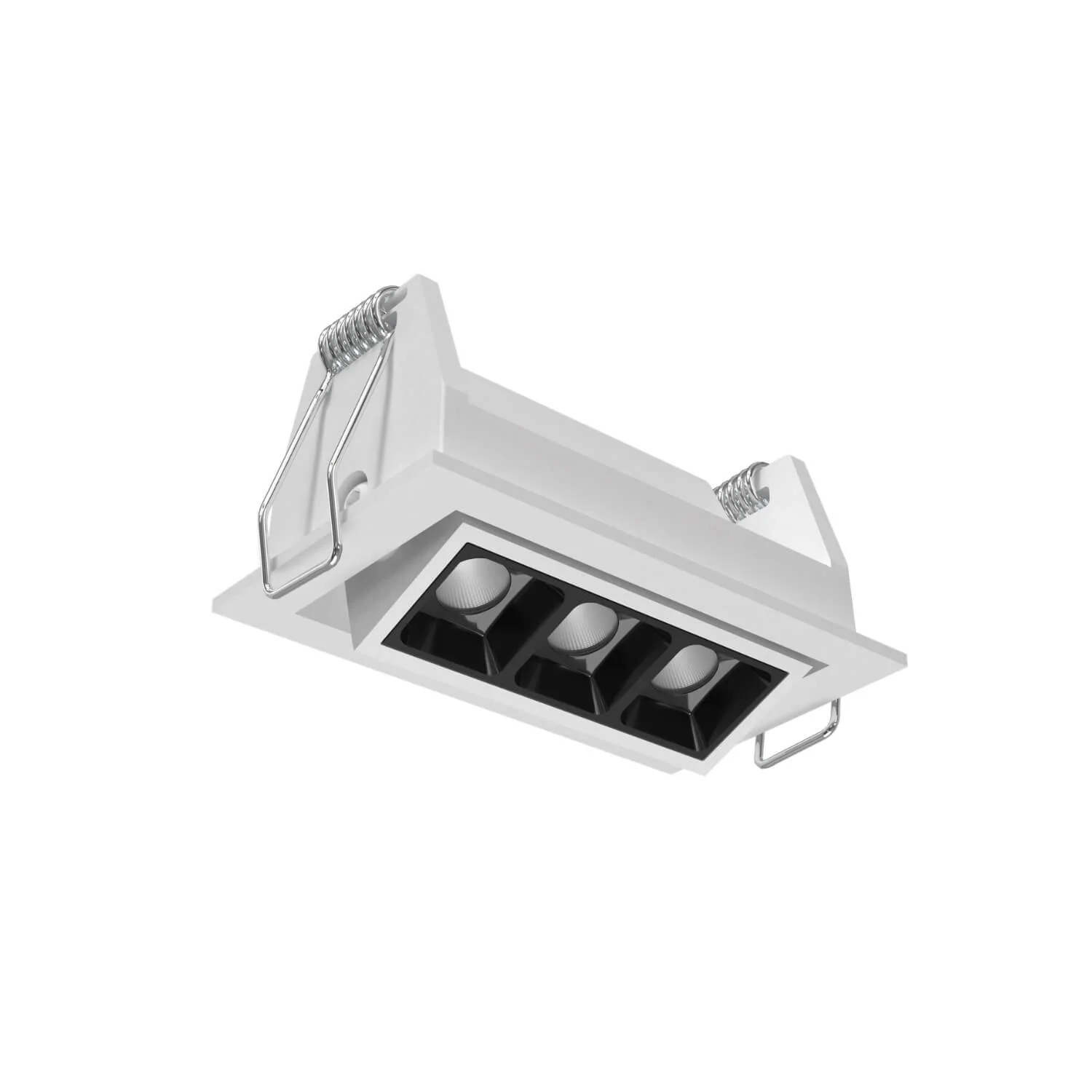

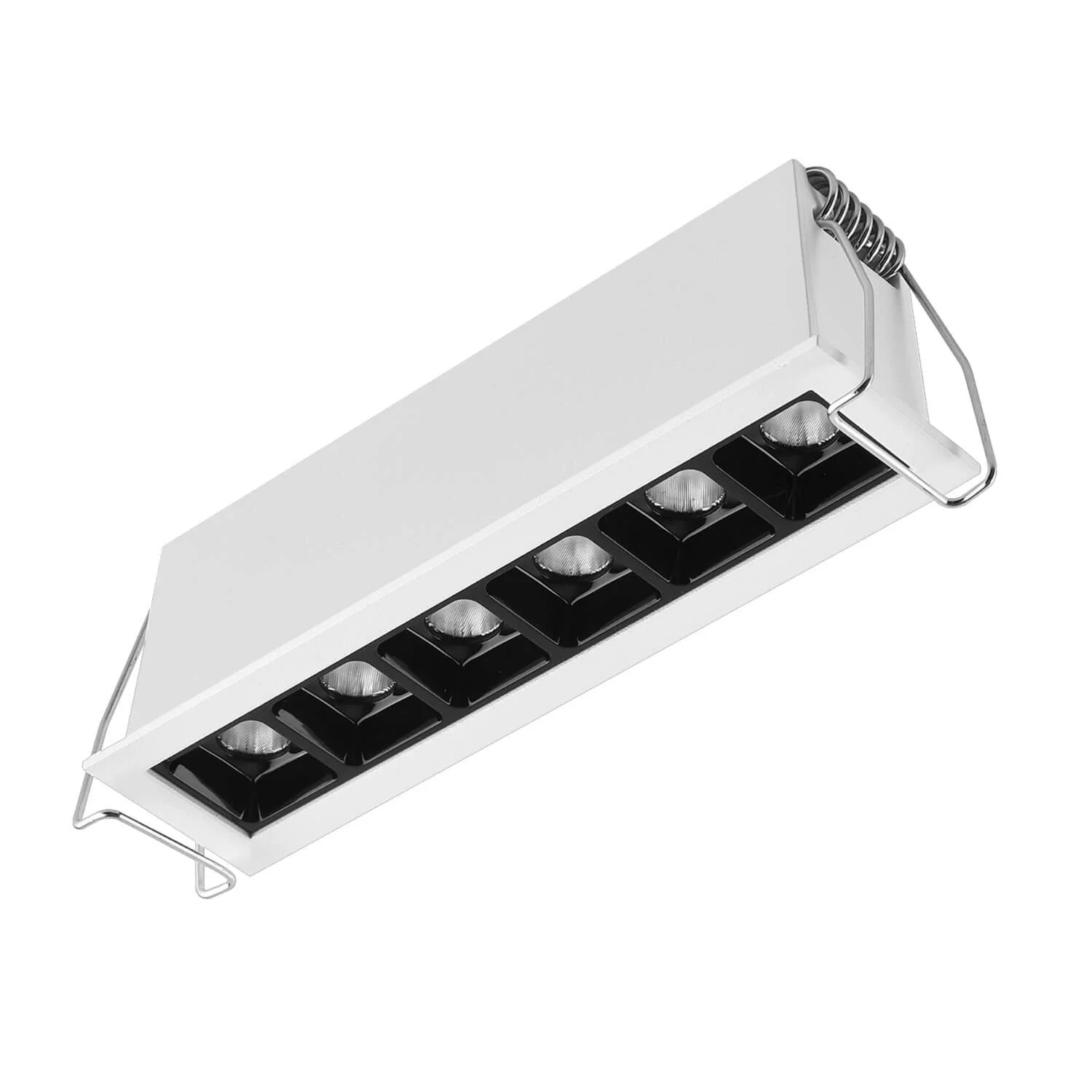

ENDIzLED-212 — Mini Grille Recessed LED Downlight
Product overview
- The ENDIzLED-212 (Mini Grille) is a slim, high-performance recessed grille downlight designed for clean, glare-controlled illumination in commercial and premium residential spaces. Its modular grille optics and compact profile make it ideal for retail, galleries, corridors, offices and hospitality areas where precision lighting and a minimalist ceiling aesthetic are required.
Key benefits
- Precision beam control: Available with 24° or 36° beam angles for focused accenting or general illumination.
- High color fidelity: CRI ~90 for accurate color rendering — great for merchandise, artwork and display lighting.
- Premium LED source: Fitted with high-quality OSRAM LED chips for reliable output and color consistency.

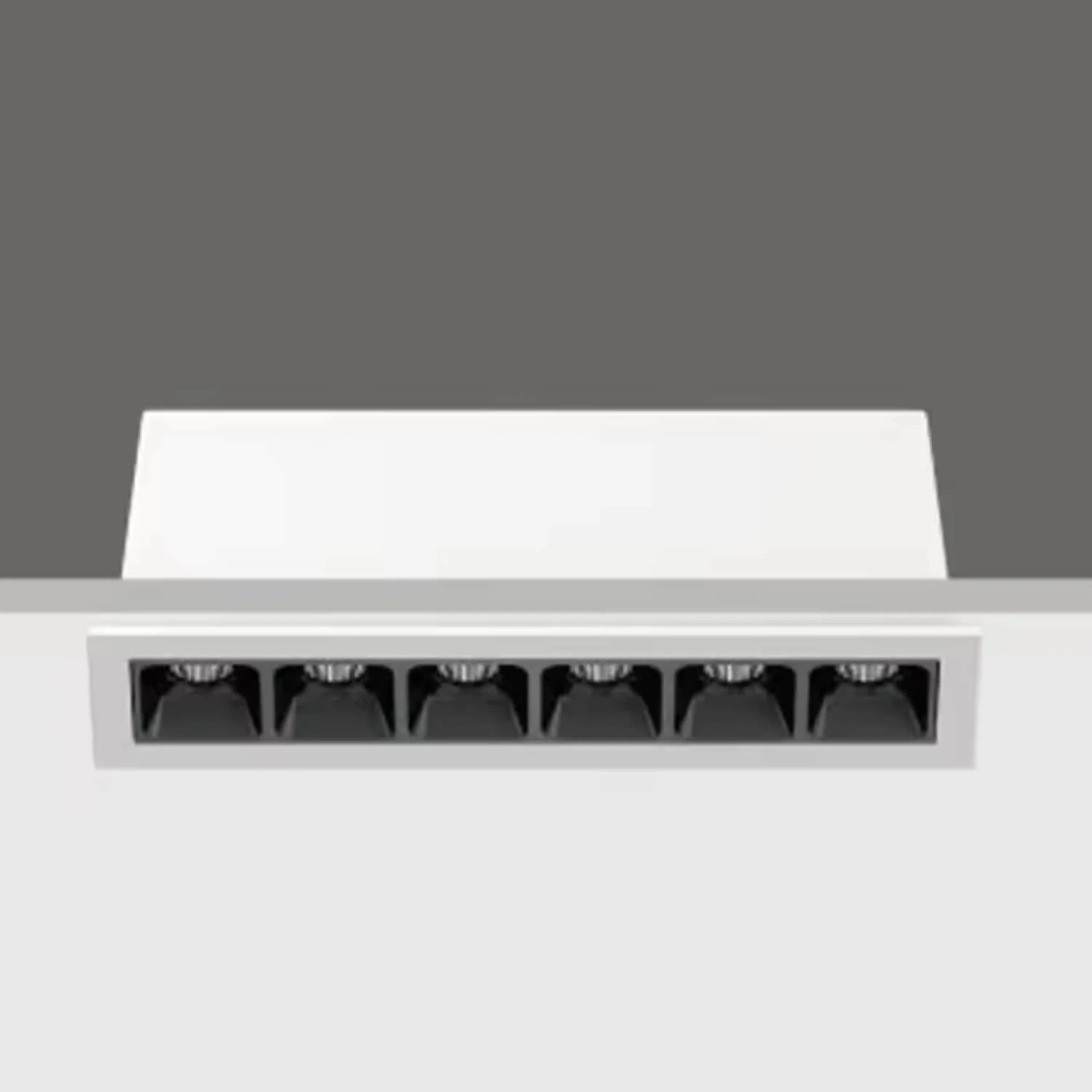

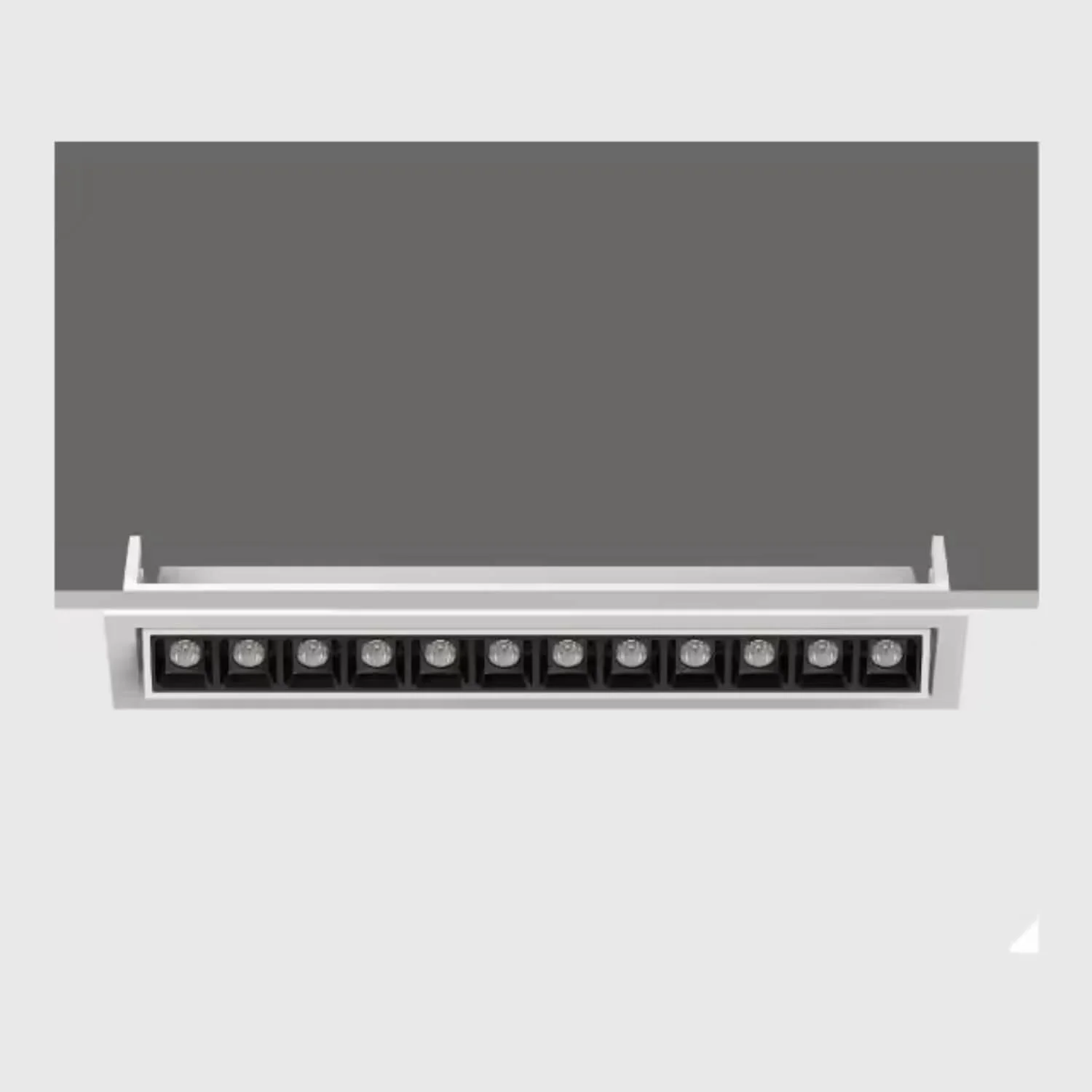

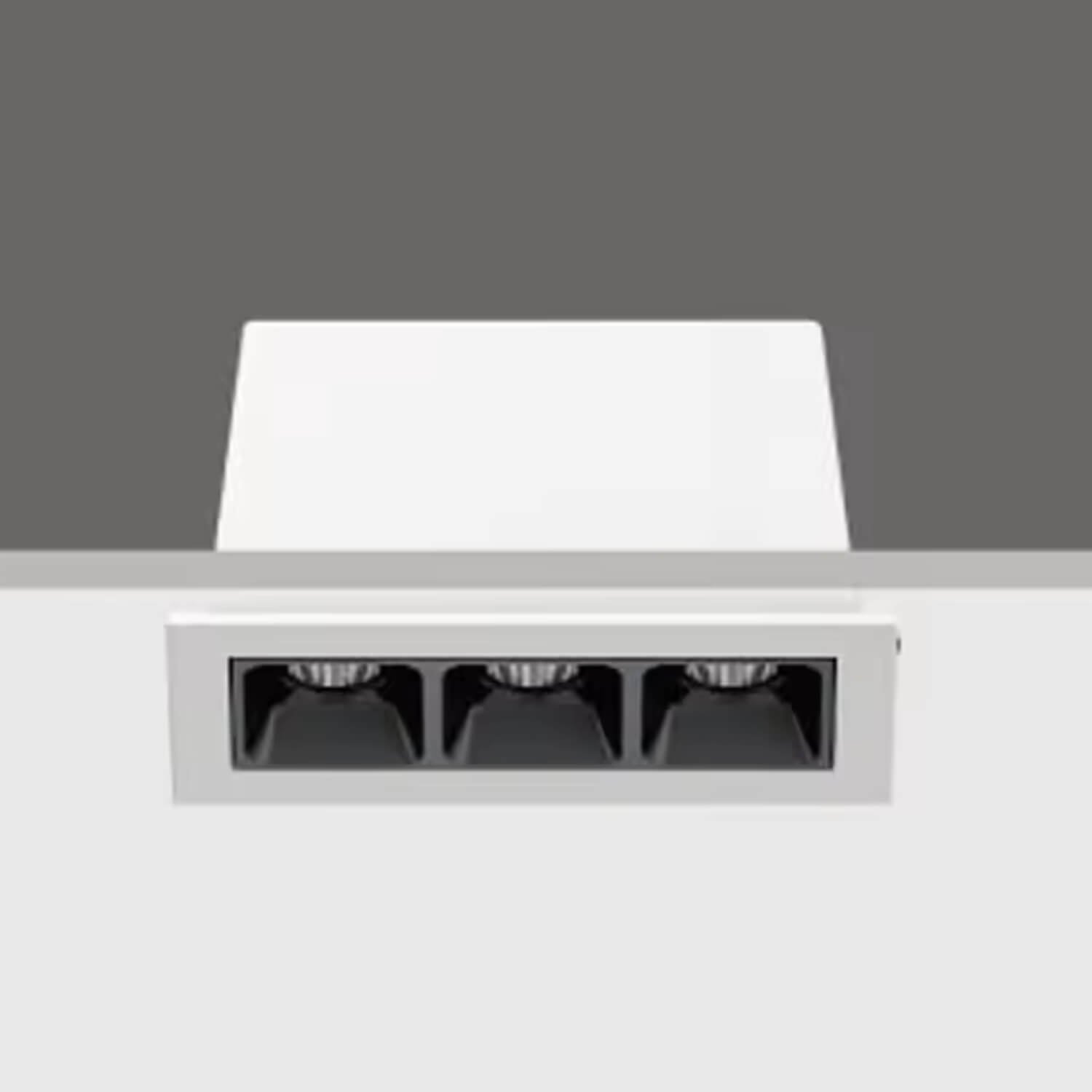

- Low-profile recessed design: Discreet appearance with minimal visible trim while delivering powerful directional light.

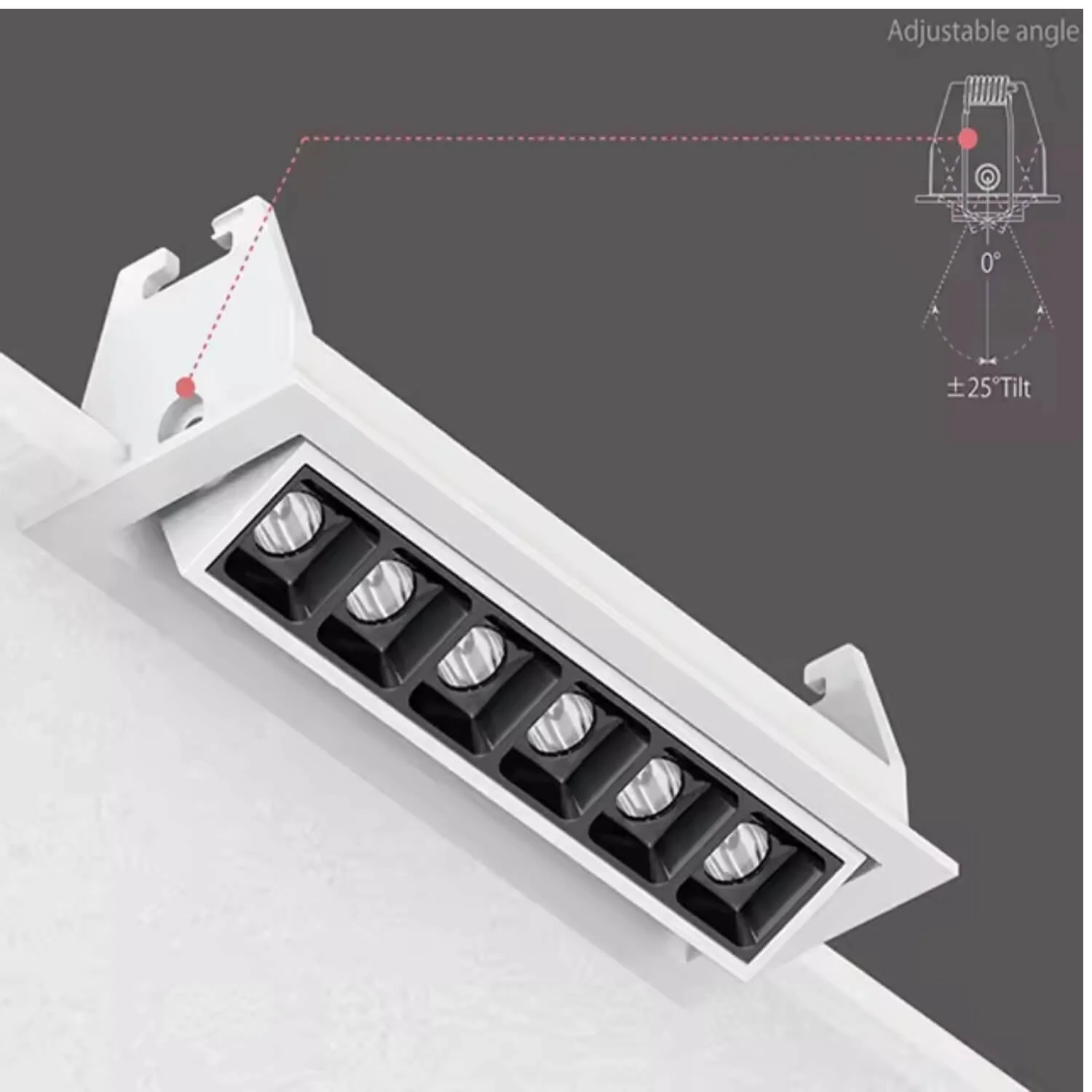

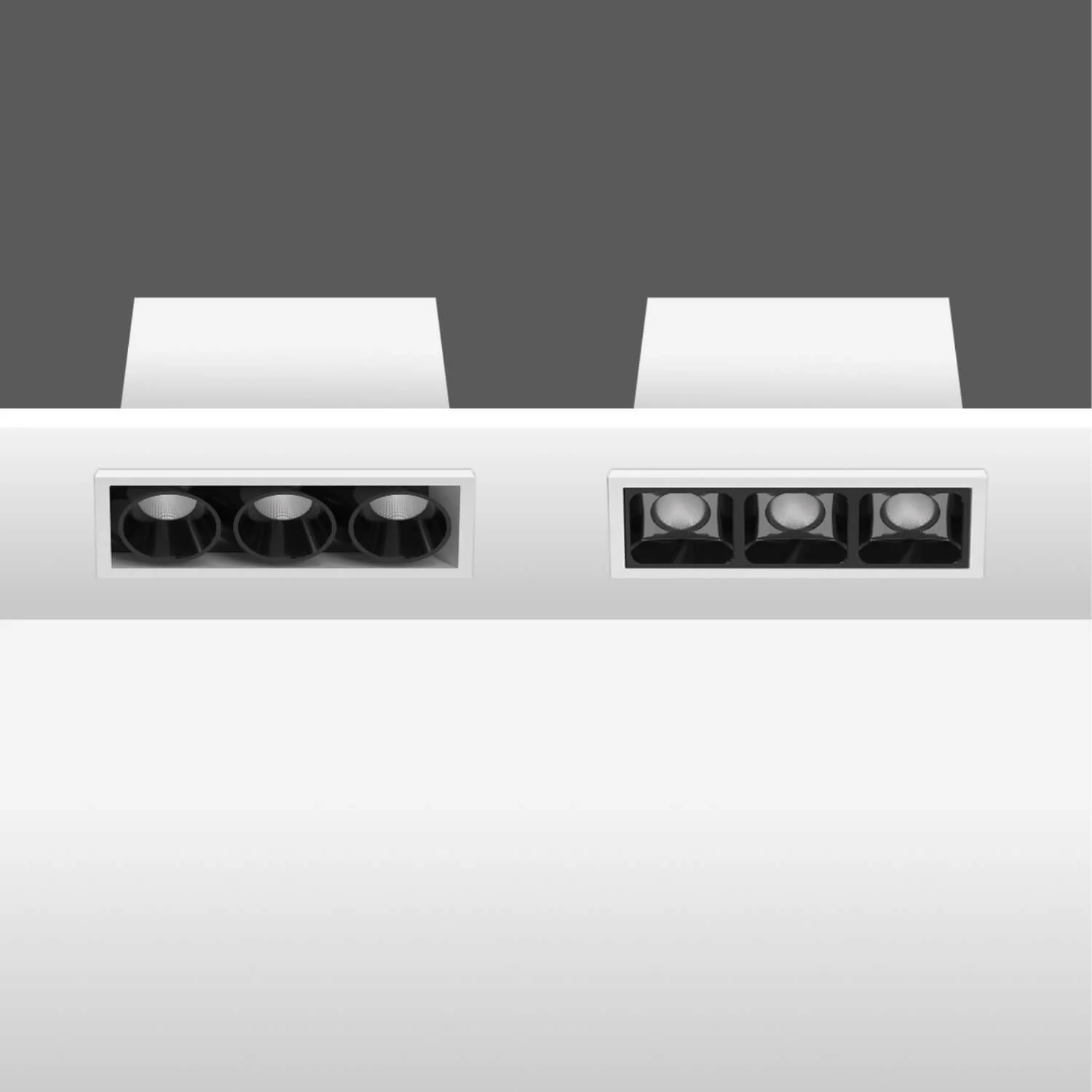

- Optical flexibility: Offered with concave or convex grille optics for different glare-control and visual effects.
- Two finish options: White or black inner grille for tailored appearance and contrast control.

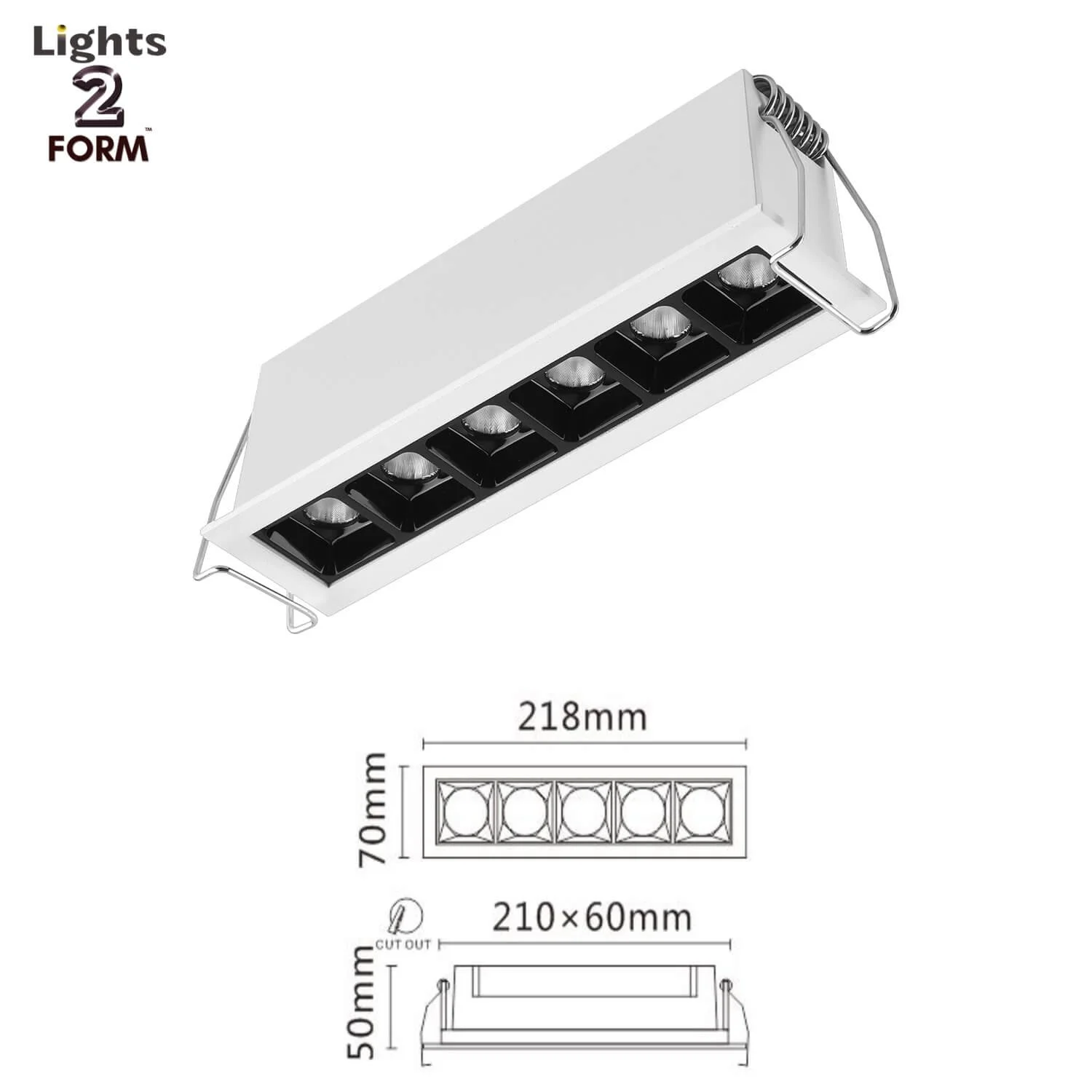

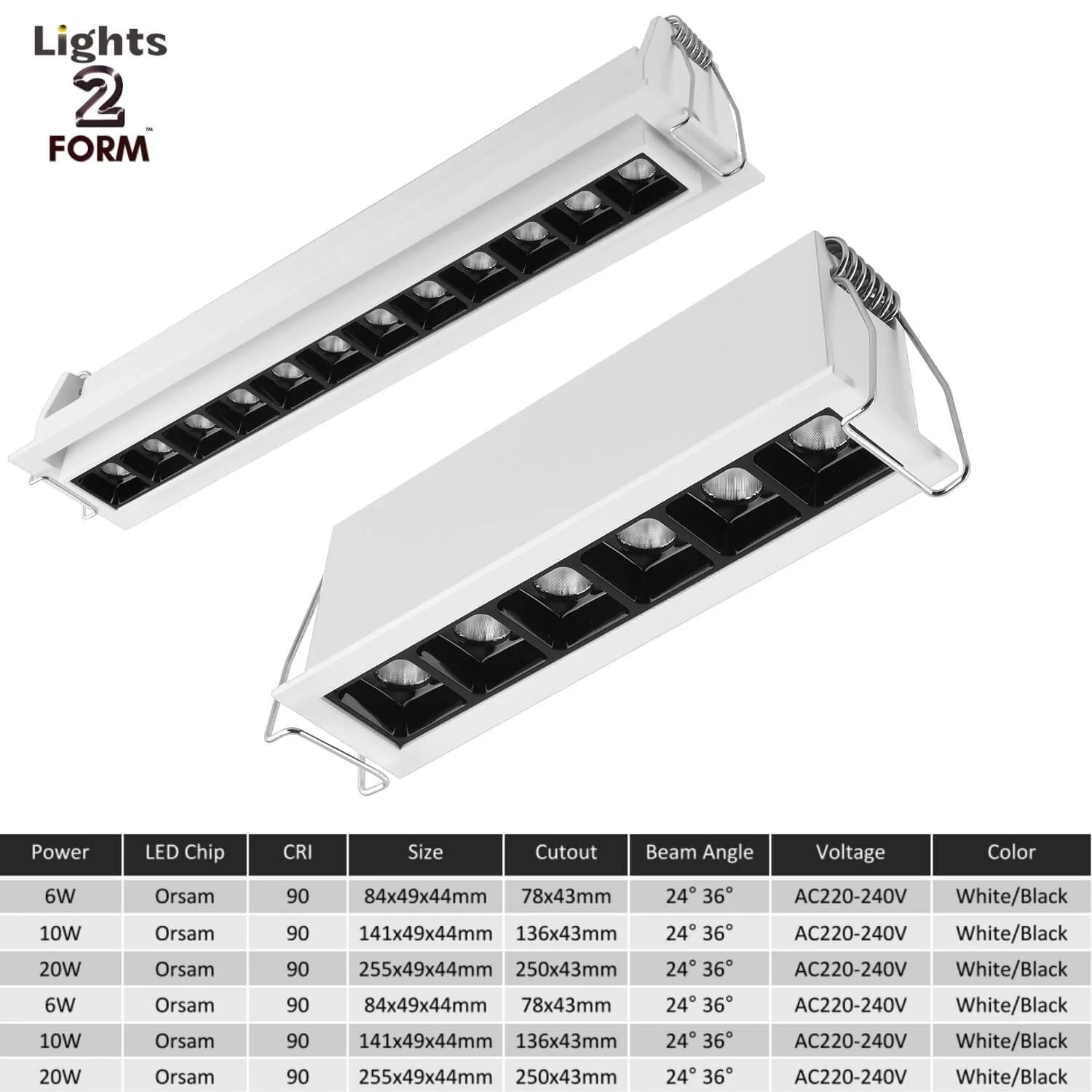

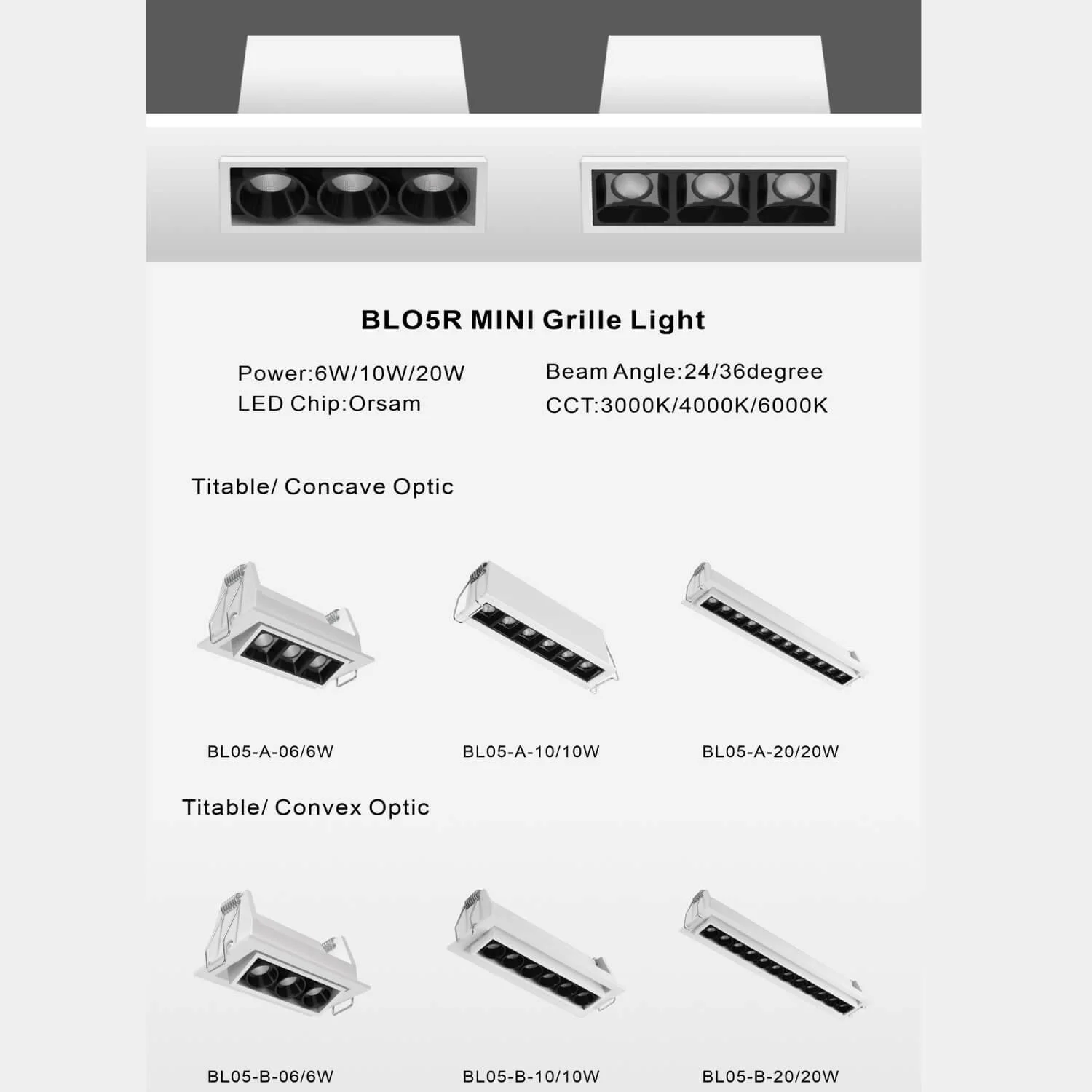

Available power & sizes
- 6W — External dims: 84 x 49 x 44 mm. Cutout: 78 x 43 mm.
- 10W — External dims: 141 x 49 x 44 mm. Cutout: 136 x 43 mm.

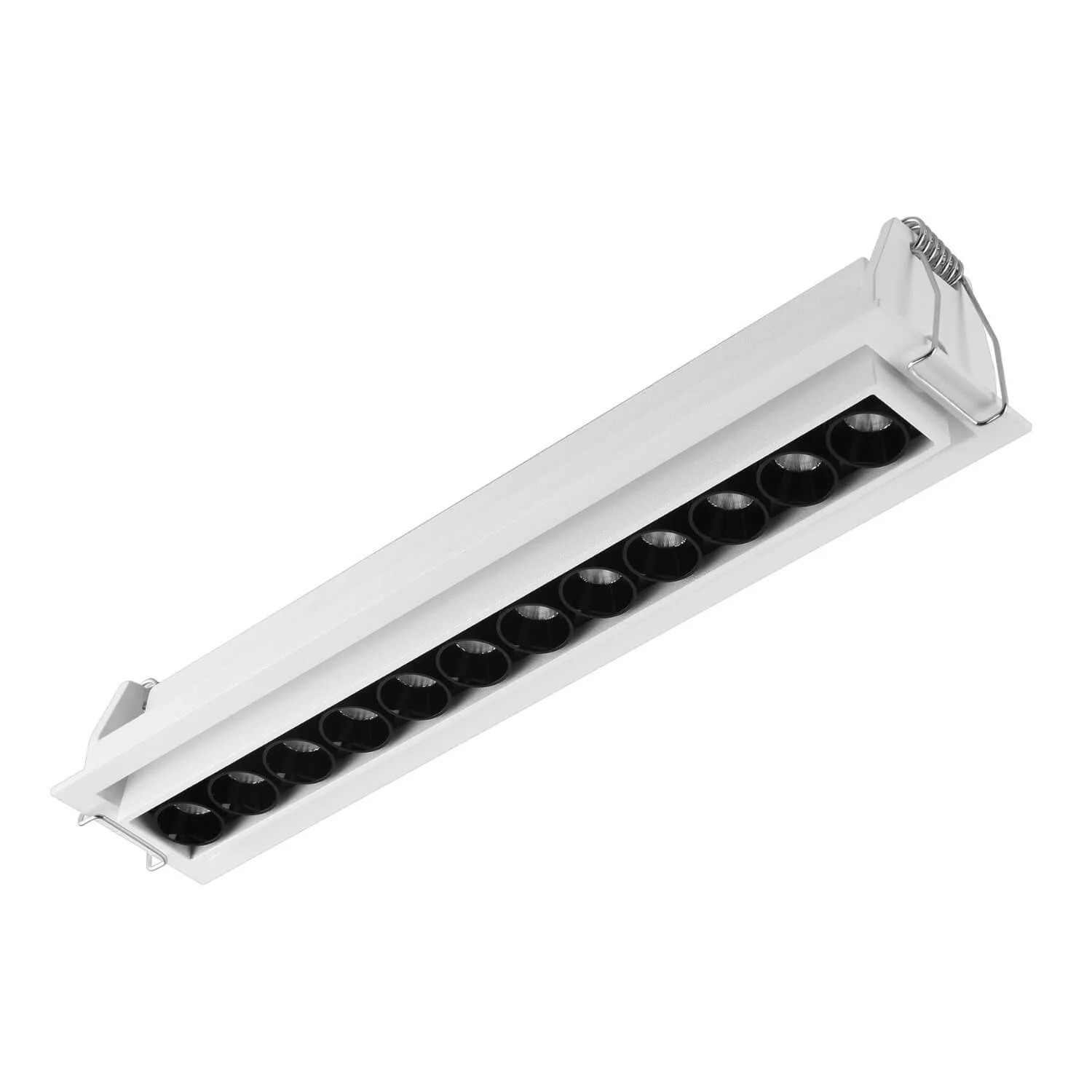

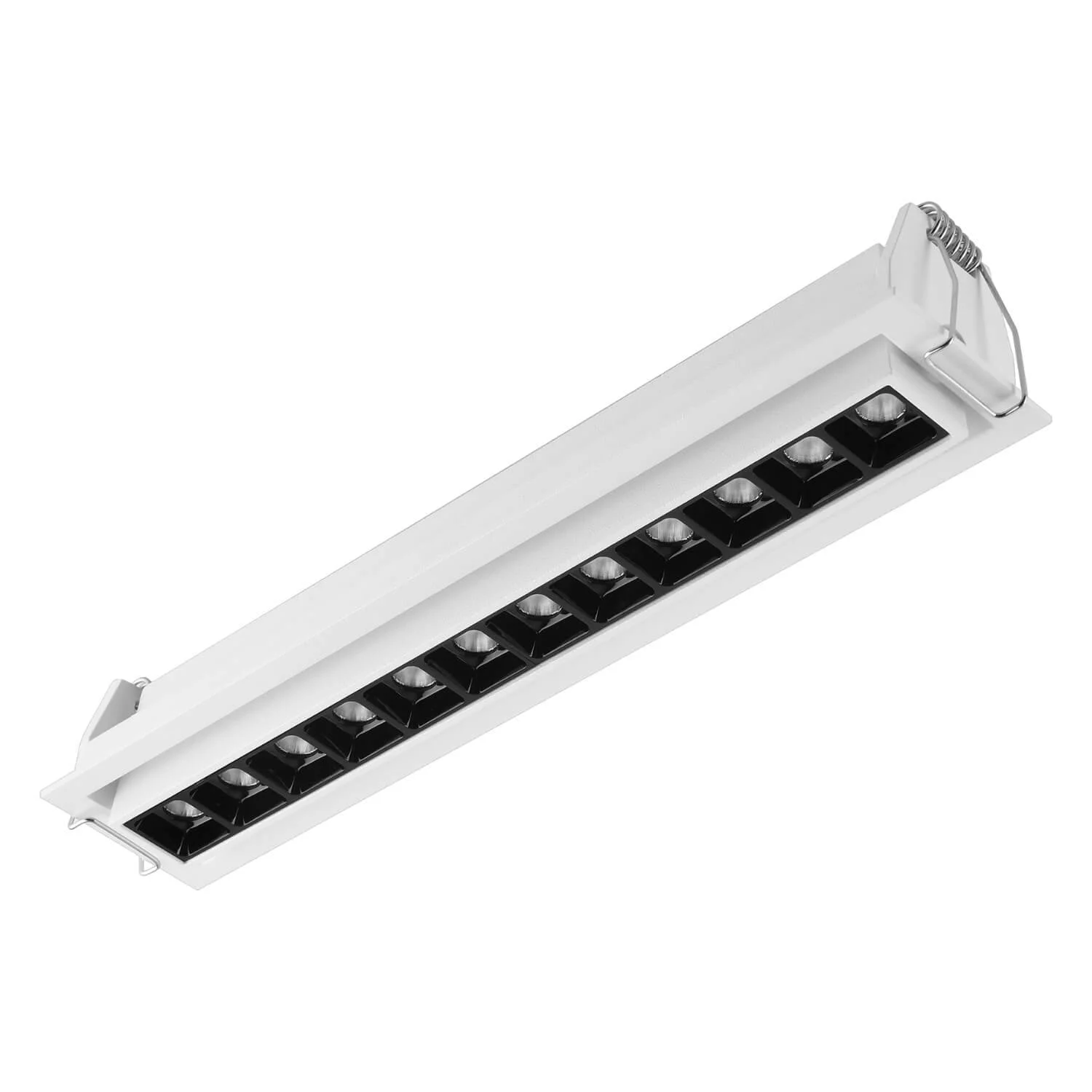

- 20W — External dims: 255 x 49 x 44 mm. Cutout: 250 x 43 mm.
Electrical & optical specifications
- Voltage: AC 220–240V
- LED chip: OSRAM
- Color temperature (CCT): 3000K / 4000K / 6000K
- Beam angles: 24° / 36°
- CRI: 90
- Finishes: White or Black grille

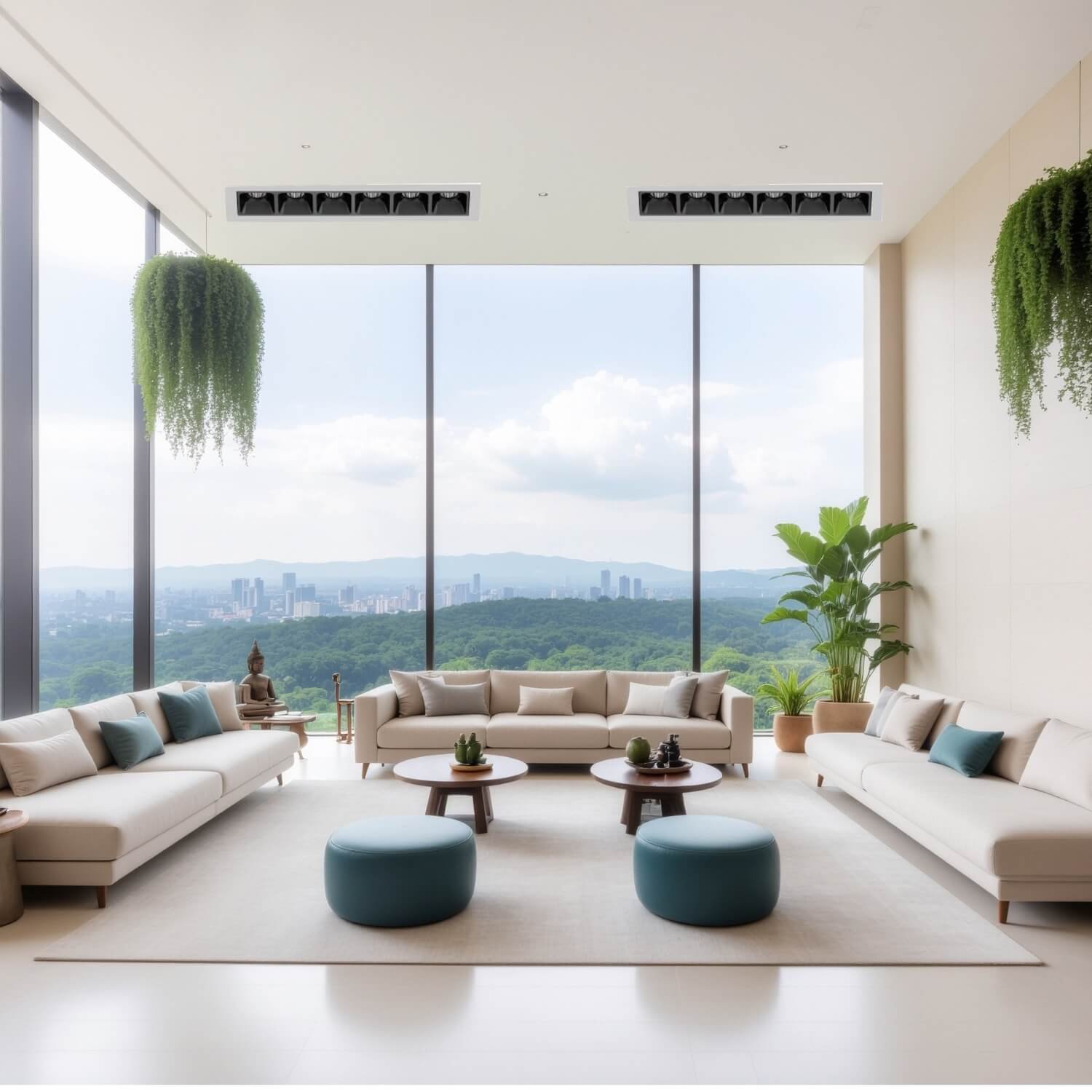

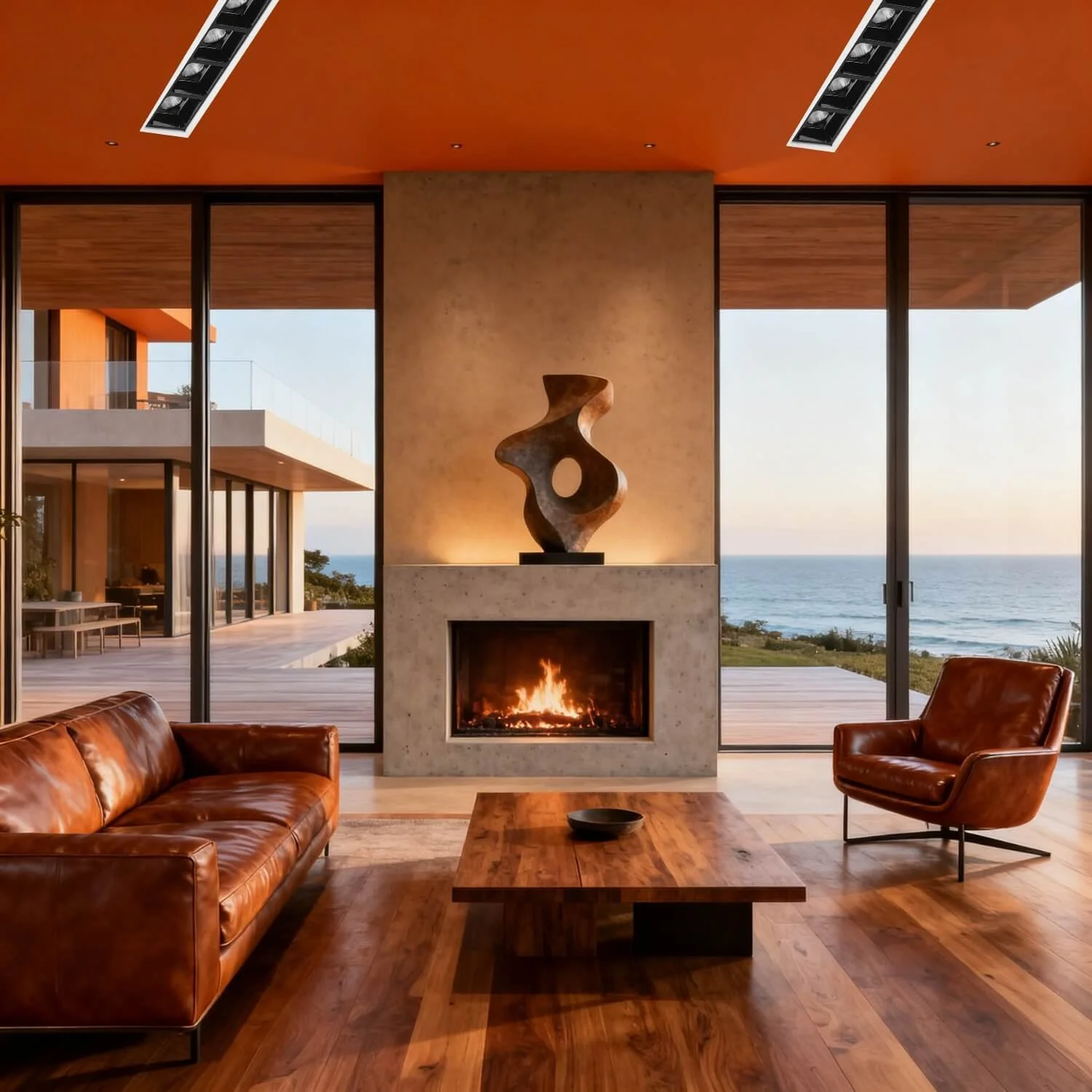

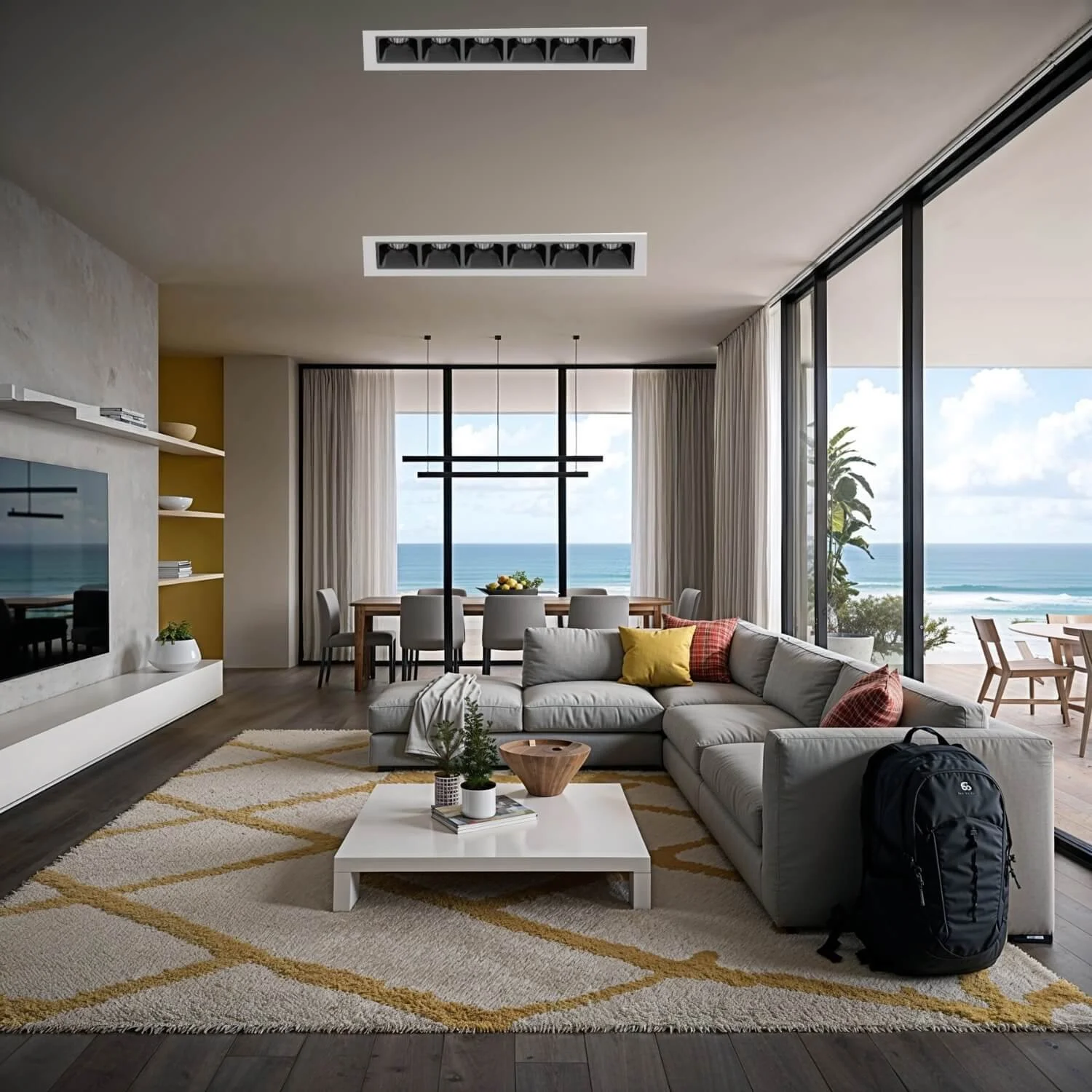

Applications
- Retail displays and shopfronts
- Art galleries and museums
- Hotel corridors and lobbies
- Office task and accent lighting
- Residential kitchens and feature lighting
Installation notes

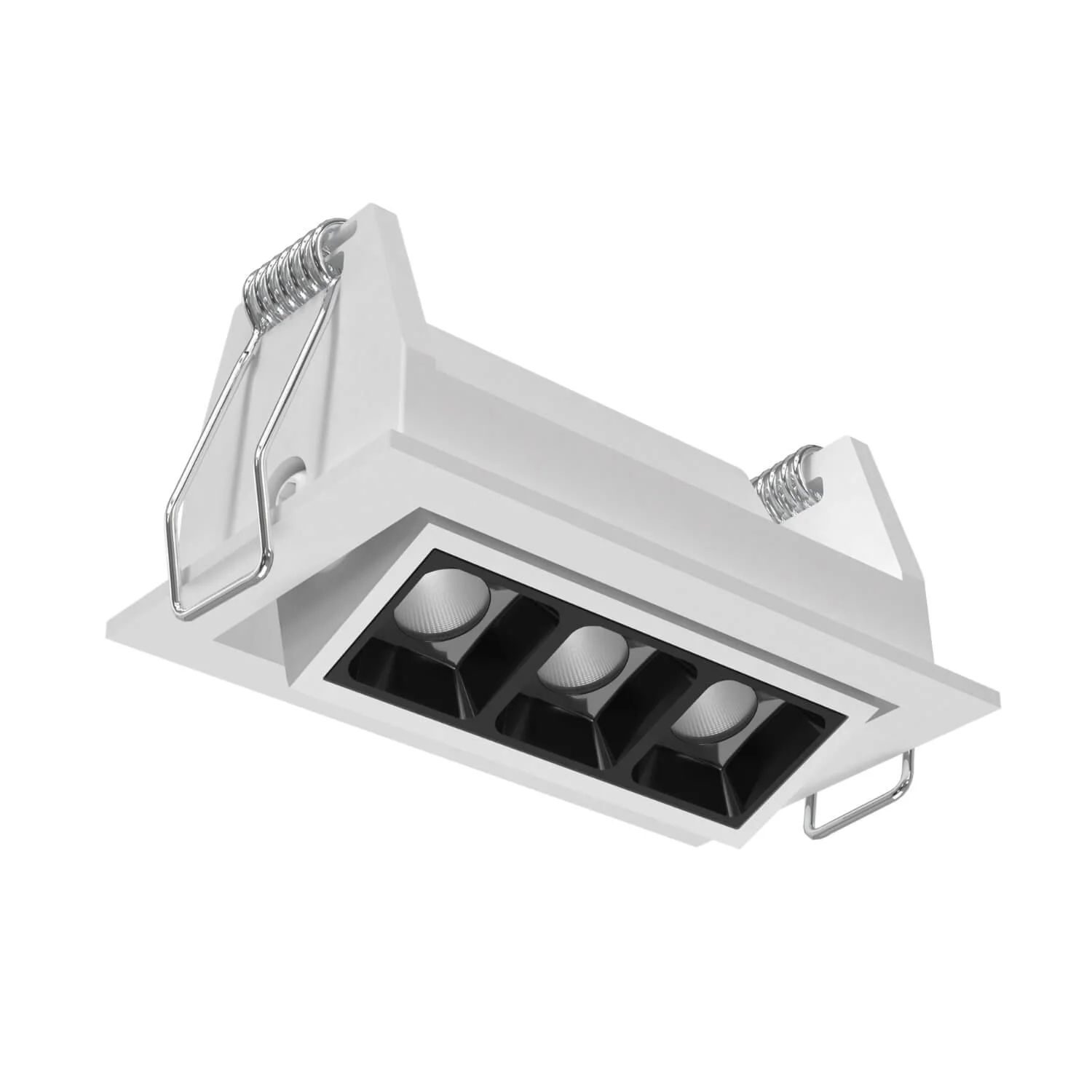

- Recessed mount with spring clips for quick, secure fit into standard cutouts shown above.
- Ensure driver compatibility with mains voltage (AC220–240V). For dimming or custom driver requirements, please confirm driver model before ordering.
Why choose ENDIzLED-212
- Delivers controlled, high-quality light from a compact housing while keeping ceiling lines clean. The grille optics reduce glare and add a refined, technical look — perfect where both form and function matter.
Need more details?
- If you’d like lumen output, dimming options, pricing, or lead times, tell me which power and CCT you’re interested in and I’ll get the specifics for you.
