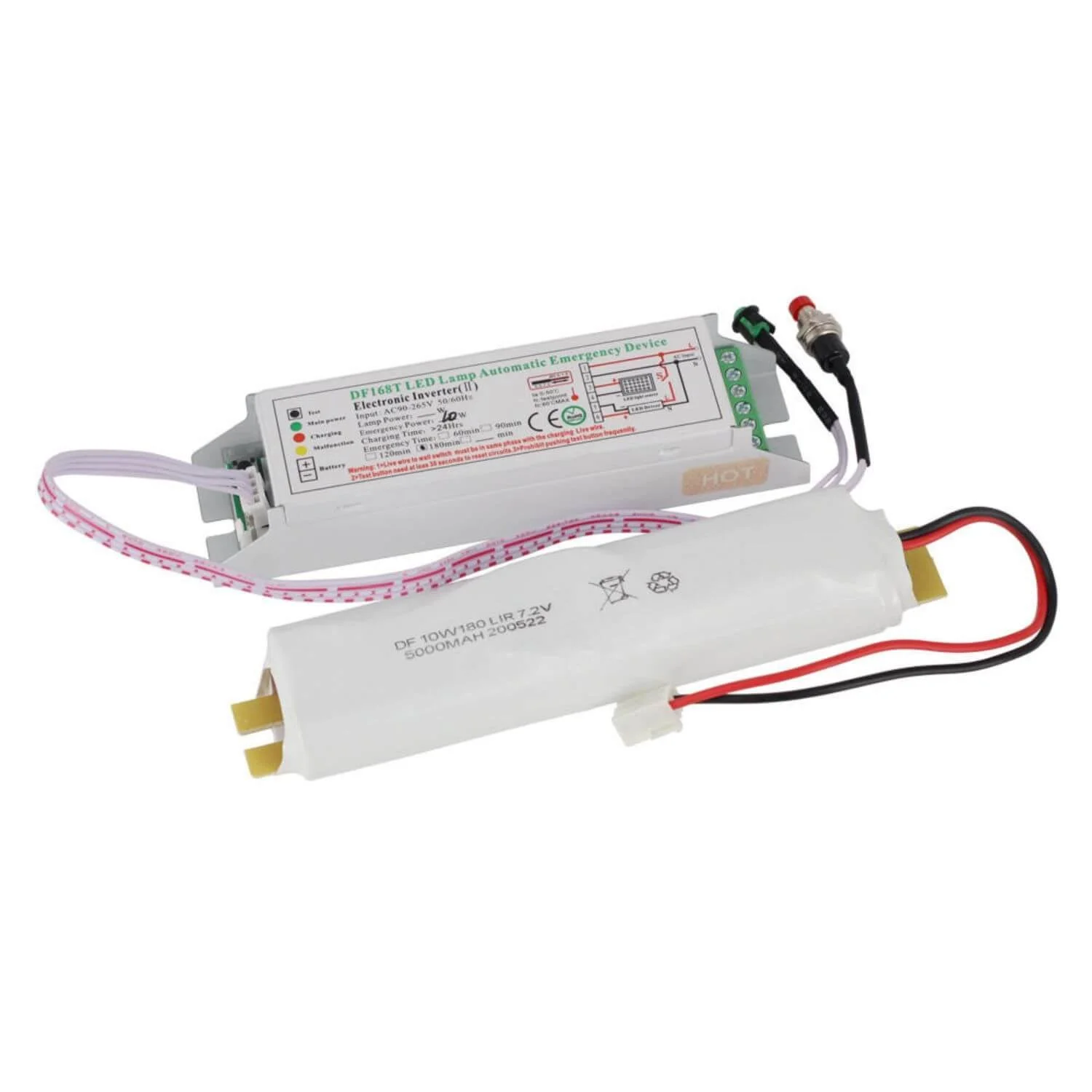

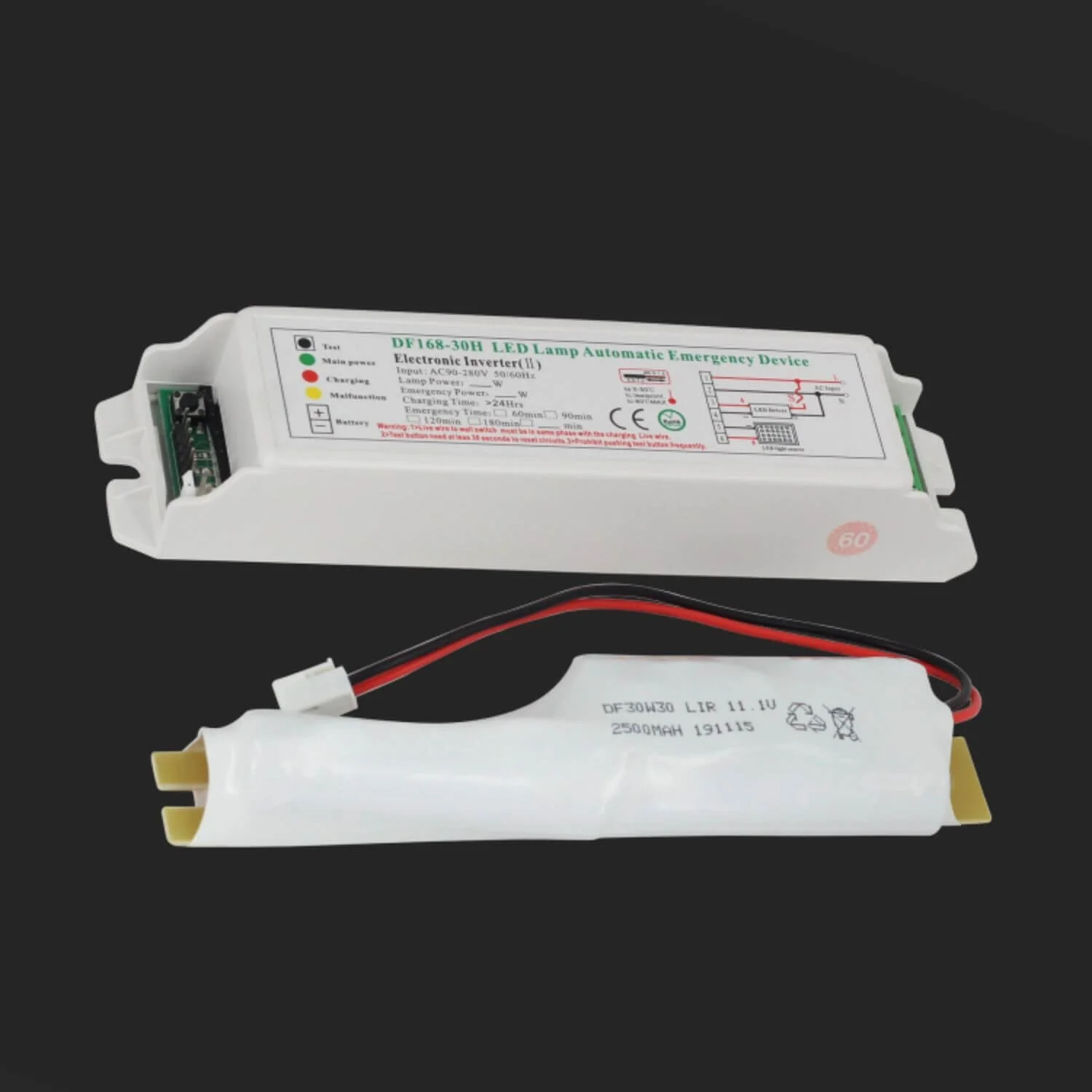

ENDIzLED-200 — Compact Emergency LED Inverter Module
- The ENDIzLED-200 is a compact, versatile emergency inverter module designed to convert standard LED fixtures into reliable emergency lighting. Built for easy retrofits and new installations, it supports a wide range of external LED drivers and provides up to 25W emergency output power when mains power fails.
Key benefits
- Flexible compatibility: works with external LED drivers and a wide range of LED fixtures (up to 100W driver rating).
- Reliable emergency output: provides a maximum of 25W emergency power to keep essential lighting on during outages.
- Long emergency runtime: configurable for extended operation — >90 minutes available with customization.
- Multiple battery chemistries supported: compatible with Ni‑MH, Ni‑Cd and Li‑ion battery packs for installation flexibility.
- Compact and discreet: small inverter dimensions make it easy to install inside ceilings, downlight housings or control gear trays.

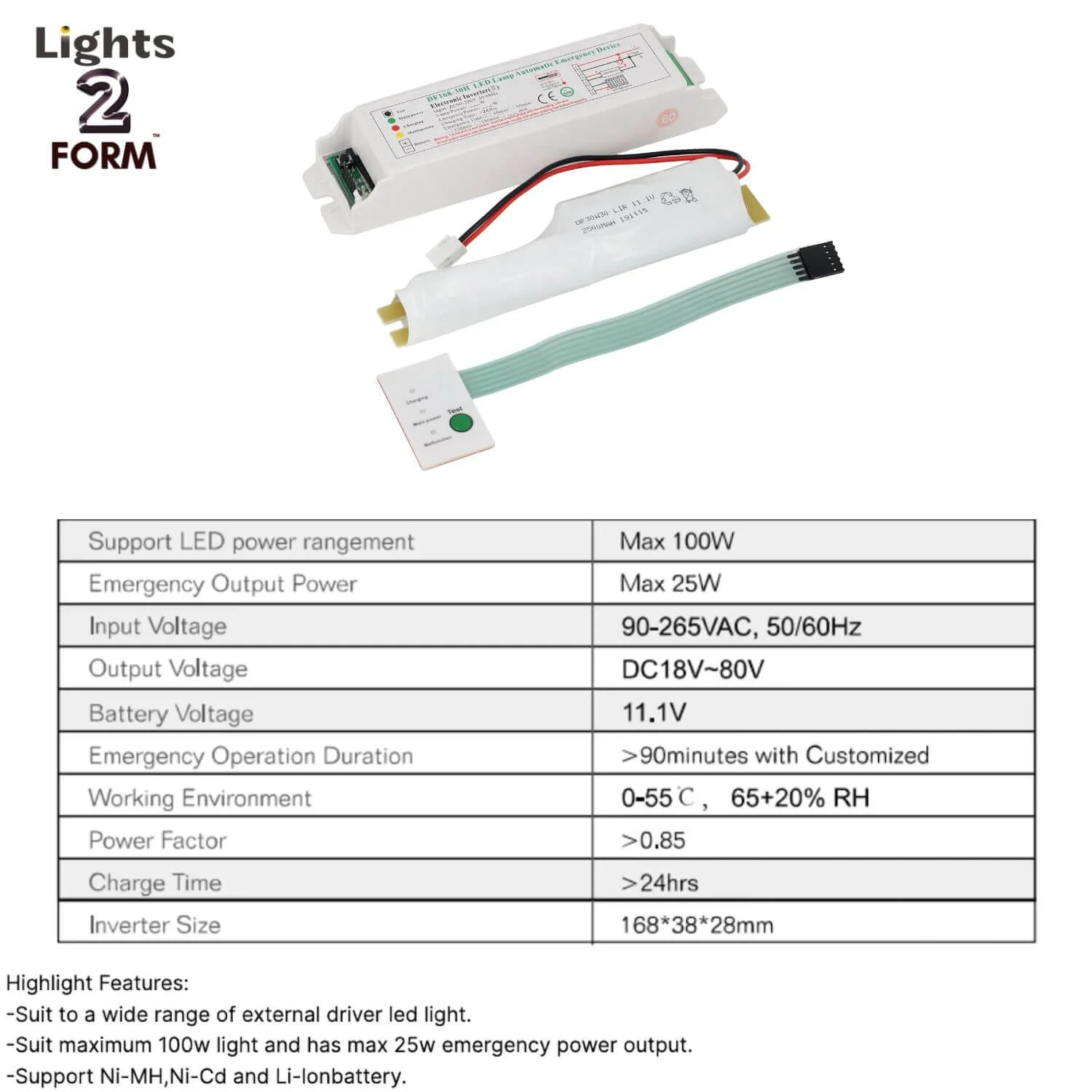

Highlight features
- Support for external LED driver loads up to 100W (driver rating)
- Emergency output power: Max 25W
- Wide input range: 90–265VAC, 50/60Hz
- Output voltage: DC 18–80V (suitable for most LED driver inputs)
- Battery: 11.1V pack compatible (Ni‑MH / Ni‑Cd / Li‑ion)
- Emergency operation: >90 minutes when customized
- Working environment: 0–55°C, 65 ±20% RH
- Power factor: >0.85
- Typical charge time: >24 hours
- Compact inverter size: 168 × 38 × 28 mm
- Test button / monitoring cable included for easy commissioning and diagnostics
Typical applications
- Emergency retrofit for downlights and panel lights
- Exit and corridor lighting systems
- Commercial and residential fixtures requiring emergency backup
- New builds where compact emergency modules are needed

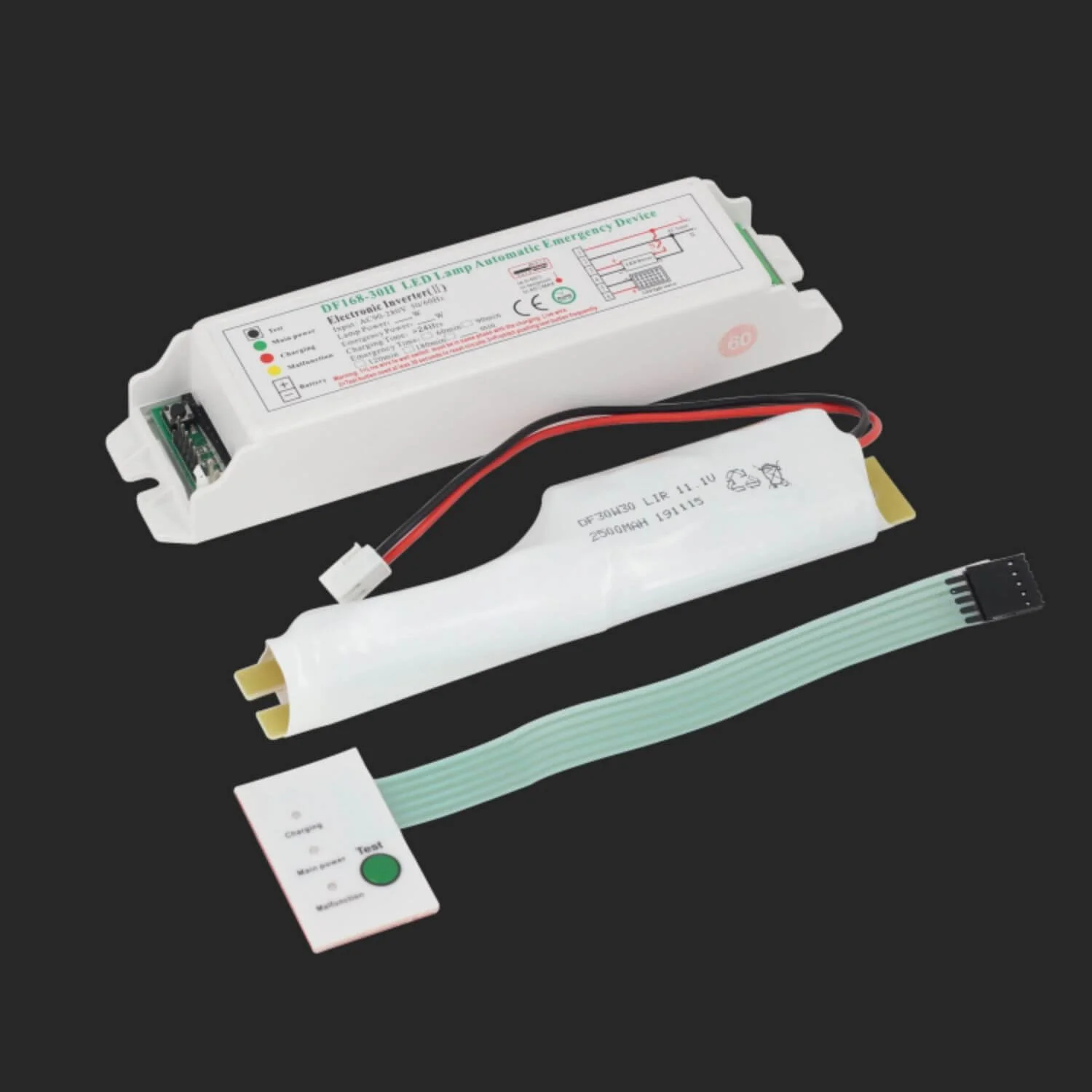

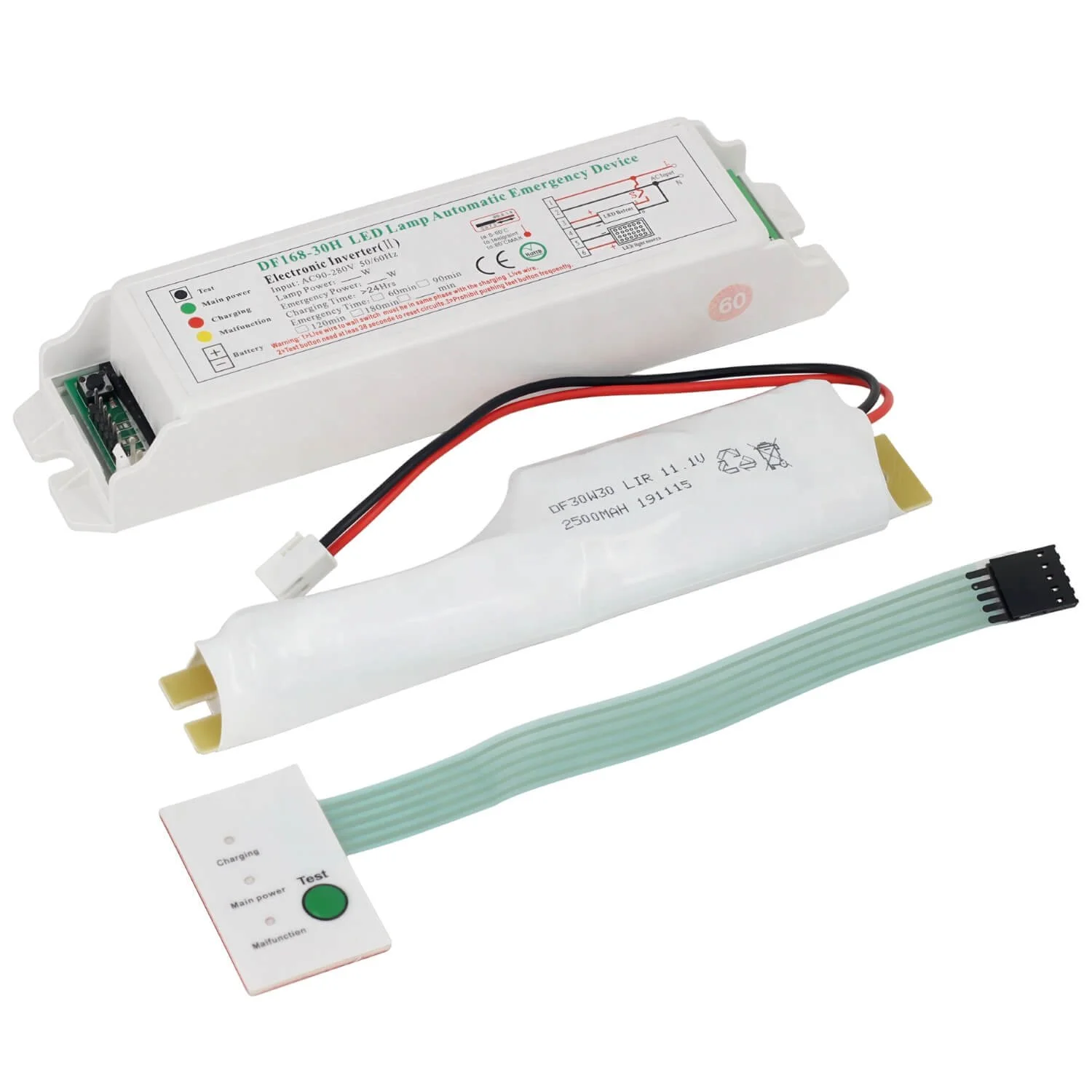

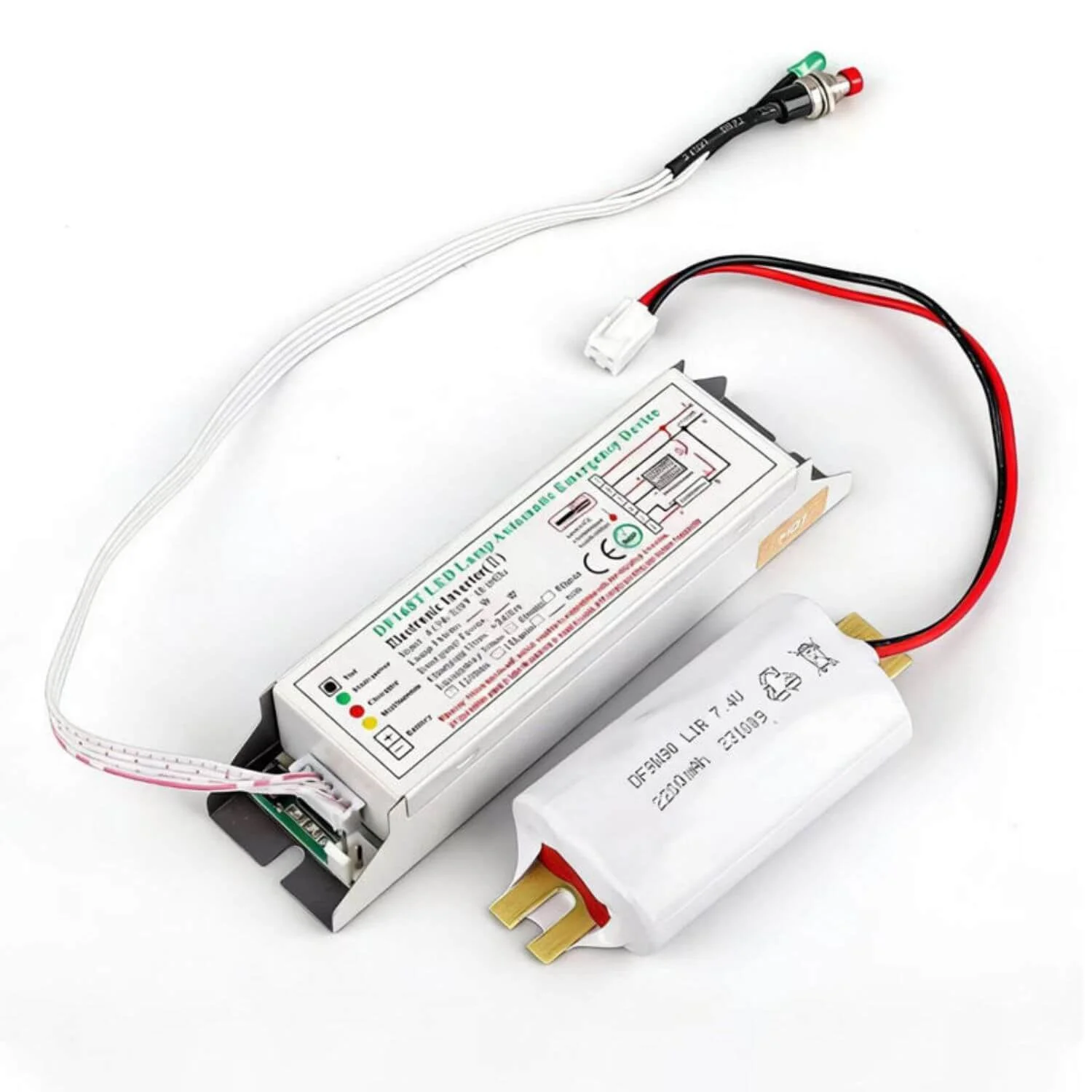

What’s in the box
- ENDIzLED-200 inverter module
- Rechargeable battery pack (11.1V)
- Test switch / indicator lead
- Installation instructions
Quick installation tips
- Designed for installation by a qualified electrician or technician.
- Install within the fixture or a nearby gear tray with adequate ventilation.
- Ensure external LED driver and fixture combined wattage does not exceed supported ratings.
- Verify battery chemistry and correct connector orientation before commissioning.
- Use the test button to confirm emergency operation during installation and periodic checks.
