ENDIzLED-199 — Emergency Motion Sensor Downlight

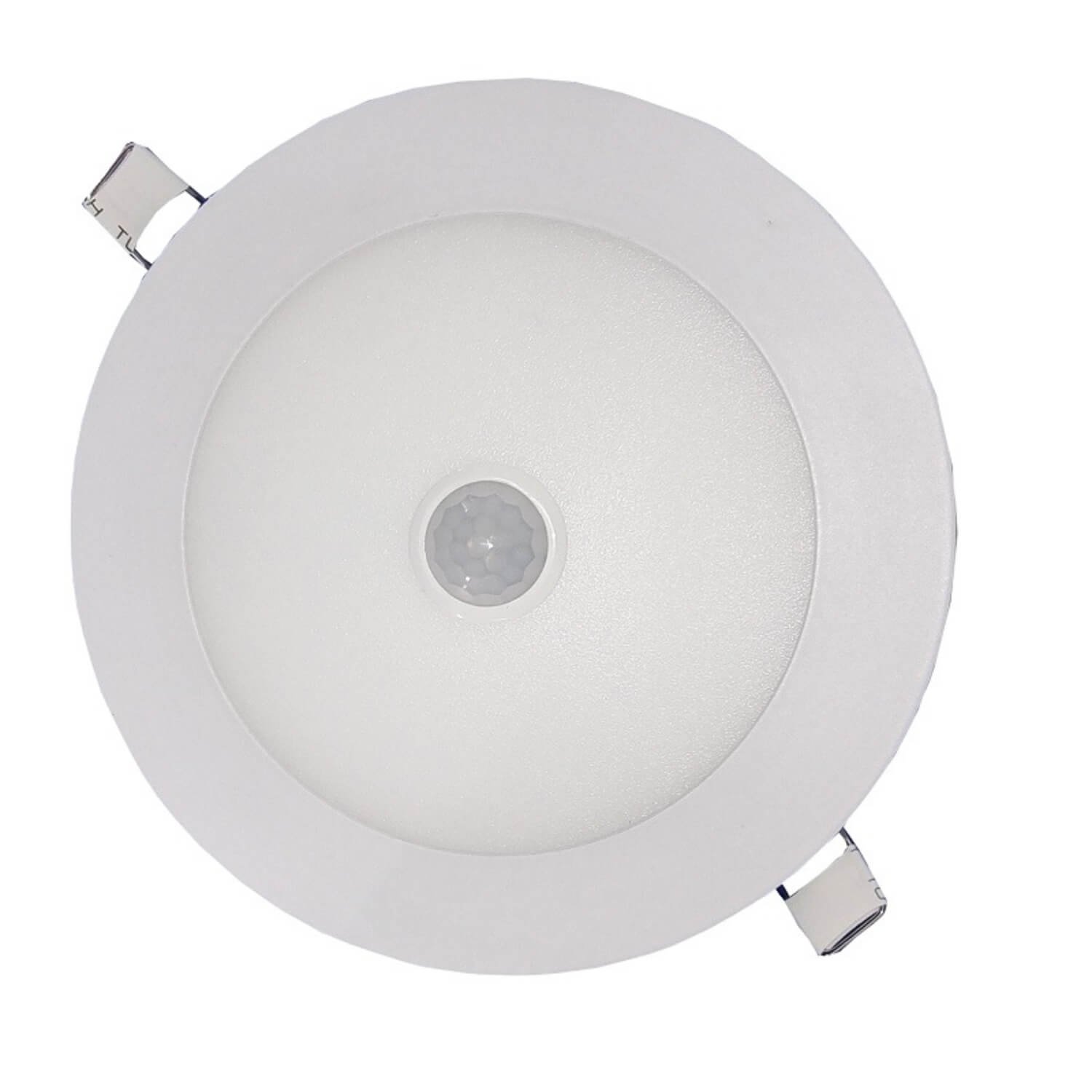

Keep corridors, stairwells and entryways safe and well-lit with the ENDIzLED-199 Emergency Motion Sensor Downlight. This ultra-thin, recessed LED fixture combines a sensitive PIR motion sensor with efficient LED lighting to provide automatic, hands-free illumination where and when you need it — ideal for energy-conscious commercial and residential spaces.

Key benefits

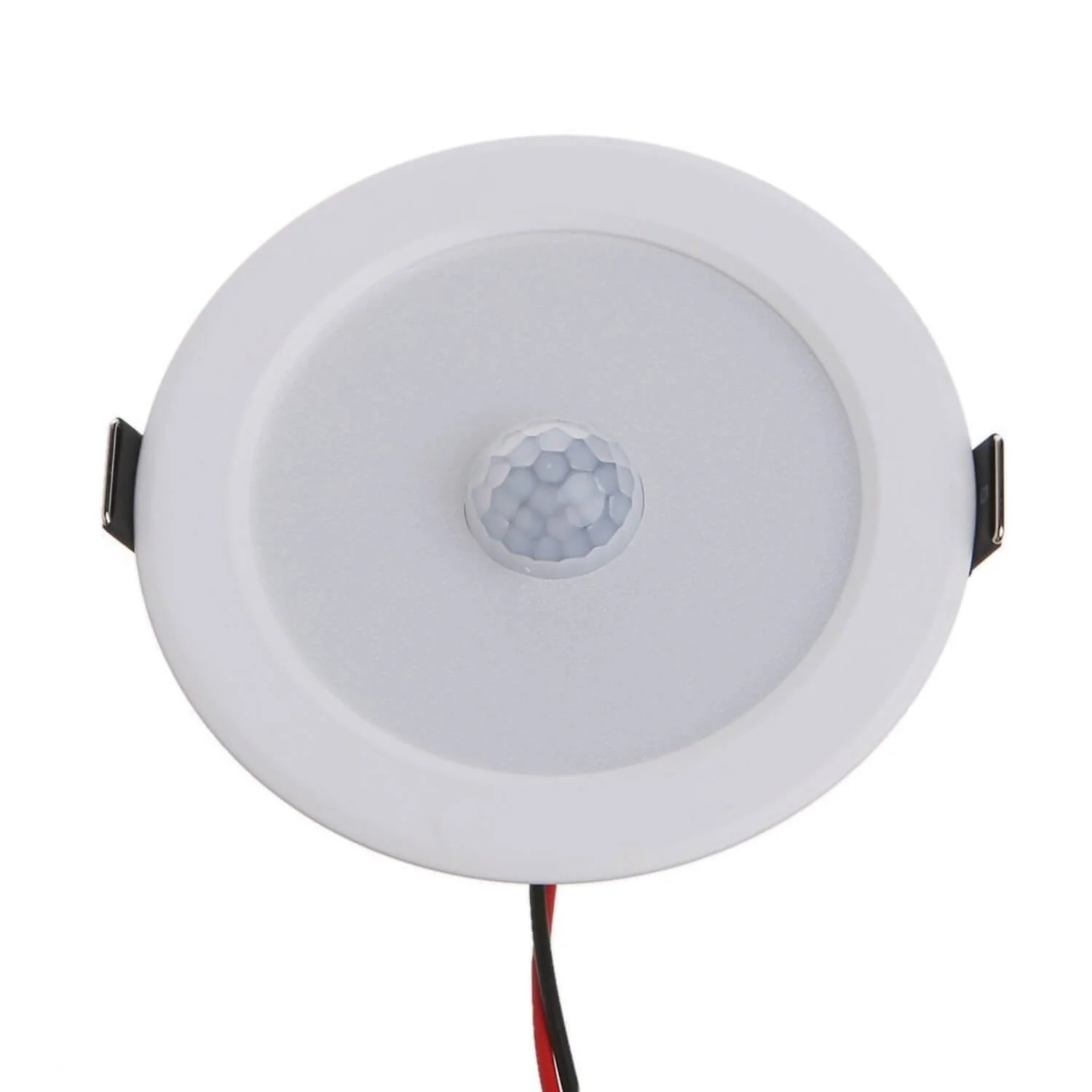

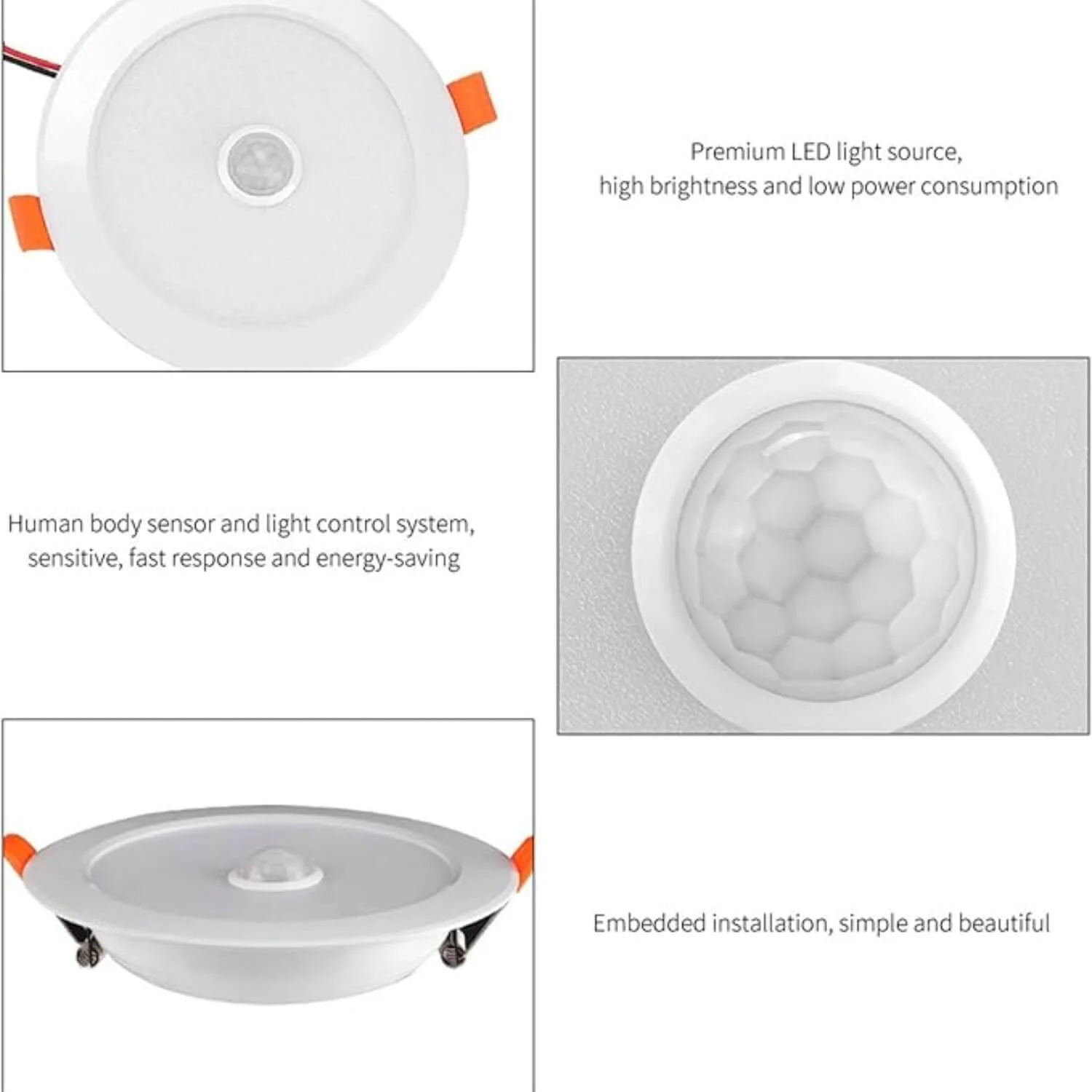

- Motion-activated convenience: Built-in PIR sensor provides fast, reliable human-body detection so lights turn on only when needed, reducing energy use.

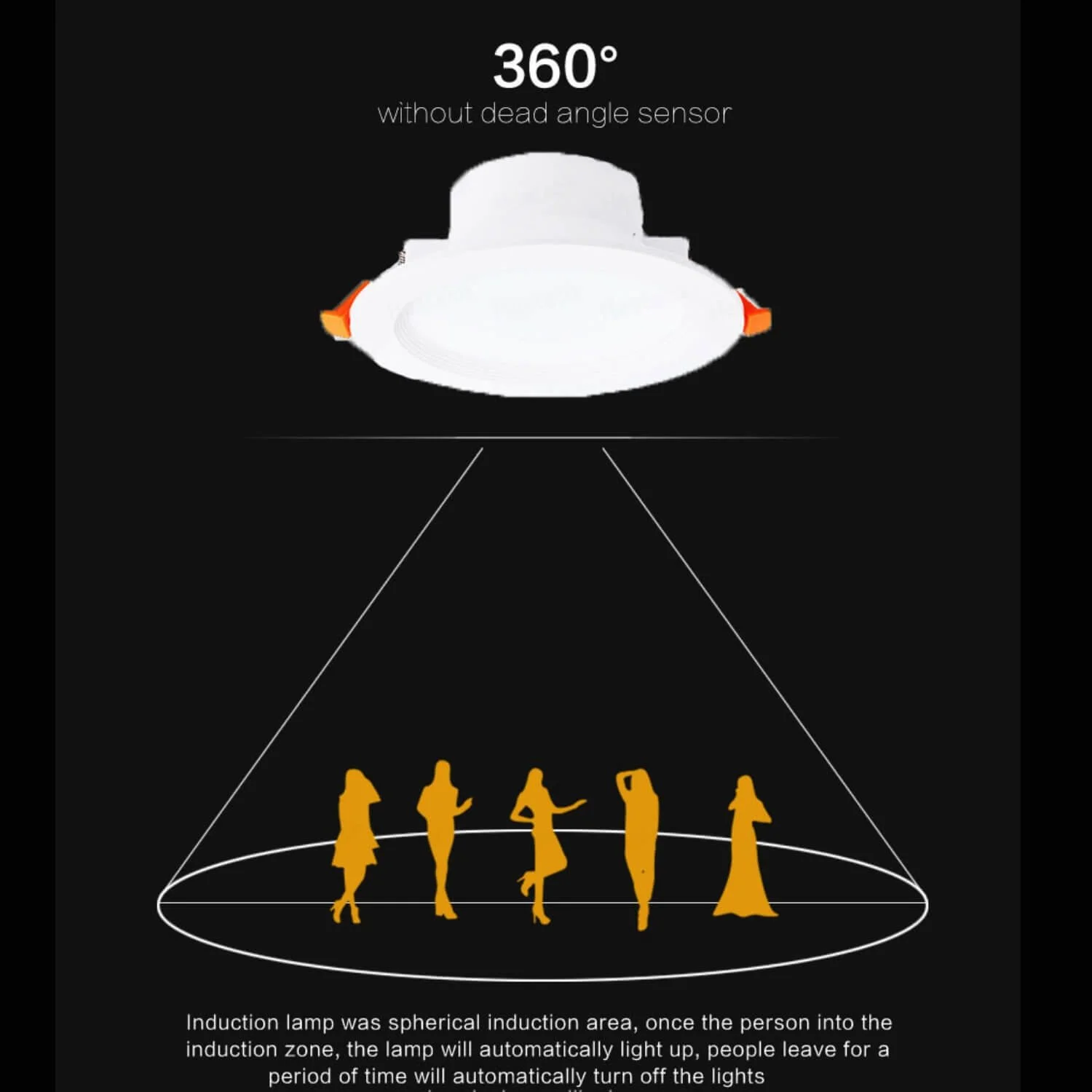

- Wide detection coverage: Detection angle up to 120° with a detection radius suitable for typical ceiling heights (recommended installation height 2.2–4 m / 7.2–13.1 ft; max detection distance up to ~6 m / 19.6 ft in optimal conditions).

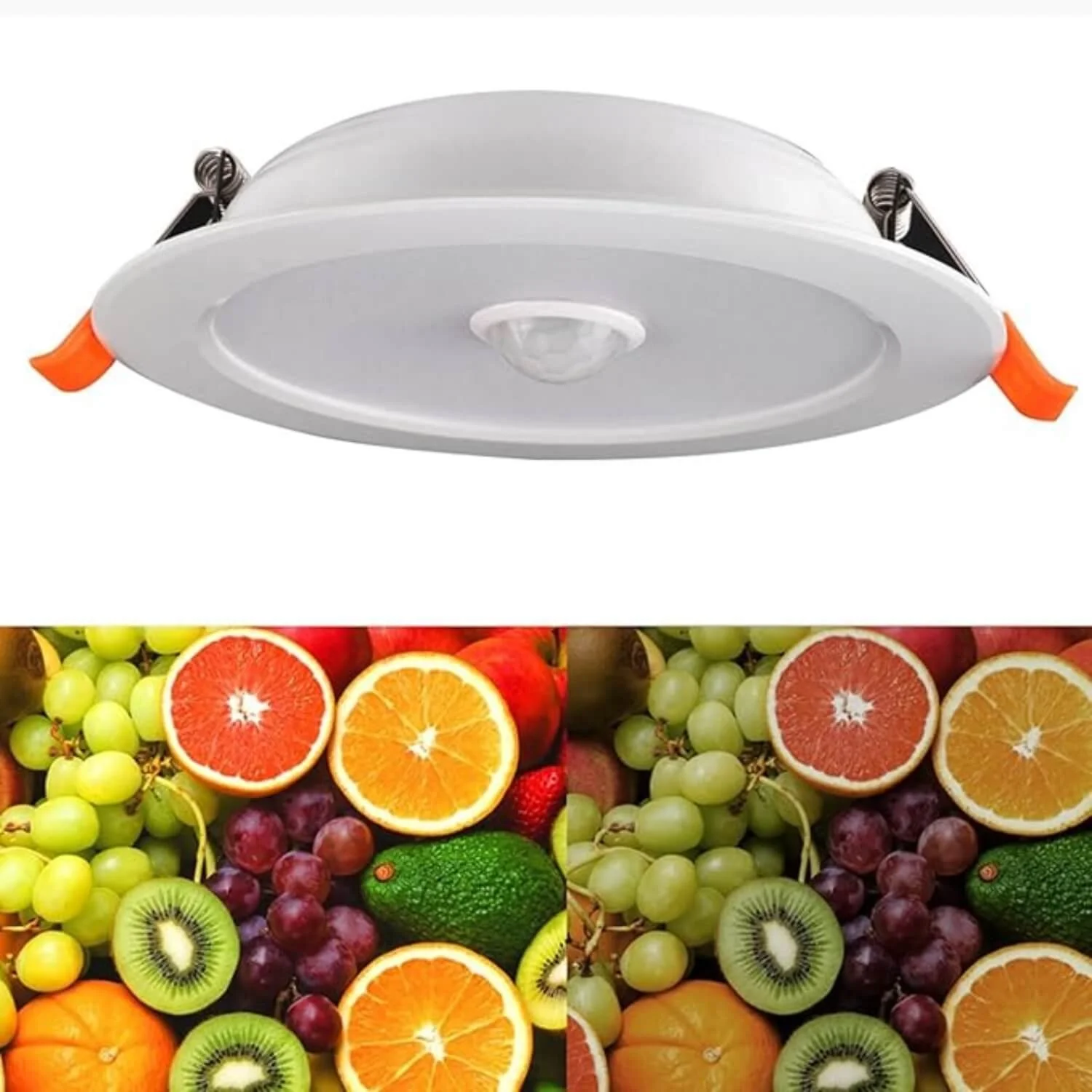

- High efficiency and color quality: Up to 90–100 lm/W, CRI > 80 for natural color rendering; selectable color temperatures (3000K / 4000K / 6000K) on applicable models.

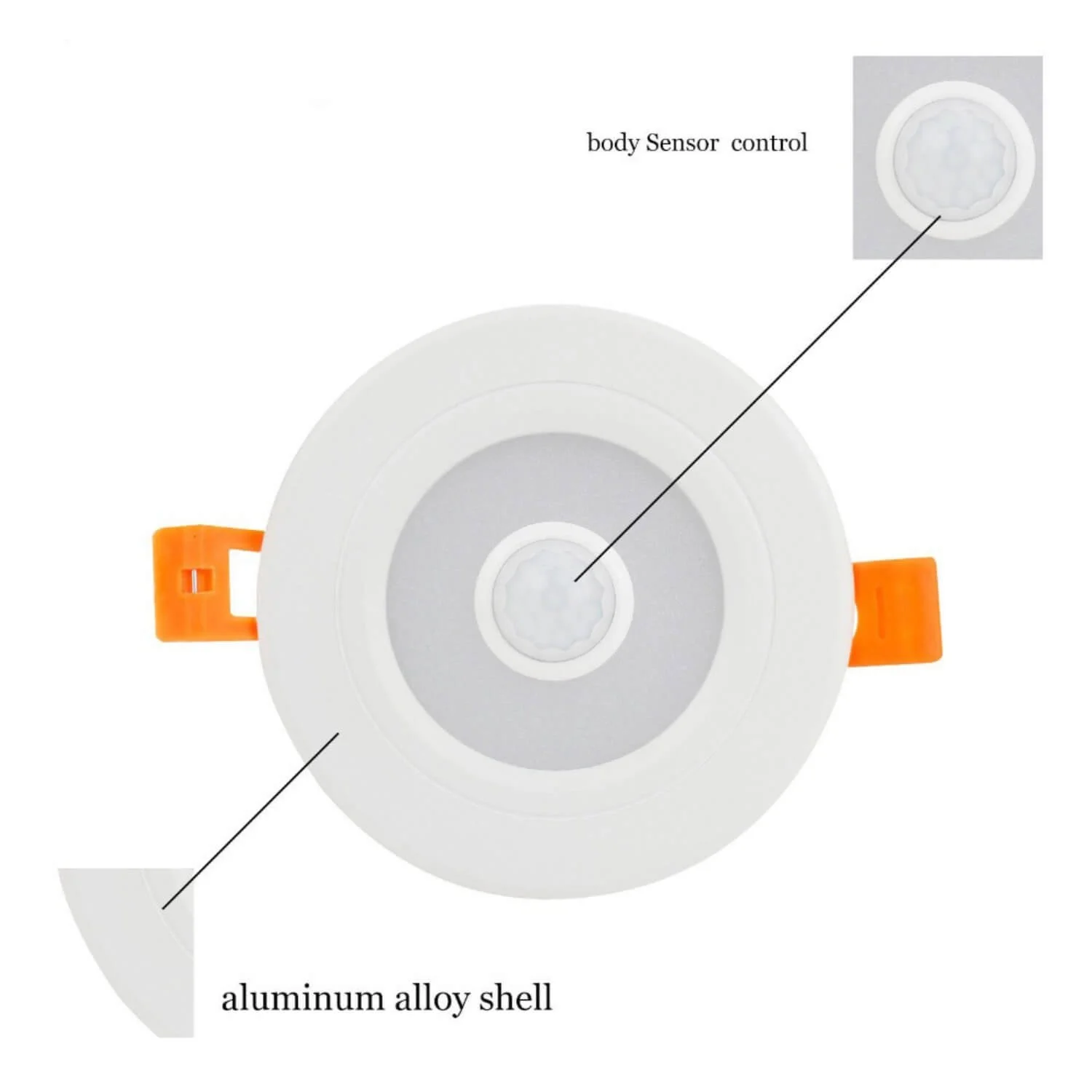

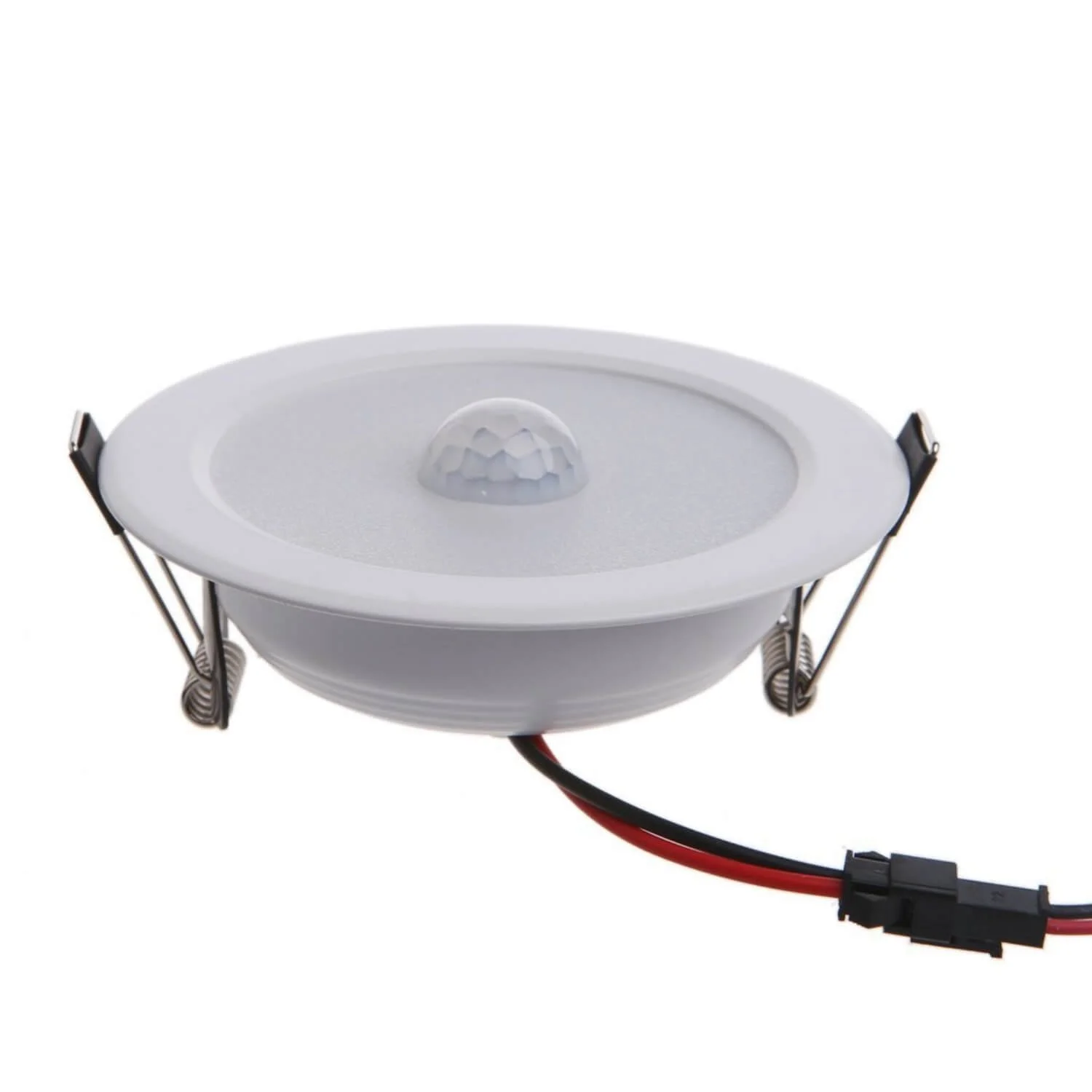

- Slim, low-profile design: Ultra-thin housing and spring clips allow simple recessed installation for a clean, integrated look.

- Reliable and long-lasting: Rated lifespan >50,000 hours with CE & RoHS compliance; FCC available on select models.

- Flexible power and lumen options: Multiple wattages to suit different spaces — from small passages to larger halls.

Applications

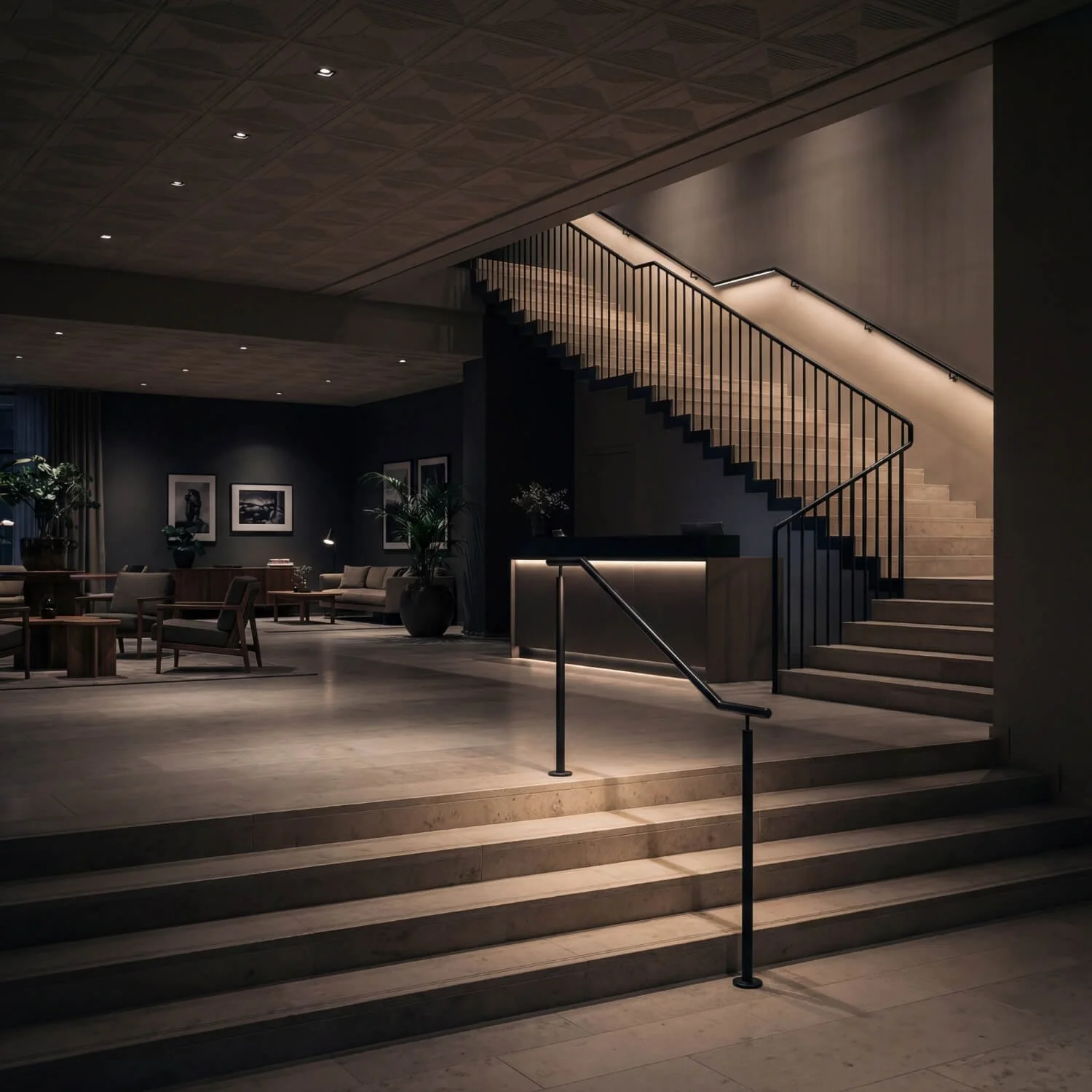

- Hallways, stairwells and corridors

- Apartment and office entryways

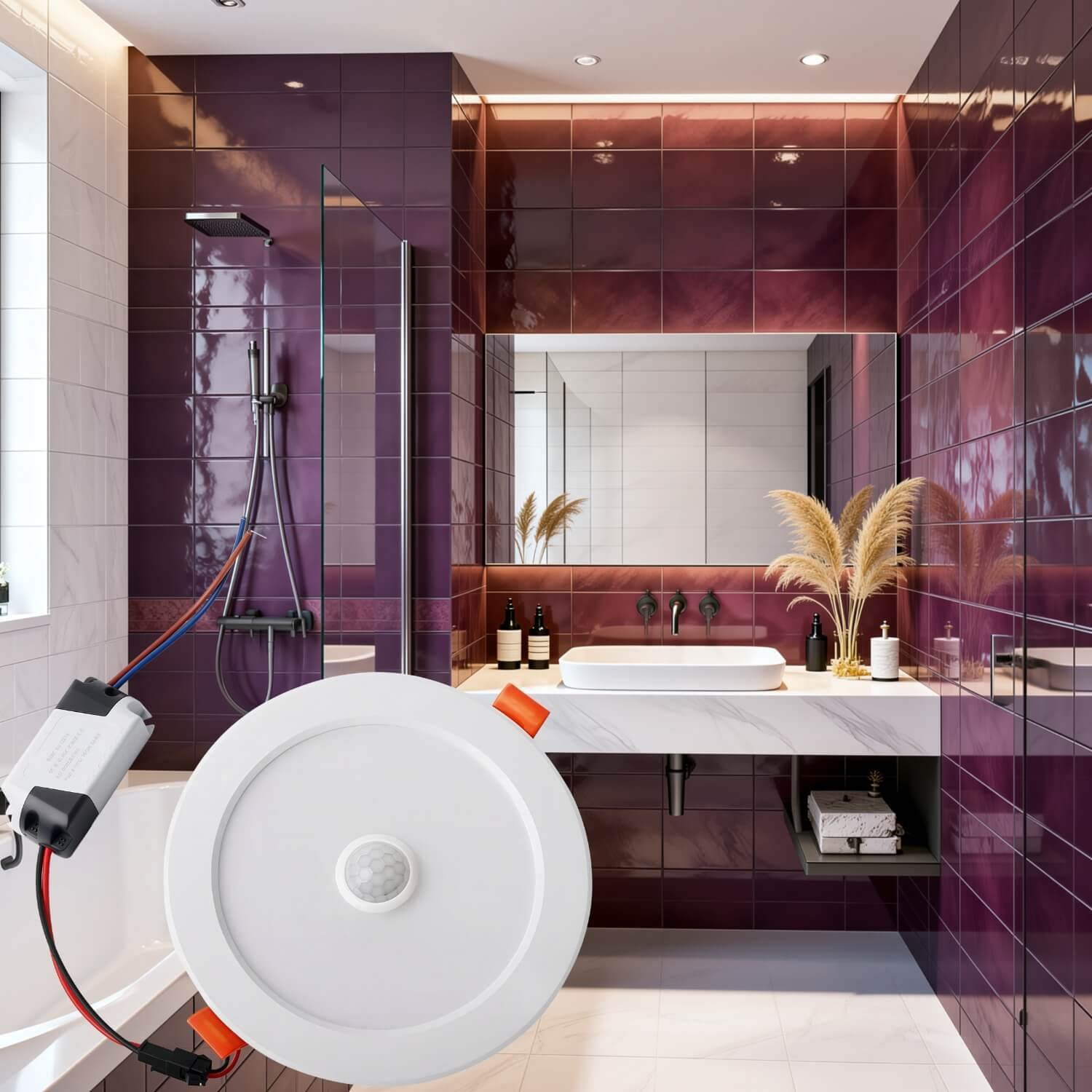

- Utility rooms, storage areas and restrooms

- Emergency/exit illumination and safety lighting where automatic activation is required

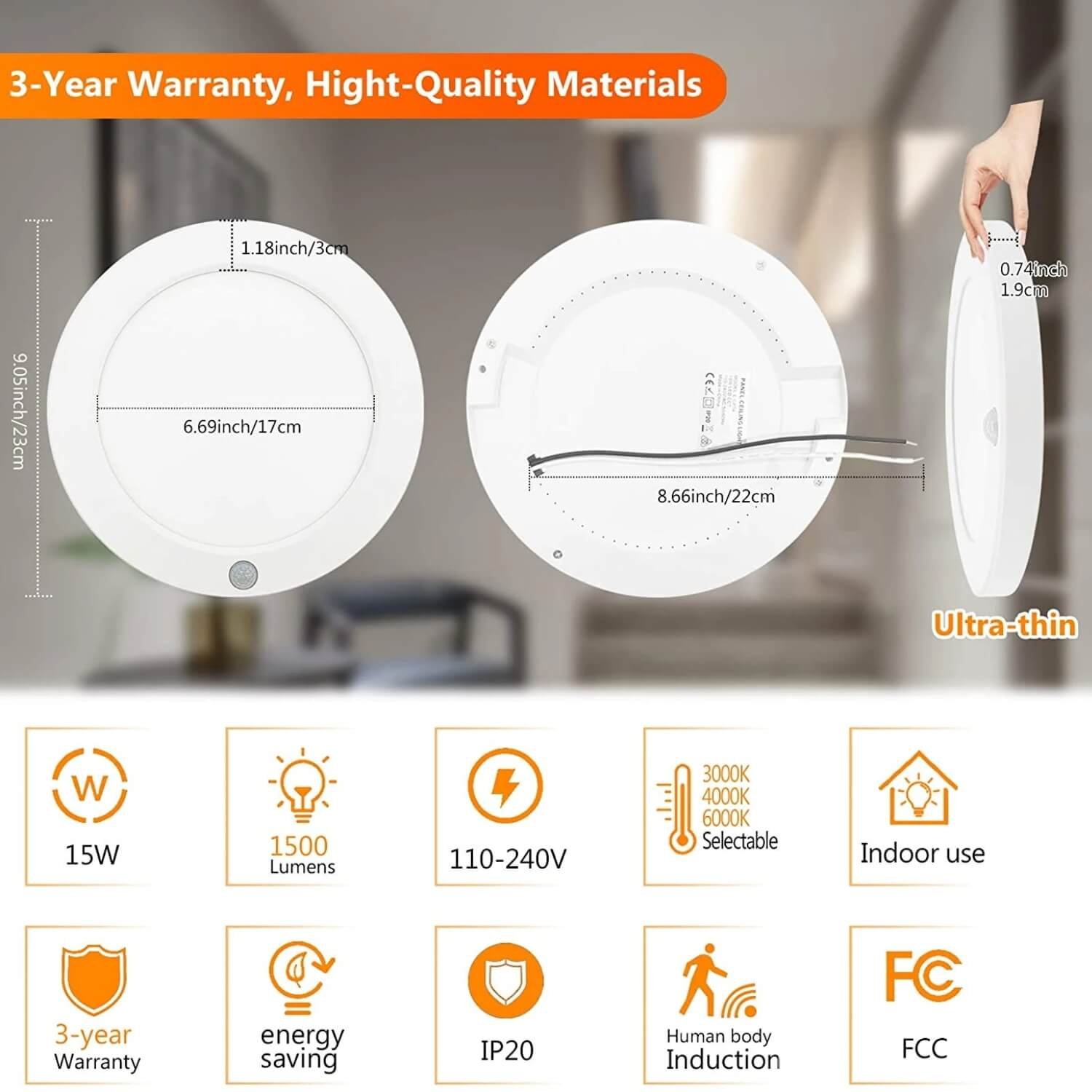

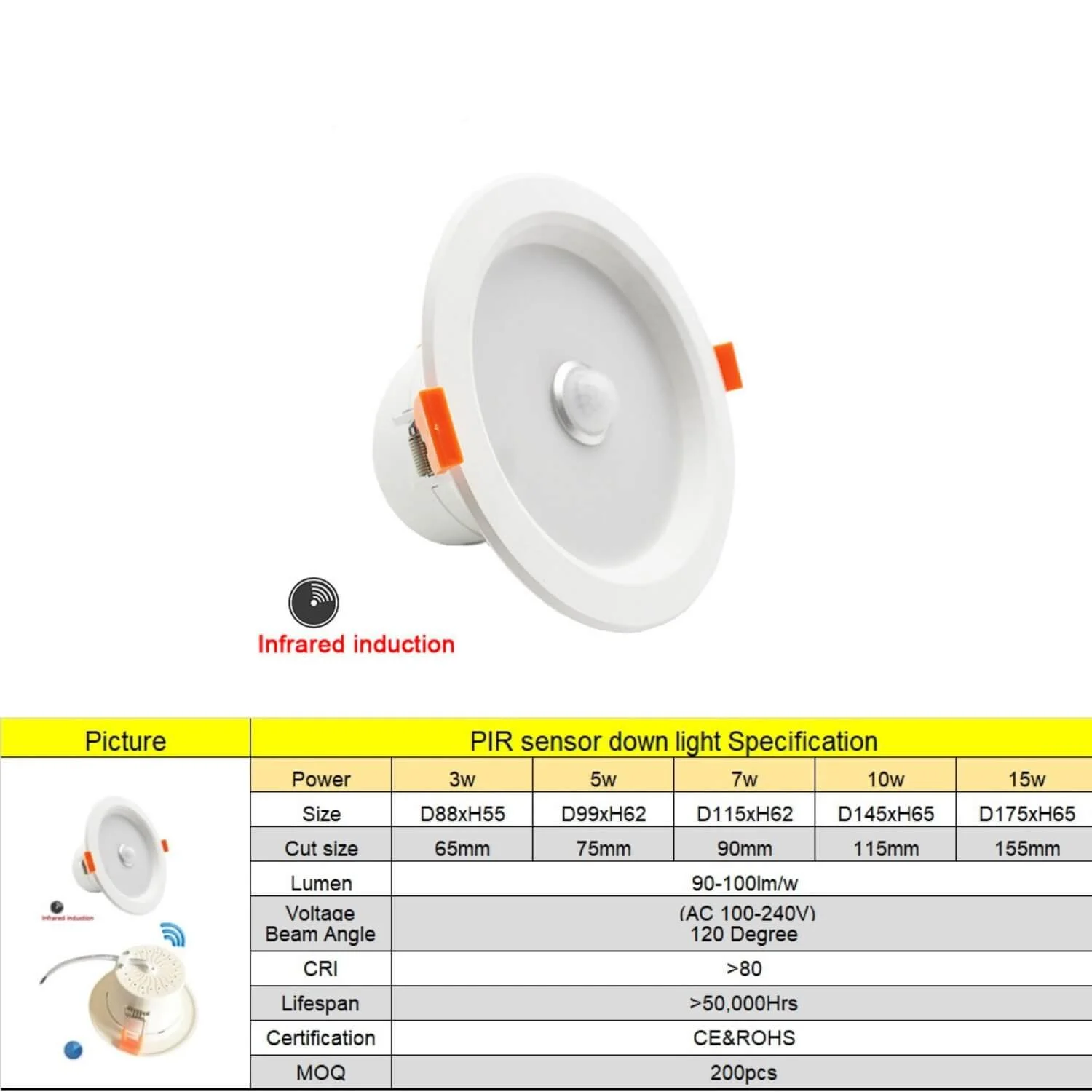

Technical specifications (typical)

- Model: ENDIzLED-199 — PIR Motion Sensor Downlight

- Power options: 3W / 5W / 7W / 10W / 15W

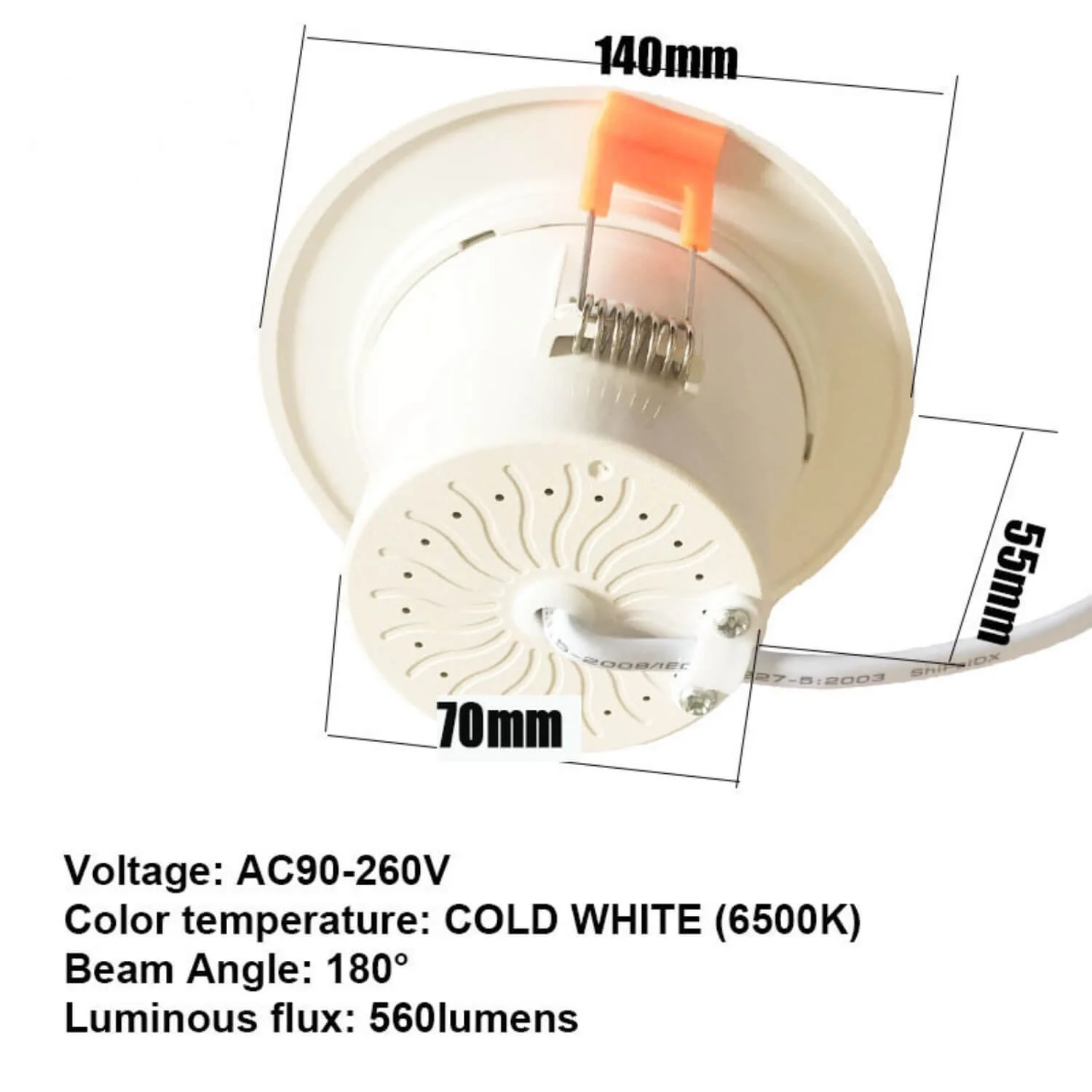

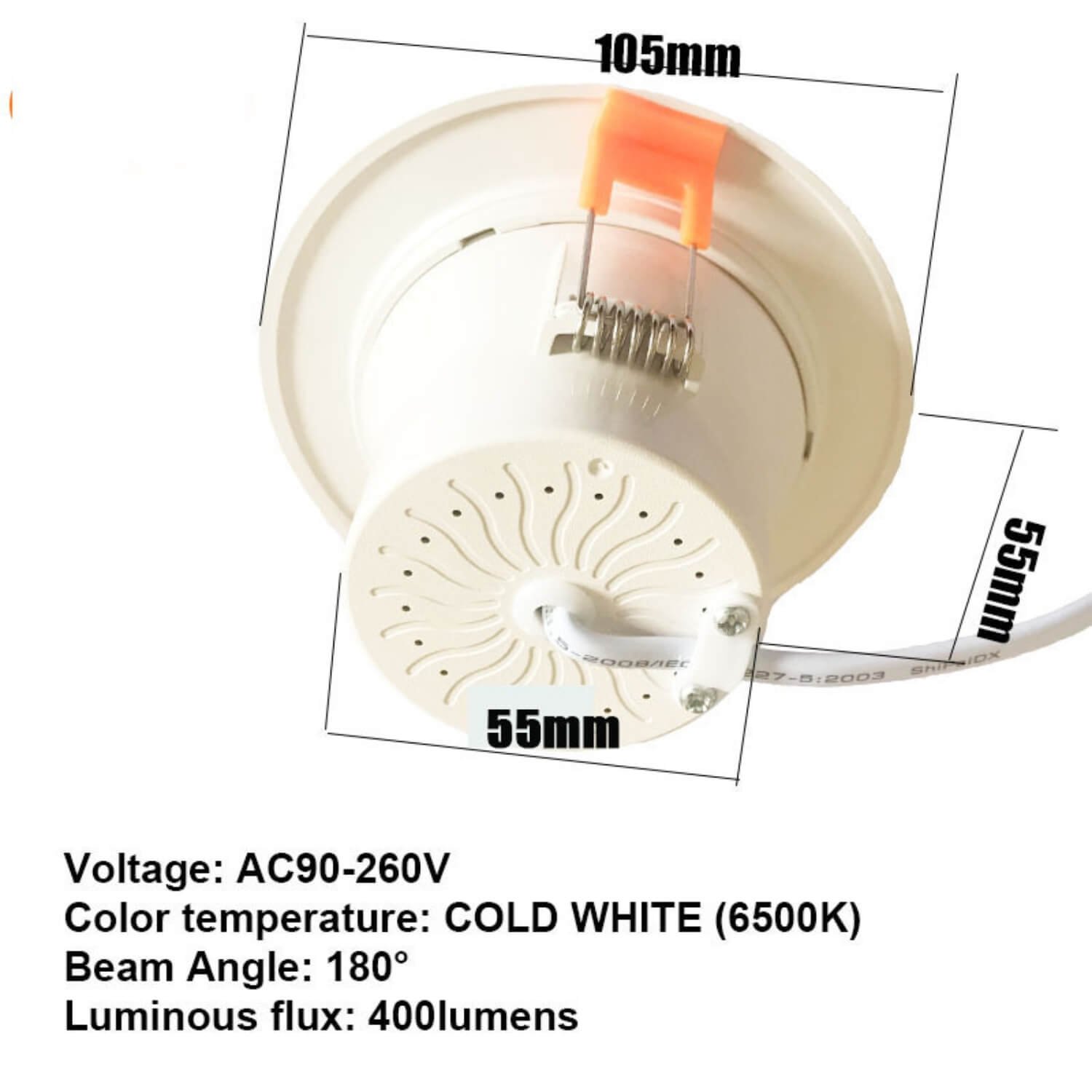

- Outer diameter / height (examples): D88×H55 mm (3W), D99×H62 mm (5W), D115×H62 mm (7W), D145×H65 mm (10W), D175×H65 mm (15W)

- Cut-out sizes: 65 mm / 75 mm / 90 mm / 115 mm / 155 mm (depending on wattage)

- Luminous efficacy: ~90–100 lm/W (varies by model)

- Input voltage: AC 100–240V

- Beam angle: ~120° (downlight distribution)

- CRI: >80

- Lifespan: >50,000 hours

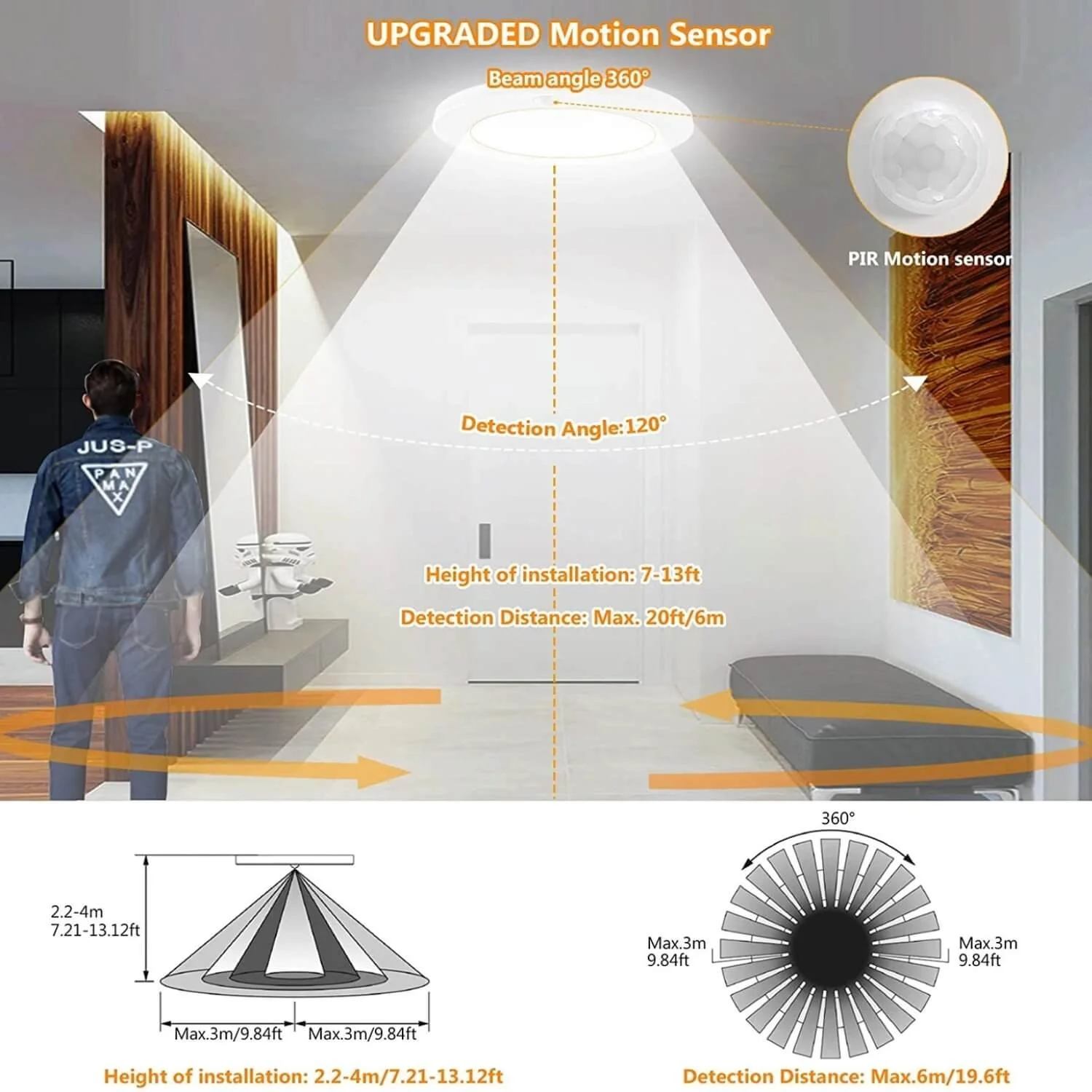

- Detection angle: up to 120°

- Recommended installation height: 2.2–4.0 m (7.2–13.1 ft)

- Max detection distance: up to ~6 m (19.6 ft) in ideal conditions

- IP rating: IP20 (indoor use)

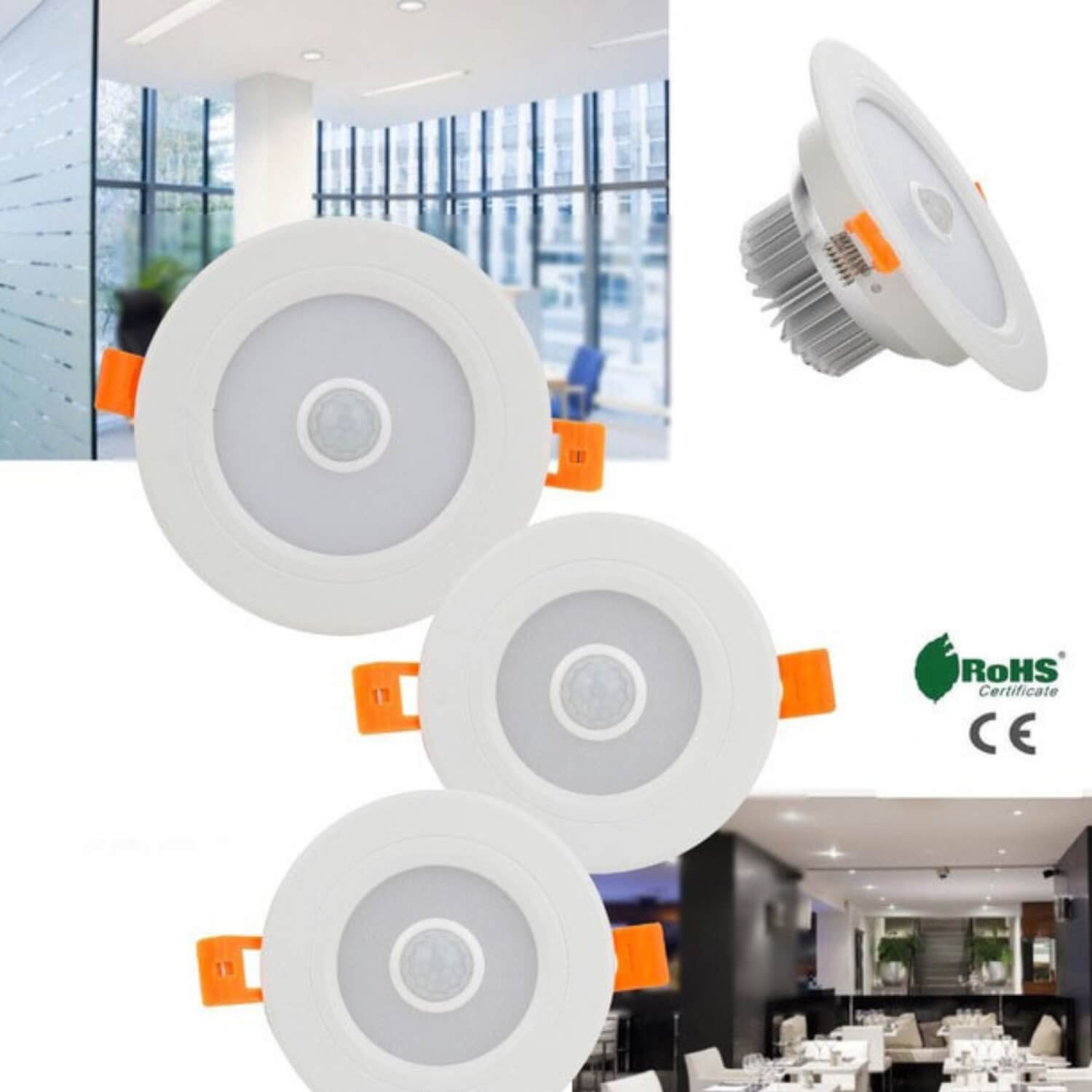

- Certifications: CE, RoHS (FCC on select SKUs)

- Warranty: 3-year (subject to terms)

Installation & use

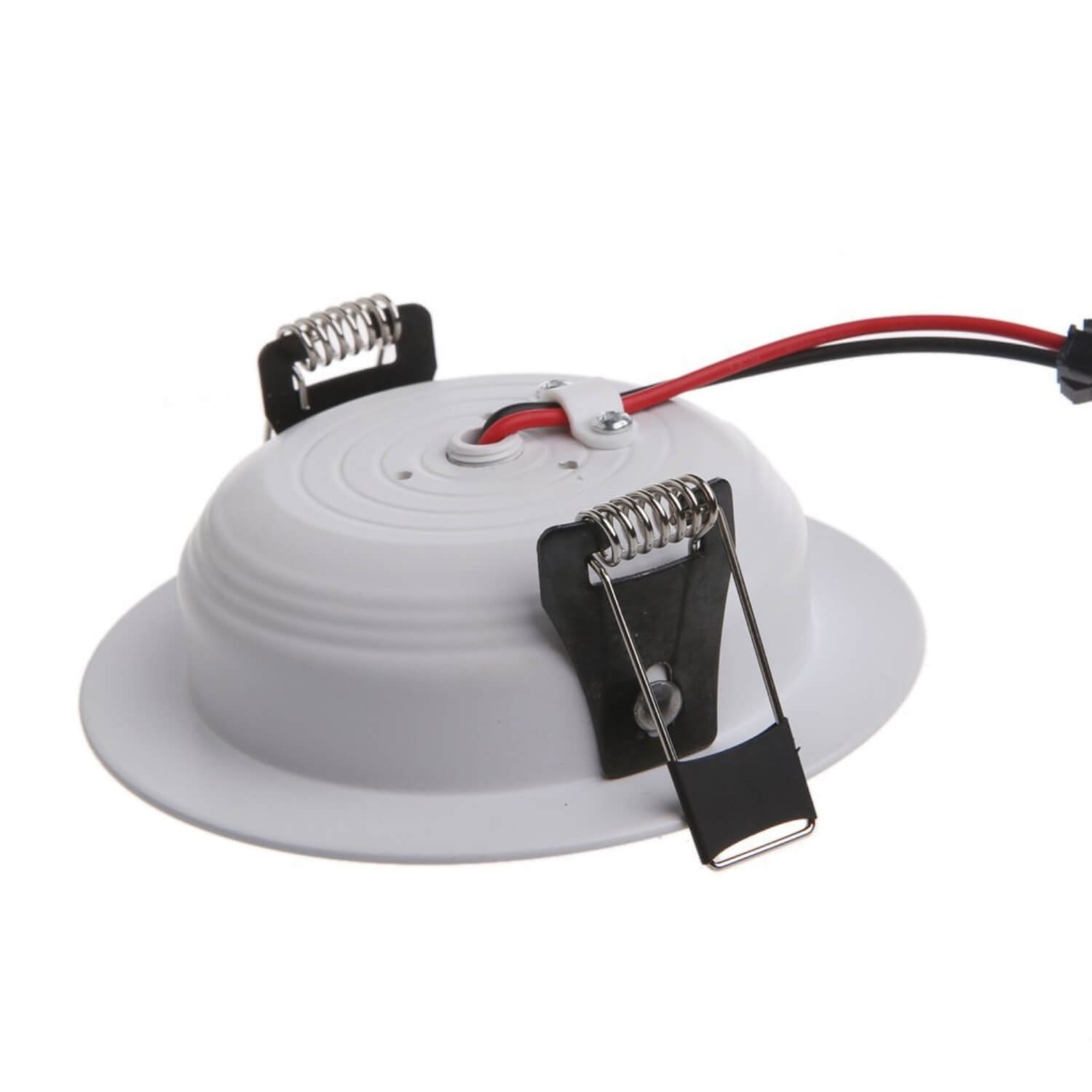

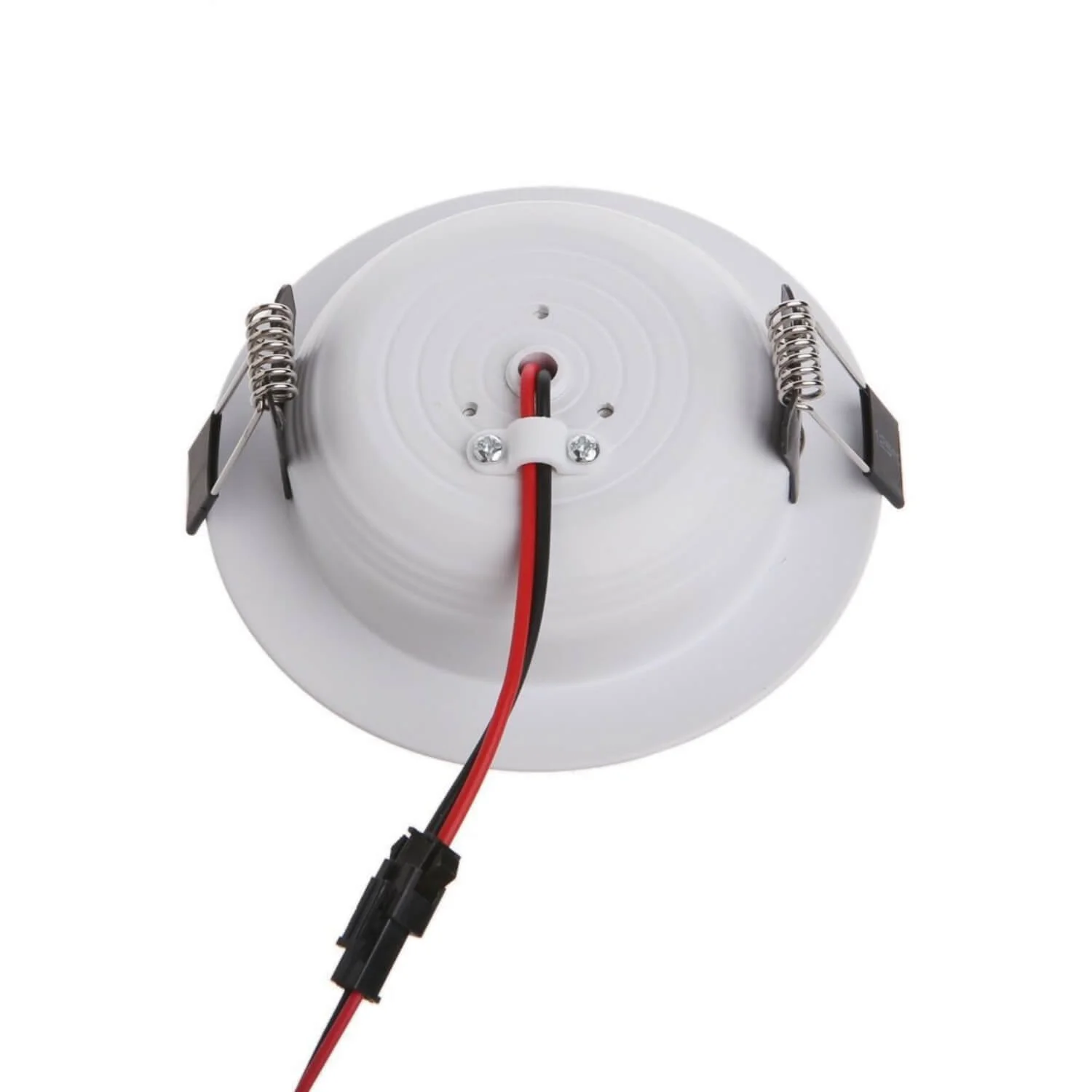

- Recessed mounting with spring clips — cut the recommended hole size for your model, connect to mains (110–240V), and secure in place.

- The integrated PIR sensor supports hands-free automatic on/off; ideal for locations where immediate illumination is important for safety and convenience.

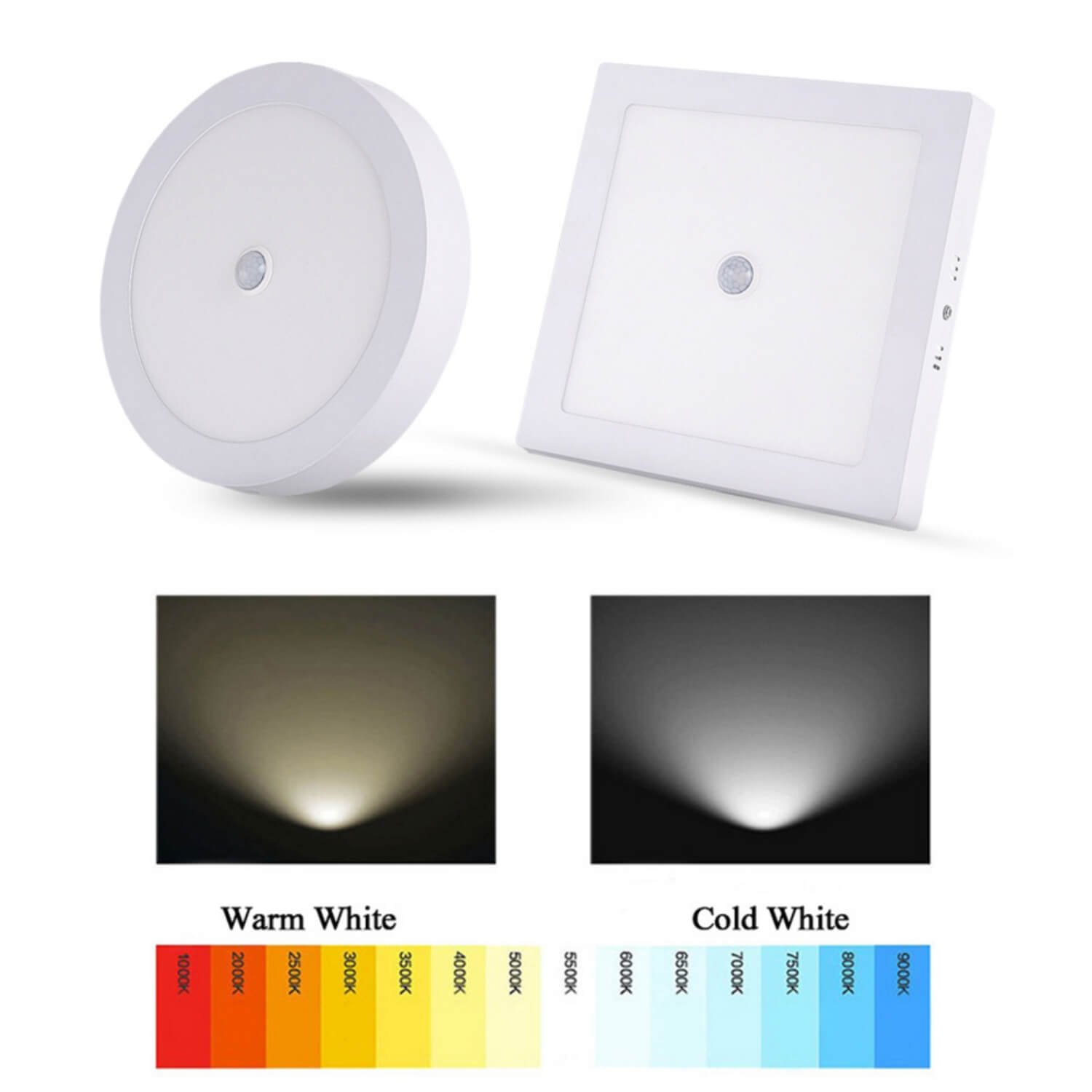

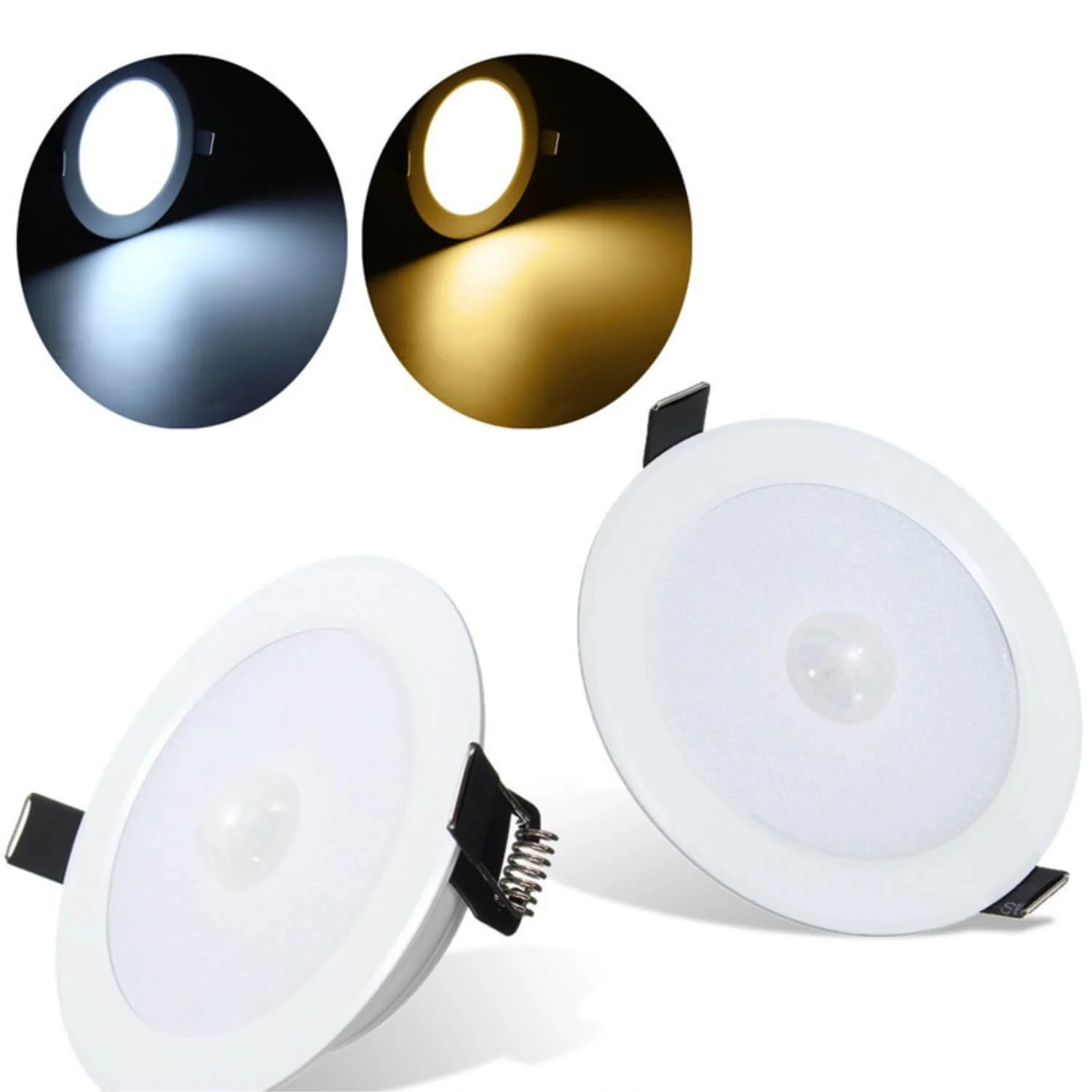

- Selectable color temperatures on supported variants let you choose warm, neutral or cool white to match your space.

What’s included

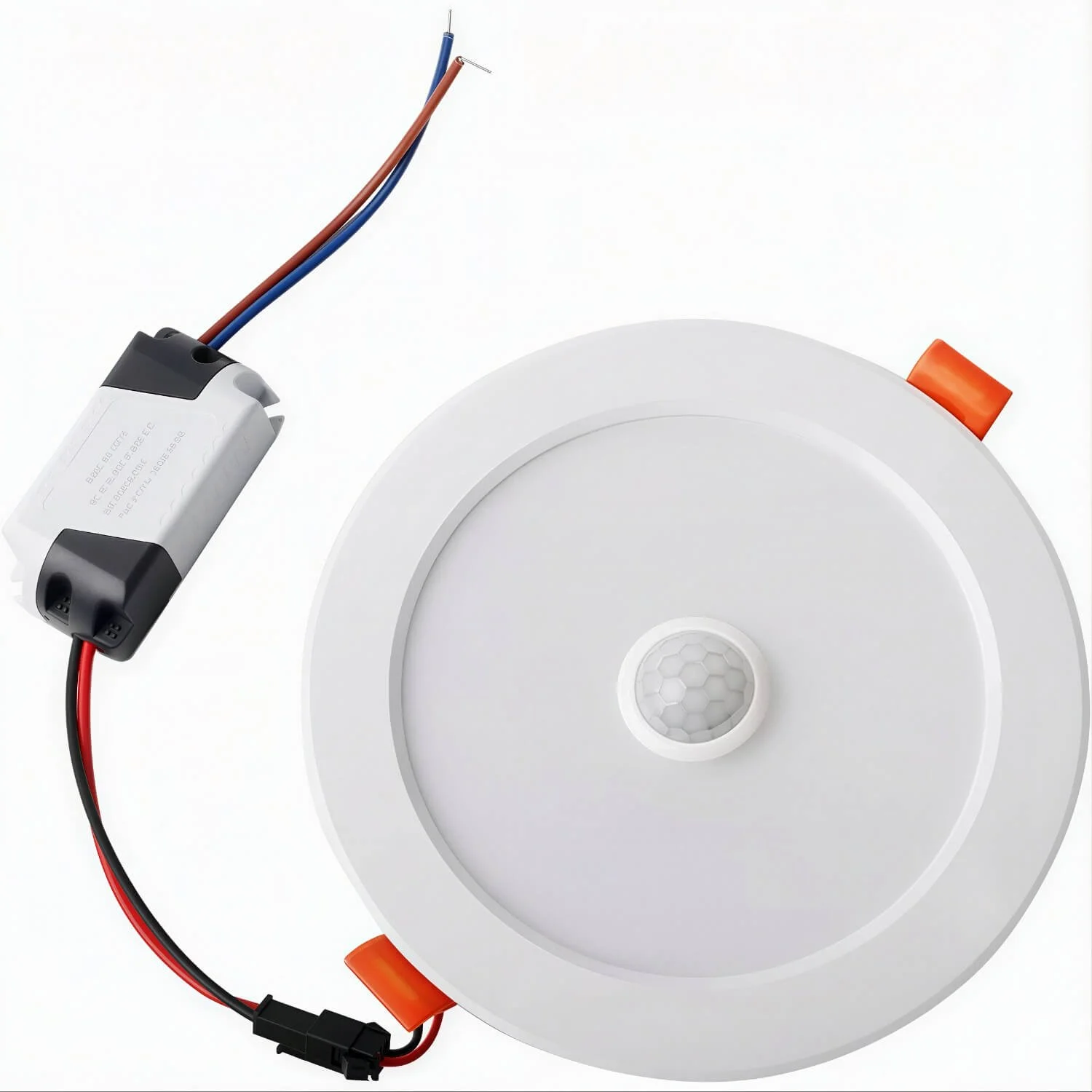

- ENDIzLED-199 downlight (selected wattage)

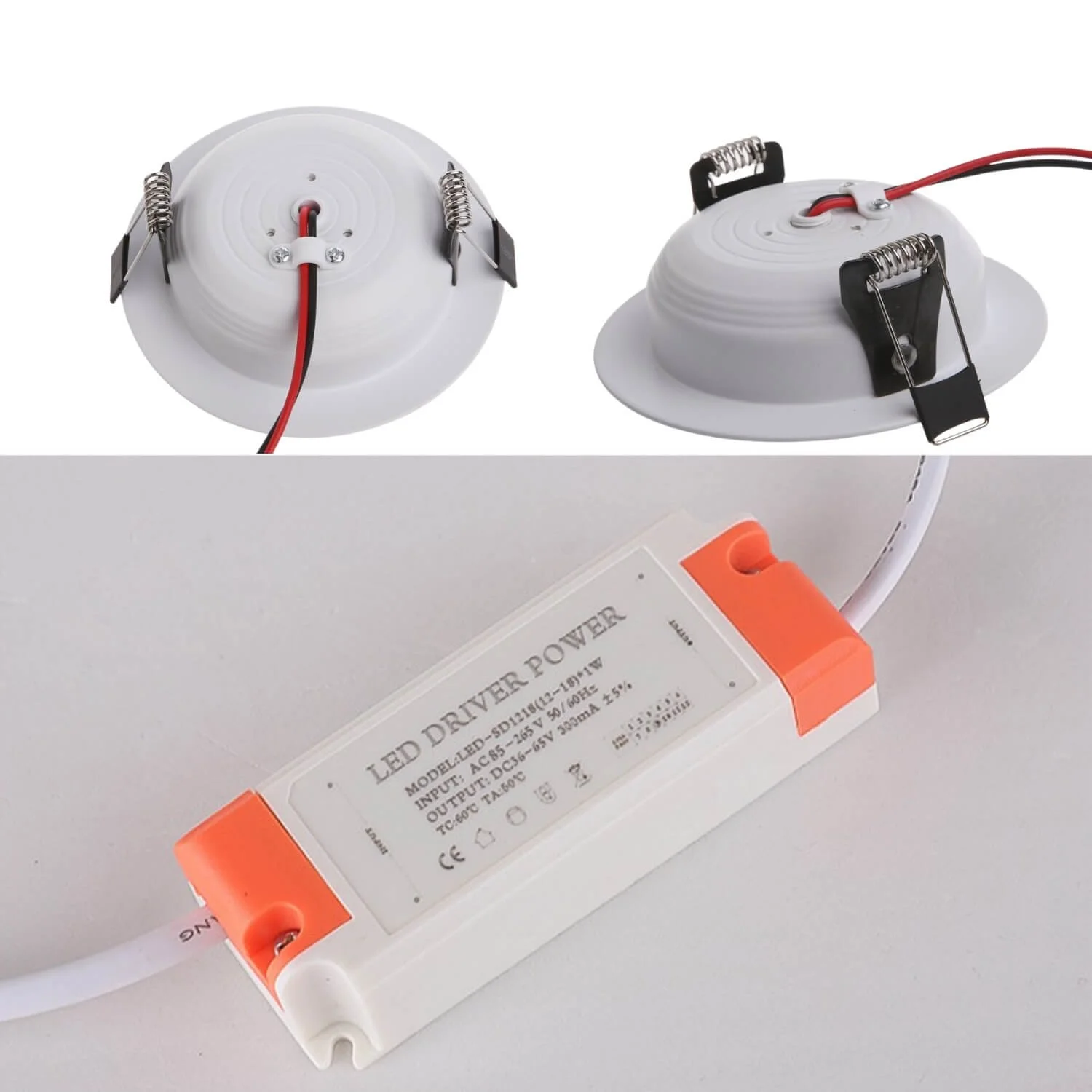

- Wiring leads and spring clips for recessed installation

- User/installation guide

Why choose ENDIzLED-199

ENDIzLED-199 delivers energy-saving, motion-activated lighting in a compact, low-profile package. With robust sensor performance, multiple wattage and size options, and high-efficiency LEDs, it’s a practical solution for lighting installations that demand both convenience and reliability.

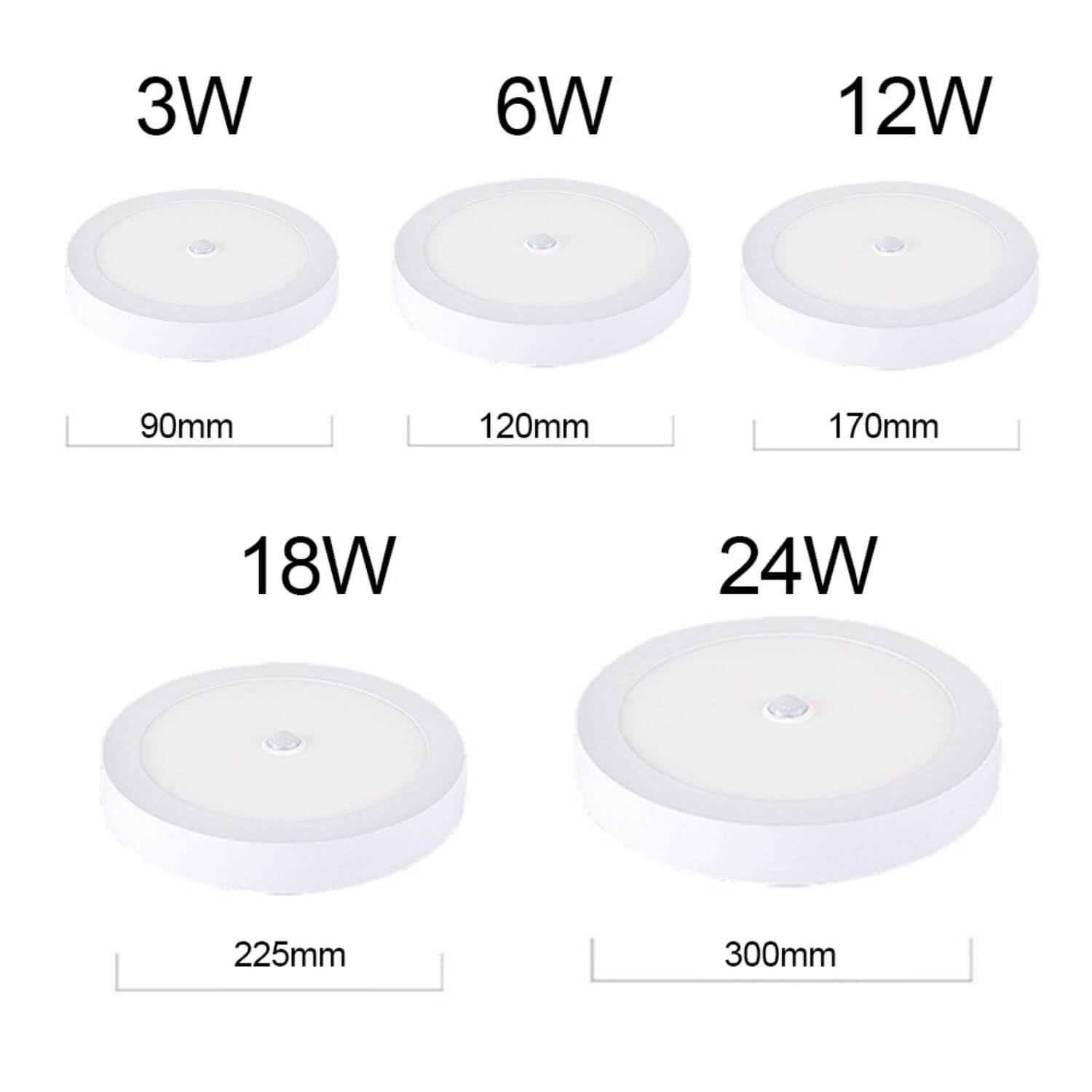

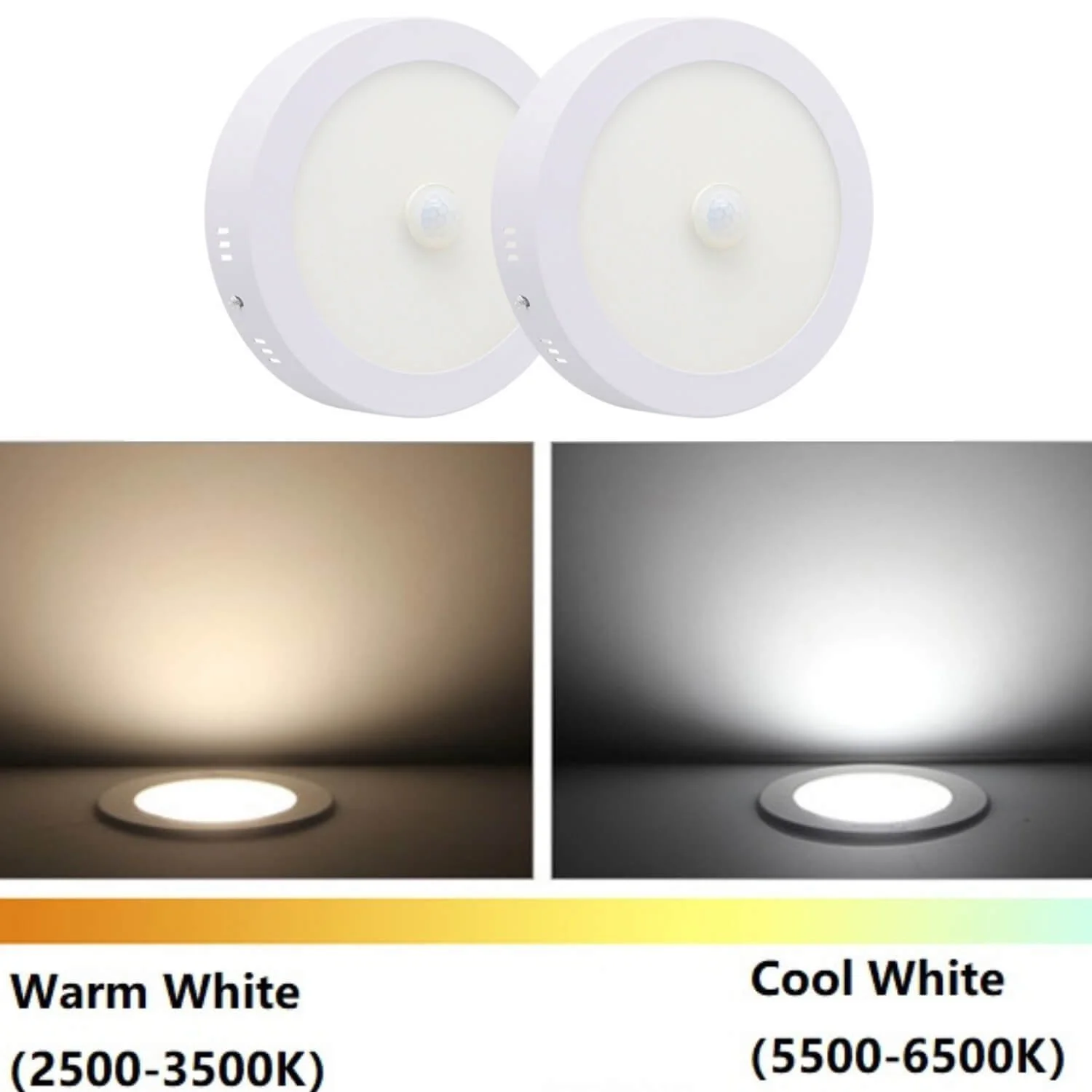

Surface Mount +$5/pcs
