ENDizLED-194 — Battery Pack Emergency Downlight
Product overview

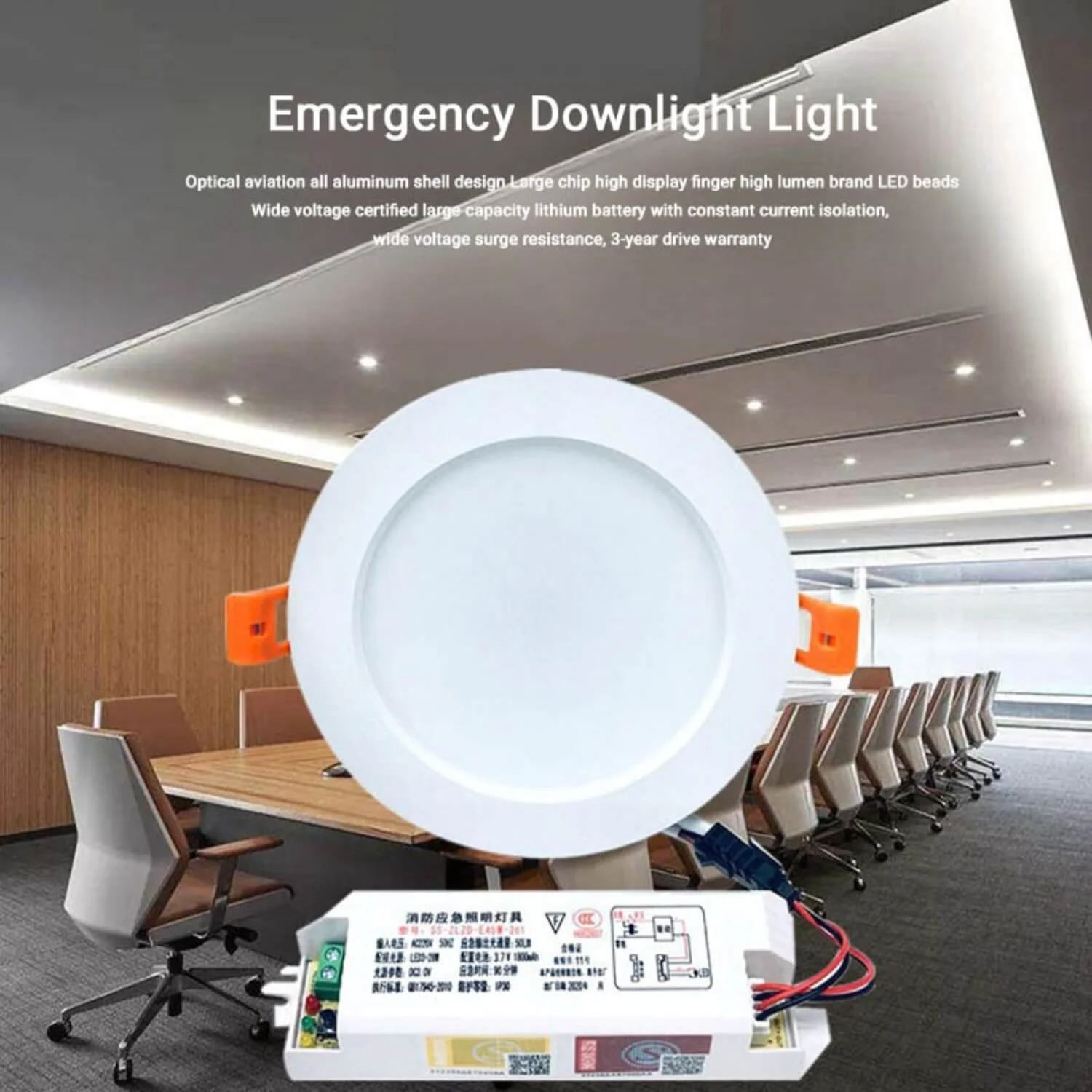

- The ENDizLED-194 is a slim, recessed LED downlight with an integrated emergency battery pack and remote driver. It’s designed for easy retrofit and new installations where emergency backup lighting is required.
- Low-profile design (approx. 35 mm height) with spring clips for quick, secure ceiling mounting. White trim for a clean, unobtrusive finish.
Key features
- Built-in emergency battery pack with dedicated driver module — provides backup illumination during power outages (runtime depends on model/wattage).
- Slim housing (H ≈ 35 mm) for tight ceiling voids.
- Spring-clip mounting for fast installation and reliable hold.
- Remote driver/battery module connects via plug for flexible placement.
- Clean, flush white trim that suits residential and commercial interiors.
- Multiple wattage and cut-out sizes to fit many applications and retrofit needs.

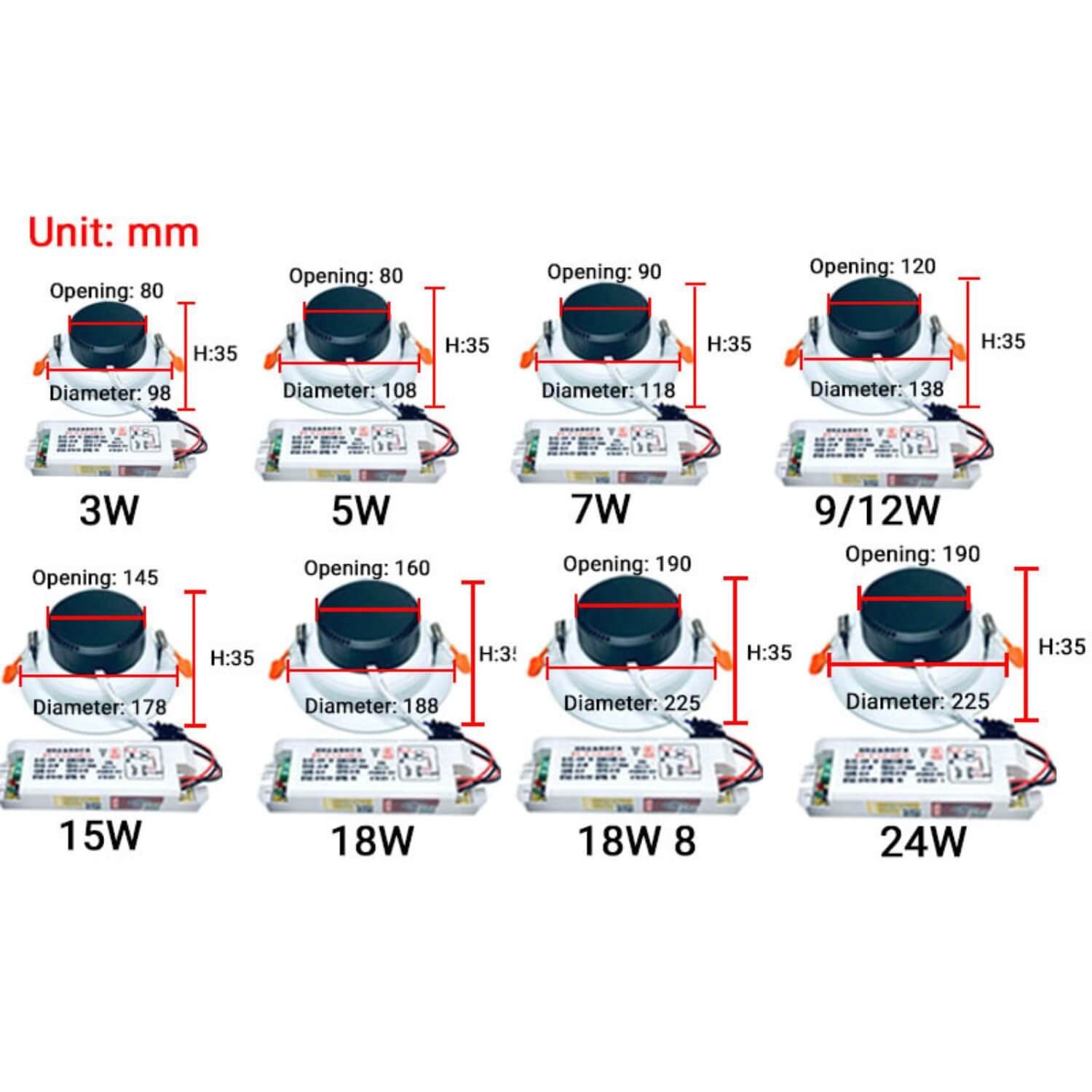

Available sizes (cutout & outer diameter)
- 3W — Cutout Ø80 mm / Outer Ø98 mm
- 5W — Cutout Ø80 mm / Outer Ø108 mm
- 7W — Cutout Ø90 mm / Outer Ø118 mm
- 9W / 12W — Cutout Ø120 mm / Outer Ø138 mm
- 15W — Cutout Ø145 mm / Outer Ø178 mm
- 18W — Cutout Ø160 mm / Outer Ø188 mm
- 24W — Cutout Ø190 mm / Outer Ø225 mm
- Height: ~35 mm for all sizes
Typical specifications (confirm at time of order)

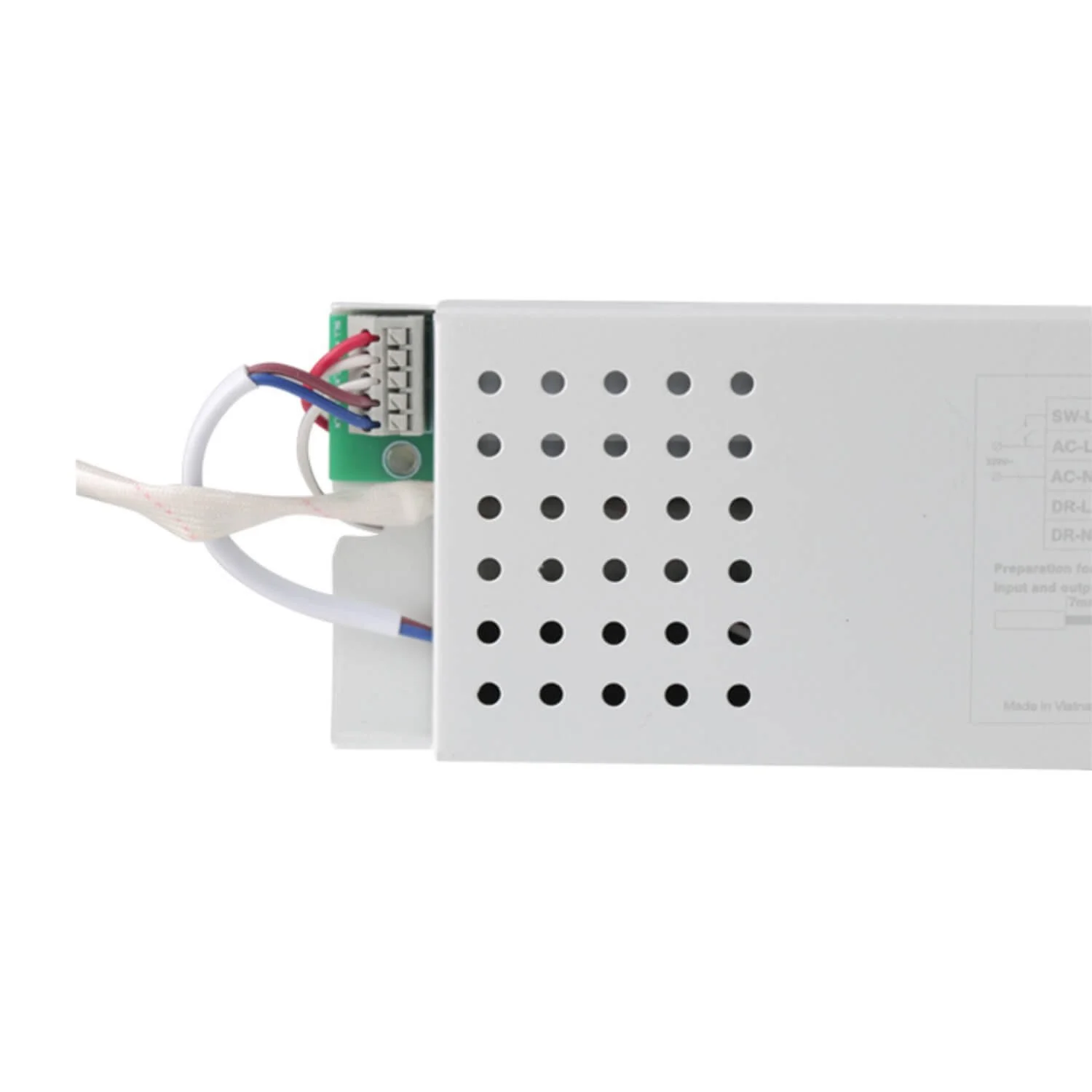

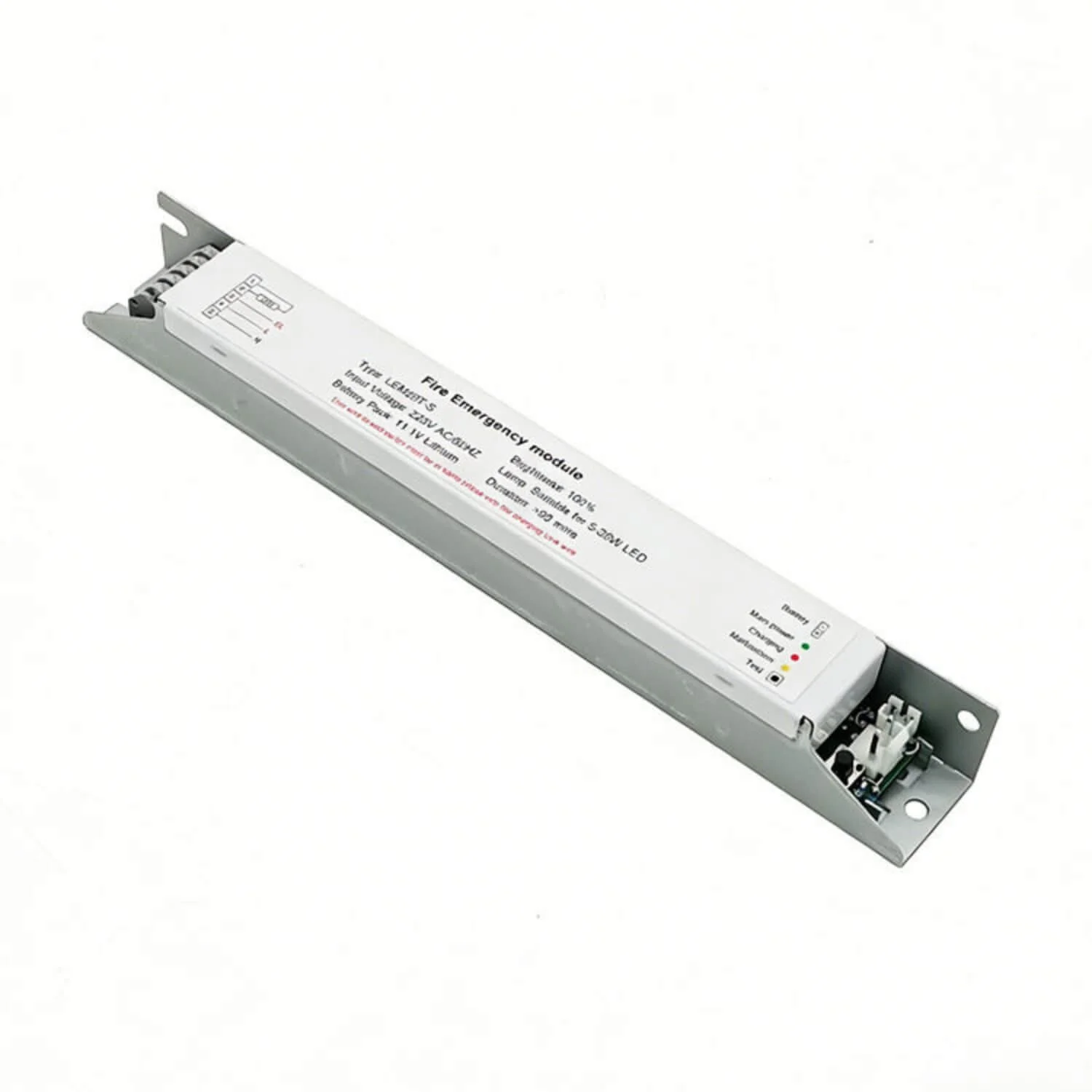

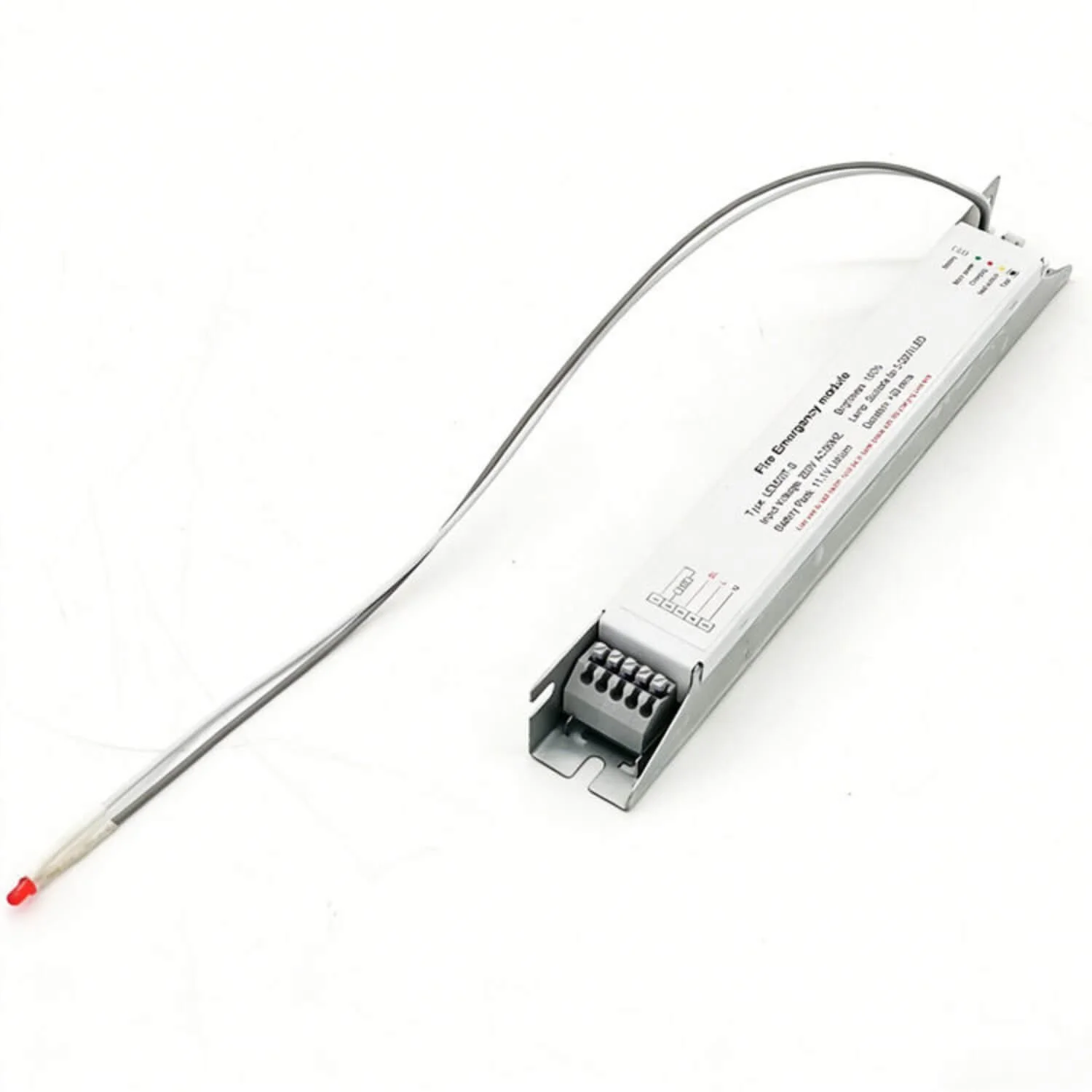

- Driver: external module with battery pack (remote connection)

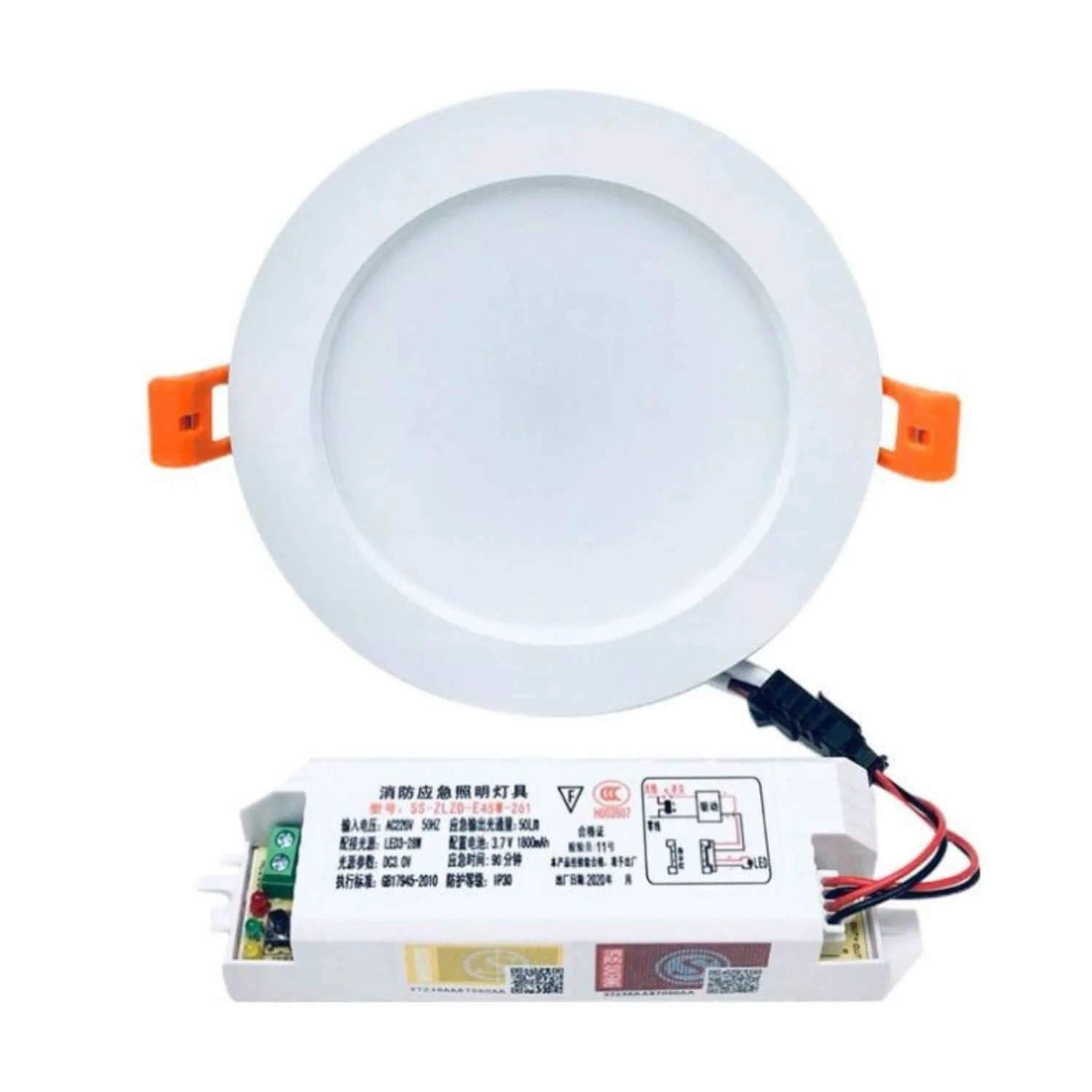

- Battery: integrated rechargeable cell (label example: 3.7V 1800mAh on some units) — actual capacity and emergency runtime vary by model
- Mounting: recessed with spring clips
- Finish: white bezel
- Color temperature and CRI: available in multiple options — contact us for specific CCT/CRI availability
Applications

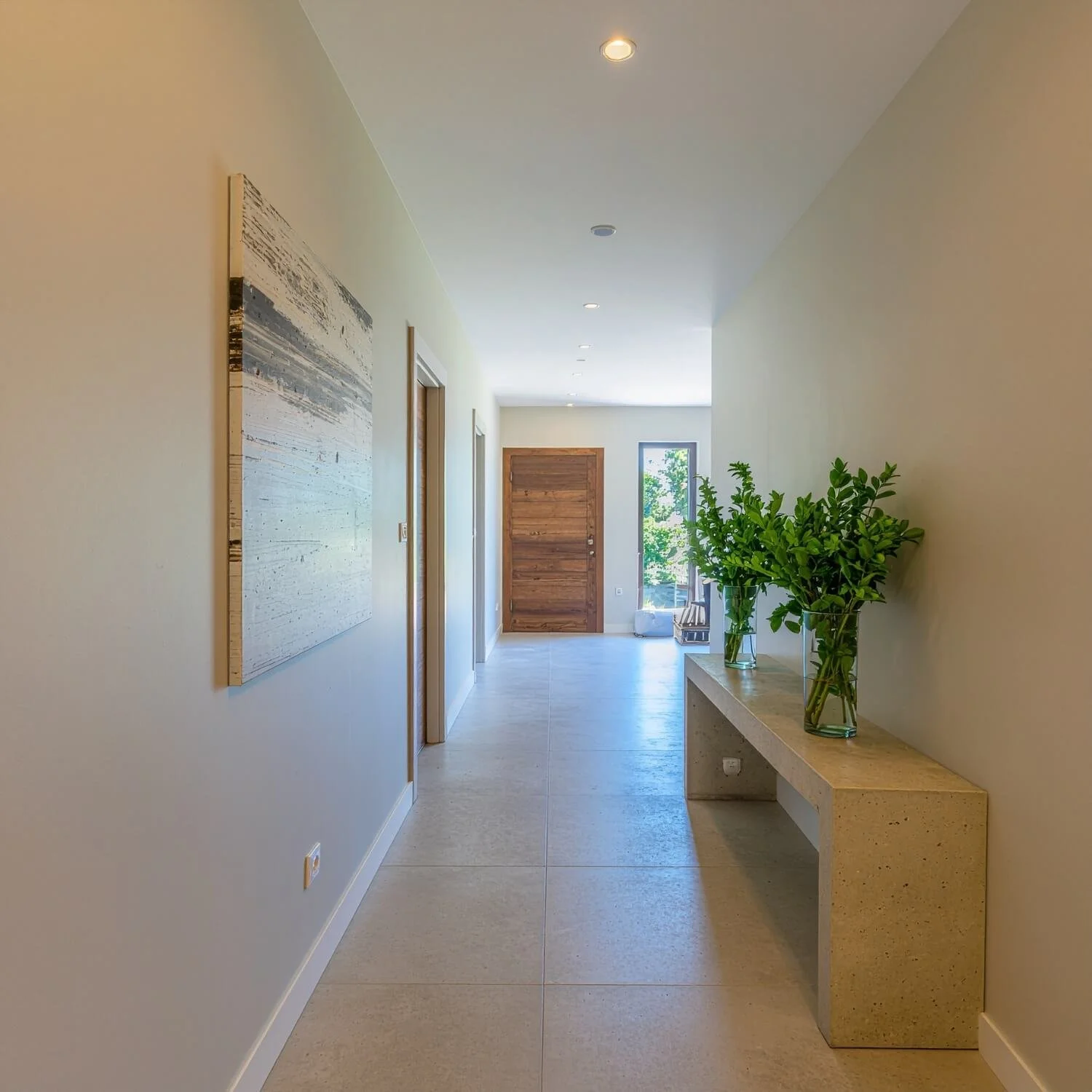

- Emergency lighting for corridors, stairwells, offices, classrooms, hotels, retail and other commercial or residential spaces requiring emergency backup.
- Ideal for retrofits where an emergency-capable recessed luminaire is needed without major ceiling work.

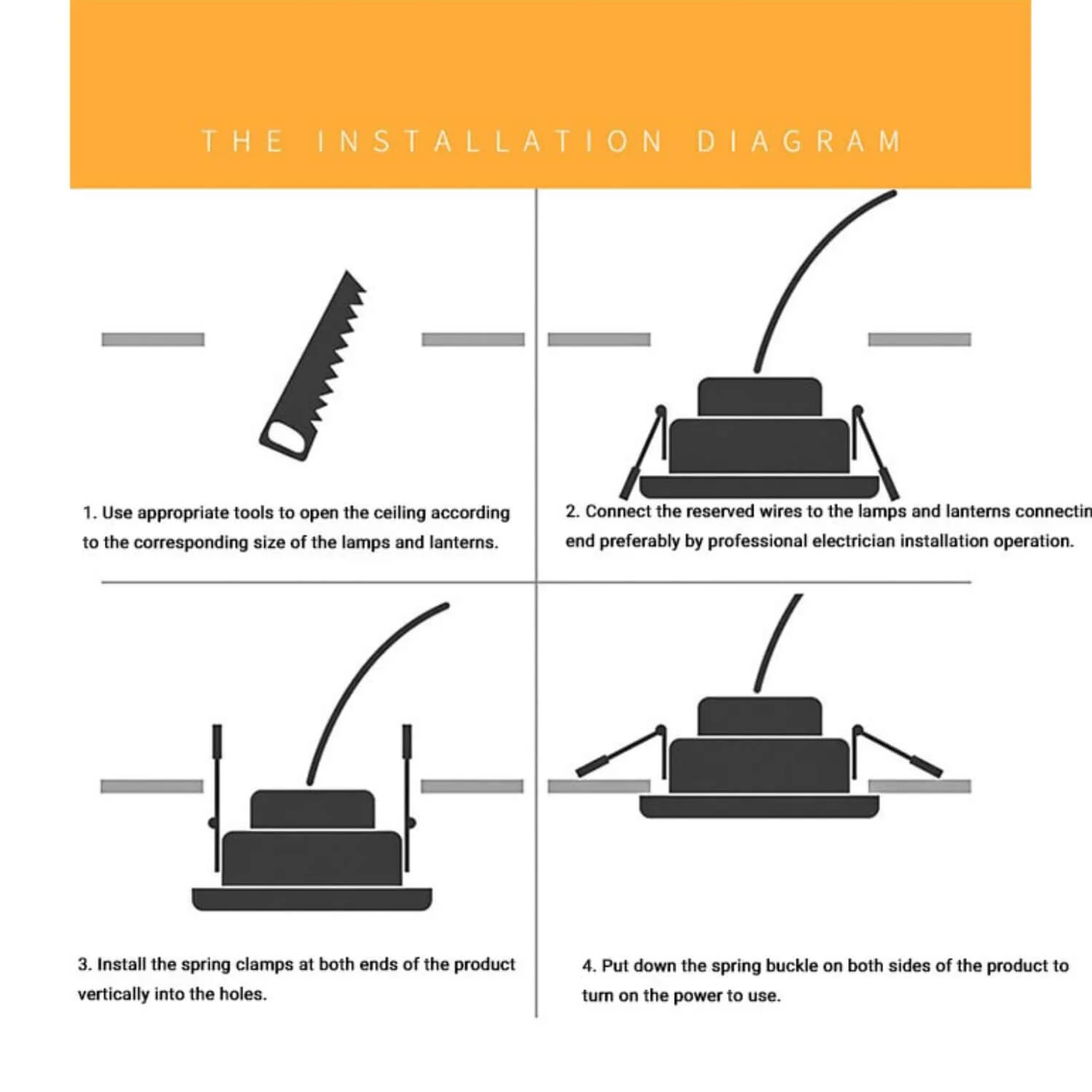

Installation notes
- The driver / battery pack is supplied as a separate module for flexible mounting; follow wiring diagram supplied with the product.
- Ensure correct cutout size and allow access space for the remote module during installation.
- Installation should be completed by a qualified electrician in accordance with local electrical and safety standards.

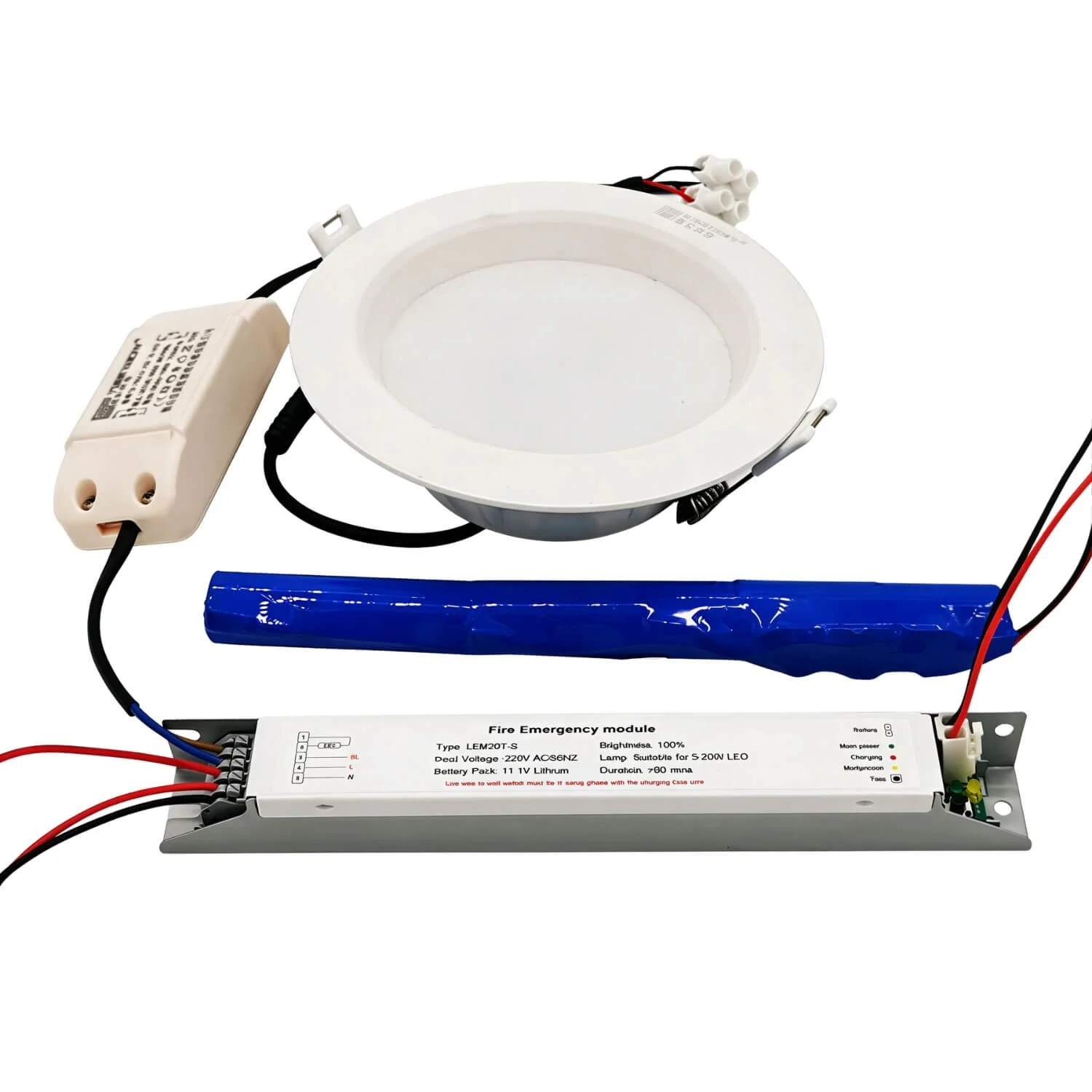

What’s included
- LED downlight with spring clips
- External driver / emergency battery module
- Connecting lead and plug
- Installation/wiring diagram and basic instructions
Ordering & support
- Model: ENDizLED-194 — specify wattage and required cutout size when ordering.
- For color temperature, emergency runtime, certification, or bulk pricing, let me know what you need and I’ll get the exact options and lead times.
If you’d like, I can:
- Prepare a short spec sheet or printable product card for a specific wattage, or
- Check stock and lead time for a particular size/CCT.
Would you like a spec sheet for a specific wattage or CCT?
