ENDIzLED-189 — High‑Performance UFO LED High Bay Light
Brief overview
- The ENDIzLED-189 is a durable, high-efficiency UFO-style LED high bay designed for industrial and commercial spaces. It combines a die-cast aluminum housing, hollow heatsink (fanless) thermal design and high‑output SMD2835 LED chips for reliable, flicker‑free illumination where you need it most.
Key benefits
- Powerful, efficient light: >100 lm/W delivers bright illumination for warehouses, factories, gymnasiums, workshops and retail spaces.
- Built to last: rugged die-cast aluminum housing, IP65 protection and 10 kV surge protection for dependable performance in demanding environments.

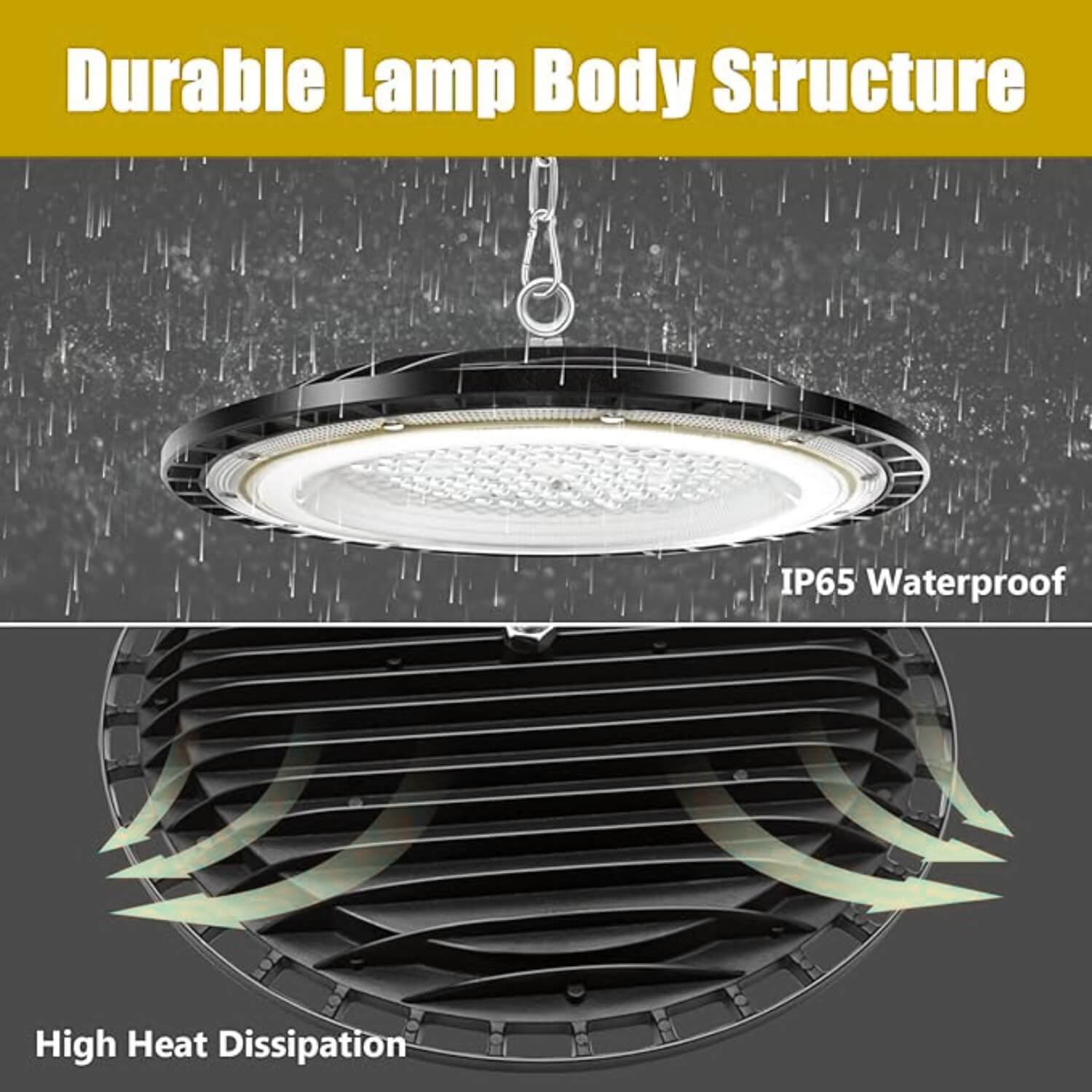

- Cooler, quieter operation: hollow heatsink + natural convection cooling (fanless) prolongs LED life and eliminates fan maintenance and noise.
- Easy installation: hanger hook and chain/pendant-ready design for quick mounting and positioning.
- Comfortable, safe lighting: flicker‑free output and CRI > 80 for good color rendering and reduced eye fatigue.

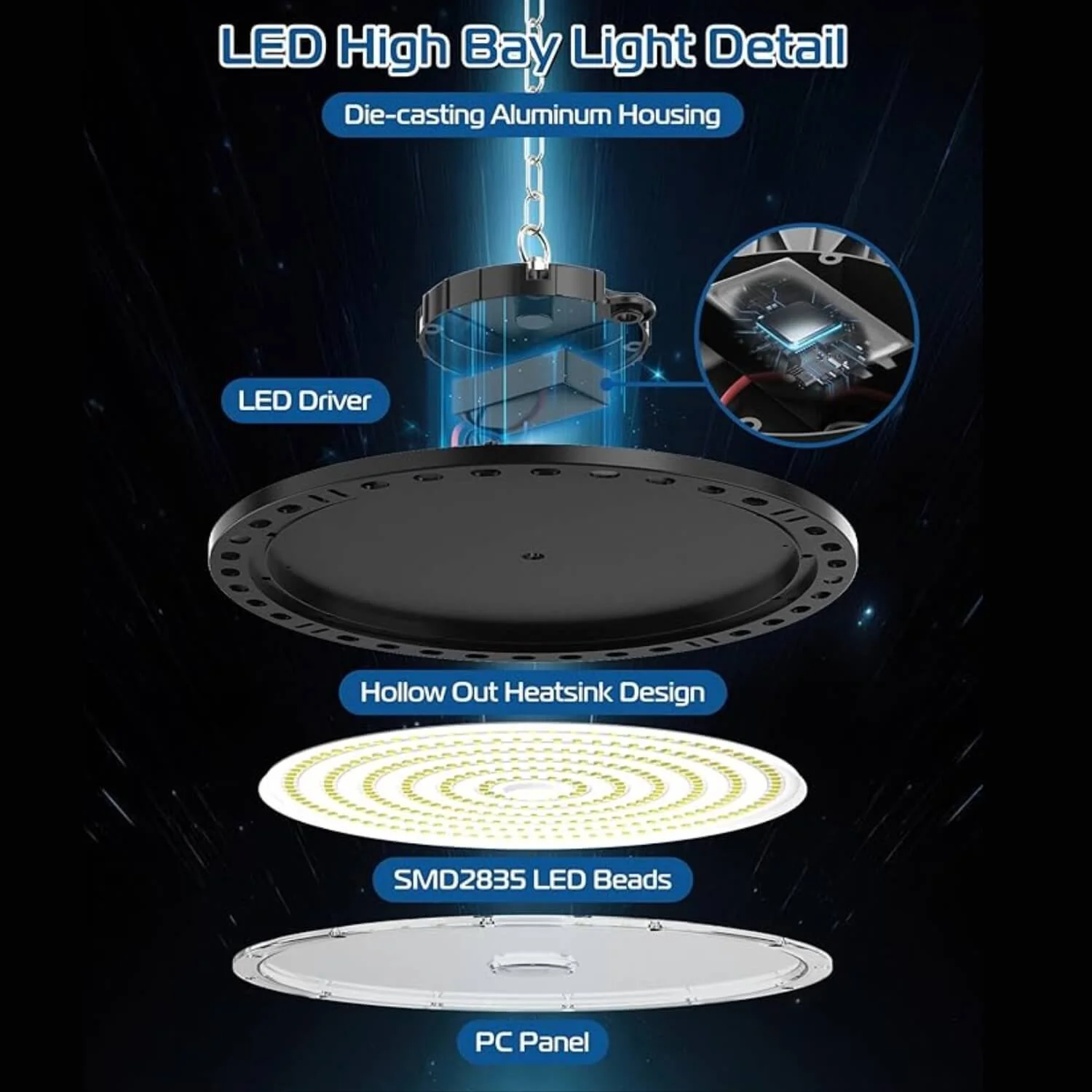

Features at a glance

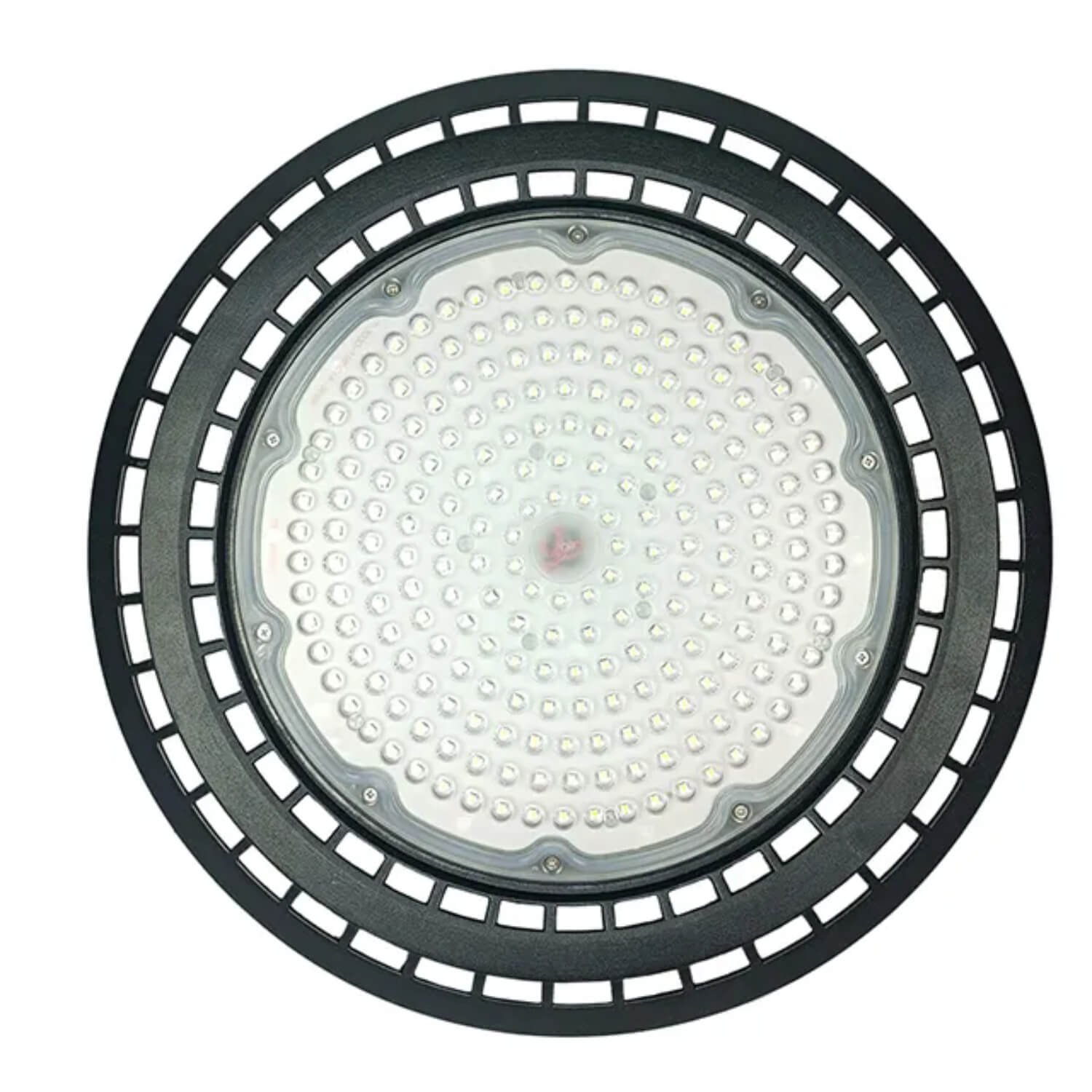

- LED type: SMD2835 LED beads
- Optics: PC panel diffuser, wide beam (≈180°)
- Efficiency: >100 lm/W
- Color accuracy: CRI > 80

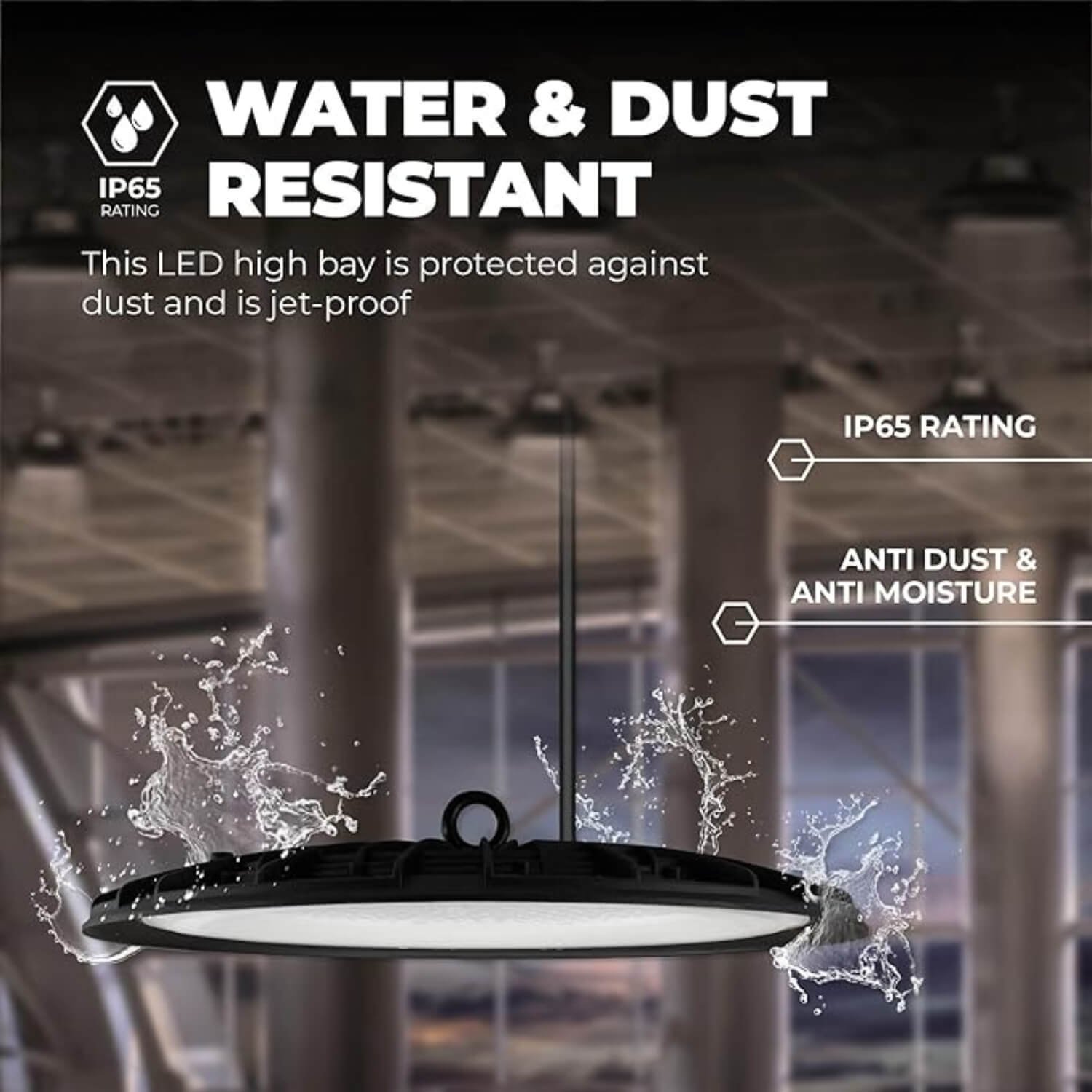

- Ingress protection: IP65 (suitable for dusty/wet locations)
- Surge protection: 10 kV
- Flicker: flicker‑free operation

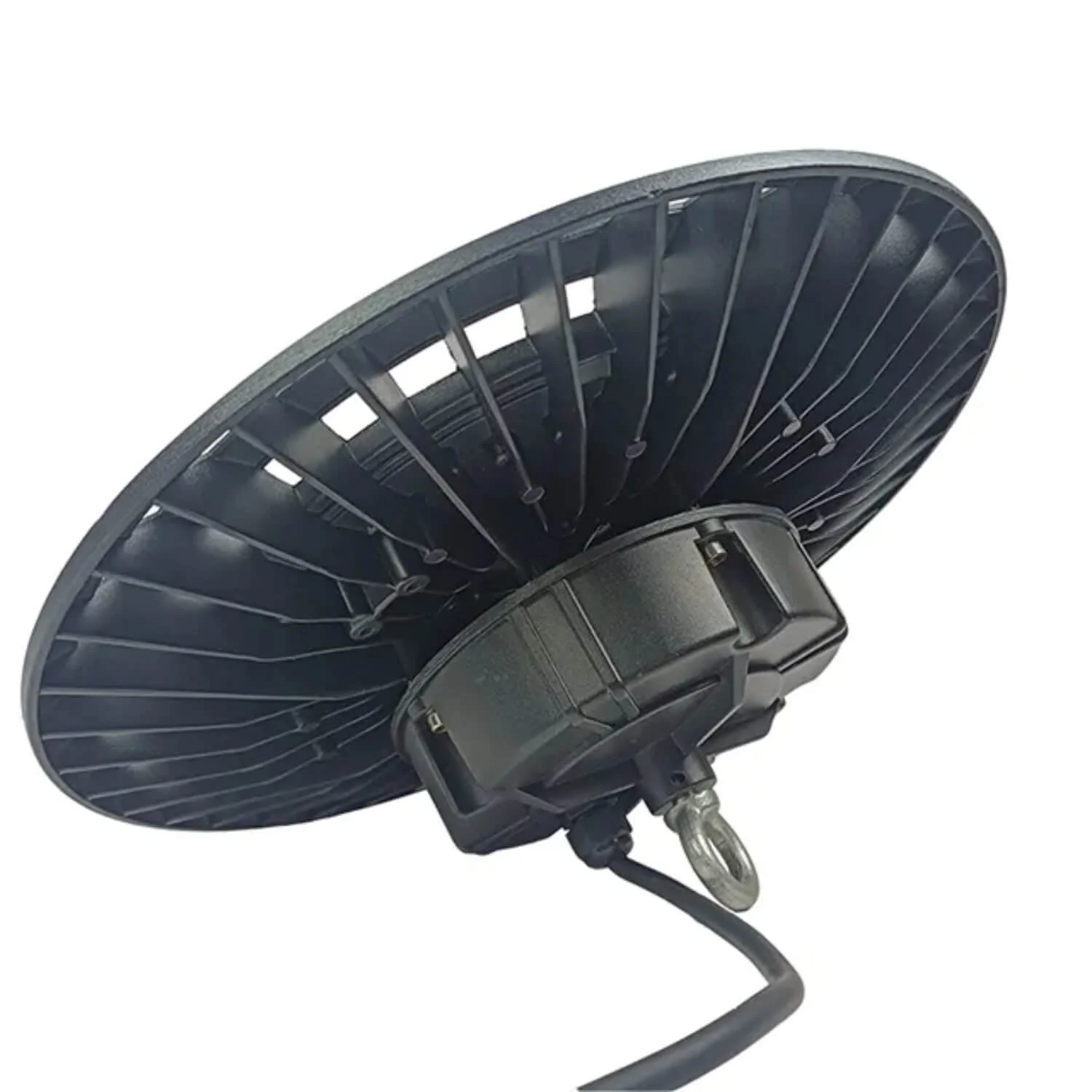

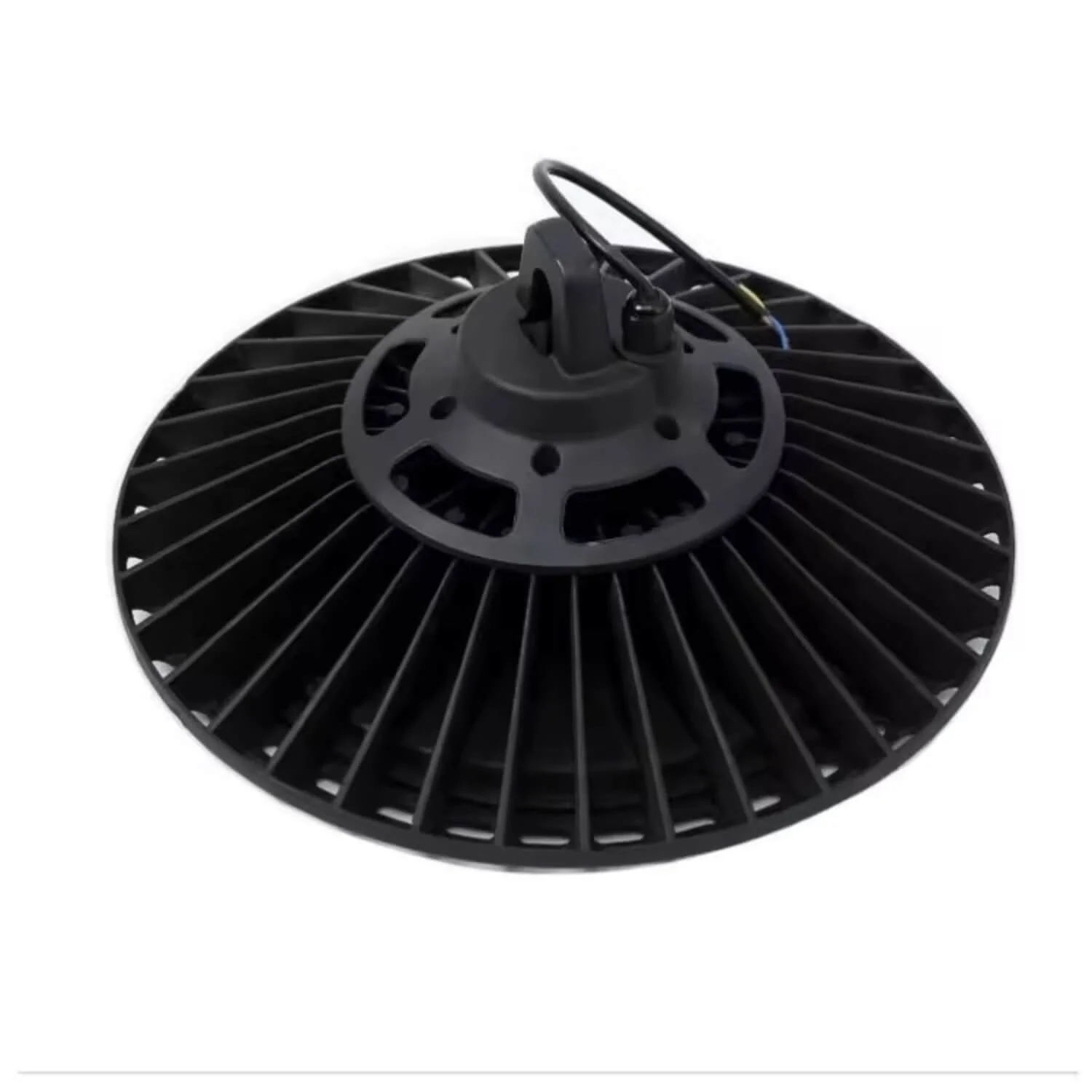

- Cooling: hollow out heatsink (natural convection), fanless structure
- Driver: integrated LED driver (sealed)
- Operating temperature: -20°C to +50°C
- Rated lifespan: ~25,000 hours

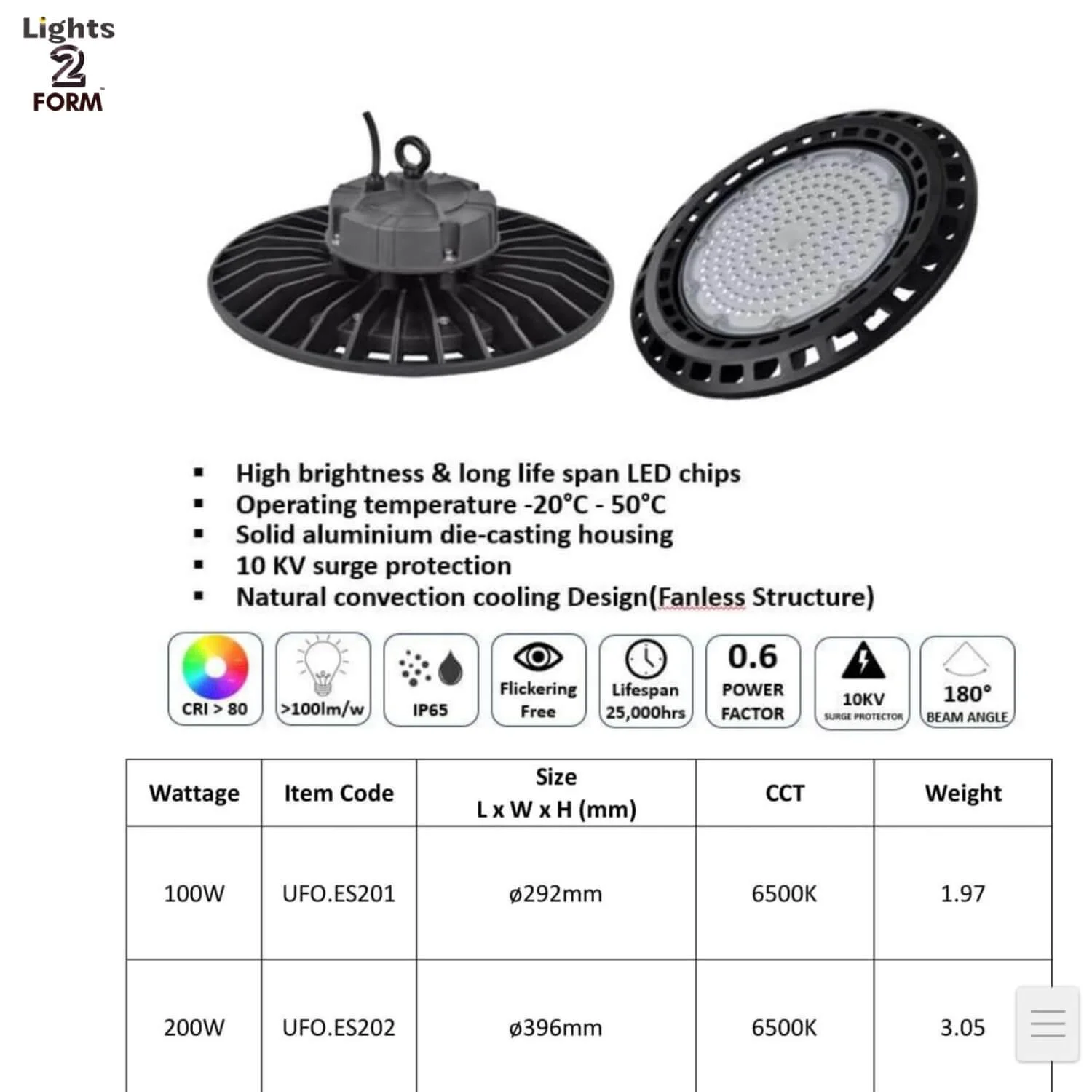

Available sizes & weights (example variants)
- 100 W — Ø 292 mm — CCT 6500K — Weight ~1.97 kg — Approx. luminous flux: ~10,000 lm (based on >100 lm/W)
- 200 W — Ø 396 mm — CCT 6500K — Weight ~3.05 kg — Approx. luminous flux: ~20,000 lm (based on >100 lm/W)
Typical applications
- Warehouses and distribution centers
- Manufacturing floors and assembly areas
- Gymnasiums and sports halls
- Retail and big‑box stores
- Cold storage (within operating temp limits)
- Workshops, garages and service bays
Installation & maintenance notes

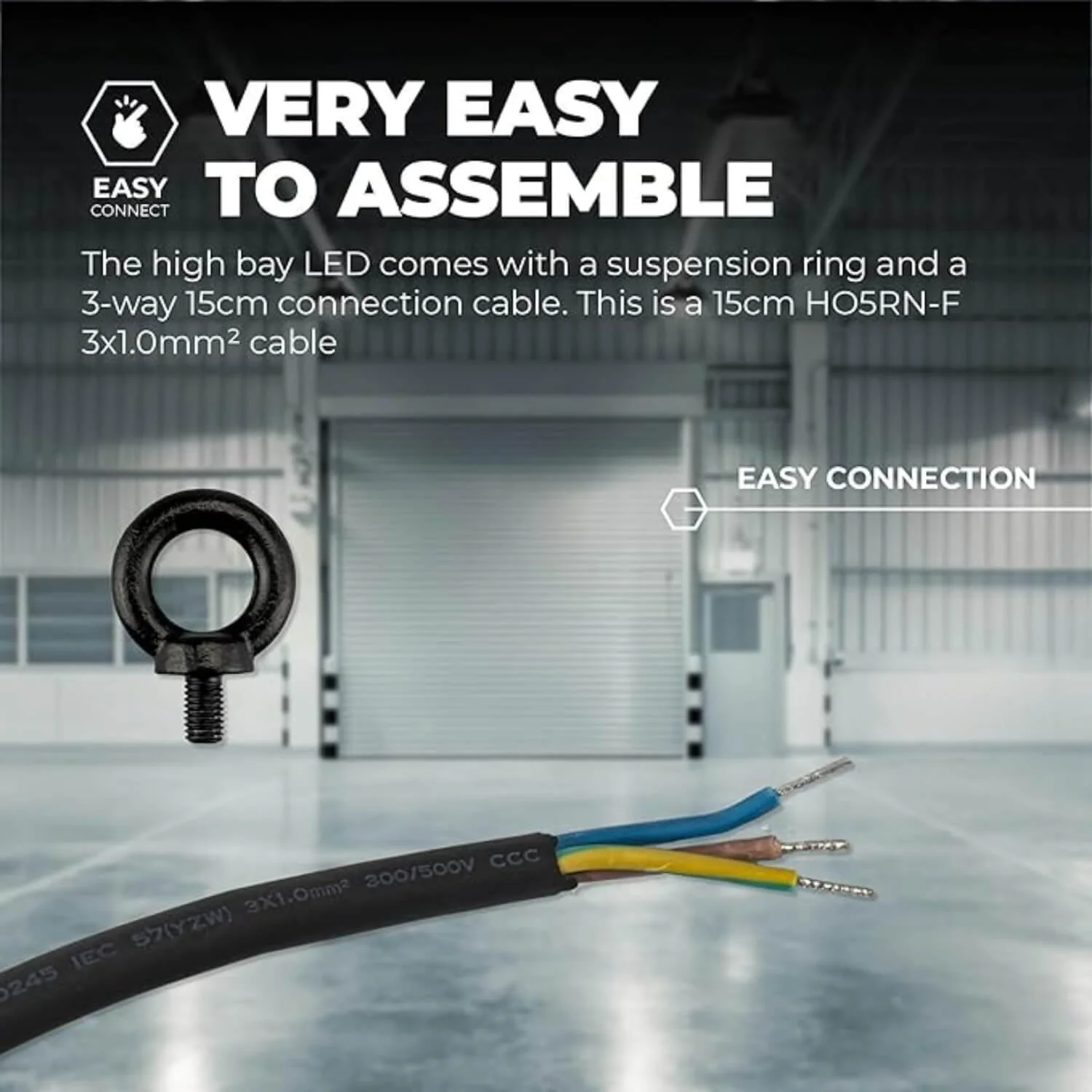

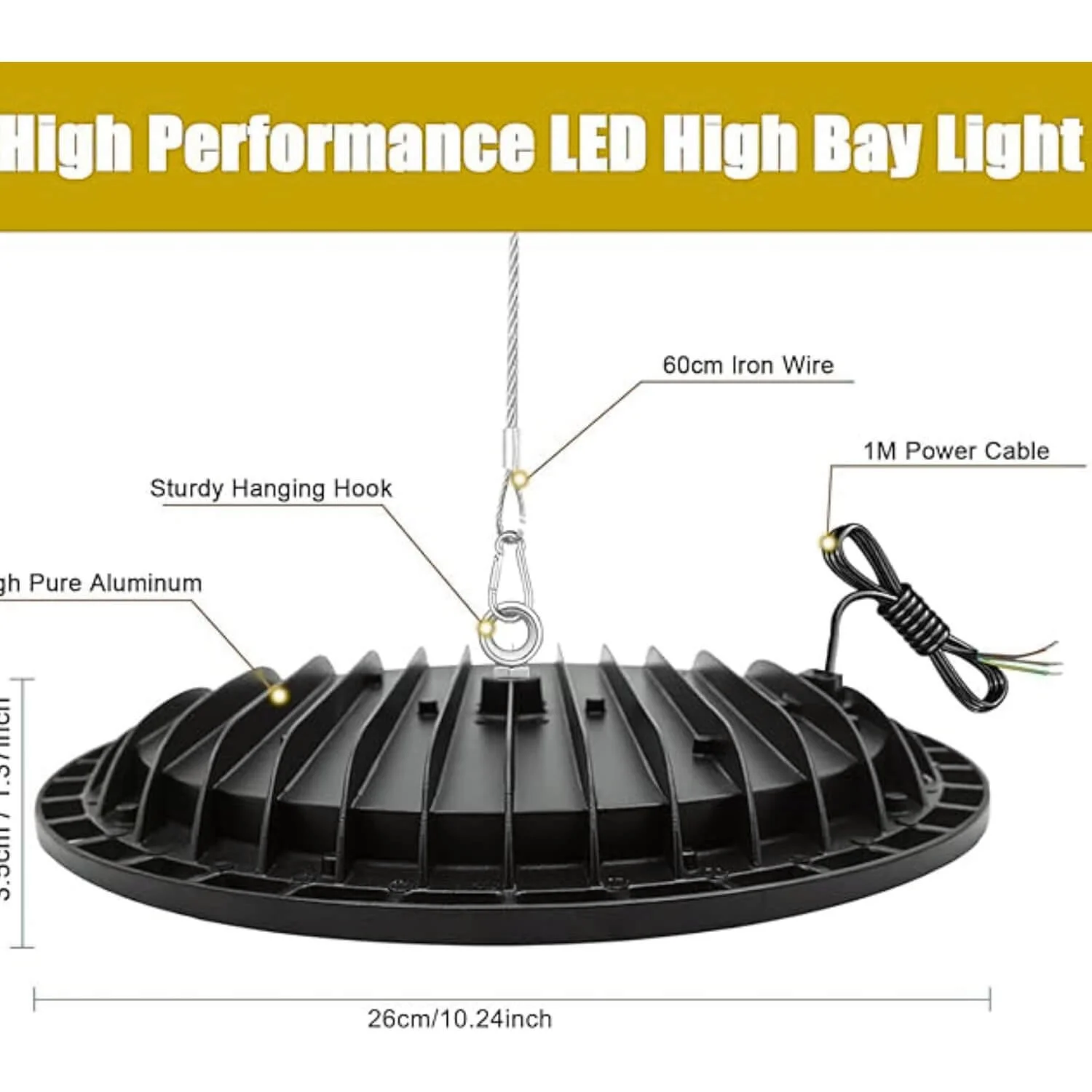

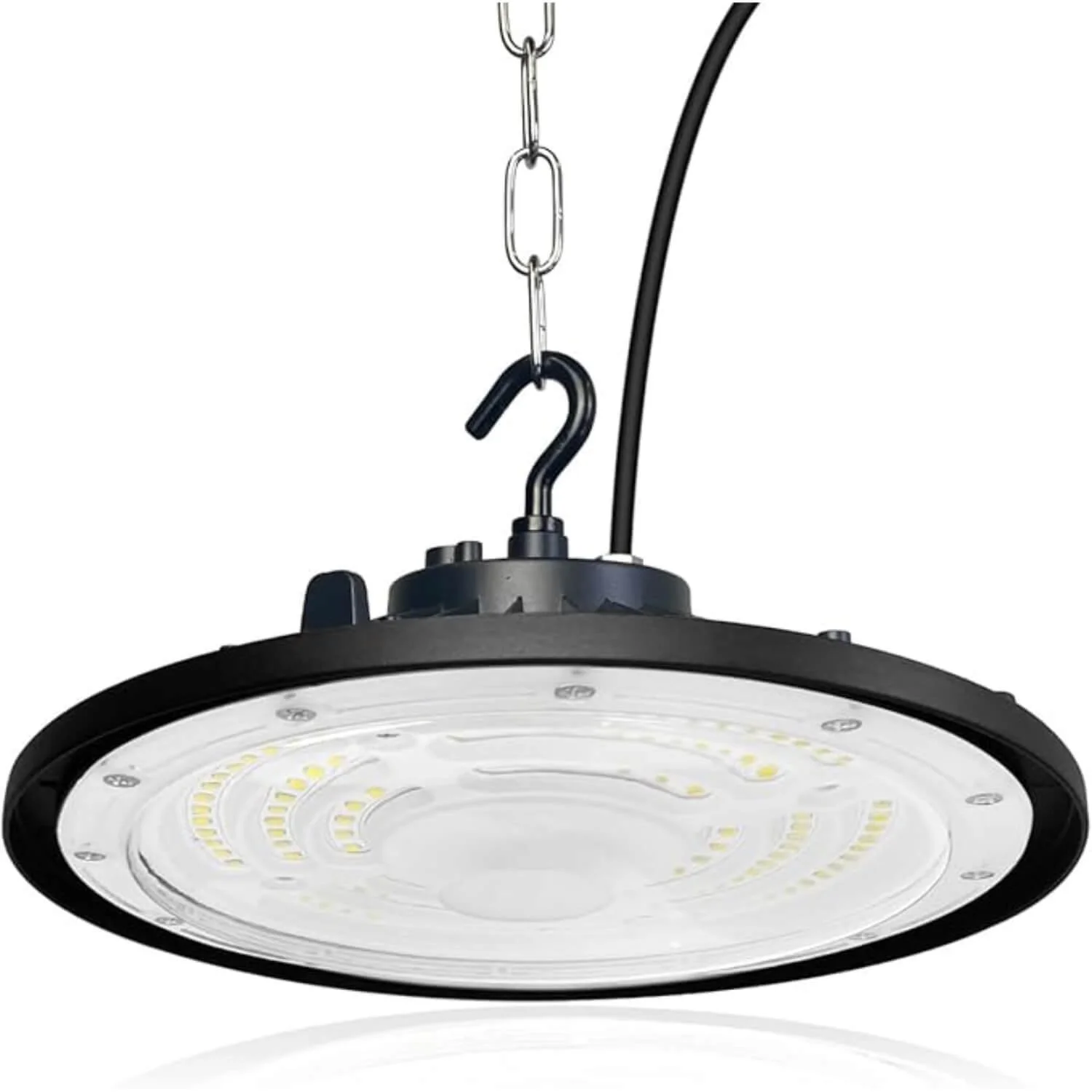

- Mounting: suspension hook/chain or pendant mount (chain and hook shown in product images). Ensure secure fixing to rated supports.
- Electrical: install in accordance with local electrical codes; recommended to be wired by a qualified electrician.
- Maintenance: fanless design reduces maintenance; keep diffuser and heatsink clear of heavy dust buildup for optimal thermal performance.
What’s in the box
- ENDIzLED-189 UFO high bay unit with integrated driver and suspension hook (chain and mounting accessories may vary by package).
- Installation instructions and safety labels.
Warranty & support
- For warranty details, installation guidance or bulk order assistance, please contact our sales/support team. (Specify warranty length per seller terms.)
