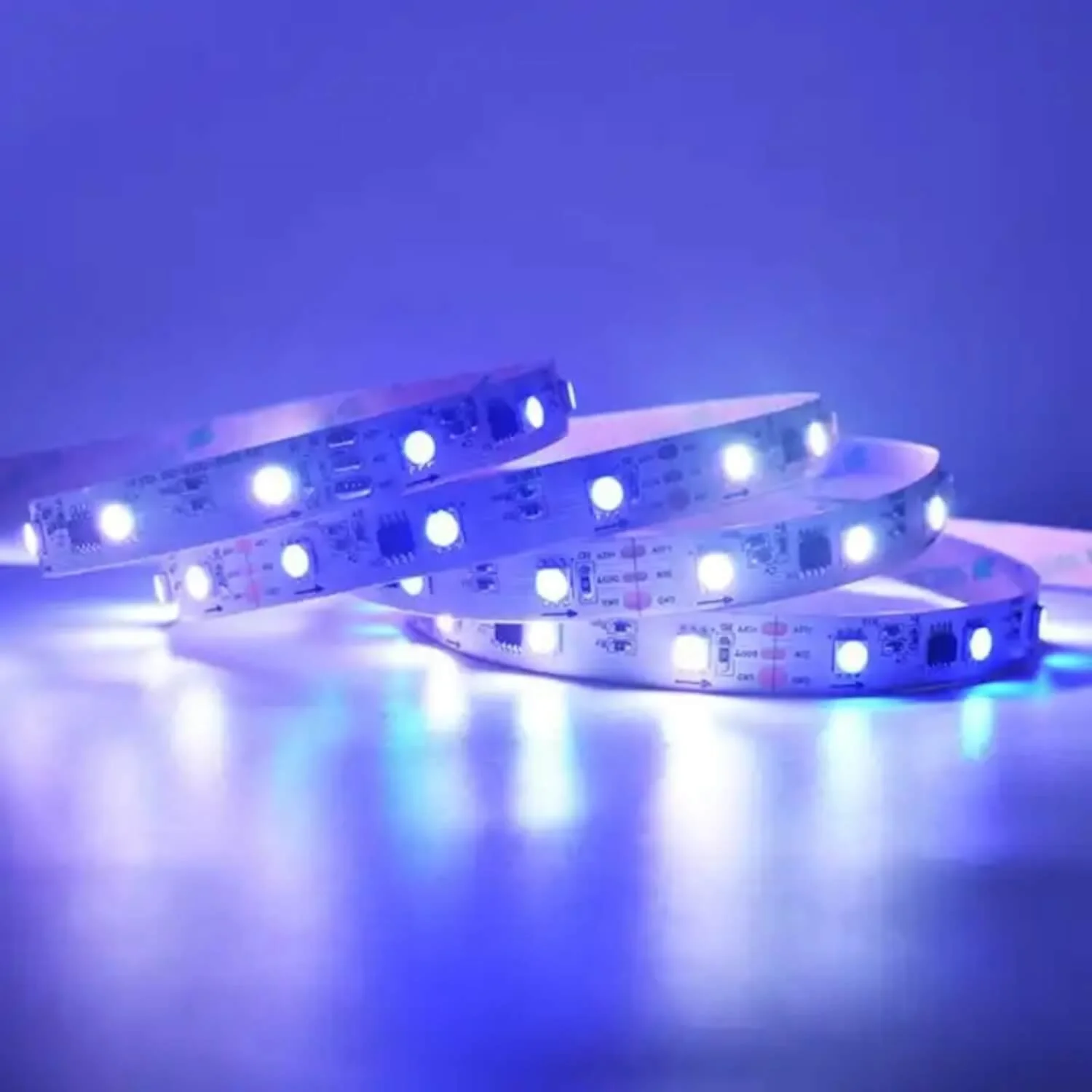

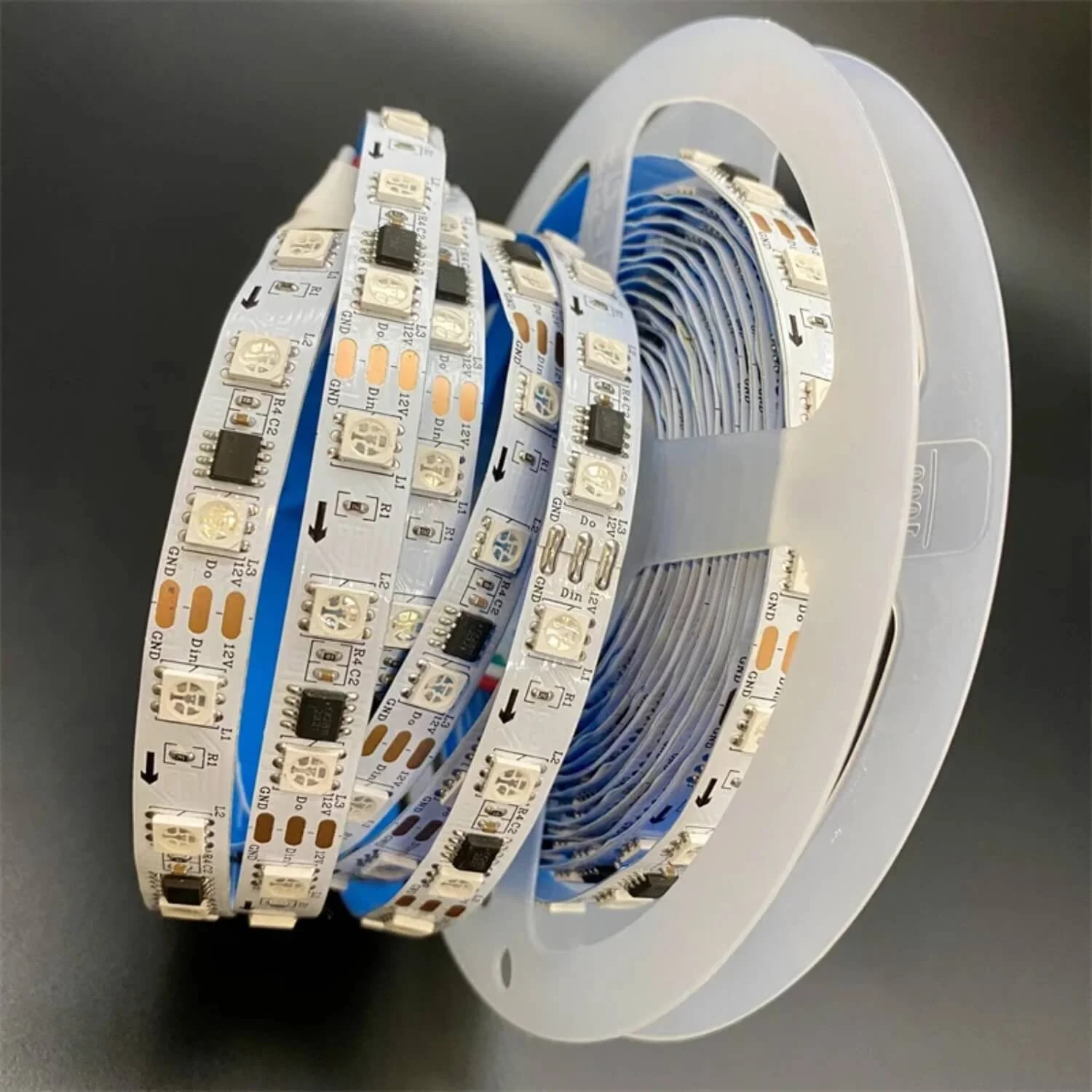

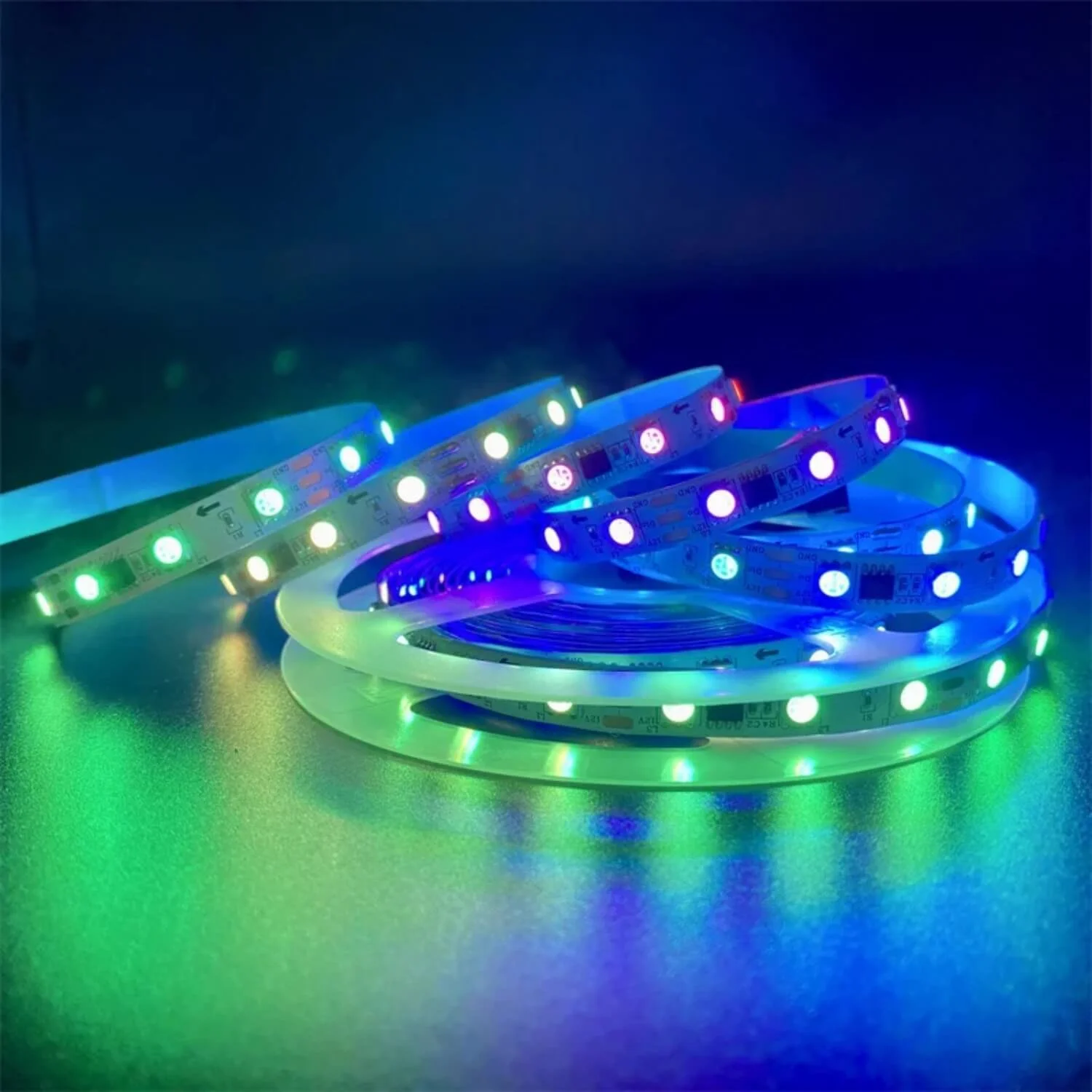

ENDIzLED-180 — 10mm Addressable RGB LED Strip (WS2811 IC)

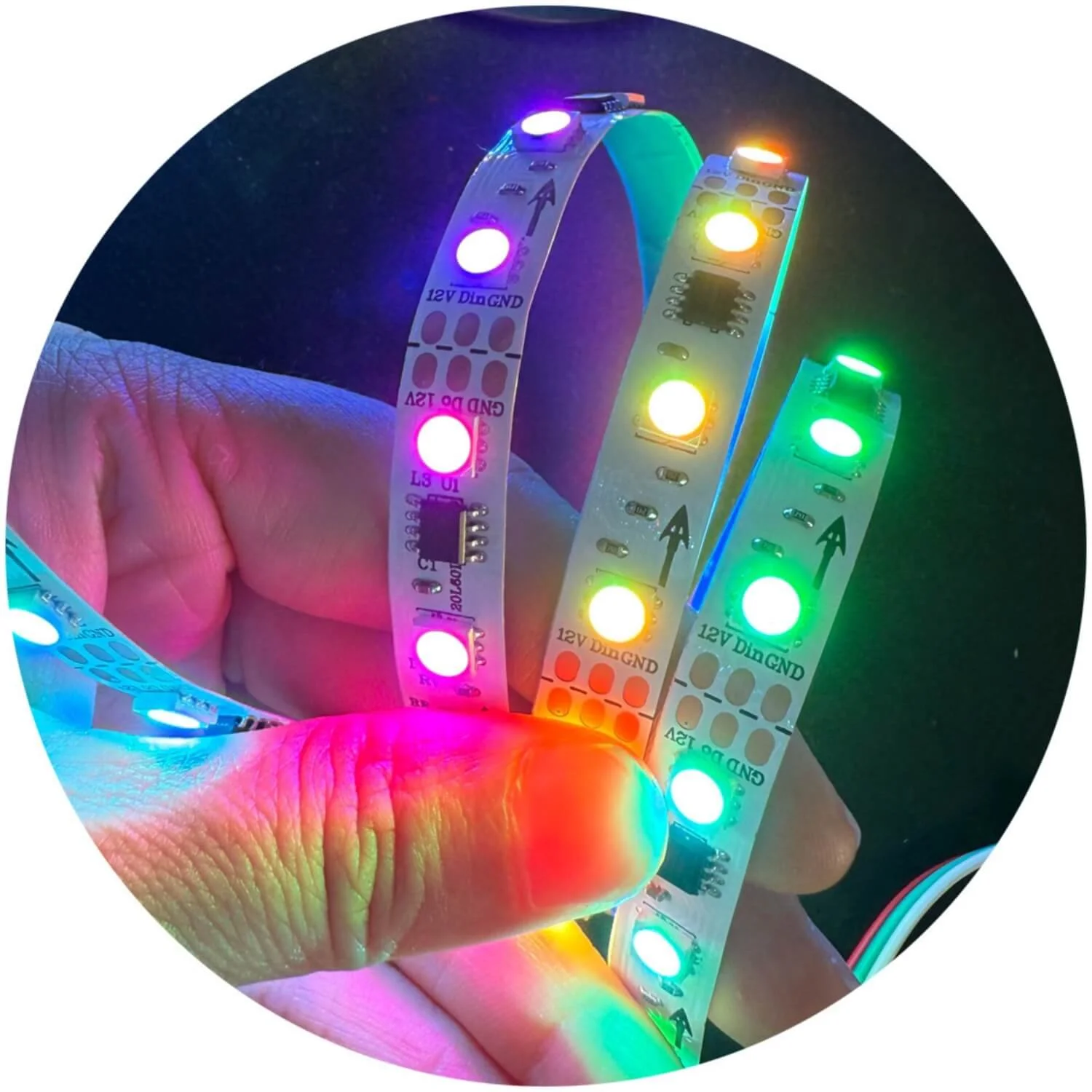

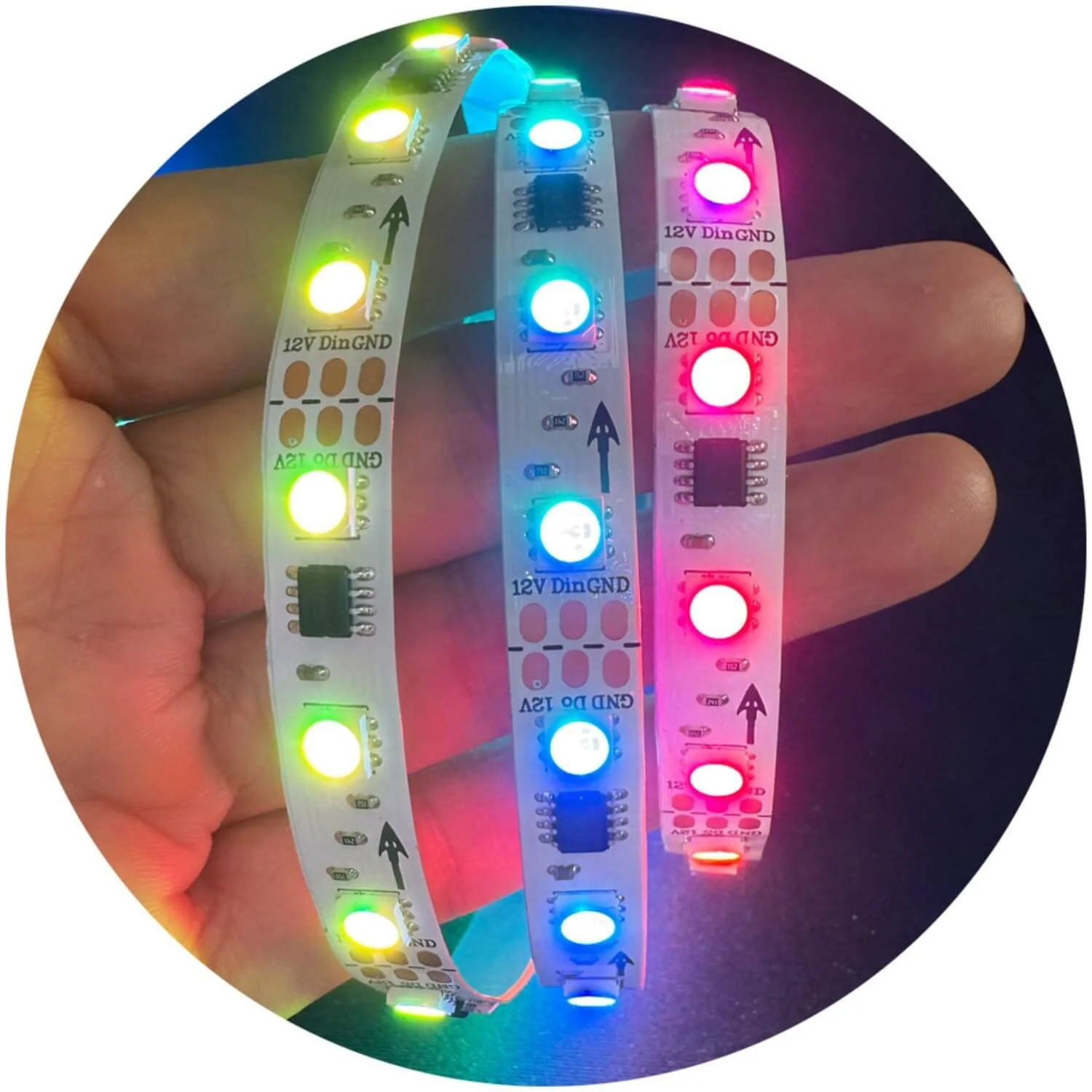

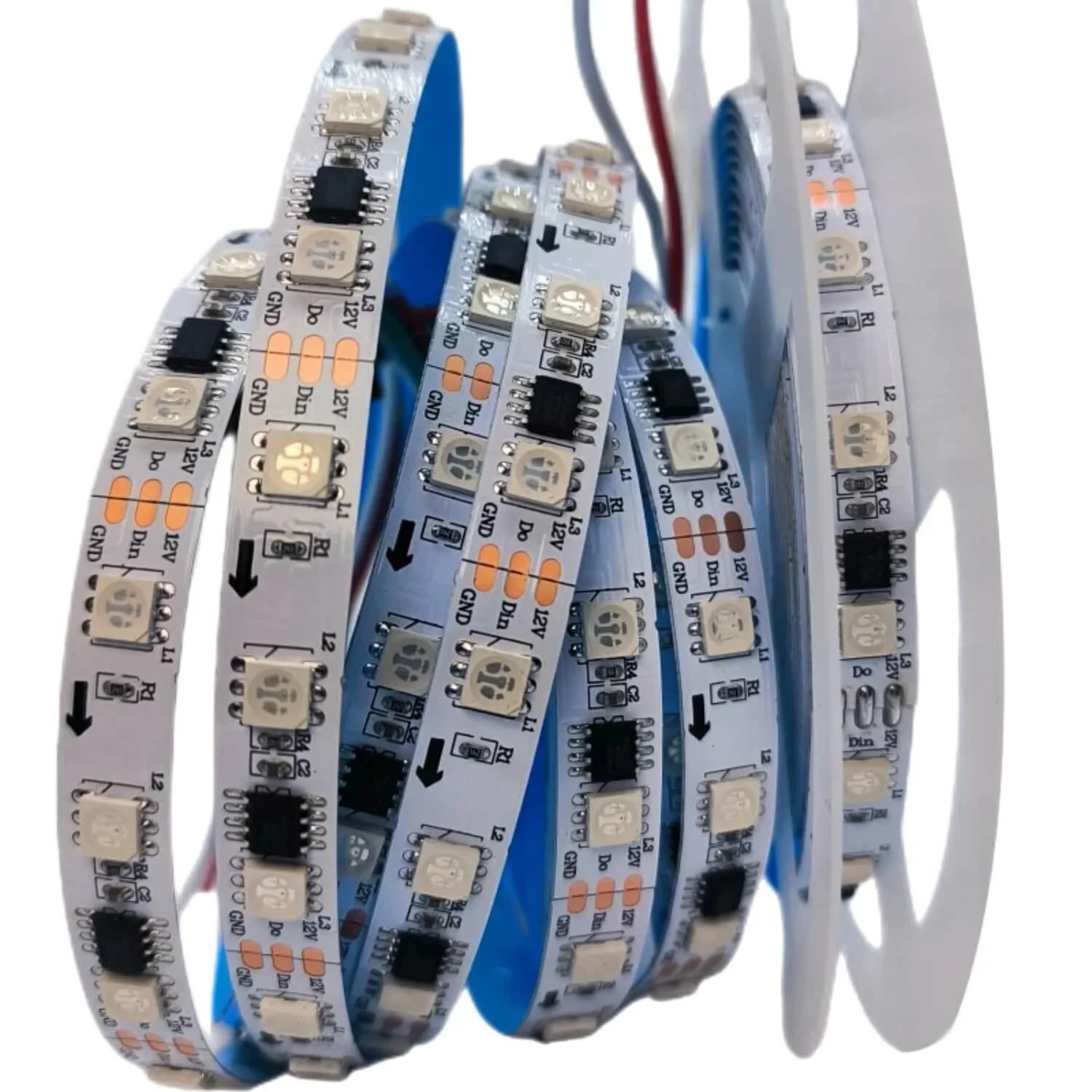

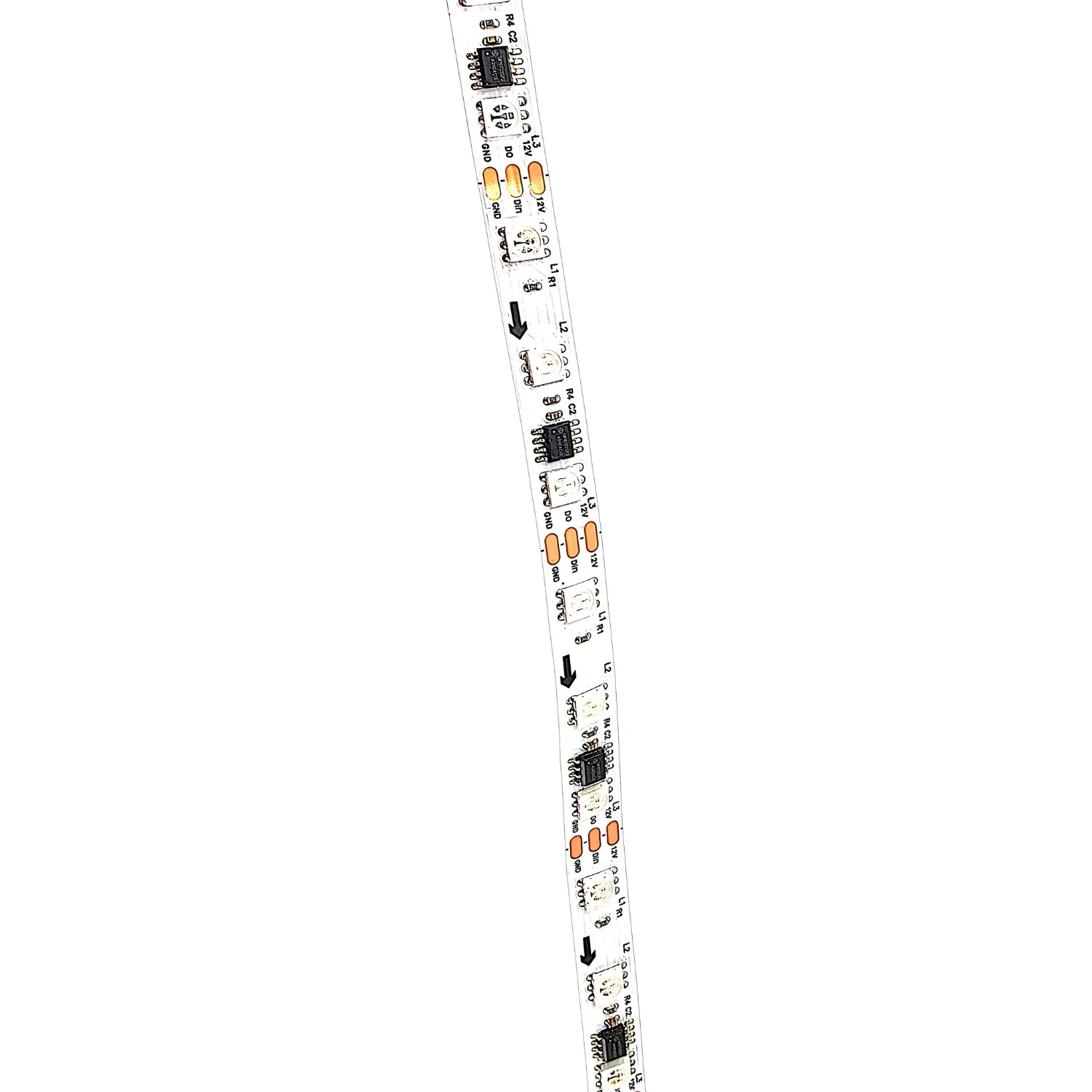

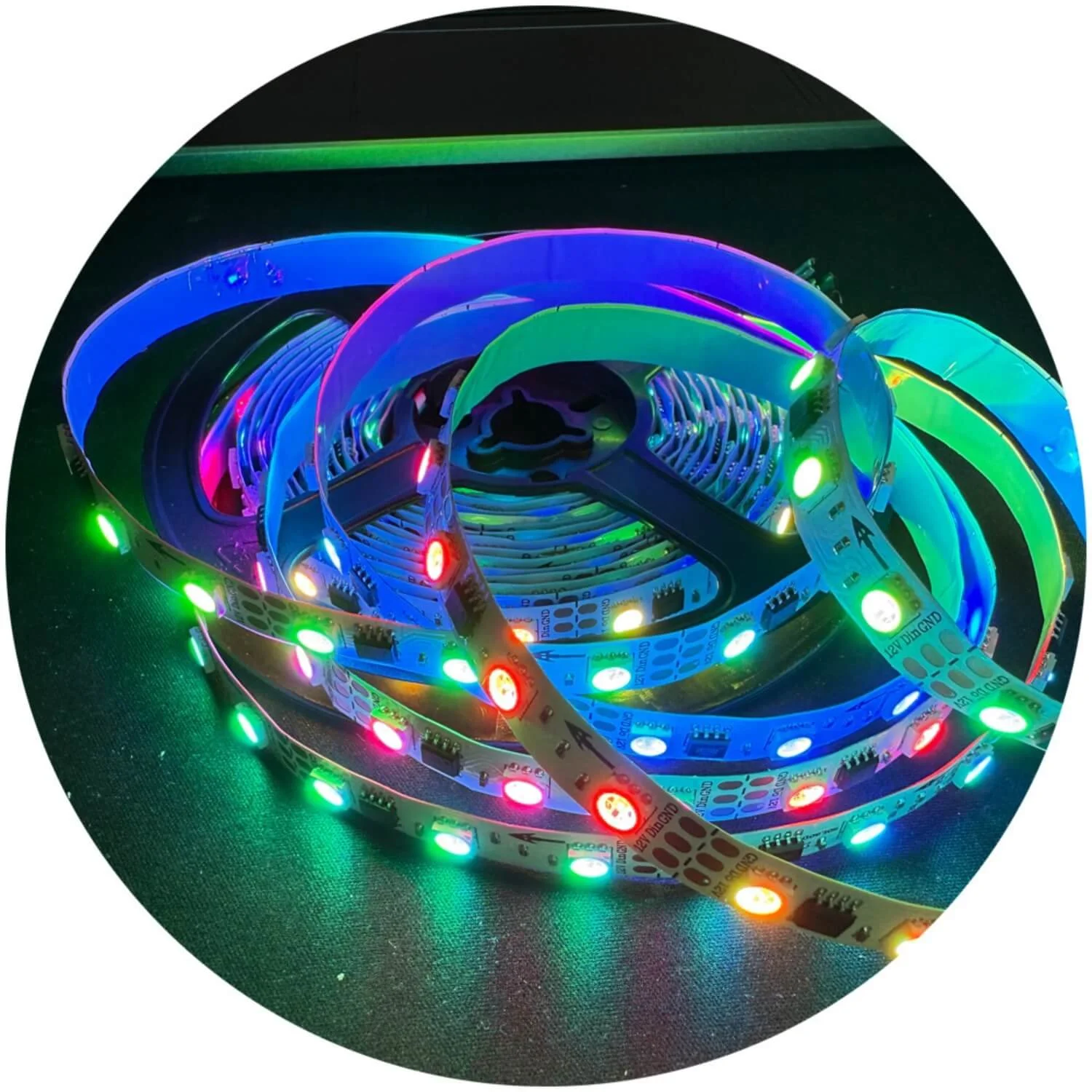

The ENDIzLED-180 is a high-performance, addressable 10mm LED strip built for vivid, programmable lighting projects. Using bright SMD5050 LEDs together with integrated WS2811 (and compatible 1903) IC chips, each pixel can be controlled for dynamic color effects, smooth chases, and precise animations. Engineered on a 10mm copper PCB with quality resistors and copper wiring, this strip delivers reliable color, consistent brightness, and long-term durability.
Key features:

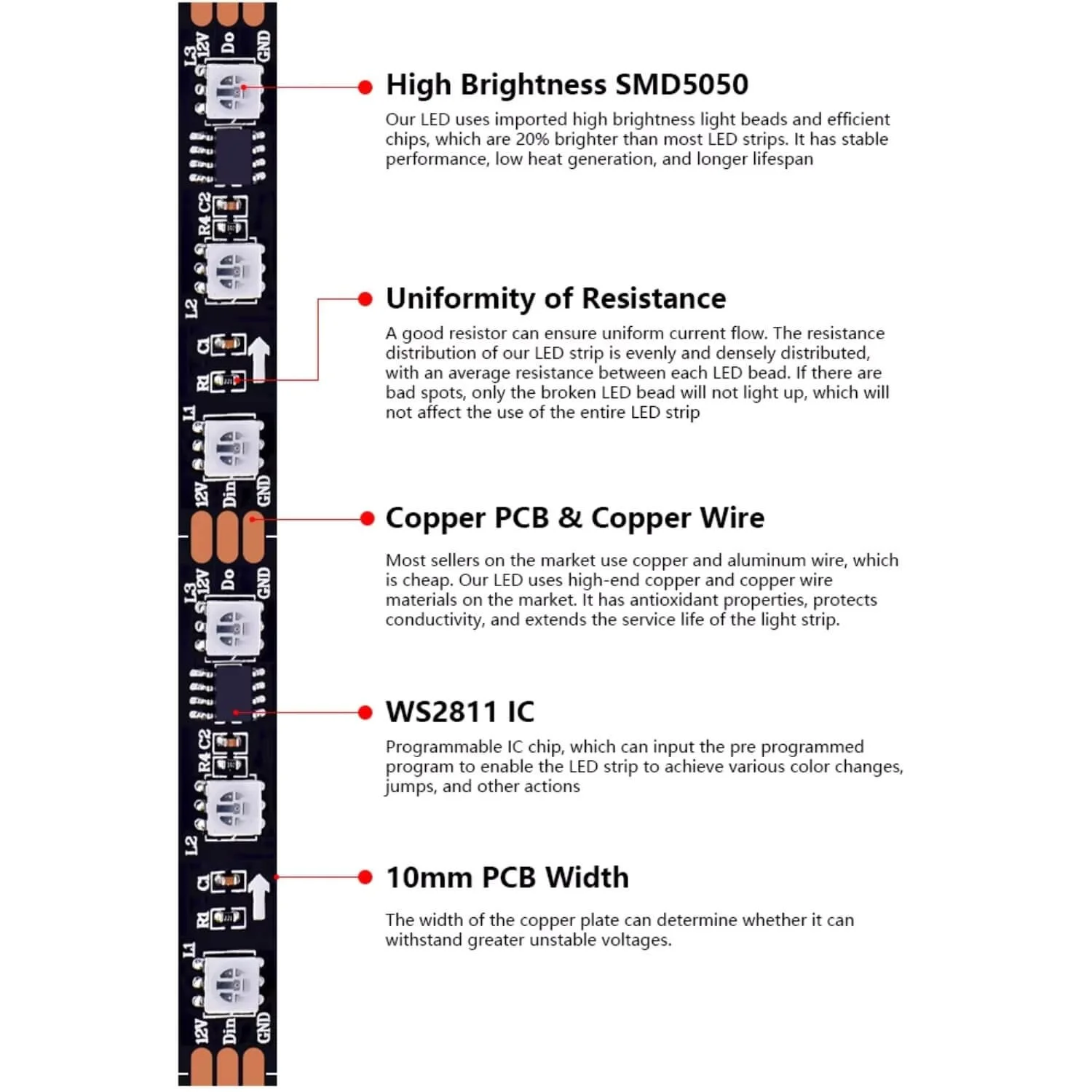

- Addressable control: WS2811 IC for programmable, pixel-level color and effects.
- High-brightness SMD5050 LEDs for rich RGB output and excellent color mixing.
- 60 LEDs per meter density for smooth color gradients and vibrant scenes.

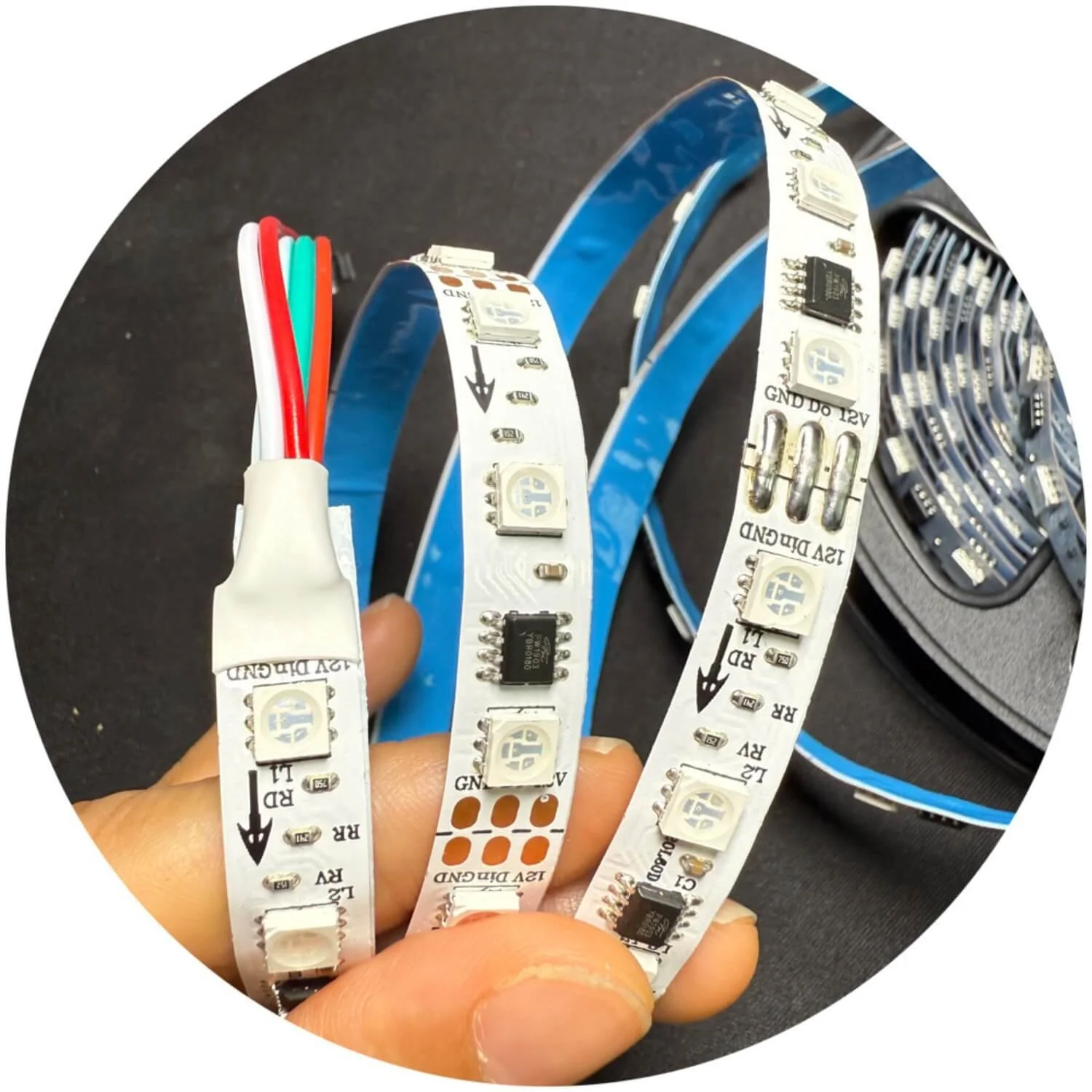

- Sturdy 10mm copper PCB and copper wiring for improved conductivity and lifespan.

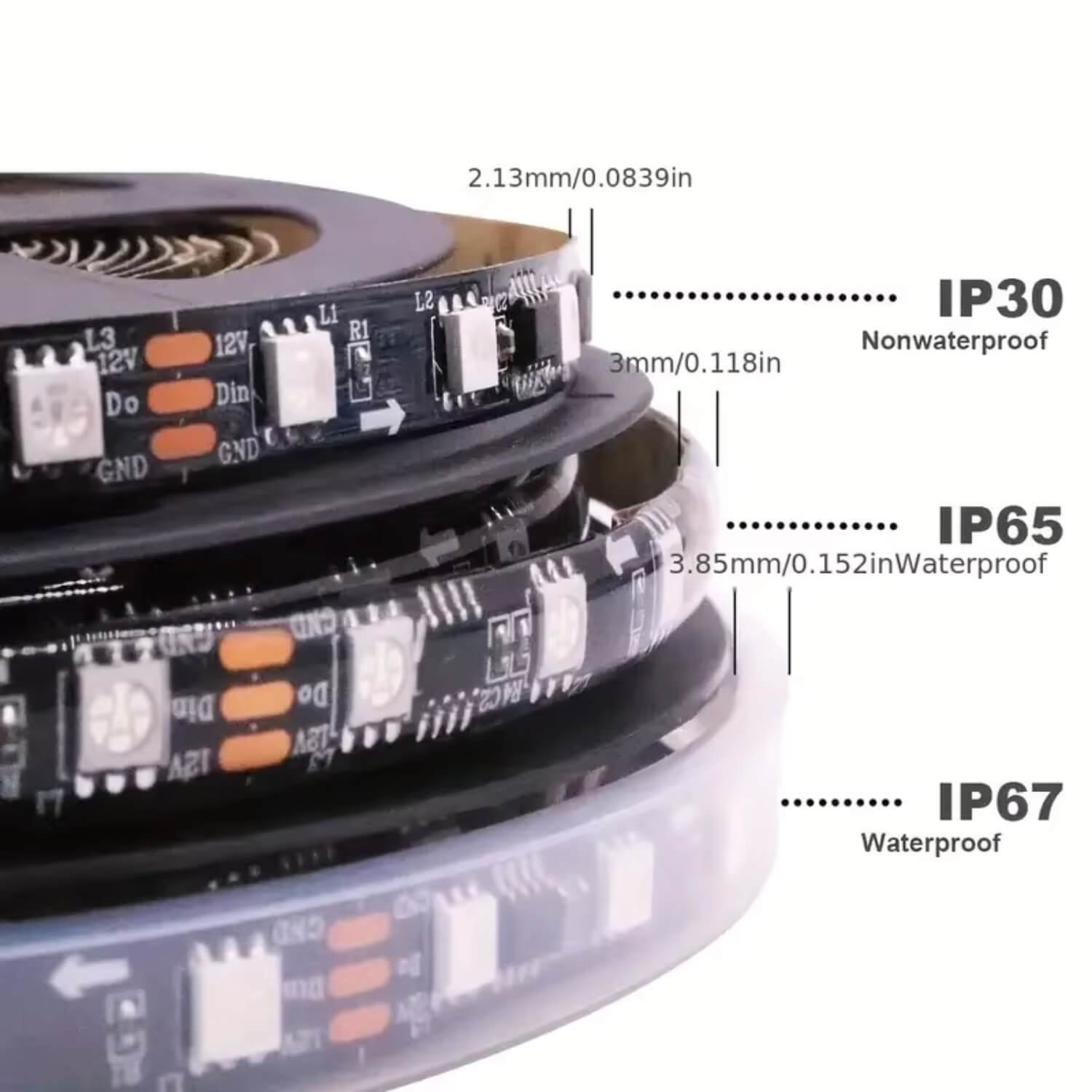

- Multiple IP options: IP30 (non-waterproof), IP65 (silicone-coated), IP67 (fully waterproof) — choose based on installation.

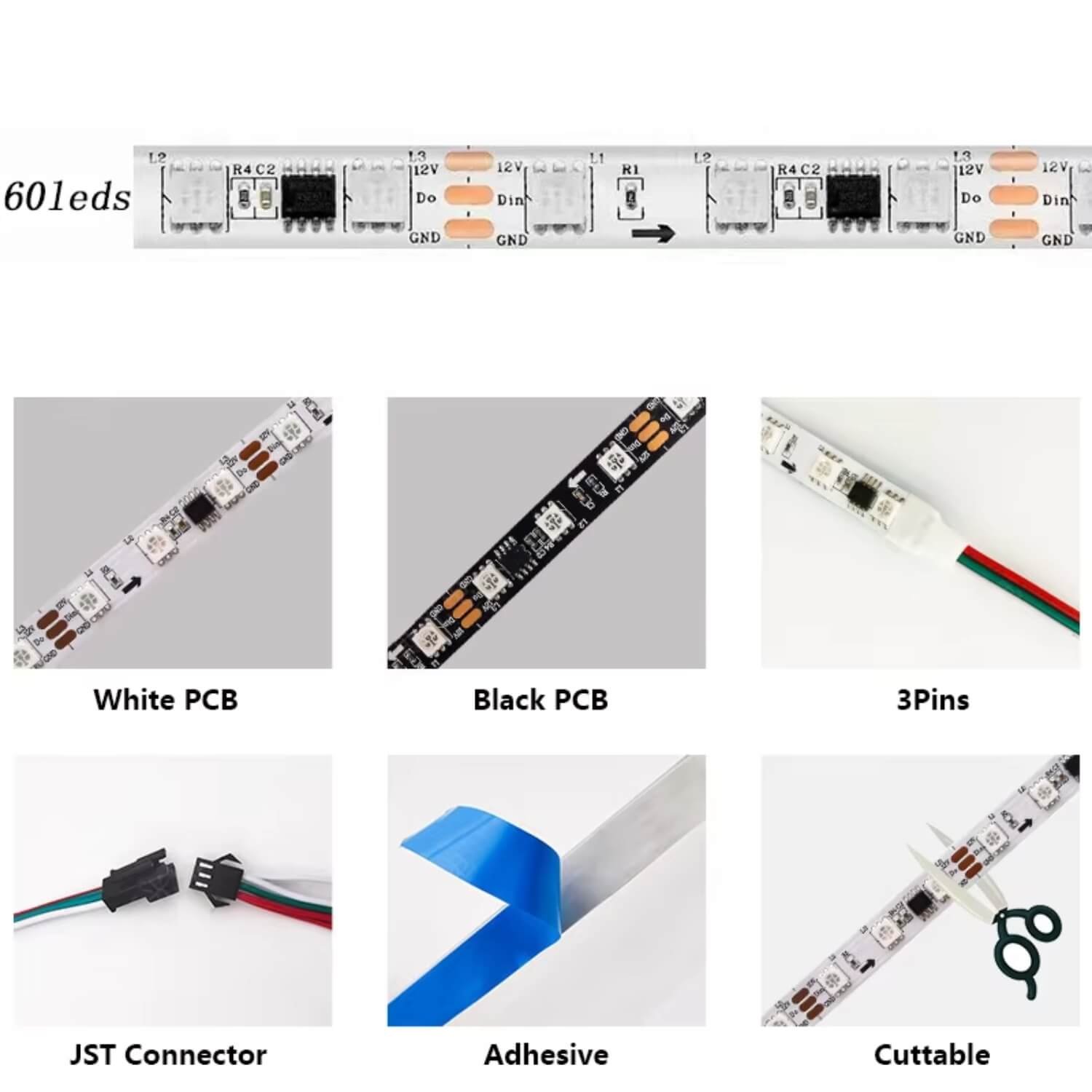

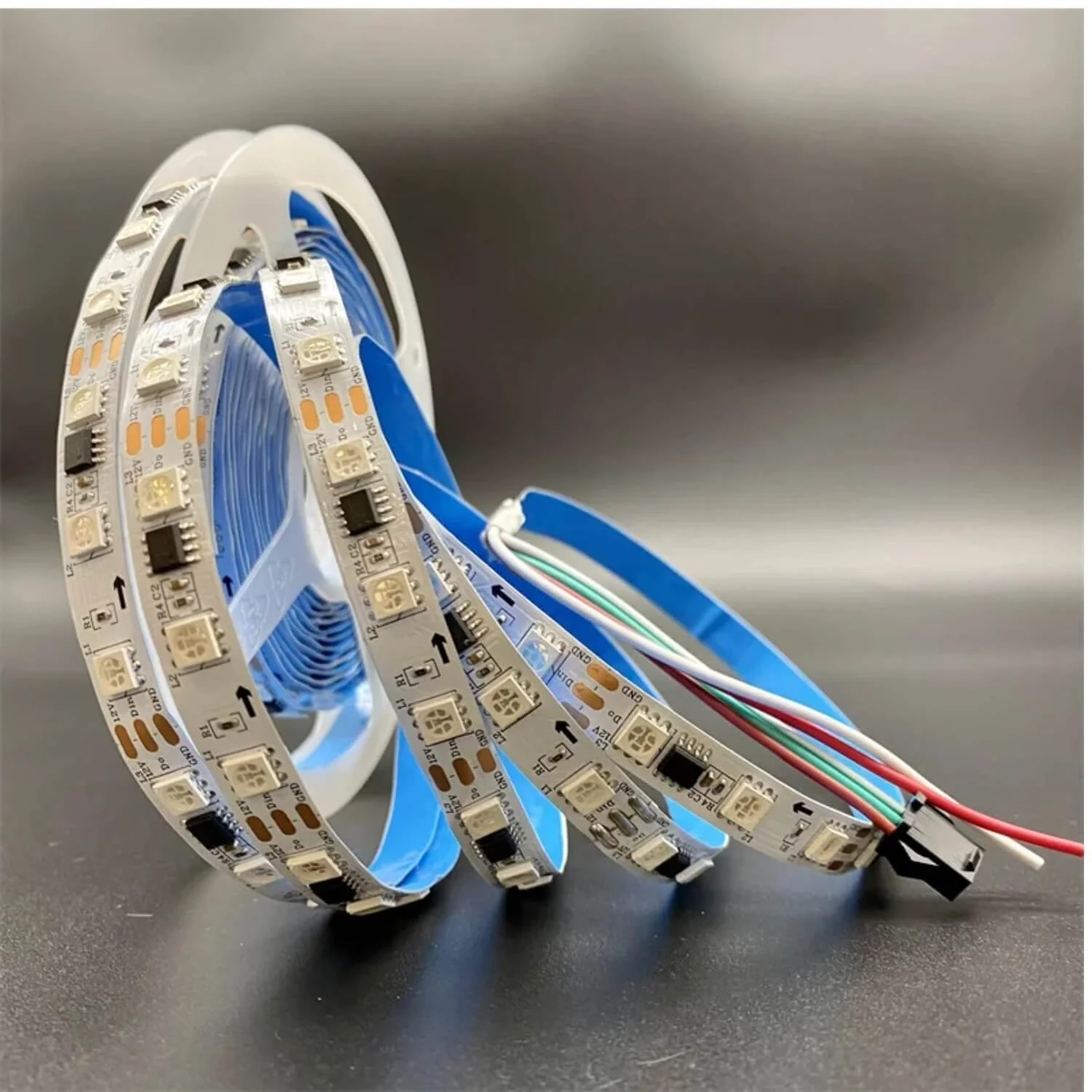

- Available in white or black PCB; comes with adhesive backing and JST/3-pin connector options.
- Cuttable at marked intervals for custom lengths; easy-to-use adhesive tape for fast mounting.
- Long life and color fidelity: CRI ~90, rated ~50,000 hours, 2-year warranty.
Benefits:
- Create eye-catching signage, architectural accents, stage effects, gaming setups, cabinet and cove lighting, or outdoor installations (use IP65/67).

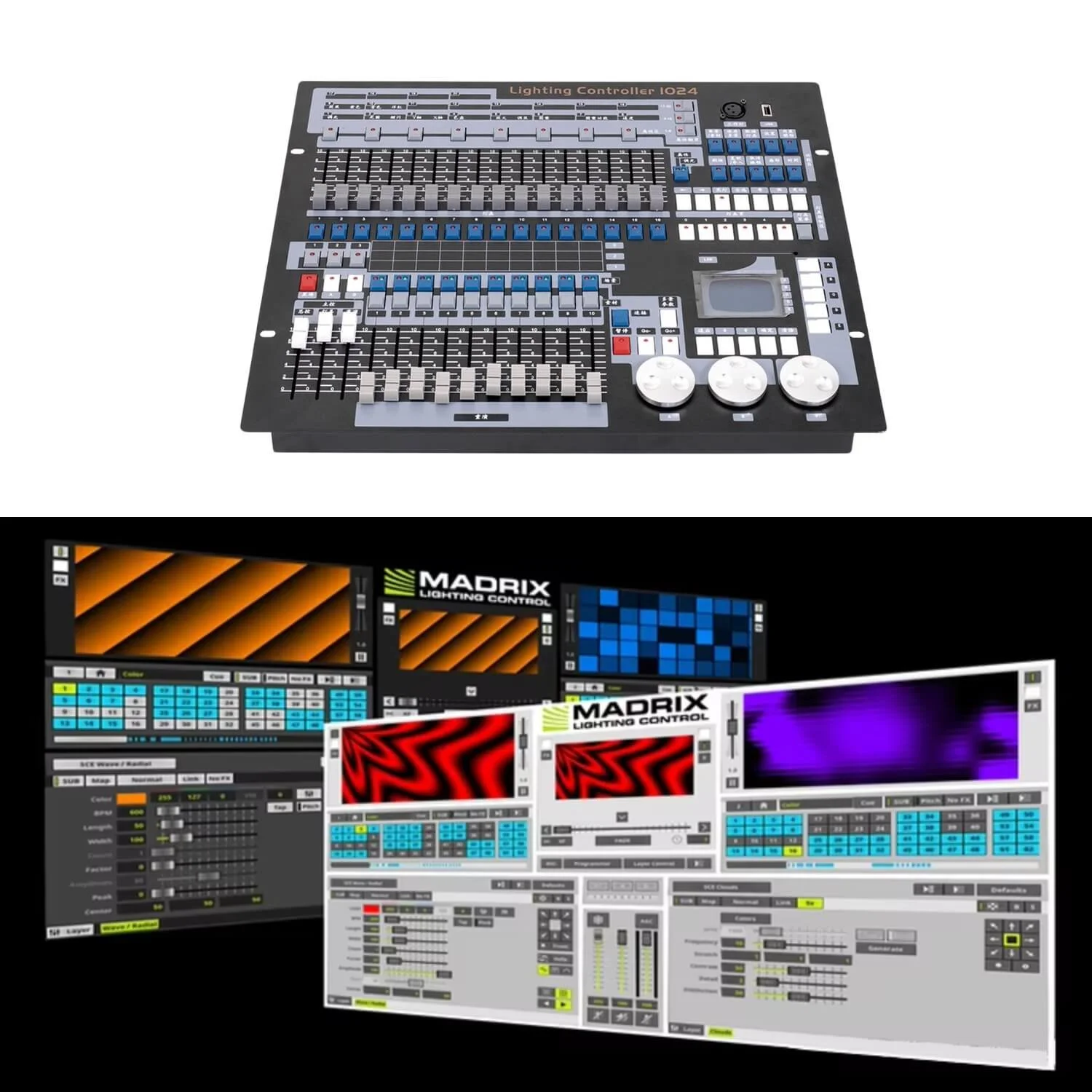

- Programmable pixels let you run custom patterns, animations and synchronized shows with compatible controllers.
- Stable performance with even resistor distribution — single failed LED won’t render the entire run unusable.
- Easy installation: peel-and-stick mounting plus standard connectors make setup quick for pros and DIYers.
Technical highlights (quick reference):
- LED type: SMD5050 RGB
- LED density: 60 LEDs/m
- IC type: WS2811 / 1903 (addressable)
- Input voltage: DC 12V
- PCB width: 10 mm
- Color rendering index (Ra): ~90
- Luminous flux (typical): ~800–900 lm (dependent on color/effects)
- Efficiency: ~80 lm/W
- Lifespan: ~50,000 hours
- Cuttable: Yes (cut at marked points)
- Mounting: 3M adhesive backing
- Protection options: IP30 / IP65 / IP67
- Warranty: 2 years
Installation tips:
- Use a DC12V power supply sized to the total length and maximum current draw of your strip; inject power at both ends or at intervals on long runs to avoid voltage drop.
- For outdoor or damp environments, choose IP65 or IP67 variants and seal connectors.
- Clean the mounting surface before applying the adhesive tape for best adhesion.

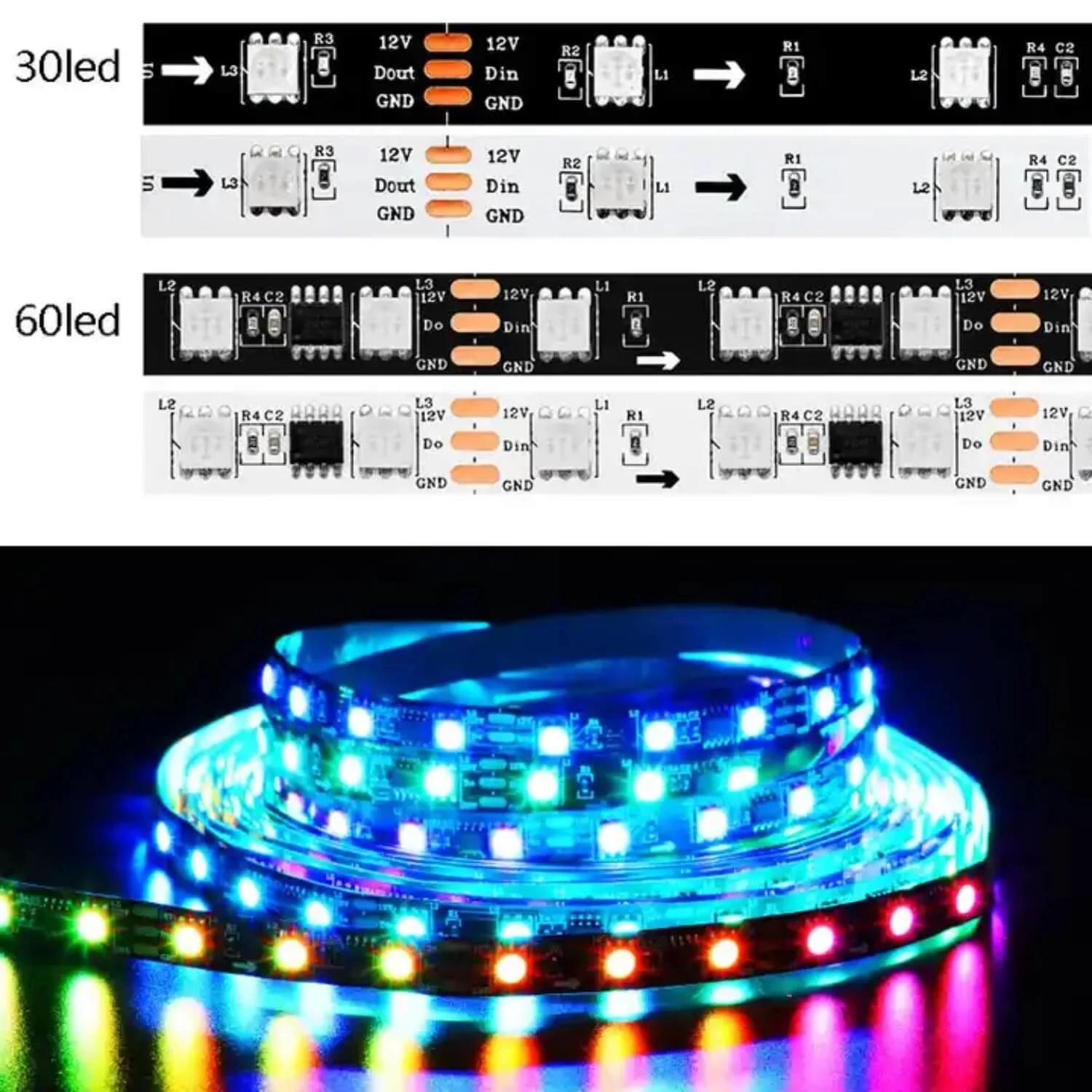

- Cut only at the marked cut lines and reconnect with compatible connectors or solder joints.
ENDIzLED-180 combines bright SMD5050 chips with a reliable WS2811 programmable IC on a robust 10mm copper PCB—giving you performance, flexibility, and clean installation for both creative and professional lighting applications.
