ENDIzLED-176 — DMX512 6-Channel , RGBCCT LED Decoder
- The ENDIzLED-176 is a compact, stage-ready DMX512 decoder that converts DMX control signals into six independent PWM LED channels. Built for flexible installations, it accepts 5–24V DC power and provides both XLR and RJ45 DMX I/O options for easy integration into lighting systems.
Key features
- DMX512 compatible: Accepts standard DMX input via 3‑pin XLR or RJ45.
- 6 independent channels: Control up to six LED channels or zones from a single DMX address range.
- Wide input voltage: Works with DC 5–24V supplies for LED strips, modules, and drivers.
- Onboard controls & display: 4-digit display and buttons for setting DMX start address, selecting built-in programs, and adjusting speed.
- Chainable: Supports daisy-chaining multiple decoders for larger installations.
- Robust metal enclosure with mounting ears for secure installation.
Technical highlights
- Product code: ENDIzLED-176 (DMX512 Decoder, 6 channels)
- Power input: DC 5–24V

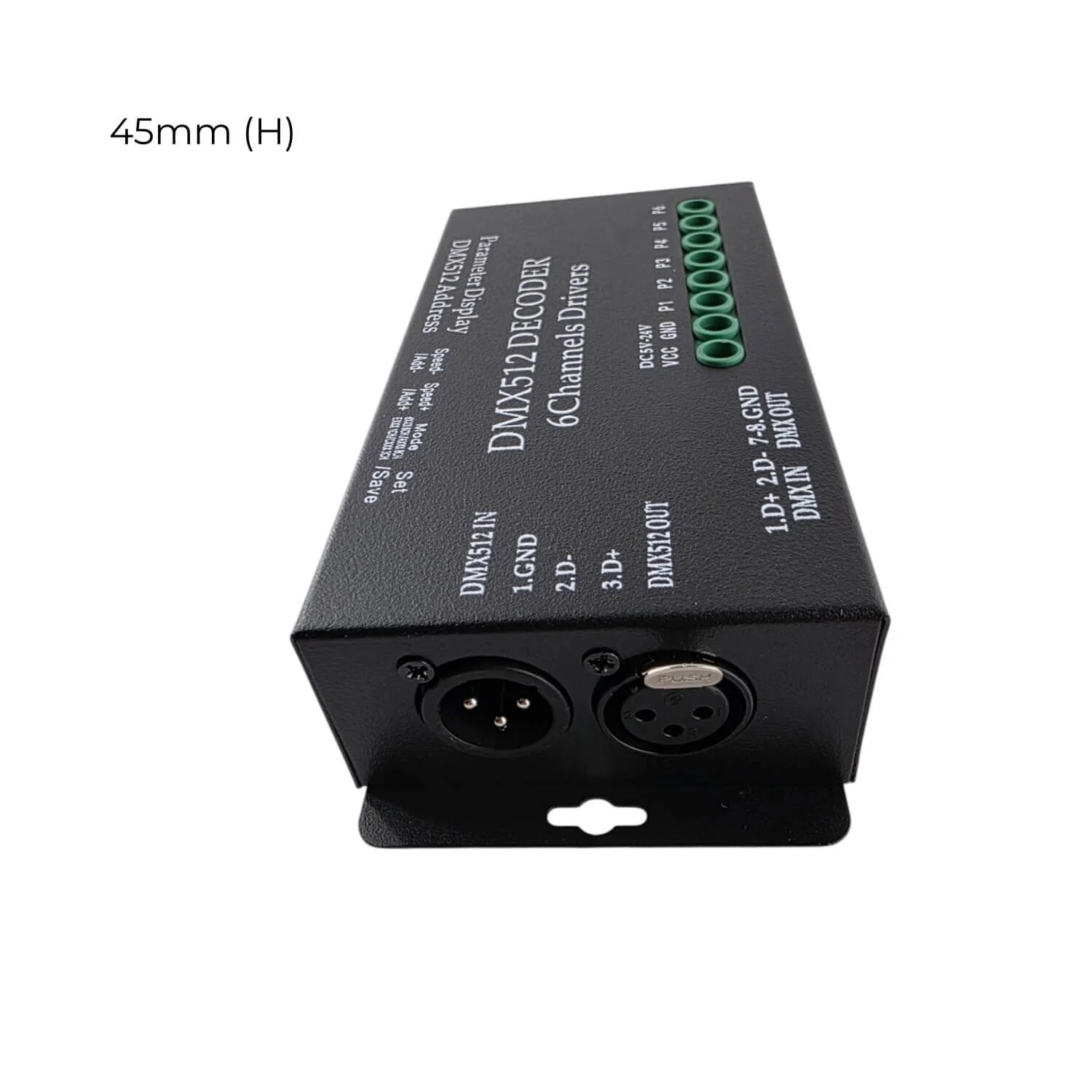

- DMX I/O: 3‑pin XLR connectors and RJ45 ports (DMX IN/OUT)

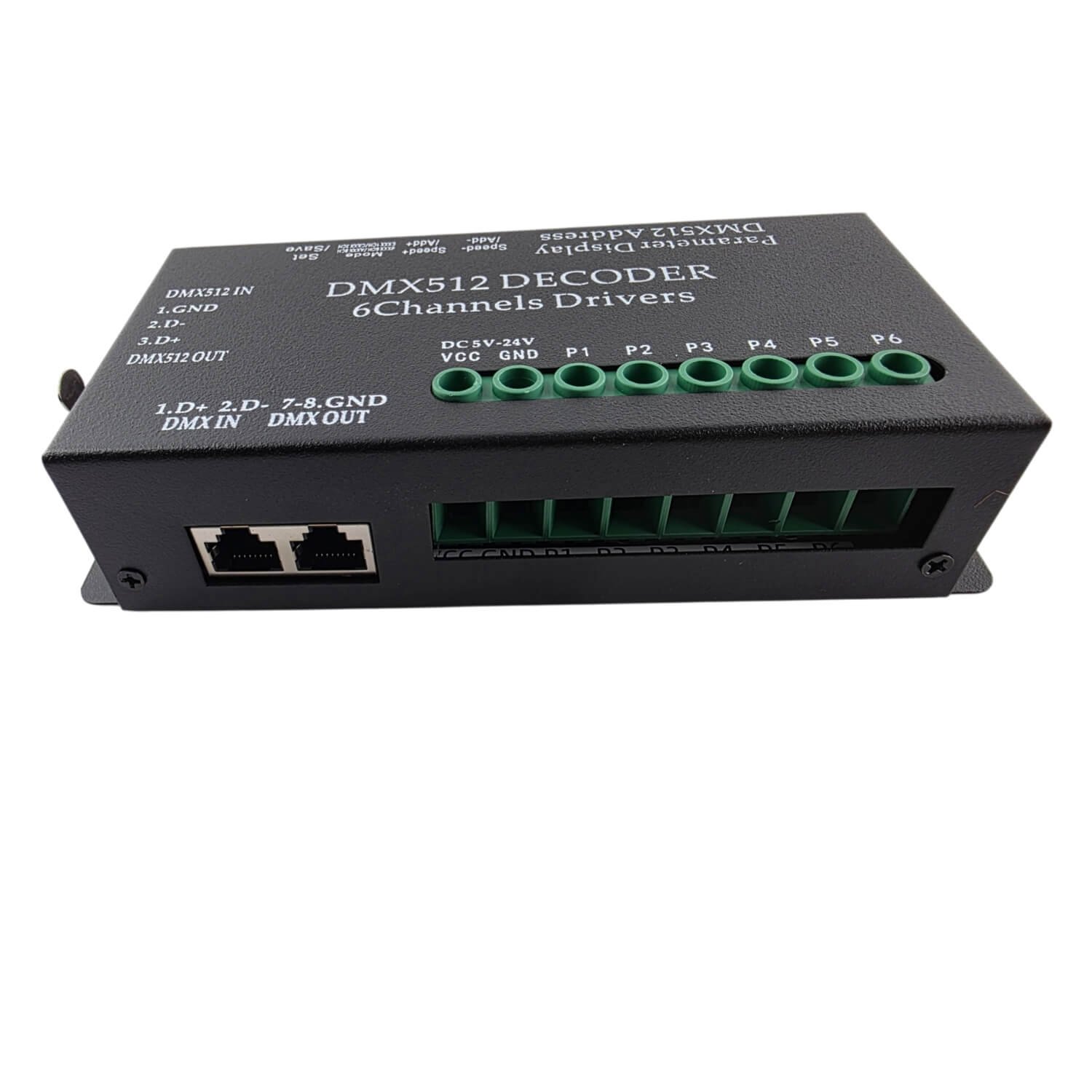

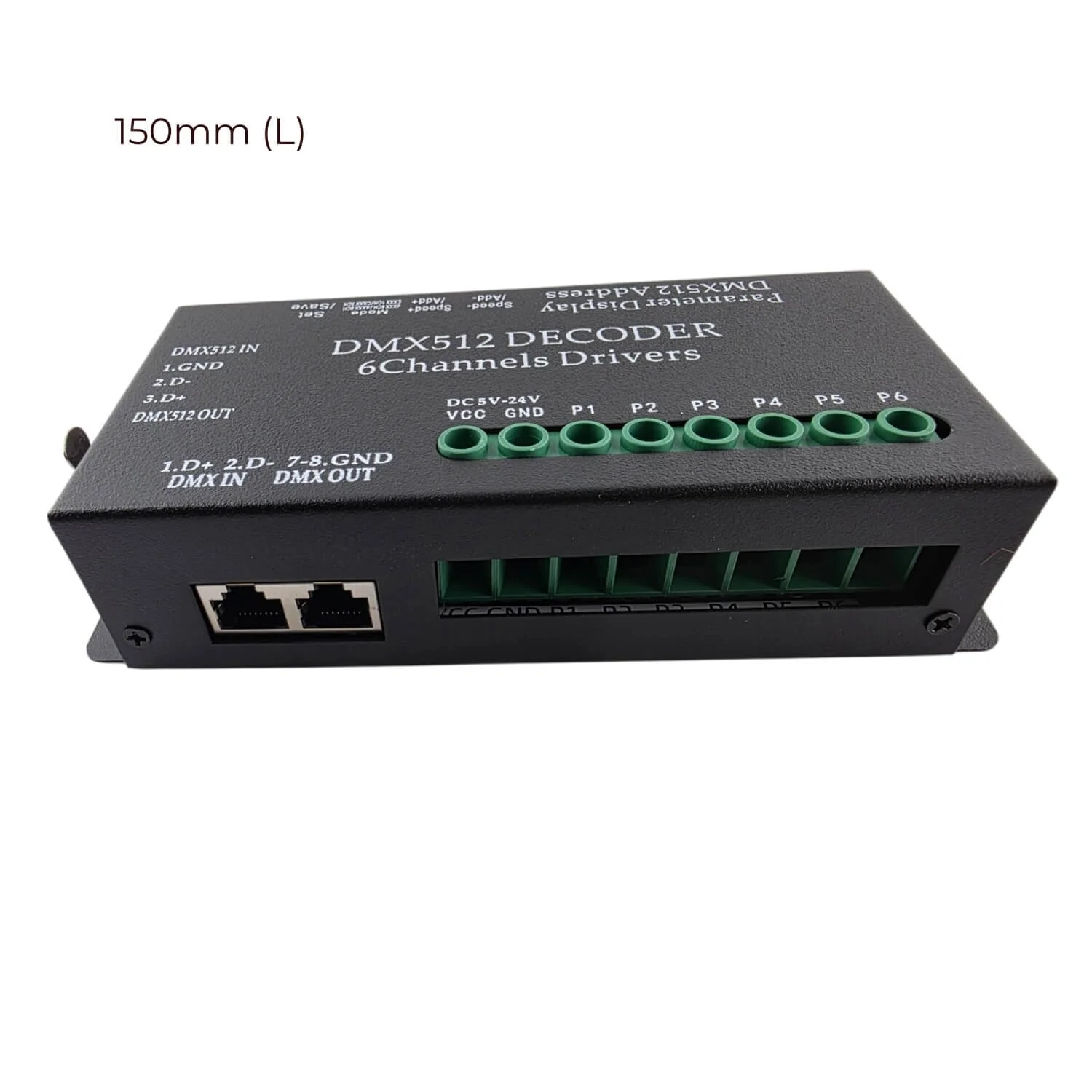

- Outputs: Six screw-terminal outputs labeled P1–P6 (PWM outputs for LED channels)
- Controls: 4-digit display with buttons for address/program/speed configuration
- Mounting: Flanged metal housing with mounting slots
Quick setup (recommended)
1. Connect a suitable DC power supply (5–24V) to VCC and GND terminals.
2. Connect DMX controller to DMX IN via XLR or RJ45.
3. Set the DMX start address using the onboard display/buttons (follow on-sheet instructions).
4. Connect LED loads to the P1–P6 outputs (observe polarity and your load’s voltage/current limits).
5. Test and, if needed, chain additional decoders for more channels or zones.
Notes & best practices
- Verify each LED load’s voltage and current requirements and match with an appropriate power supply. Confirm per-channel current rating from your vendor if you need high-current operation.
- Use proper DMX termination and shielding for long cable runs to prevent signal errors.

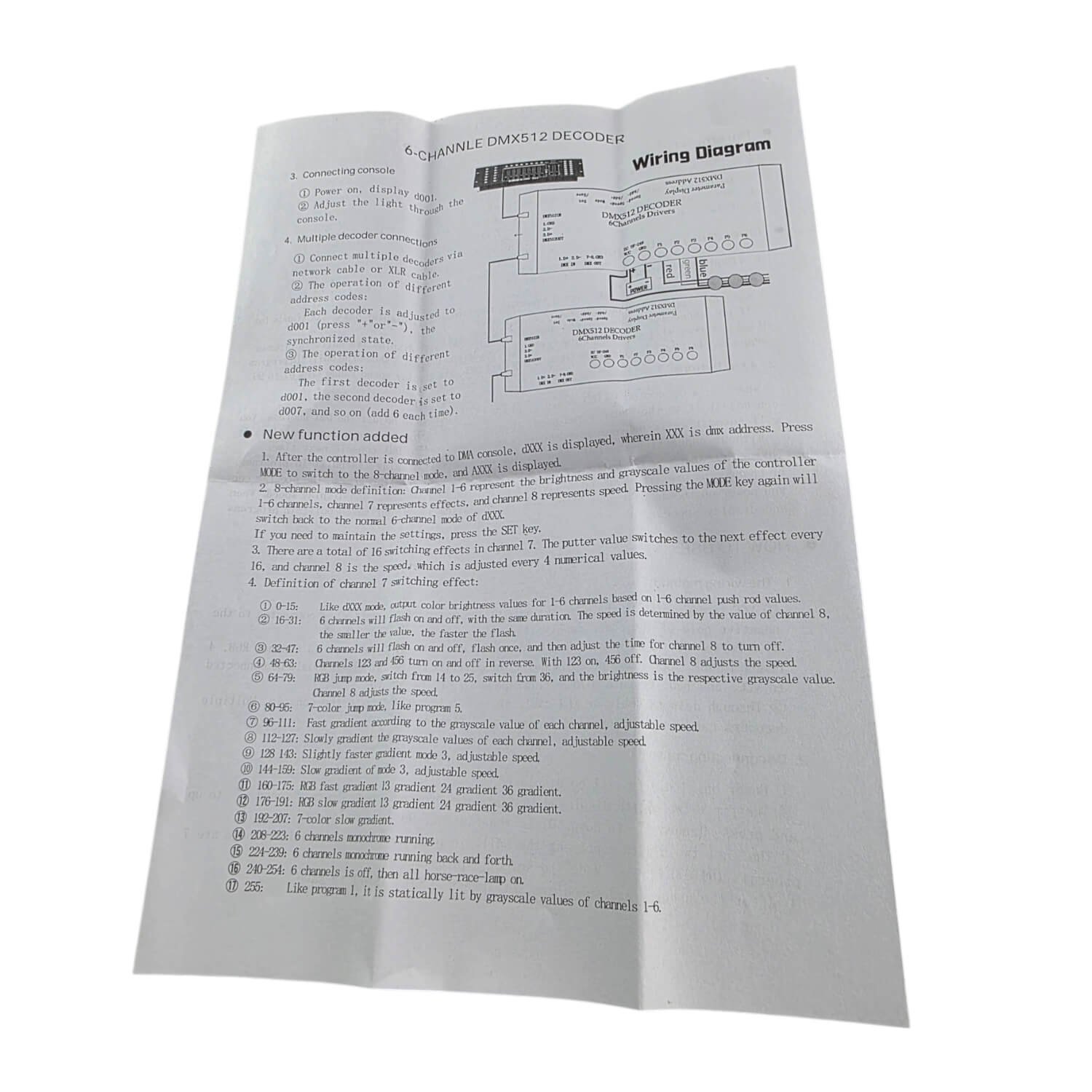

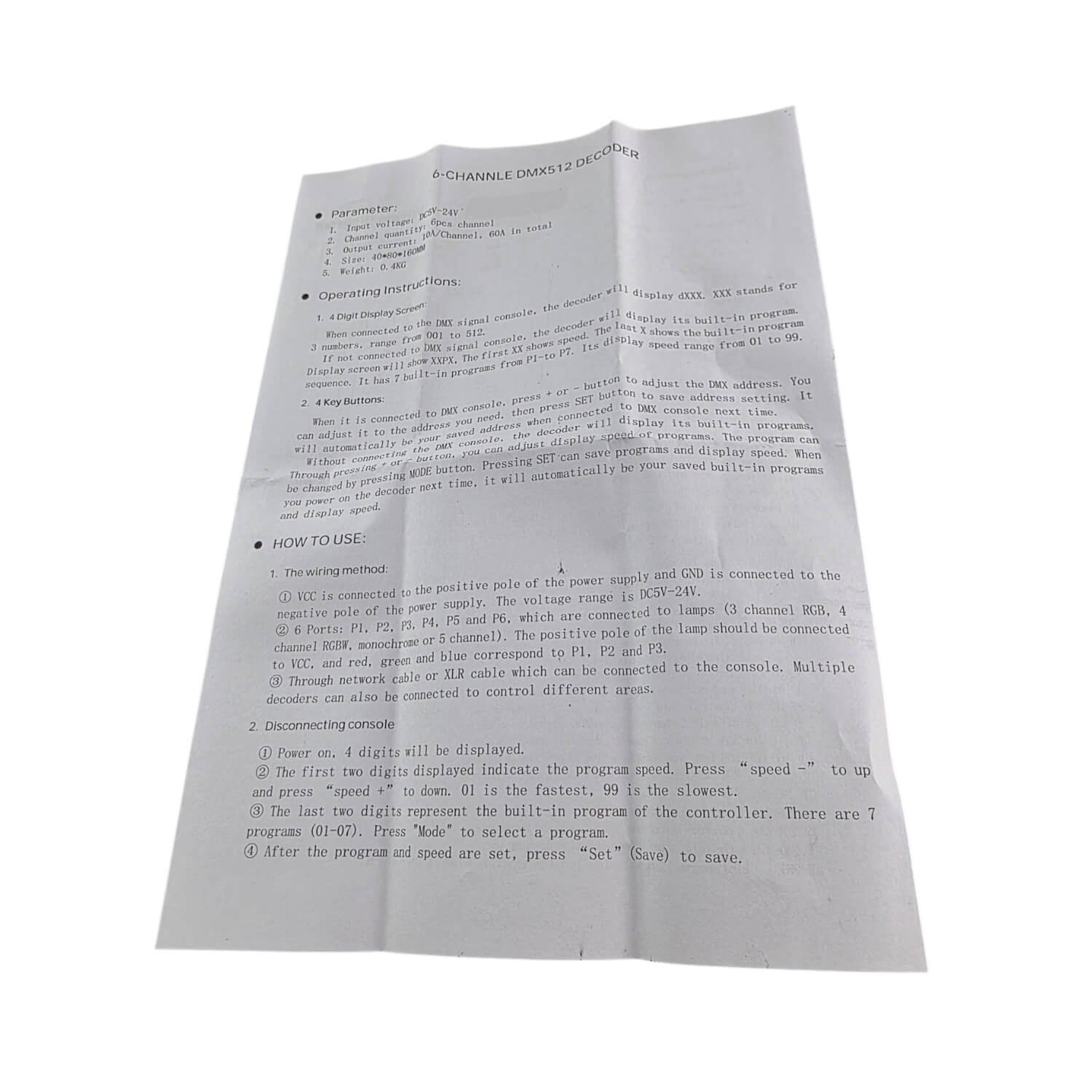

- The included instruction sheet details built-in programs, addressing, and wiring diagrams — keep it handy during setup.
Ideal for
- Architectural lighting, stage & event setups, LED signage, retail displays, and any project requiring DMX control of multiple LED channels.
What’s included
- ENDIzLED-176 DMX512 6‑channel decoder
- Instruction/wiring sheet (shown in product images)
ENDIzLED-176 — DMX512 6-Channel , RGBCCT LED Decoder
- The ENDIzLED-176 is a compact, stage-ready DMX512 decoder that converts DMX control signals into six independent PWM LED channels. Built for flexible installations, it accepts 5–24V DC power and provides both XLR and RJ45 DMX I/O options for easy integration into lighting systems.
Key features
- DMX512 compatible: Accepts standard DMX input via 3‑pin XLR or RJ45.
- 6 independent channels: Control up to six LED channels or zones from a single DMX address range.
- Wide input voltage: Works with DC 5–24V supplies for LED strips, modules, and drivers.
- Onboard controls & display: 4-digit display and buttons for setting DMX start address, selecting built-in programs, and adjusting speed.
- Chainable: Supports daisy-chaining multiple decoders for larger installations.
- Robust metal enclosure with mounting ears for secure installation.
Technical highlights
- Product code: ENDIzLED-176 (DMX512 Decoder, 6 channels)
- Power input: DC 5–24V
- DMX I/O: 3‑pin XLR connectors and RJ45 ports (DMX IN/OUT)
- Outputs: Six screw-terminal outputs labeled P1–P6 (PWM outputs for LED channels)
- Controls: 4-digit display with buttons for address/program/speed configuration
- Mounting: Flanged metal housing with mounting slots
Quick setup (recommended)
1. Connect a suitable DC power supply (5–24V) to VCC and GND terminals.
2. Connect DMX controller to DMX IN via XLR or RJ45.
3. Set the DMX start address using the onboard display/buttons (follow on-sheet instructions).
4. Connect LED loads to the P1–P6 outputs (observe polarity and your load’s voltage/current limits).
5. Test and, if needed, chain additional decoders for more channels or zones.
Notes & best practices
- Verify each LED load’s voltage and current requirements and match with an appropriate power supply. Confirm per-channel current rating from your vendor if you need high-current operation.
- Use proper DMX termination and shielding for long cable runs to prevent signal errors.
- The included instruction sheet details built-in programs, addressing, and wiring diagrams — keep it handy during setup.
Ideal for
- Architectural lighting, stage & event setups, LED signage, retail displays, and any project requiring DMX control of multiple LED channels.
What’s included
- ENDIzLED-176 DMX512 6‑channel decoder
- Instruction/wiring sheet (shown in product images)
