ENDizLED-175 — DMX LED Controller for RGBCCT
Overview
- The ENDizLED-175 is a compact, professional-grade LED controller that combines ArtNet, DMX512 and SPI/TTL output in a single, easy-to-use unit. Designed for both live and fixed installations, it supports online (networked) and offline playback with SD card storage and music-responsive modes for dynamic lighting effects.
Why you’ll love it
- Versatile: Works with addressable pixel strips and DMX fixtures—perfect for stage, architectural, signage and entertainment lighting.

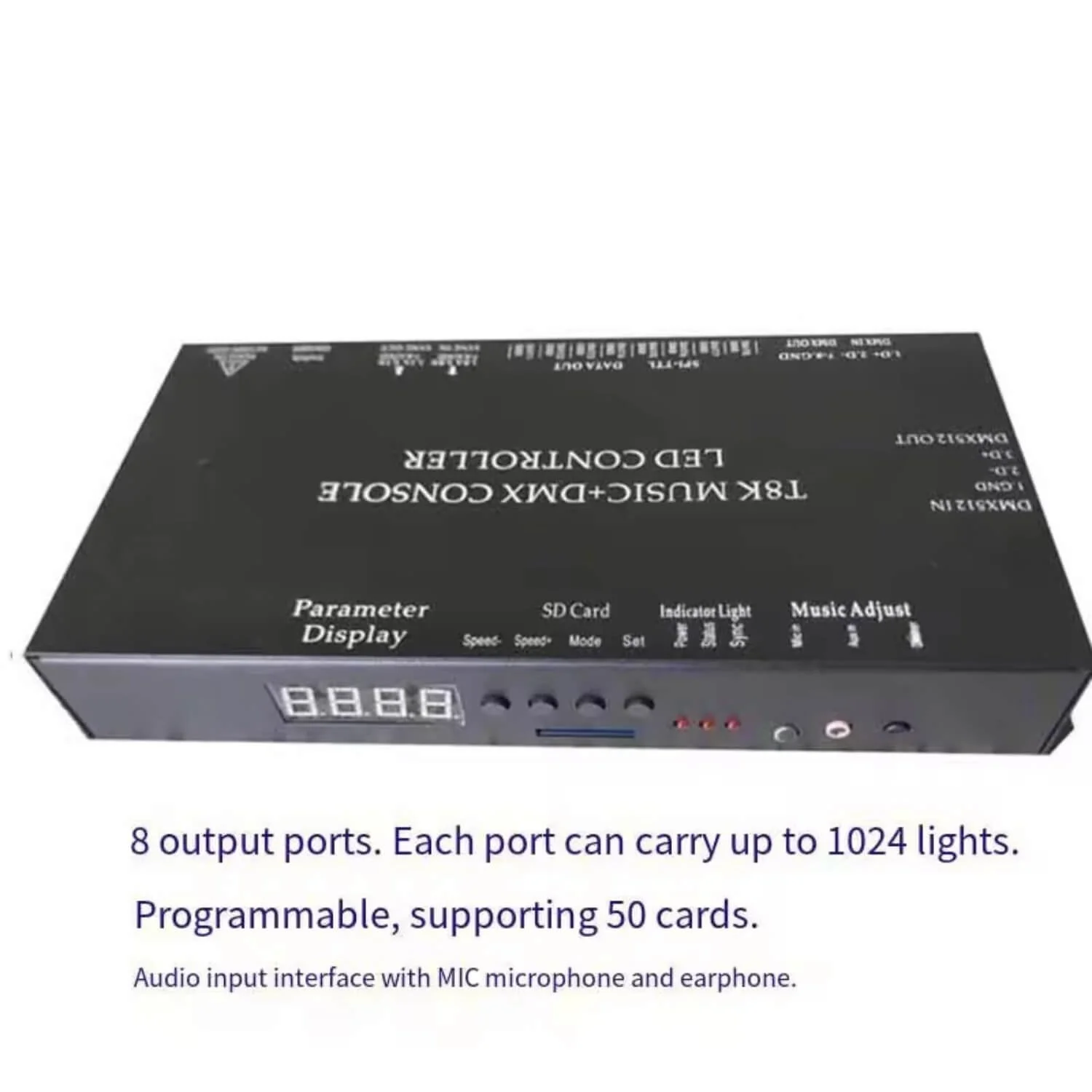

- Powerful: 8 output ports, high pixel capacity and multiple synchronization options let you scale from small displays to large shows.
- Simple to use: Front-panel controls and a parameter display make local setup straightforward; SD card playback removes the need for a permanent PC connection.
- Music-reactive: Built-in audio control enables lighting to respond to music using the included audio input.

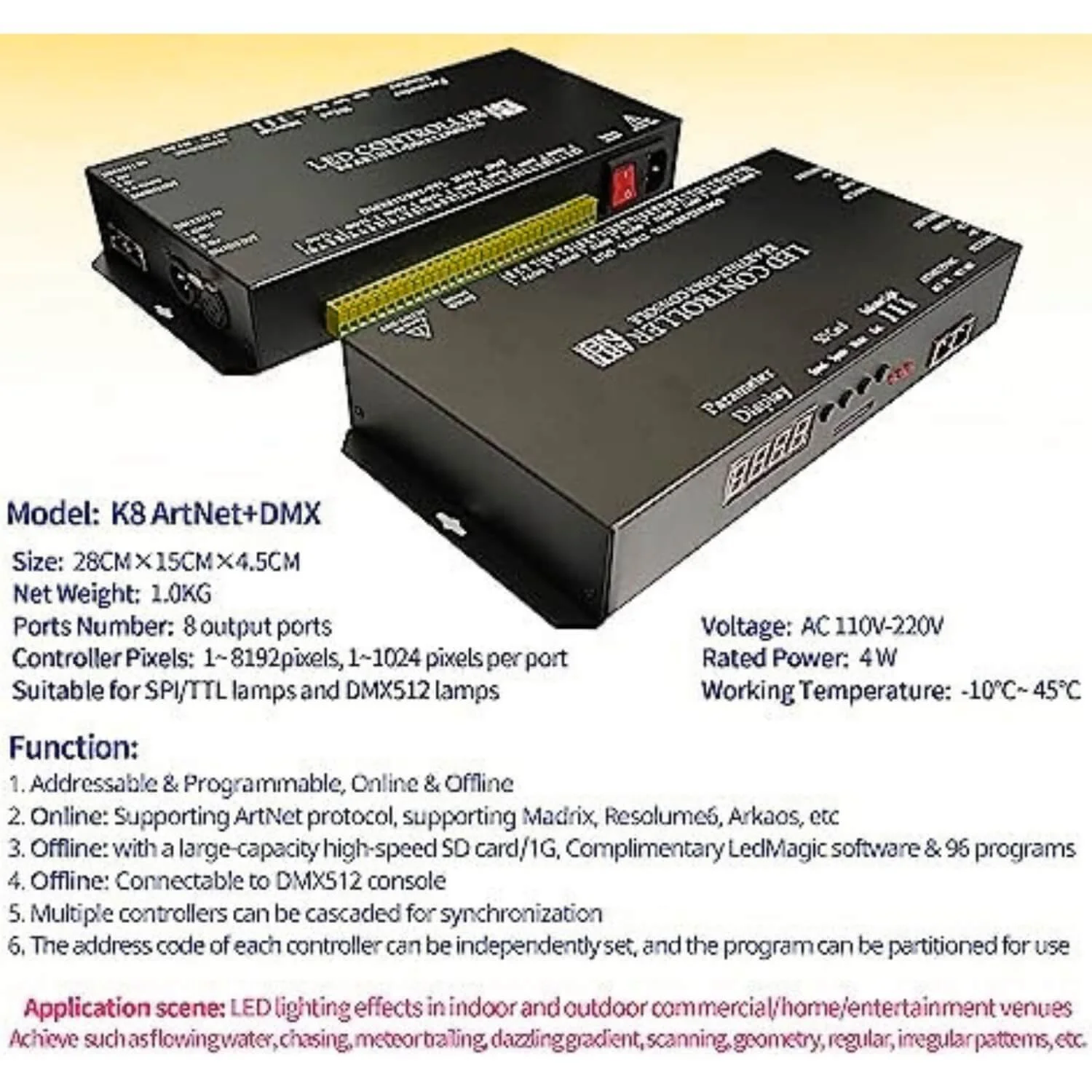

Key features

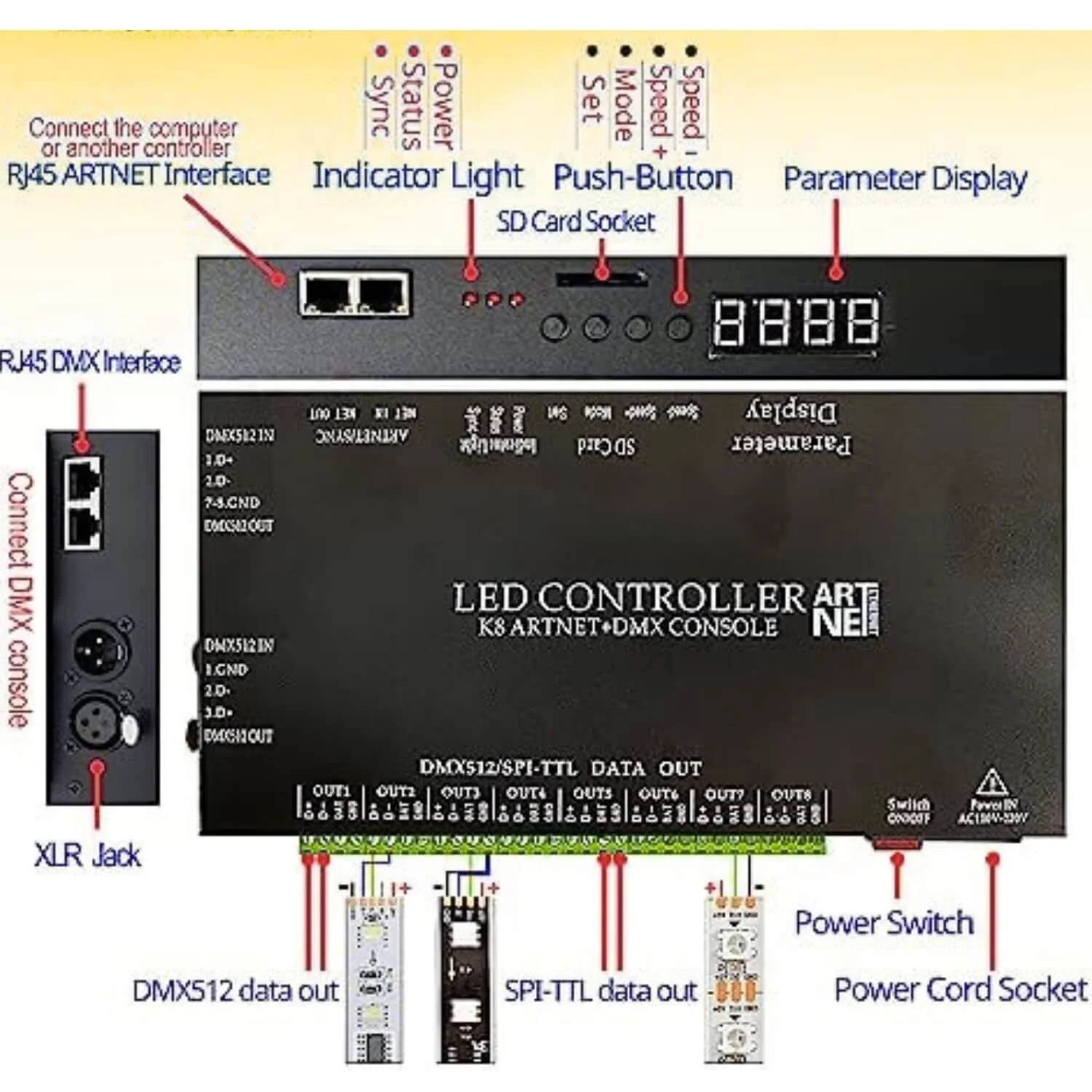

- Protocols: ArtNet (RJ45), DMX512 (XLR/RJ45), SPI/TTL data out
- Outputs: 8 independent ports (cascadeable for synchronization)
- Pixel support: Up to 1–8192 pixels total; up to 1–1024 pixels per port
- Offline storage: SD card slot for patterns, programs and schedules

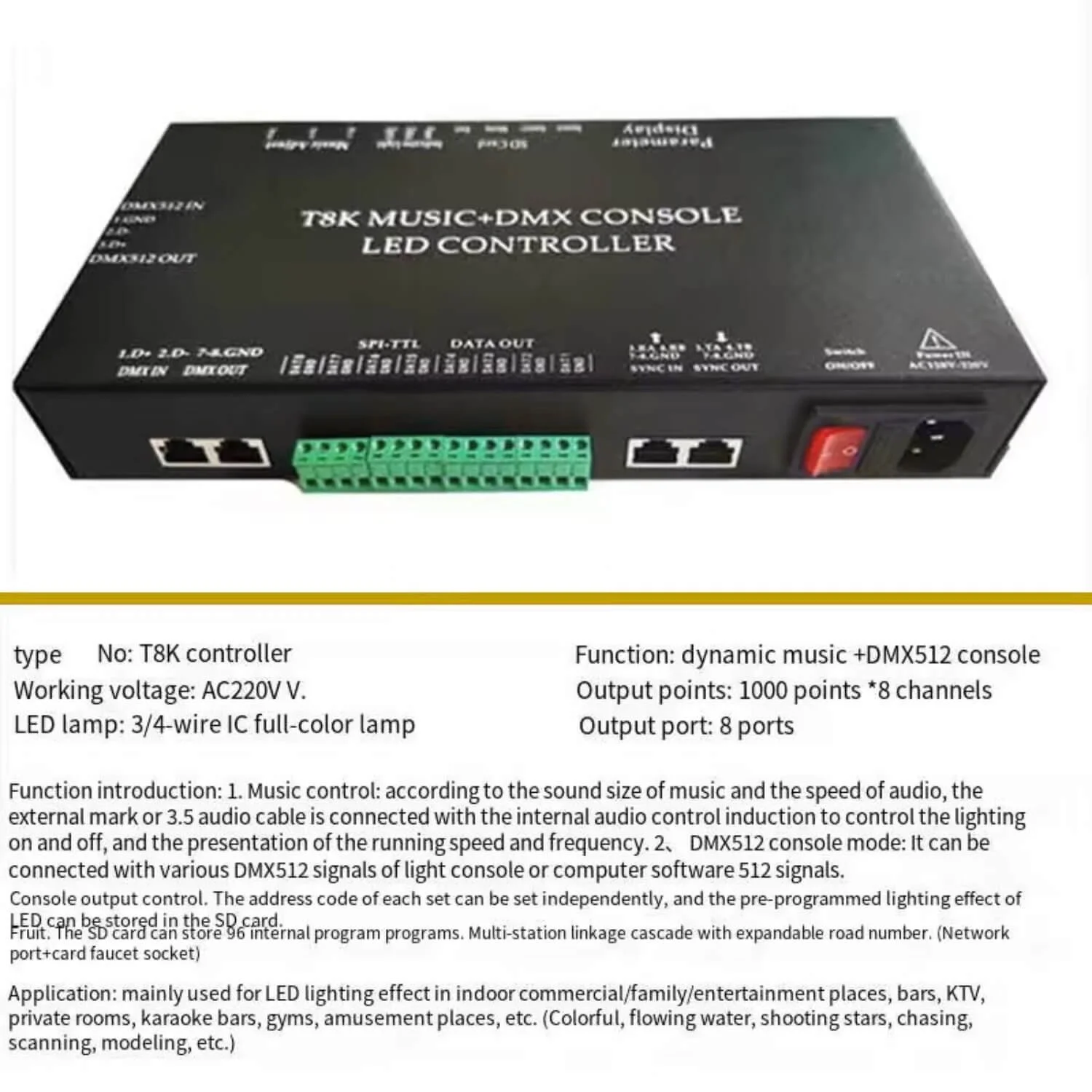

- Playback modes: Online (software/ArtNet), offline (SD card), DMX console mode, music control via audio input

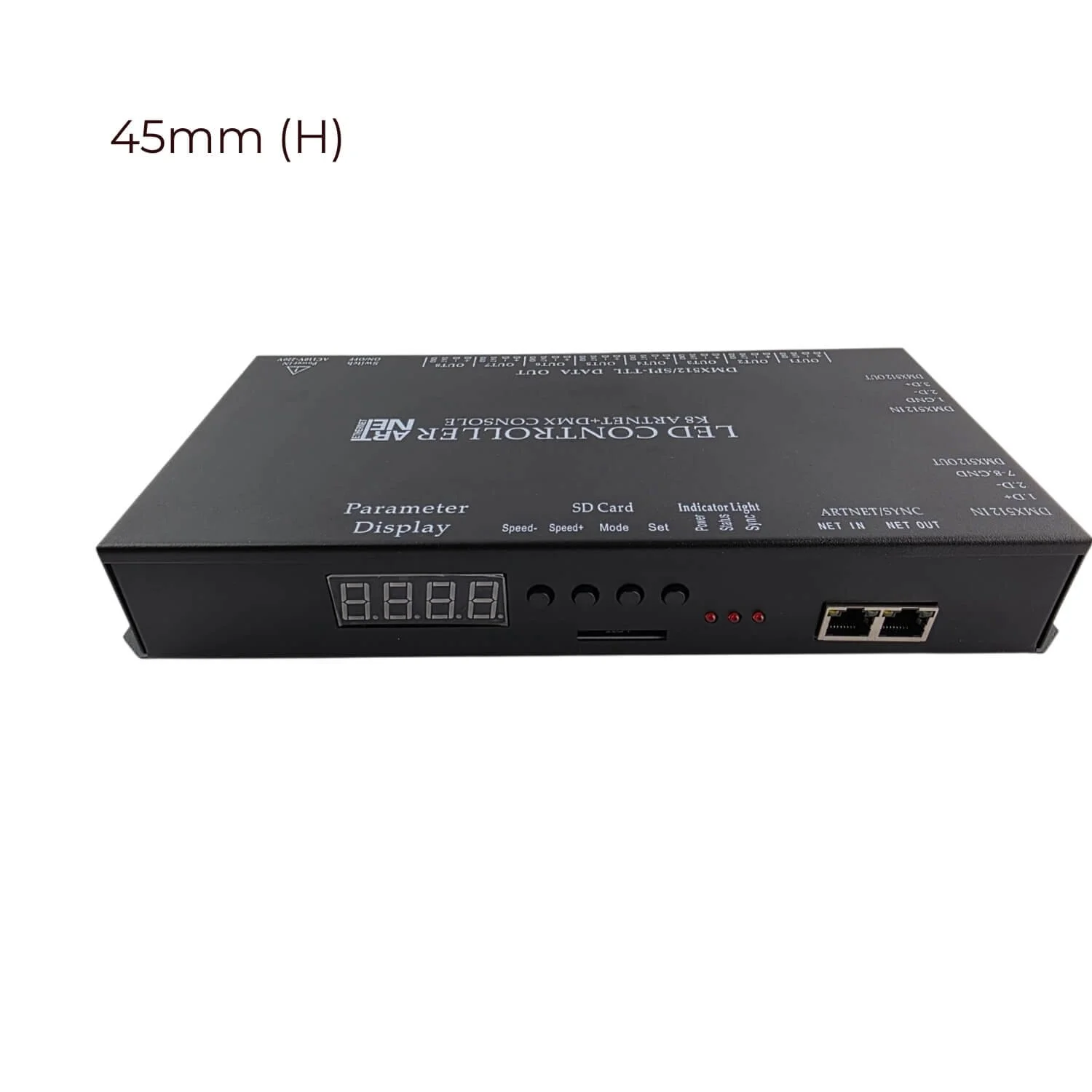

- Controls: Front push-buttons, LED parameter display and status indicators
- Syncing: Multi-controller cascade/sync and address partitioning for independent sets
- Power: AC110–220V input; low rated power consumption
- Operating temp: -10°C to 45°C
Typical applications
- Bars, KTV and nightclubs
- Stage and concert lighting
- Architectural and facade lighting
- LED signage and pixel art installations
- Home theater, holiday and event decorations

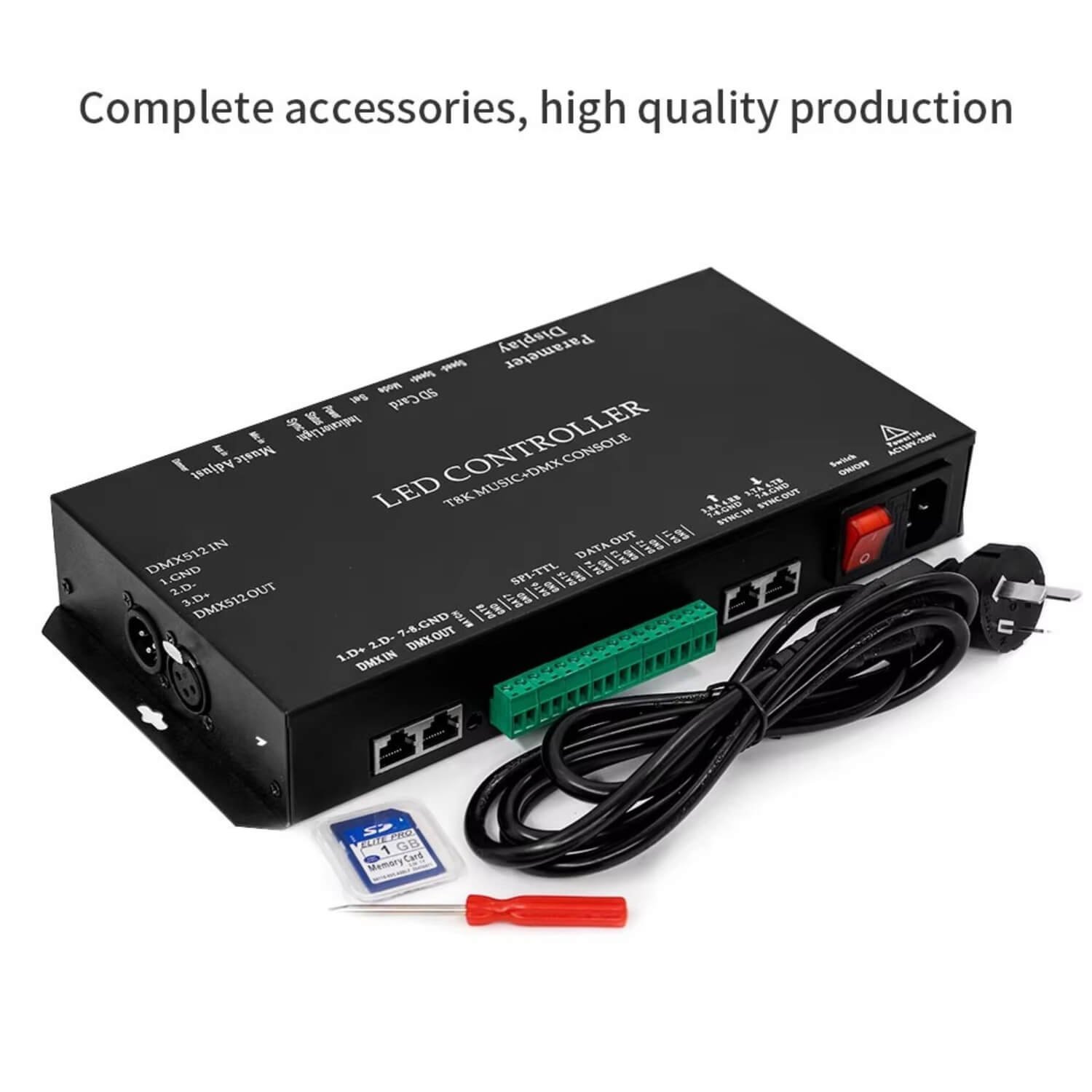

What’s in the box
- ENDizLED-175 LED controller
- Power inlet & rocker switch pre-installed
- Terminal block for pixel outputs (pre-wired ready)

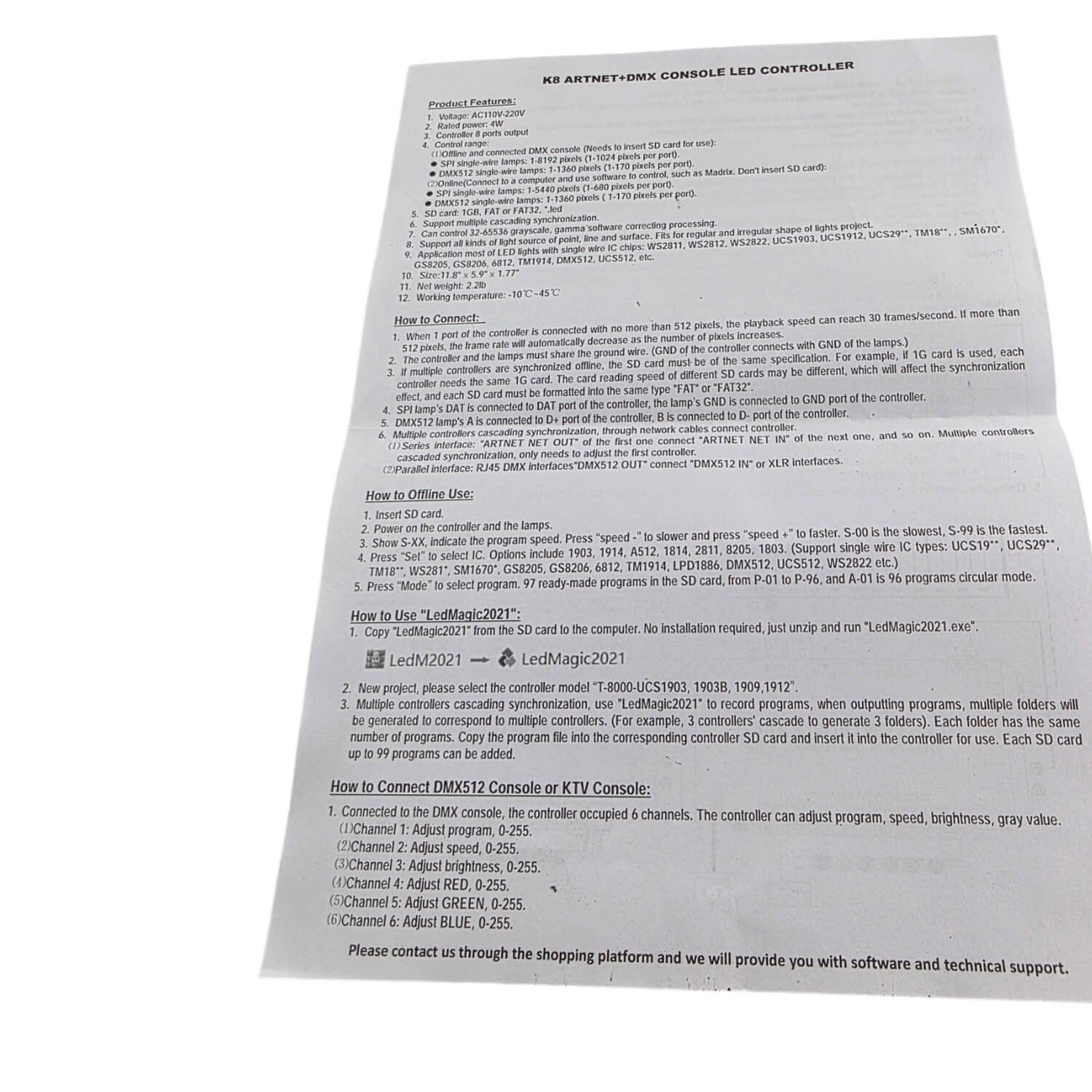

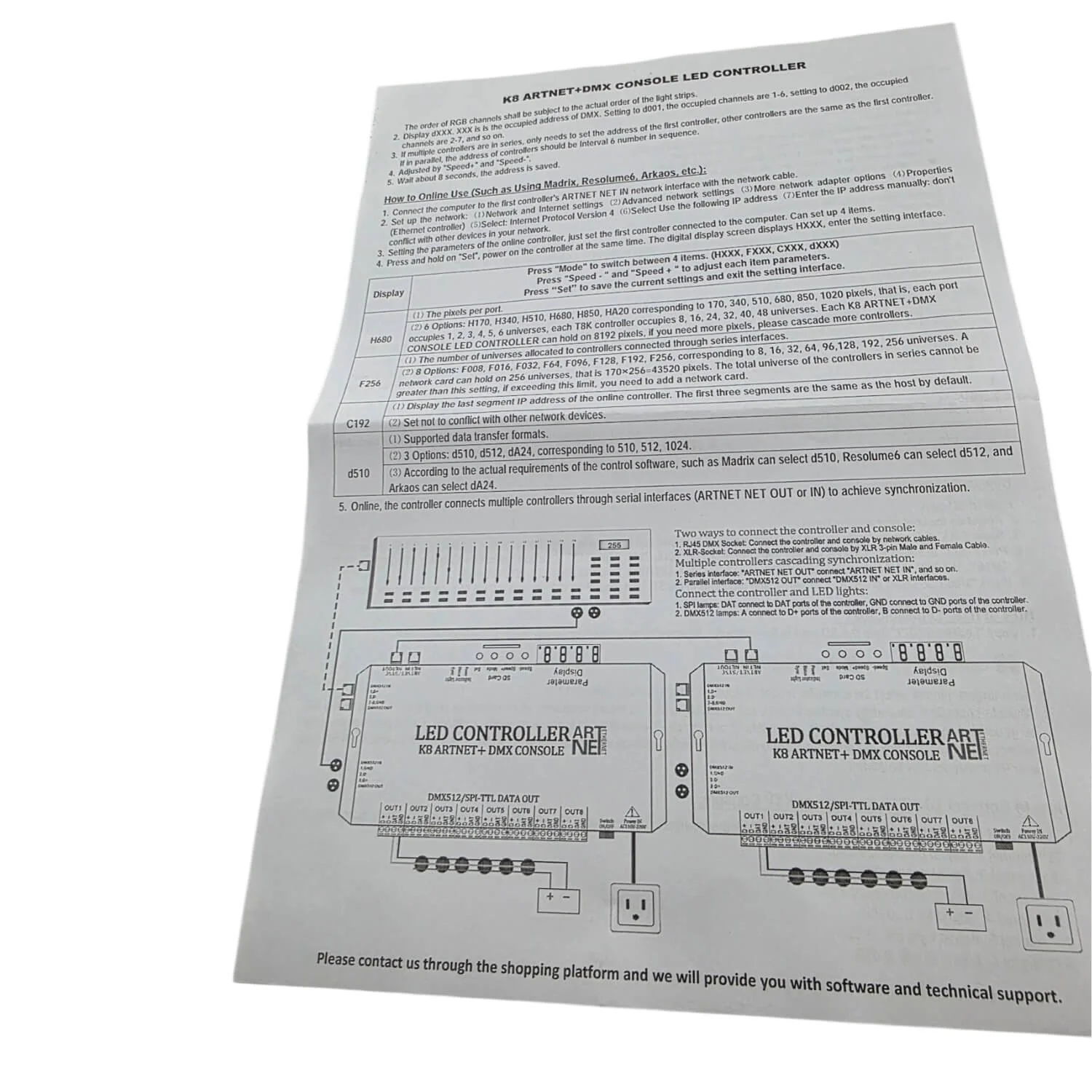

- User guide (quick-start + wiring diagram)
- Note: SD card and network cables may be included depending on the seller — check product listing.
Quick setup tips

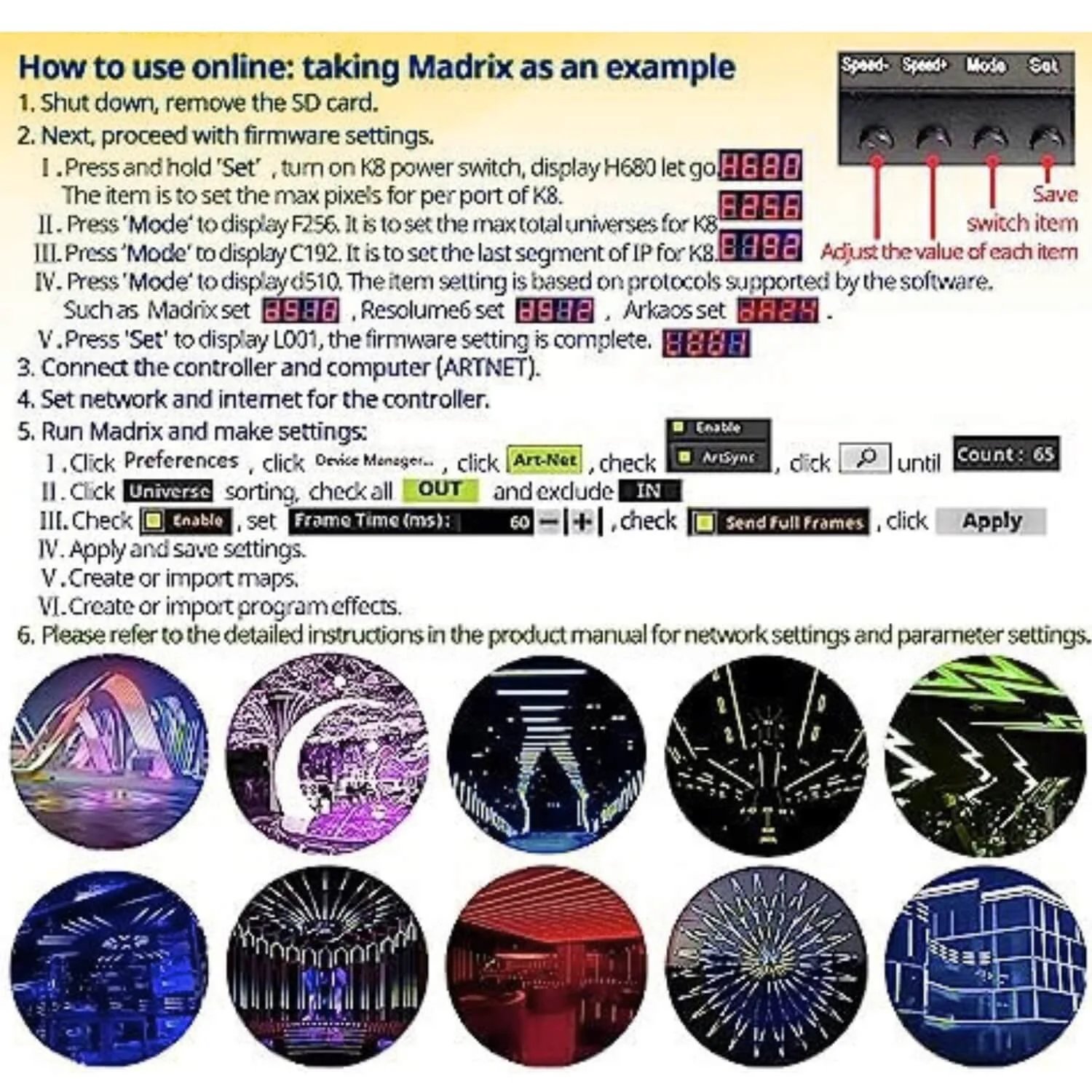

- Use the ArtNet RJ45 port for PC software like Madrix or Resolume for full online control.

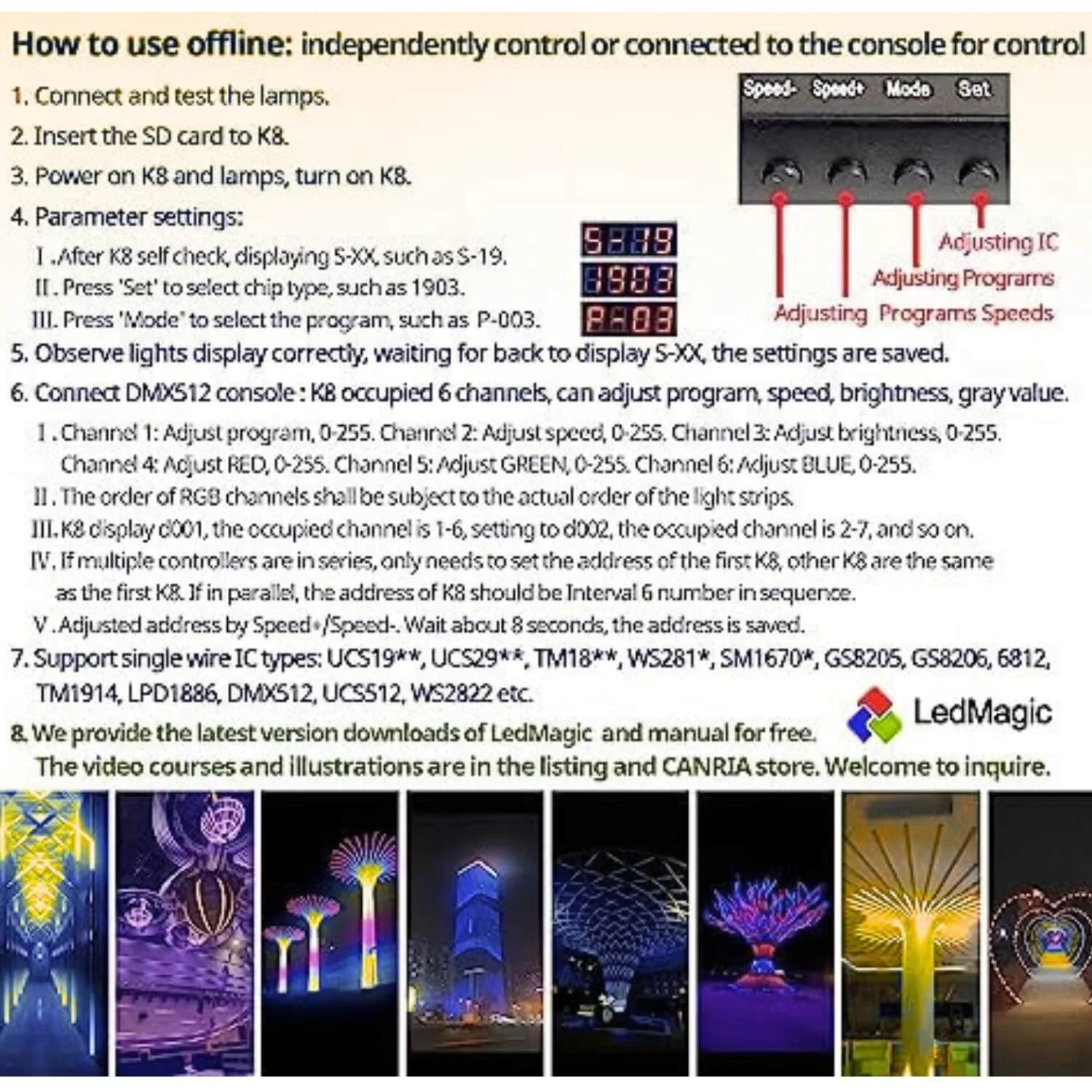

- For standalone shows, export patterns to the SD card and use front-panel controls to select and play programs.

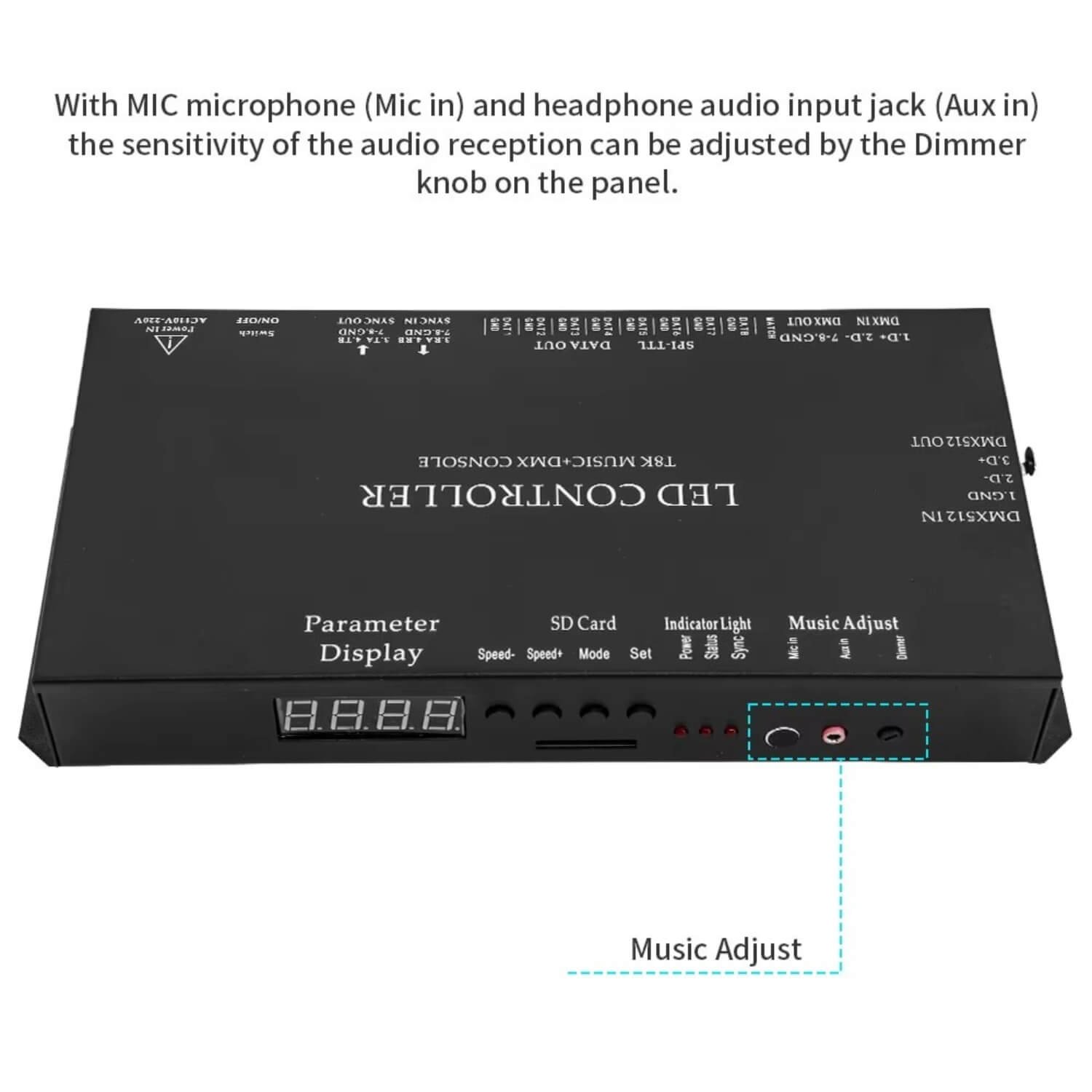

- When using music mode, connect a 3.5mm audio source or internal audio lead for beat-synced effects.

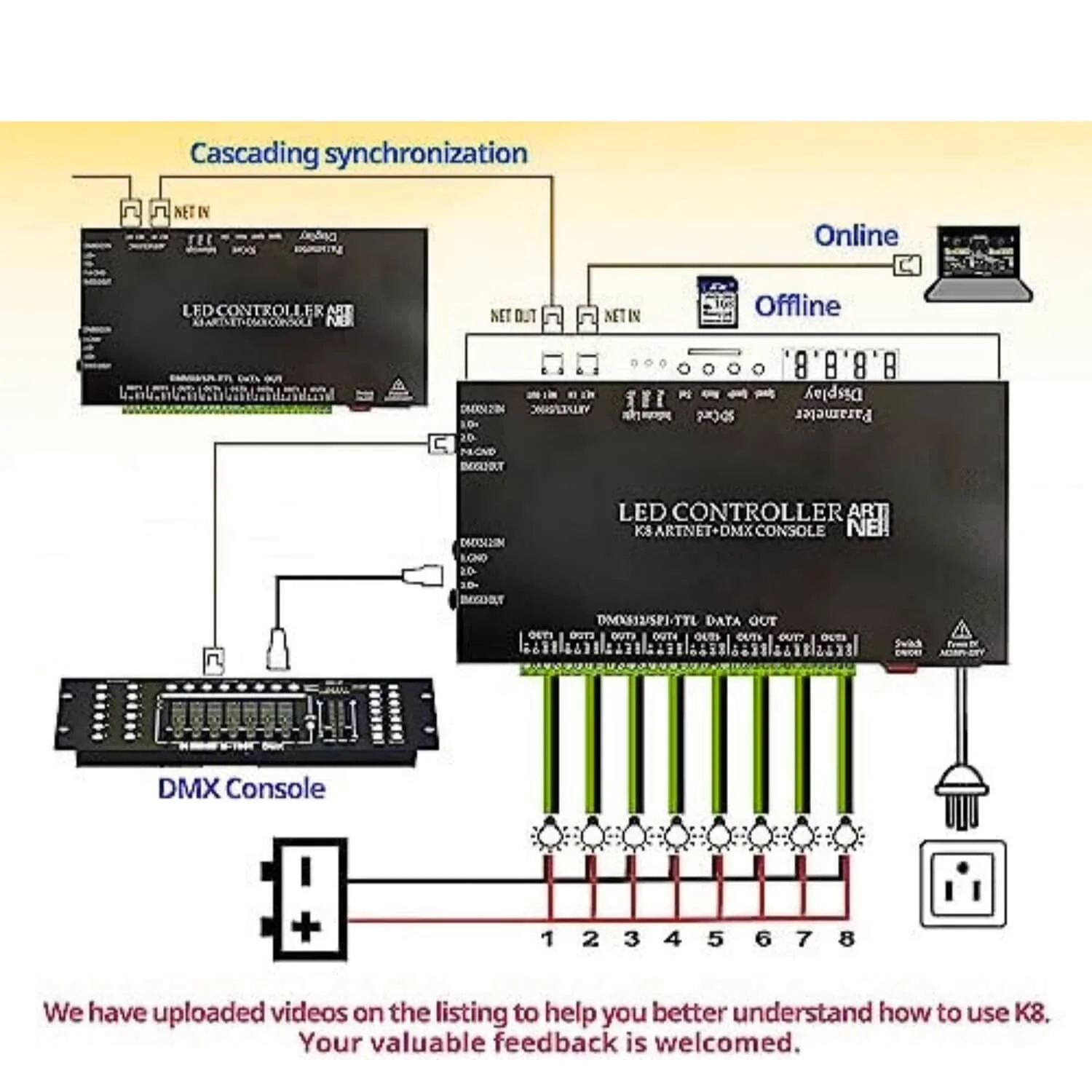

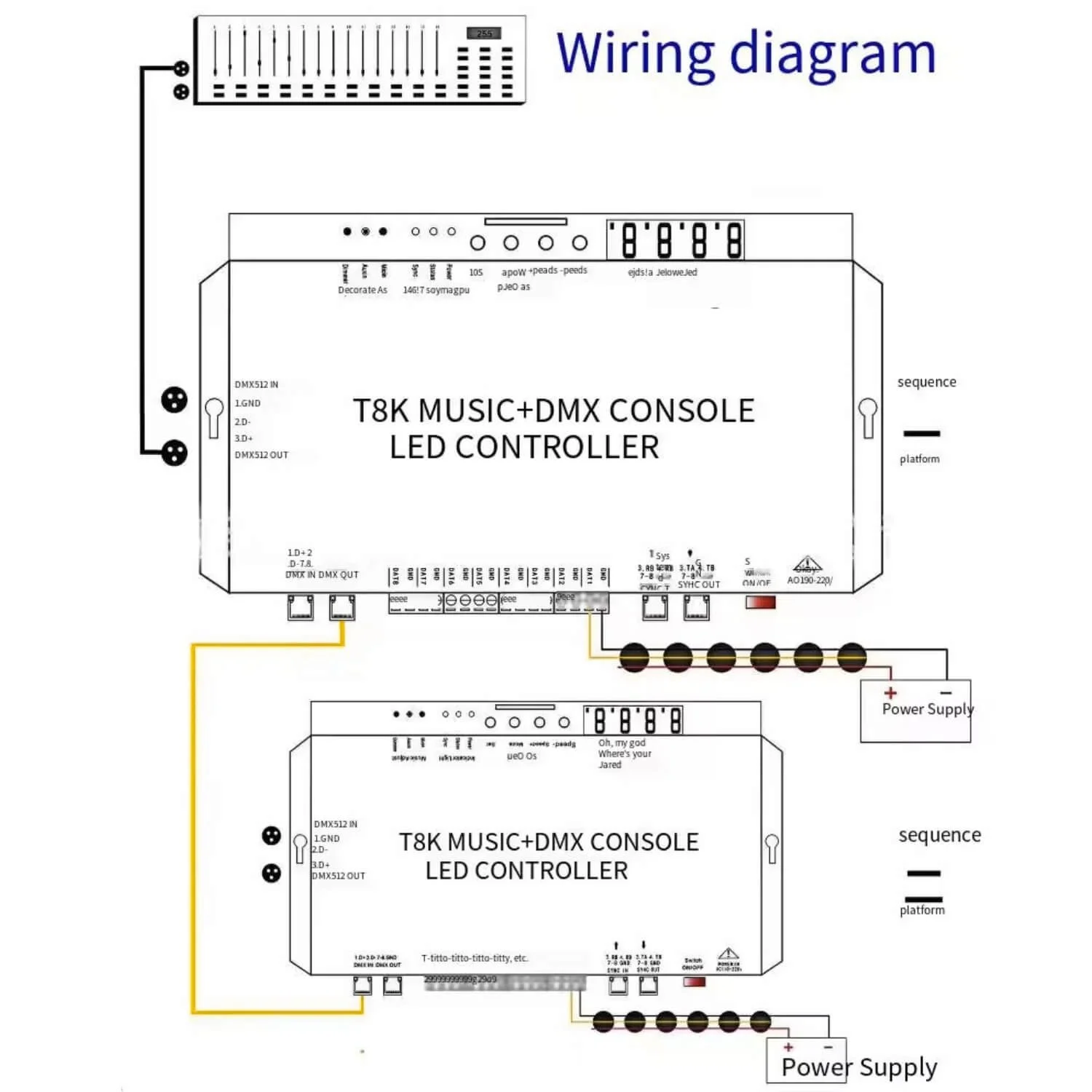

- Cascade additional controllers using the sync ports to expand coverage and keep multiple units perfectly in time.
