ENDIzLED-173 — 5V Ultra-slim Vehicle LED Strip (0805 SMD, 60 LED/m)

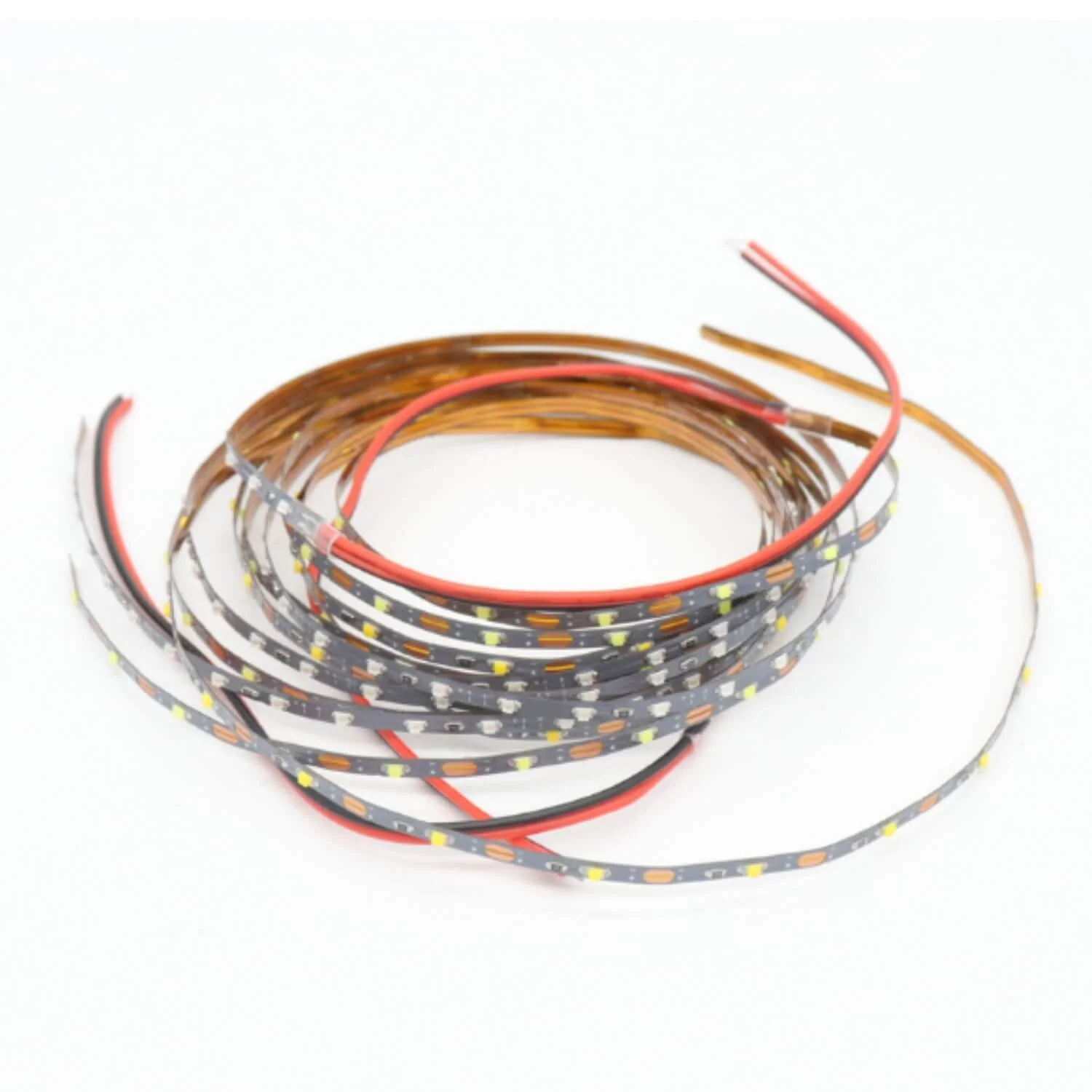

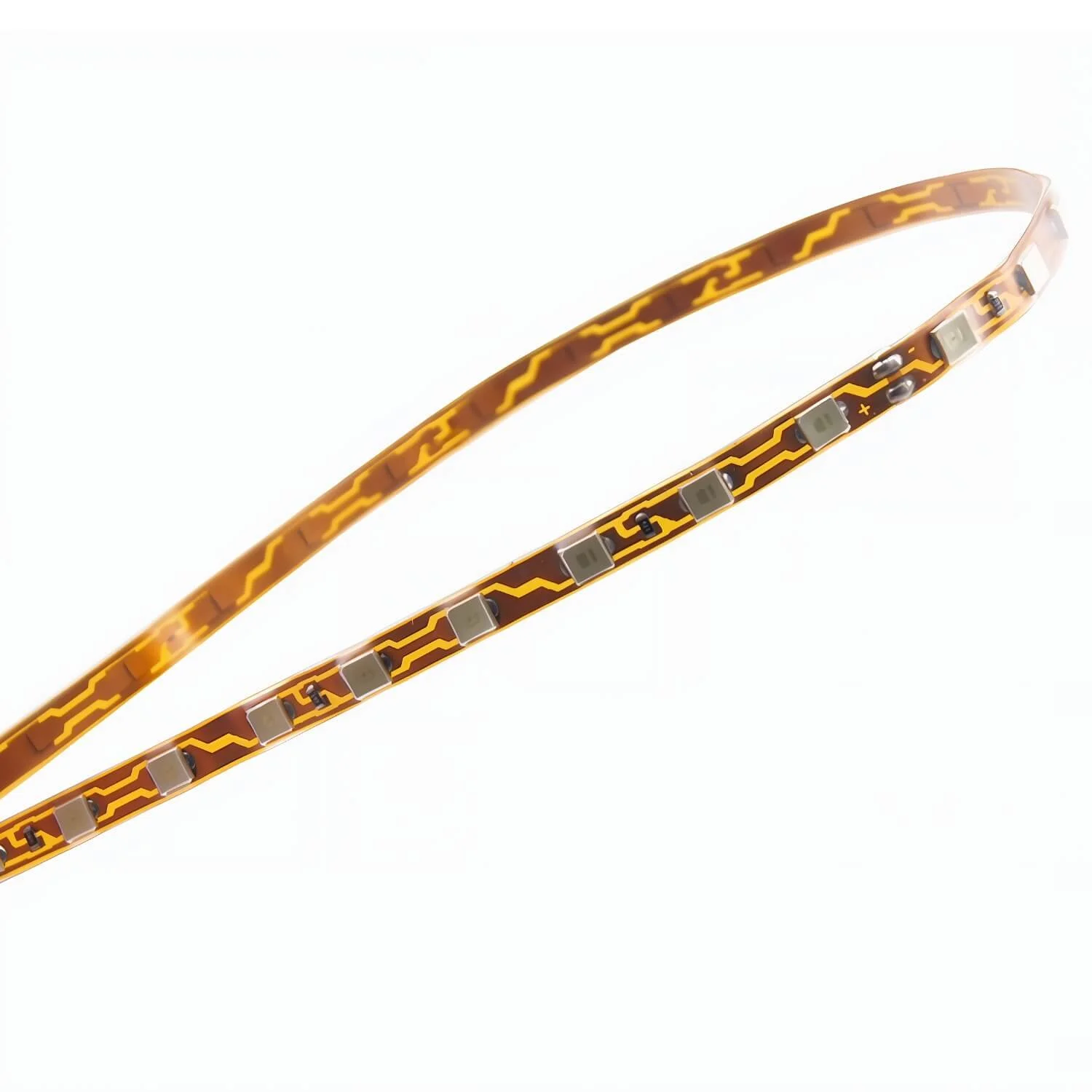

The ENDIzLED-173 is a slim, high-density 5V LED strip built for vehicle accent and utility lighting. Using compact 0805 SMD LEDs at 60 LEDs per meter and a narrow 2.5 mm PCB, this strip delivers bright, even illumination with minimal profile — perfect for dashboards, footwells, cup-holder lighting, trunk accents, RV interiors, or other 5V DC applications.

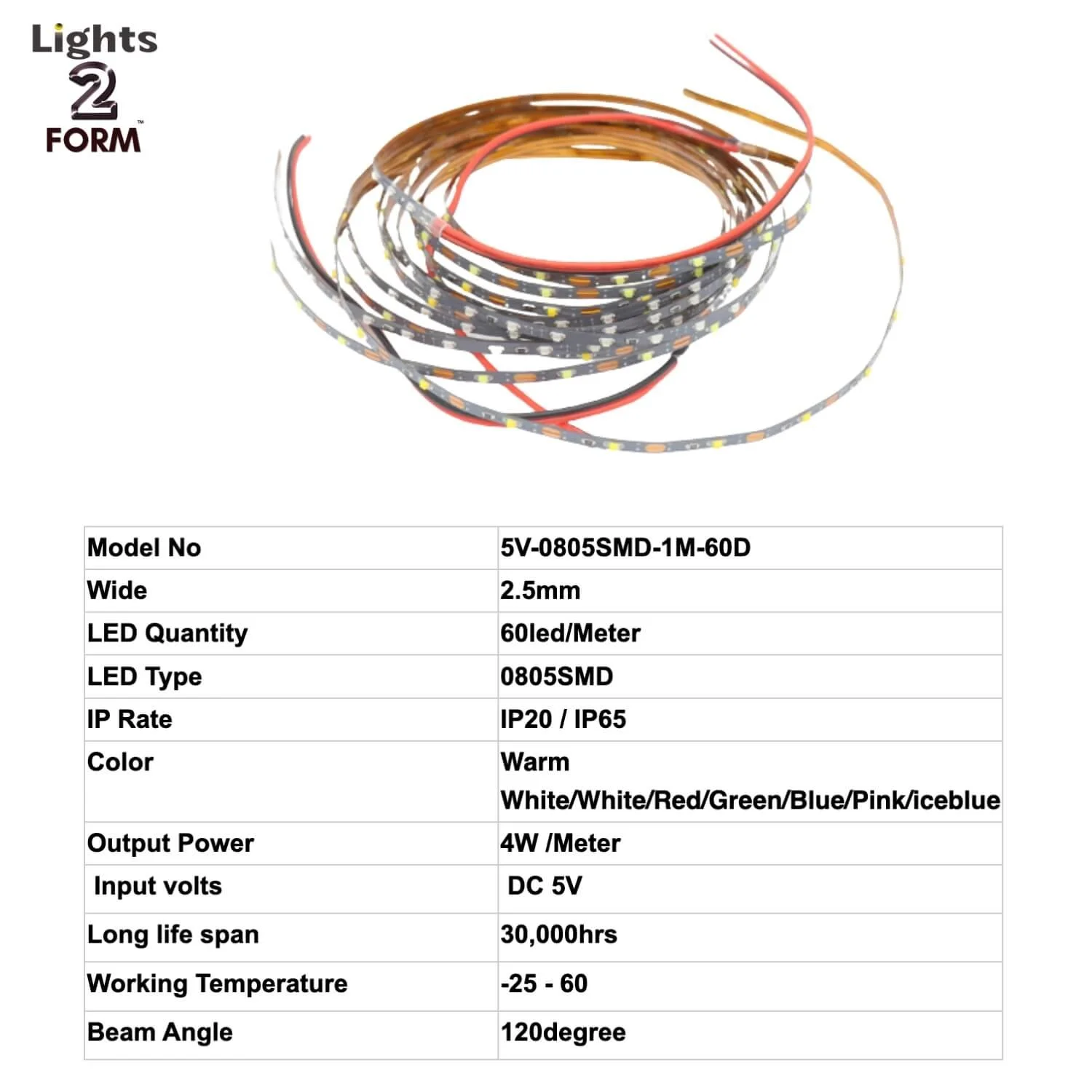

Key features:

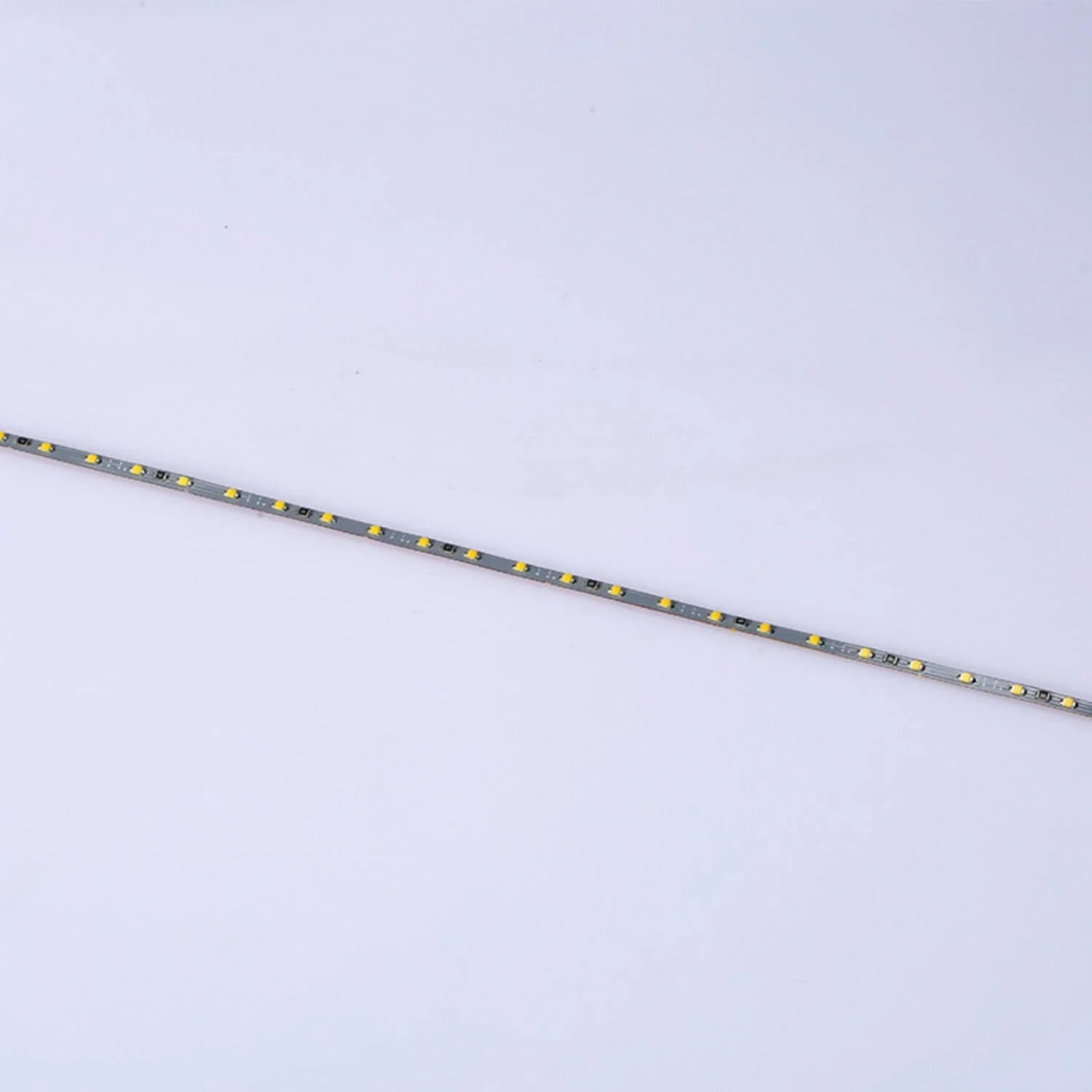

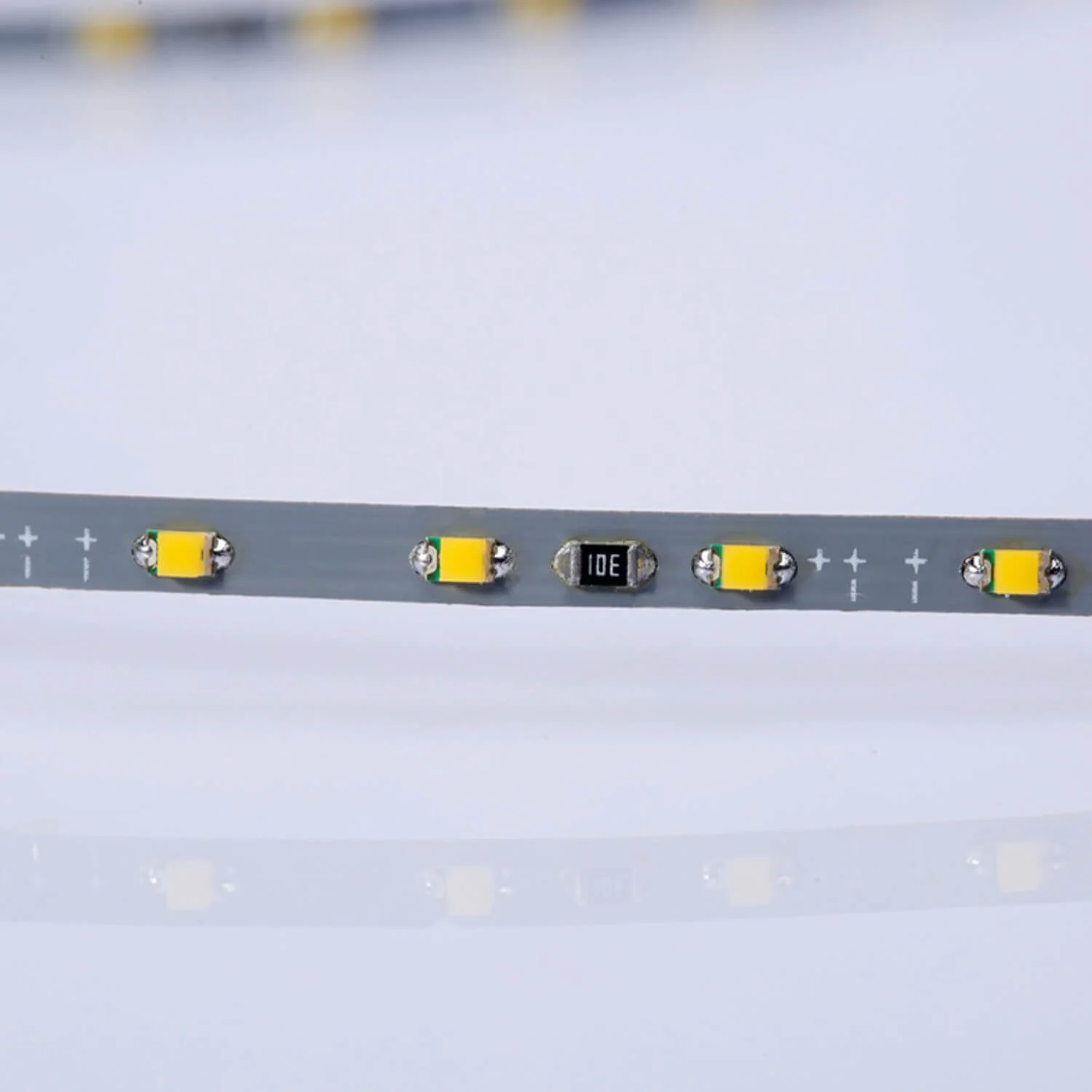

- LED type: 0805 SMD, 60 LEDs per meter for smooth light output

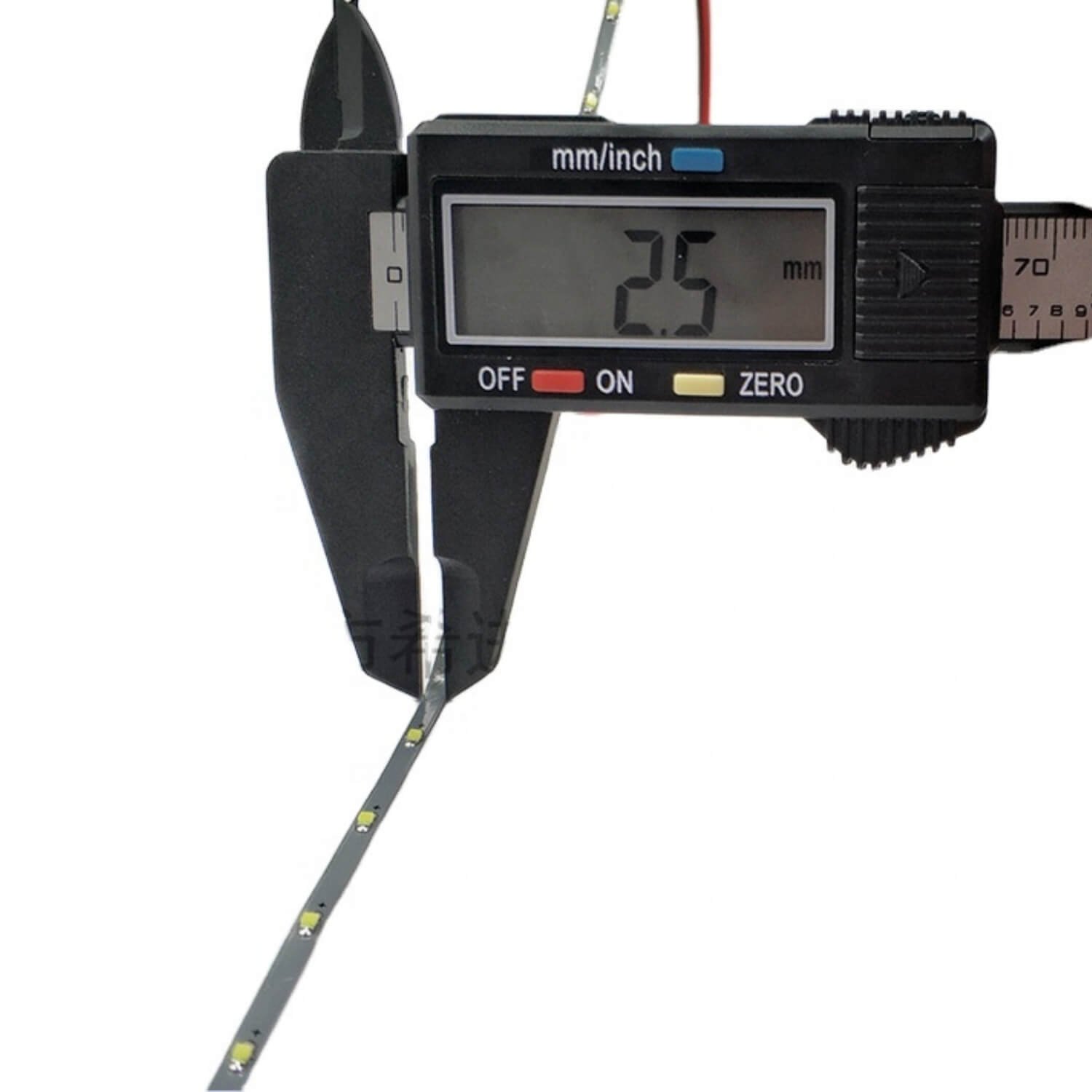

- Width: 2.5 mm — ultra-slim for tight mounting spaces
- Voltage: DC 5V (constant-voltage strip)
- Power consumption: 4 W per meter (≈0.8 A per meter at 5V)

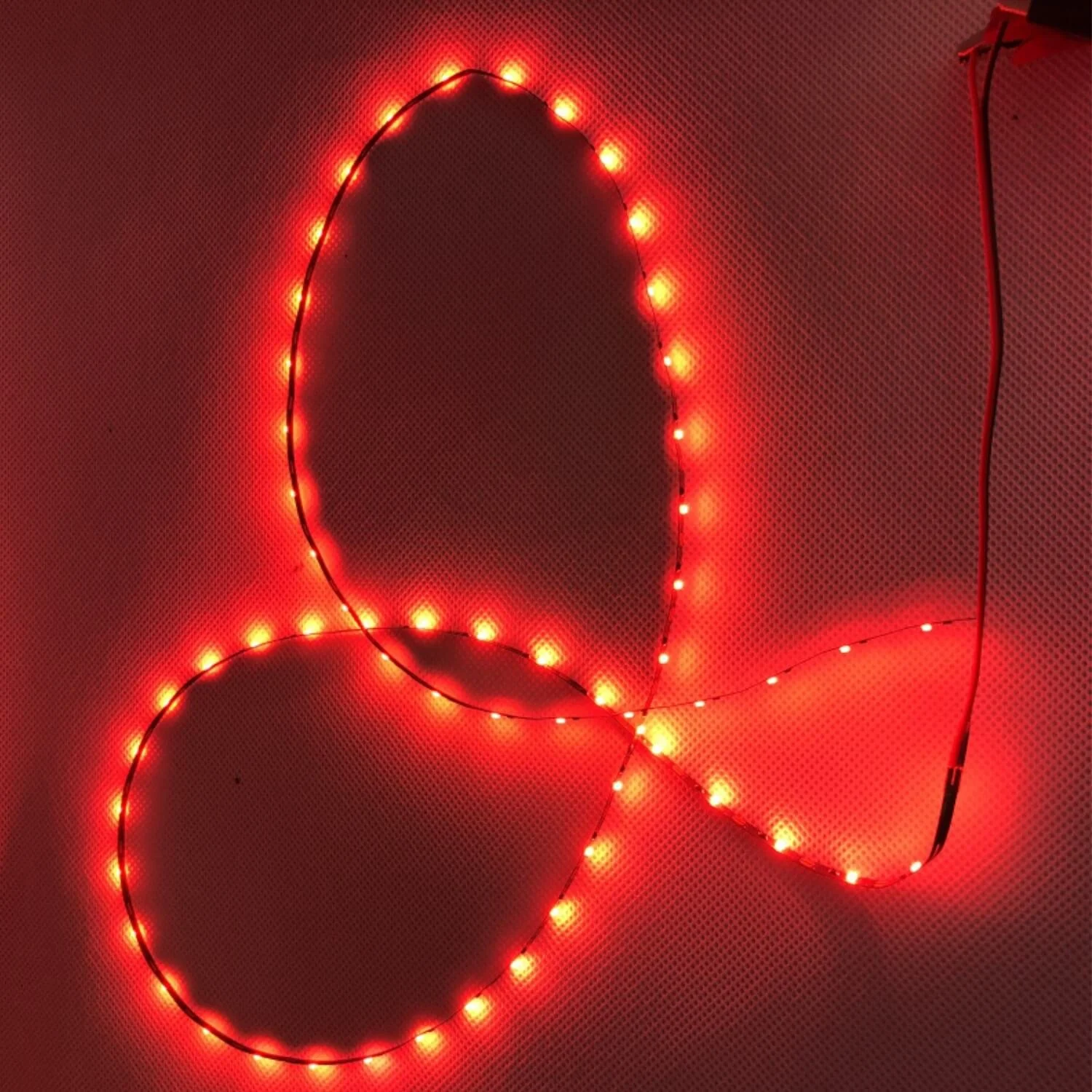

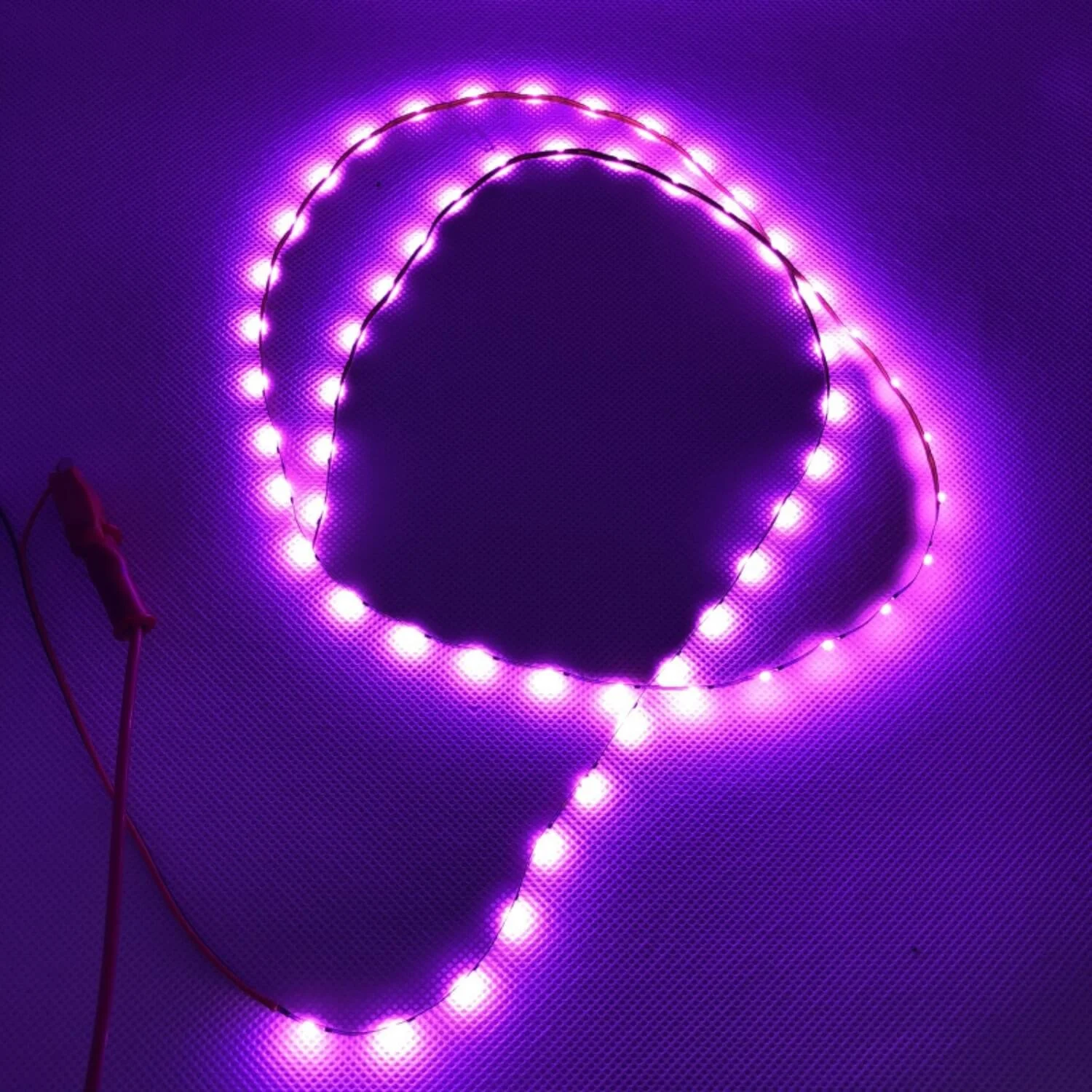

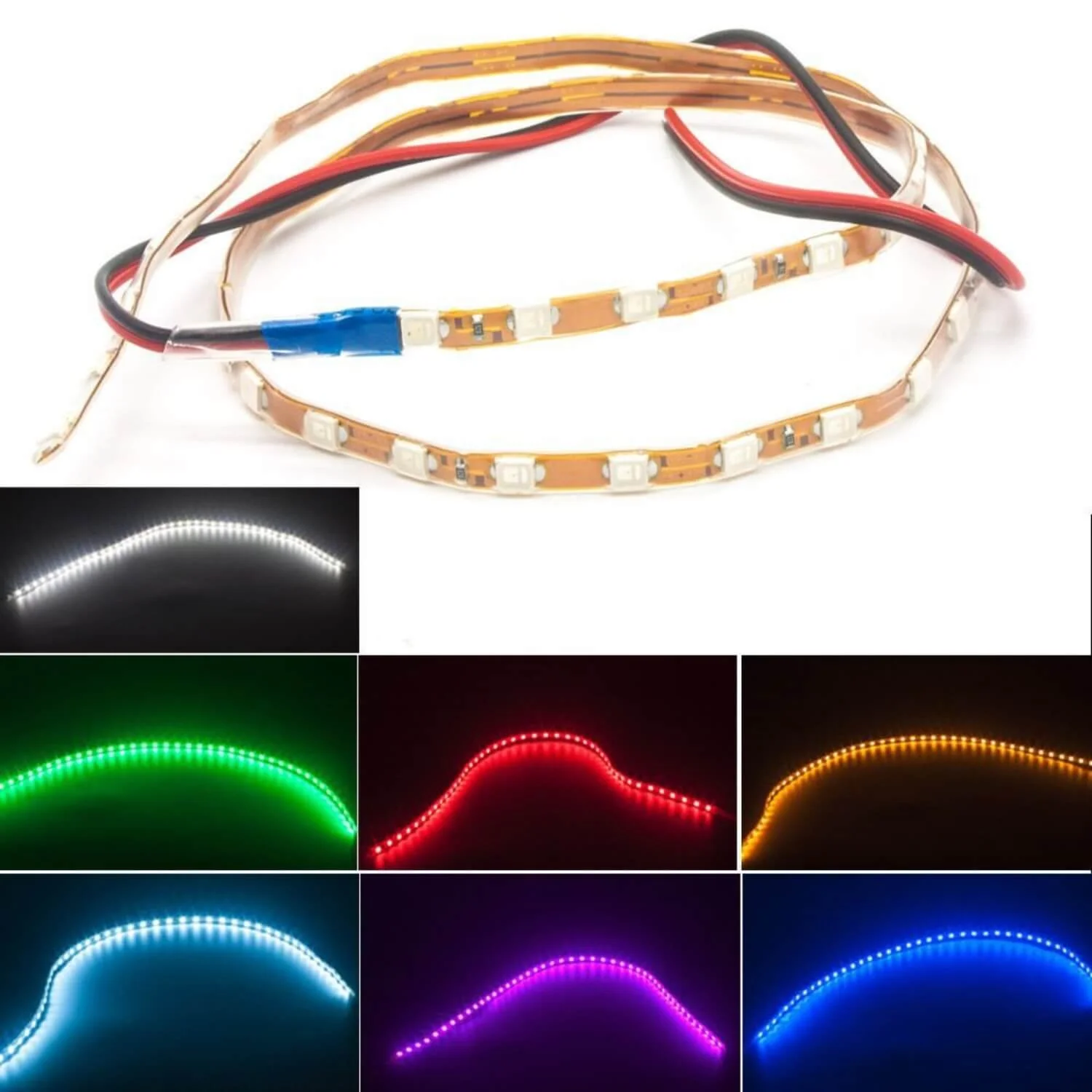

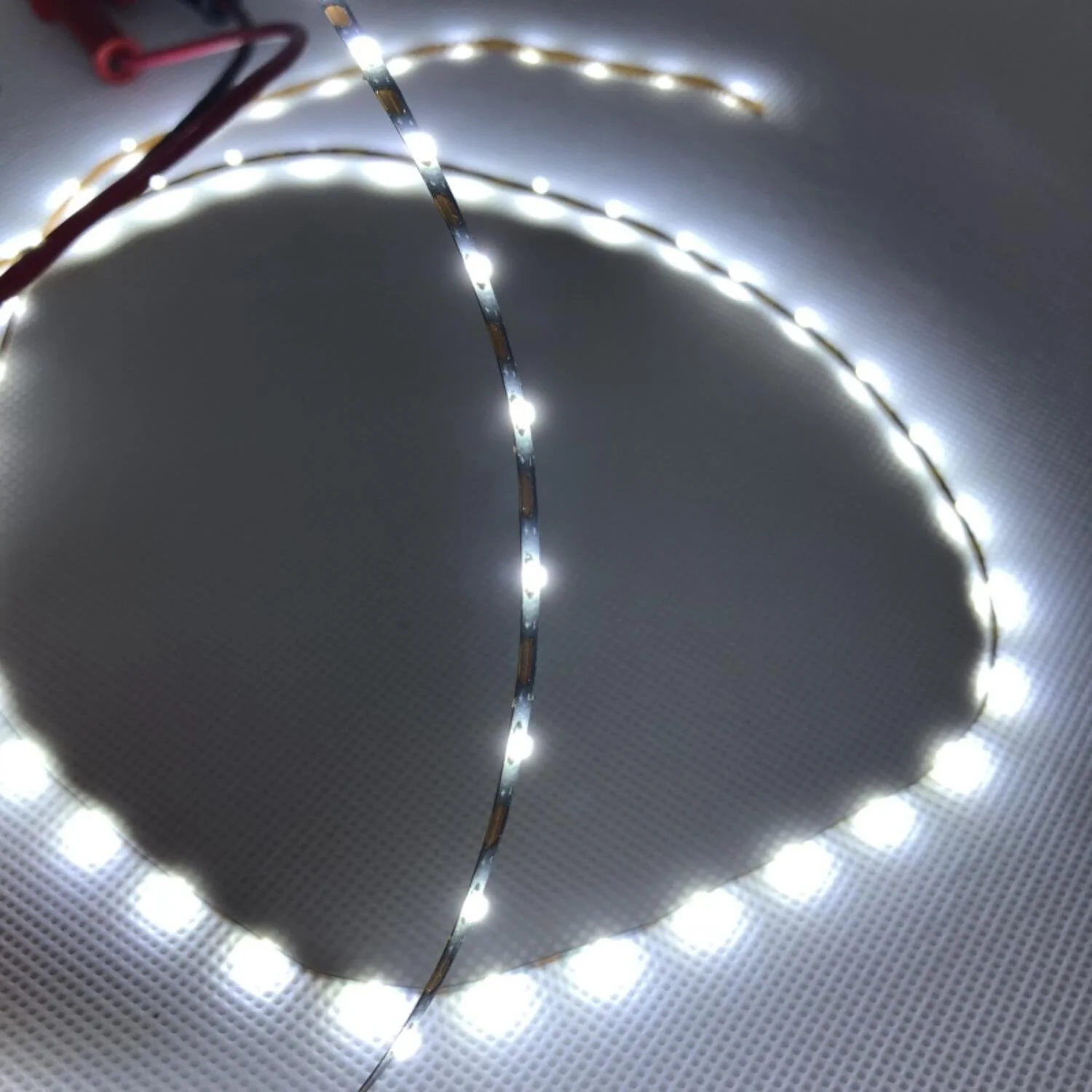

- Colors available: Warm White, White, Red, Green, Blue, Pink, Ice Blue
- IP options: IP20 (standard) or IP65 (silicone-coated for splash resistance)
- Long life span: ~30,000 hours
- Working temperature: -25°C to 60°C
- Beam angle: 120°
Benefits:
- Low-voltage 5V operation makes it safe and compatible with common vehicle USB/12V-to-5V converters and portable power banks.
- Narrow 2.5 mm profile fits into tight channels and trim lines for a clean, discreet install.
- 60 LEDs/m delivers consistent, flicker-free illumination ideal for ambient and task lighting.
- IP65 option adds moisture protection for damp environments (interior marine or exposed areas).
Quick installation & power tips:
- Use a stable 5V DC supply. At 4 W/m the strip draws about 0.8 A per meter — size your power source with overhead (recommend ~20% extra capacity).
- For color options that require dimming or effects, pair with a compatible 5V dimmer/controller.
- Clean and dry the mounting surface prior to installation. IP20 strips usually include self-adhesive backing; IP65 strips have a silicone coating and are more durable for wetter areas.
- Observe polarity when connecting (red = +5V, black/ground = -).
- For joins or long runs, use proper soldering or rated quick-connects and protect exposed joints from moisture.
What's included (typical):
- ENDIzLED-173 5V LED strip (length sold separately or as specified)

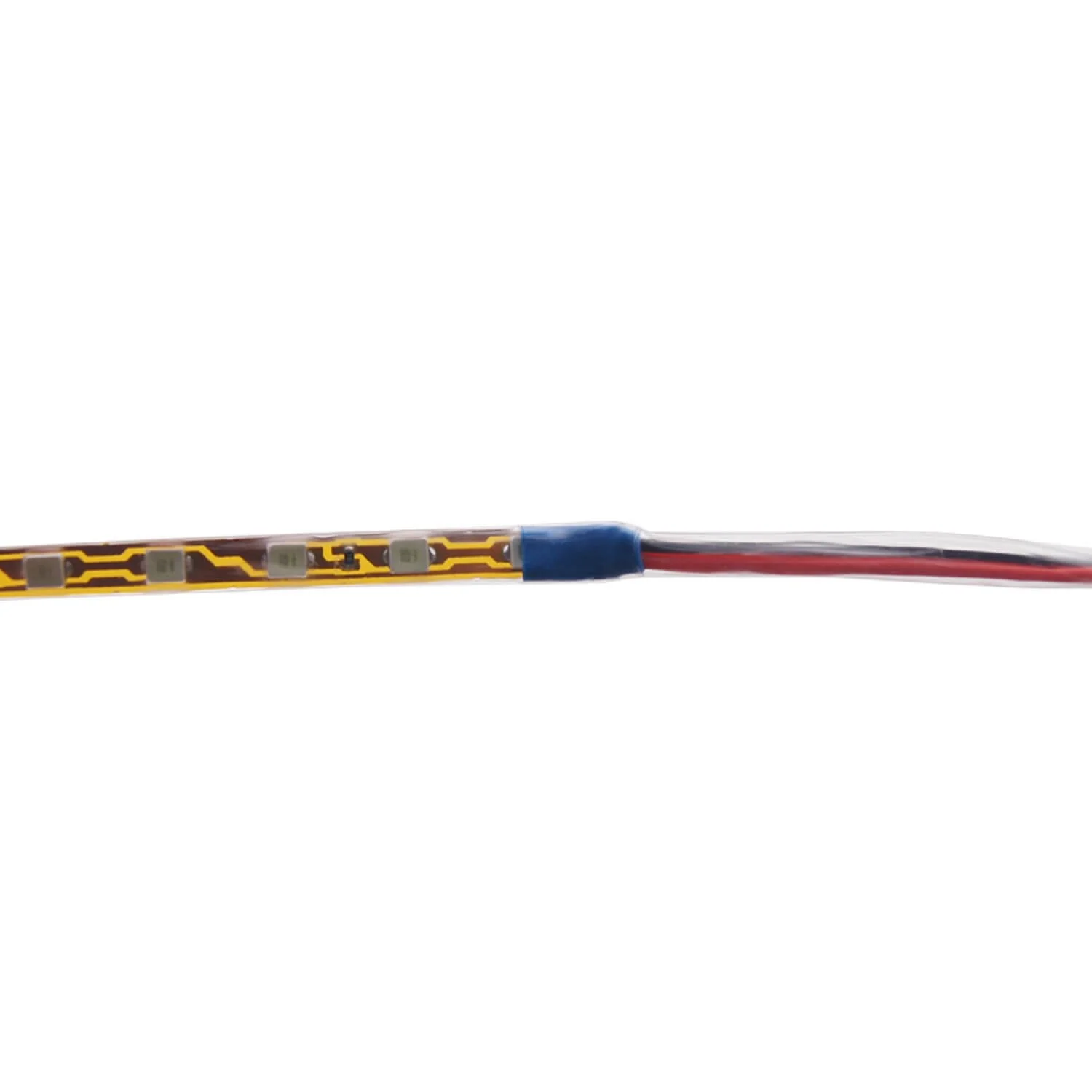

- Pre-wired power leads
Perfect for:
- Automotive interior accents (dash, footwell, door pockets)
- RV and camper ambient lighting
- Motorcycle and boat interior lighting (use IP65 where moisture exposure is possible)
- Portable, low-voltage lighting projects
