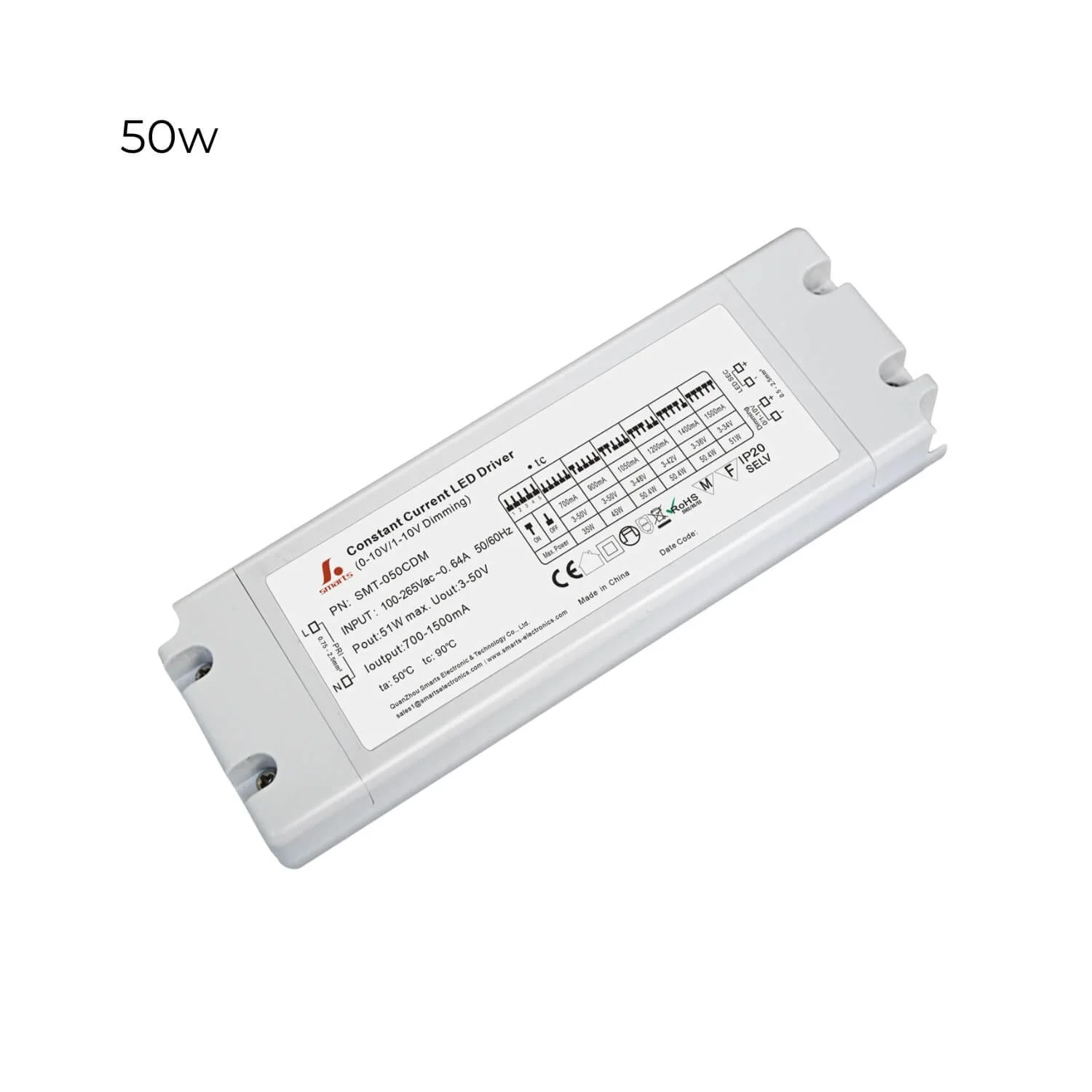

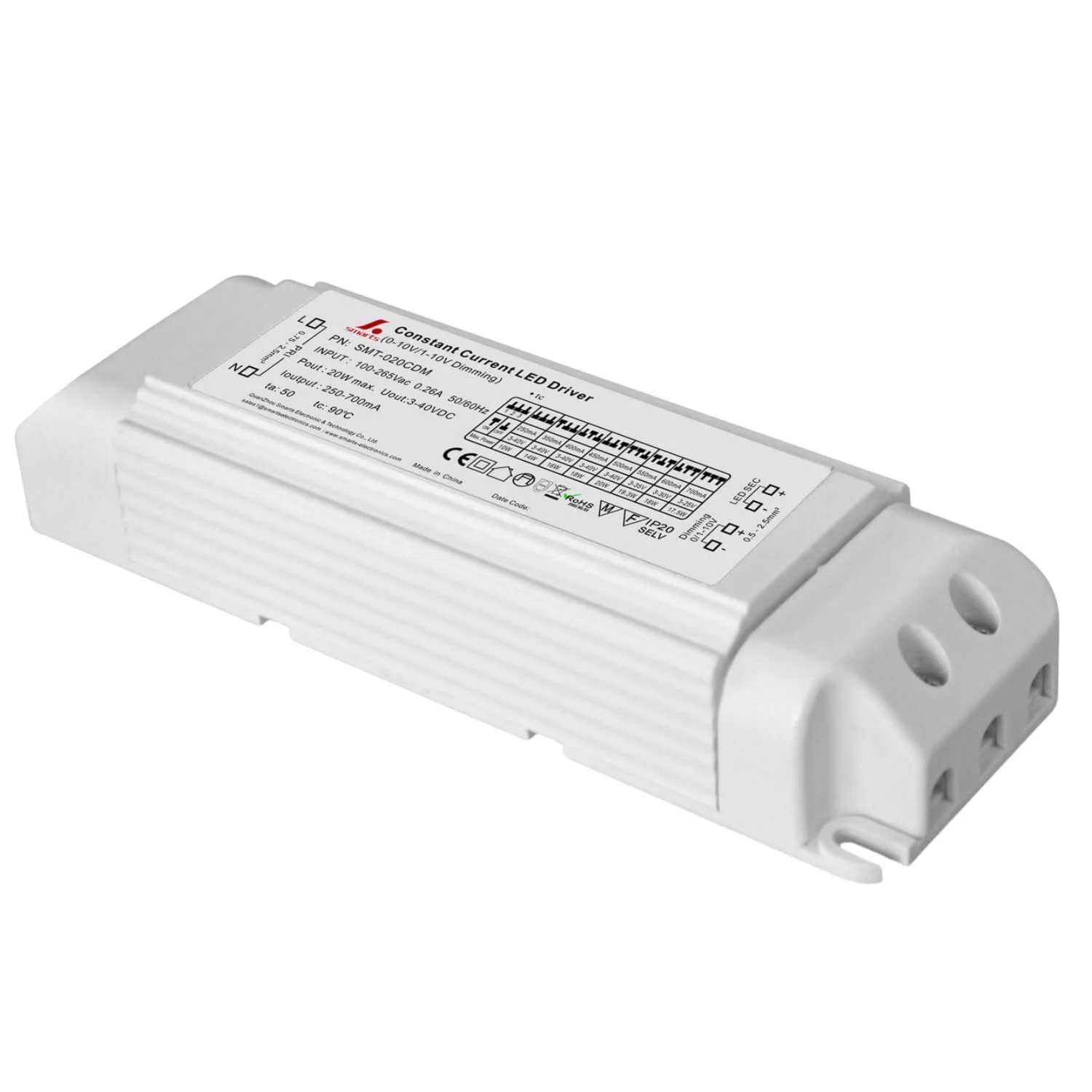

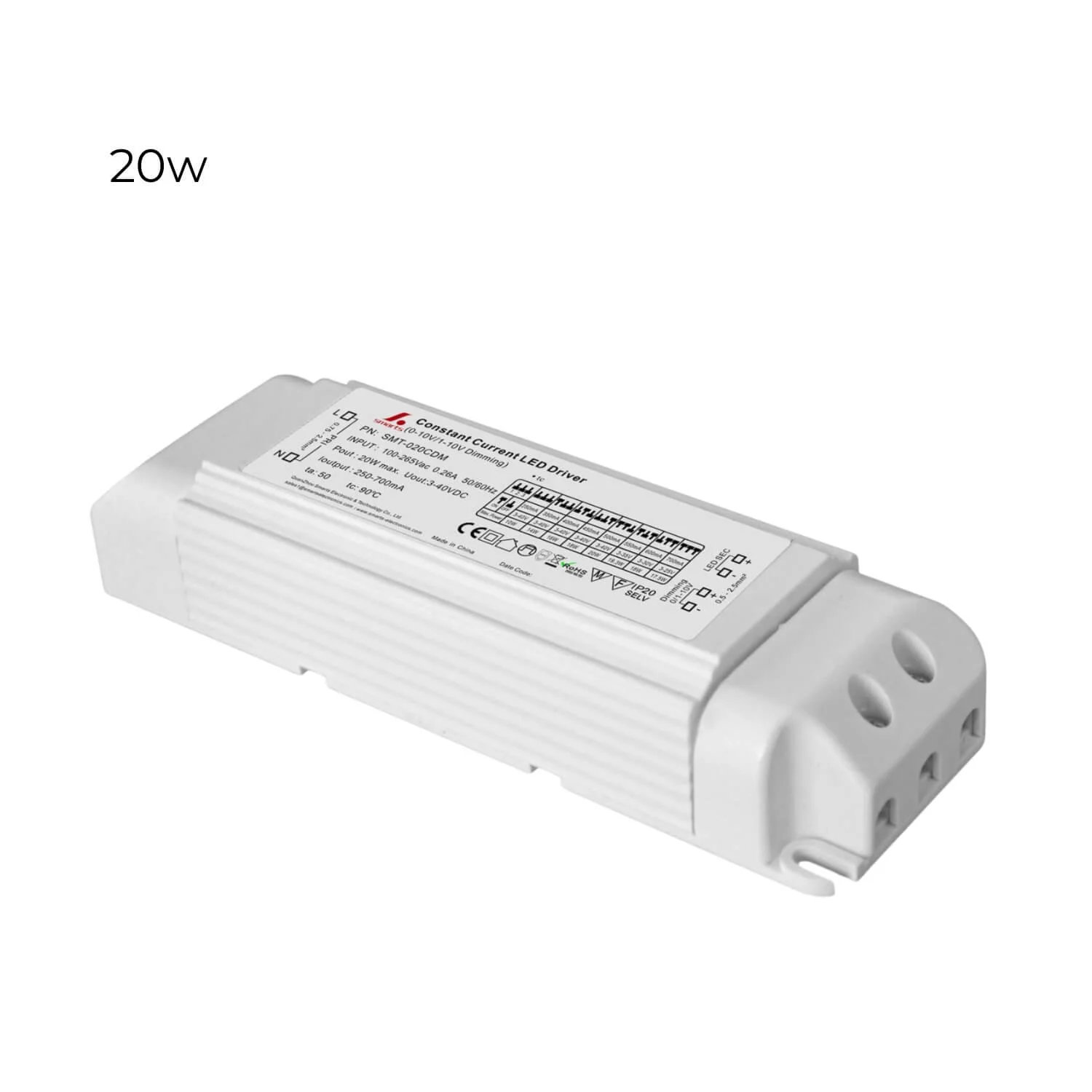

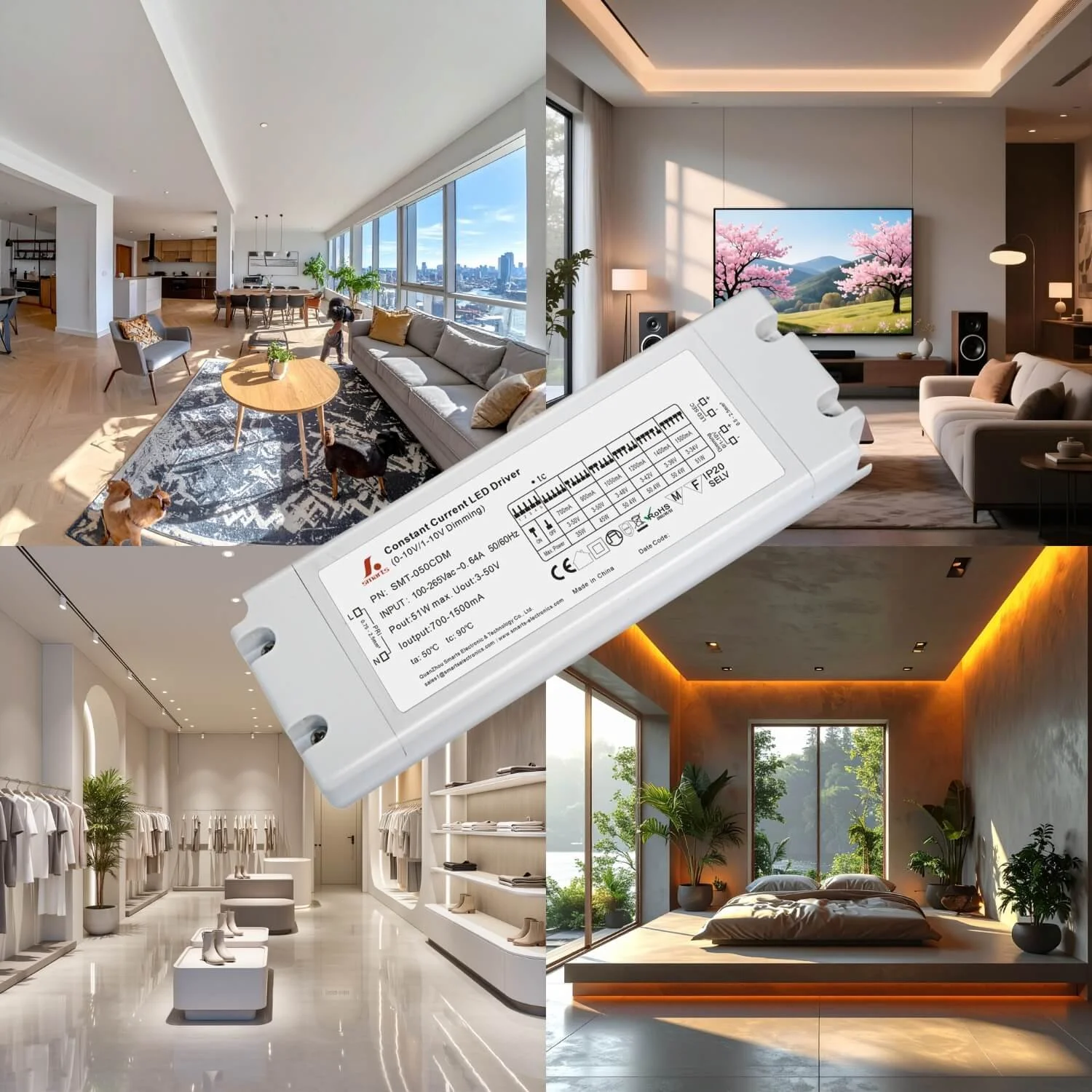

Product: ENDIzLED-164 —0-10V Downlight Dimmerable Constant-Current LED Driver 20W / 50W
Overview
- A compact, reliable constant-current LED driver designed for professional indoor LED installations. ENDIzLED-163 delivers stable current with selectable output settings and compatibility with 0–10V/1–10V dimming controls — ideal for downlights, panels, strip runs and other low-voltage LED fixtures.
Key features
- Constant-current output with selectable current range (700–1500 mA) for flexible LED matching
- Wide input: 100–265 VAC, 50/60 Hz — works worldwide with standard mains
- Output voltage range: 3–50 V DC — supports a broad range of LED modules
- Maximum output power: 51 W
- Dimming: compatible with 0–10V / 1–10V dimming systems for smooth brightness control
- Compact, low-profile housing for easy installation in ceilings, luminaires or enclosures
- Safety & compliance markings visible on the unit: CE, RoHS; SELV output; IP20 (indoor use)
- Built-in mounting tabs and Ø3 mm mounting holes for secure installation
Technical highlights (from product label & drawings)
- Model: ENDIzLED-164
- Input: 100–265 VAC, ~0.64 A, 50/60 Hz
- Output: 3–50 V DC, constant current
- Adjustable output current: 700–1500 mA (selectable)
- Max power: 51 W
- Operating ambient temperature (ta): up to 50°C; case temperature (tc): up to 90°C
- Protection rating: IP20 (for indoor use)

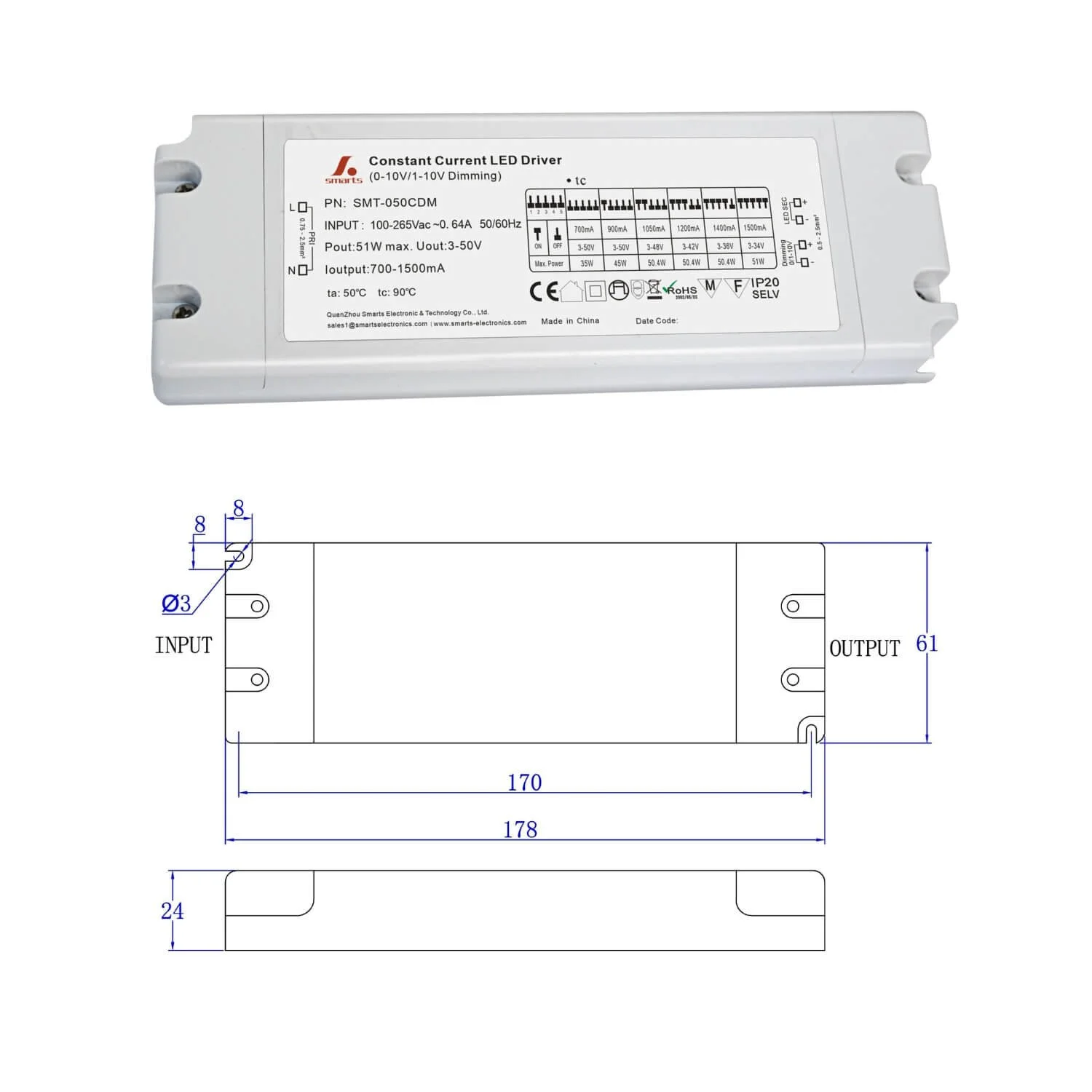

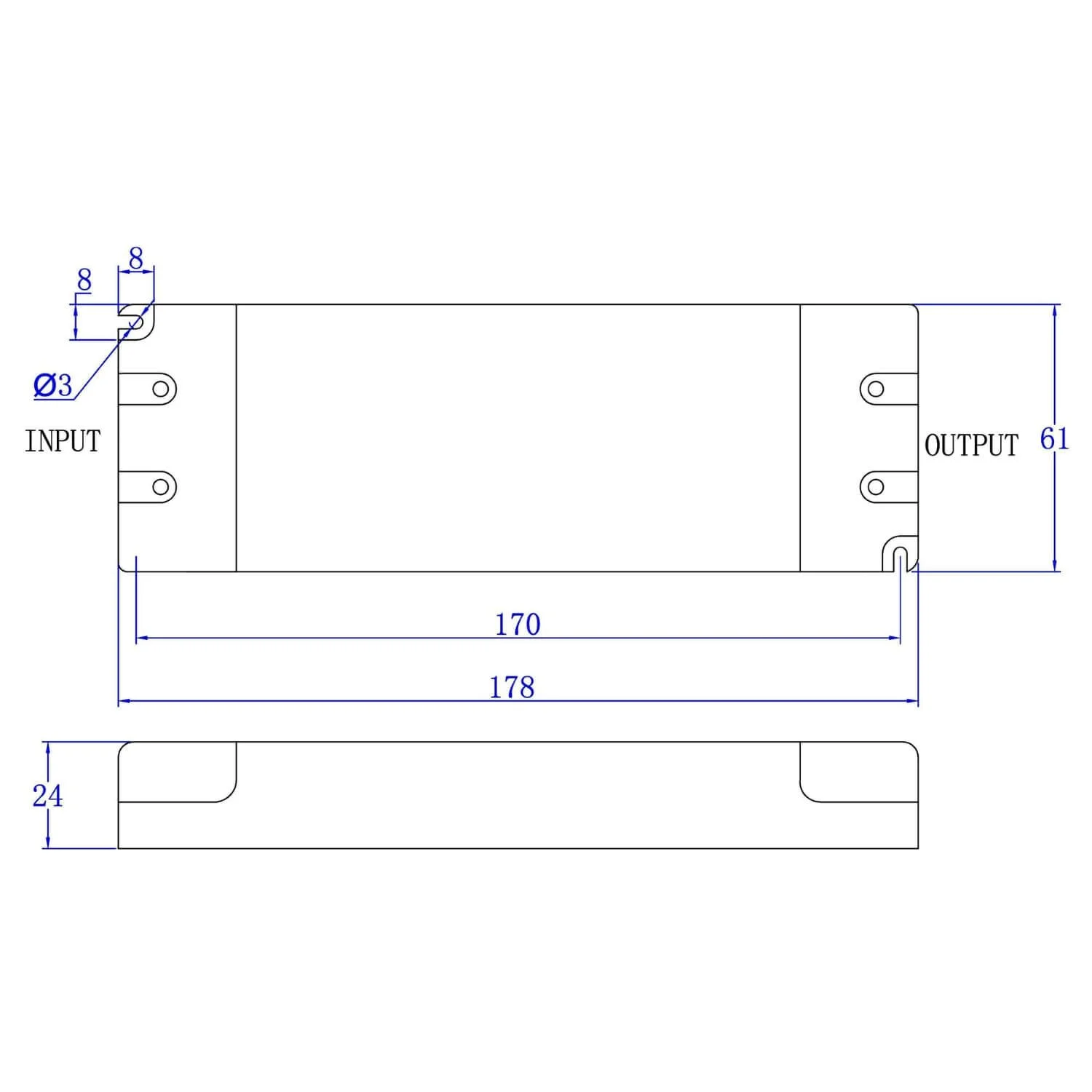

- Dimensions (approx.): 178 mm (length) x 61 mm (width) x 24 mm (height)
- Mounting: two mounting tabs with Ø3 mm holes
Recommended applications
- Recessed downlights and LED panels
- Linear and strip LED installations
- Commercial and residential luminaires where constant-current drivers are required
- Retrofit and new-build lighting projects requiring dimming compatibility
Installation notes
- For indoor use only (IP20) — protect from moisture and direct water exposure
- Install in a well-ventilated location; avoid fully enclosed spaces unless rated for higher temperature

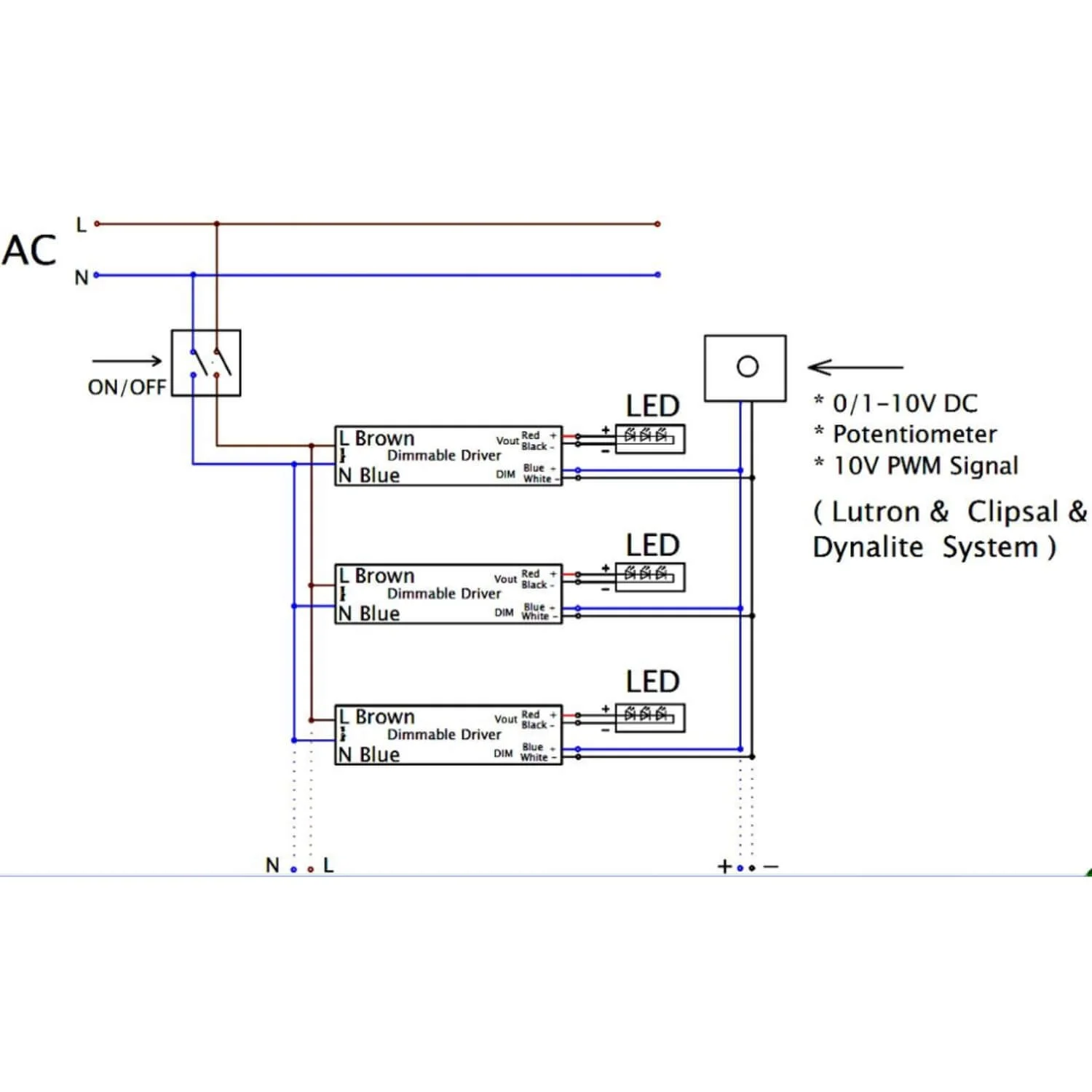

- Use compatible 0–10V/1–10V dimming controls for dimming function
- Observe polarity and wiring instructions on the driver label; power should be switched off before wiring
Why choose ENDIzLED-164?
- A versatile, easy-to-install LED driver that combines wide input range, selectable constant-current output and dimming compatibility in a compact package — giving installers flexible control and reliable performance for a wide range of LED lighting projects.
