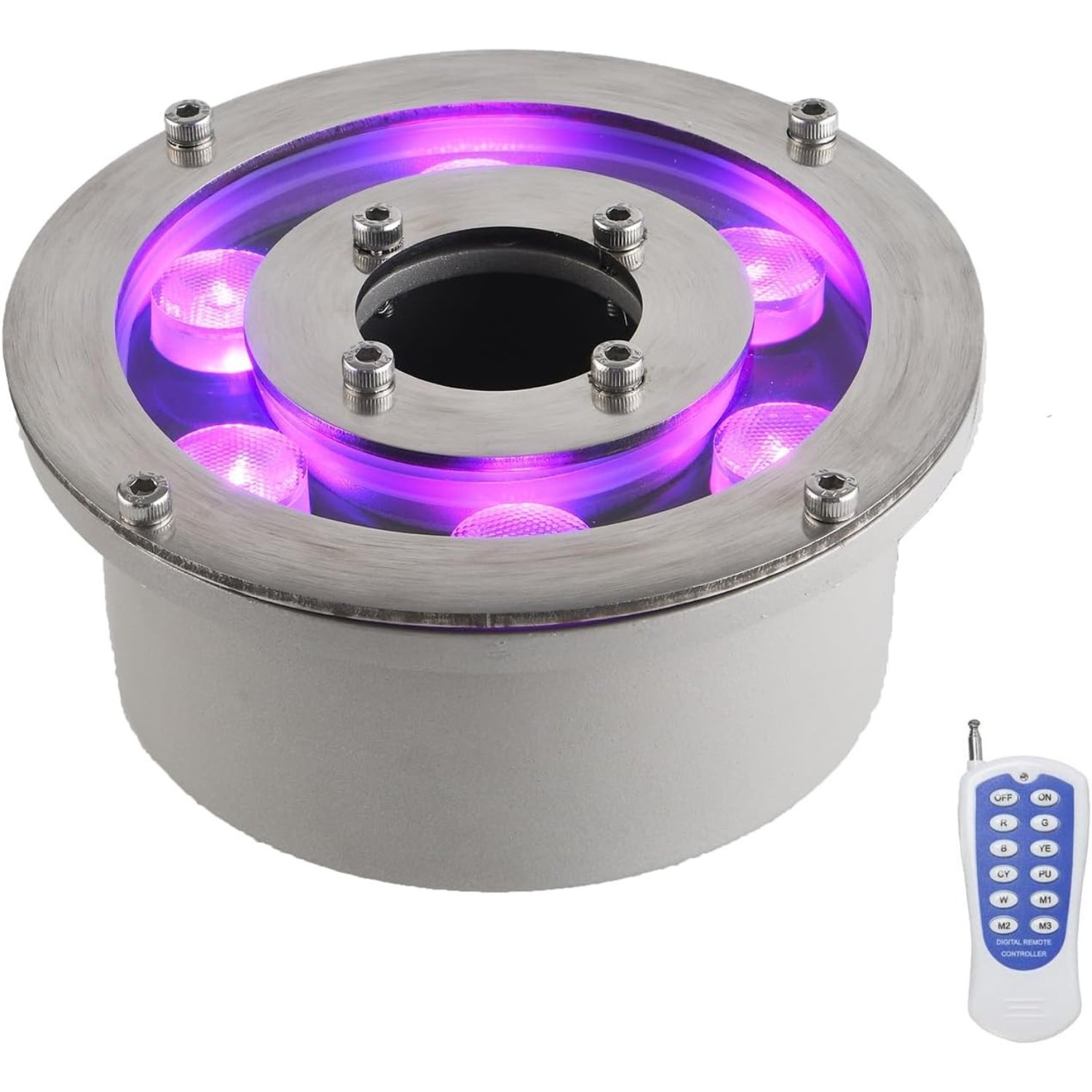

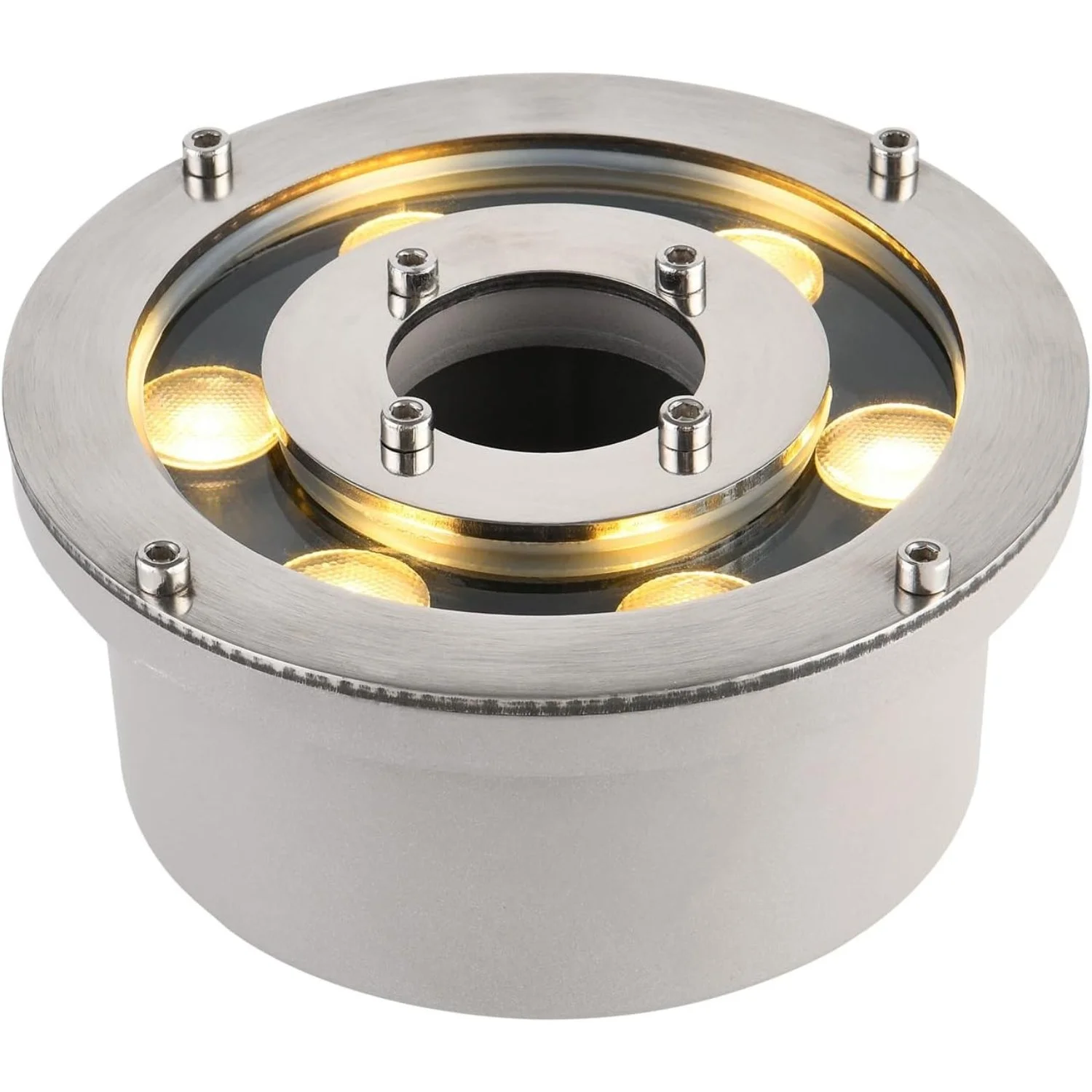

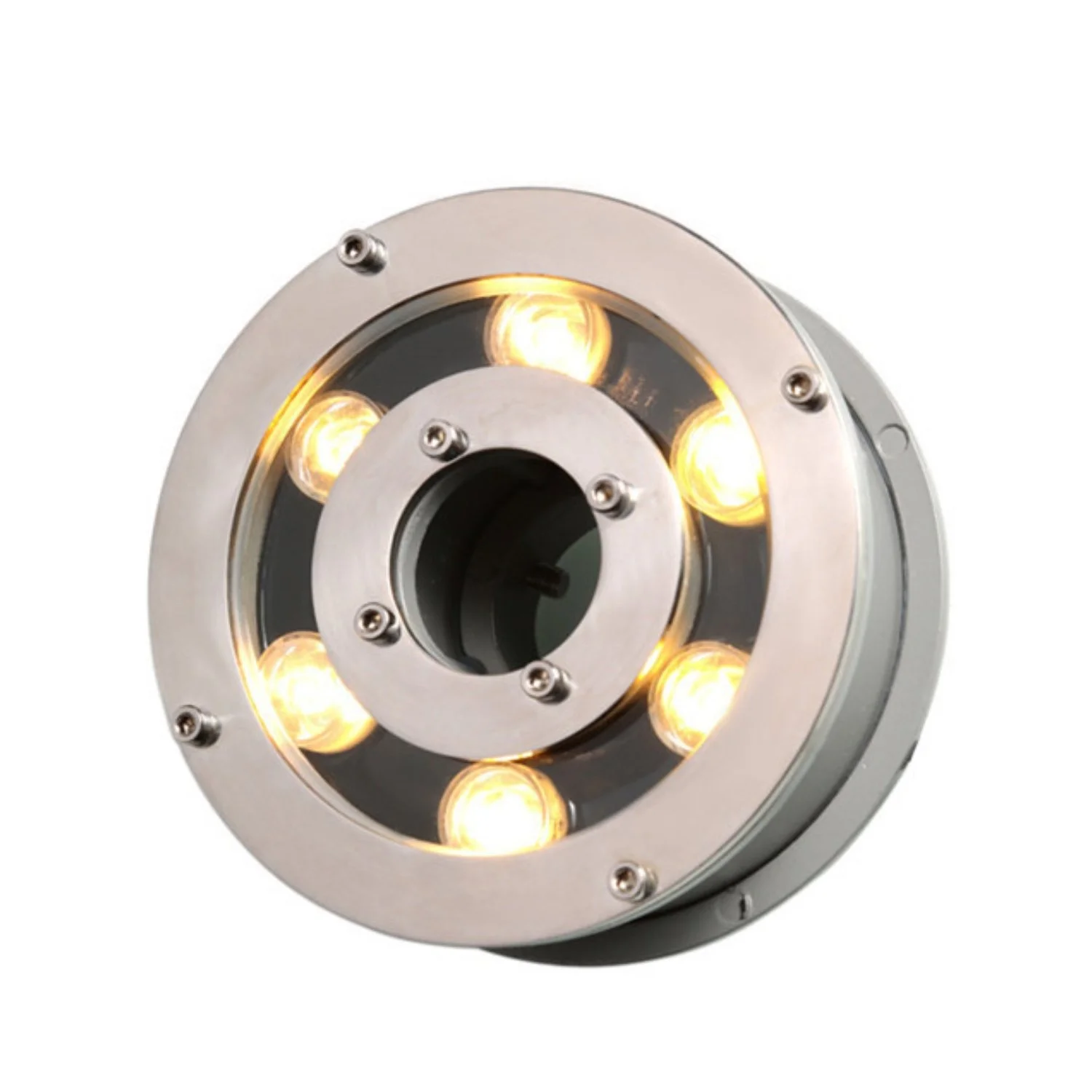

ENDIzLED-163 — Premium IP68 Fountain & Pond LED Ring Light
Short description:
- The ENDIzLED-163 is a durable, high-performance ring-style LED light engineered for water features — fountains, ponds, pools and architectural wet installations. With a stainless-steel face, tempered glass lens and IP68 rating, it delivers bright, even illumination and long-term reliability in submerged or splash-prone environments.
Key features:

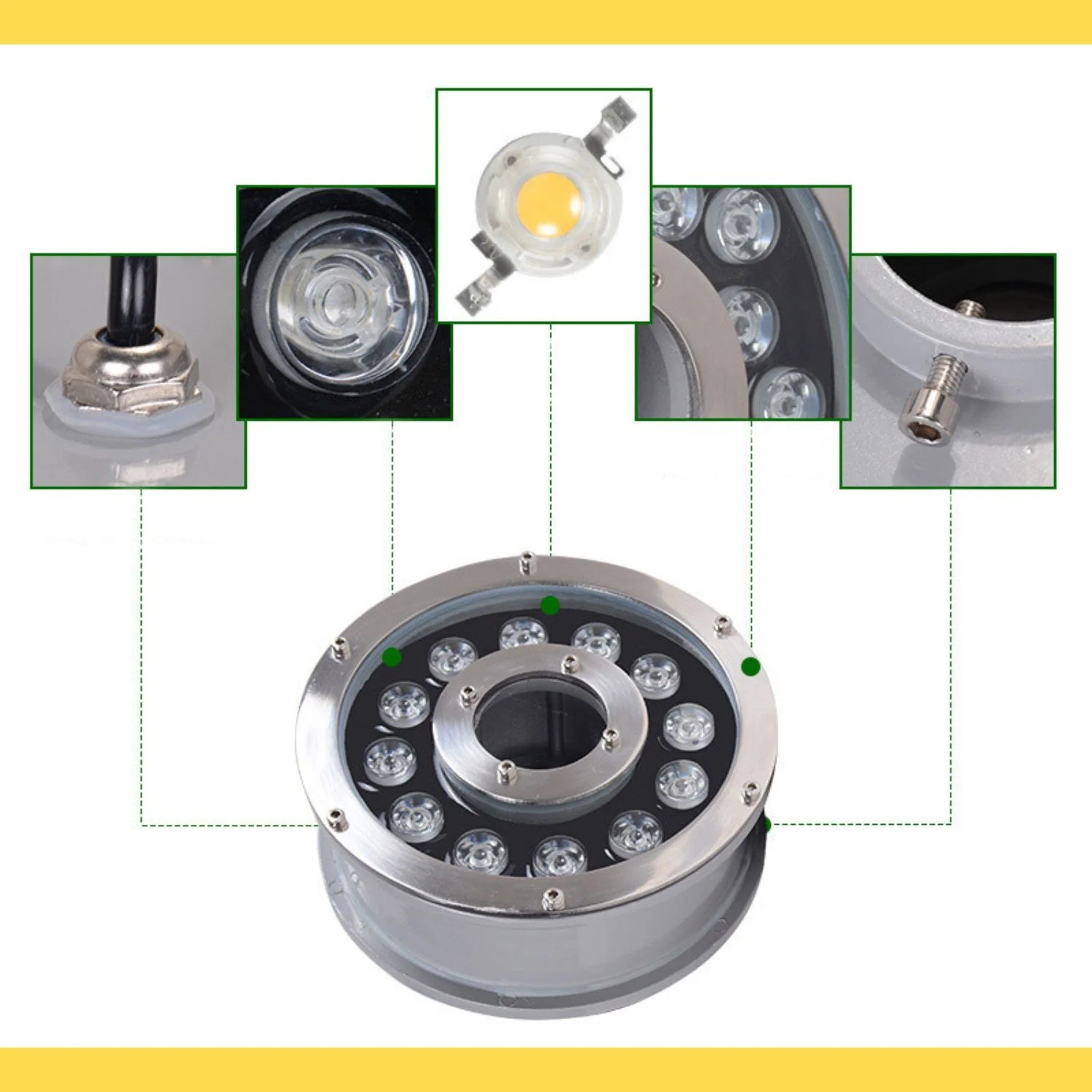

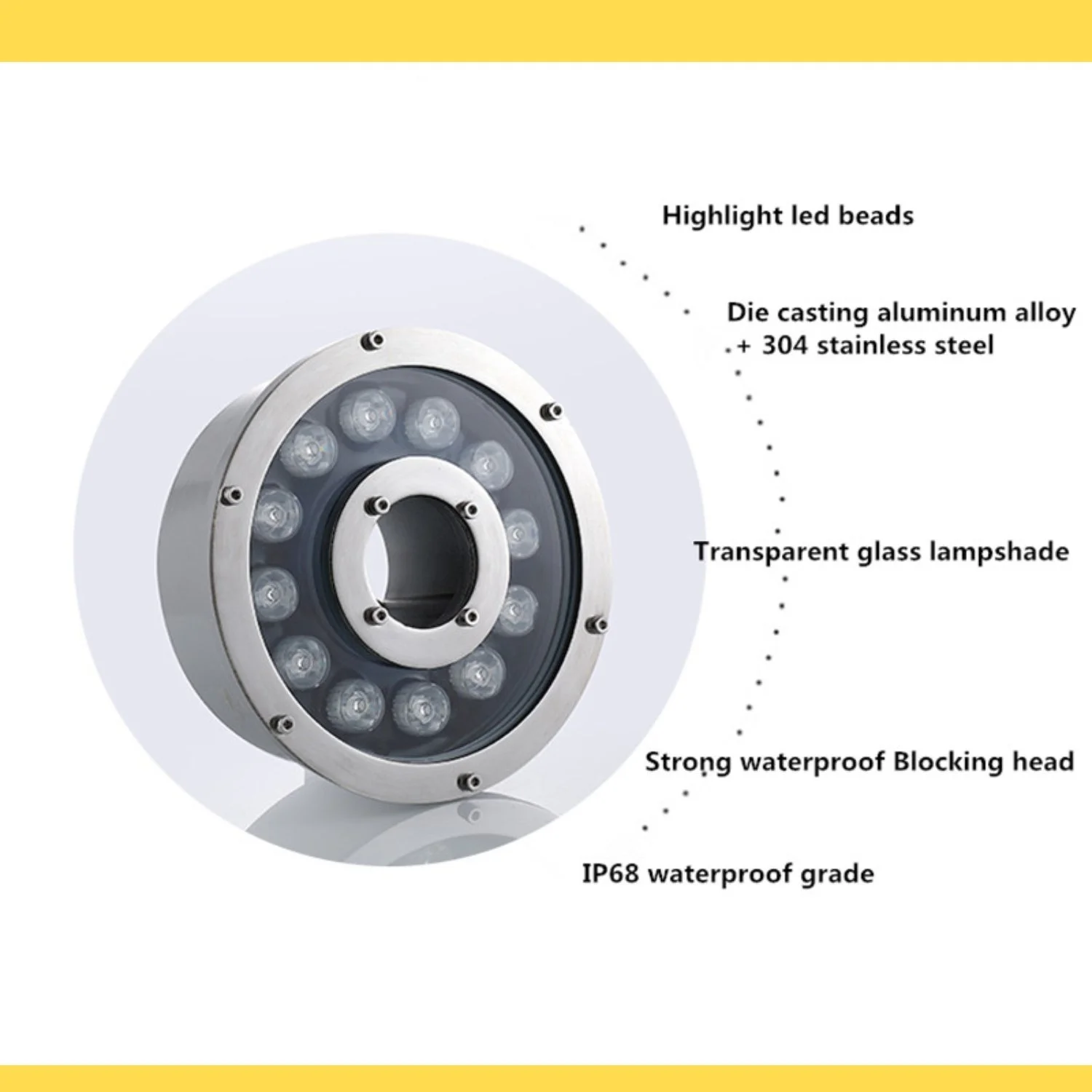

- Robust construction: 304 / 316 stainless steel top cover with aluminum body and clear tempered glass lens for corrosion resistance and long life.

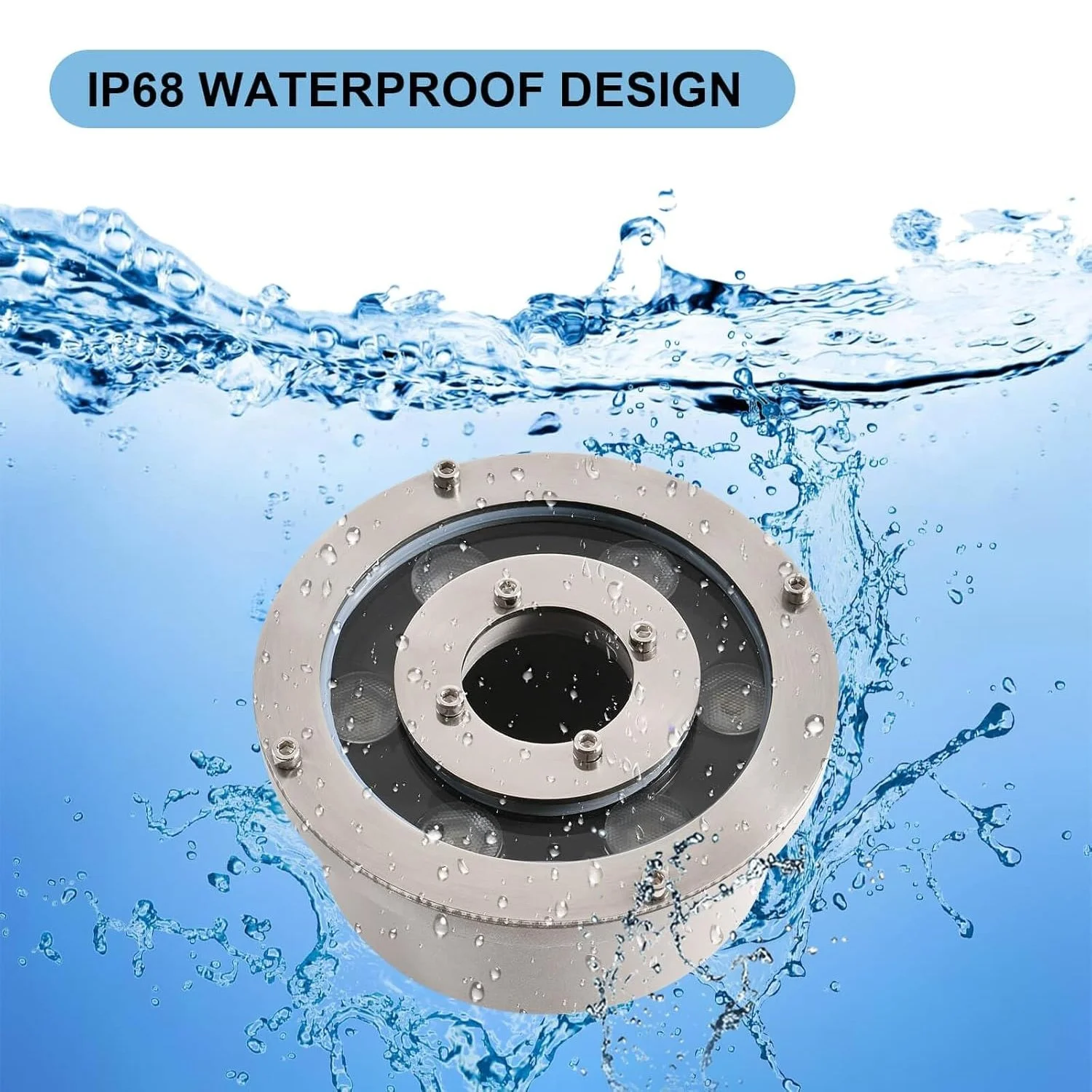

- Fully waterproof: IP68 rated for continuous submersion.
- Fountain-friendly design: central pass-through hole for fountain nozzles and plumbing.

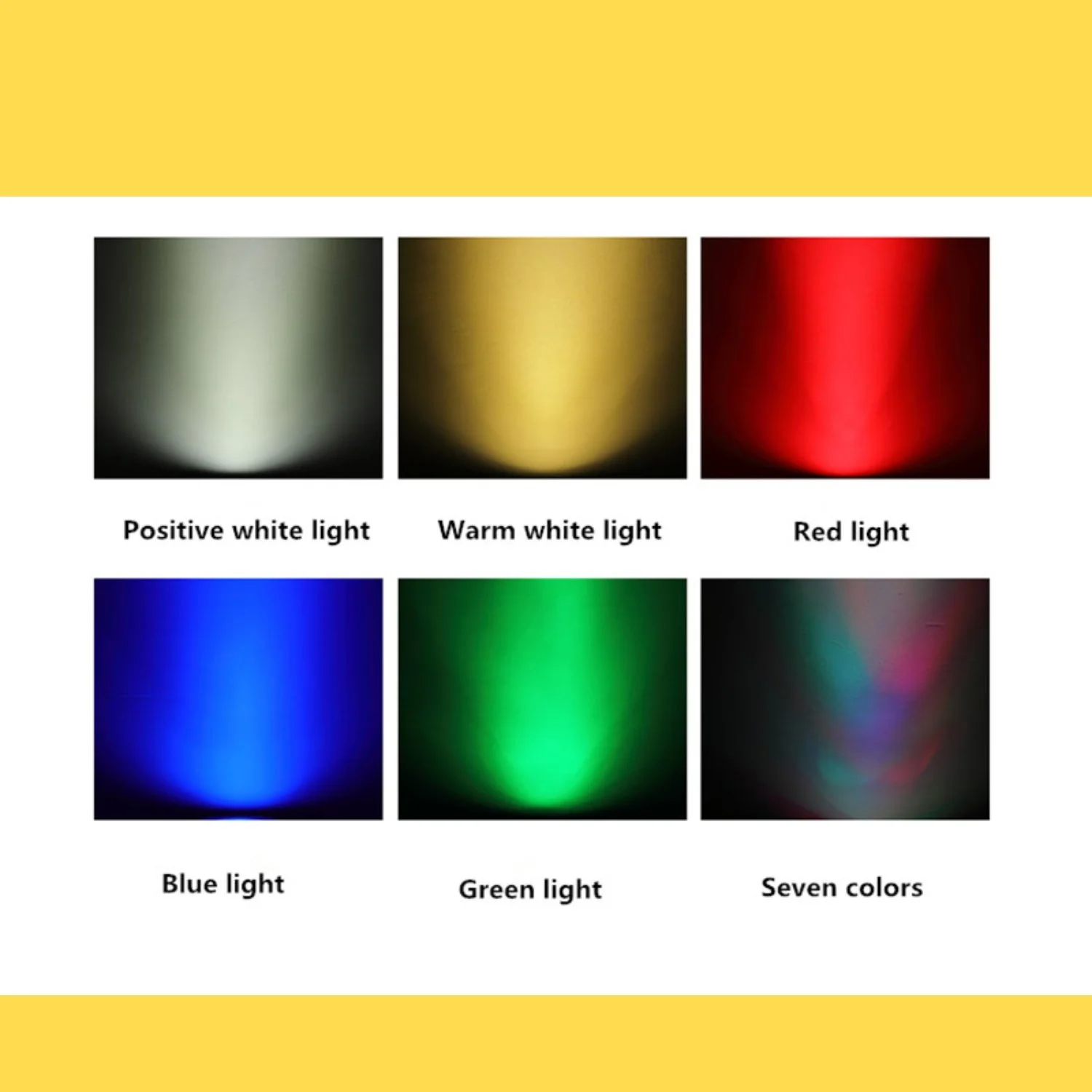

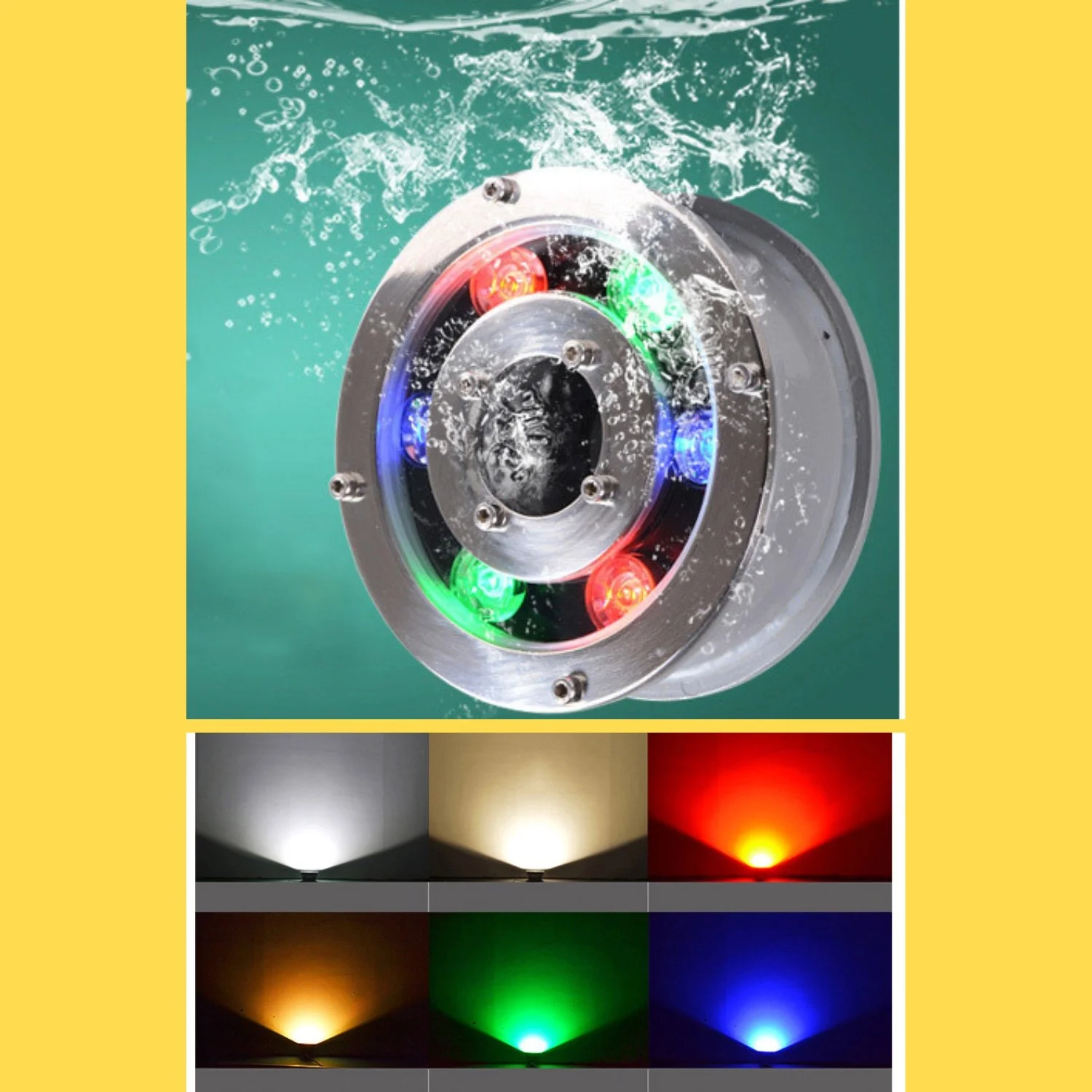

- Versatile color options: available in positive (cool) white, warm white, single colors (red, blue, green) and multi-color RGB / RGBW (seven-color) options.
- Professional-grade LEDs: Bridgelux / Epistar LED chips for high lumen output and consistent color.
- DMX512 control capable (or simple on/off) for advanced color scene programming.
- Multiple beam angles (10° / 15° / 25° / 30° / 40° / 45° / 60° / 90°) to shape the beam for washes or focused effects.

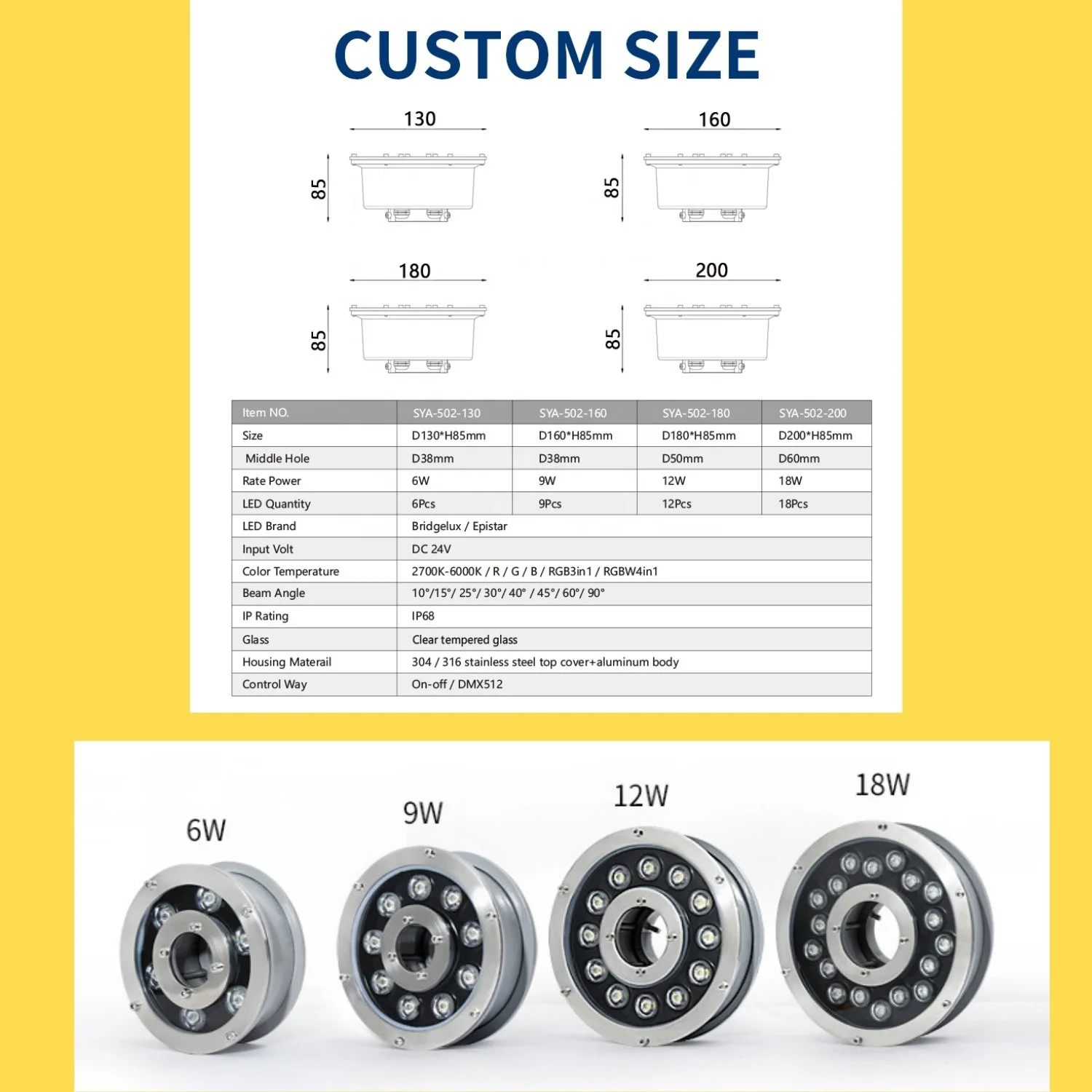

Technical specifications (models available):

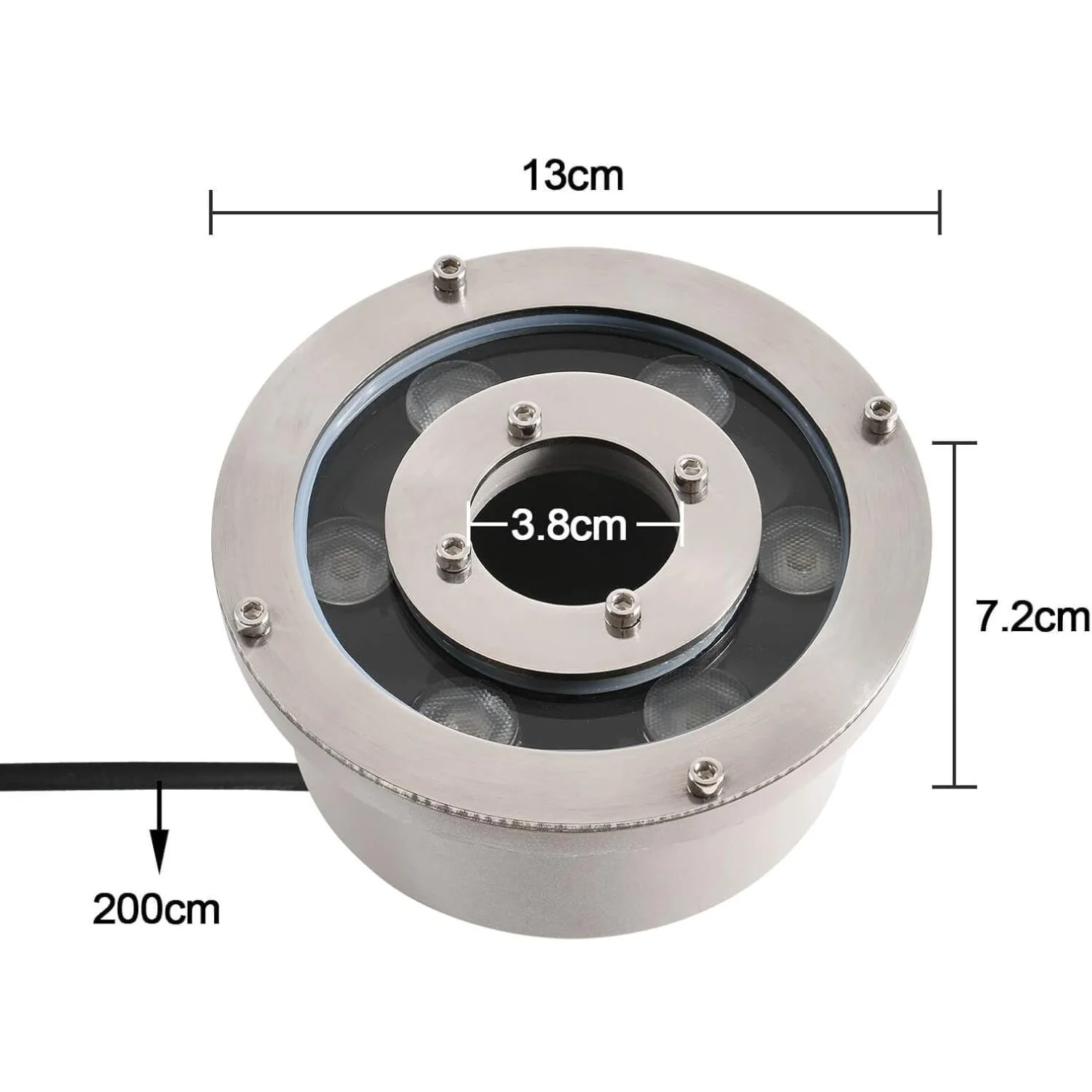

- Sizes (Diameter x Height): D130 x H85mm, D160 x H85mm, D180 x H85mm, D200 x H85mm
- Center hole diameters: 38mm (small sizes), 50mm, 60mm (larger sizes)
- Power options: 6W, 9W, 12W, 18W
- LED counts: 6 / 9 / 12 / 18
- Input voltage: DC 24V
- Color temperature: 2700K – 6000K (white options); RGB / RGBW for full color control
- Protection: IP68 waterproof grade
- Control: On-Off or DMX512
Applications:
- Fountain and jet lighting (central nozzle-compatible)
- Pond and pool accent lighting (submersible)
- Decorative wetland and landscape features
- Architectural uplighting in plazas, waterwalls, and reflecting pools
Installation & safety notes:
- Requires 24V DC power supply; use a suitable waterproof driver and cables rated for outdoor/submerged use.
- For DMX control, use appropriate controllers and isolation where required.
- Ensure proper sealing of cable gland and mounting to maintain IP68 performance.
- Professional installation recommended for permanent submerged installations.
Why choose ENDIzLED-163:
- Built specifically for water applications with a nozzle-friendly center and rugged stainless-steel finish.
- Flexible color and control options let you create simple mood lighting or dynamic DMX-driven shows.
- Multiple sizes and beam angles make it easy to tailor the fixture to the scale and effect you need.
Need help choosing the right model or configuring DMX scenes? I’m happy to recommend the best size, power and control setup for your fountain or pool — tell me the feature size and effect you want and I’ll guide you.
