Product: ENDIzLED-157 — Slim Silicone Recessed LED Channel

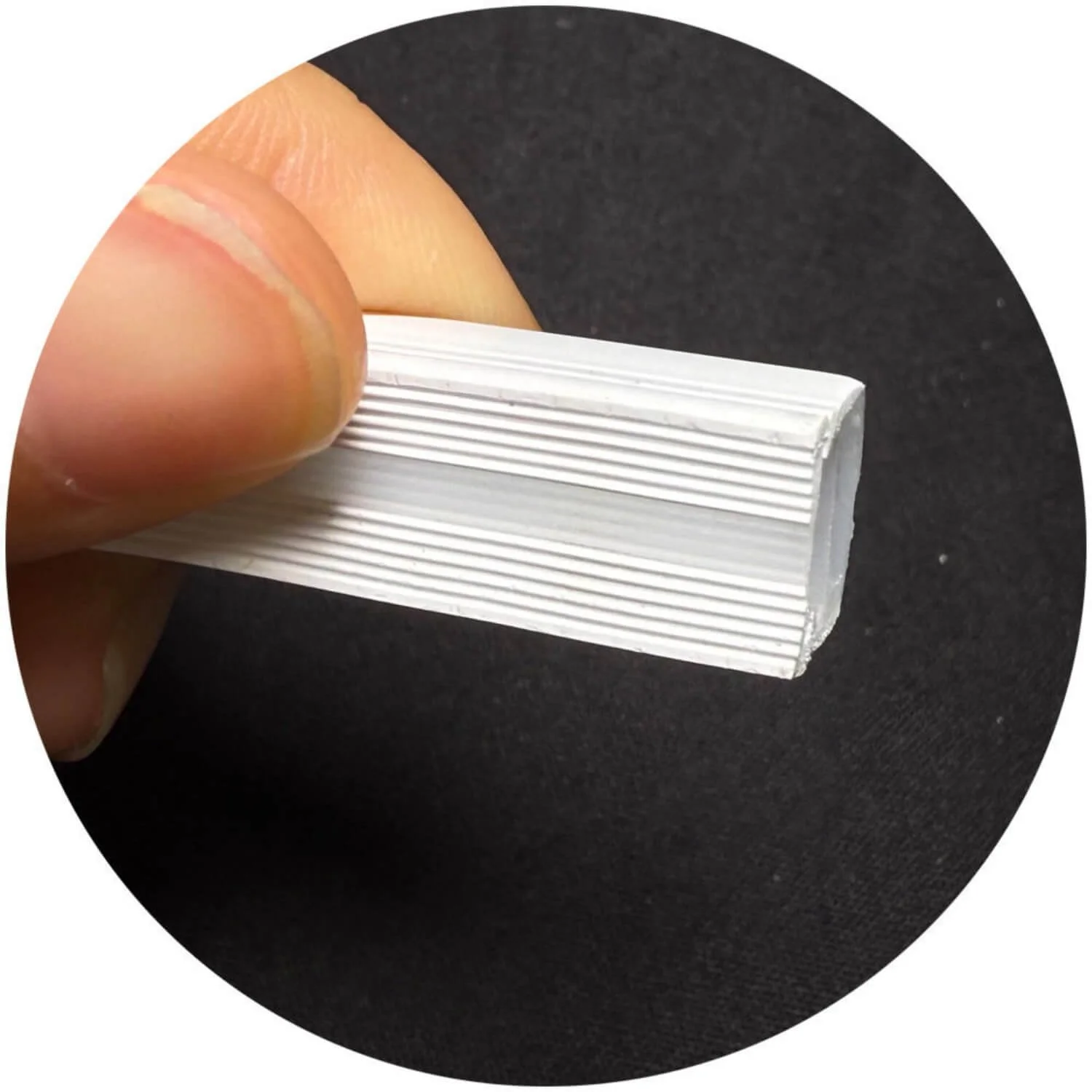

- ENDIzLED-157 is a compact, flexible silicone recessed channel designed to house and diffuse 24V LED strip lights. Its low-profile 10 x 10 mm form provides a clean, continuous glow while protecting strips from dust and moisture (IP65).
Key benefits
- Slim, discreet profile: 10 mm x 10 mm external size fits narrow slots and tight design details.
- Smooth, even diffusion: silicone cover eliminates hot spots for a softer, professional light line.
- Durable & waterproof: IP65-rated silicone protects LED strips from splashes and dust — great for kitchens, bathrooms, coves and accent lighting.

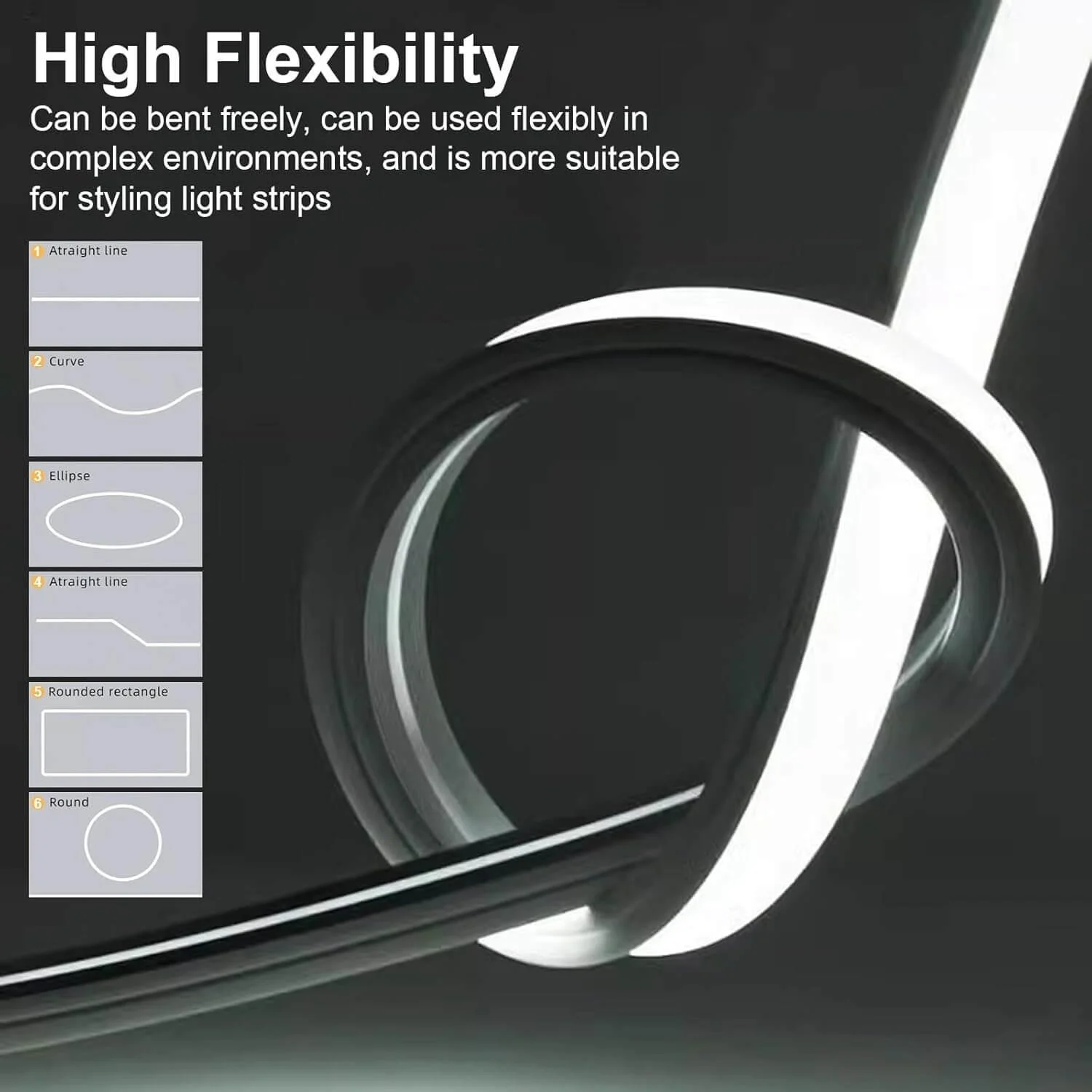

- Flexible & easy to shape: conforms to gentle curves for custom designs and continuous runs.
- Strip-friendly: accommodates common 24V LED strips and supports cutting increments of 5 mm for precise layout control.

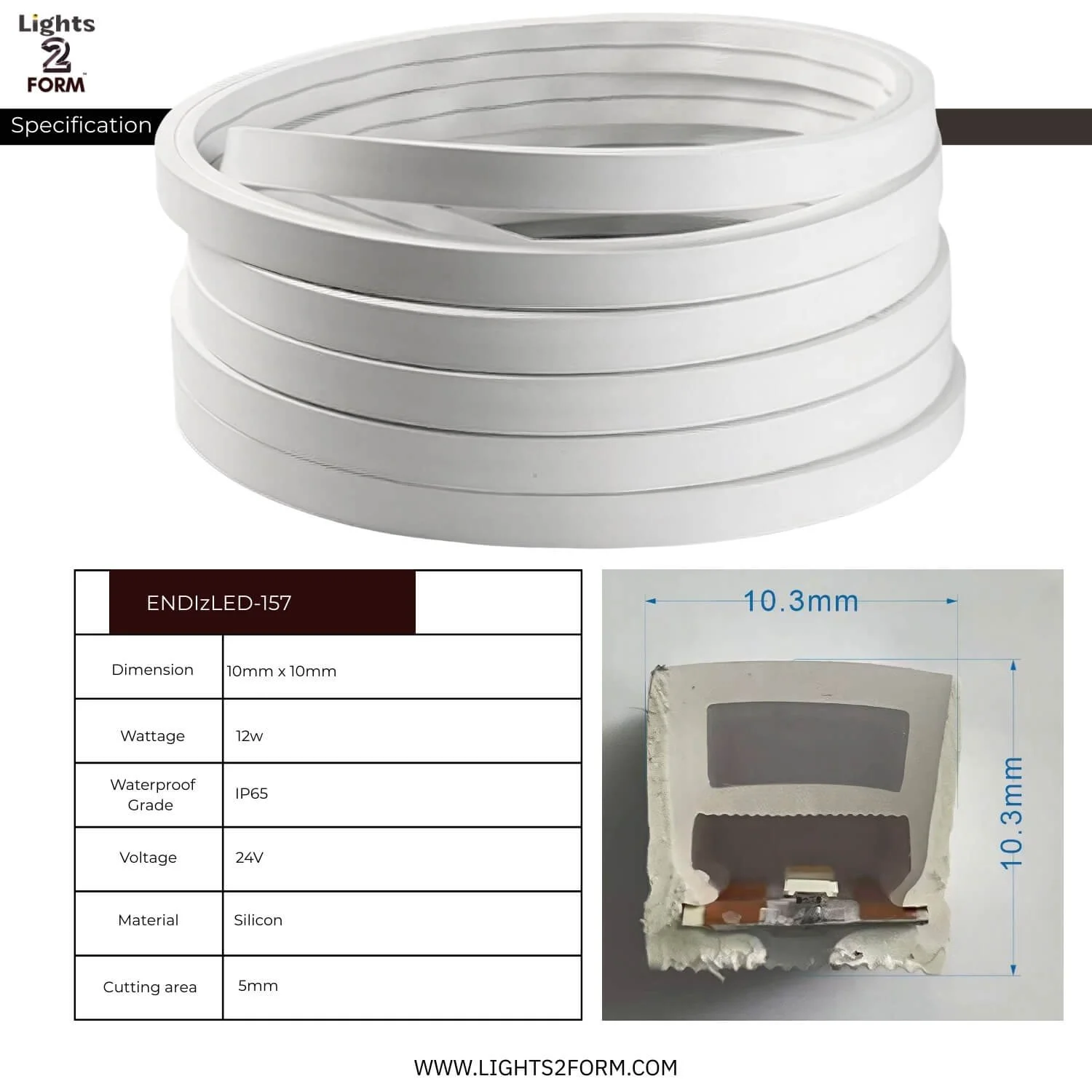

Technical specifications
- External dimension: 10 mm (W) x 10 mm (H)

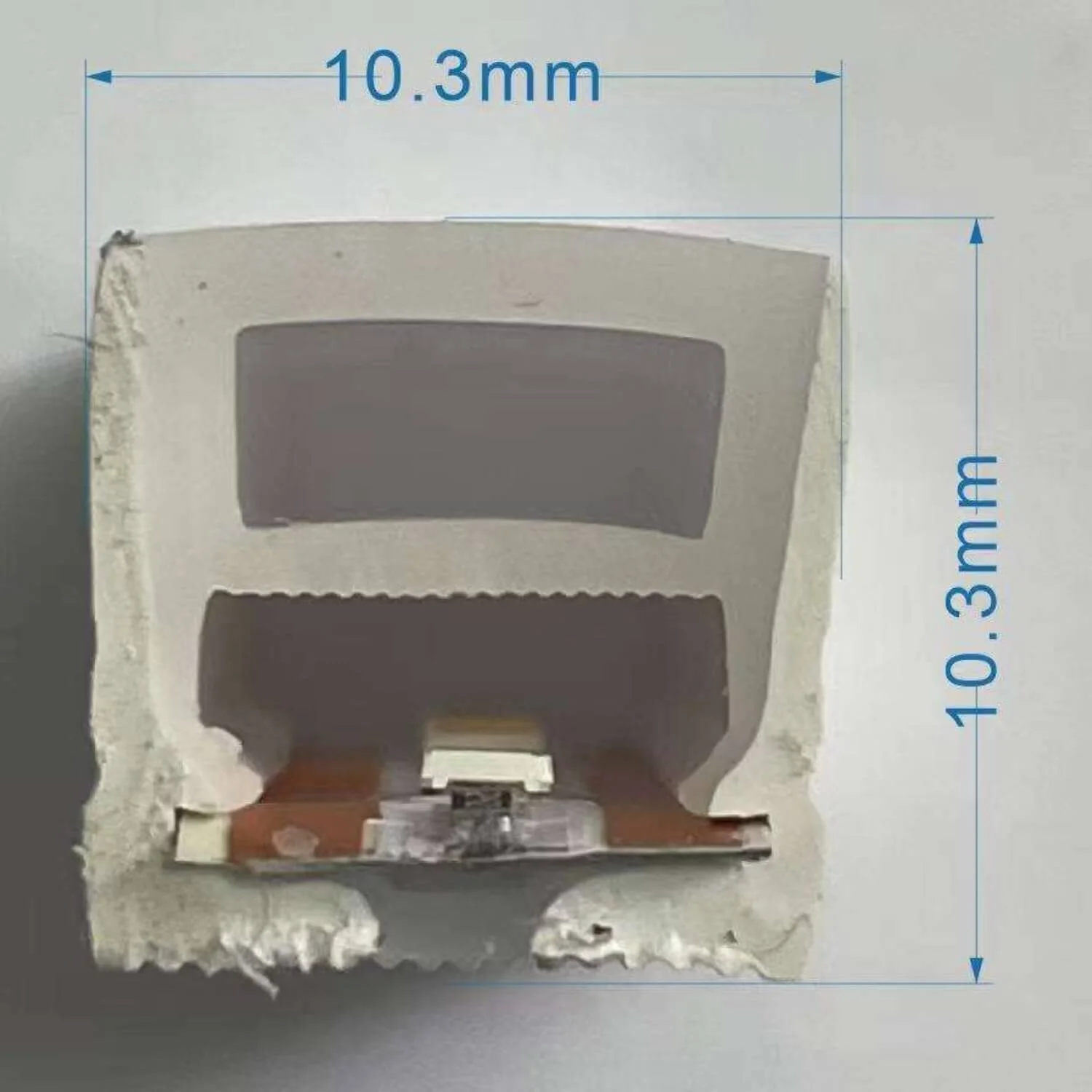

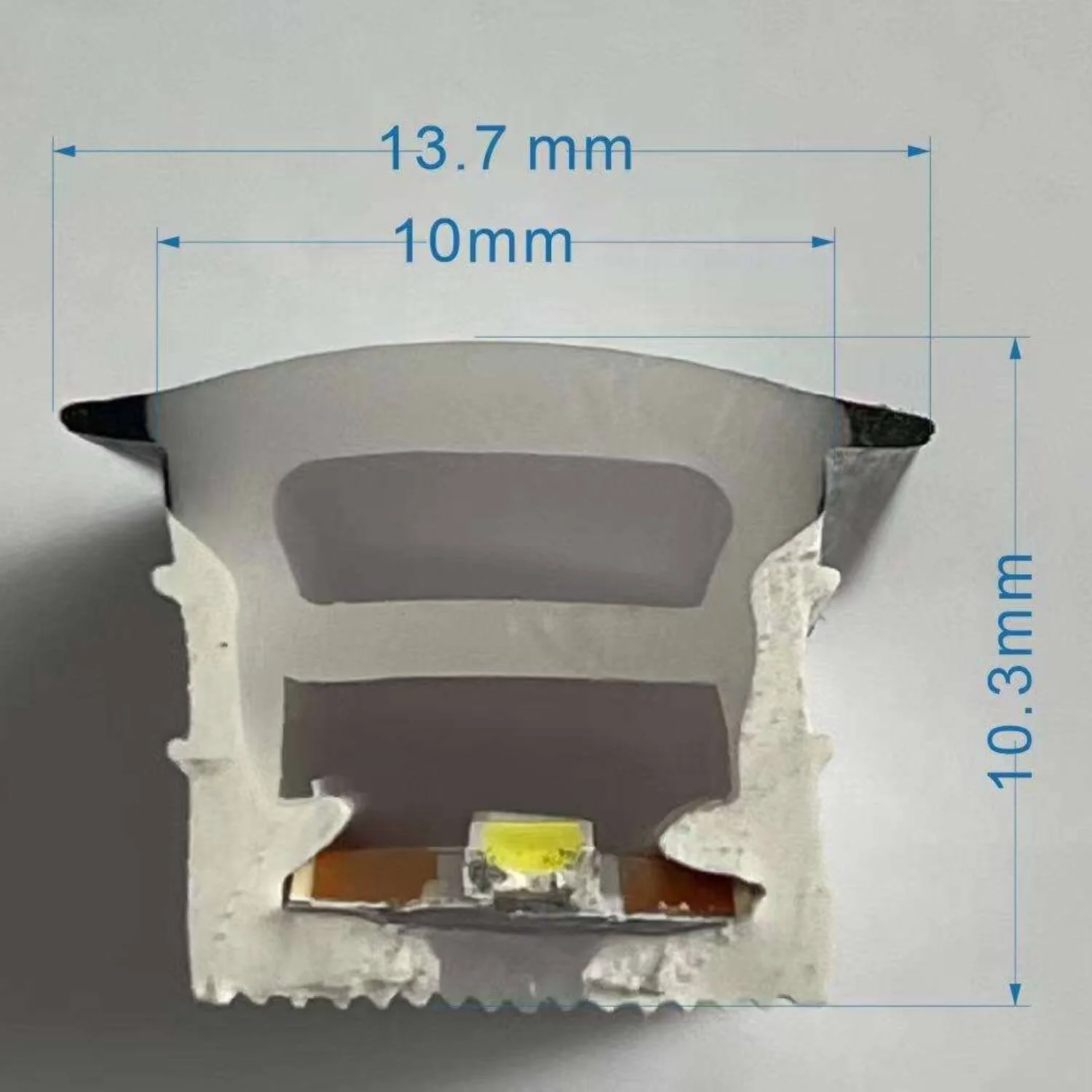

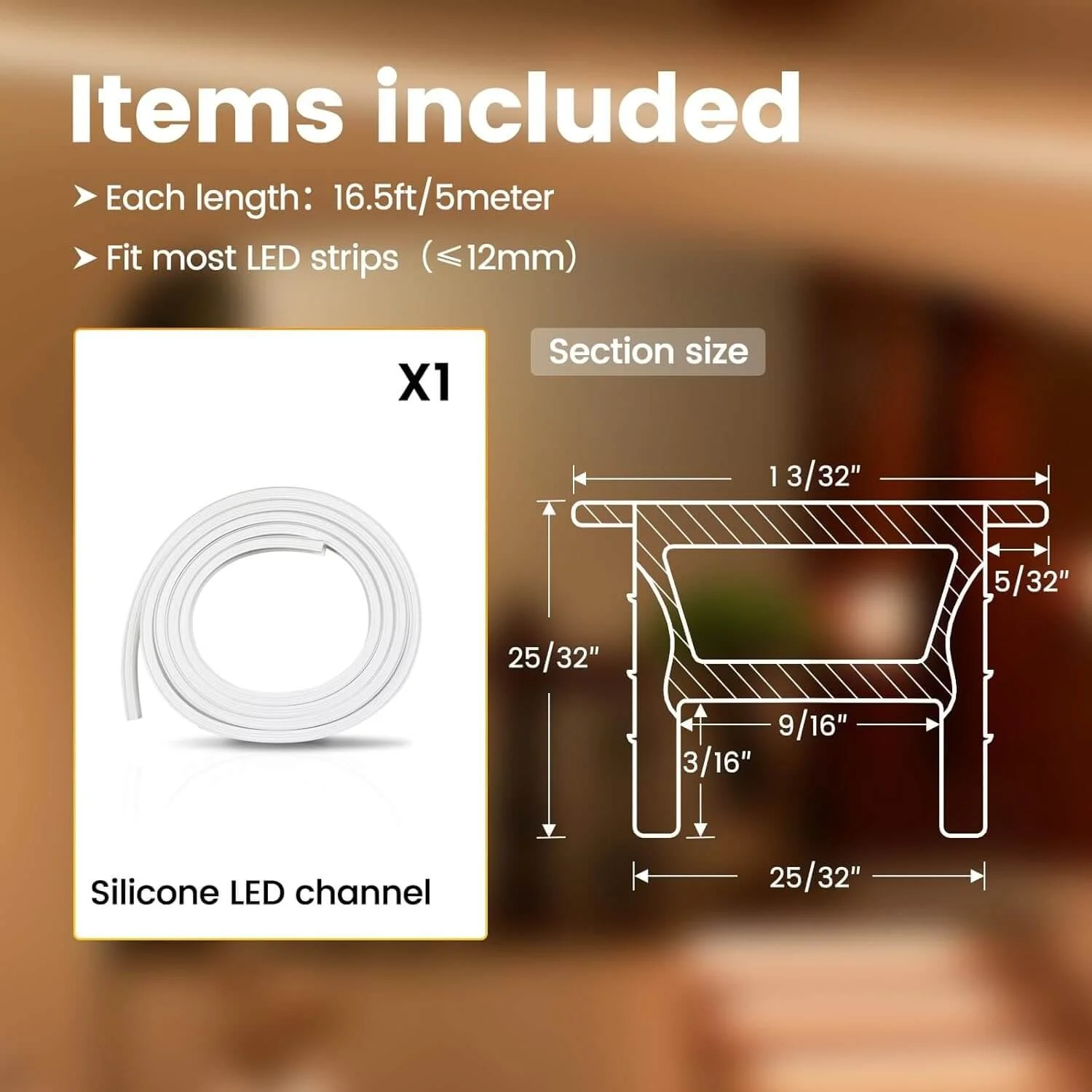

- Internal usable width (approx.): 10.3 mm (see cross-section image)
- Power handling: designed for 24V LED strips
- Rated wattage (channel guidance): 12 W (for typical 24V strip compatibility)
- Waterproof grade: IP65
- Material: High-grade silicone
- Cutting/segmentation guidance: 5 mm cutting area / compatible with strips cut every 5 mm

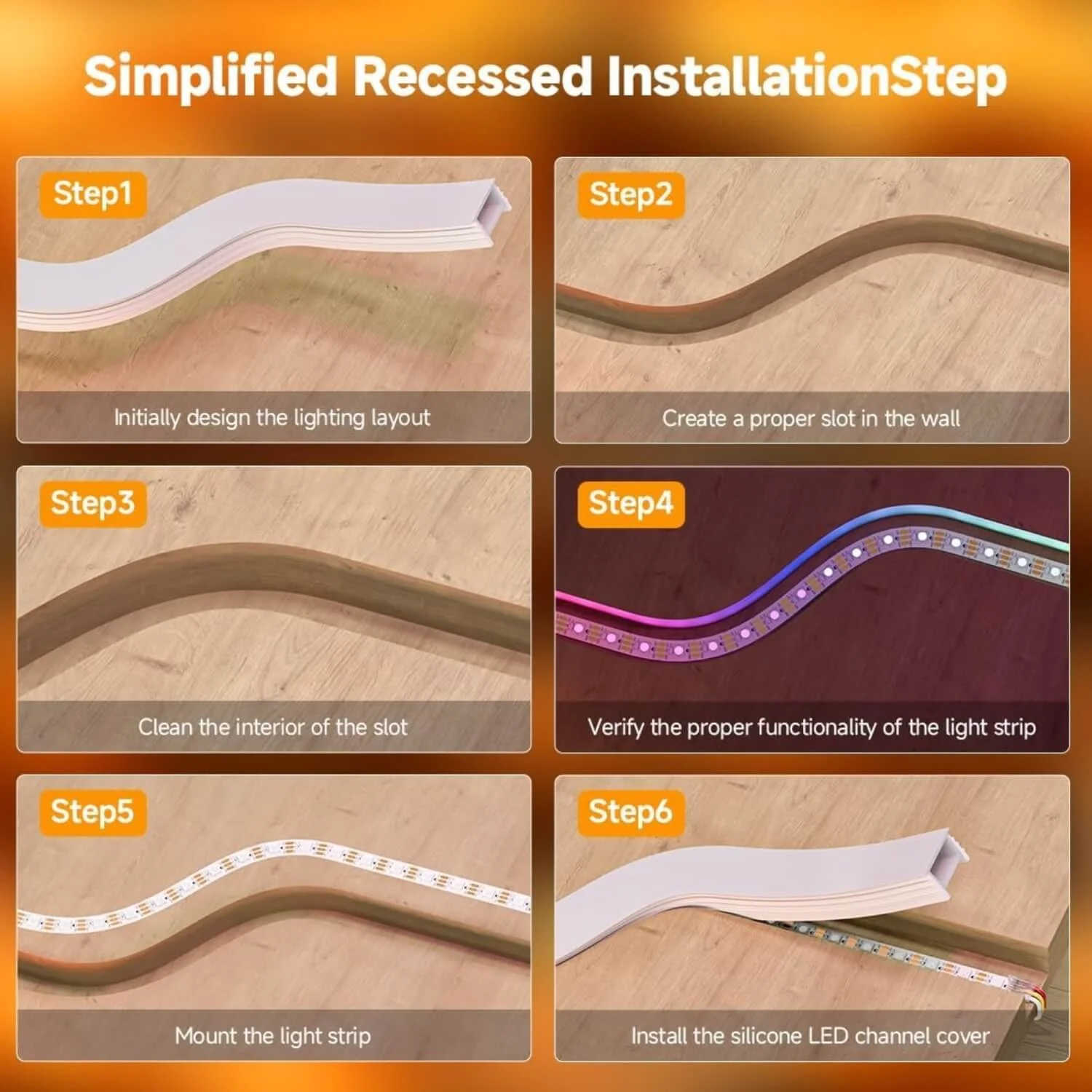

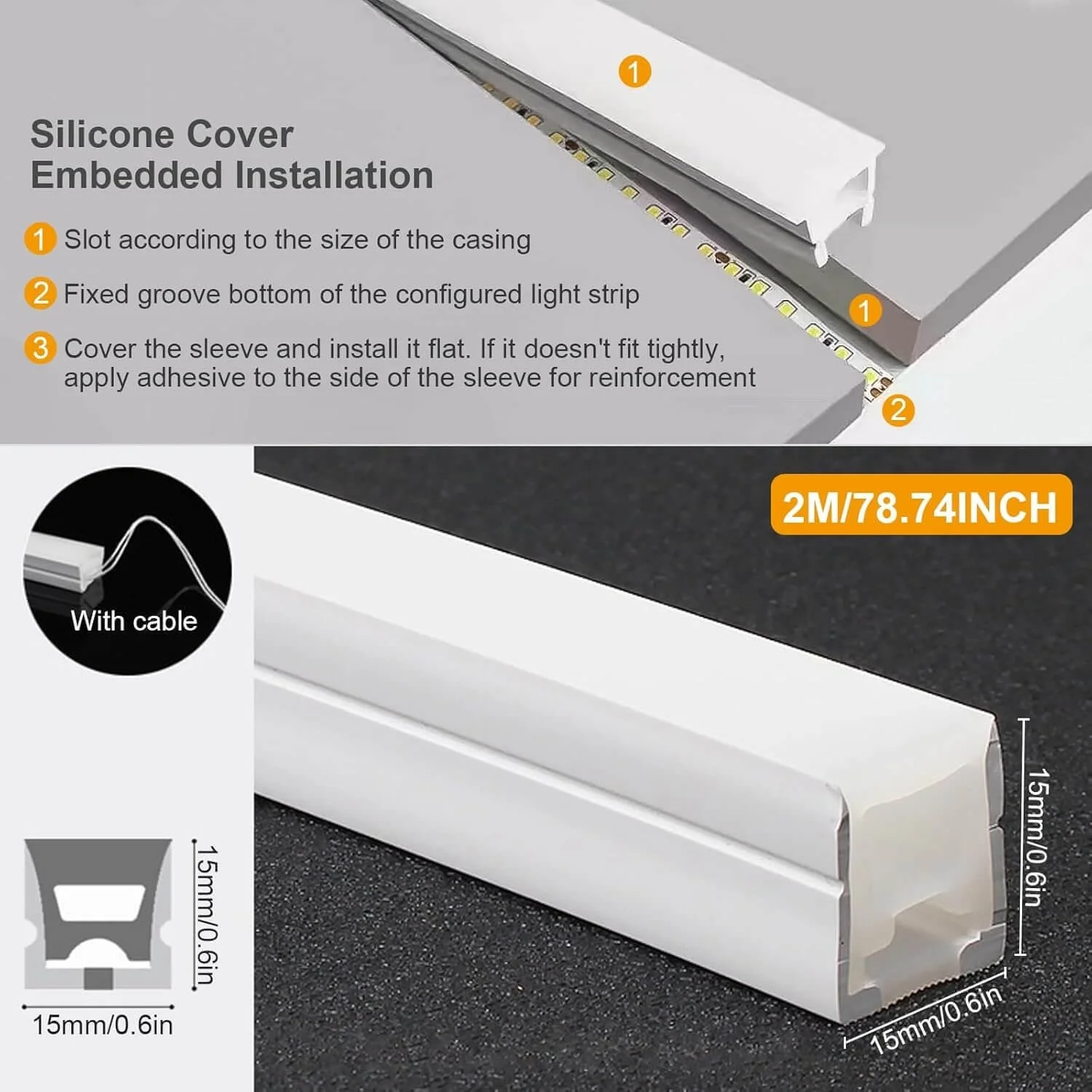

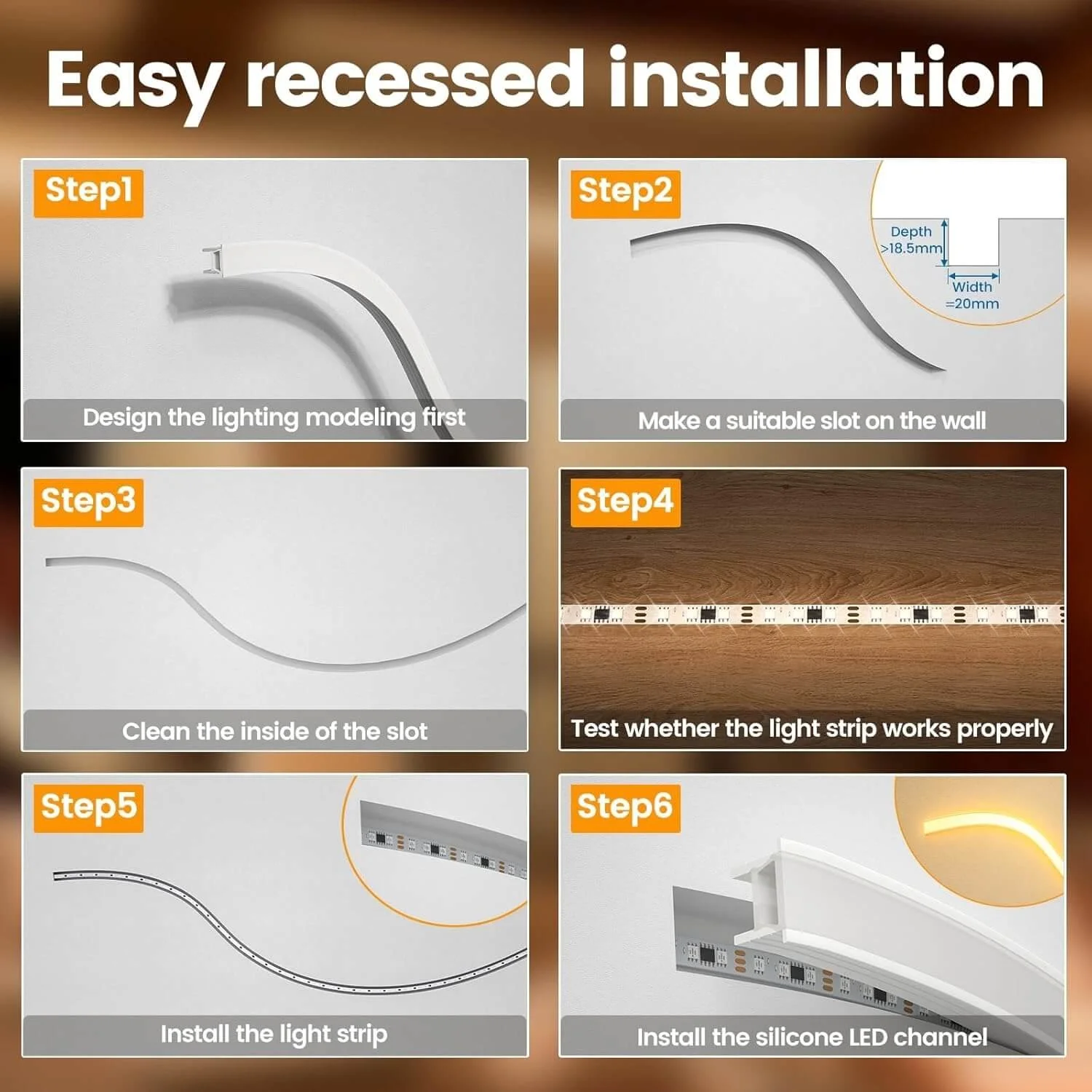

Recommended installation (simplified)
1. Plan your lighting layout and mark the slot path.
2. Create a recessed slot sized for your installation — images suggest a shallow recess; a typical wall slot recommendation is approx. 20 mm wide and ≥18.5 mm deep for recessed mounting (verify for your wall type).
3. Clean the inside of the slot thoroughly.
4. Test the LED strip to confirm proper operation before final placement.
5. Lay and secure the LED strip into the slot (use recommended adhesive or mounting tape).

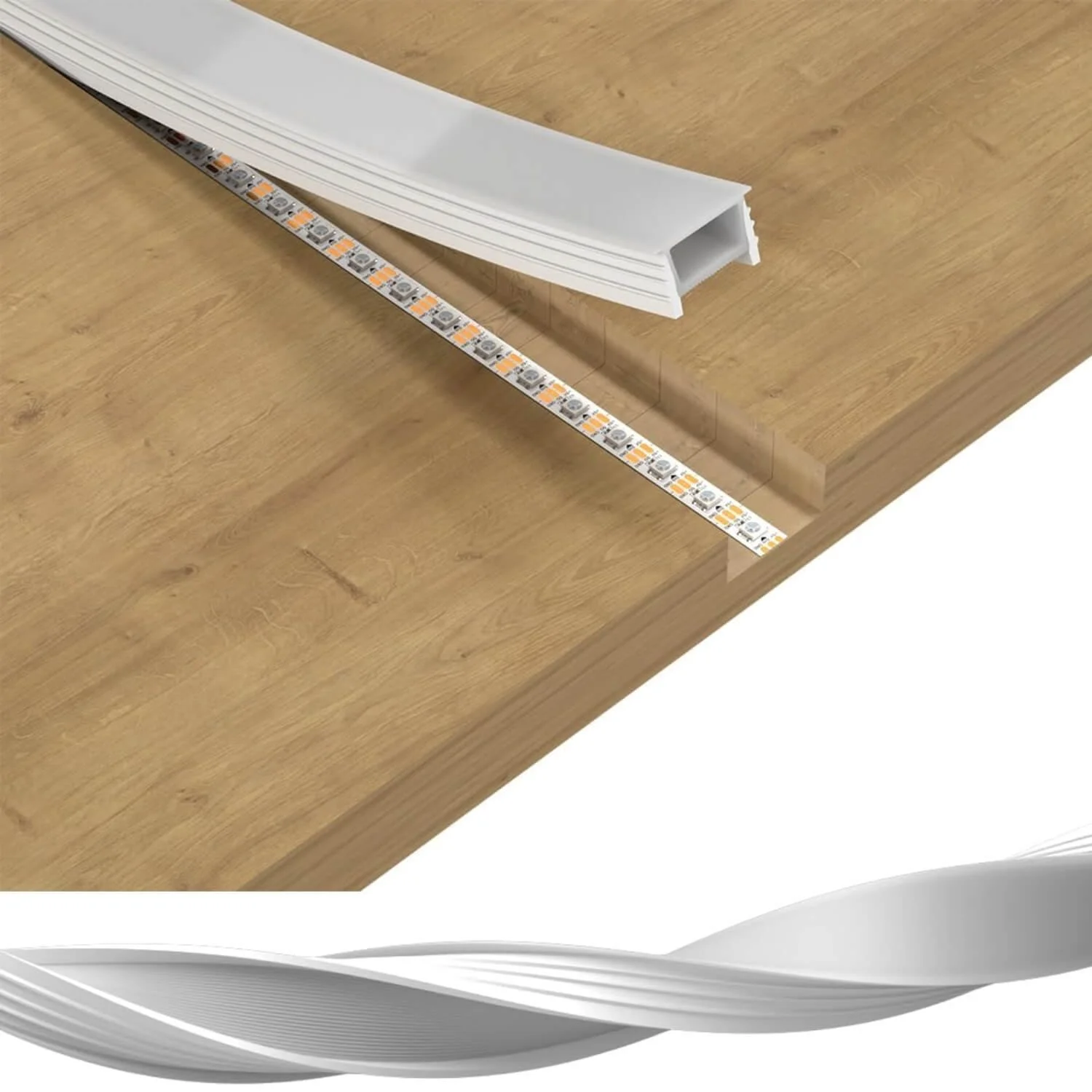

6. Snap or press the ENDIzLED-157 silicone channel into place over the strip to finish.

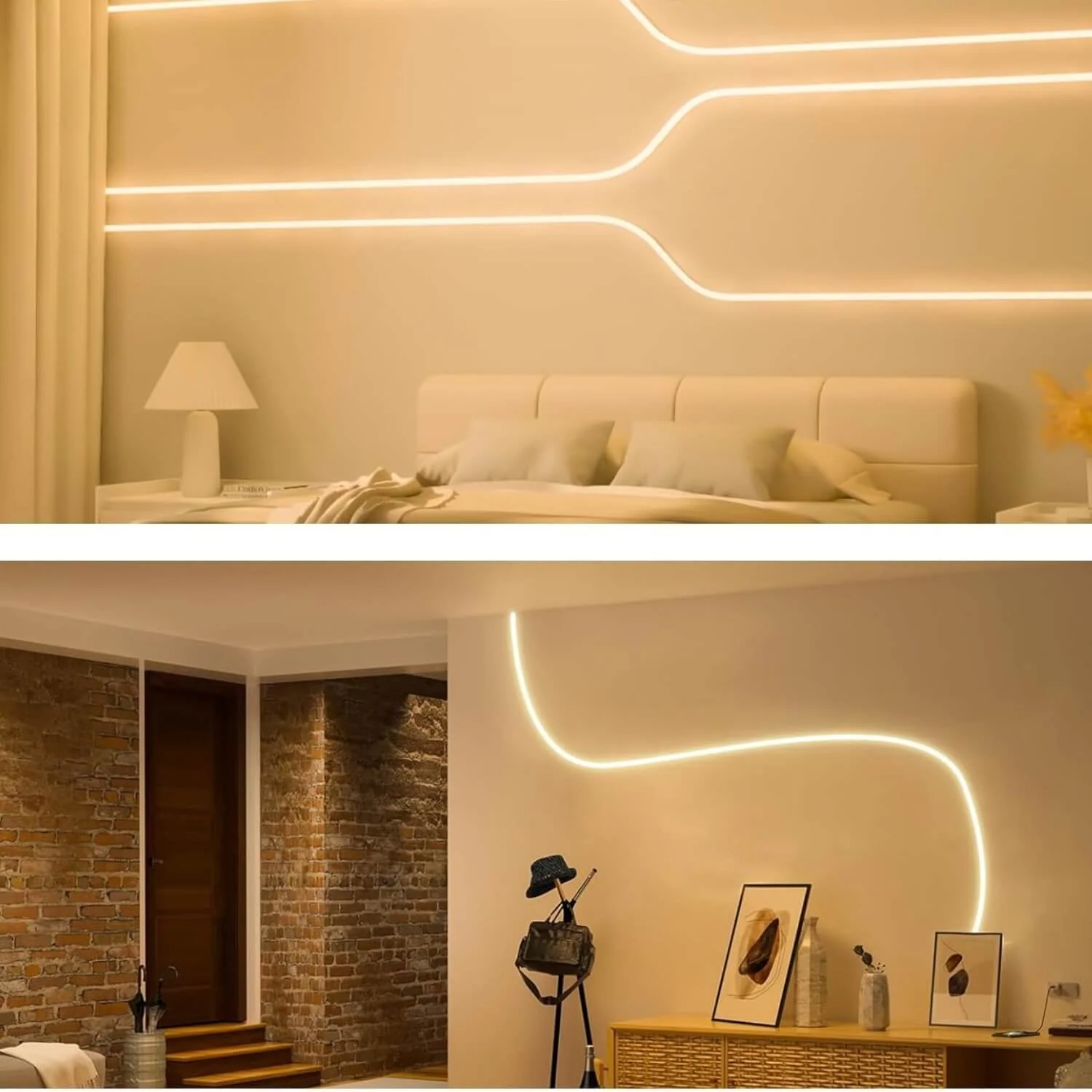

Ideal applications
- Cove and perimeter lighting
- Under-cabinet and task lighting
- Stair and hallway accent lighting
- Commercial signage and display outlines
- Anywhere a narrow, continuous light line is desired, indoors or in semi-wet environments
Compatibility & tips
- Use with 24V LED strips that are cuttable in 5 mm increments.
- For best diffusion and lowest hotspot, choose LED strips with closely spaced LEDs.
- When planning recessed installations in drywall, plaster or wood, confirm slot dimensions and backing support for a snug fit.
- If you need to run the channel outdoors or in direct water exposure, verify overall system waterproofing beyond the IP65 silicone channel.
Why choose ENDIzLED-157
ENDIzLED-157 combines a minimal footprint with professional diffusion and IP65 protection in a flexible silicone body — perfect when you want a refined, continuous light line without bulky profiles. It’s engineered for easy recessed installation and versatile design use across residential and commercial projects.
