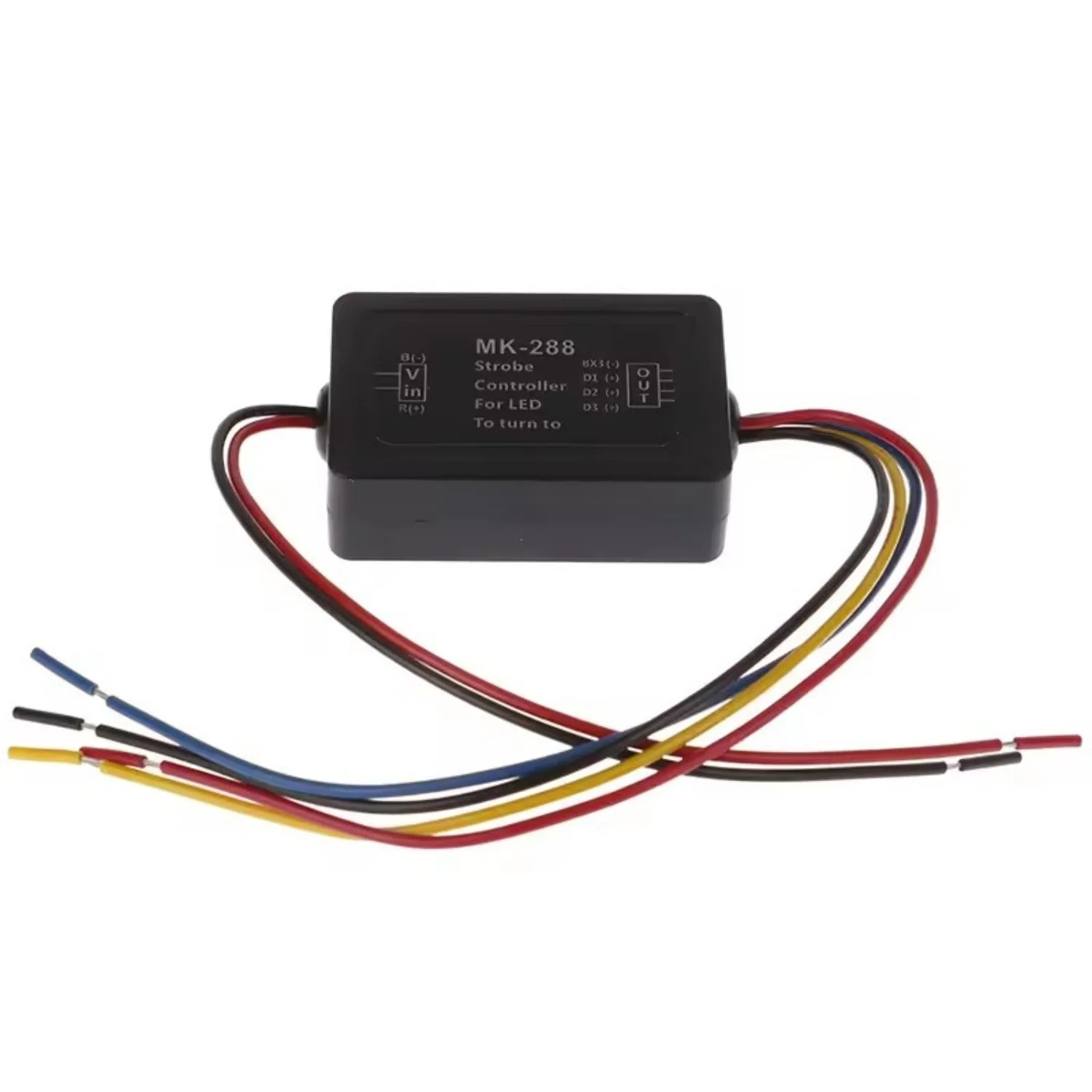

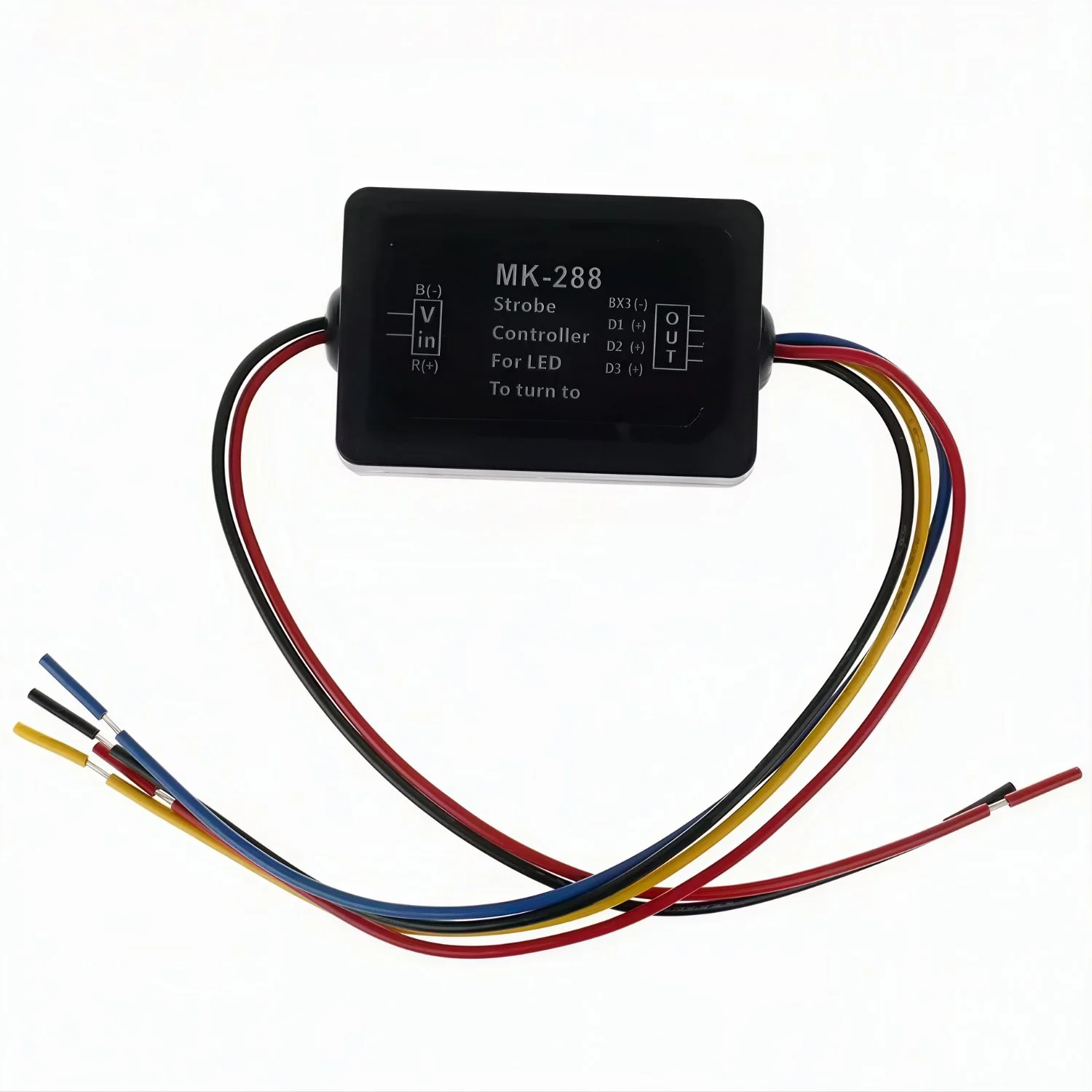

ENDIzLED-149 — Compact Multi‑Channel LED Blinking / Flashing Controller
- ENDIzLED-149 is a compact, pre-wired LED strobe/flashing controller designed to drive multi-channel LED setups with crisp, eye-catching blink and flash patterns — ideal for signage, decorative lighting, automotive accents, and small stage effects.
Key features
- Multi‑channel outputs: Color‑coded leads provide separate channel outputs (label indicates D1, D2, D3), enabling dynamic alternating or simultaneous flashing across multiple LED groups.

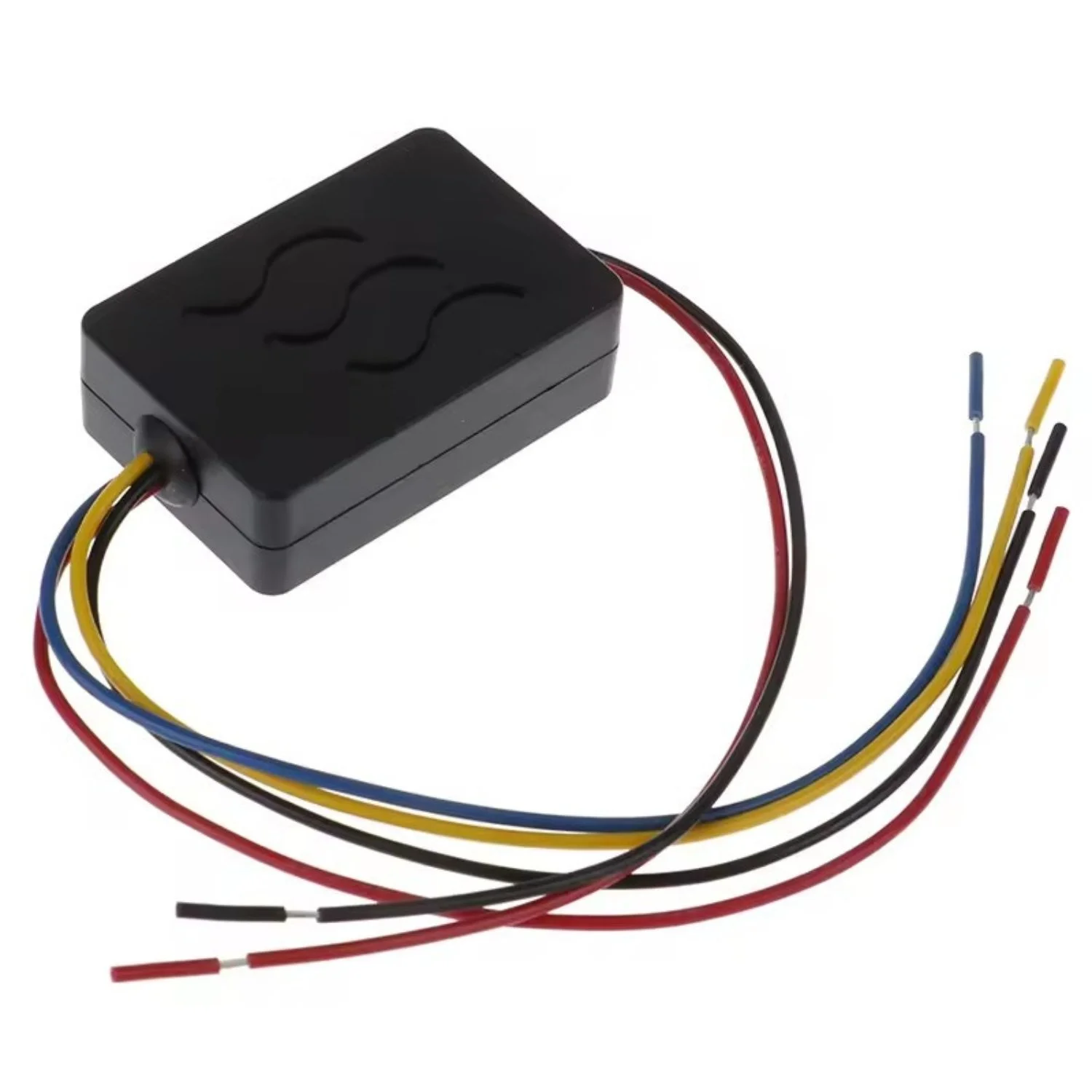

- Ready‑to‑install: Rugged plastic enclosure with factory‑terminated wires for fast mounting and wiring.
- Pre‑programmed flash modes: Built‑in strobe and flash patterns for instant visual effects (no programming required).
- Compact footprint: Small module fits inside housings, light boxes, or behind panels.
- OEM & customization services: Manufacturer offers PCB, BOM, and mold customization options for volume projects (see supporting images).

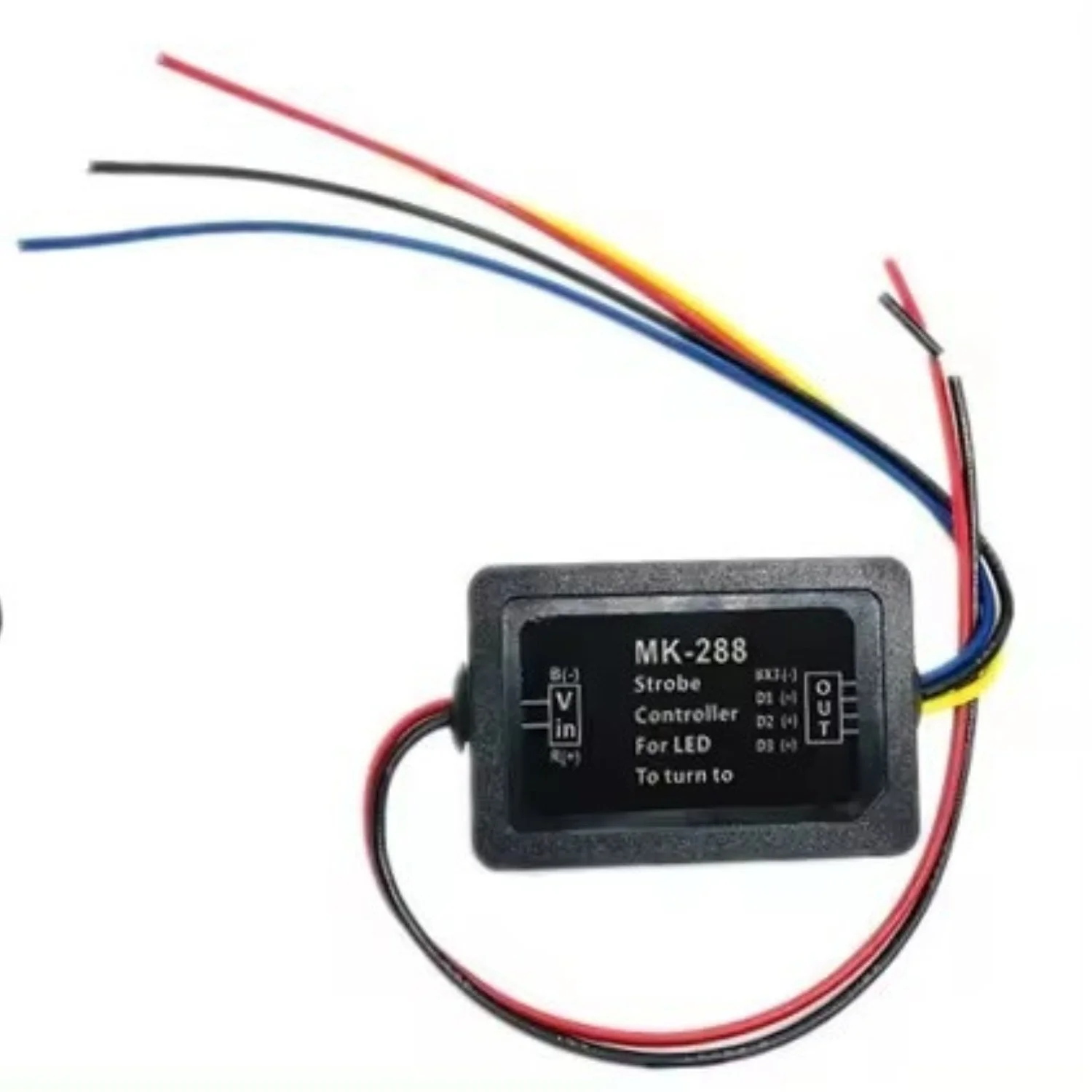

Wiring (observed on unit — please verify with your supplier/datasheet before powering)
- Red = VIN (positive supply input)
- Black = GND (negative / common)
- Other colored wires (e.g., yellow, blue, etc.) = channel output positives (D1, D2, D3)
- Connect the LED module positive to the channel output lead and LED negative to the controller GND. Confirm polarity and voltage compatibility before connecting.
Installation & usage tips
- Confirm input voltage and per‑channel current limits with seller or product datasheet before use (many similar controllers are commonly used with 12 V DC systems).
- Use appropriate fusing and wiring sized to the LED load.
- Mount the unit away from direct moisture and excessive heat; secure wiring to prevent strain on terminals.
- Test pattern operation with low-power loads before final installation.
Typical applications
- Retail and architectural signage lighting
- Decorative and holiday lighting
- Automotive and motorcycle accent lights (where regulations permit)
- Stage accents, props, and small theatrical effects
- Prototyping and small lighting projects
Why choose ENDIzLED-149
- Fast install with color-coded leads, versatile multi-channel effects, and compact design that hides easily behind fixtures. Manufacturer support and customization options make it a good fit for small production runs and bespoke lighting solutions.
