ENDIzLED-141: LED PLC Lights “Dual Pin”
- The ENDIzLED-141 is a high-efficiency plug‑in LED retrofit lamp designed to replace compact fluorescent plug‑in lamps (PL/GX24/GX23/G24 families) with a direct plug‑and‑play upgrade. Its slim, linear LED array provides uniform, glare‑controlled illumination for downlights, recessed fixtures, pendant fixtures and decorative luminaires.
Key benefits
- Plug-and-play retrofit: Directly replaces common plug‑in CFLs—fast swap with no re‑wiring required.
- Energy savings: Significantly lower power draw compared with equivalent CFLs while delivering bright, consistent light.
- Robust thermal design: Aluminum body with PC cover for efficient heat dissipation and even light distribution.
- Wide input range: Works with AC100–265V systems for flexible installation.
- High color quality: CRI > 80 for accurate color rendering in residential and commercial spaces.
- Rotatable bases available: Base can be rotated 360° for aiming and fitment flexibility (various pin/base options).

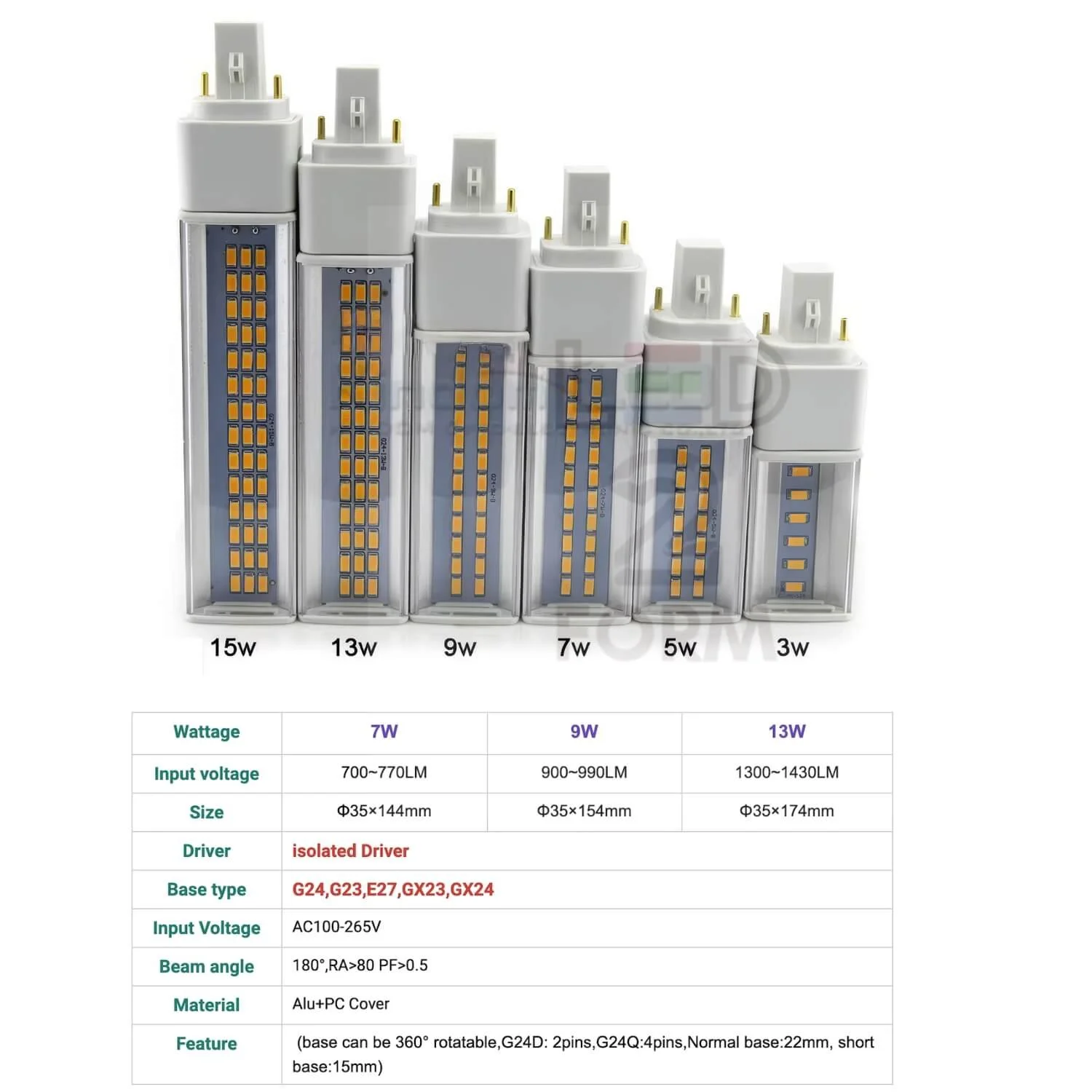

Available sizes & typical lumen output (select models)
- 3W, 5W, 7W, 9W, 13W, 15W lineup for different lumen and fixture needs.
- Example lumen guide (factory spec examples):
- 7W → ~700–770 lm (Φ35×144 mm)
- 9W → ~900–990 lm (Φ35×154 mm)
- 13W → ~1300–1430 lm (Φ35×174 mm)
Technical highlights
- Driver: Isolated driver for reliable performance
- Input voltage: AC100–265V
- Beam angle: ~180°
- Power factor: > 0.5
- Material: Aluminum body + PC cover
- Base types: G24, G23, E27, GX23, GX24 (G24D: 2‑pin, G24Q: 4‑pin; normal base 22 mm, short base 15 mm)
- Feature: Base options can be 360° rotatable for easier alignment
Ideal applications
- Recessed downlights and can lights
- Ceiling fixtures and troffers
- Pendant luminaires and hospitality lighting
- Residential living rooms, kitchens and dining areas
- Retail and office spaces where CFL retrofits are required
Ordering & support
- Available in multiple wattages and base configurations—please specify desired wattage, base type and color temperature when ordering.
