ENDIzLED‑310 — Petal Street Lamp
Product overview

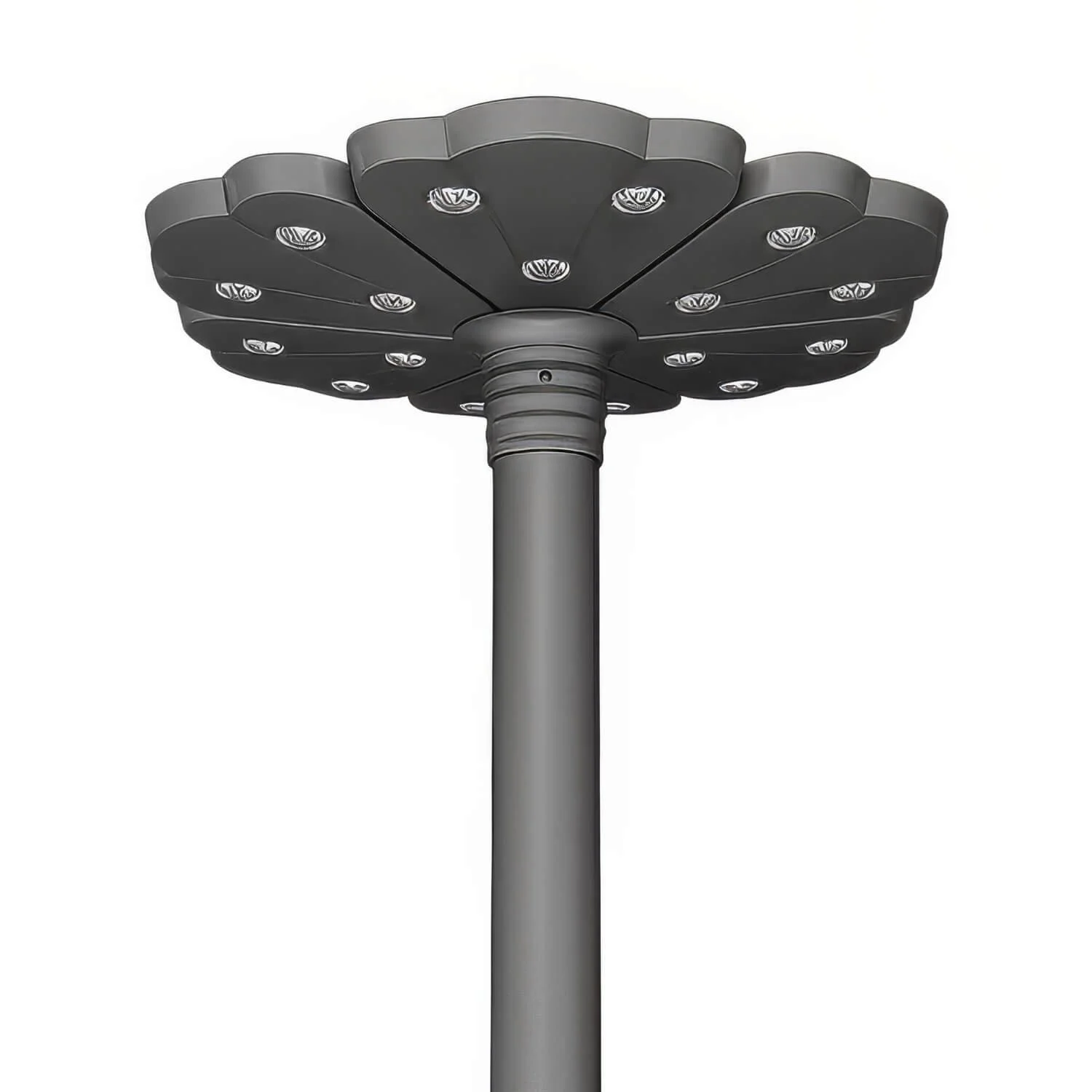

- The ENDIzLED‑310 is a high‑output, architecturally styled pole/top‑mount LED luminaire with a modular “petal” array. It pairs sleek, die‑cast aluminum construction with high‑efficiency optics for uniform area and roadway lighting while adding a refined aesthetic to streetscapes, parks, plazas, campuses and commercial developments.
Why customers choose ENDIzLED‑310
- Elegant, contemporary design that blends with urban and landscaped environments.
- High luminous output and flexible optics deliver bright, uniform illumination with minimal glare.
- Rugged construction and wide operating temperature range for reliable outdoor performance.
- Multiple electrical and control options make it easy to integrate with new or retrofit projects.
Key features & benefits

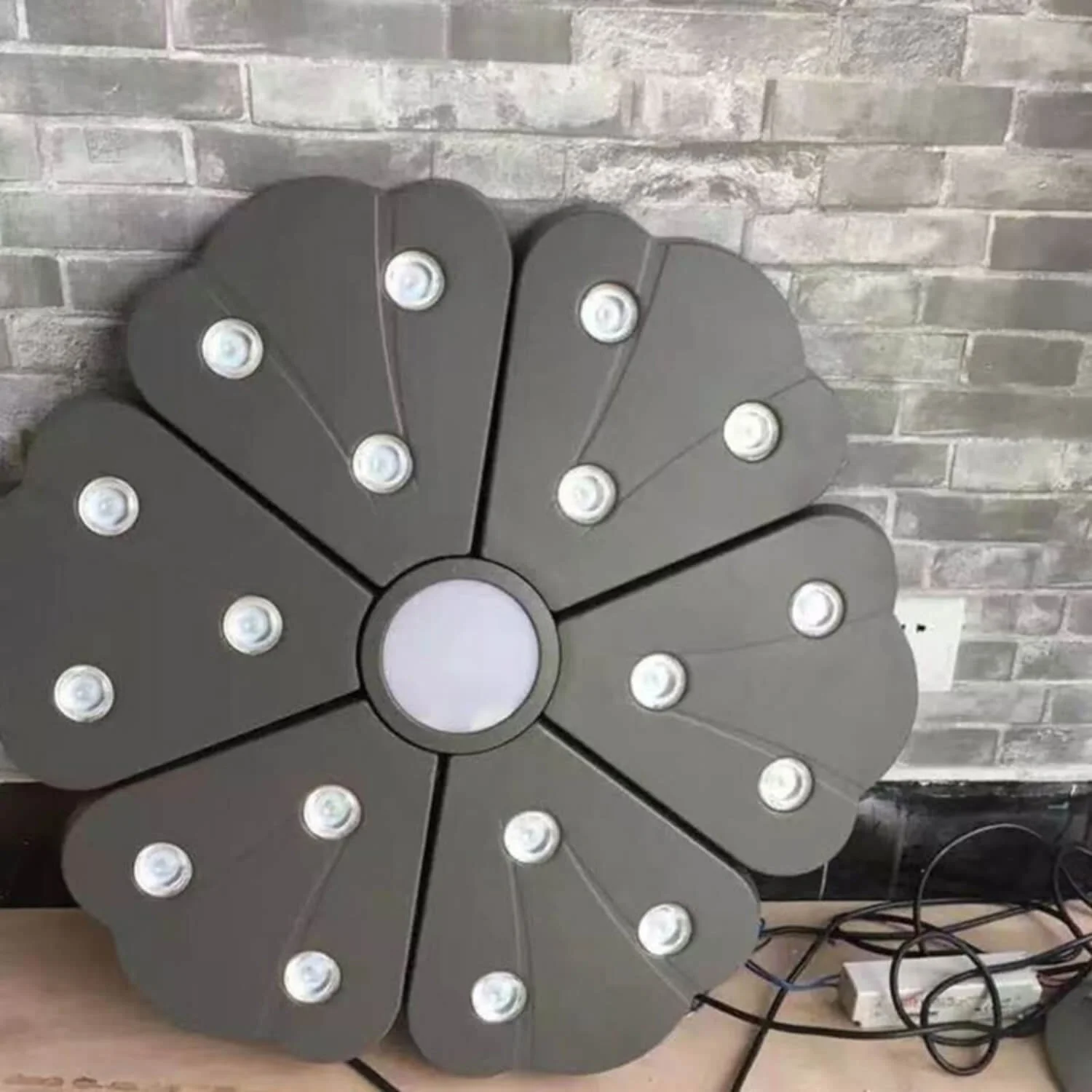

- Distinctive modular “flower” head — attractive form factor with evenly distributed LED nodes for balanced illumination.
- High efficacy (typical 125–180 lm/W depending on LED bin and driver) for lower energy use and quick ROI.
- High lumen packages — examples up to ~21,600 lm for larger configurations.
- Wide input voltage support and customization: standard 100–277 VAC (50/60 Hz); options include 347–480 VAC or AC 85–265V depending on project.
- Color temperature: 2200–6500 K (custom options available) to match ambient lighting needs.
- Beam options: Type II/III/IV/V and wide Type V or custom optics to suit roadway, area, or pedestrian lighting.
- Durable materials: die‑cast aluminum housing with PC optics/aluminum shade for long life and corrosion resistance.
- IK09 impact resistance and optional surge protection (10 kV / 20 kV) for harsh outdoor environments.
- Long life: rated >50,000 hours; typical MTBF supports multi‑year installations.
- Smart/controls compatibility: supports Meanwell or customized drivers, dimming and remote control; integrates with Alexa, Google Assistant, Nest, SmartThings, Wink, GoControl when paired with compatible controllers.
- Certifications: RoHS, ETL, CCC, CE, SAA (certifications may vary by configuration).

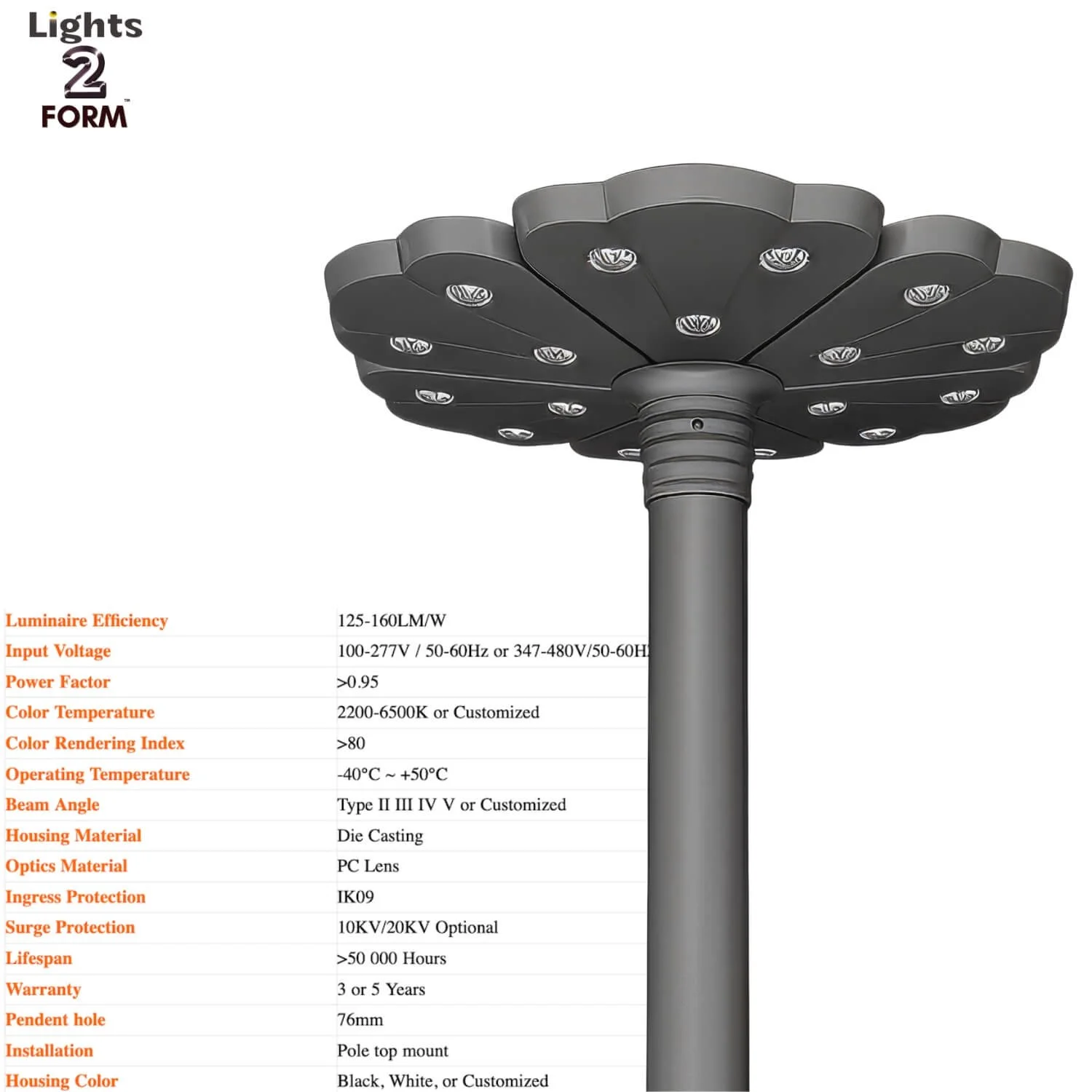

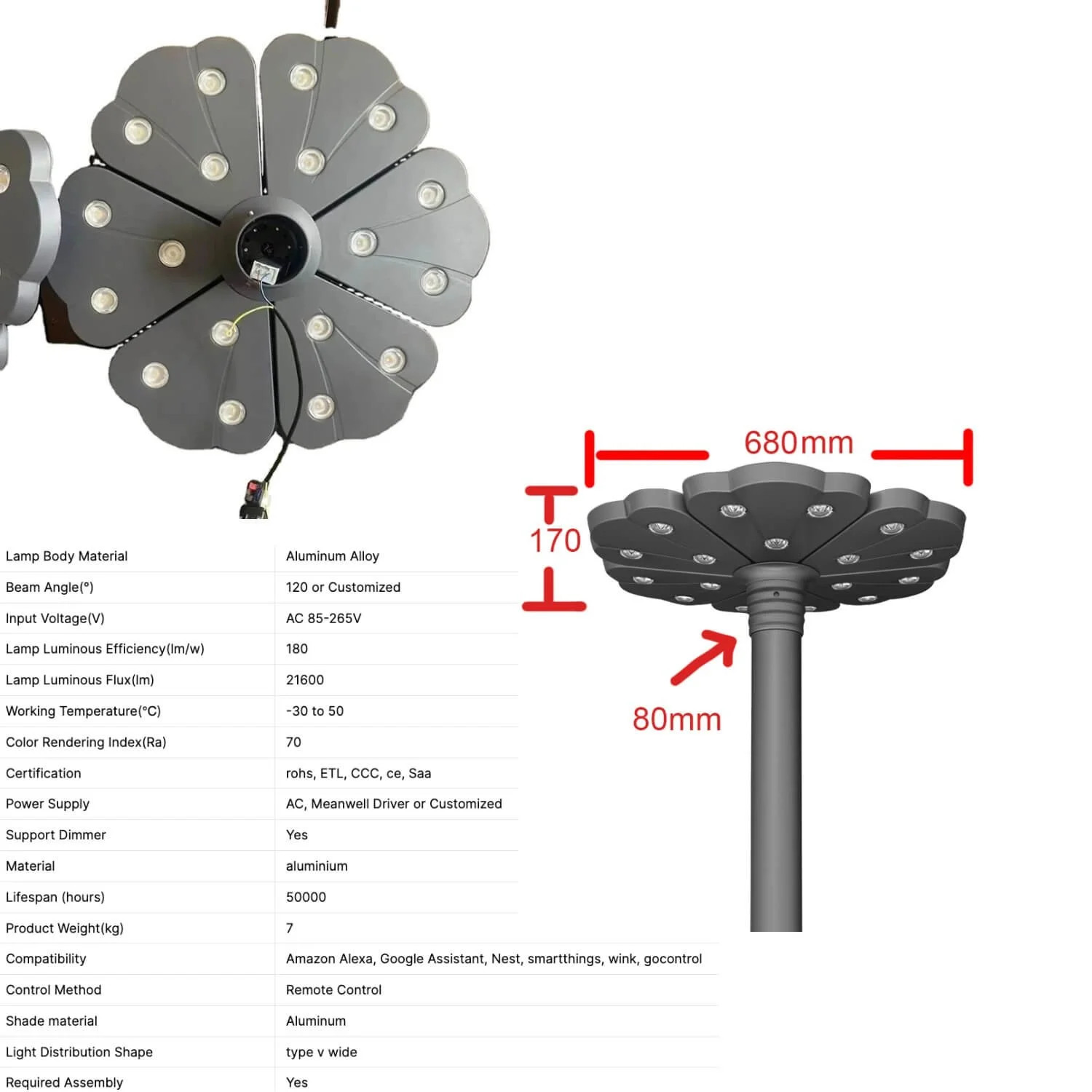

Typical technical specifications (representative — confirm on order)

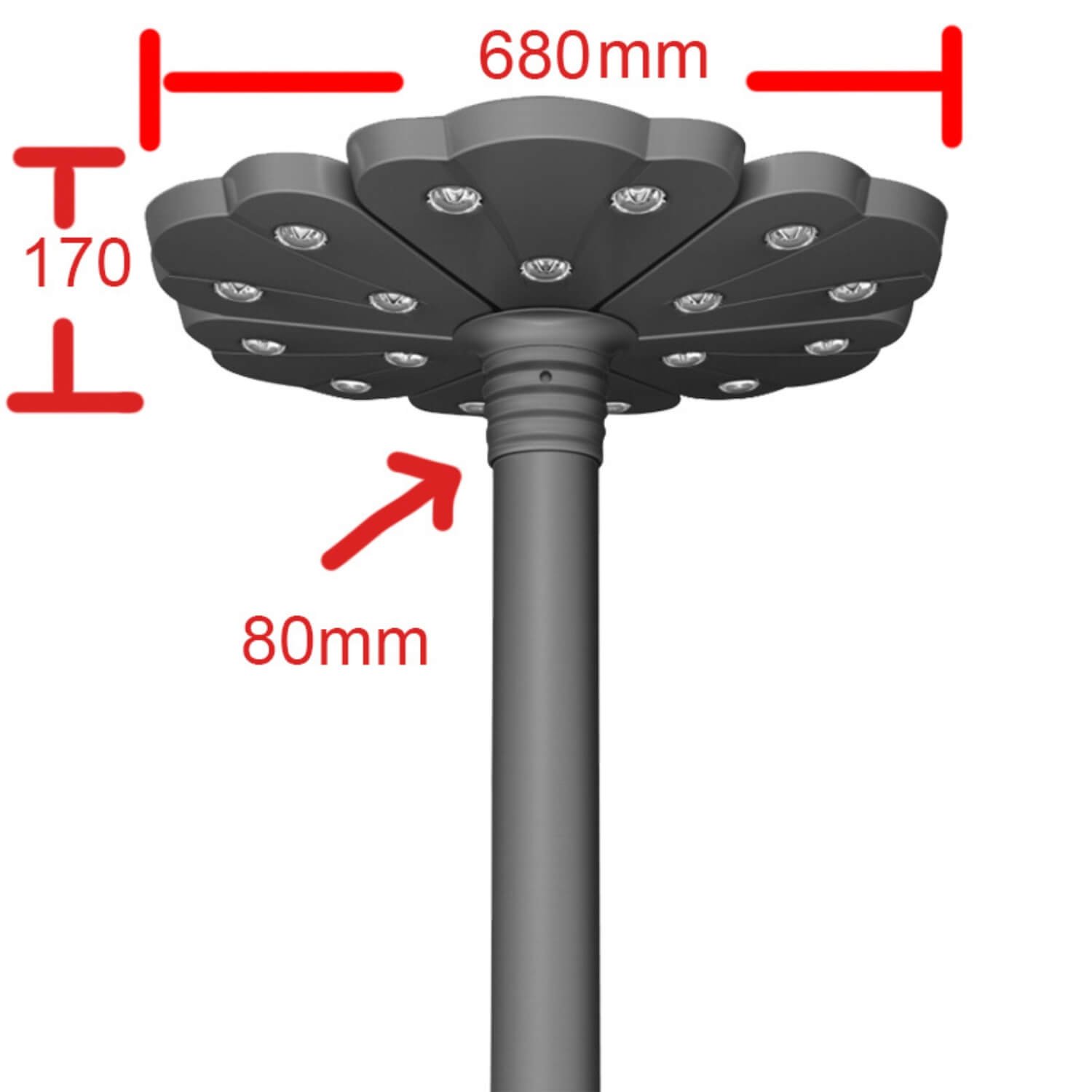

- Diameter: 680 mm; overall height: 170 mm (head). Pole‑top mounting / pendant hole: ~76–80 mm.
- Weight: ~7 kg (configuration dependent).
- Luminous efficacy: 125–180 lm/W (model/driver dependent).
- Luminous flux: up to ≈21,600 lm (per high‑output configuration).
- Color rendering: Ra ≥70 (standard); Ra ≥80 available.
- Power factor: >0.95 (typical).
- Operating temperature: −40°C to +50°C (model dependent).
- Ingress/impact protection: IK09; IP rating available on request.
- Warranty: standard 3 years; 5 years available on request.
Applications
- Roadways and streets
- Plazas, parks and pedestrian areas
- Parking lots and perimeter lighting
- Campus, resort and commercial site lighting
- Architectural and decorative urban lighting
Ordering & customization
- ENDIzLED‑310 is available in multiple lumen packages, color temperatures, beam distributions, driver options and finish colors (black, white or custom). Surge protection, higher CRI LEDs, smart controllers and different mount adapters are available as factory options
