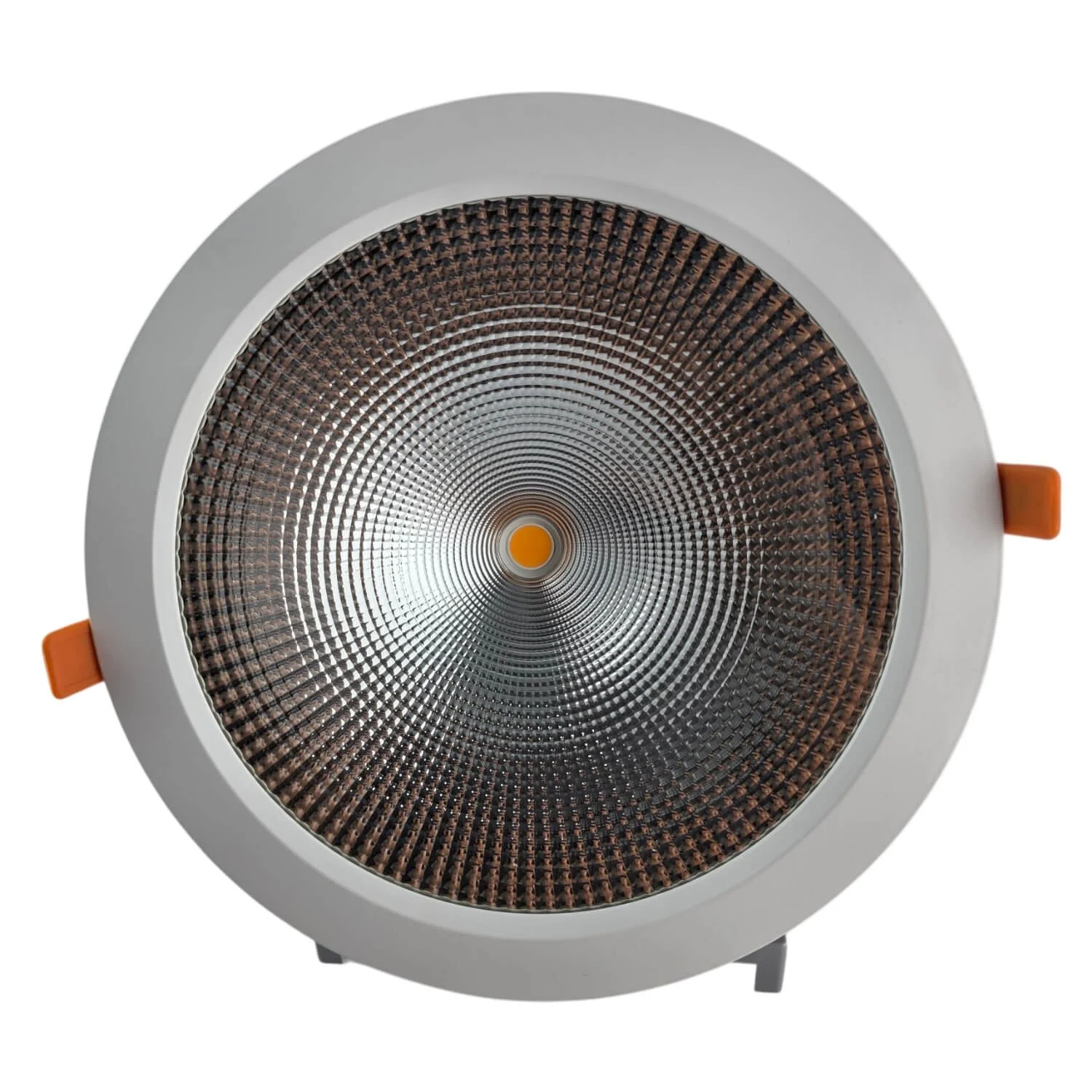

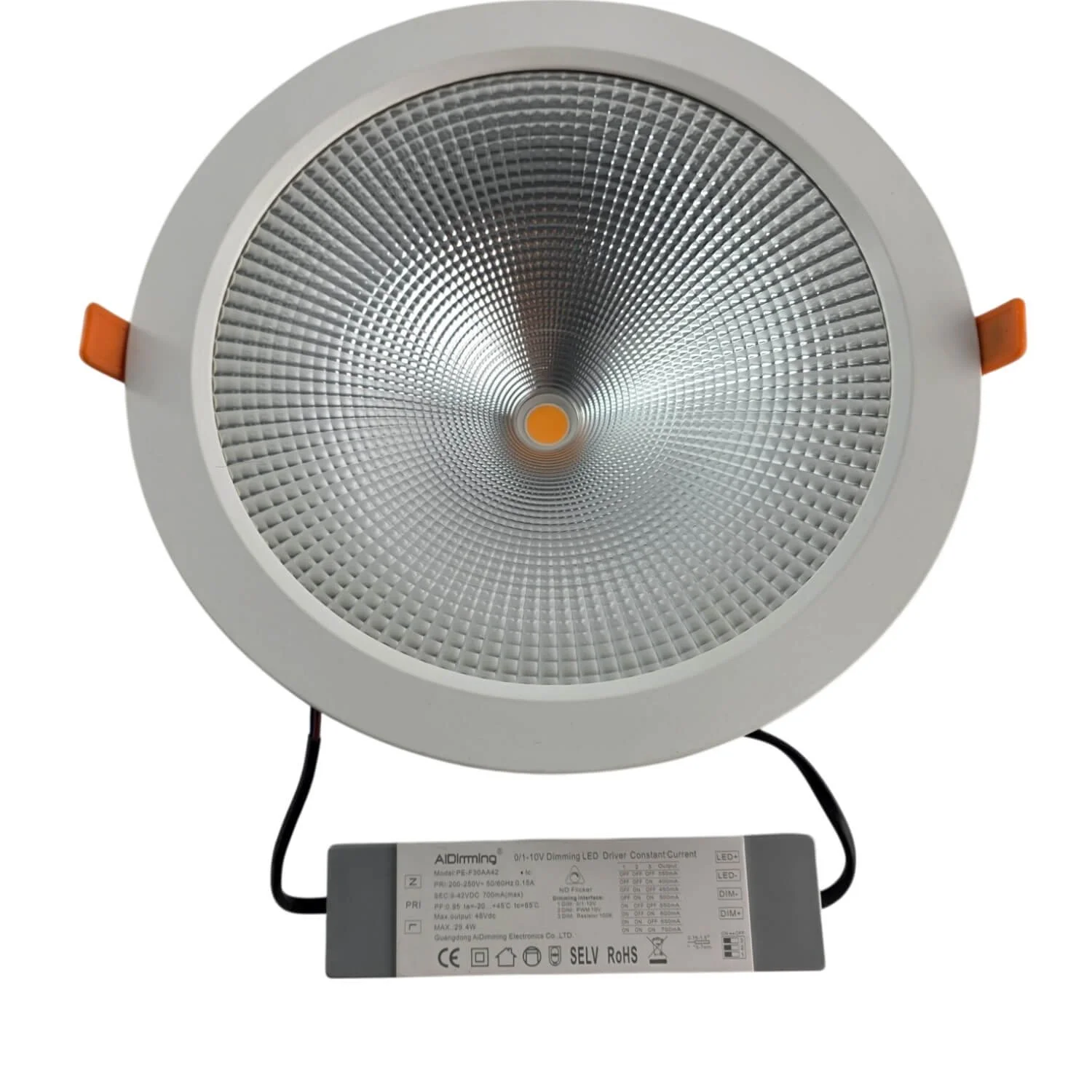

ENDIzLED-285 — 30W Recessed 0–10V Dimmable LED Downlight
The ENDIzLED-285 is a low-profile, high-performance recessed LED downlight designed for comfortable warm-white illumination in commercial and residential interiors. With a wide 77° beam angle, integrated constant-current driver and 0–10V dimming compatibility, it delivers smooth, flicker-free dimming and even, glare-controlled light for general ambient applications.

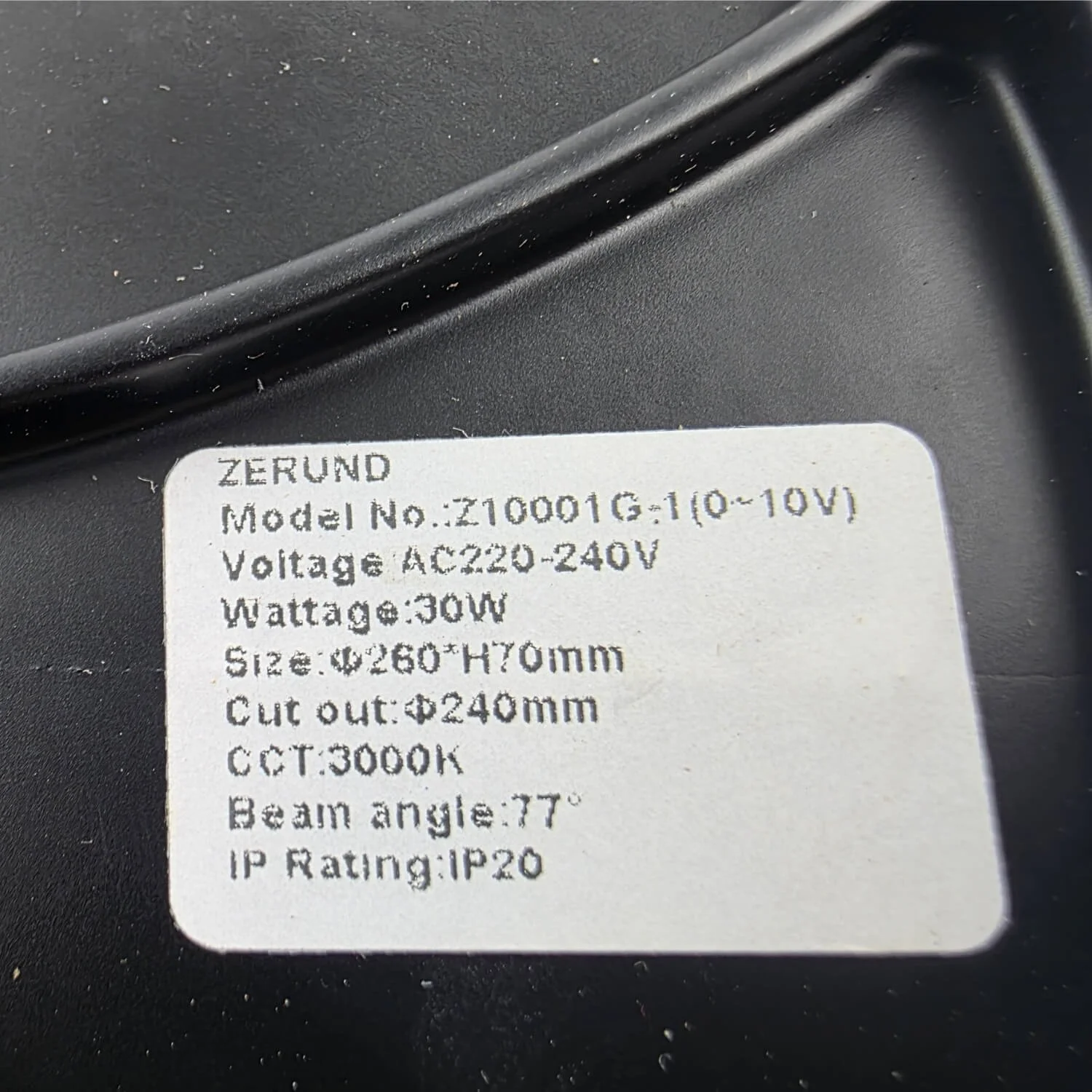

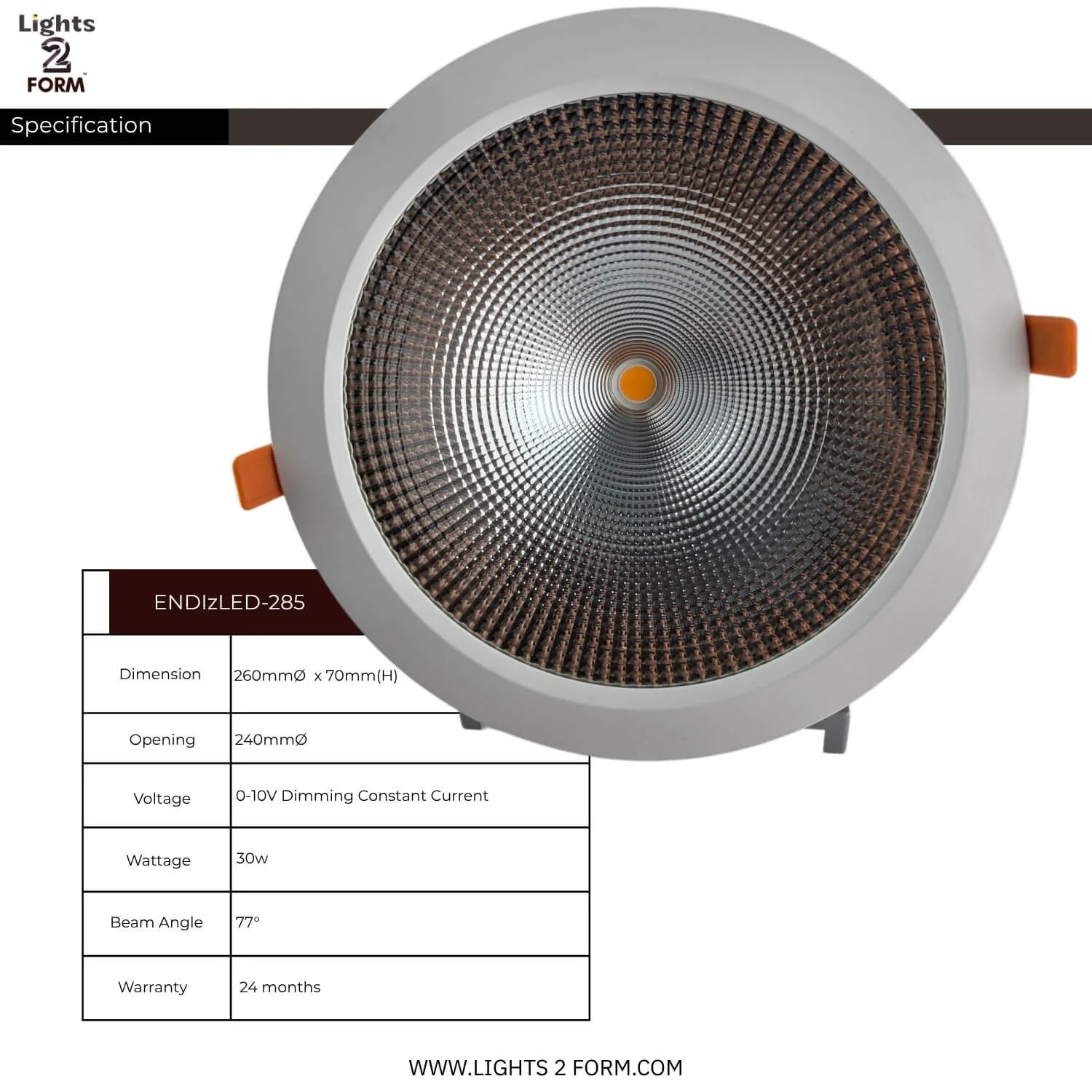

- Power: 30 W
- Color Temperature: 3000K (warm white)
- Beam angle: 77° — ideal for general ambient lighting and comfortable wide-area coverage
- Dimming: 0–10V dimmable (constant-current driver included) for smooth, flicker-free dimming

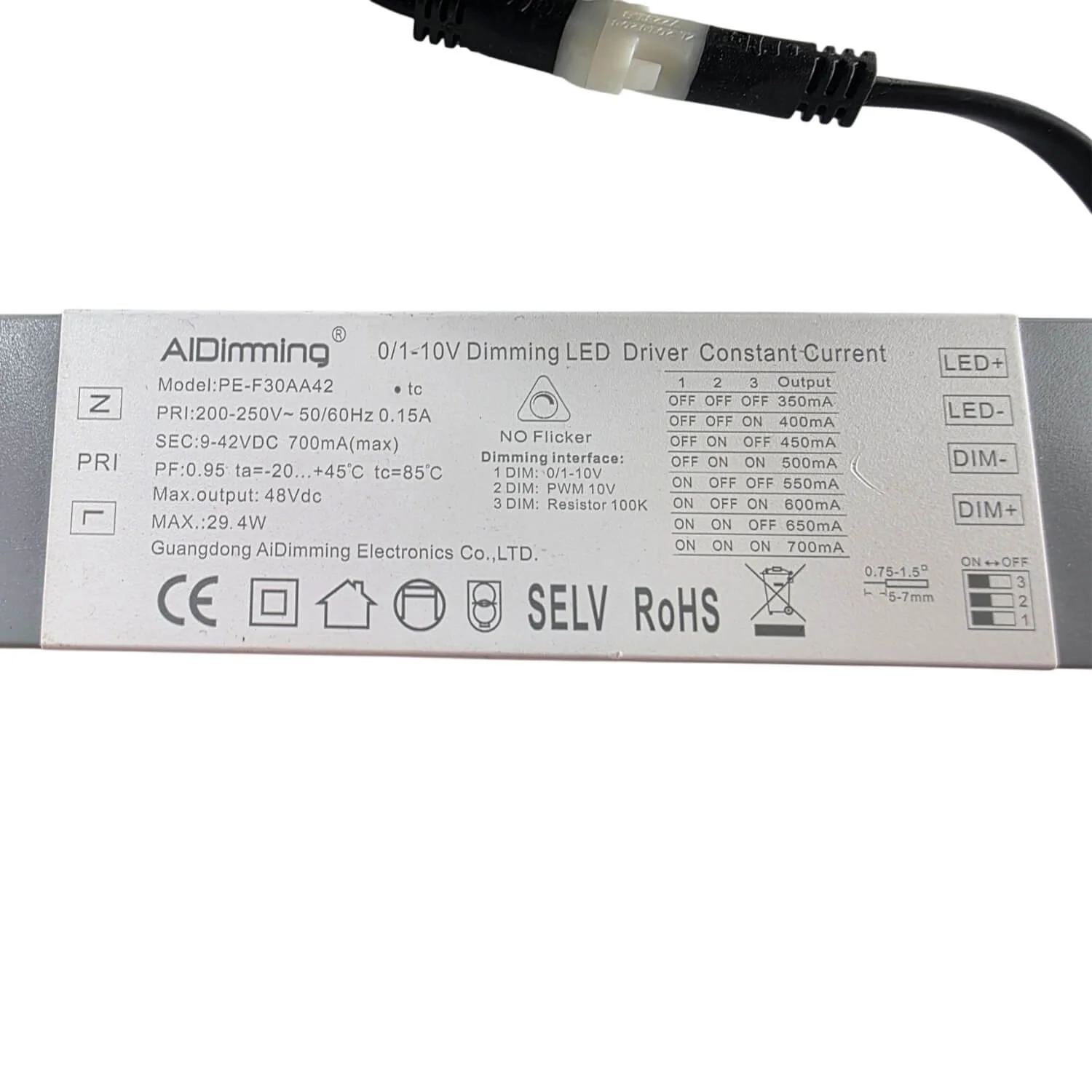

- Input voltage: AC 220–240V (driver supports constant-current output; driver label indicates model PE-F30AA42 / max output up to 700 mA)
- Dimensions: Ø260 mm x H 70 mm; required cut-out Ø240 mm — slim housing for shallow ceiling voids
- IP Rating: IP20 — for indoor use
- Compliance & safety: CE, RoHS markings on driver; SELV output
- Warranty: 24 months
Why choose ENDIzLED-285:
- Reliable dimming performance: the supplied constant-current driver is made for 0–10V control systems and supports stable, no-flicker dimming.
- Low-profile design: 70 mm height makes installation easier in ceilings with limited depth.
- Versatile application: suited to offices, retail spaces, hotel corridors, residential living areas and other indoor settings requiring warm, comfortable lighting.
- Easy installation: spring clips and the standard Ø240 mm cut-out make replacing or installing this downlight straightforward.
Installation notes:
- Requires a Ø240 mm ceiling cut-out and a minimum ceiling void depth of approximately 70 mm.
- Driver is included and connects to mains AC 220–240V; ensure installation by a qualified electrician and compatibility with existing 0–10V control gear.
- IP20 rating — install only in dry, indoor locations.
