ENDIzLED-284 — 30W Narrow-Beam LED Downlight
- The ENDIzLED-284 is a high-performance 30W LED downlight engineered for precise accent and spotlighting. Its tight 15° beam and cool 6500K color temperature deliver crisp, focused illumination—ideal for highlighting merchandise, display areas, artwork or architectural details.

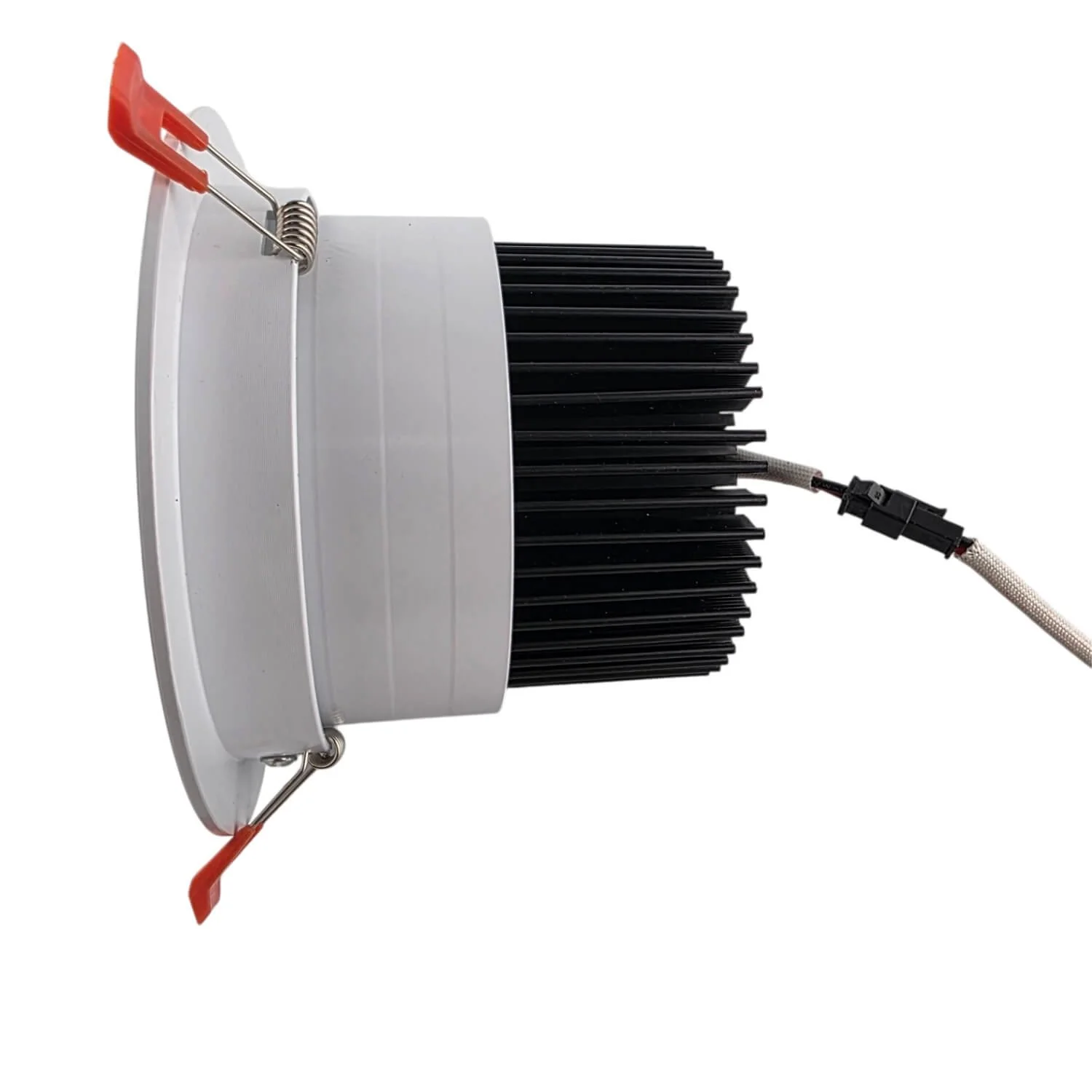

- Built with a large aluminum heatsink and a dedicated external LED driver, this fixture offers reliable thermal management and stable operation across a wide input range. The compact body and spring-clip mounting make it easy to install in standard recessed ceilings.
Key features
- Powerful 30W LED module for strong, focused light output

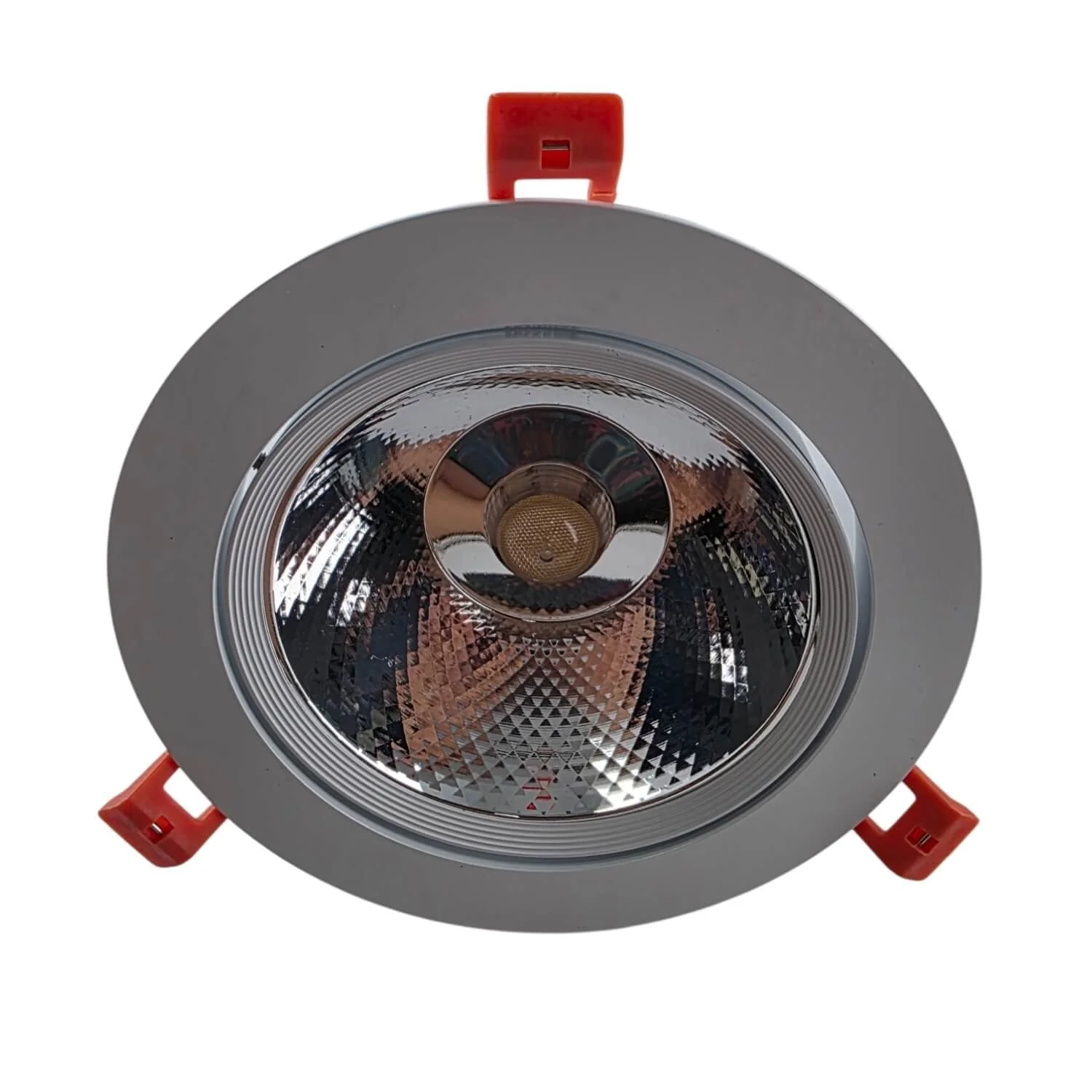

- Narrow 15° beam angle for accent and directional lighting
- Cool daylight color temperature: 6500K (bright, crisp light)
- Wide input voltage compatibility: 90–265VAC, 50/60Hz

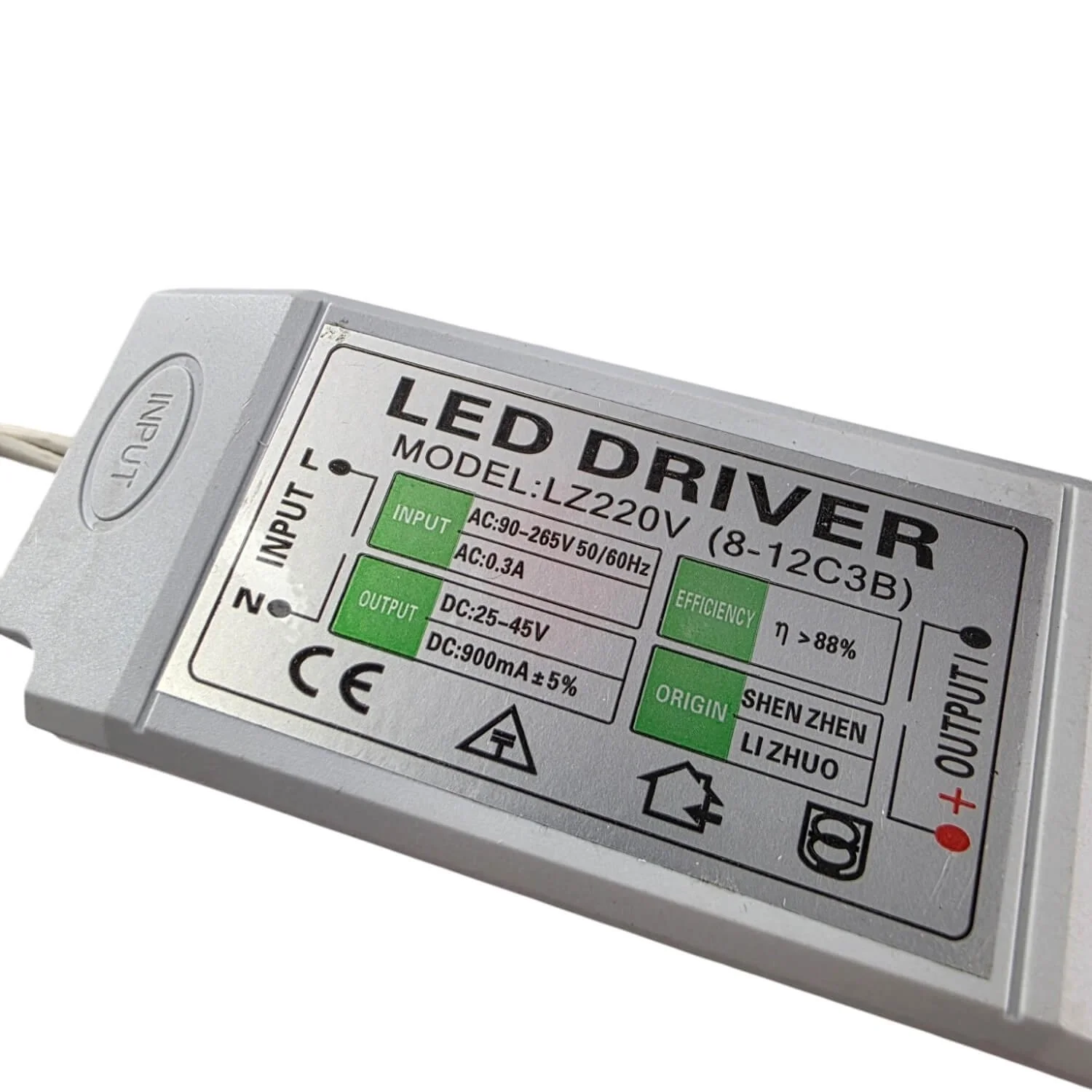

- External LED driver (Model LZ220V) — output DC 25–45V, 900mA ±5%

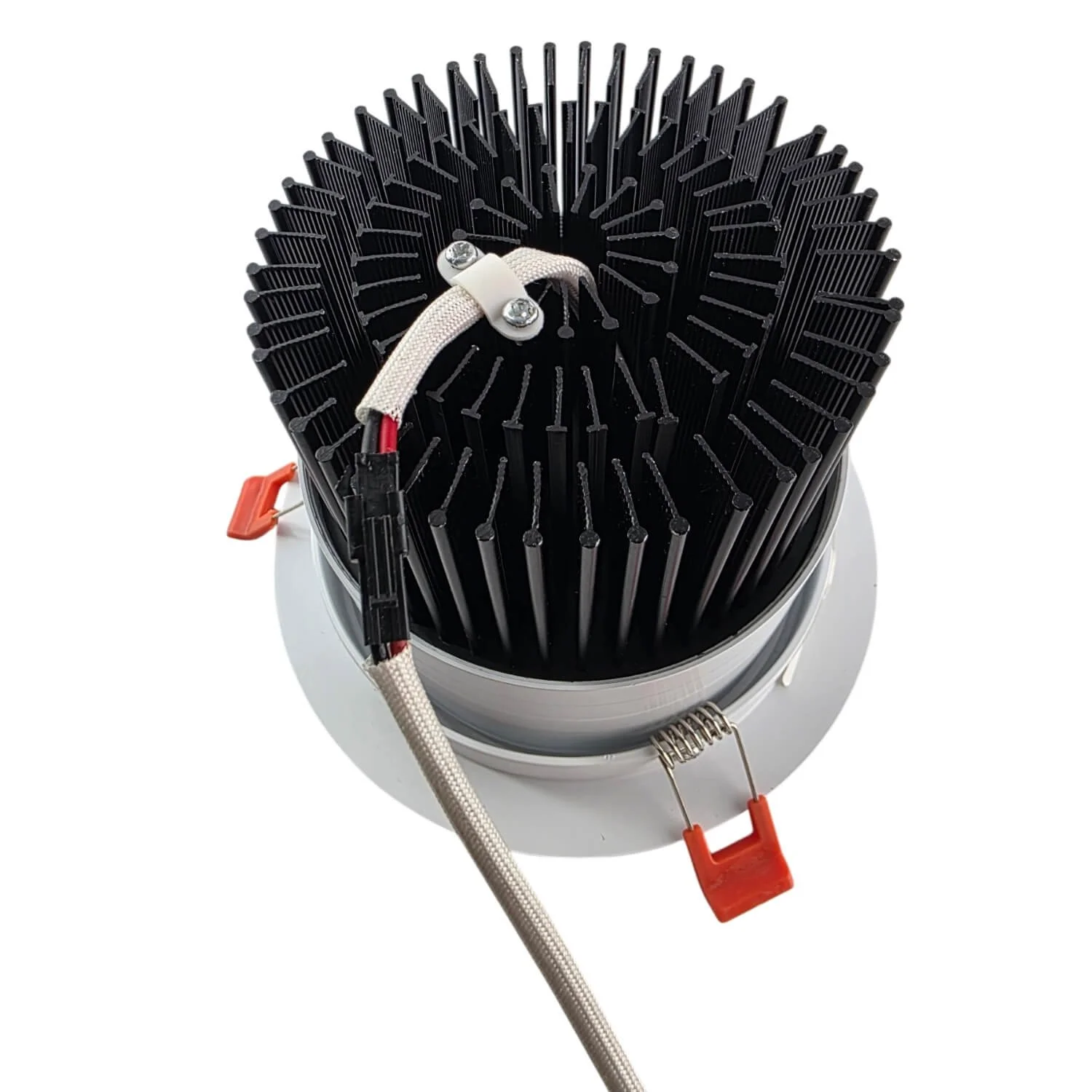

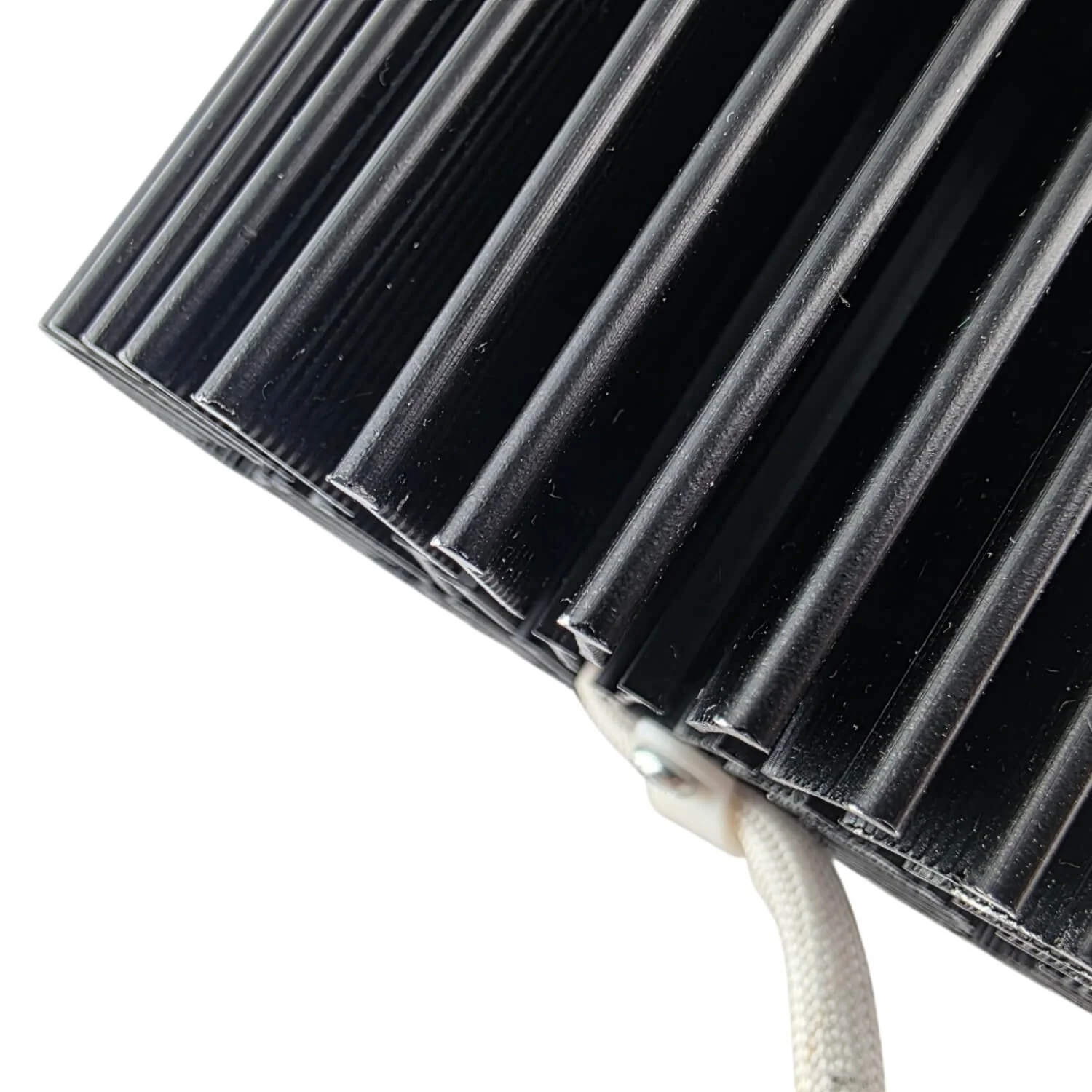

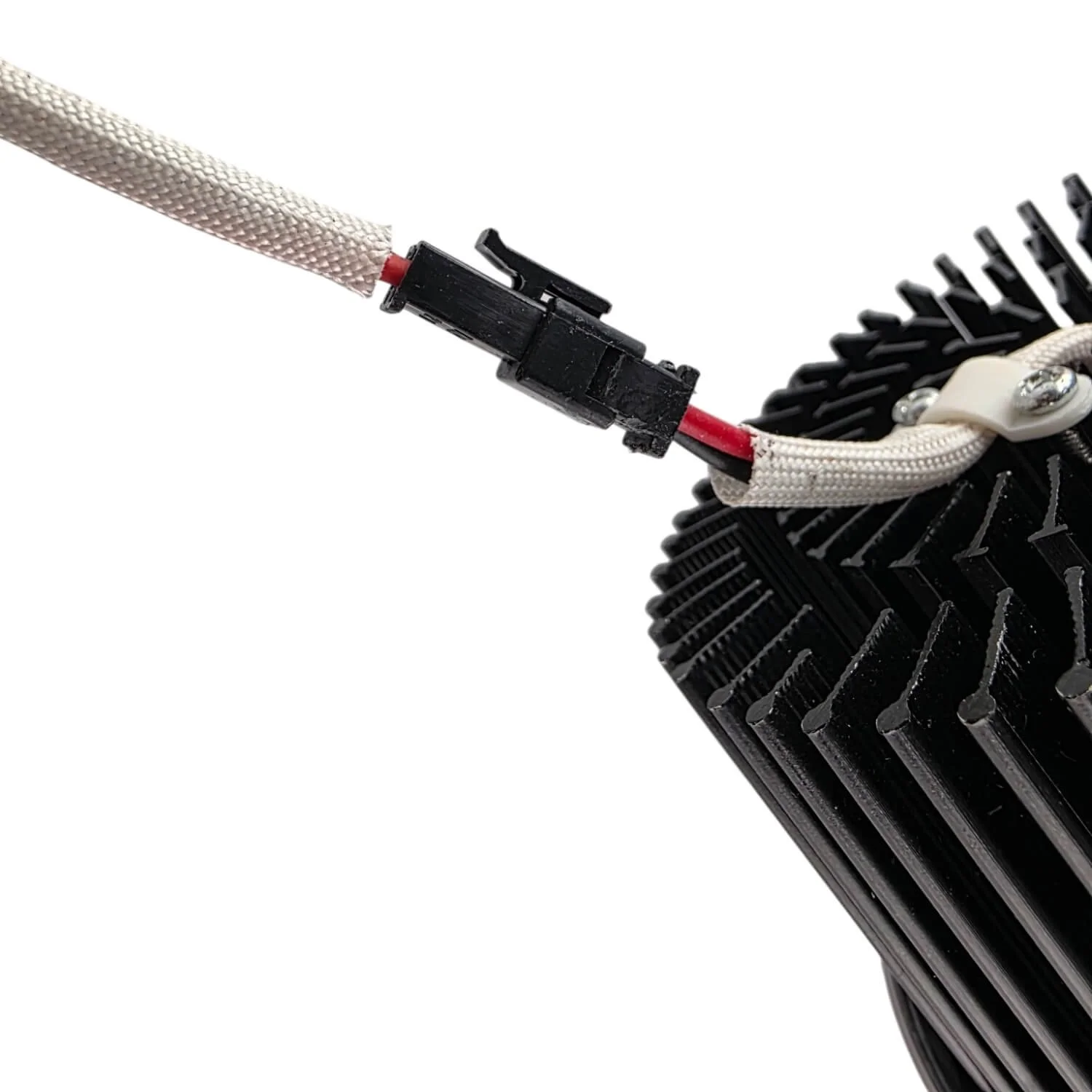

- Robust aluminum heatsink for efficient cooling and long life

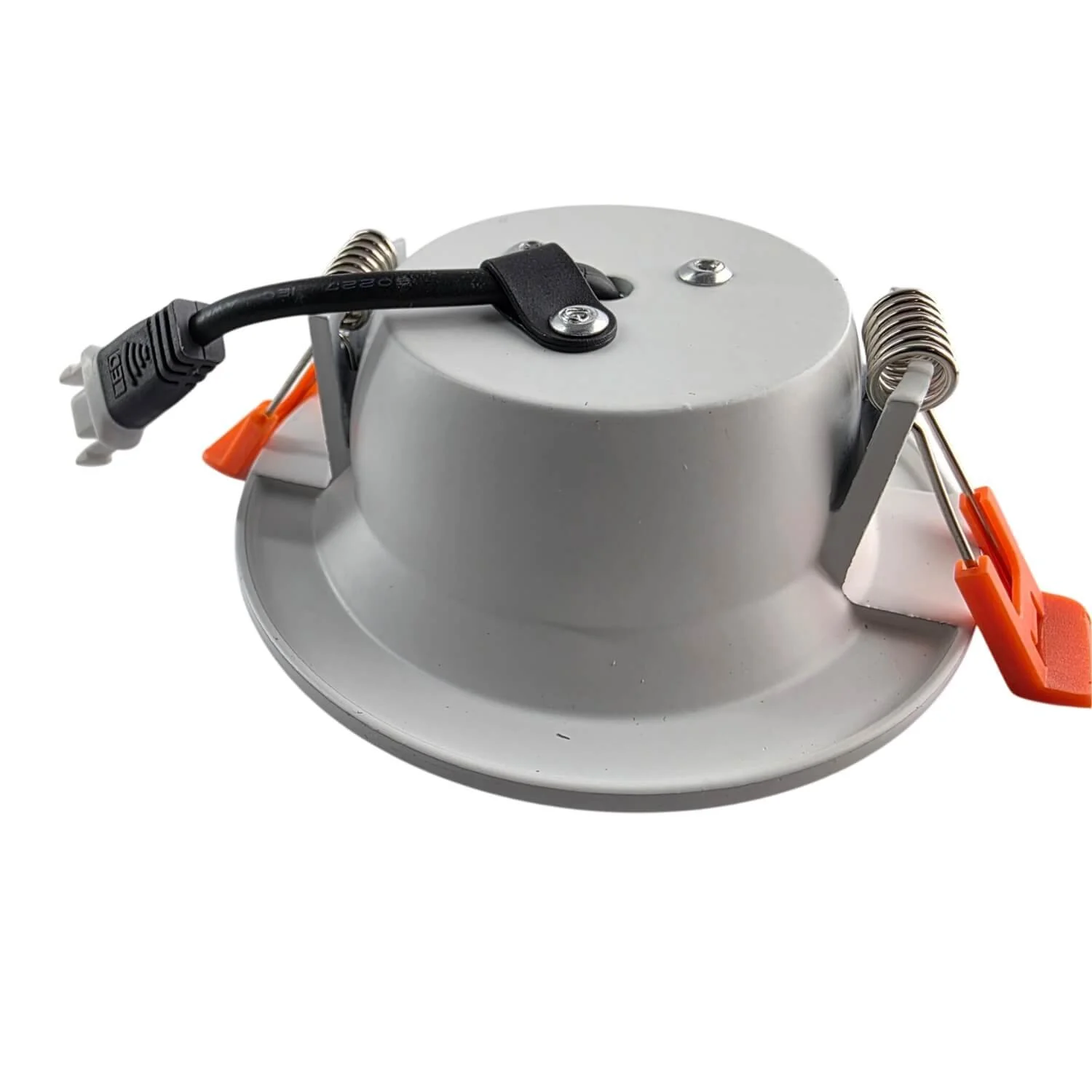

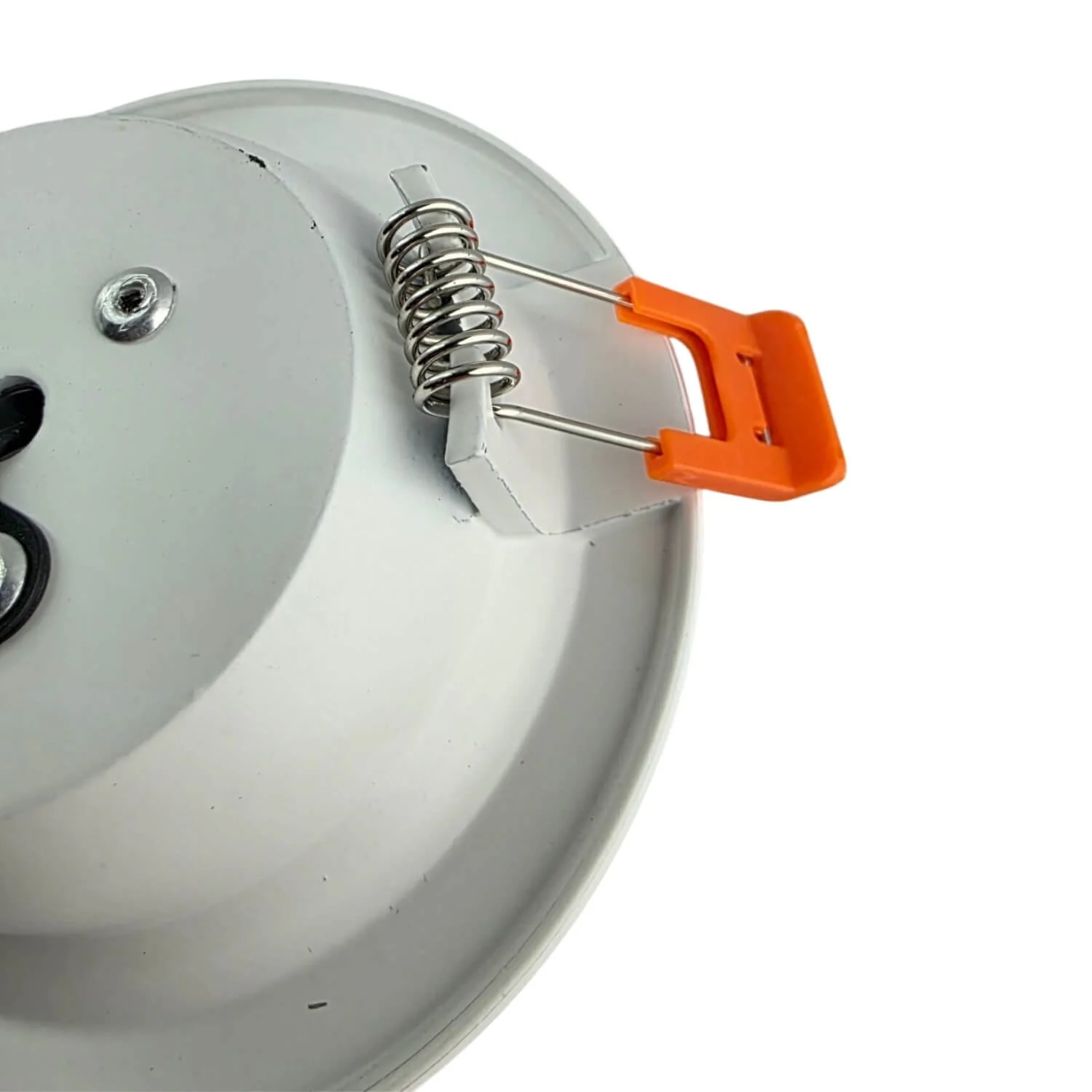

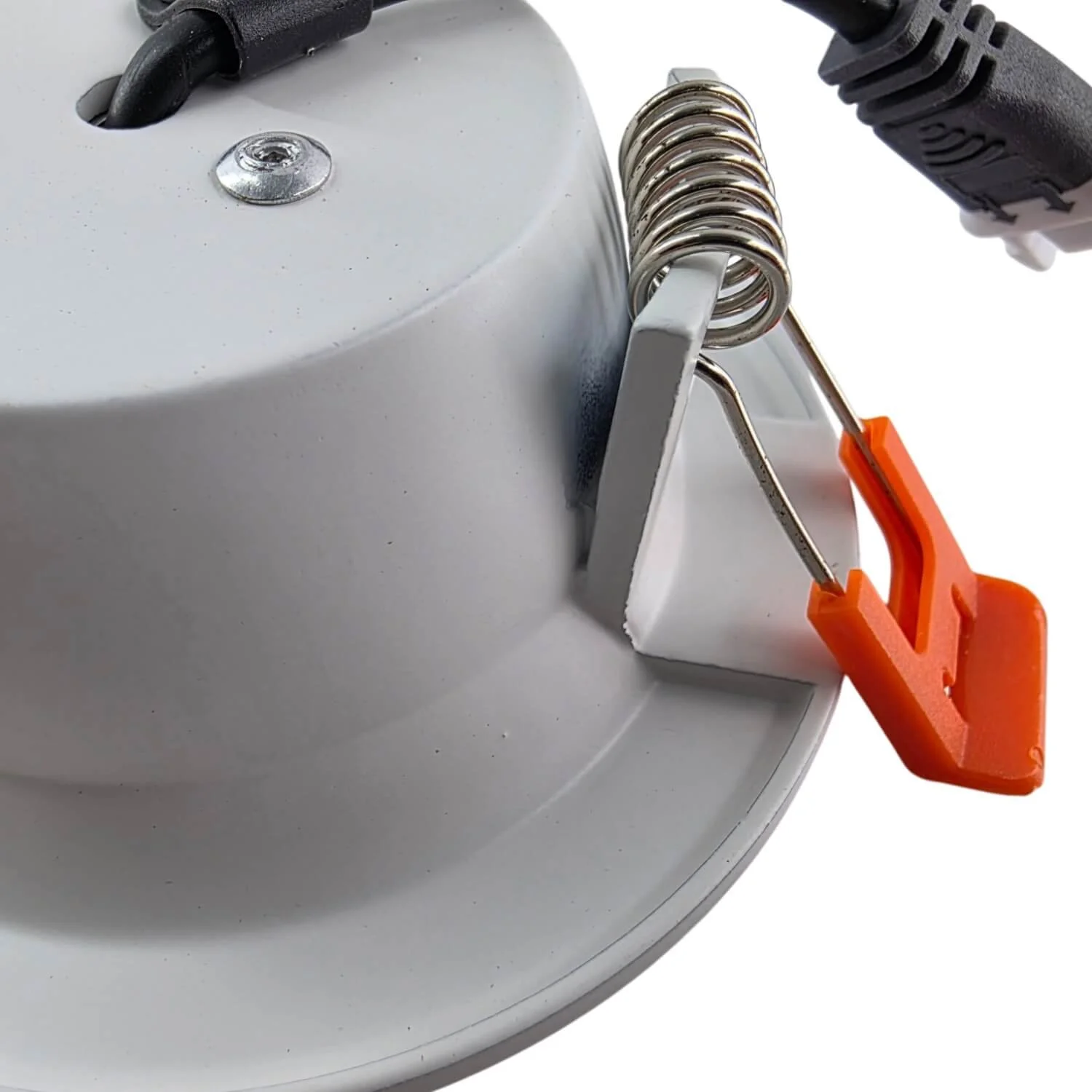

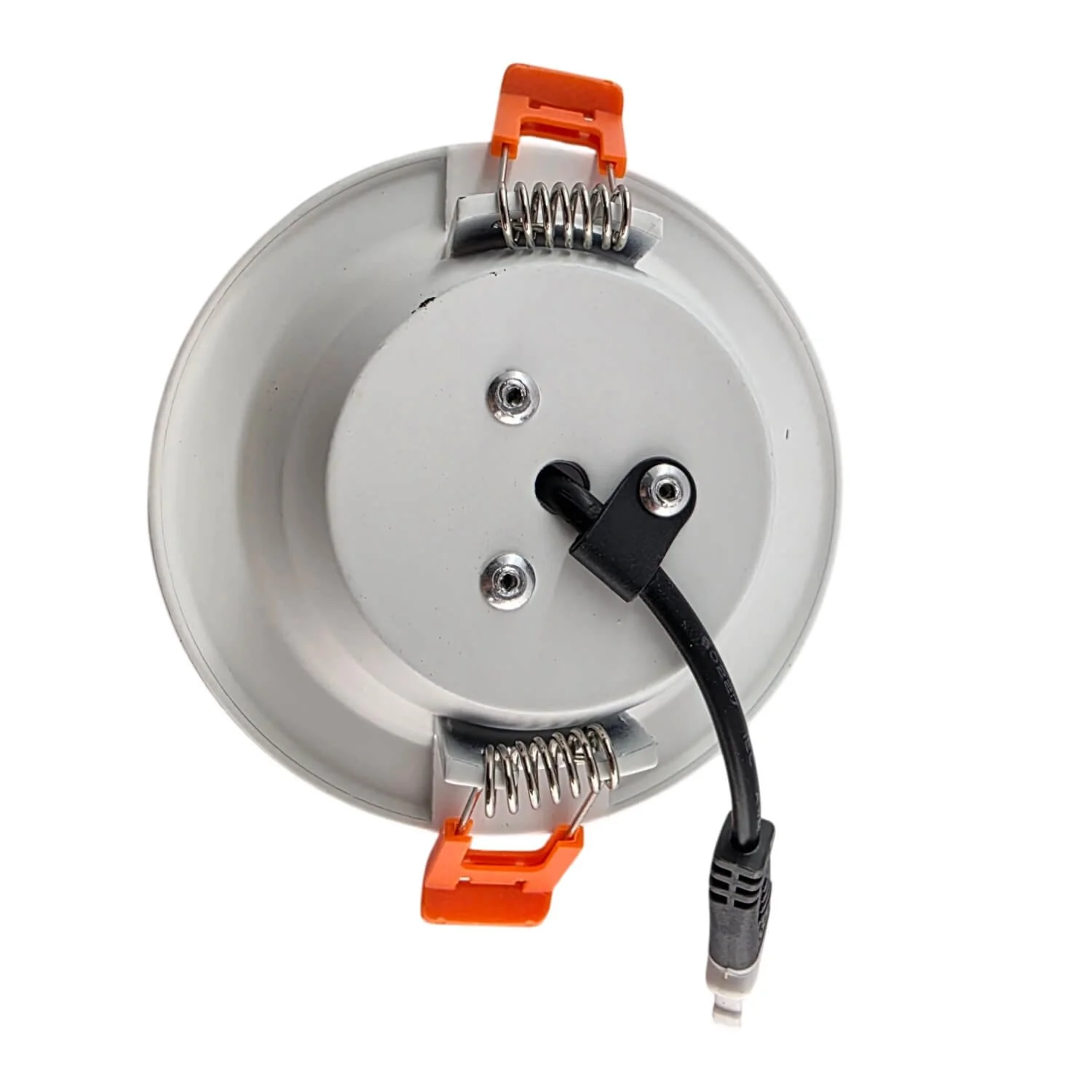

- Easy spring-clip installation with 115mm cut-out

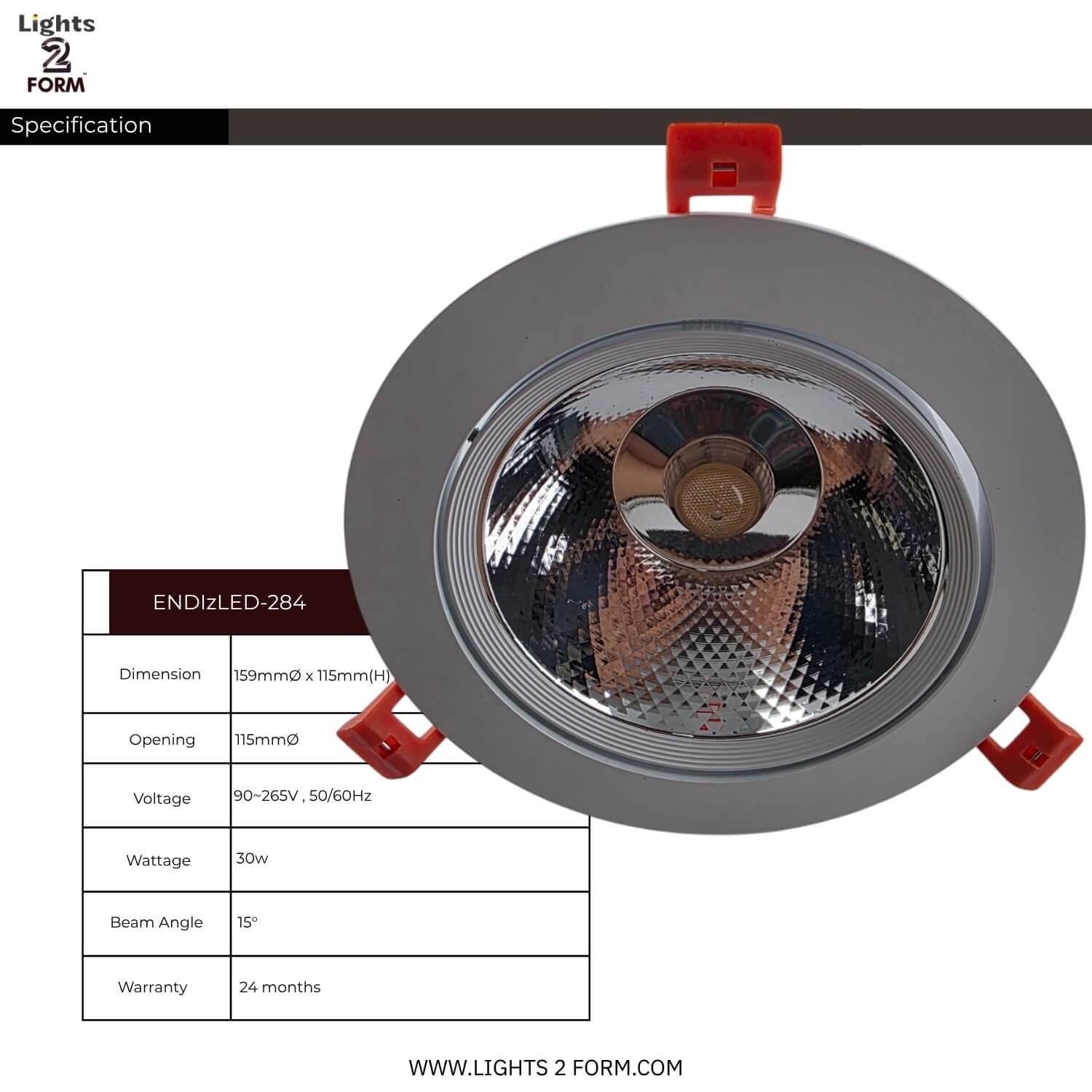

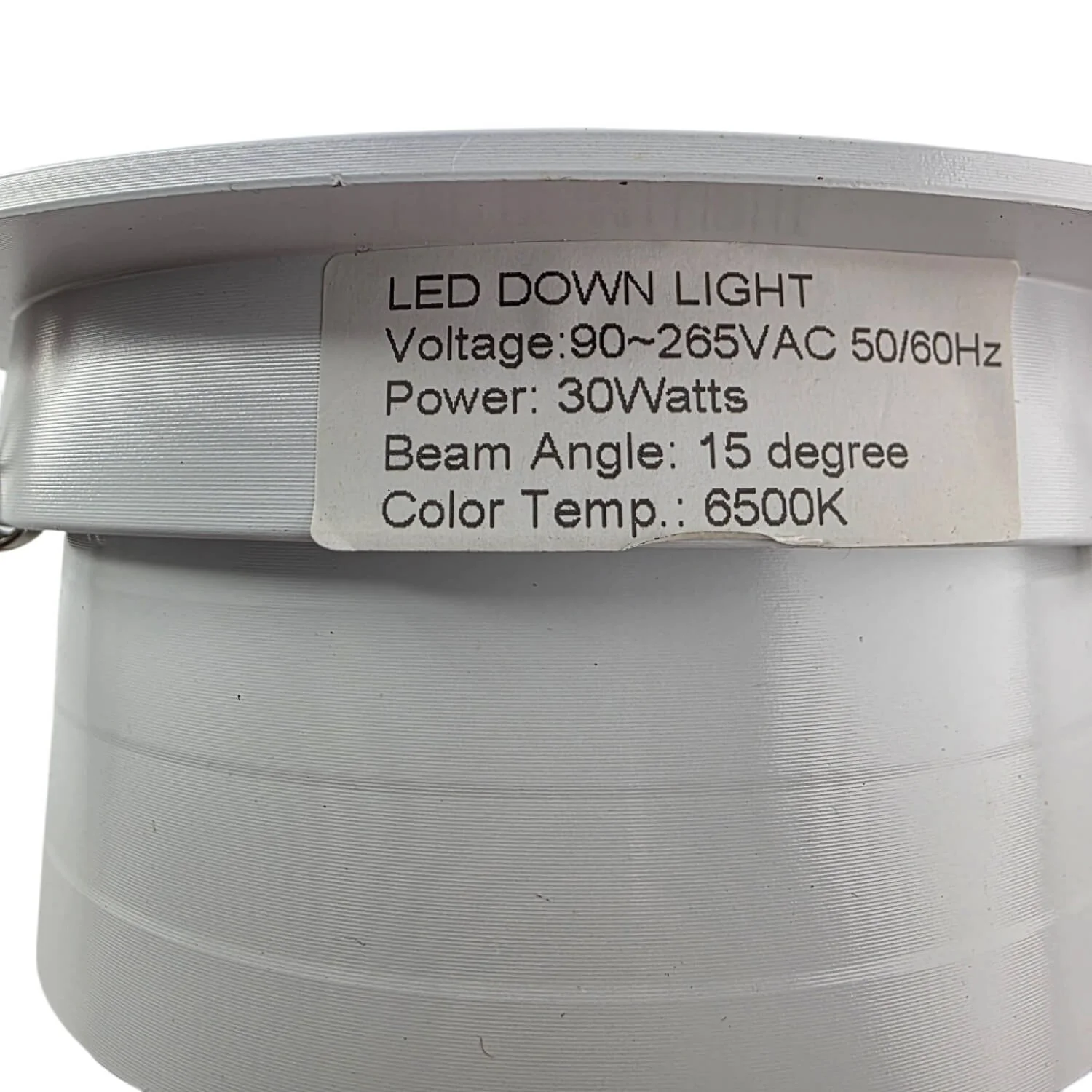

Technical specifications (from product label)
- Dimension: 159mm Ø x 115mm (H)
- Cut-out / Opening: 115mm Ø
- Voltage: 90–265V AC, 50/60Hz
- Wattage: 30W
- Beam angle: 15°
- Color temperature: 6500K
- Driver: AC input 90–265V, DC output 25–45V @ 900mA
- Warranty: 24 months
Typical applications
- Retail displays and shopfront accent lighting
- Galleries, museums and exhibit spotlighting
- Hospitality corridors, lobbies and feature lighting
- Task and architectural accent lighting where focused, bright light is required
Installation & compatibility notes
- Requires a 115mm ceiling cut-out and standard recessed mounting clearance.
- The unit is shown with a non-integrated external driver; confirm dimming capability and driver compatibility if dimming is required.
