ENDIzLED-283 — 4‑Channel DMX512 LED Decoder (12–24V)

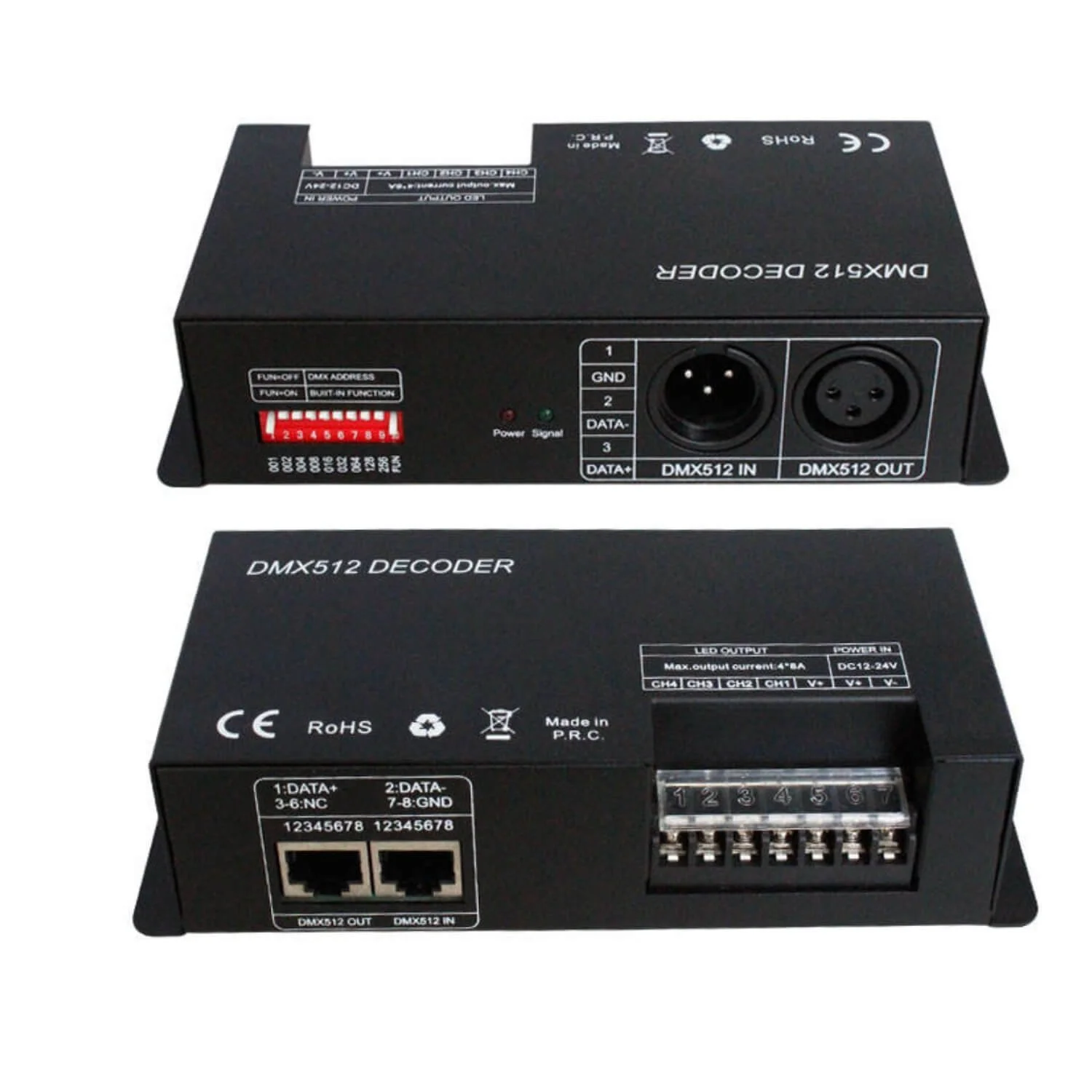

ENDIzLED-283 is a compact, professional DMX512 decoder designed to convert DMX digital control signals into PWM outputs for constant-voltage LED loads. Built for flexible installations, it supports 4 independent channels (ideal for RGBW or similar 4‑wire LED setups), multiple DMX input options, and high per‑channel current capacity — making it suitable for stage, architectural, and signage lighting projects.

Key features

- Full DMX512 compatibility (DMX512/1990 standard) — accepts DMX from consoles and controllers.

- 4 independent constant‑voltage PWM channels (suitable for RGBW and other 4‑channel LED strips).

- Wide supply range: DC 12–24V.

- High output per channel: up to 8 A per channel (user-configurable options available).

- Robust total power handling: up to 12V @ 384 W (4 ch × 8 A) or 24V @ 768 W (4 ch × 8 A).

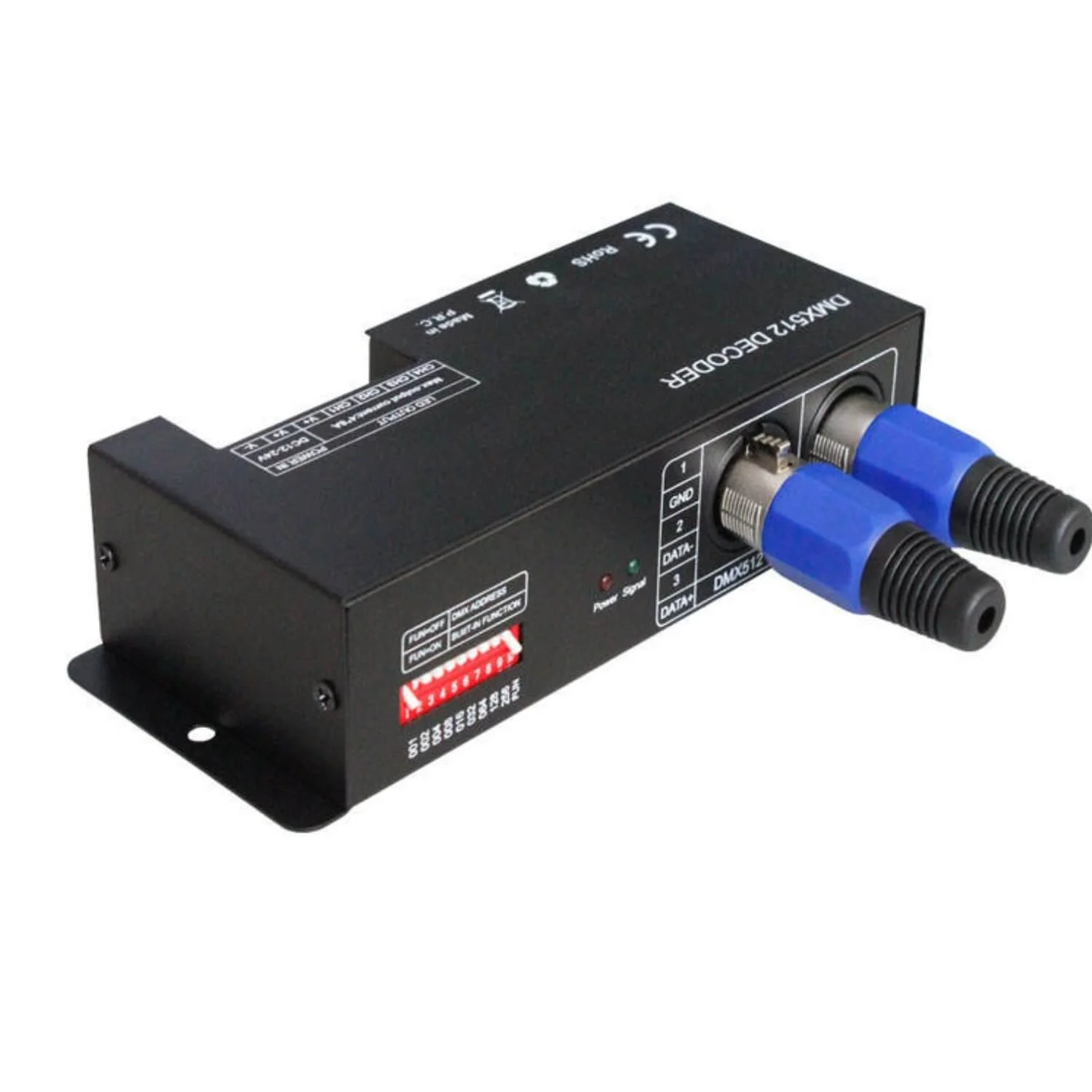

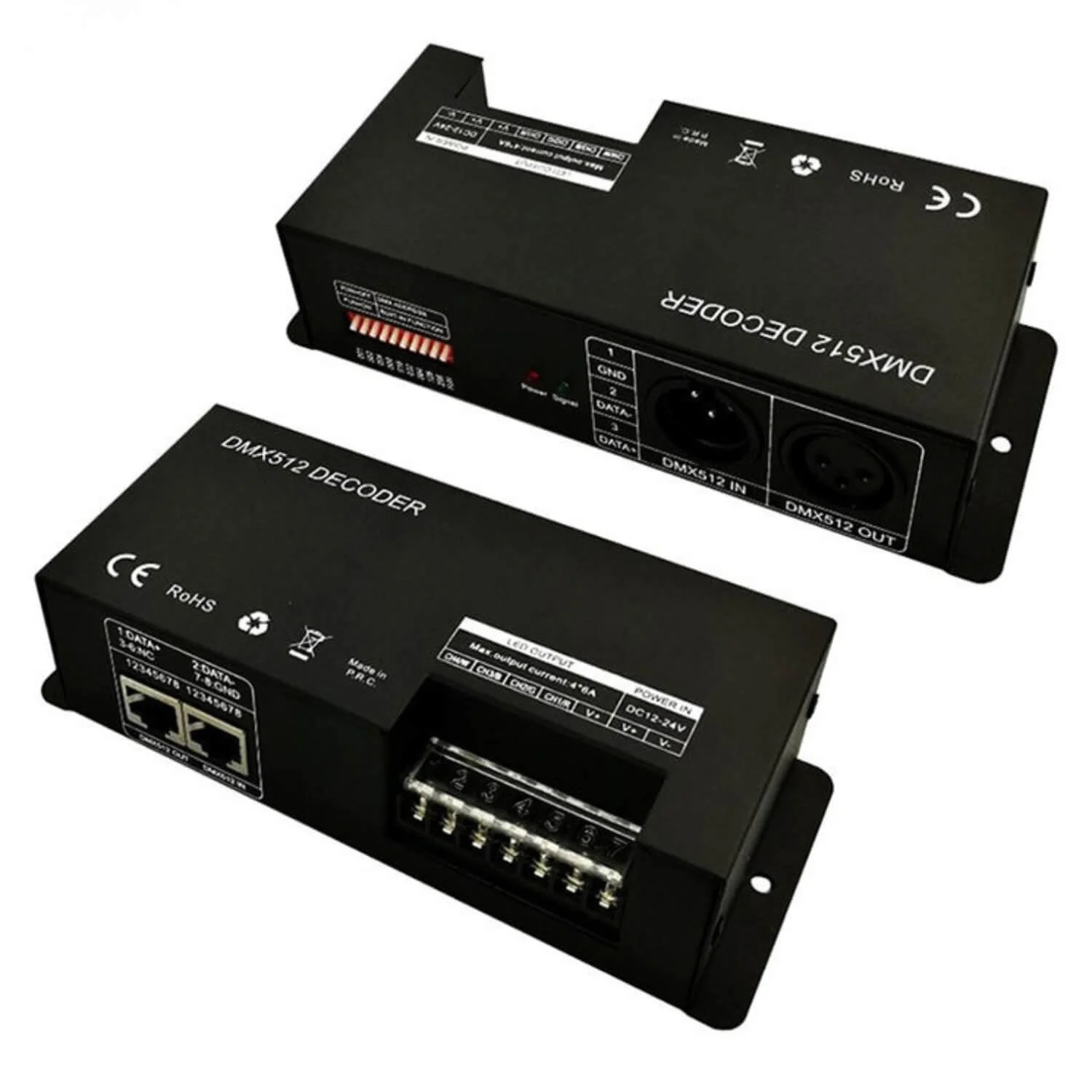

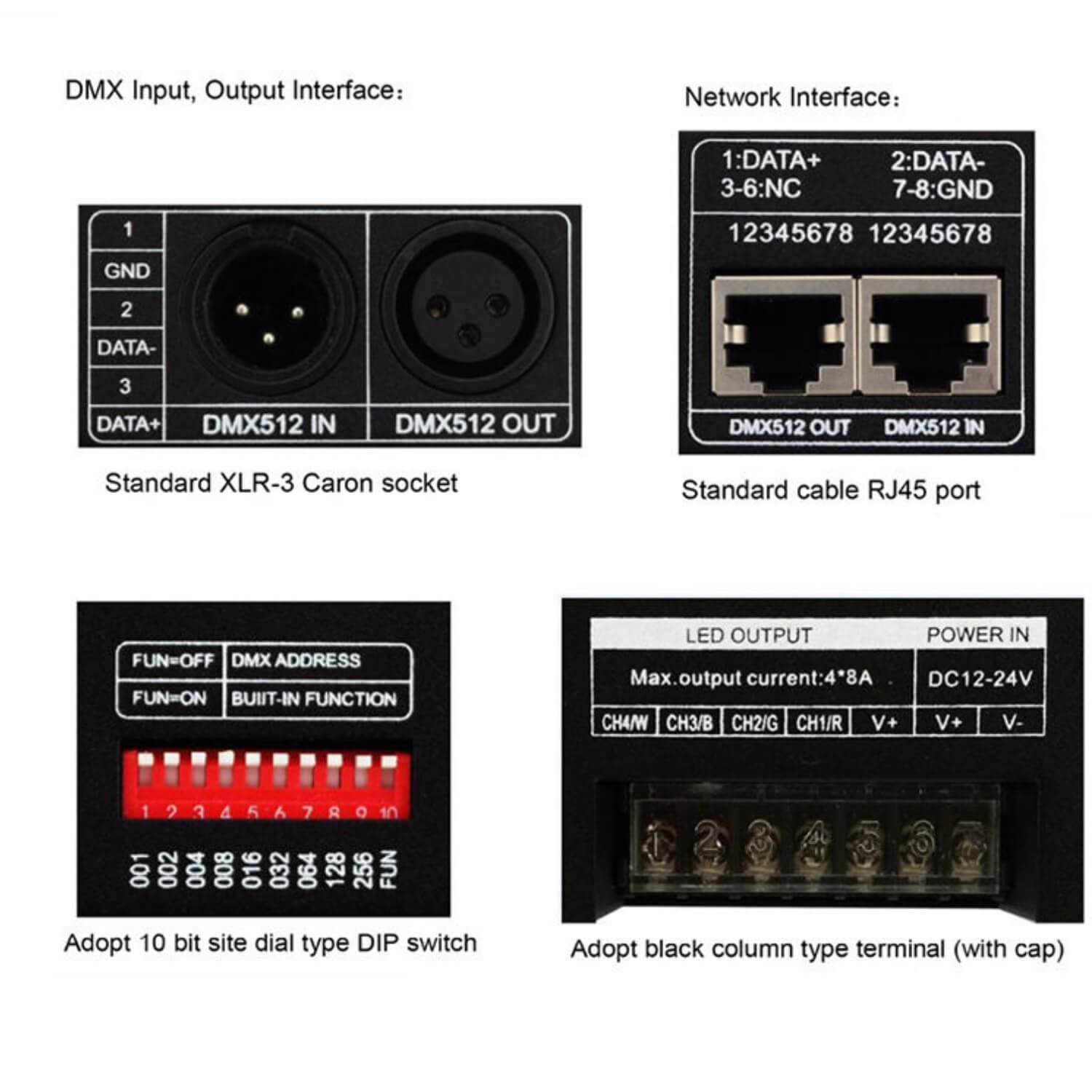

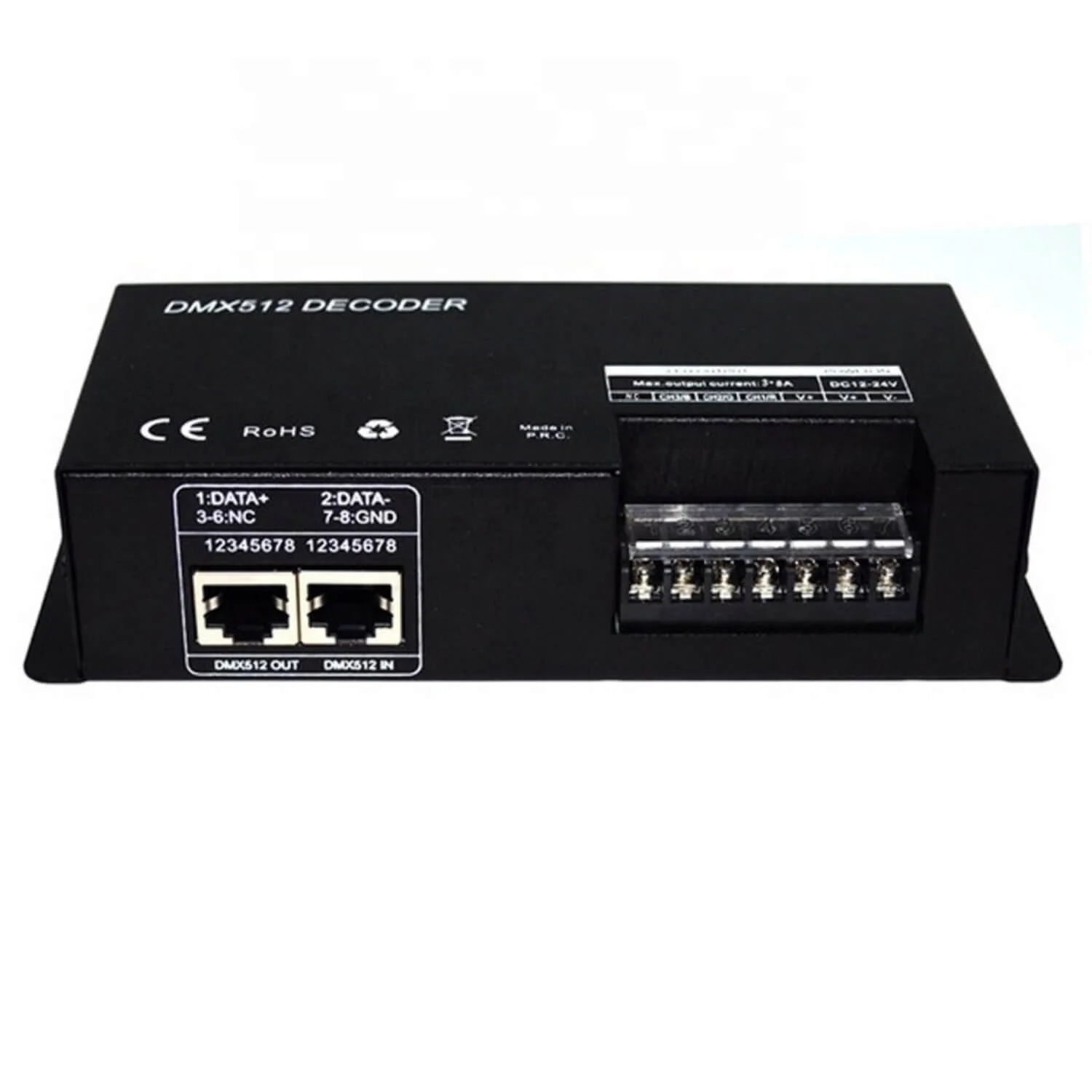

- Multiple connection options: standard XLR-3 DMX IN/OUT plus RJ45 DMX IN/OUT ports for easy daisy‑chaining.

- 10‑bit DIP switch for DMX addressing and built‑in function selection; on‑unit buttons for quick setup.

- Common‑anode (positive) wiring for LED outputs; black column screw terminal connectors with caps for secure wiring.

- Compact metal enclosure with mounting flanges for easy installation.

Technical specifications

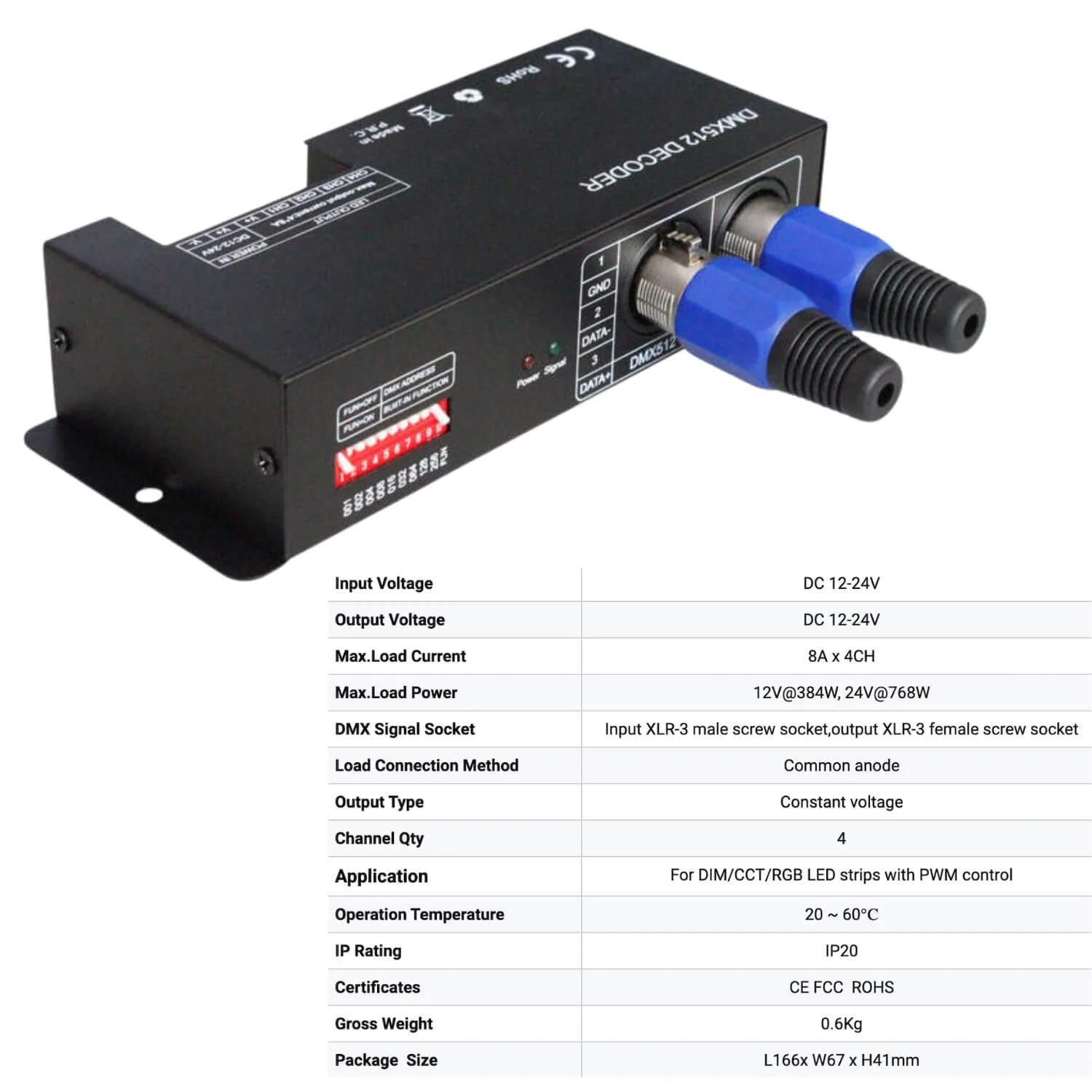

- Model: ENDIzLED-283 (4‑channel DMX decoder)

- Input voltage: DC 12–24 V

- Output voltage: DC 12–24 V

- Max. load current: 8 A per channel (×4)

- Max. output power (total): 12 V: 384 W (4 × 8 A); 24 V: 768 W (4 × 8 A)

- Output type: Constant voltage, common anode

- Channel quantity: 4

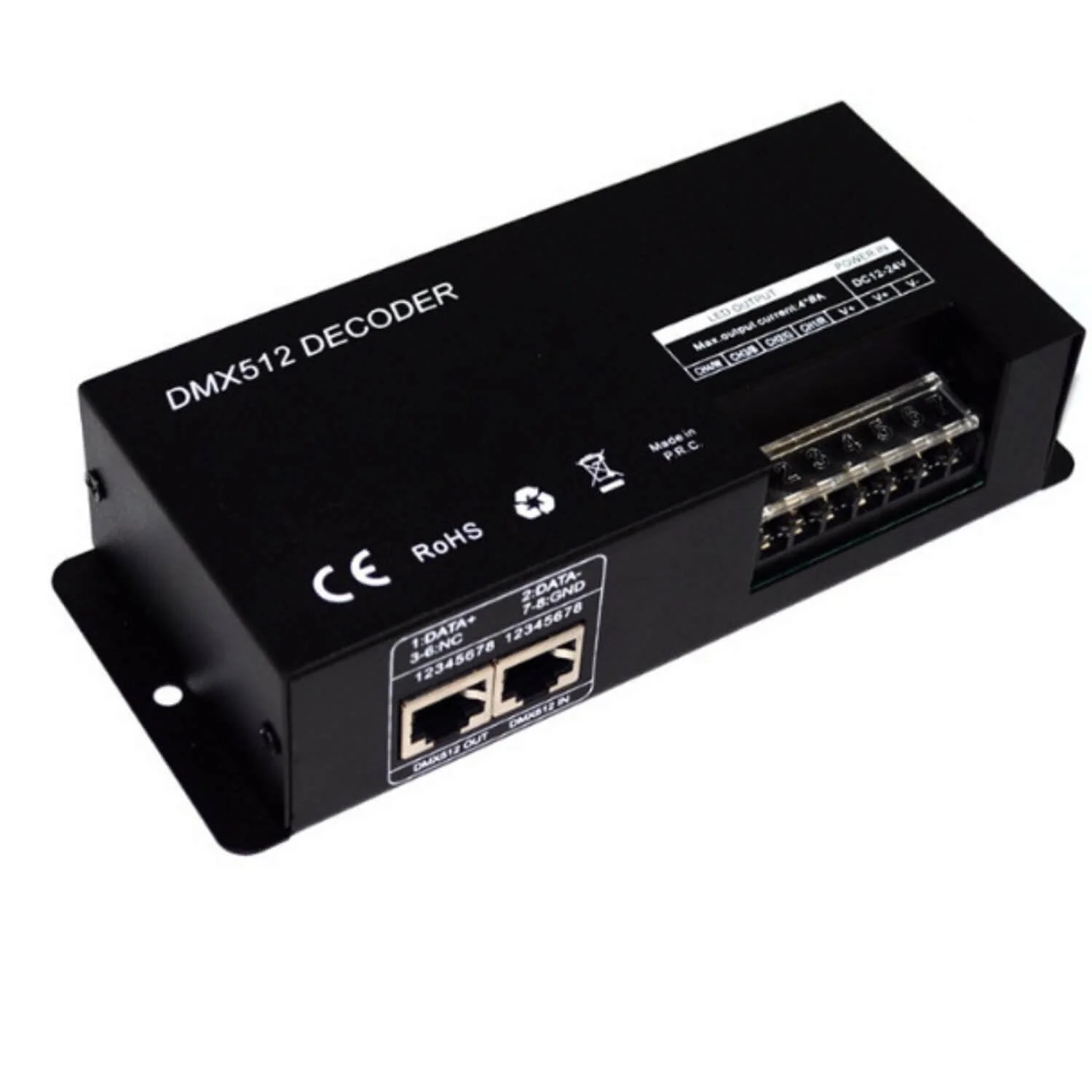

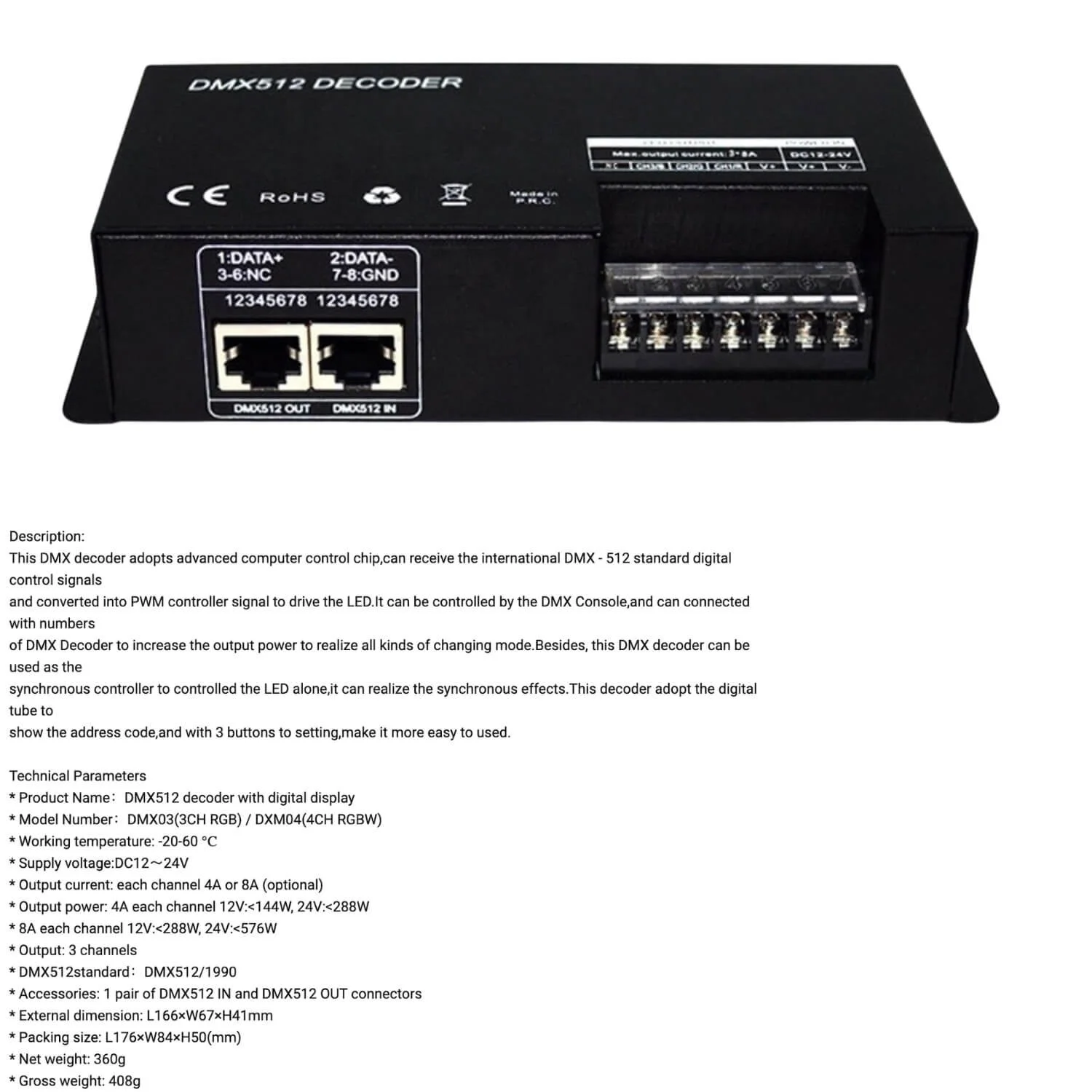

- DMX connectors: XLR-3 (DMX512 IN/OUT) and RJ45 DMX IN/OUT

- Addressing: 10‑bit DIP switches + on‑board setting buttons

- Operation temperature: 20 ~ 60 °C

- IP rating: IP20 (indoor use)

- Certifications: CE, RoHS

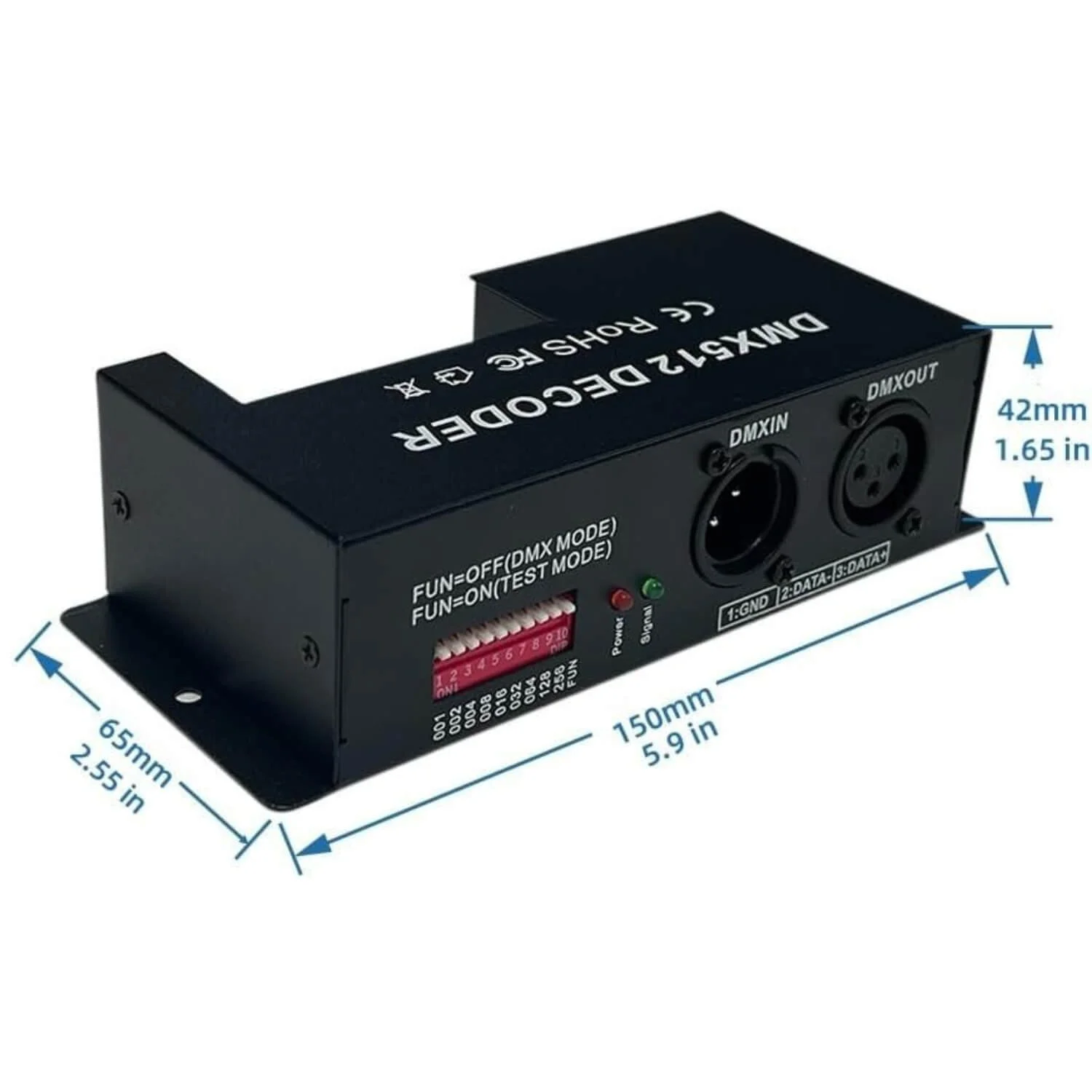

- Dimensions: L 166 × W 67 × H 41 mm

- Net weight: ~360 g; Gross weight ~0.6 kg

Ideal applications

- RGBW LED strip installations

- Stage wash and theatrical lighting segments

- Architectural accent lighting and coves

- Backlighting, signage and retail displays

- Any DMX512-controlled constant-voltage LED system requiring per‑channel PWM control

Installation notes & tips

- Use a DC power supply rated to provide the total required current (sum of all channels). For continuous operation, allow margin above the calculated load.

- The decoder uses a common‑anode (positive) connection for LED outputs — wire LED strips accordingly.

- Not waterproof (IP20) — install in dry, ventilated locations. If used outdoors, mount inside a weatherproof enclosure.

- Connect DMX controller to DMX IN (XLR or RJ45). For chaining multiple decoders, use DMX OUT to the next unit.

- Set the DMX start address with the 10‑bit DIP switches or on‑board buttons to integrate into your DMX universe.

- Ensure proper heat dissipation. Avoid covering the unit when installed.

What’s in the box

- ENDIzLED-283 DMX512 decoder (4CH)

- 1 pair DMX512 connectors (XLR IN/OUT)

- Screw terminal covers (fitted)

- Quick start / specification sheet

Why choose ENDIzLED-283

ENDIzLED-283 combines professional DMX compatibility, high current capacity and flexible connectivity in a compact package — perfect for integrators and lighting designers who need reliable PWM control for constant-voltage LED systems without bulky controllers or custom wiring.
