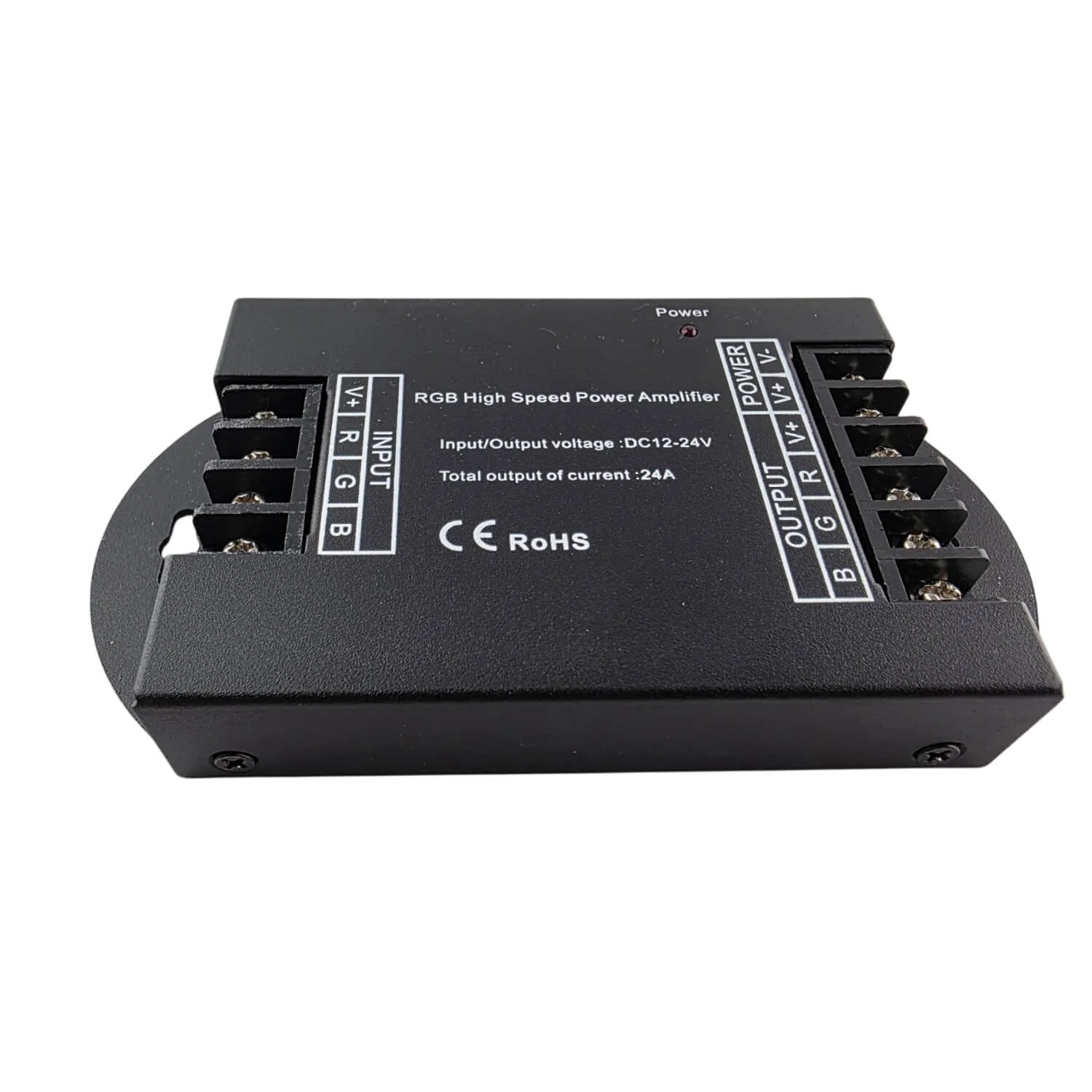

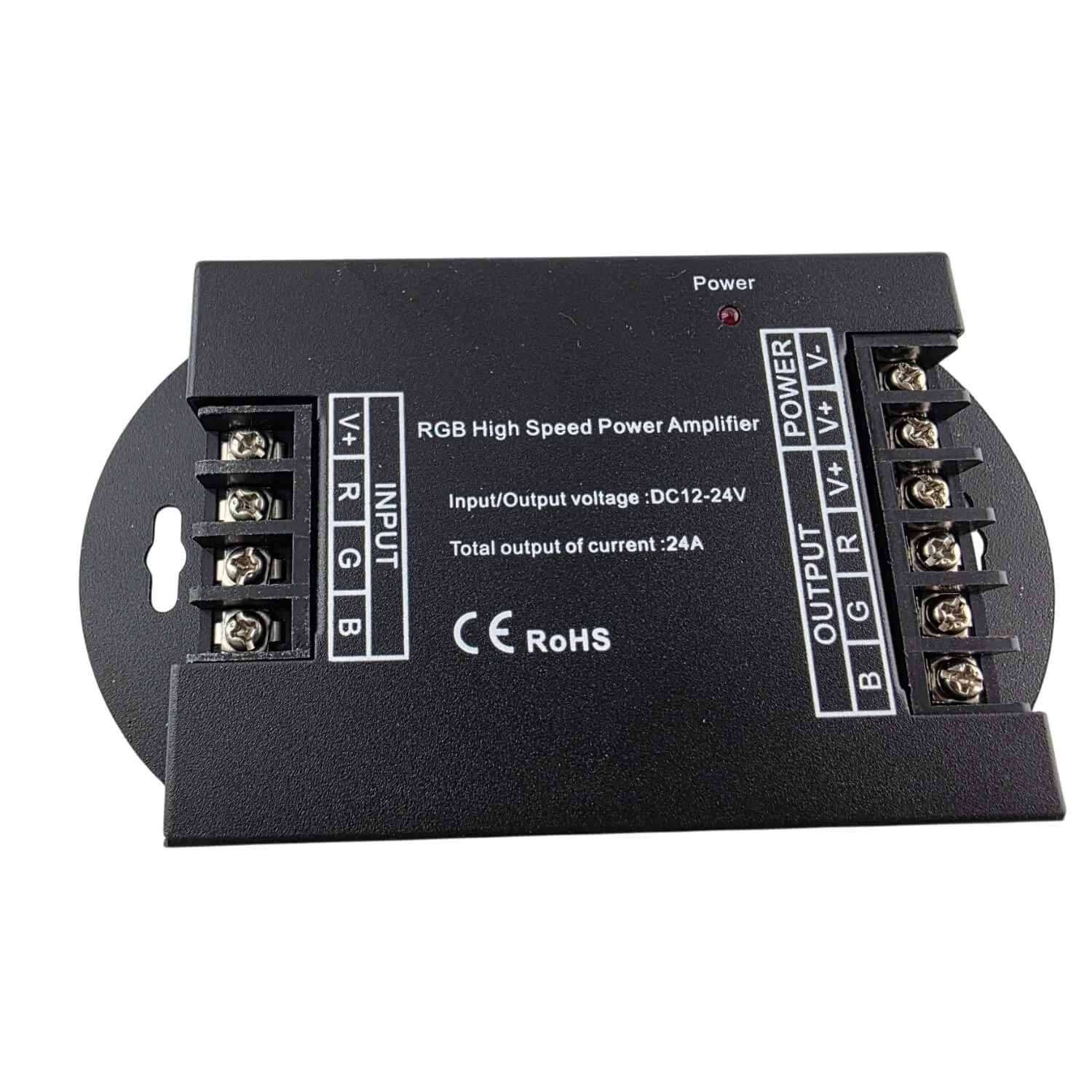

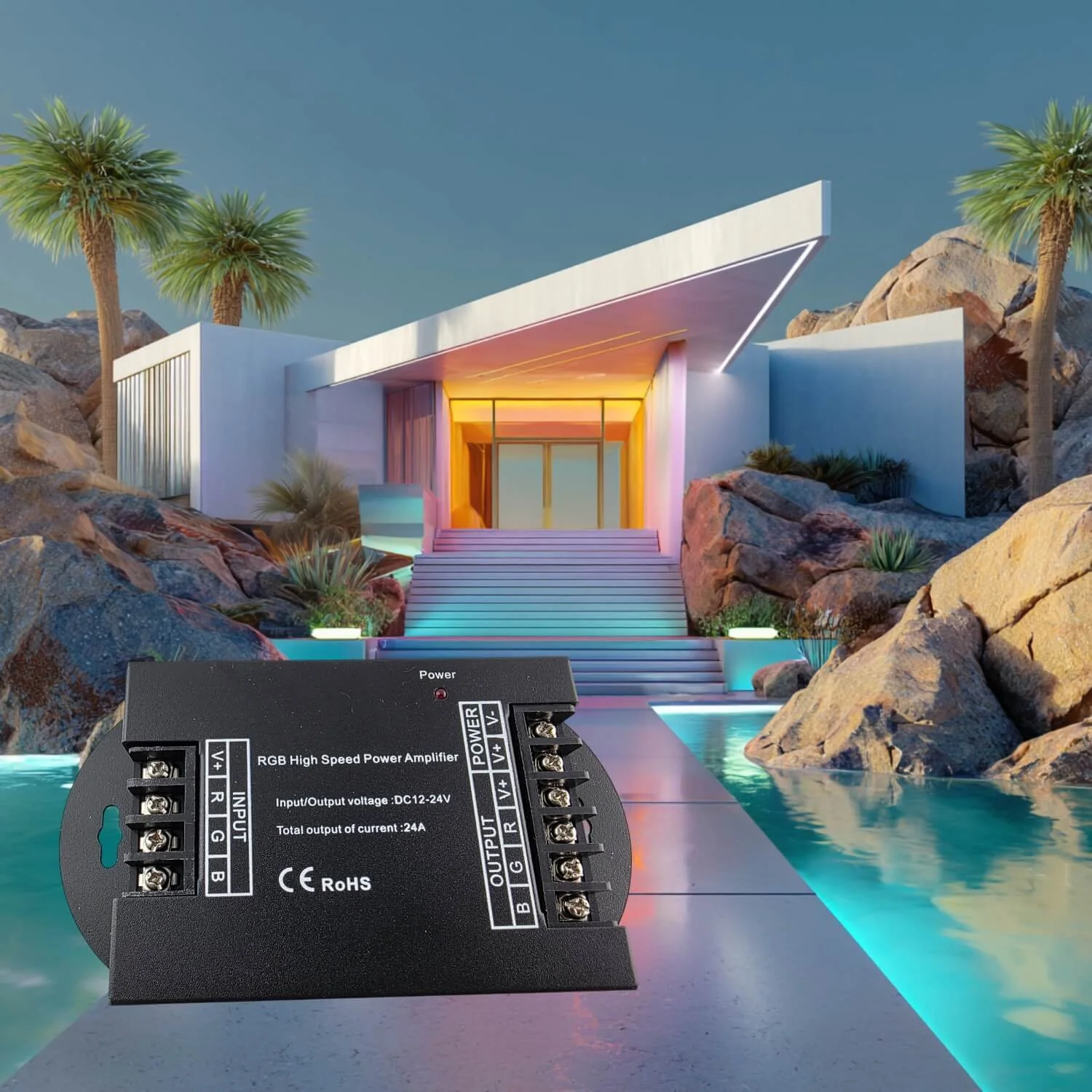

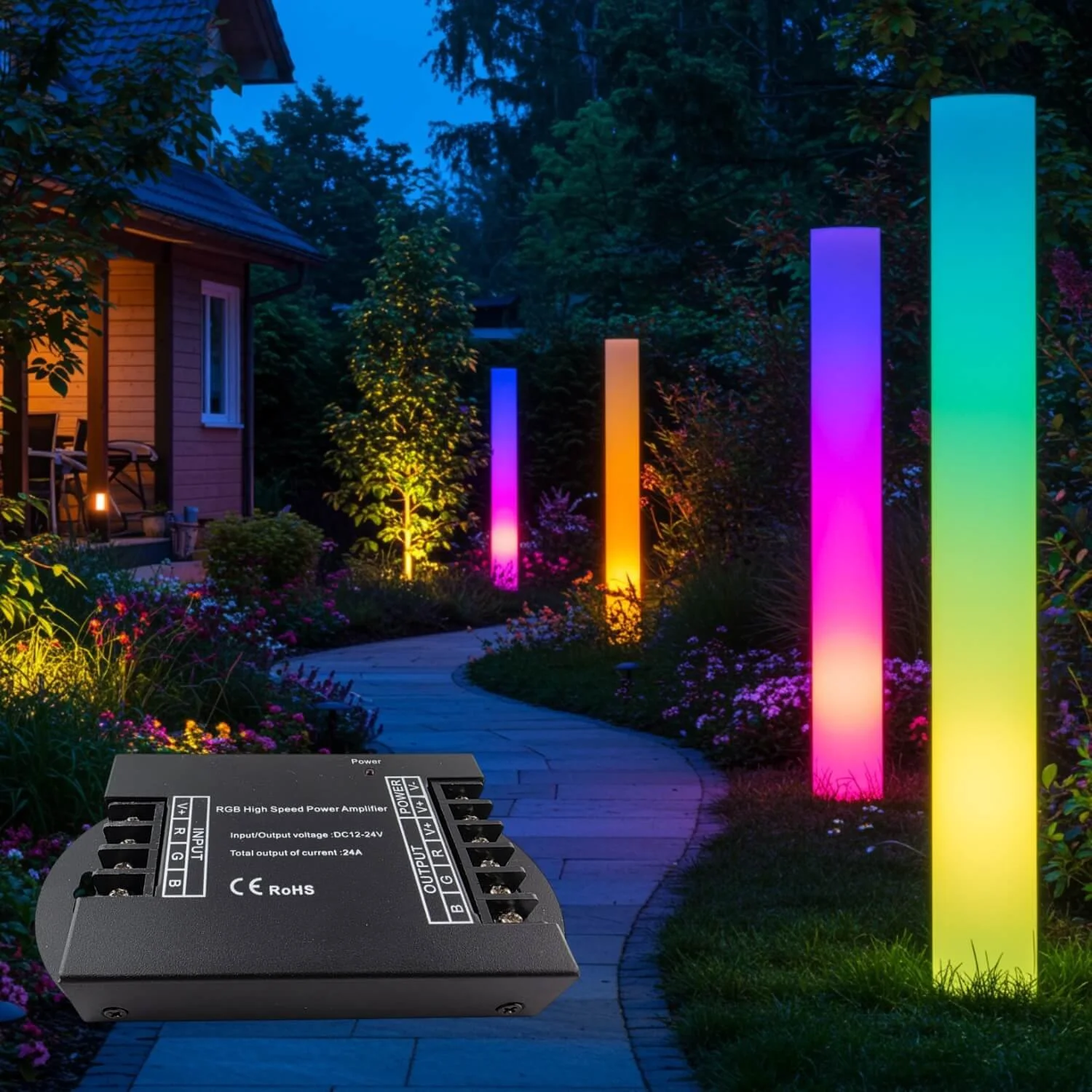

ENDIzLED-277 — RGB High-Speed Power Amplifier
- The ENDIzLED-277 is an RGB high-speed power amplifier designed to expand the output capacity of PWM LED controllers. It boosts PWM dimming signals so you can drive more LED strips or higher-power RGB fixtures while keeping color synchronization across cascaded amplifiers.
- Ideal for installations where a controller’s native output current is insufficient: retail displays, architectural cove lighting, stage edge strips, or multi-run LED projects.
Key features
- Amplifies RGB PWM (common-anode) signals to support larger LED loads while preserving timing and color sync.
- Fast response / very low delay time for smooth cascaded operation.
- Built-in status LED to indicate incoming power.

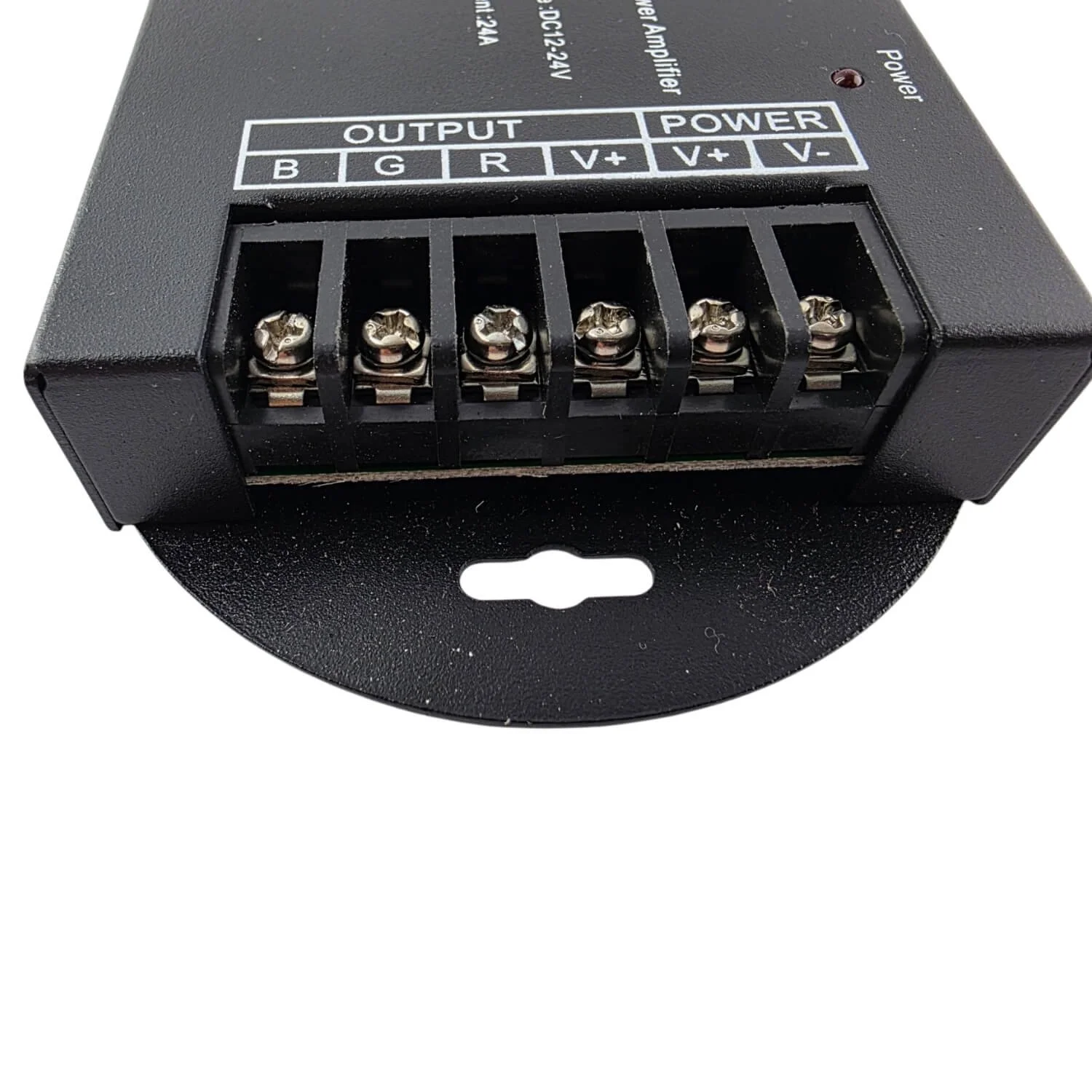

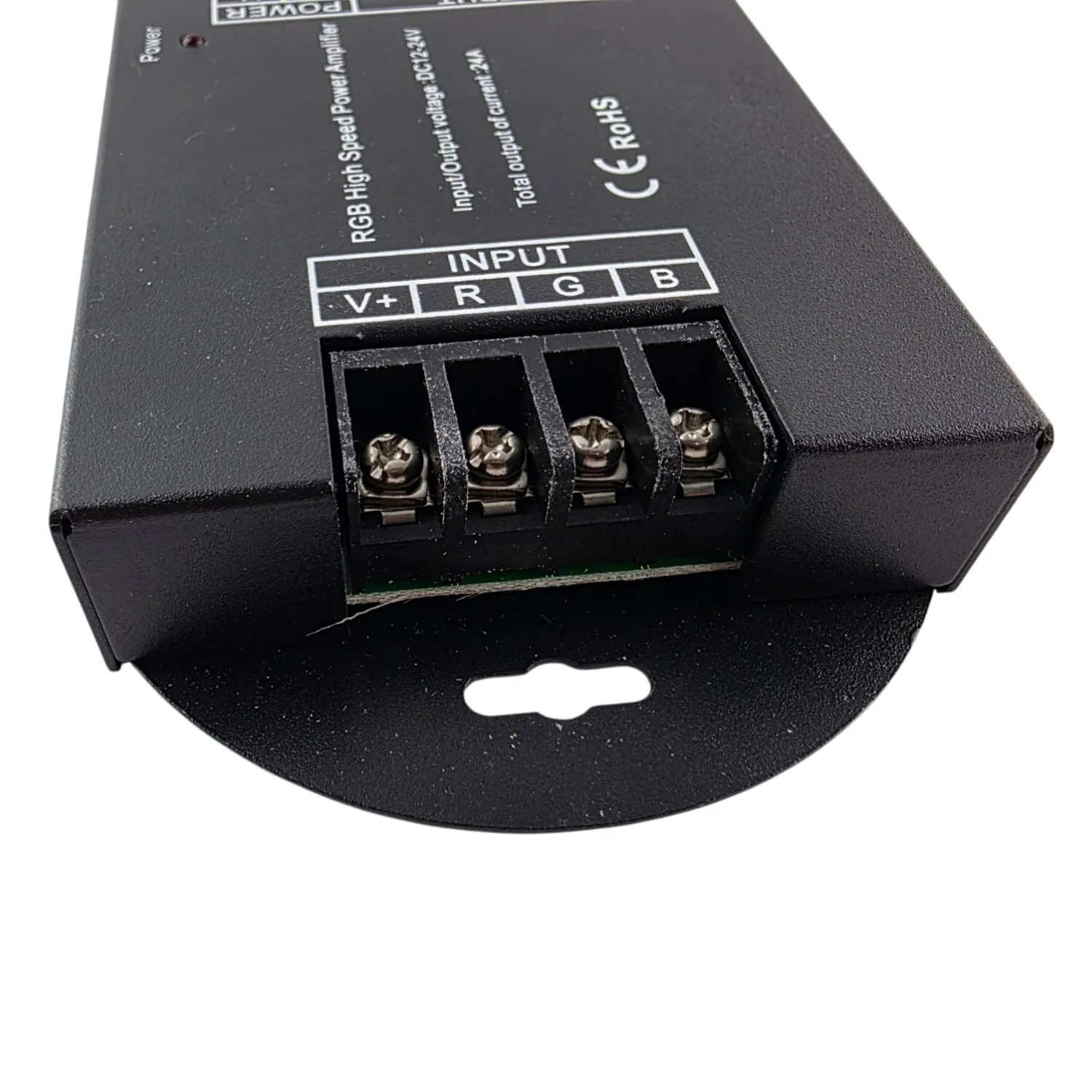

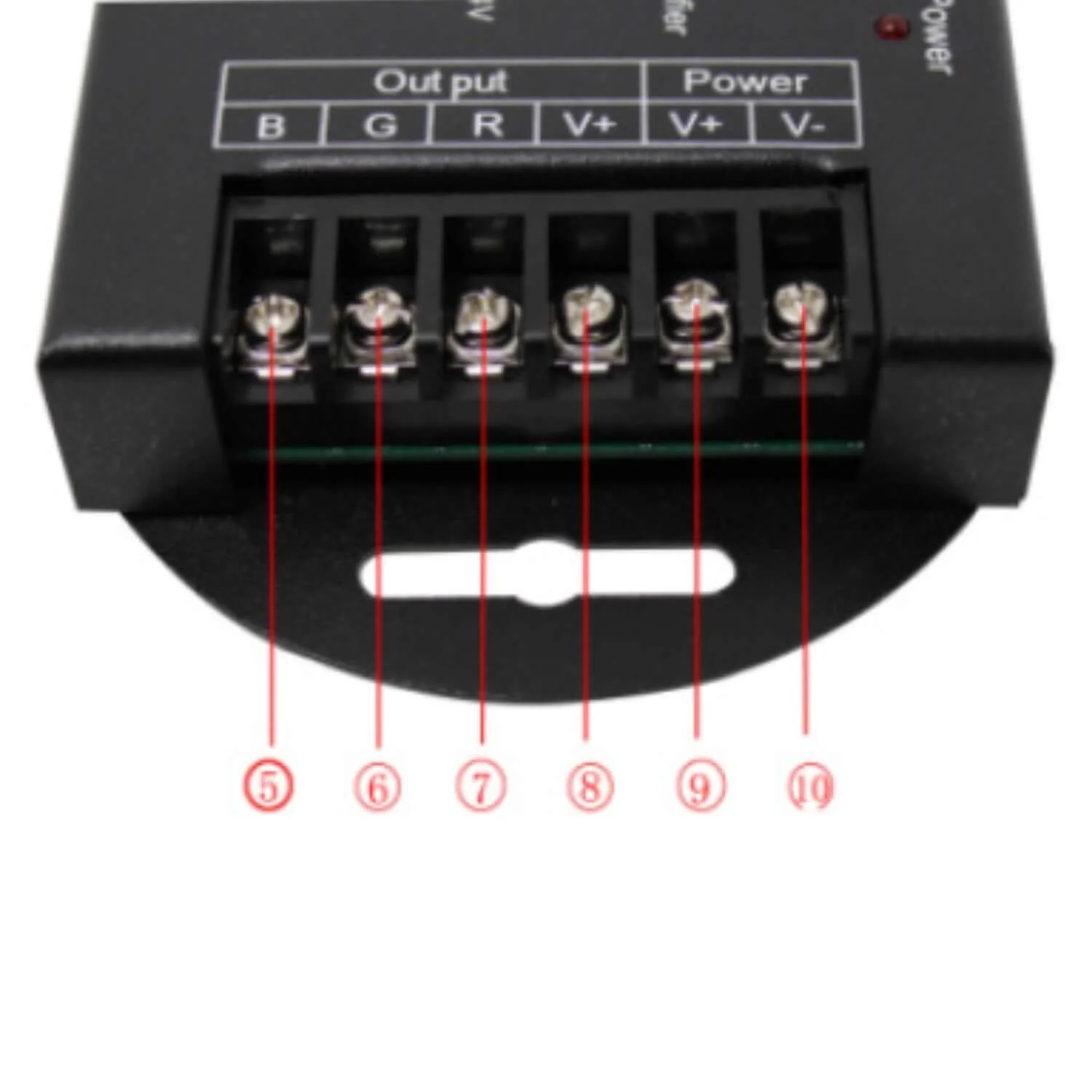

- Screw-terminal connections (7 mm terminal capacity) for secure wiring.
- Compact metal housing for easy mounting in equipment enclosures.

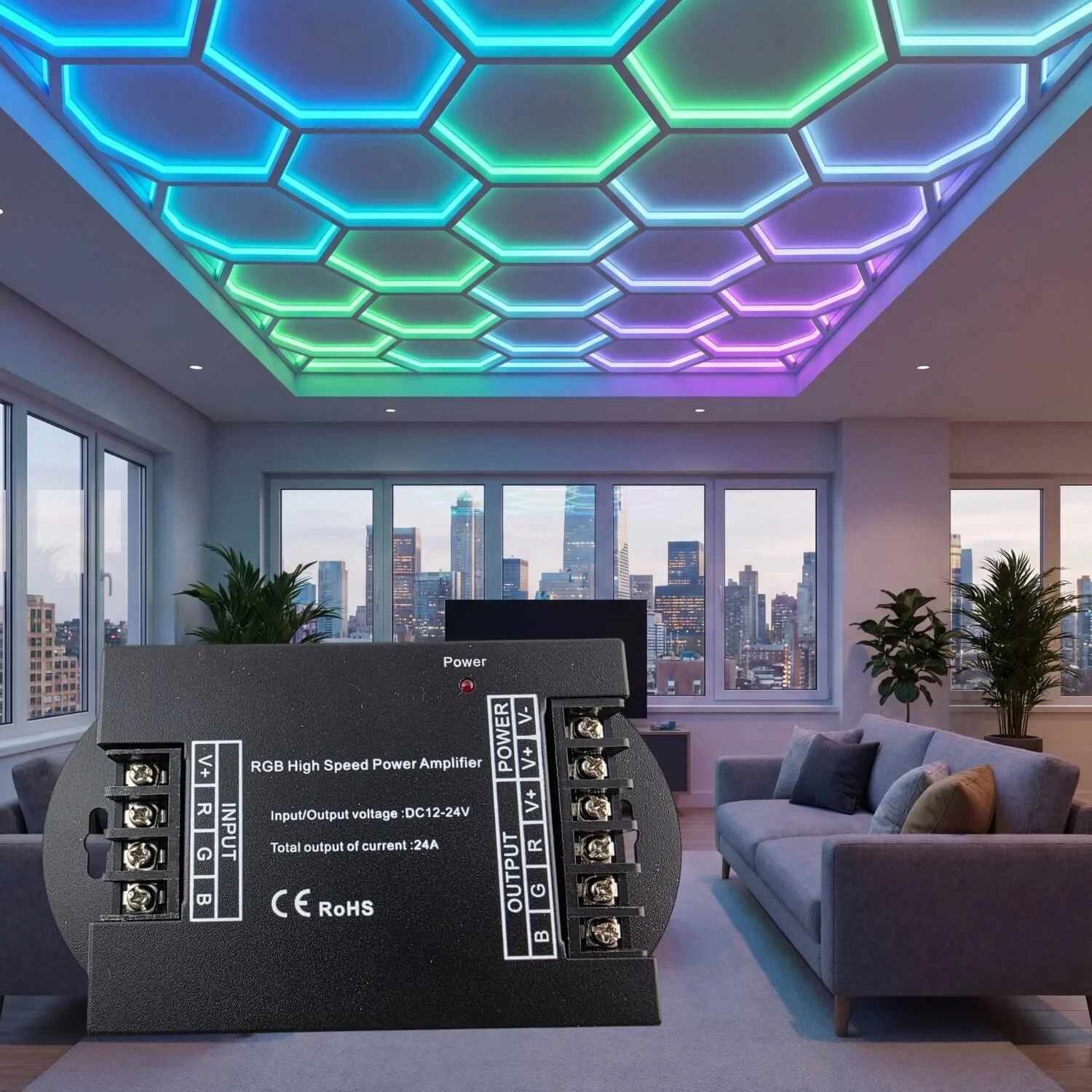

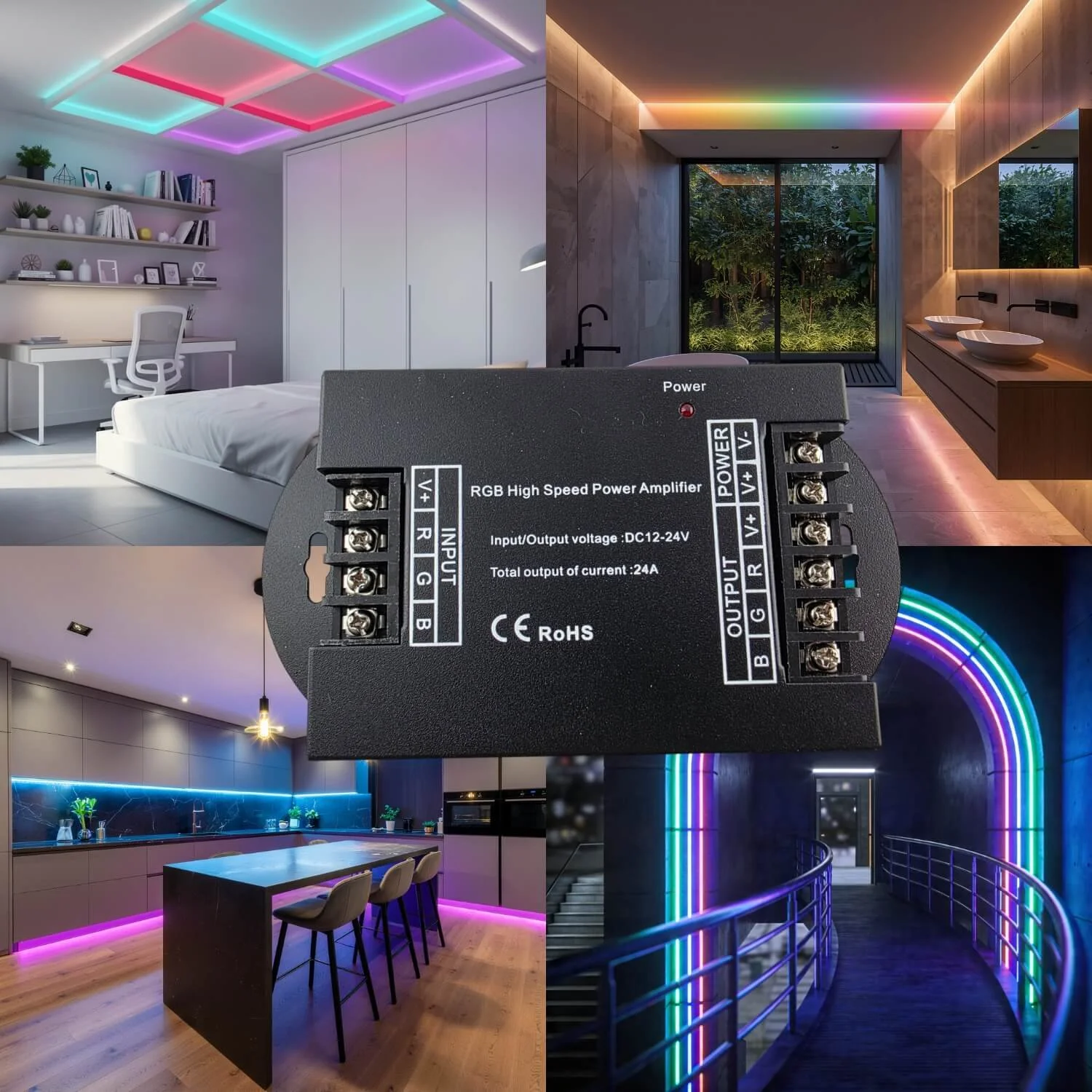

Applications
- Extending LED strip runs driven by a single PWM controller
- Driving multiple zones in retail and hospitality lighting
- Any project requiring increased current capacity while maintaining synchronized color output
Important wiring & installation notes
- This amplifier uses a common-anode connection. Make sure your controller and LED strips are compatible.

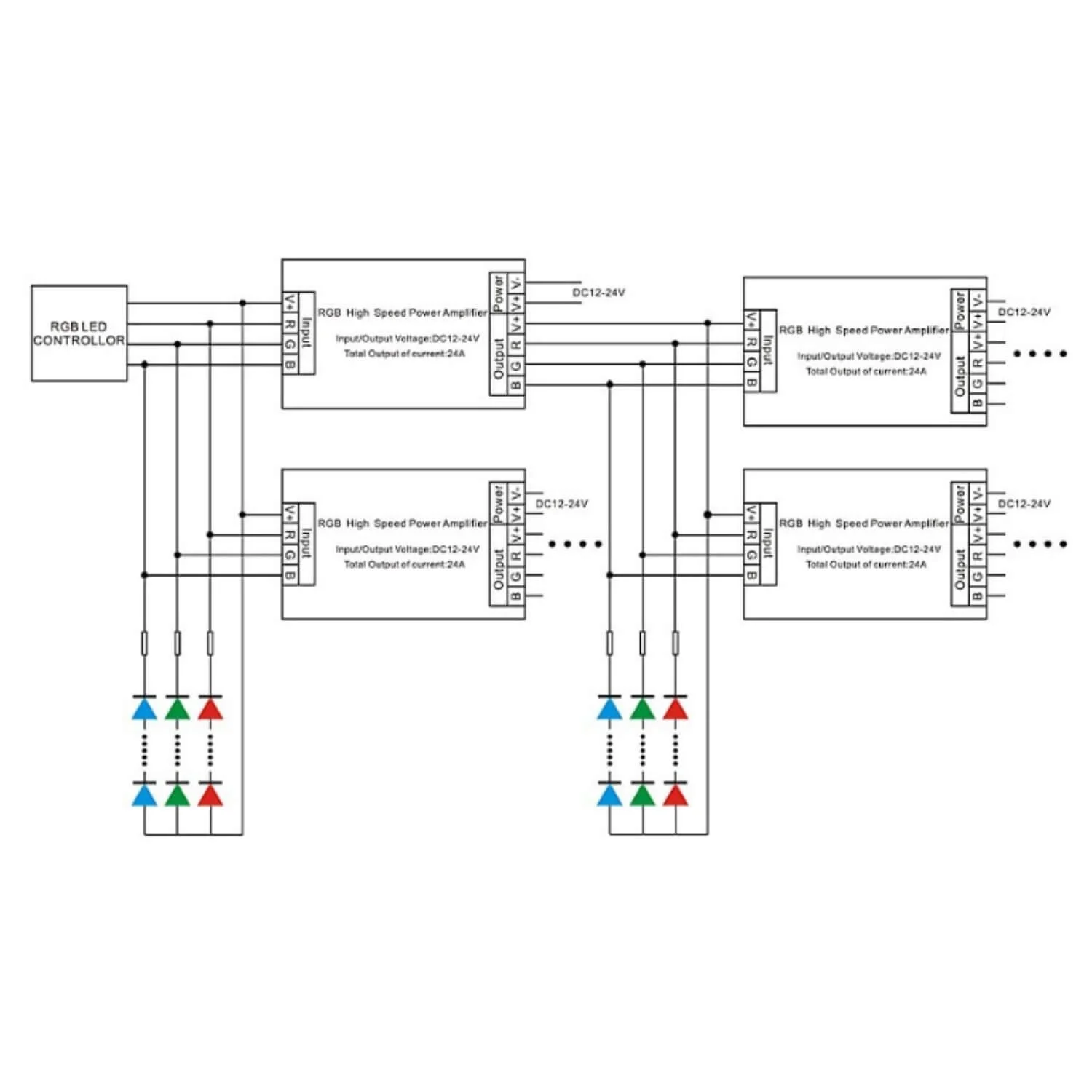

- Supply DC power (12–24 V) to each amplifier as shown in the wiring diagram; do not connect to other voltage types.
- Observe polarity and wiring colors per the diagram. Incorrect wiring can cause short circuits or damage.
- Each amplifier should have its own DC supply capable of handling the connected load; do not exceed per-channel or total current ratings.
- Non-waterproof — install in a dry location or appropriate enclosure if used outdoors.

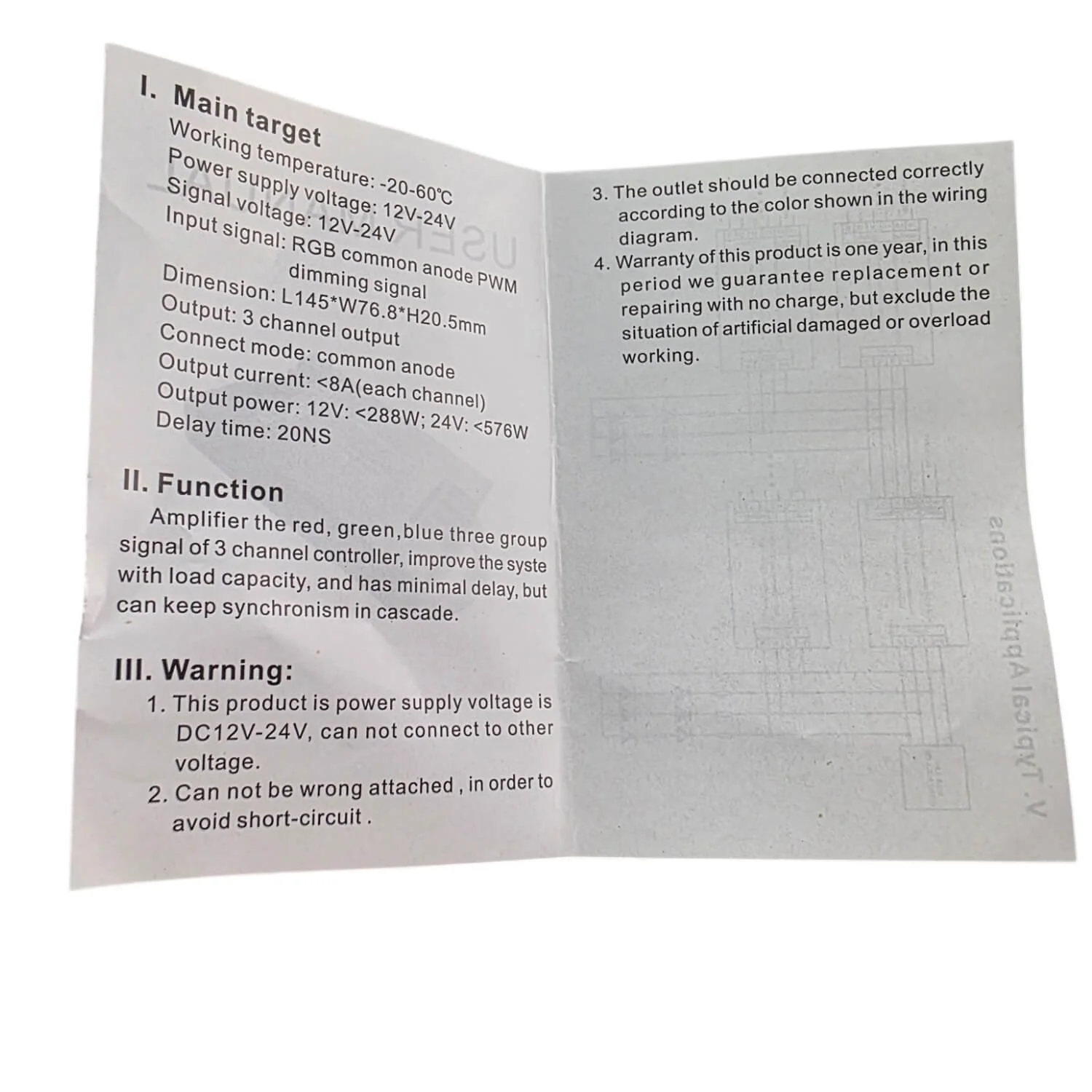

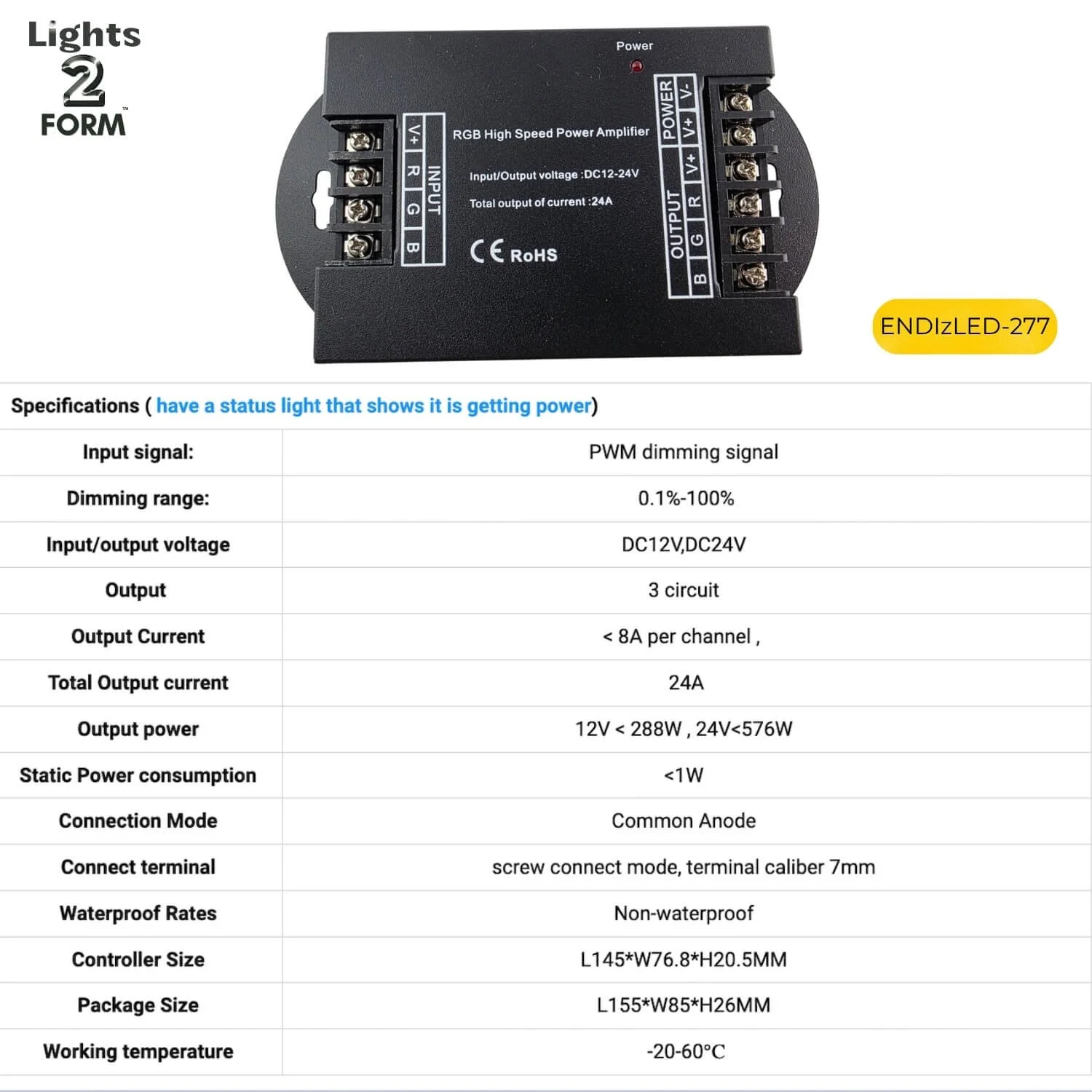

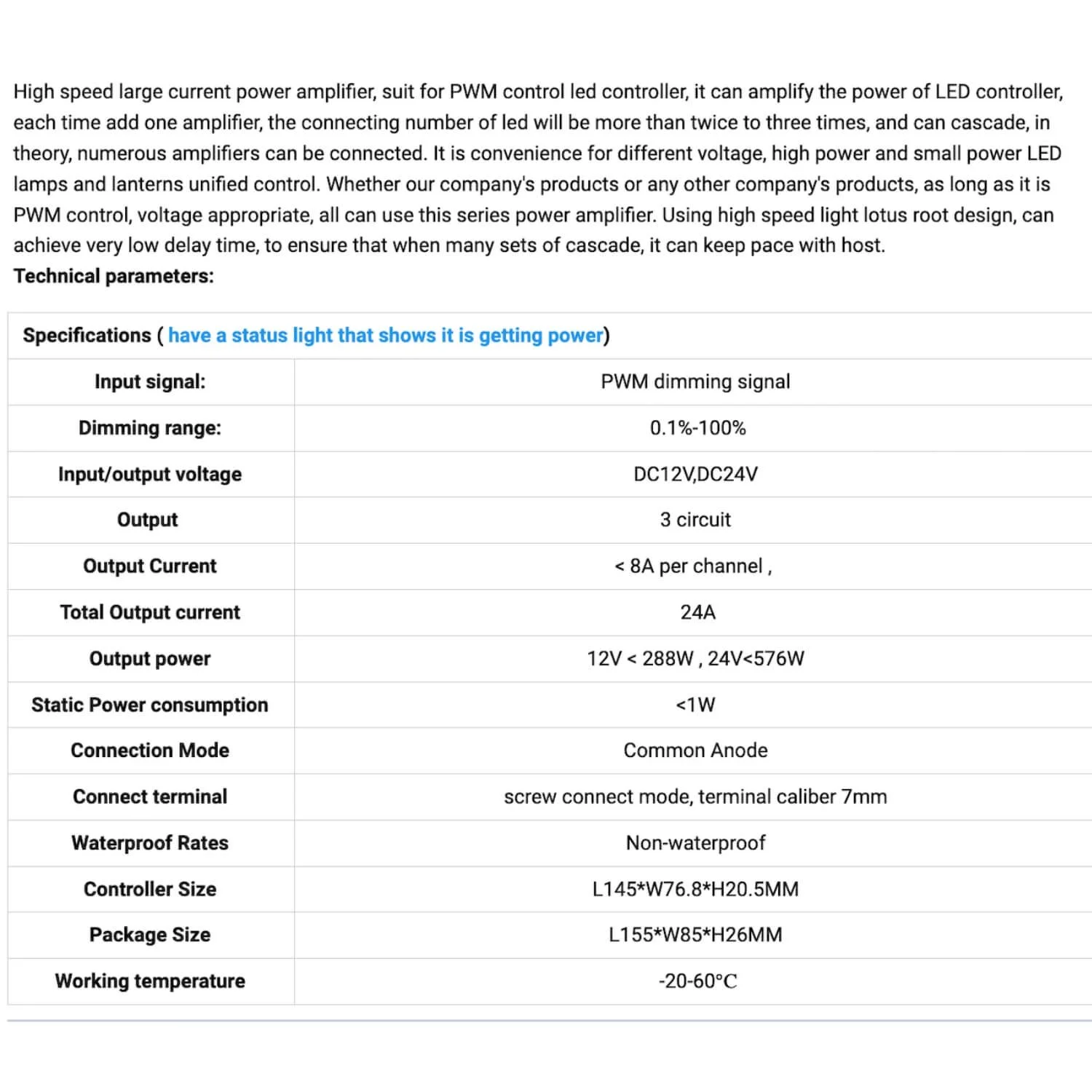

Technical specifications (quick reference)
- Input signal: PWM dimming signal (RGB common anode)
- Dimming range: 0.1% – 100%
- Input / output voltage: DC 12 V or DC 24 V
- Output channels: 3 (R, G, B)
- Output current: < 8 A per channel
- Total output current: 24 A
- Output power: 12 V < 288 W ; 24 V < 576 W
- Static power consumption: < 1 W
- Connection mode: Common anode
- Terminals: Screw connect (7 mm terminal capacity)
- Controller size: L145 × W76.8 × H20.5 mm
- Package size: L155 × W85 × H26 mm
- Working temperature: -20 °C to 60 °C
- Waterproof rating: Non-waterproof
Safety & warranty
- Do not connect to voltages outside DC 12–24 V.
- Avoid wrong connections to prevent short circuits.
- Warranty: 2 year (covers replacement/repair for defects under normal use; excludes damage from misuse or overload).
